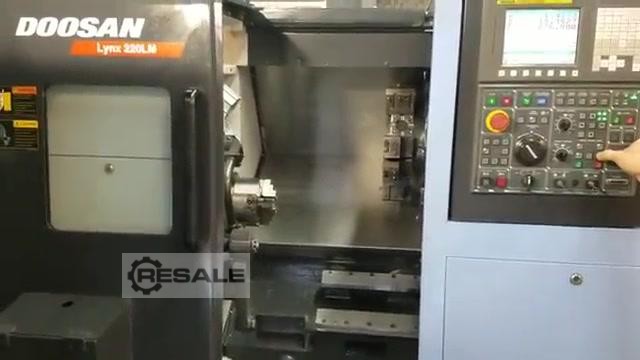

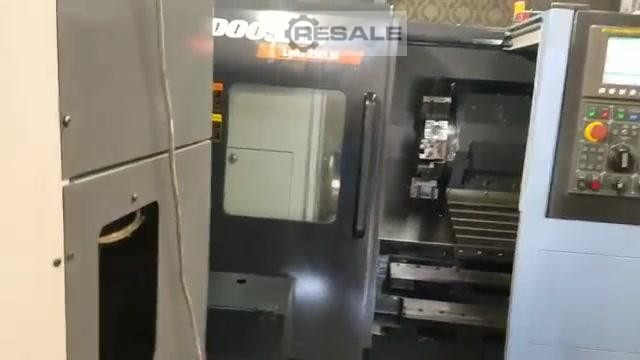

CNC Turning Centers DOOSAN LYNX 220LMA

SPECIFICATIONS:
Chuck Size... 6"

Max Diameter Bar Capacity.. 2"
Max Swing Over Bed / Carriage... 23.2" / 6.7"
Max Turning Diameter (Max / Std)... 9.84" / 6.7"
Max Machining Length. 20.1"
Main Motor... 20 / 15 HP
Tools 12 / 24
Spindle Speed. 60 - 6000 RPM
Spindle Bore 2.4"
Milling Motor 5 HP
Milling Speed.. 6000 RPM
Rapid Traverse Rates (X / Z).. 1181 / 1417 IPM
X-Axis Travel 17.7"
Z-Axis Travel ...13"
C-Axis Index... .001 Degrees
Turret Index (Single Step). 0.15 Seconds
Tailstock Taper.. MT#4
Machine Dimensions (L x W x H) 144" x 63" x 65" L6163629
Machine Weight 7275 L6163629 lbs.
FEATURES:
FANUC i Series
10.4" Color LCD
PC / MCIA Interface
C-Axis Milling Capability

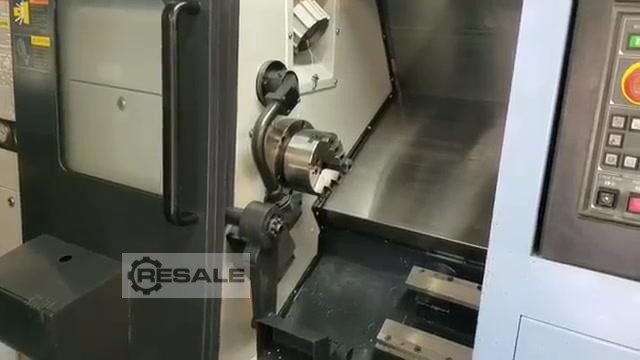

6" Samchully MH-206 Hydraulic Chuck
Auto Parts Catcher
Tool Presetter

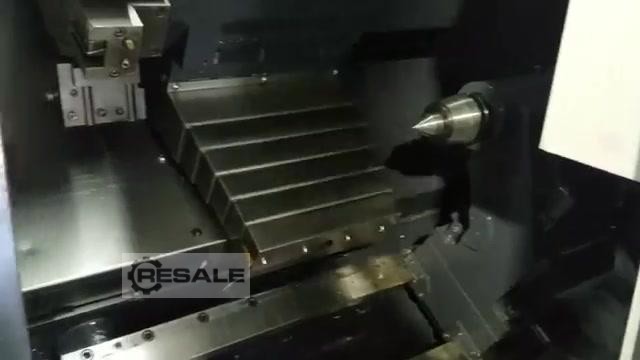

Tailstock with Programmable Quill
Chip Conveyor
seller offer No. resale 168638509
