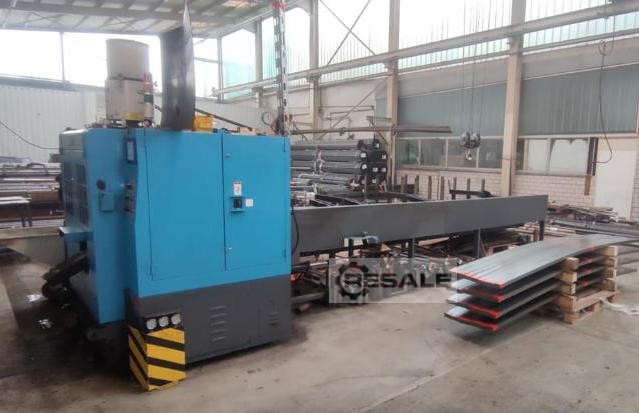

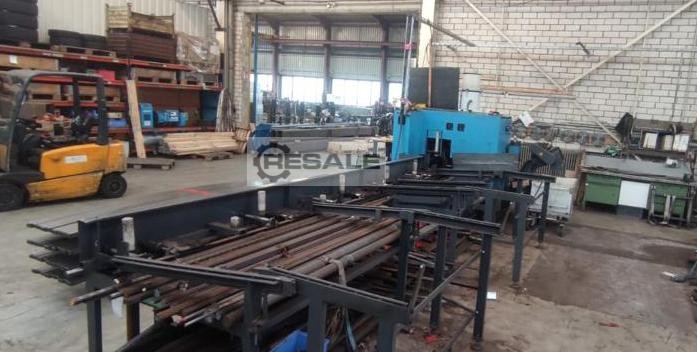

Circular Sawing Automatics DOALL TC-75NC

The machine is from the year of construction 2014/6 (demonstration machine) Commissioning was in 2017

Cutting range round – 75 mm
Rectangle – 60 mm
Saw blade dimensions approx. ø 285 x 2.0 (D) x 1.7 (t) mm
T = Waste; t = strength ; Hole 32; 4x11 at 63 mm
Blade speed inverter monitors 30- 150 rpm
Blade motor 7.5 kW
Hydraulic system 1.5 kW
Coolant system Oil mist lubrication
Blade feed system servo motor and ball screw
Material support 1,200 x 5,200 mm
Bar feed: servo motor and ball screw
Automatic index single stroke 6 – 600 mm
Multiple stroke up to 3,000 mm
Automatic Chip Conveyor Chain Conveyor
Machine I5121380 weight, incl. table 2,800 I5121380 kg
Length tolerance +/- 0.1 mm
Cutting accuracy +/- 0.1 mm
Remnant Standard 75 mm
Loading capacity 13 x ø 75 mm rods
Max loading width. 1,000 mm

Accessories: Chip conveyor, air purification, loading magazine

(still under power in production)
seller offer No. resale 167960892
