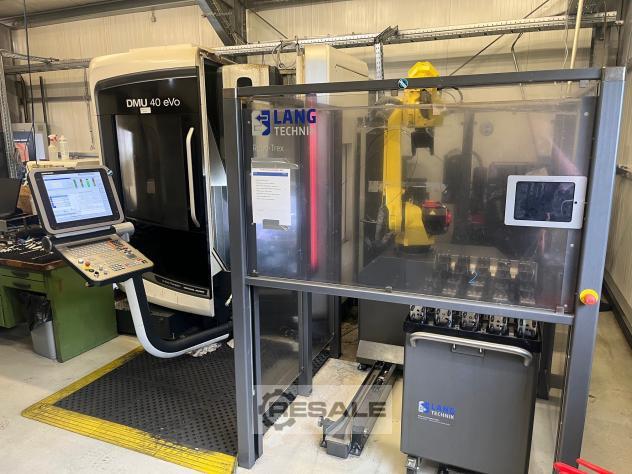

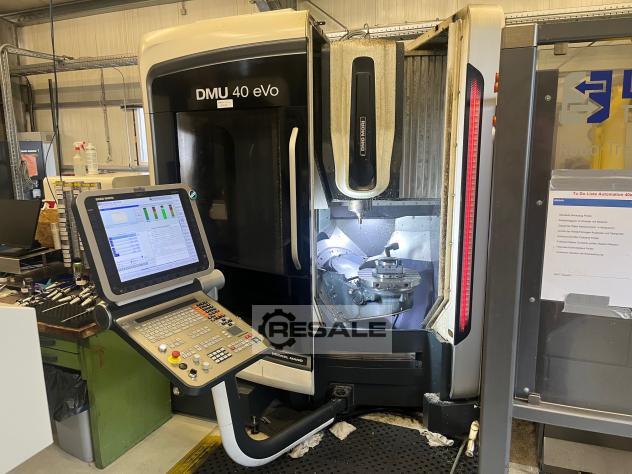

Universal processing centres DMG MORI DMU 40 eVo

Year of construction: 2017
CNC controller: Heidenhain TNC 640
Axes
X-axis travel mm: 400
Y-axis travel mm: 400
Z-axis travel mm: 375
C-axis degrees: 360º (0,001)
B-axis degrees: -5 / +110º
Milling/turning table nc:

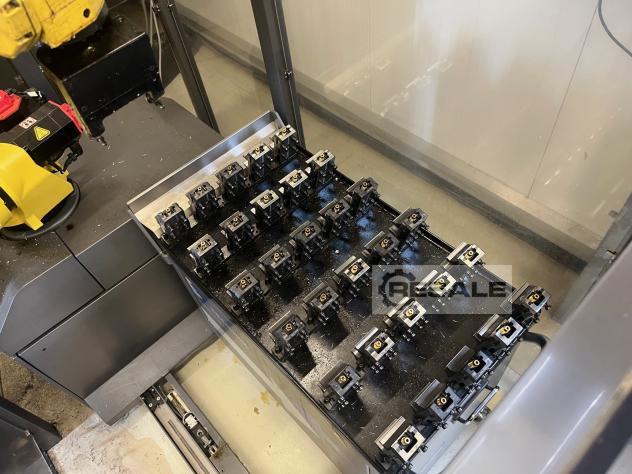

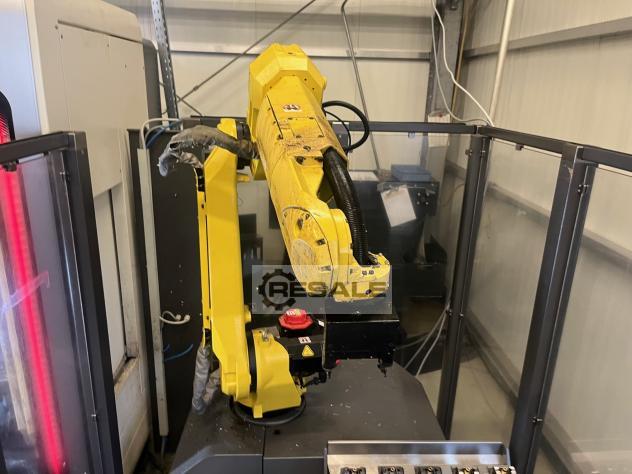

Number of pallets: 30 places with robot
Table dimensions mm: 450x400
Max. workpiece weight kg: 250
Spindle
Spindle speed rpm: 20000
Spindle drive power kW: 35/25 (40%ED/cont)
Spindle torque Nm: 130/86
Cooling
Cooling through the Spindle Center bar: 40
Tank capacity: 600
Tool system
Tool holder: HSK-A 63
Tool magazine slots: 60
Tool changer: Double gripper
Equipment
Chip conveyor
Infrared probe
Rinsing gun
NC swivel rotary table
Preparation for 351248314 the use of the 3D 351248314 quickSET
Laser tool measurement for measuring tool length and diameter
Direct measuring system XYZ
Spindle active cooling unit
MPC – Machine Protection Control
Prepareted for automatation via M65
Paper band filter

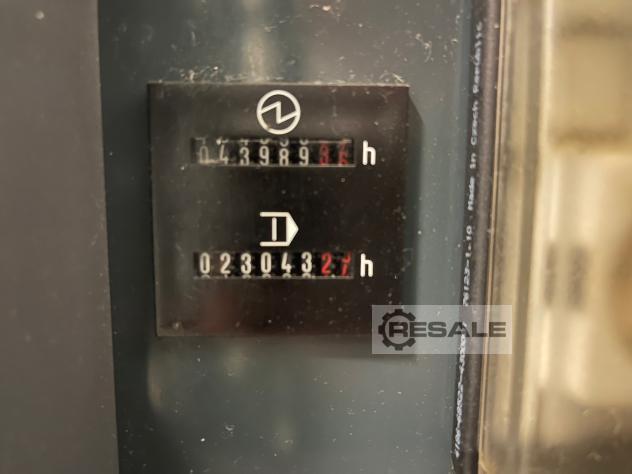

Machine running times
Under power: 43989
Spindle Working: 23043

seller offer No. resale CNC0679
