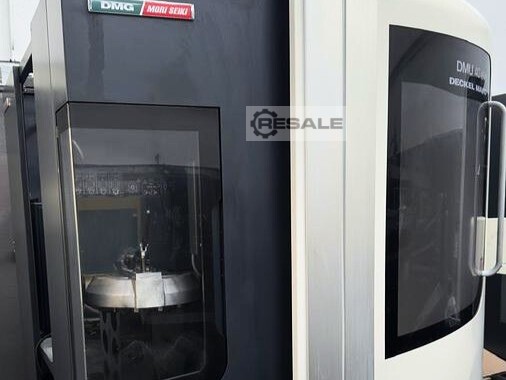

Numerically Controlled Machining Centres DMG MORI DMU 40 eVo

metal working machines / boring mills and machining centers / Numerically Controlled Machining Centres

Manufacturer: DMG MORI

Model:DMU 40 eVo

Type of machine: Numerically Controlled Machining Centres

item-No.: 168731450

Quantity: 1

Date: 16.02.2026

Year of manufacture: 2012

Operating hours: 24864

Location: Land-de Germany

Price:


Machine in stock:No

Seller-item-No.:CNC0682

Year of construction: 2012
CNC controller: Heidenhain iTNC 530
Axes
X-axis travel mm: 400
Y-axis travel mm: 400
Z-axis travel mm: 375
C-axis degrees: 360º (0,001)
B-axis degrees: -5 / +110º
Distance spindle nose - table surface mm: 125-500
Feed rates m/min: 50
Rapid traverse m/min: 80

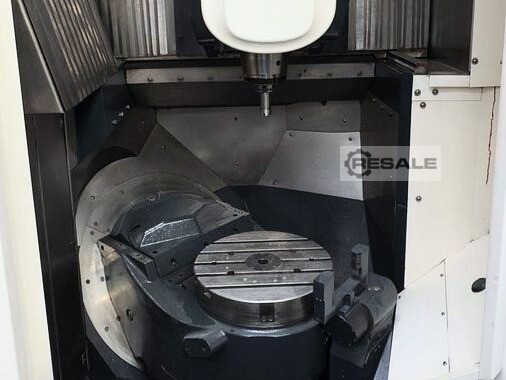

Milling/turning table nc:
Number of pallets: 1
Table dimensions mm: 450x400
Maximum workpiece size (D x H) mm: Ø380
Max. workpiece weight kg: 2500
Table rotation speed rpm: 1200
Spindle
Spindle speed rpm: 18000
Spindle drive power kW: 35/25 (40%ED/cont)
Spindle torque Nm: 130/87
Cooling
Cooling through the Spindle Center bar: 40
Tool system
Tool holder: HSK-A 63
Tool magazine slots: 30
Equipment
Chip conveyor
Infrared probe
blowing 36248314 air through spindle center selectable via M-function
Oil skimmer
Ready for internal cooling (40/80 bar)
RENISHAW Measuring probe

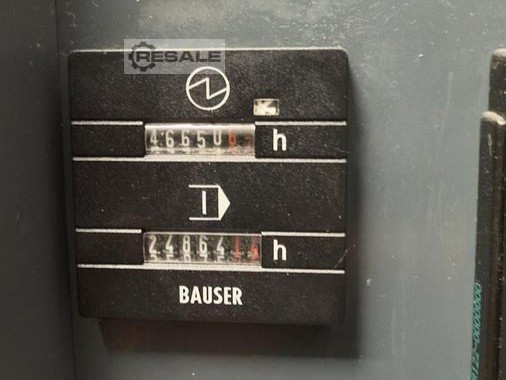

Machine running times
Under power: 46650
Spindle Working: 24864
Rated power kVA: 46
Basic machine dimensions / weight
Length mm: 1970
Width mm: 2730
Height mm: 2480
Weight kg: 6900
