dmg machining center used for sale

CNC Turning and Milling Center DMG CTX GAMMA 2000 TC (spindle hours may increase slightly). The machine is equipped with an automatic steady rest from SMW AUTOBLOK, a three-jaw chuck (manufacturer SMW, diameter: 300 mm), additional clamping jaws, another jaw chuck, as well as a chip conveyor and coolant system. Transport warning: Caution: the machine can be transported on a truck up to 3000 mm wide. Additional technical specifications: • Spindle distance: 2260 mm • max. workpiece weight chuck parts/chuck weight: 250/150 kg • max. workpiece center of gravity from spindle flange: 250 mm • Travel path Z2: 1910 mm • Travel path Z3: 1910 mm • Steady rest clamping range DW: 45 - 310 mm • Steady rest width C: 145 mm • Spindle flange diameter: 220 H 5 mm • Front bearing diameter: 160 mm

The machine is equipped with a tailstock, a three-jaw chuck, a chip conveyor, and a coolant system. Attention: spindle hours may increase slightly! Additional technical specifications: • Nominal voltage: 125 A • Spindle distance: 1020 mm • Max. workpiece weight chuck parts/chuck weight: 100 kg • Max. workpiece center of gravity from spindle flange: 120 mm • Travel X1: from -10 to 490 mm • Travel Y1: +-100 mm • Travel Z2: 600 mm • Travel Z3: 800 mm • Spindle flange diameter: 220 H 5 mm • Front bearing diameter: 160 mm • Slide rapid traverse speed Z-axis: 40 m/min • Path resolution Z-axis: 0,001 mmm • B-axis max. swivel speed: 70 rpm • Angular resolution: 0,001° • Quill force: 8 kN

The machine is equipped with a sub-spindle (equipped with a 3-jaw chuck SMW AUTOBLOK, diameter: 210 mm) as well as a 12-station tool turret, incl. driven tool stations, as well as an SMW AUTOBLOK 3-jaw chuck, diameter: 250 mm, plus chip conveyor, filter extraction, documentation and CDs. Additional technical specifications: • Bed inclination: 45° • Bed diameter: 700 mm • max. slide diameter V1 to V3: 500 mm • in the front workpiece diameter: 320 mm • centre length: 1450 mm • Travel Z3-axis: 1200 mm • Spindle height axis to floor: 1043 mm • Drawbar diameter: 81 mm • Front bearing diameter: 130 mm • Resolution axis C1: 0.001° • max. weight between centers: 500 kg • Distance between two spindle noses: 1495 mm • Z1 axis travel: 1200 mm • max. workpiece length: 1140 mm • max. workpiece diameter: 450 mm • Bar capacity of sub-spindle: 50 mm • Bore diameter o ...

The machine is equipped with a tailstock and a 12-station tool turret, incl. the tool holders located in the changer, plus a 3-jaw chuck SMW AUTOBLOK, diameter: 300 mm, incl. chip conveyor and filter extraction system as well as documentation. Additional technical specifications: • frequency: 50/60 Hz • Diameter in the front bearing: 140 mm • Feed drive in X and Z-axis: 40 x 10 mm • Feed forces X/Z: 7.5 kN • Y-axis feed force: 7000 N • rapid traverse of C1-axis: 100 m/min • Position measuring system X/Y/Z: absolute rotating • Positioning uncertainty X: 0.008 mm • Positioning uncertainty Z: 0.010 mm • Working area axis distance: 1150 mm • Swivel range over X slide: 465 mm • Swivel range over bed: max. 680 mm

Management Heidenhain MillPlus IT Travel distances X/Y/Z: 730 x 510 x 510 mm Spindle speed: 12,000 min-1 Tool magazine for 60 Wkz., SK 40 NC rotary table integrated in rigid table d 600 mm / 1000 mm x 600 mm Controlled NC swivel milling head (B-axis) incl. hydraulic clamping Swivel range -120/+30° 3D quick SET Production package 40 bar/23 l/min (theor. Pump capacity)Tank 600 l Paper Belt Filter rotating viewing panel Chip conveyor

CATEGORY - 5-Axis BRAND - DMG MORI MODEL - NT 5400/1800 SZ DCG WAREHOUSE NO - ONY100000580 YEAR OF MANUFACTURE - 2007 CONTROL UNIT - MSX-701 III AXIS TRAVELS - X1 1,040 MM / X2 267 MM / H ± 255 MM / Z1 1,940 MM / Z2 1,830 MM ROTARY AXIS MOVEMENTS - B ±120° / C 360° MAX. TURNING DIAMETER - 920 MM MAX TURNING DIAMETER - 470 MM MAX TURNING LENGTH - 1.921 MM SPINDLE - 1 SPINDLE SPEED - 2,400 MIN/-1 MIRROR SIZE - 450 MM ROD DIAMETER - 107 MM MAIN SPINDLE SPEED (S1) - 8,000 MIN/-1 HOLDER TYPE - CAPTO C8 SPINDLE - 2 COUNTER MIRROR REVOLUTION - 2,400 MIN/-1 MIRROR SIZE - 450 MM TURRET-2 NUMBER OF HOLDERS - 10 MACHINE WEIGHT - 36.000 KG MACHINE EXTERNAL DIMENSIONS - 4.50 X 6.61 X 3.46 M

Number of tool positions: 30 Spindle power: 14 kW Spindle speed: 14,000 [rpm] A-axis travel: 360 [°] (+/-) Indexing accuracy: 0.001 [°] Stroke: -10 / +95 [°] Indexing accuracy: 0.001 [°] Tool Changer Type : Loader Arm Table load capacity : 350 [kg] Auction-ID: A7-32339-12

Machine is already in storage Including: LNS Quick Load Servo GLS80 S2 Bar Feeder Royal Products Rota-Rack Various Tools Auction-ID: A1-47360-50

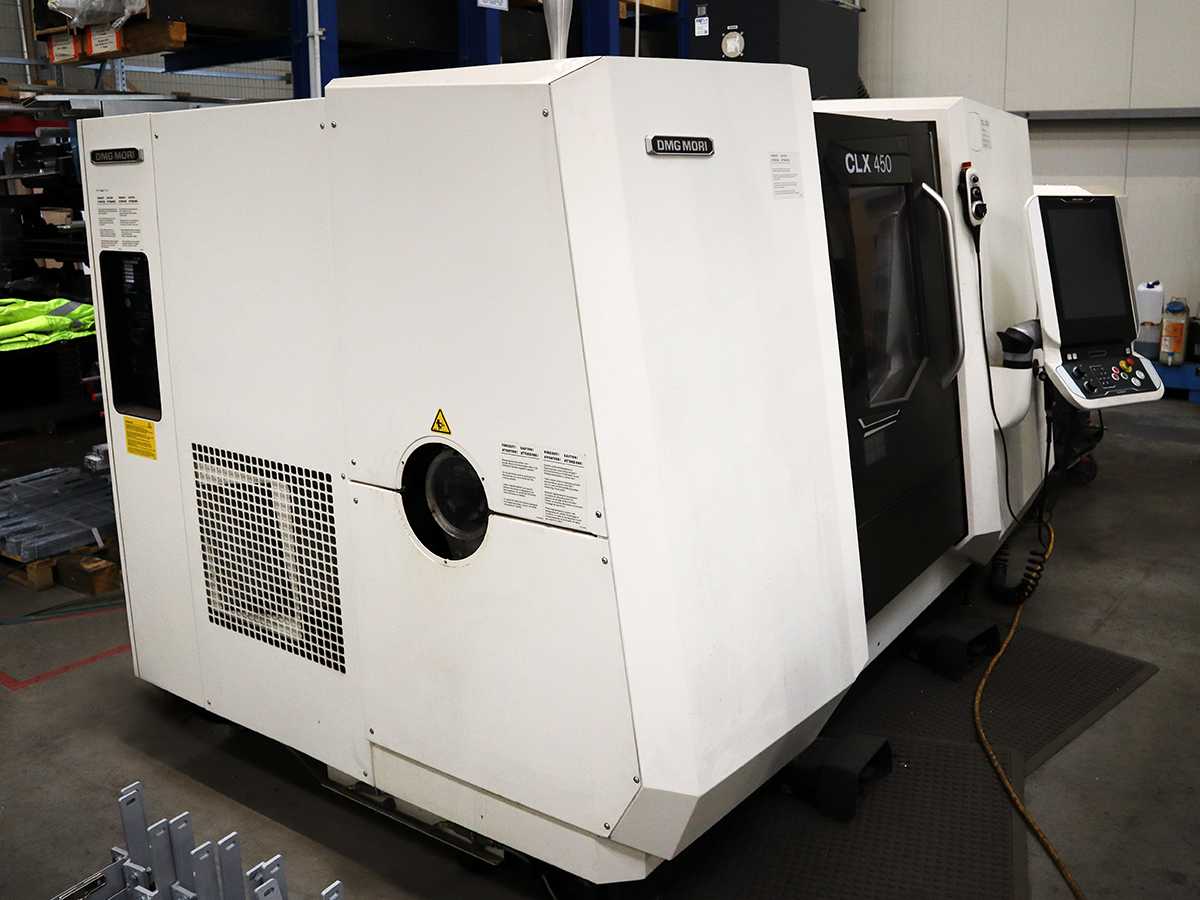

Technical data: Manufacturer: DMG MORI Model: CLX 450 V4 Year of manufacture: 2023 Control: SIEMENS Operate 4.7 on SLIMline® Multi-Touch (19\") Main spindle: A2-8, 17 / 25.5 kW, max. 4,000 rpm C-axis and Y-axis (±60 mm) 12-fold servo turret VDI 40 with 12 driven tool stations and 6 BT stations Max. bar passage: 80 mm Direct position measuring system in X and Y axes Hydraulically movable tailstock External Electronic Handwheel DMG MORI IoTconnector Special equipment: Hydraulic 3-jaw chuck SMW KNCS-N 225 with quick-change system (Ø66 mm passage) Automatic NC tailstock with programmable compression force (1.4–8.0 kN) incl. foot pedal High-pressure coolant system 12 bar with double filter system Coolant spray gun (5 bar) Mechanical oil mist separator AFS 600 (600 m³/h, filter class H13) Coolant/compressed air switchover via turret head DXF import for SIEMENS cont ...

oven 850 t max 800 C with air circulation inner dimensions 1x1x2m (possible various size) PLC Herdwage n Glühöfen Kammerschmiedeöfen Wärmebehandlungskammeröfen Wärmebehandlungs Kammeröfen für ALU-Blechcoils Wärmebehandlungs Schachtöfen Haubenöfen Härten Anlassen bei niedriger und hoher Temperatur Glühen Normalglühen Austenitisieren Spannungsfreiglühen Vorwärmen vor dem Schmieden Rollenherdöfen Kontinuierliche Öfen für die Wärmebehandlung von Nichteisenmetallbändern Anlage für Wärmebehandlung von Wagenfahrgestellgüsse Öfen für die Wärmebehandlung von Transformatorblech Warmrundlaufprüfanlagen Öfen für Feuerwiderstandsprüfungen Hubbalken und Hubherdöfen Poreba Gurutzpe Tacchi Geminis Tos Amutio cazeneuve Skoda Morando Niles Colchester Heyligenstaedt Kramatorsk Mondiale Safop Cazeneuve Alzmetall mas stankoimport csepel carlton kolb soraluce ber ...

Durchlauftrockner Elektroindustrieof en Elektroöfen Erwärmungsöfen Gasöfen Gastrockner Industrieöfen Industrietrockner Kammeröfen Kammertrockenöfen GMH GussGmbH Kammertrockn er Öfen Ölofen Pulverbeschichtungstrockner Pulvereinbrennöfen Schachtöfen Schlichtetrockner Sinteröfen Sonderofen Sondertrockner Temperöfen Tro ckenöfen Trockn er Trockneranlagen Vorwärmofen Wärmebehandlungsöfen Wärmeofen gienanth Wärmeprozessöfen trompetter-guss Warmhalteofen Partner buerstlein-guss heunisch-guss swt-guss Warmluftofen Verkäufe Drehmaschinen Fräsmaschinen Bohrmaschinen gienanth Schleifmaschinen Erodiermaschinen Sonstige Maschinen Kaufgesuche Drehmaschinen Fräsmaschinen begalom Bohrmaschinen Schleifmasc inen Erodiermaschinen Sonstige Maschinen Keramik-, Porzellan- und Smaltenherstellung und -bearbeitung Glasherstellung und Glasverarbeitung Smaltenherste lung und -b ...

Heat Treatment of A356 Aluminum Castings to T5 and T6 Hardness AMS 2750E standard Ovens Chamber Furnaces Laboratory Furnaces Industrial Furnaces Ashing Furnaces Annealing Furnaces Tube Furnaces Vacuum Furnaces Furnace heat treatment normalizing, preheating, austenitizing, pearliting, ferriting or softening. From electrically or gas heated melting furnaces, dewaxing furnaces or core drying furnaces to fully automatic annealing plants for aluminum or steal, covers professionally all applications for the foundry industry. Melting and Holding Furnaces melting furnaces Cleaning Furnace for Riser Tubes, Electrically Heated Forced Convection Furnaces Drop-Bottom Furnaces Electrically Heated or Gas Fired Quench and Tempering Plants for Steel Quench Tanks Chamber and Bogie Hearth Furnaces Catalytic and Thermal Post Combustion Systems Continuous Operation Furnaces Temperature Uniformity and Sy ...

All spare parts available electrically electric Dialogue 1,2,3,4 Contour 1,2,3 Dialogue 11

Used Auction-ID: A1-49926-30

DMG MICROSET - ECO 1 Offer details Stock number 1039-9431 Machine Type Tool Presetter Manufacturer: DMG MICROSET Type ECO 1 Year of construction 2003 Country of origin Germany Additional information tool presetter DMG Microset - ECO 1 Technical details Travel - x 180 mm Travel - z 370 mm Total weight approx. 65 kg Space requirement approx. 2.0 x 1.2 x 2.0 m Auction-ID: A7-49608-30

defective incl. chip conveyor BMF SPE 63/30 225-Z60 Auction-ID: A1-49926-59

Auction-ID: A1-47360-54

The milling center DUGARD EAGLE 660 was produced in 2005. The vertical machining center has a reconditioned spindle with a tool haul change - a rod, springs and a gripper. Technical parameters of the CNC milling machine: - CNC controller: SIEMENS SINUMERIK 810D ShopMill - workpiece probe - tool probe Worktable : - table dimensions: 810 x 510 mm - maximum table load: 500 kg - T-slot, quantity: 5 mm - T-slot, size: 18 mm - T-slot, spacing: 100 mm Processing field: - X axis travels: 660 mm - Y axis travels: 530 mm - Z axis travel: 510 mm - distance of the spindle tip to the axis of the table: 150 ~ 660 mm - distance of the spindle axis to the column: 585 mm Spindle: - spindle taper: ISO 40 - constant spindle power: 11 kW - spindle power 30 min. : 15 kW - spindle speed range: 80 ~ 8000 rpm. Rapid feeds: - X axis travel: 30 m / min. - Y axis travel: 30 m / mi ...

MORI SEIKI SH-500/40 Horizontal Machining Center was built in Japan in 1999 by MORI SEIKI CO., LTD. The machine is equipped with a numerical control type MORI SEIKI MSC-502. The milling machine has a table size of 500 x 500 mm and processes workpieces weighing up to 500 kg. The travel range of its X, Y, Z axes is 630 x 600 x 650 mm, respectively. The machine spindle rotates at 12,000 revolutions per minute. The milling machine is equipped with a magazine for forty tools with a maximum tool diameter of 150 mm, length 360 mm and a weight of 12 kg. The milling center is offered at a price with different types of holders. Technical parameters of the MORI SEIKI SH-500/40 CNC milling machine - CNC control: MORI SEIKI MSC-502 Travel range: - X axis (table travel length): 630 mm - Y axis (vertical movement of the spindle head): 600 mm - Z axis (cross table movement): 650 mm - distan ...

FMS SYSTEM; Machining Cell consisting of: Two 5-Axis Machining Centres 12-Pool Pallet System (630 mm X 630 mm); Pallet Storage System X= 750 mm, Y= 860 mm, Z= 850mm; B= 0,001°; 334 Pos. ATC Spindle Taper HSK-A100; Spindle n= 11.000; Spindle 25 kW; Feeds 32.000mm/min; Chip-conveyor; Coolant System Serial No. 1283-01 (2001) Siemens 840D; and Coolant System Serial No. 1024-98 (1999) Siemens 840C FR: À VENDRE MAINTENANTFMS SYSTEME ; 12 Pos. Piscine à palettes (630 X 630mm) ; 2x horloge MCM 5 axes CENTRE D'USINAGE/BEARBEITUNGSZENTREN/MACHINE CENTERS ; X= 750, Y= 860, Z= 850.mm ; A= .. ? ? B= 0,001° ; 334 Pos. ATC ; cône de broche HSK-A100 ; broche n= 11.000 ; broche 25 kW ; avance 32.000mm/min ; convoyeur à copeaux ; système de refroidissement n° 1283-01 (2001)Siemens 840D ; et système de refroidissement n° 1024-98 (1999)Siemens 840C

KENYO VS80160 5-axis Machining center with CE Producer: Nanjing Kenyo Precision Machine Manufacture Co., Ltd YOM 2015 Simultaneously 5 axes Total Installed Capacity 22.4 kW 5-Axis vertical Milling machine for blanks up to 1000-1500kg Stroke X/Y/Z- 1600/800/800 mm Working table size 800x1800 mm Diameter of NC swivel table axle C 630 mm Rotating mass clamping force 4000 Nm Spindle clamping force: ≥ 2000 Nm Maximum mass load 2000 kg Spindle diameter 170 mm Spindle rotation angle- ± 110 Degree Tool Store Type BT40 ISO Tool magazine 24 pcs Maximum spindle rotation speed 10.000 rpm Spindle power 15 kW Ball-Screw pair HIWIN Spindle Hesheng Ball Bearings NSK Positioning accuracy ≤ X/Y/Z: 0.015 mm, C: 0.002 degree, B: 0.002 degree Repeat accuracy ≤ X/Y/Z- 0.01 mm, C:0.0015 Degree, B:0.0015 Degree Quick move: ≥ 10000 mm/min Milling speed: ≥ 1 to 8000 mm/min OC ...

max. workpiece length: 5150 mm profile spindle: 1 Stück main drive: 16 kW Control: Beckhoff CNC Number of axles: 5 St. CNC machining center Masterwood Project 385 WL, NEUMASCHINE The all-rounder for Windows, round arches and doors interior Post and beam 5-axis machining of all kinds Detailed description in the adjacent PDF file! HIGHLIGHTS: - Working range: X = 5150 mm, Y = 1500 mm, Z = 200 mm - 1 pc. 5-axis high-performance spindle, 16 kW, double bearing with HSK 63 F recording - fixed drill head with 19 spindles with 7 individually retrievable vertical spindles X-direction with 6 individually retrievable vertical spindles Y-direction with 2 double horizontal spindles X-direction and 1 double horizontal boring spindle in the Y direction Saw unit integrated in drill head - Carousel tool changer with 22 places and 102 mm grid spacing - Carousel tool changer with 16 places and 102 mm grid ...

InfoTEC 6205 PRO 5 AXIS profile machining center was built in 2019 in Poland by 4CNC Sp. z o.o. The machine, designed for precision milling, drilling and cutting of workpieces made from a wide range of materials, is an excellent choice for companies with a diverse production profile. Workpieces are machined using a moveable machining station, which moves over an extended work area. This solution significantly increases production efficiency, thanks to the possibility of machining more than one workpiece at the same time. The InfoTEC PRO-X 5 AXIS aluminium profile machining center is offered with a wide range of equipment, including e.g. an advanced CNC controller, programs that facilitate daily machine operation and PANASONIC light curtains. The total weight of the machine is approximately 5800 kg. Technical specifications of the InfoTEC 6205 PRO 5 AXIS beam drill line - number of ax ...

max. workpiece length: 3200/5100 mm profile spindle: 1 Stück main drive: 12 kW Control: Beckhoff CNC Number of axles: 5 St. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 560 mm y-travel: 450 mm z-travel: 450 mm rotary table dia.: 270 mm rotary table tiltable: 0 - 24 ° spindle taper ISO: 30 spindle turning speed range: 31,5 - 7100 U/min feed speeds: 1 - 10.000 mm/min control: SINUMERIK System 8 no. of tools in magazin: 40 wotkpiece diameter with 2 vacant positions: 100 mm workpiece length: 255 mm weight of tools max.: 6 kg total power requirement: 32 kW weight of the machine ca.: 11,6 t dimensions of the machine ca.: m = 5 axis machining centre Accessories: various tool fixtures, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Excellent general condition. Used in plastic mold makers mainly for 3D graphite-carbon tool models and engraving work. Low cutting strengths, low machine load... Travel x=1200 y=800 z=500 Spindle speed 0 - 8000 rpm / Drive power main spindle 11 kW feed speed 0 - 30 m/min / table dimensions 1320 x 800mm Table load max. 2,000kg / 20-fold tool changer / max wzg diameter 63mm / WZG Long 200mm / tool holder SK 40 / 3D probe, Fabr. Heidenhain, type TS 220 / Cooling agent equipment / Spaenefoerderer / Suction (optional) Complete enclosure Heidenhain Control type TNC 426 PB digital / Electronic handwheel Heidenhain HR 410

CNC Control: FANUC 31i-B Axes X-axis travel mm: 1050 Y-axis travel mm: 850 Z-axis travel mm: 970 B-axis degrees: 0.001º Distance between spindle - table top mm: 100-950 Work table Number of pallets: 2 Table dimensions mm: 630x630 Maximum part size (D x H) mm: ø1.100x1.100 Maximum weight of the piece kg: 1200 APC Time: 15.5 Spindle Spindle speed rpm: 10000 Spindle power kW: 30 (25% ED) Spindle torque Nm: 420 (25% ED) Tooling System Tool Holder: HSK-A100 Tool Magazine Positions: 90 Max. tool diameter mm: ø250 Max. tool length mm: 550 Tool-to-tool time: 2.4 Chip to chip time: 4.5 Equipment Electronic steering wheel Chip extractor Washing Gun Signal light High Pressure Pump Mist collector 4th axis RS 232 Interface Internal cooling 3D Renishaw tool probe 4x pallets Toolholders are not included Machine Run Times Hea ...

max. workpiece length: 4500,6000 mm profile spindle: 3 Stück main drive: 24 kW Control: Siemens 840d Working Process Logos Life Evo XS 2345 ------------------------------- Vollautomatisches CNC-Fensterfertigungsanlage mit automatischer Be- und Entladung. 2 Portale mit 3 Frässpindeln mit 4- und 5-Achstechnologie CNC-gesteuerter Manipulator für Werkstückpositionierung mit 16 Stück Doppelzangen 8 Stück komplett unabhängige Werkstückspanner für höchste Felxibilität und Produktivität 128 Werkzeugplätze NEU: Working Process baut nun auch 1-spindlige Anlagen mit bewährter Technologie für kleinere Betriebe! Nebenstehend finde Sie aktuelle Videos dieser Baureihe. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. workpiece length: - mm profile spindle: - Stück main drive: - kW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ELUMATEC SBZ 628 profile machining center was built in 2016 in Germany by elumatec AG. The machine has been regularly serviced throughout its service life. The ELUMATEC SBZ 628 profile machining centre is an extremely versatile solution for advanced machining of window profiles, door profiles or facades. It enables precision machining of any type of profile with a maximum length of 7500 mm. Cutting, drilling and milling is performed in a single work cycle by advanced machining units located inside a sound-absorbing cabin. A clamping system positions the workpiece instantly and holds it securely during the entire machining process. Grippers, spindles and a cutting disc with a 360° rotation range enable machining of the profile in multiple positions, while maintaining constant accuracy. All this is completed by the quick-change mechanism for guide rollers and tools, which considerably  ...

FOM INDUSTRIE profile machining center was built in 2009 by F.O.M. INDUSTRIE s.r.l. This machine, designed for precision machining of PVC profiles, is an excellent choice for businesses specialising in the manufacture of windows. It enables, among others, milling, cutting or making ventilation and holes for the handle. Window profiles are machined by means of various types of aggregates. The standard machine in this series has 14 aggregates, however, the machine in our offer has been equipped with additional milling and drilling aggregates and has a total of 18 of them. This solution significantly increases the machining capacity of the machine as well as the overall machining efficiency. The FOM INDUSTRIE PVC profile machining center is also extremely easy to operate. All machining parameters are programmed in the intuitive CNC control with graphic software. Technical specifications  ...

x-travel: 880 mm y-travel: 630 mm z-travel: 630 mm table surface area: 1250 x 700 mm NC-rotary table: integriert, 700 mmø spindle taper: SK 40 spindle taper: DIN 69871 spindle turning speed - stepless: 20 - 12.000 U/min control: HEIDENHAIN control: TNC 430 feeds x/y/z -stepless: 20 - 15.000 mm/min rapid traverse: 30 m/min ATC: 32 (2 x 16) Pos tool diameter: 80 / 130 mm workpiece length: 315 mm weight of tools max.: 8 kg NC-rotary table - speed -: max. 15 U/min table load: 600 / 500 kg total power requirement: 60 kW weight of the machine ca.: 9,6 t = 5-axis machining center, table clamping surface 1250 x 700 mm with integrated NC-rotary table (=4th axis), movement of milling head via control (=5th axis) Accessories: electron. handwheel, chip conveyor (snailconveyor), coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Year of construction 2003 Control Heidenhain iTNC 530 Table size 280mm Table load 200kg A-axis +/- 110 degrees B-axis 360 degrees X-axis displacement 700mm Y-axis displacement 590mm Z-axis displacement 480mm Spindle 15000 rpm Rapid passage 32m / min Automatic tool changer Yes, Big Plus spindle system Number of tools32 Tool length 280 mm Tool diameter 88 mm or 125 mm with adjacent pocket area Tool weight 7 kg Input400 / 3 / 50hz 33kW Equipment gap conveyors, coolant, handwheel, oil cooler Features Fully enclosed guarding Length 4000 mm Width 3000mm Height 3000 mm Net weight actually 9,490 kg. / 9.4 tons.

HURCO VM10 Vertical Machining Centre. Hurco WINMax Control Year of construction: 2010 Manufacturer: Hurco Model: VM10 Control: Hurco WINMAX Spindle Speed: 10000rpm Table size: 762 x 356 mm Tool change capacity: 20 Tool size: DIN40 Traverses XYZ: 560 x 356 x 457mm

axis stroke (X,Y,Z): 3950,2145,555 mm Number of spindle head vertical: 13 St. Number of spindles head horizontal: 6 St. Number of tools: 22 St. Number of milling agregates: 1 St. working dimensions: 3200x2000x200 mm Motor output: 12 kW Control: Beckhoff CNC Number of axles: 5 St. Masterwood Project 385 CNC-Bearbeitungszentrum --------------------------------------------- 5-Achs CNC-Bearbeitungszentrum in Auslegerbauweise (dadurch sehr große PLatten auflegbar) für Innenausbau, Plattenbearbeitungen aller Art. Kurze Zusammenfassung: --------------------------------------------- Verfahrwege X = 3950 mm, Y = 2145 mm, Z = 555 mm Arbeitsbereich: X = 3200 mm, Y = 2000 mm, Z = 200 mm 1 Stk. 5-Achs-Hochleistungsspindel, 12 kW, mit HSK 63 F Aufnahme 1 Stk. fest installierter Bohrkopf mit 19 Spindeln mit 7 einzeln abrufbaren Vertikalbohrspindeln X-Richtung mit 6 einzeln abrufbaren Vertikalbohrspin ...

max. workpiece length: 3200,5100 mm profile spindle: 1 Stück main drive: 12 kW Control: Beckhoff CNC Number of axles: 5 St. Masterwood Project 385 CNC-Bearbeitungszentrum --------------------------------------------- 5-Achs CNC-Bearbeitungszentrum in Portalbauweise zum Einsatz für Rundbogenfenster, Türen, Pfosten-Riegel, Innenausbau, Treppen Kurze Zusammenfassung: --------------------------------------------- Arbeitsbereich: X = 3200 mm (Optional 5100 mm) , Y = 1500 mm, Z = 200 mm 1 Stk. 5-Achs-Hochleistungsspindel, 12 kW, mit HSK 63 F Aufnahme 1 Stk. fest installierter Bohrkopf mit 19 Spindeln mit 7 einzeln abrufbaren Vertikalbohrspindeln X-Richtung mit 6 einzeln abrufbaren Vertikalbohrspindeln Y-Richtung mit 2 doppelten Horizontalbohrspindeln X-Richtung und 1 doppelte Horizontalbohrspindel in Y-Richtung Sägeaggregat in Bohrkopf integriert 27 Werkzeugwechselplätze: Karussellwerkzeu ...

x-travel: 1000 mm y-travel: 508 mm z-travel: 460 mm size of pallet: 1240 x 550 mm numbers of pallets: 2 workpiece weight: 800 kg spindle taper ISO: 40 spindle motor: 5,5 kW turning speed range: 28 - 4000 U/min no. of tools in magazin: 30 control: MAZATROL M 1 total power requirement: kW weight of the machine ca.: 5,6 t dimensions of the machine ca.: 4,50 x 3,00 x 2,65 m acc.: chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MORI SEIKI SH-400 Horizontal Machining Center was manufactured in 2000 in Japan by Mori Seiki CO., LTD. The CNC milling machine is equipped with Mori Seiki MSC-501 numerical control. The price of the machine includes various types of frames. Technical data of the MORI SEIKI SH-400 CNC milling machine - CNC control: MORI SEIKI MSC-501 - machine weight: 10100 kg

x-travel: 700 mm y-travel: 400 mm z-travel: 330 mm Control: FANUC 31iB5 table-size: 850 x 410 mm : 21 fach turning speeds: 10.000 U/min Internal cooling system: 20 bar total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 450 mm z-travel: 35 mm Control: Heidenhein TNC 530 table weight: 200 Kg : Random 36 fach tool adaptor: HSK E40 turning speeds: 30.000 U/min total power requirement: kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 500 mm y-travel: 400 mm z-travel: 330 mm Control: FANUC 31i-B5 Tools changer: 14 pos. table-size: 850 x 410 mm number of spindle speeds: 24.000 U/min/rpm rapid traverse feeds: 48 m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Ref. -No.: 10370 Manufacturer: FANUC Year of construction: 1997 Type of control: CNC Control: FANUC Series 16-M Storage location: Halberstadt Country of origin: Irland X-Travel: 500 mm Y-Travel: 380 mm Z-Travel: 300 mm Machine length: 1560 mm Machine width: 2060 mm Machine Height: 2218 mm Rotary Table (Lxw): 650 x 380 mm Table Load: 200 kg Max. Tool Weight: 2 kg Max. Tool Length: 120 - 200 mm Max. Tool Diameter: 65 mm Tool change time: 1 s Tool Taper: MAS BT30, MAS P30T-1 (45°) Numbers Of Tools In Magazin: 10 Tool changer: Revolvertyp (Spindel unabhängig vom Revolver) Turning Speed Range - Stepless: 1-15000 mm / min Rapid Traverse X-Axis: 48 m / min Rapid Travel Y-Axis: 48 m / min Rapid Traverse Z-Axis: 48 m / min Weight Of The Machine Ca.: 1,7 t Max spindle speed: 8000 min⁻¹ Positioning accuracy in one direction (1): 0,006 / 300 mm Positioning repeatability (2): +/- 0,002 mm ...

Ref. -No.: 10357 Manufacturer: STARRAG HECKERT Year of construction: 2007 Type of control: CNC Steuerung Control: Sinumerik 840D Country of origin: Schweiz X-Travel: 1200 mm Y-Travel: 950 mm Z-Travel: 1200 mm Work spindle drive power (25% ED): 67 kW Work spindle torque (25% ED): 1508 Nm Tool Taper: HSK-A100 Workpiece interference circle diameter: 1250 mm Tool Piece Magazine With: 80 Pcs./pcs. Tool changer: Werkzeugkettenmagazin Max. Workpiece height: 1200 mm Feed Speeds X/Y/Z Axis: 60000 mm / min Feed Capacities X/Y/Z: 22/18/22 N Speed range - main spindle: 20 - 6000 RPM Numbers Of Pallets: 2 Max pallet load: 1500 kg Size Of Pallet: 800 x 630 mm pallet change time: 14 s Pallet clamping area (lxw): 800 x 630 mm Weight Of The Machine Ca.: 25 t

Ref. -No.: 10356 Manufacturer: AGIE CHARMILLES Year of construction: 2007 Type of control: CNC Control: iTNC530 Country of origin: Schweiz X-Travel: 800 mm Y-Travel: 500 mm Z-Travel: 540 mm Main spindle speed range: 16000 RPM Table Dimensions (Lengthxwidth): 910x500 mm Table Load: Vmax = 500kg, 5m/min = 1100kg kg Number of T-slots: 5 Tool change time (chip-to-chip): 8 s Max. Tool Weight: 6 kg Max. Tool Length: 305 mm Max. Tool Diameter: 77 mm Tool change time: 6 s T - slot spacing: 100 mm Numbers Of Tools In Magazin: 24 Tool changer: Doppelarm, seitlich montiert Rapid Traverse X-Axis: 24 m / min Rapid Travel Y-Axis: 24 m / min Rapid Traverse Z-Axis: 20 m / min Further information: Addition: probe

Ref. -No.: 10342 Manufacturer: STARRAG HECKERT Year of construction: 2015 Type of control: CNC Control: Fanuc Series 16i Storage location: Halberstadt Country of origin: Schweiz Serial no.: 12217 X-Travel: 1000 mm Y-Travel: 910 mm Z-Travel: 835 mm Distance spindle center - table: 100 mm Table Dimensions (Lengthxwidth): 630 x 800 mm Table Load: 1250 kg Max. Tool Length: 600 mm Max. Tool Diameter: 500 mm Tool Taper: HSK-A 100 Numbers Of Tools In Magazin: 240 Spindle Speed: 20 - 6000 RPM Feed Capacities X/Y/Z: 20.000 N Rapid Traverse: 40 m / min Internal cooling: 30/40/50 bar External cooling: 2 bar

Ref. -No.: 10339 Manufacturer: AGIE CHARMILLES Year of construction: 2008 Type of control: CNC Control: Heidenhain iTNC 530 (2P) Storage location: Halberstadt Country of origin: Schweiz serial number: 107.20.00.040 X-Travel: 650 mm Y-Travel: 600 mm Z-Travel: 500 mm Main spindle drive power: 30/39 kW Main spindle speed range: 20.000 RPM Table Dimensions (Lengthxwidth): 800 x 600 mm Table Load: 500 kg Max. Workpiece Weight: 6,5 kg Tool change time (chip-to-chip): 7 s Max. Tool Length: 300 mm Max. Tool Diameter: 130 mm Tool change time: 1,5 s Workpiece Diameter At Full Load: 80 mm Workpiece Diameter With 2 Vacant Positions: 130 mm T - groove width: 14 mm T - slot spacing: 63 mm Tool Taper: HSK-A63 Numbers Of Tools In Magazin: 60 Tool changer: CT-60 Feed Speeds X/Y/Z Axis: 40/40/30 mm / min Feed Capacities X/Y/Z: 4/4/6 N Further information: Laser tool measuring system Type = BLUM laser syst ...

Ref. -No.: 10335 Manufacturer: HÜLLER HILLE Year of construction: 2008 Type of control: CNC Control: Sinumerik 840D pl Storage location: Halberstadt Country of origin: Germany X-Travel: 1000 mm Y-Travel: 800 mm Z-Travel: 800 mm B-Axis: 360 ° Machine length: 9500 mm Machine width: 4500 mm Machine Height: 3500 mm Distance spindle center - table: 150 mm Table Dimensions (Lengthxwidth): 500 x 630 mm Table Load: 800 kg Max. Workpiece Weight: 40 kg Max. Tool Length: 650 mm Max. Tool Diameter: 325 mm Workpiece Diameter At Full Load: 100 mm Tool Taper: HSK - 100 Spindle Speed: 0 - 12000 RPM Rapid Traverse: 60 m / min Further information: Coolant system = 1250 l

Ref. -No.: 10304 Manufacturer: SPINNER Year of construction: 2007 Type of control: CNC Control: Siemens 840 D with SHOP Mill Storage location: Halberstadt Country of origin: Germany X-Travel: 1100 mm Y-Travel: 610 mm Z-Travel: 610 mm B-Axis: 0.001 prepared for 4 th axis ° Main spindle drive power: 25 kW Main spindle speed range: 6000 RPM Table surface: 1200 x 600 mm Table Load: 1000 kg Tool Taper: SK 50 Numbers Of Tools In Magazin: 24 axes: 4 Rapid Traverse X-Axis: 18 m / min Rapid Travel Y-Axis: 18 m / min Rapid Traverse Z-Axis: 15 m / min Main Drive: 25 kW Weight Of The Machine Ca.: 8 t Further information: - additional 4 axis (Dividing head)
