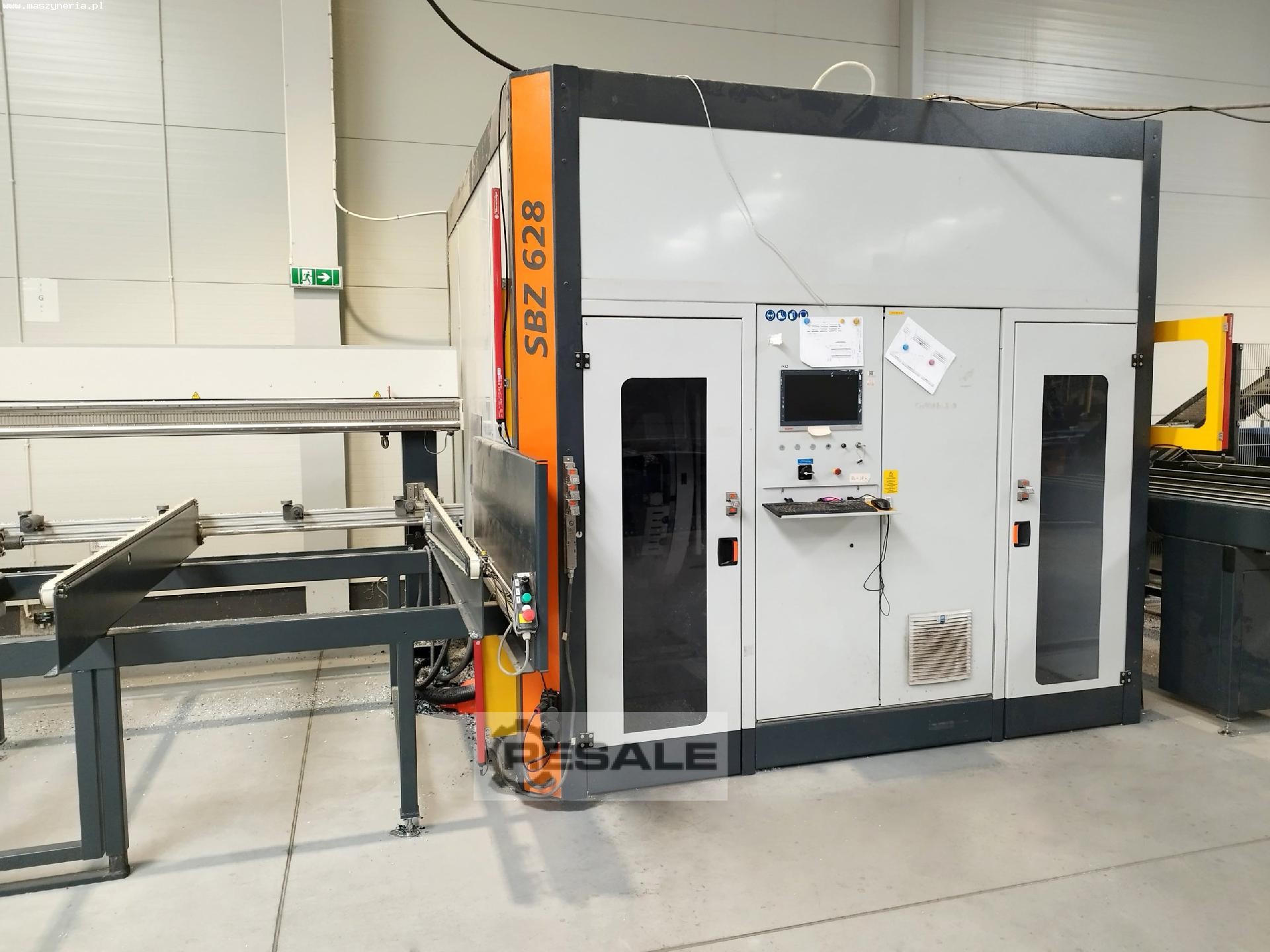

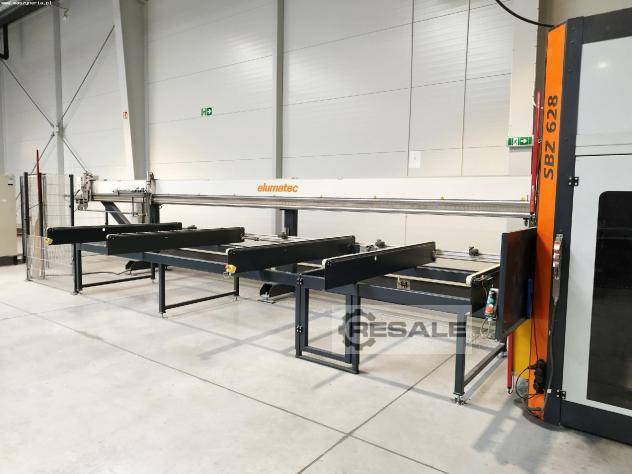

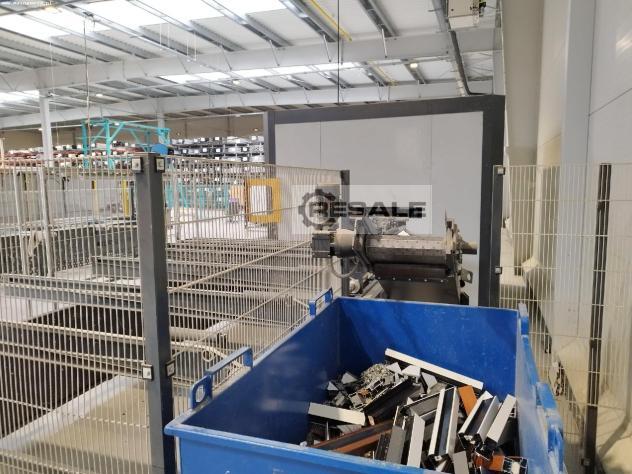

ELUMATEC SBZ 628 profile machining center was built in 2016 in Germany
by elumatec AG. The machine has been regularly serviced throughout its
service life.
The ELUMATEC SBZ 628 profile machining centre is an extremely
versatile solution for advanced machining of window profiles, door
profiles or facades. It enables precision machining of any type of
profile with a maximum length of 7500 mm. Cutting, drilling and
milling is performed in a single work cycle by advanced machining

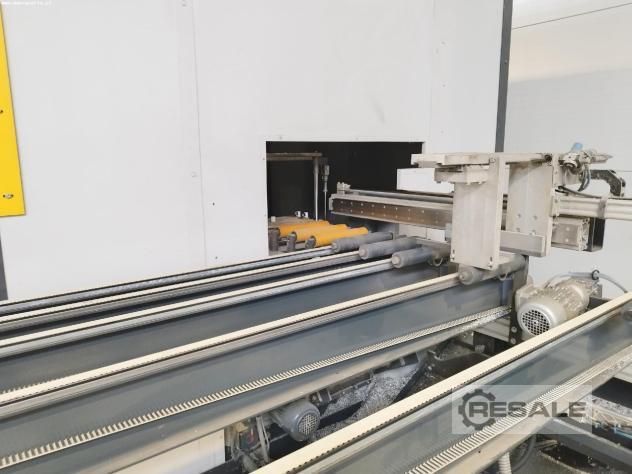

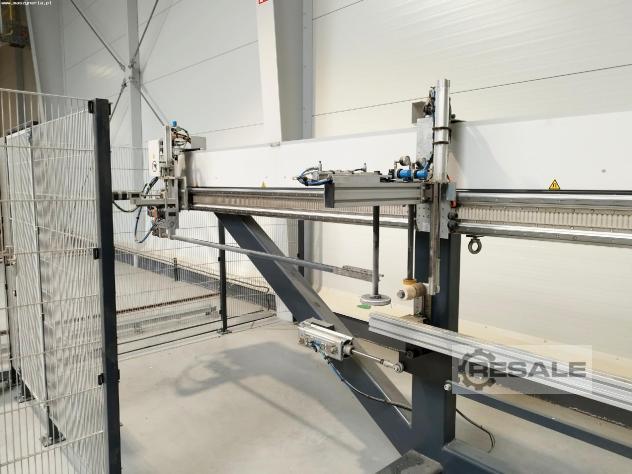

units located inside a sound-absorbing cabin. A clamping system
positions the workpiece instantly and holds it securely during the
entire machining process. Grippers, spindles and a cutting disc with a
360° rotation range enable machining of the profile in multiple
positions, while maintaining constant accuracy. All this is completed
by the quick-change mechanism for guide rollers and tools, which
considerably reduces machine set-up times.
All the components with the best technical parameters have been
carefully selected and optimised to guarantee the best machining
results. The machine’s well-thought-out design, on the other hand,
ensures easy access to the controls and service elements, facilitating
the operator’s daily work. The ELUMATEC SBZ 628 is offered with a
large magazine and intuitive eluCad software for programming and
monitoring the entire machining process.
Technical specifications of the ELUMATEC SBZ 628 machining center
General data
- software: elusoft eluCad
- maximum profile length: 7500 mm
- minimum profile length: 1500 mm
- X axis positioning speed: 200 m/min

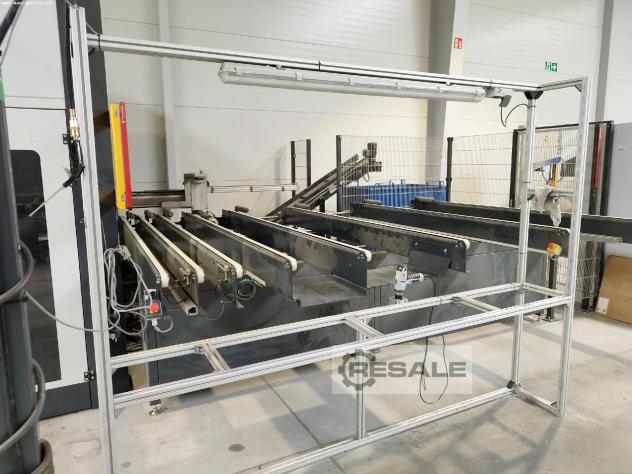

- integrated magazine
- magazine capacity (depending on profile cross-section): 5 or 10
pcs.
- full sound-absorbing cabin
- M51251405 door locking system
- safety switches
- maximum compressed air pressure: 8 bar
- belt drive power: 0,75 kW
- power supply: 3x 400 V; 50 Hz
- weight of the ELUMATEC SBZ 628 machine: approx. 8000 kg
Gantry (machining unit + cutting unit)
- feed in the X axis: 400 mm
- X axis drive power: 1.9 kW
Machining unit

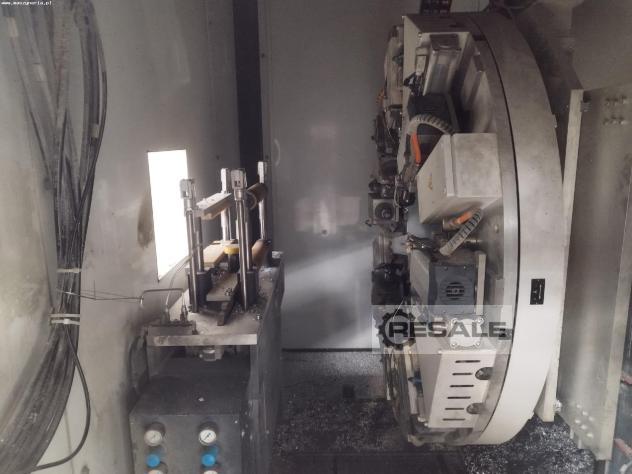

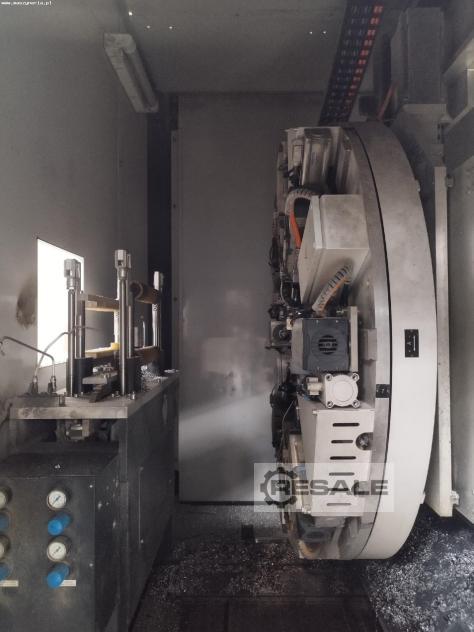

- number of spindles: 8
- A axis rotation range (continuous): 360°
- feed in the Y/Z axis: 500/500 mm
- tool holder: HSK-C 40
- Y/Z/A axis drive power: 1.45/4.78/4.78 kW
- spindle drive power: 6 kW
Cutting unit
- cutting disc diameter: 550 mm
- feed in the Y/Z axis: 1050/750 mm
- C axis rotation range (continuous): 360°
- Y/Z/C axis drive power: 3.43/4.71/1.02 kW
- cutting disc drive power: 5.5 kW
