x-travel: 800 mm
y-travel: 1.050 mm
z-travel: 800
mm
control: 840D solutionline Siemens

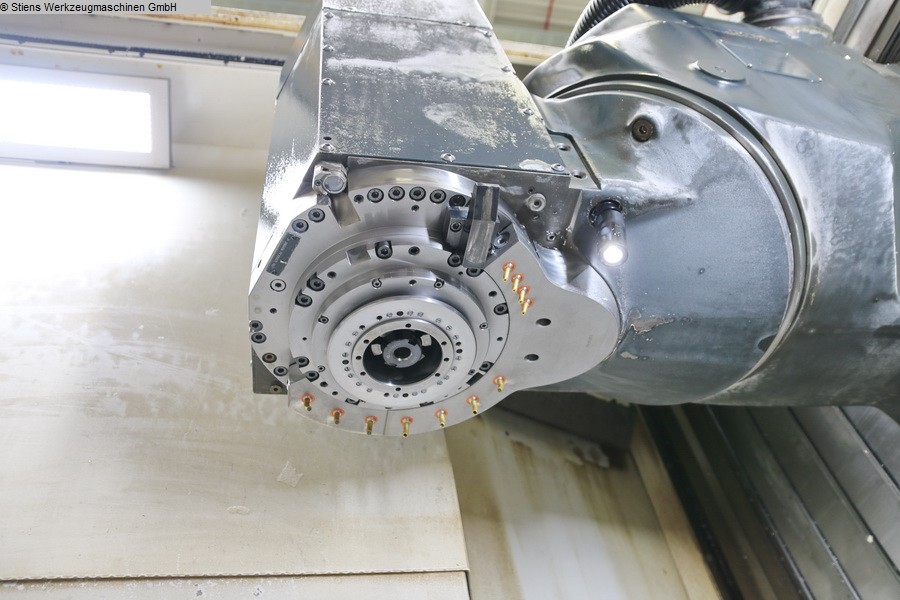

Main spindle::
Speed Mainspindle: max. 10.000 min/-1
power capacity - main
spindel: 44 kW
max. Torque: 288 Nm
tool taper: HSK-A 100 DIN
69893
Swivel range: -10° / +180 °

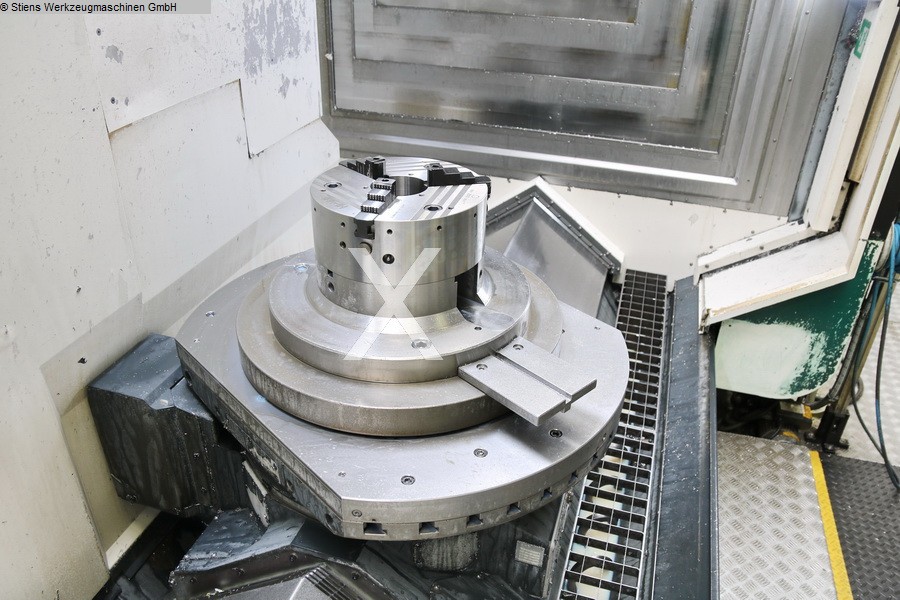

NC-Rotary table::
table surface area: dia. 900 x 700 mm
max. table load: 1.500
kg
distance spindlenose - table horizontal: 50 - 850
mm
distance spindlenose - table vertical: 150 - 950 mm
table
speed: 35 min/-1
rotatable: C: 360 °
Tool-Presetter::
number of toolpositions: 120 pos.
tool taper: HSK-A 100
max. tool diameter: 110 mm
max. tool-dia with free toolbox:
230 mm
max. tool length: 550 mm
max. tool weight: 30
kg
tool changing time: 5,4 sec
feeds::
rapid traverse (
X / Y / Z ): 60 m/min
Rapid B-Axis: 23 min/-1
Accelaration: 7
/ 6,5 / 6,5 m/s²
Feed force ( X / Y / Z ): 13 / 13 / 9
kN
weight of the machine ca.: 13,0 t
dimensions of the machine
ca.: 6,0 x 5,5 x 3,7 m
total power requirement: 80
kVA
Documents:
Coolantsystem:
high pressure coolant:
40 / 80 bar
through spindle coolant: AD
paper band filter:
980 l
Chip conveyor:
test probe:
Spray gun: 2 bar /
40 l
Oil Dust Skimmer:
elektr. hand wheel:
Operation
mode 4:
Rotary screen:
5 Axis Machining Center -
Universal
DMG DECKEL MAHO - DMU 80 P duoBLOCK
- Spindle
replacement: May 2025

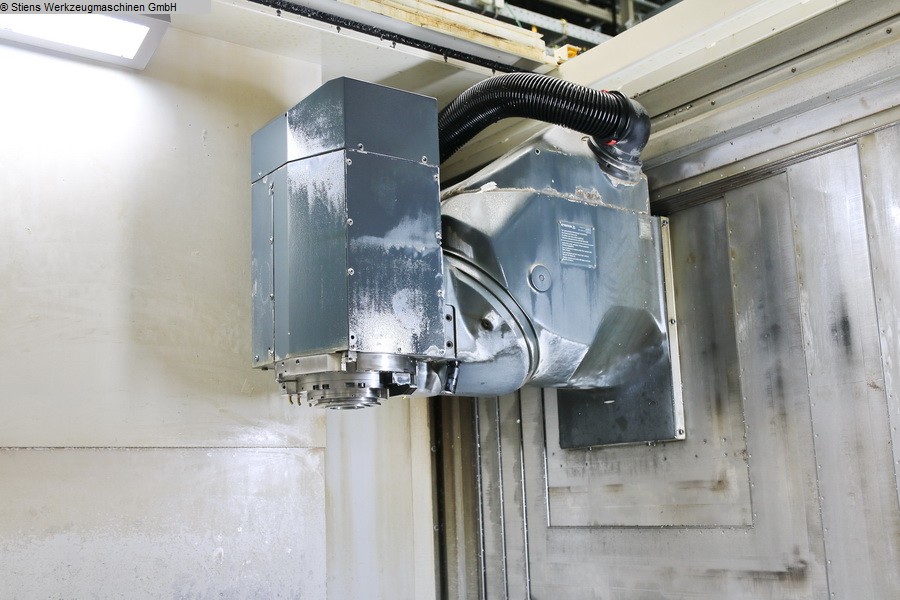

- controled Swivel-Milling-Head /
Gear-Spindle (B-Axis)
- NC-Rotary Table (C-Axis)
- Tool
identification
- 3D machining, 3D tool compensation
- TRANSMIT
cylindrical surface transformation (milling of cylindrical
paths)
- CompCad compressor function for high-speed
machining
- WITHOUT tools
