134,829 used machines on RESALE, but how to find them? Machine Search
used
CharacteristicsMaximum load (table centre)1200 KgDimensions (L x W x H)3,02 x 2,98 x 2,61 mRapid feed X / Y / Z30/30/30 m/minMovement X / Y / Z1050/530/510 mmSpindle taperBT 40 Tool Magazine with30 PositionsDrive power (25% DC)37 kWDrive power (100% DC)22 kWTable surface1350 x 600 mmSpeed max.12000 rpmWeight approx.7000 KgGeneralVertical Machining Center; Control: Control M730UM with CELOS CELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and pHigh-torque spindle 12,000min-1, 37/ 22 kW (#40)High-torque Spindle 12,000 min-1, 37/22 kW (#40) Motor spindle powerMASTER® Spindle speed: 12,000 min-1 Output: 37/22 kW (50/30 HP) (10%ED/cont) Torque: 360/177 Nm (265.52/130.55 ft·l ...
used
GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-20000 rpmDrive power (100% DC)25 kWDimensions (L x W x H)2,68 x 4,19 x 2,54 mMax. tool length450 mmSpindle taperHSK-A 63 Tool Magazine with60 PositionsRapid feed X / Y / Z60/60/60 m/minMovement X / Y / Z560/560/660 mmPalett changer with2 PalletMax. work piece height900 mmMax. work piece diameter630 mmMaximum load (table centre)400 KgSwivelling range360x1 degreeTable size400x400 mmDrive power (40% DC)42 kWWeight approx.8500 KgPreparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining point and prolonging a tool life.Spindle Taper HSK-A63Spindle Taper HSK-A63 This specification uses t ...
used
GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinPackage Mill / Turn HSK-A 63Package Milling / Turning: Upgrade NC-swivel rotary table to Milling - Turning / direct drive Table plate C-axis d 680 mm / 26.8 in Speed C-axis 1.000 min-1 Integrated balancing sensor Motor spindle speedMASTER® HSK-A63 Spindle speed 20 - 20 ...
used
GeneralUniversal Machining Centre in monoBLOCK construction - MPC Machine Protection Control - Chip trough with integrated coolant tank 500 l / 132 gallon; Control: CELOS with Heidenhain TNC 640 Working area 1Longitudinal750 mmCross650 mmVertical560 mmTechnical DataDrive power (100% DC)25 kWDrive power (40% DC)35 kWTorque (100% DC)86 NmTorque (40% DC)130 NmSpeed range- 20000 rpmSpindle taperHSK-A 63 DIN 69893 Feed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmMiscellaneousClamping SystemDIN 69872 Floor space/WeightWeight approx.12300 KgNC swivel rotary tableTable surface 800 x 650 (Ø 650) mmCentre bor ...
used
GeneralUniversal Milling Machines; Control: 3D-control Heidenhain TNC 620 Working area 1Longitudinal500 mmCross450 mmVertical400 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightDimensions (L x W x H)3,15 x 2,86 x 2,71 (4,14 x 3,56 x 2,71) mWeight approx.5000 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only!Type of Measuring system Direct measuring systemMode for positioning only5. Axes (swivelling range) -5/+110 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeDistance between T-Slots 63 mmNumber of Slots 7Slot width 14 mmMaximum load (table centre) 200 KgTable surface Ø 630 x 500 mmDirect measuring system X,Y,ZDire ...
used
GeneralVertical Machining Center; Control: Control SIEMENS 828D CharacteristicsTable surface850 x 650 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmWeight approx.5600 KgMechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D150 mm)SK40 interfaceTool clamping SK 40 for pull-studs DIN 69872Electronic HandwheelExternal electronic Handwheel
used
GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-15000 rpmDimensions (L x W x H)2,68 x 4,19 x 2,54 mMax. tool length450 mmSpindle taperHSK-A 63 Tool Magazine with60 PositionsRapid feed X / Y / Z60/60/60 m/minMovement X / Y / Z560/560/660 mmPalett changer with2 PalletMax. work piece height900 mmMax. work piece diameter630 mmMaximum load (table centre)400 KgSwivelling range360x1 degreeTable size400x400 mmDrive power (40% DC)46 kWDrive power (100% DC)30 kWWeight approx.8500 KgHigh-torque spindle 46 /30 kW, 15,000 min-1High-torque spindle 46 /30 kW, 15,000 min-1 (SIEMENS)Preparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining point ...
used
GeneralHorizontal machining center Chip conveyor (ejection to the rear) Coolant gun for setup station side Oil skimmer Sludge collecting function inside coolant tank In-machine measuring system (spindle) touch sensor (Renishaw OMP60) + workpiece setter Tool breakage detection system Manual pulse generator (separate type) Full closed loop control (Scale feedback); Control: Control F31iB with CELOS CharacteristicsSpeed max.-12000 rpmSpindle taperBT 50 Tool Magazine with60 PositionsRapid feed X / Y / Z60/60/60 m/minMovement X / Y / Z1050/900/1030 mmPalett changer with2 PalletMax. work piece height1300 mmMax. work piece diameter1050 mmMaximum load (table centre)1500 KgSwivelling range360 x 1 degreeTable size630 x 630 mmDrive power (100% DC)30 kWWeight approx.18750 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi to ...
used
GeneralVertical Machining Center; Control: Control SIEMENS 828D CharacteristicsTable surface850 x 650 mmRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsTorque (100% DC)43 NmMax. torque64 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.10000 rpmWeight approx.5600 KgSK40 interfaceTool clamping SK 40 for pull-studs DIN 69872
used
GeneralVertical Machining Center; Control: Control SIEMENS 828D CharacteristicsTable surface850 x 650 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmWeight approx.5600 KgMechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D150 mm)4th Axis package4th Axis package Option includes: - rotary table type EA-510.L NE with indirect measuring system - electrical and pneumatic preparation - software preparation to work with rotary table - cycle TRACYL which allows to define contour on the cylinder - swSK40 interfaceTool clamping SK 40 for pull-studs DIN 69872Air coolant external and internalAir coolant ex ...
used
CharacteristicsTable surface850 x 650 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmWeight approx.5600 KgGeneralVertical Machining Center; Control: Control SIEMENS 828D Mechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D150 mm)SK40 interfaceTool clamping SK 40 for pull-studs DIN 69872Air coolant external and internalAir coolant external and internal (through spindle centre) switchable via M-FunctionElectronic HandwheelExternal electronic Handwheel
used
GeneralVertical Machining Center; Control: Control SIEMENS 828D CharacteristicsTable surface850 x 650 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmWeight approx.5600 KgMechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D150 mm)SK40 interfaceTool clamping SK 40 for pull-studs DIN 69872Electronic HandwheelExternal electronic Handwheel
used
CharacteristicsTable surface850 x 650 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmWeight approx.5600 KgGeneralVertical Machining Center; Control: Control SIEMENS 828D Mechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D150 mm)SK40 interfaceTool clamping SK 40 for pull-studs DIN 69872Electronic HandwheelExternal electronic Handwheel
Manufacturer DMG-MORI Model DMF 260 Year 2011 CNC SIEMENS SINUMERIC 840D Table Table surface 2,900 x 700 mm. Maximum weight on table 2,150 kg. Routes and advances Longitudinal (X-axis) 2,600 mm Transverse (Y-axis) 700 mm Vertical (Z-axis) 700 mm Fast forward of the axes (X,Y,Z) 40 m/min Working progress of the axes (X,Y,Z) 40 m/min Axle acceleration 4 m/s2 Head Revolutions 14,000 mm/min SK 40 Head Cone DIN 69872 Main engine power 18.4 / 14 kW Automatic tool loader No. of Charger Tools 30 Maximum tool length 300 mm Maximum tool weight 6 kg. Maximum tool diameter with adjacent free positions 130 mm Maximum tool diameter without adjacent free positions 80 mm Equipment Refrigeration 40 Bar / 600 l. INCLUDED Longitudinal chip evacuator INCLUDED Coolant cleaning gun INCLUDED Portable steering wheel INCLUDED Direct Measurement System INCLUDED Machine hours ...
used
GeneralVertical Machining Center; Control: Control SIEMENS 828D CharacteristicsTable surface850 x 650 mmSpeed max.12000 rpmDrive power (100% DC)9 kWDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWWeight approx.5600 KgMechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D150 mm)Tool Clamping BT 40Tool Clamping BT 40 for pull-studs DIN 69872 (differently from standard)Electronic HandwheelExternal electronic Handwheel
used
GeneralVertical Machining Center; Control: Control SIEMENS 828D CharacteristicsSpeed max.12000 rpmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperBT 40 Tool Magazine with24 PositionsTorque (100% DC)57 NmMax. torque83 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWTable surface850 x 650 mmWeight approx.5600 KgMechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D150 mm)Tool Clamping BT 40Tool Clamping BT 40 for pull-studs DIN 69872 (differently from standard)Electronic HandwheelExternal electronic Handwheel
used
GeneralVertical Machining Center; Control: Control SIEMENS SINUMERIK ONE CharacteristicsTable surface1400 x 600 mmDimensions (L x W x H)2,74 x 2,74 x 2,86 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z1100/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmWeight approx.6950 KgMechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D150 mm)SK40 interfaceTool clamping SK 40 for pull-studs DIN 69872Electronic HandwheelExternal electronic Handwheel
used
GeneralVertical Machining Centres; Control: 3D-control Heidenhain TNC 620 CharacteristicsMaximum load (table centre)1000 KgDimensions (L x W x H)3,93 x 3,49 x 2,94 (6,3 x 5,5 x 2,94) mRapid feed X / Y / Z30/30/30 m/minMovement X / Y / Z1100/560/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with30 PositionsDrive power (40% DC)13 kWMax. torque83 NmTorque (100% DC)57 NmDrive power (100% DC)9 kWSpeed max.12000 rpmTable surface1400 x 560 mmWeight approx.6050 KgDirect measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemDMG MORI IoTconnectorIoTconnector connects DMG MORI machines as well as third-party machines with CELOS. Standardized interfaces enable data exchange between the IoTconnector and CELOS APPs such as the NETservice. The integrated firewall with automatic updates ensures the hProduction Package 20 bar with chip conveyorProduction Package ...
used
GeneralVertical Machining Centres; Control: 3D-control Heidenhain TNC 620 CharacteristicsTable surface1400 x 560 mmDimensions (L x W x H)3,93 x 3,49 x 2,94 (6,3 x 5,6 x 2,94) mRapid feed X / Y / Z30/30/30 m/minMovement X / Y / Z1100/560/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with60 PositionsMax. torque121 NmTorque (100% DC)84 NmDrive power (40% DC)20 kWDrive power (100% DC)14,5 kWSpeed max.15000 rpmMaximum load (table centre)1000 KgWeight approx.6200 KgDirect measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemDMG MORI IoTconnectorIoTconnector connects DMG MORI machines as well as third-party machines with CELOS. Standardized interfaces enable data exchange between the IoTconnector and CELOS APPs such as the NETservice. The integrated firewall with automatic updates ensures the hProduction Package 40 barProduction Package 40 bar Option ...
used
GeneralVertical Machining Centres; Control: DMG MORI SLIMline® Multi-Touch control CharacteristicsTable surface1400 x 560 mmDimensions (L x W x H)3,93 x 3,49 x 2,94 (6,3 x 5,5 x 2,94) mRapid feed X / Y / Z30/30/30 m/minMovement X / Y / Z1100/560/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with60 PositionsMax. torque121 NmTorque (100% DC)84 NmDrive power (40% DC)20 kWDrive power (100% DC)14,5 kWSpeed max.15000 rpmMaximum load (table centre)1000 KgWeight approx.6200 KgDirect measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemDMG MORI IoTconnectorIoTconnector connects DMG MORI machines as well as third-party machines with CELOS. Standardized interfaces enable data exchange between the IoTconnector and CELOS APPs such as the NETservice. The integrated firewall with automatic updates ensures the hProduction Package 1 with Chip ConveyorProductio ...
used
GeneralVertical Machining Centres; Control: 3D-control Heidenhain TNC 620 CharacteristicsTable surface1400 x 560 mmDimensions (L x W x H)3,93 x 3,49 x 2,94 (6,3 x 5,5 x 2,94) mRapid feed X / Y / Z30/30/30 m/minMovement X / Y / Z1100/560/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with30 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmMaximum load (table centre)1000 KgWeight approx.6050 KgDirect measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemProduction Package 3 with Chip ConveyorProduction Package 3 Option includes: - Internal coolant supply 40 bar; - Tank capacity: 600l with papertype filter; - Chip conveyor (scraper type) with tank capacity: 250 l (left) - Bed and ATC arm flushing via M-Function - Coolant spray gun for swarfPrep. 4th axis EA 510.L indirect (Heidenhain ...
used
GeneralPrecision centre - Linear drive package - Active cooling for spindle, linear drives and electrical cabinet - Frame temperatur control - Direct measuring system - Chiptray, coolant/airblast changing - Full cabin including 2nd door; Control: 3D-Control Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical1-80000/1-80000/1-80000 mm/minSpindle taperHSK-A 63 Rapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Longitudinal650 mmCross600 mmVertical450 mmTool changerType of magazineChain Number of tools30 Type of gripperDouble gripper Floor space/WeightDimensions (L x W x H)2,92 x 2,42 x 2,88 (3,0) mWeight approx.9600 KgHSC70 5-Axis SpecificationHSC70 with 5-Axis specification clamping area Ø 600 mm // Ø 23.61 inch swivel range B-axis +20/-110°; C-axis 360° table load max. 500 kg // 1102.31 lbs absolute measuring systems incl. permanent co ...
used
GeneralHorizontal Machining Centre; Control: Fanuc F31iB CharacteristicsSpeed max.-14000 rpmDimensions (L x W x H)2,36 x 3,92 x 2,72 mMax. tool length400 mmSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z50/50/50 m/minMovement X / Y / Z560/560/630 mmPalett changer with2 PalletMax. work piece diameter630 mmMax. work piece height900 mmMaximum load (table centre)400 KgSwivelling range360x1 degreeTable size400x400 mmDrive power (40% DC)18,5 kWDrive power (100% DC)11 kWWeight approx.9600 KgSpecial equipmentJ-011462 Tool holder taper for BT-40 tool holders J-011460 Max. spindle speed 14,000 rpm, 18.5/11 kW J-011470 Scraper-type chip conveyor with drum filter, rear discharge J-007252 CTS (DIN Form B) coolant supply through the spindle J-011461 40-station toolSpecial equipmentJ-001212 Coolant gun for the operator side J-003686 Manual pulse generator, handwheel (separate type ...
used
GeneralHorizontal machining center Chip conveyor (ejection to the rear) Coolant gun for setup station side Oil skimmer Sludge collecting function inside coolant tank In-machine measuring system (spindle) touch sensor (Renishaw OMP60) + workpiece setter Tool breakage detection system Manual pulse generator (separate type) Full closed loop control (Scale feedback); Control: Control F31iB with CELOS CharacteristicsSpeed max.-12000 rpmSpindle taperHSK-A 100 Tool Magazine with120 PositionsRapid feed X / Y / Z60/60/60 m/minMovement X / Y / Z1050/900/1030 mmPalett changer with2 PalletMax. work piece height1300 mmMax. work piece diameter1050 mmMaximum load (table centre)1500 KgSwivelling range360 x 1 degreeTable size630 x 630 mmDrive power (100% DC)30 kWWeight approx.18750 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with mul ...
used
GeneralVertical Machining Centres; Control: 3D-control Heidenhain TNC 620 CharacteristicsTable surface900 x 560 mmDimensions (L x W x H)3,03 x 3,49 x 2,94 (5,8 x 5,5 x2,94) mRapid feed X / Y / Z30/30/30 m/minMovement X / Y / Z600/560/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with30 PositionsMax. torque82 NmTorque (100% DC)54 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmMaximum load (table centre)600 KgWeight approx.5200 KgSK40 interfaceTool clamping SK 40 for pull-studs DIN 69872Production package 2 with Chip ConveyorProduction Package 2 Option includes: - Internal coolant supply 20 bar; - Tank capacity: 600l with papertype filter; - Chip conveyor (scraper type) with tank capacity: 200 l (left) - Bed and ATC arm flushing via M-Function - Coolant spray gun for swarfPrep. 4th axis EA 510.L indirect (Heidenhain)Preparation for rotary table (4th axis) Lehman ...
used
GeneralConventional universal milling and drilling machine.; Control: Digital display ND7013 Technical DataType of main driveAC Drive power (40% DC)7 kWSpeed range25 -3000 rpmSpindle taperSK 40 DIN 69871 Clamping SystemDIN 69872 Feed rate longitudinal/transverse/vertical5-500/5-500/5-500 mm/minRapid traverse longitudinal/transverse/vertical1,5/1,5/1,5 m/minWorking area 1Longitudinal500 mmCross400 mmVertical400 mmDirect measuring systemDirect path measuring systemQuill stroke, verticalExtendable vertical centre sleeve (mechanical)Fixed tableFixed TableTable surface 800 x 480 mmMaximum load (table centre) 300 KgSlot width 14 mmNumber of Slots 7Distance between T-Slots 63 mm
Management Heidenhain MillPlus IT Travel X/Y/Z: 1250 x 710 x 710 mm Spindle speed: 12,000 min-1 Tool magazine for 60 Wkz., SK 40 NC rotary table integrated in rigid table d 800 mm / 1500 mm x 800 mm Controlled NC swivel milling head (B-axis) incl. hydraulic clamping Swivel range -120/+30° Probe Infrared Fabr. Heidenhain TS 649 3D quickSET Expansion Pack Production package 40 bar/23 l/min (theor. Pump capacity)Tank 600 l, paper belt filter, rotating viewing panel Chip conveyor
x-travel: 935 mm y-travel: 850 mm z-travel: 650 mm control: Heidenhain TNC 640 Main spindle:: turning speed range - main spindle: 20000 min/-1 power capacity - main spindel: 35 kW tool taper: SK 40 work table:: table surface area: 1000 x 750 (dia 850) mm max. table load: 1500 kg tool magazin:: number of toolpositions: 60 pos. tool taper: SK40 feeds:: feed speeds: 40.000 mm/min rapid traverse: 40 m/min Accelaration: 5 m/s² c-axis: 360 ° A-Axis: +/- 120 ° total power requirement: 46 kVA weight of the machine ca.: 14 t dimensions of the machine ca.: 3,1 x 4,4 x 3,2 m 5-axis universal machining centre equipped with: - Heidenhain TNC 640 CNC control - 60-position ATC (SK 40) - Heidenhain TS 460 touch probe - Chip conveyor with coolant - Paper belt filter - IKZ 40 bar - Blum laser tool measurement system - NC swivelling rotary table, diameter 850 x 750 mm 16,800 spindle hours and 48,00 ...
x-travel: 500 mm y-travel: 450 mm z-travel: 400 mm Control: total power requirement: --- kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Year of construction: 2019 CNC controller: FS-31iB (MAPPS IVB) Axes X-axis travel mm: 1540 Y-axis travel mm: 760 Z-axis travel mm: 660 Rapid traverse m/min: 20 Worktable Table dimensions mm: 1700x760 Max. workpiece weight kg: 2000 Spindle Spindle speed rpm: 20000 Spindle drive power kW: 18,5/15/11 (10 min./30 min./cont) Spindle torque Nm: 81 (10%ED) Cooling Cooling through the Spindle Center bar: 70 Tool system Tool holder: BT 40 Tool magazine slots: 60 With free neighboring places mm: 125 With occupied neighboring places mm: 95 Max. Tool Length mm: 450 Max tool weight kg: 12 Tool-to-tool time s: 2.1 Equipment Electronic Handwheel Internal cooling lubricant supply Rinsing gun Signal lamp Tool measuring arm Mist collector Heat compensator Program restart Paper band filter Machine running times Under power: 35557 Spindle Working: 27278 Rated power kVA: ...
DMG MORI DMC 850 VYear of manuf. : 2018 Control : Siemens 840 Dsl - Celos Speed : 20000 rpmMovement X/Y/Z : 850/520/475 mmTool holder : HSK 63 ____________Description:In General:Year of manufacture:2018Control system:Siemens 840 Dsl – OperateTravel ranges X/Y/Z:850/520/475 mmSpeed:20,000 rpmTool holder:HSK 63Spindle:Technology:Motorised spindleSpeed:20,000 rpmMax. power:35 kWMax. torque:130 NmTool holder:HSK 63Fluid supply:Coolant + blast airWorking table:Clamping area:1,160 x 570 mmMax. table load:1,000 kgTool magazin:Technology:Chain magazineNumber of stations:60Tool changer:Double gripperMax. tool diameter:80 (130) mmMax. tool length:300 mmEquipment:Positioning sensors:Direct scalesChip removal:Chip conveyorCoolant supply:Internal coolant system, 20 barWorkpiece measurement:Renishaw Touch probeTool measurement:Tool setterEmulsion mist separator:MechanicalTool coding:Balluf sen ...
CNC Turning and Milling Center DMG CTX GAMMA 2000 TC (spindle hours may increase slightly). The machine is equipped with an automatic steady rest from SMW AUTOBLOK, a three-jaw chuck (manufacturer SMW, diameter: 300 mm), additional clamping jaws, another jaw chuck, as well as a chip conveyor and coolant system. Transport warning: Caution: the machine can be transported on a truck up to 3000 mm wide. Additional technical specifications: • Spindle distance: 2260 mm • max. workpiece weight chuck parts/chuck weight: 250/150 kg • max. workpiece center of gravity from spindle flange: 250 mm • Travel path Z2: 1910 mm • Travel path Z3: 1910 mm • Steady rest clamping range DW: 45 - 310 mm • Steady rest width C: 145 mm • Spindle flange diameter: 220 H 5 mm • Front bearing diameter: 160 mm
The machine is equipped with a tailstock, a three-jaw chuck, a chip conveyor, and a coolant system. Attention: spindle hours may increase slightly! Additional technical specifications: • Nominal voltage: 125 A • Spindle distance: 1020 mm • Max. workpiece weight chuck parts/chuck weight: 100 kg • Max. workpiece center of gravity from spindle flange: 120 mm • Travel X1: from -10 to 490 mm • Travel Y1: +-100 mm • Travel Z2: 600 mm • Travel Z3: 800 mm • Spindle flange diameter: 220 H 5 mm • Front bearing diameter: 160 mm • Slide rapid traverse speed Z-axis: 40 m/min • Path resolution Z-axis: 0,001 mmm • B-axis max. swivel speed: 70 rpm • Angular resolution: 0,001° • Quill force: 8 kN
The machine is equipped with a sub-spindle (equipped with a 3-jaw chuck SMW AUTOBLOK, diameter: 210 mm) as well as a 12-station tool turret, incl. driven tool stations, as well as an SMW AUTOBLOK 3-jaw chuck, diameter: 250 mm, plus chip conveyor, filter extraction, documentation and CDs. Additional technical specifications: • Bed inclination: 45° • Bed diameter: 700 mm • max. slide diameter V1 to V3: 500 mm • in the front workpiece diameter: 320 mm • centre length: 1450 mm • Travel Z3-axis: 1200 mm • Spindle height axis to floor: 1043 mm • Drawbar diameter: 81 mm • Front bearing diameter: 130 mm • Resolution axis C1: 0.001° • max. weight between centers: 500 kg • Distance between two spindle noses: 1495 mm • Z1 axis travel: 1200 mm • max. workpiece length: 1140 mm • max. workpiece diameter: 450 mm • Bar capacity of sub-spindle: 50 mm • Bore diameter o ...
The machine is equipped with a tailstock and a 12-station tool turret, incl. the tool holders located in the changer, plus a 3-jaw chuck SMW AUTOBLOK, diameter: 300 mm, incl. chip conveyor and filter extraction system as well as documentation. Additional technical specifications: • frequency: 50/60 Hz • Diameter in the front bearing: 140 mm • Feed drive in X and Z-axis: 40 x 10 mm • Feed forces X/Z: 7.5 kN • Y-axis feed force: 7000 N • rapid traverse of C1-axis: 100 m/min • Position measuring system X/Y/Z: absolute rotating • Positioning uncertainty X: 0.008 mm • Positioning uncertainty Z: 0.010 mm • Working area axis distance: 1150 mm • Swivel range over X slide: 465 mm • Swivel range over bed: max. 680 mm
Management Heidenhain MillPlus IT Travel distances X/Y/Z: 730 x 510 x 510 mm Spindle speed: 12,000 min-1 Tool magazine for 60 Wkz., SK 40 NC rotary table integrated in rigid table d 600 mm / 1000 mm x 600 mm Controlled NC swivel milling head (B-axis) incl. hydraulic clamping Swivel range -120/+30° 3D quick SET Production package 40 bar/23 l/min (theor. Pump capacity)Tank 600 l Paper Belt Filter rotating viewing panel Chip conveyor

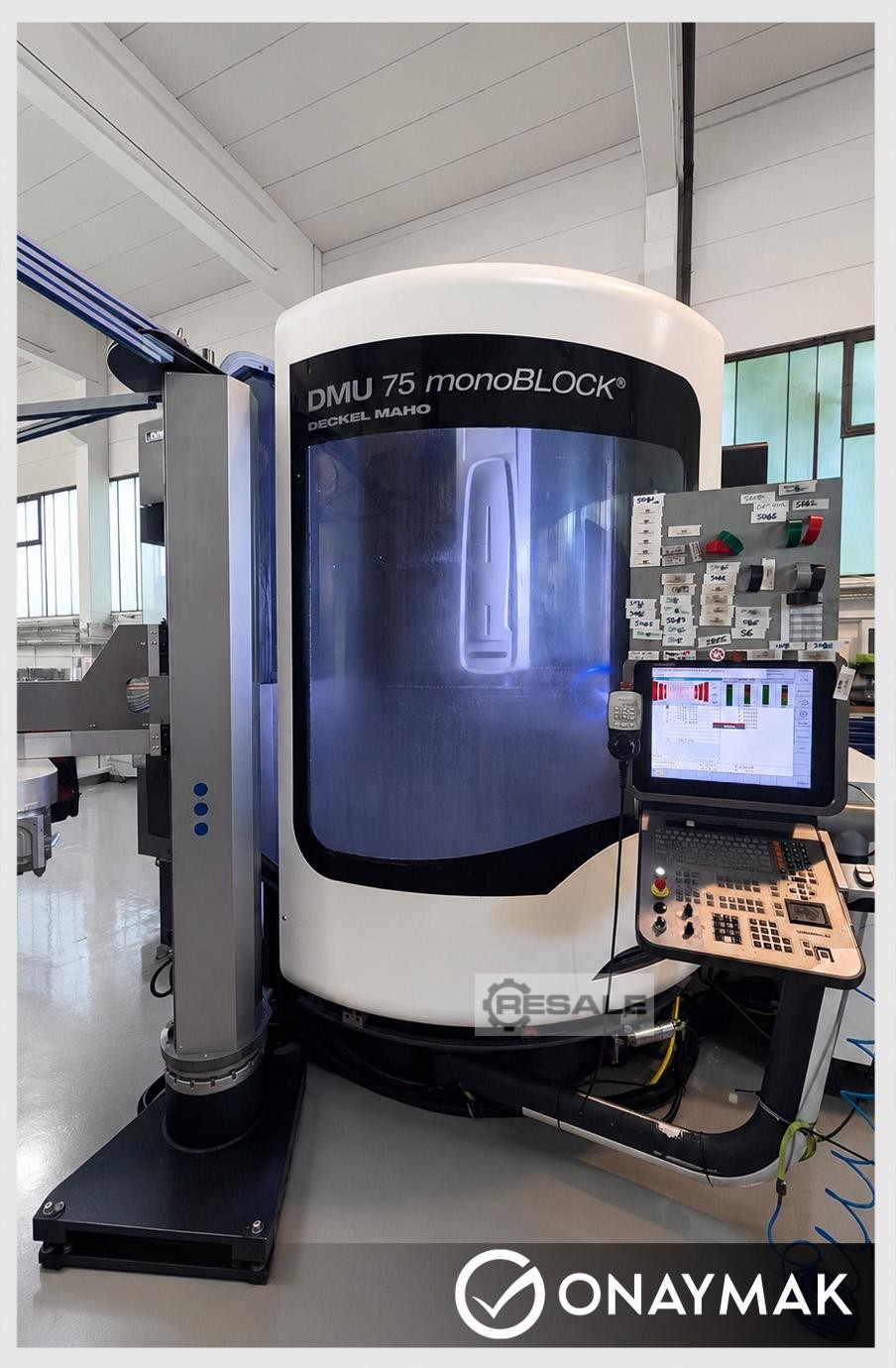

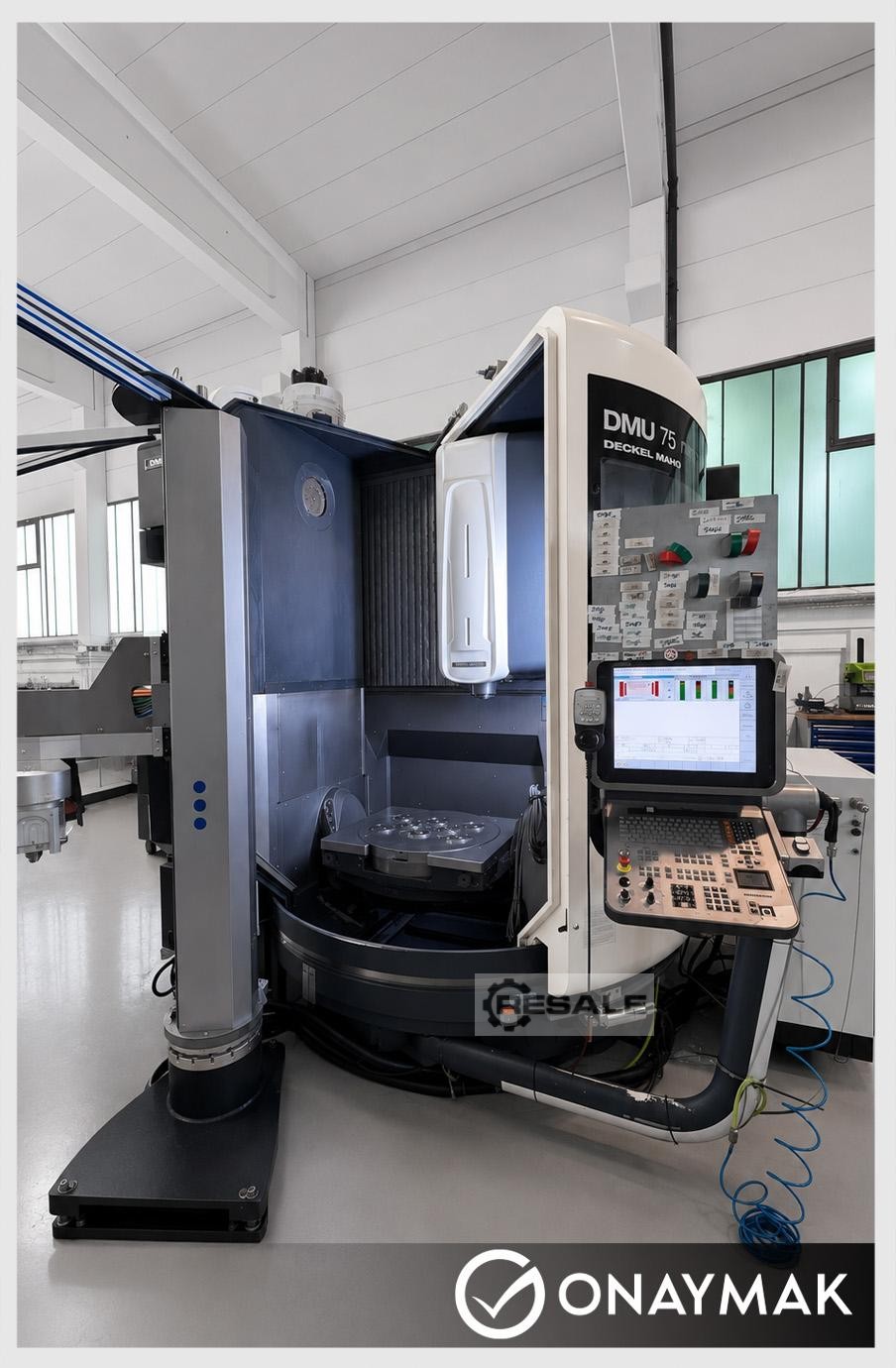

CATEGORY - 5-Axis BRAND - DMG MORI MODEL - DMU 75 MONOBLOCK WAREHOUSE NO - ONY100000591 YEAR OF MANUFACTURE - 2014 CONTROL UNIT - HEIDENHAIN iTNC 530 HSCI AXIS TRAVELS - X 750 mm / H 650 mm / Z 560 MM ROTARY AXIS MOVEMENTS - A +120° / -120° / C 360° SPINDEL CYCLE 18.000 RPM HOLDER TYPE - SK 40 NUMBER OF TEAMS - 60 TABLE SIZE - 800 × 650 mm (d 650 MM ) WORKPIECE WEIGHT (MAX) - 600 kg MACHINE WEIGHT - 11.600 kg MACHINE EXTERIOR DIMENSIONS - 310 × 245 × 285 cm
CATEGORY - 5-Axis BRAND - DMG MORI MODEL - DMU 60 EVO LINEAR WAREHOUSE NO - Z100000517 YEAR OF MANUFACTURE - 2012 CONTROL UNIT - SIEMENS AXIS TRAVELS - X 600 MM / H 500 MM / Z 500 MM ROTARY AXIS TRAVELS - B -5° / +110° / C 360° SPINDEL SPEED - 18.000 MIN/-1 HOLDER TYPE - HSK-A 63 TABLE SIZE - D 600 X 500 MM WORKPIECE WEIGHT (MAX) - 400 KG NUMBER OF PALLETS - 2 PALLETS MACHINE WEIGHT - 12.000 KG MACHINE EXTERNAL DIMENSIONS - 2.80 X 3.25 X 2.78 M
CATEGORY - 5-Axis BRAND - DMG MORI MODEL - NT 5400/1800 SZ DCG WAREHOUSE NO - ONY100000580 YEAR OF MANUFACTURE - 2007 CONTROL UNIT - MSX-701 III AXIS TRAVELS - X1 1,040 MM / X2 267 MM / H ± 255 MM / Z1 1,940 MM / Z2 1,830 MM ROTARY AXIS MOVEMENTS - B ±120° / C 360° MAX. TURNING DIAMETER - 920 MM MAX TURNING DIAMETER - 470 MM MAX TURNING LENGTH - 1.921 MM SPINDLE - 1 SPINDLE SPEED - 2,400 MIN/-1 MIRROR SIZE - 450 MM ROD DIAMETER - 107 MM MAIN SPINDLE SPEED (S1) - 8,000 MIN/-1 HOLDER TYPE - CAPTO C8 SPINDLE - 2 COUNTER MIRROR REVOLUTION - 2,400 MIN/-1 MIRROR SIZE - 450 MM TURRET-2 NUMBER OF HOLDERS - 10 MACHINE WEIGHT - 36.000 KG MACHINE EXTERNAL DIMENSIONS - 4.50 X 6.61 X 3.46 M
CATEGORY - 5-Axis BRAND - DMG MORI MODEL - NT 5400/1800 SZ DCG WAREHOUSE NO - ONY100000580 YEAR OF MANUFACTURE - 2007 CONTROL UNIT - MSX-701 III AXIS TRAVELS - X1 1,040 MM / X2 267 MM / H ± 255 MM / Z1 1,940 MM / Z2 1,830 MM ROTARY AXIS MOVEMENTS - B ±120° / C 360° MAX. TURNING DIAMETER - 920 MM MAX TURNING DIAMETER - 470 MM MAX TURNING LENGTH - 1.921 MM SPINDLE - 1 SPINDLE SPEED - 2,400 MIN/-1 MIRROR SIZE - 450 MM ROD DIAMETER - 107 MM MAIN SPINDLE SPEED (S1) - 8,000 MIN/-1 HOLDER TYPE - CAPTO C8 SPINDLE - 2 COUNTER MIRROR REVOLUTION - 2,400 MIN/-1 MIRROR SIZE - 450 MM TURRET-2 NUMBER OF HOLDERS - 10 MACHINE WEIGHT - 36.000 KG MACHINE EXTERNAL DIMENSIONS - 4.50 X 6.61 X 3.46 M
x-travel:560 mm y-travel:560 mm z-travel:660 mm control:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/min spindle drive:25/ 35 kW max. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mm Tool diameter with no neighbouring tools:170 mm tool length - max.:450 mm weight of tools max.:12 kg numbers of pallets:2 Pallet dimension:400 x 400 mm max. workpiece diameter:630 mm workpiece height max.:900 mm table load:400 kg rapid travel x/y/z:60 m/min Feed x/y/z:60 m/min internal coolant system feed:70 bar weight of the machine ca.:8,5 t dimensions:3200 x 4800 x 2900 mm Renishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spind ...
x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.
x-travel:1.250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min high speed spindle taper ISO:50 table-size:1.250 x 1.000 mm max. workpiece weight: 2.000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid traverse speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 x 4,4 x 2,9 m
x-travel:1250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min spindle taper ISO:50 table-size:1250 x 1000 mm max. workpiece weight:2000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 4,4 x 2,9 m 5-axes Machining Center with CNC SIEMENS 840 D A-axis 0,001°, C-axis 0,001° autom. toolchanger30-pockets NC table through spindle coolant 40 Bar , chip conveyor
Cutting mill Manufacturer: NEUE HERBOLD Built: 2001 Drive: 7.5 kW for the grinding of foils: optional with roller feeder type EB 290 (drive 0.75 kW)
General SKU437W1415 LocationBarneveld Pressure Working pressure300 Bar Main Features MaterialStainless steel Volume20 Ltr. Motor0.37 KW Specified Features - Stainless Steel Reactor Reactorcheck Capacity20 l. Vessel sizesDia. 550x600 mm Dished bottomcheck OutletPneumatic valve With jacketcheck With propellor stirrercheck Motor0,37 kW, 220/380 volt, 1410 rpm With jacketcheck Stainless Steel Reactors MaterialStainless steel 1.4571 (316Ti) General MakeMedimex TypeMED 265 Mounted on legscheck With switchcheck Floorspace1,10x1,0 m Total height2,20 m Weight850 kg Extra SpecificationsWith ToolTemp temperature controller, type TT400,stainless steel vertical pressure vessel, volume approx 30 l.Oils & fatPaints & coatingsPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalBiotechnologyRubberAgrochemicalsSpicesPlastic & polymersC ...
2 PC. stainless steel chimneys outside diameter 300 mm, inner diameter 200 mm, length 7 m 1 STK. stainless steel fireplace outside diameter 400 mm, diameter 300 mm, length 7 m Price VB
Hydraulic radial engine manufacturer Calzoni MR. 3000-F1N1N2S2NX 0401 / 46528, 656592 250 bar Used Husky injection moulding machine, type GL225RS60/50
Vibration machine for drying and sieving of sand. The machine consists of a welded construction mounted on conveyor elements, with 2 Electric Vibrators as drive. An electric heater with built-in blower is located at the end of the conveyor belt. Below the conveyor trough a sieve box is mounted in the area of the sand outlet. The dynamic forces that are emitted from the machine to the ground only about 100 N amount due the shock mount on the spring elements. The amplitude and therefore the flow rate can be set by adjusting the unbalances on the motors. The machine is due to the simple design nearly stör - and maintenance-free. The static frequency converter has a range of 10 to 32 Hz Length: 3.5 m Width: 1.2 m Height: 1.4 m Weight: 220kg
Battenfeld UTR 300 heating controller for control of Unilog 4000 B
maximum number of results exceeded
please refine your search
57.500 €
