dirinler used for sale

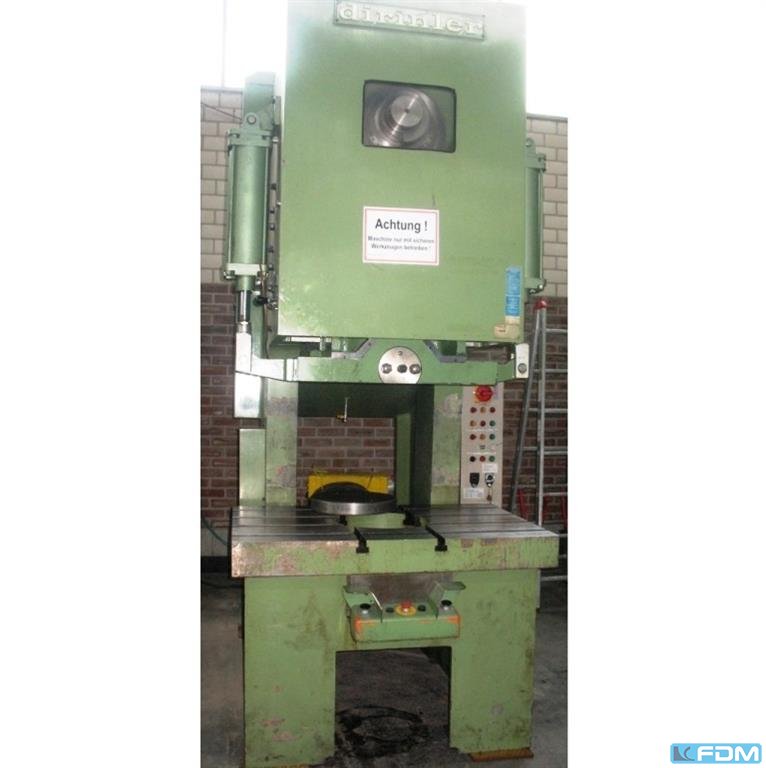

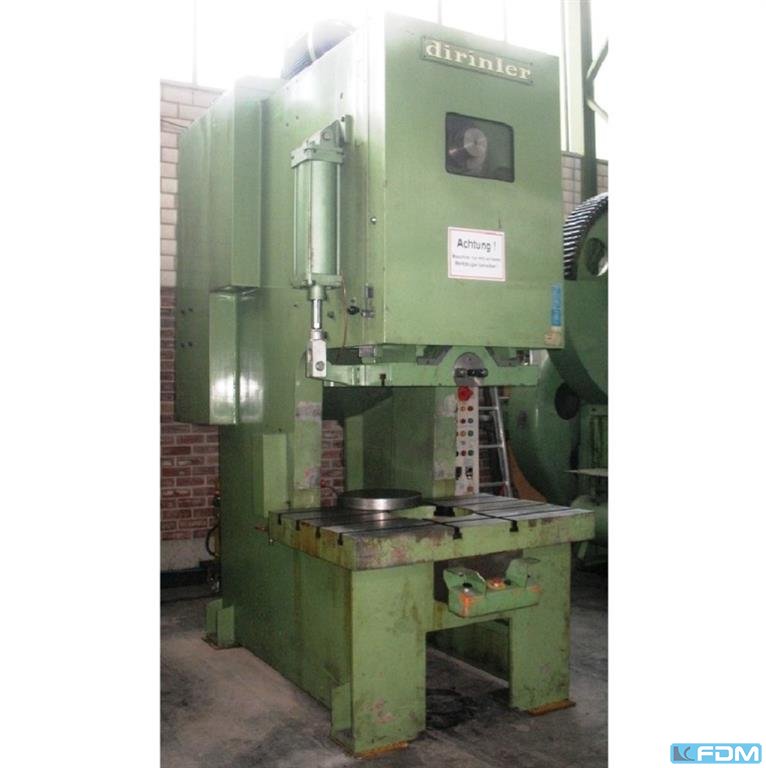

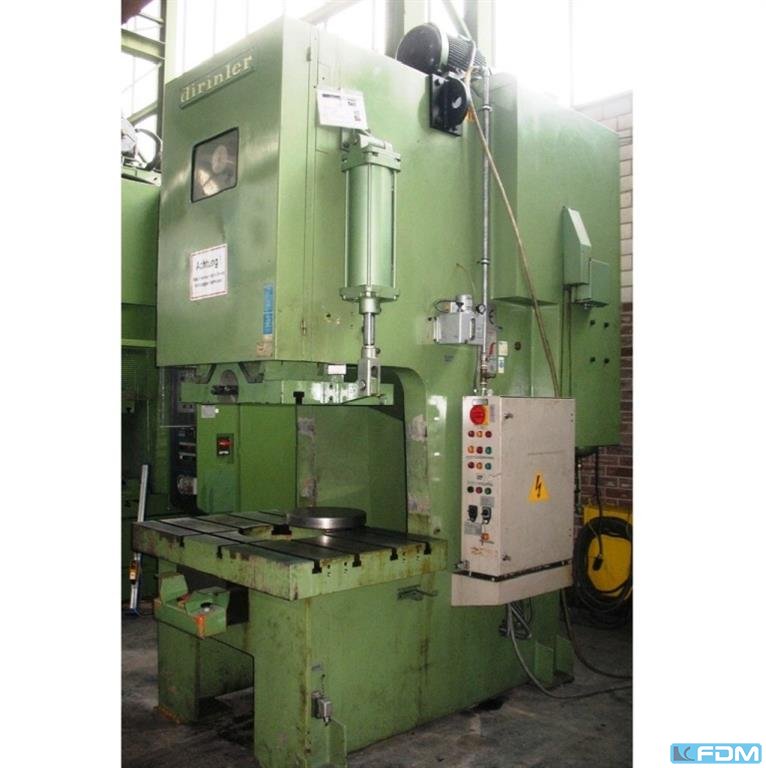

Dirinler CD/PC 600 H - Eccentric Press - incl. tools & accessories - Built in 1990 Specification - Capacity: 60 t - Stroke rate: 52 rpm - Plunger adjustment: 80 mm - Table dimensions: 750 x 480 mm - Plunger area: 360 x 250 mm - Table recess: Ø 170 mm - Projection: 250 mm - Engine speed: 1400 rpm - Motor power: 4 kW - Operating voltage: 400 V - Machine dimensions WxHxD: 950 x 2500 x 1900 mm - Dimensions control cabinet WxHxD: 60 x 115 x 35 mm - Weight: approx. 4000 kg

a Dirinler industrial press, a heavy-duty piece of machinery manufactured in Turkey. Machine Identification - Manufacturer: Dirinler Makina Sanayi ve Ticaret A.Ş. - Type: CDHC 630-400-250 - Serial Number: 09H063008A070006 G - Year of Manufacture (Baujahr): 2007 --------------------------------------------------------------- Technical Performance Specifications Nominal Force (Nennkraft) 630kN Max. Pressure (Ram/Stössel)250bar Drawing Cushion Force (Ziehkissenkraft)100kN Ram Stroke (Stösselhub)415mm Cushion Stroke (Ziehkissenhub)150mm Find more here - / Contact us at -

: neu : ca. 3-6 Wochen ab Auftrag : Türkei : 62500 € : 1181.25 € : 63 to : 750 mm : 500 mm : 170 mm : 4 - 102 mm : 54 1/min : 490x325 mm : 90 mm : 270 mm : 440 mm : 7.5 kW : 1800 mm : 1150 mm : 2750 mm : 4100 kg 8-fold ram guide front protection by light guard manual stroke adjustment ram adjustment witch ratchet drive over gear combined clutch brake unit with pneumatic control fix table single and continuous stroke foot pedal and 2 hand control mech. overload safety device automatic central lubrication user manual in GERMAN and ENGLISH according to CE rules The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

(2019) 250t Dirinler Eccentric Press High-Performance 250-Ton Precision Eccentric Press This Dirinler eccentric press represents the modern standard, offering a high-tonnage 2,500 kN capacity with advanced variable stroke rates ranging from 50 to 70 strokes per minute. Technical Details ‍ Machine Type: Eccentric Press Manufacturer: Dirinler Model: CDCS 2500 P 81 Serial Number: 04 M 25 0010 A180114 R Year of Manufacture: 2019 Nominal Force: 250t Stroke Rate: 50 – 70 strokes/min Stroke Length: 4 – 140 mm Ram Adjustment: 100 mm Shut Height: 502 mm Plate Dimensions: 1,250 x 850 mm Max. Tool Weight: 1,058 kg Motor Power: 18.5 kW Operating Voltage: 400 V / 50 Hz Overrun Time: 172 ms Safety Distance: 275 mm Total Weight: approx. 19,178 kg

(2019) 160t Dirinler Eccentric Press High-Speed 160-Ton Precision Eccentric Press This 2019 Dirinler eccentric press is a modern, high-speed production unit capable of delivering 1,600 kN of force with a variable stroke rate of up to 85 per minute. Technical Details ‍ Machine Type: Eccentric Press Manufacturer: Dirinler Model: CDCS 1600 P 81 Serial Number: 04H160007A180149P Year of Manufacture: 2019 Nominal Force: 160t Stroke Rate (Variable): 60 – 85 strokes/min Stroke Length (Adjustable): 30 – 110 mm Ram Adjustment: 93 mm Distance Between Table and Ram: 480 mm Table Dimensions: 1,100 mm x 700 mm Motor Power: 15 kW (1,460 rpm) Max. Permissible Upper Tool Weight: 187 kg Over-run Time: 158 ms Safety Distance: 252 mm Machine Weight: approx. 9,960 kg

(2019) 160t Dirinler Eccentric Press High-Speed 160-Ton Precision Eccentric Press This 2019 Dirinler eccentric press is a modern, high-speed production unit capable of delivering 1,600 kN of force with a variable stroke rate of up to 85 per minute. Technical Details ‍ Machine Type: Eccentric Press Manufacturer: Dirinler Model: CDCS 1600 P 81 Serial Number: 04H160007A180153R Year of Manufacture: 2019 Nominal Force: 160t Stroke Rate: 60 – 85 strokes/min Stroke Length (Adjustable): 30 – 110 mm Ram Adjustment: 97 mm Distance Between Table and Ram: 482 mm Table Dimensions: 1,100 mm x 700 mm Motor Power: 15 kW (1,460 rpm) Max. Permissible Upper Tool Weight: 187 kg Over-run Time: 143 ms Safety Distance: 228 mm Machine Weight: approx. 9,960 kg

(2019) 160t Dirinler Eccentric Press High-Performance 160-Ton Eccentric Press This 2019 Dirinler eccentric press is a modern, high-speed production unit capable of delivering 1,600 kN of force with a variable stroke rate of up to 85 per minute. Technical Details ‍ Machine Type: Eccentric Press Manufacturer: Dirinler Model: CDCS 1600 P 81 Serial Number: 04H160007A180151P Year of Manufacture: 2019 Nominal Force: 160t Stroke Rate: 60 – 85 strokes/min Stroke Length: 30 – 110 mm Ram Adjustment: 95 mm Distance Between Table and Ram: 480 mm Table Dimensions: 1,100 mm x 700 mm Motor Power: 15 kW (1,465 rpm) Max. Permissible Upper Tool Weight: 187 kg Over-run Time: 152 ms Safety Distance: 243 mm Machine Weight: approx. 9,960 kg

(2020) 160t Dirinler Eccentric Press High-Speed 160-Ton Precision Eccentric Press This 2019 Dirinler eccentric press is a modern, high-speed production unit capable of delivering 1,600 kN of force with a variable stroke rate of up to 85 per minute. Technical Details ‍ Machine Type: Eccentric Press Manufacturer: Dirinler Model: CDCS 1600 P81 Serial Number: 04H160011A200180 Year of Manufacture: 2020 Nominal Force: 160t Stroke Rate: 60 – 85 strokes/min Stroke Length: 20 – 110 mm Ram Adjustment: 95 mm Distance Between Table and Ram: 480 mm Table Dimensions: 1,100 mm x 700 mm Motor Power: 15 kW (1,462 rpm) Max. Permissible Upper Tool Weight: 390 kg Overrun Time: 130 ms Safety Distance: 211 mm Machine Weight: approx. 10,900 kg

(2015) 160t Dirinler Eccentric Press High-Speed 160-Ton Precision Eccentric Press This 2015 Dirinler eccentric press is a modern, high-speed production unit capable of delivering 1,600 kN of force with a fixed stroke rate of 62 per minute. Technical Details ‍ Manufacturer: Dirinler Model: CDCS 1600 P81 Serial Number: 04H160012A 140098R Year of Manufacture: 2015 Nominal Force: 160t Stroke Rate (Fixed): 62 strokes/min Stroke Length: 5 – 110 mm Ram Adjustment: 93 mm Distance Between Table and Ram: 474 mm Table Dimensions: 1,100 mm x 700 mm Max. Permissible Upper Tool Weight: 390 kg Overrun Time: 145 ms Safety Distance: 324 mm Weight: approx. 9,960 kg

(2015) 160t Dirinler Eccentric Press High-Speed 160-Ton Precision Eccentric Press This 2015 Dirinler eccentric press is a modern, high-speed production unit capable of delivering 1,600 kN of force with a fixed stroke rate of 62 per minute. Technical Details ‍ Machine Type: Eccentric Press Manufacturer: Dirinler Model: CDCS 1600 P 81 Serial Number: 04H160012A 140099R Year of Manufacture: 2015 Nominal Force: 160t Stroke Rate (Fixed): 62 strokes/min Stroke Length: 5 – 110 mm Ram Adjustment: 98 mm Distance Between Table and Ram: 476 mm Table Dimensions: 1,100 mm x 700 mm Motor Power: 15 kW (1,460 rpm) Max. Permissible Upper Tool Weight: 390 kg Overrun Time: 134 ms Safety Distance: 302 mm Weight: approx. 9,960 kg

: neu : 2025 : 070145 : prompt, Zwischenverkauf v : Türkei : 44500 € : 849.95 € : 1 : 40 to : 4 mm : 630 mm : 450 mm : 160 mm : 3 - 75 mm : 154 1/min : 420 x 275 mm : 8 : 75 mm : 40 mm : 230 mm : 293 mm : 4 kW : 1174 mm : 1540 mm : 2200 mm : 2850 kg 8-fold ram guide 2-hand control panel and foot pedal Automatic central lubrication Front light guard Vibration pads User Manual in German with CE Declaration of Conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 3-6 Wochen ab Auftrag : Türkei : 64000 € : 1209.6 € : 80 to : 900 mm : 540 mm : 180 mm : 4 - 102 mm : 54 1/min : 490x325 mm : 280 mm : 380 mm : 7.5 kW : 2010 mm : 1390 mm : 2750 mm : 5400 kg 8-fold ram guide front protection by light guard manual stroke adjustment ram adjustment witch ratchet drive over gear combined clutch brake unit with pneumatic control fix table single and continuous stroke foot pedal and 2 hand control mech. overload safety device automatic central lubrication user manual in GERMAN and ENGLISH according to CE rules The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 Wochen ab Auftrags : Türkei : 100 to : 400 mm : 850x630 mm : 850x640 mm : 685 mm : 250 mm/s : 10-20 mm/s : 11 kW : 2030 mm : 1150 mm : 3565 mm : 7700 kg NC control with touchscreen 8-fold ram guide table and ram with T-slots 2 hand operation pressure adjustment stroke adjustment die cushion central lubrication system light guard user manual in German or English according to CE rules The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 Wochen ab Auftrags : Türkei : 63 to : 400 mm : 750x570 mm : 750x615 mm : 630 mm : 300 mm/s : 10-25 mm/s : 7.5 kW : 1710 mm : 1150 mm : 3170 mm : 4900 kg NC control with touchscreen 8-fold ram guide table and ram with T-slots 2 hand operation pressure adjustment stroke adjustment die cushion central lubrication system light guard user manual in German or English according to CE rules The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 97800 € : 1848.42 € : 160 to : 1100 mm : 700 mm : 210 mm : 23 - 110 mm : 60 1/min : 630x400 mm : 8 : 95 mm : 65 mm : 325 mm : 480 mm : 2400 mm : 1430 mm : 3200 mm : 9950 kg 8-fold ram guide light guard mot. ram adjustment hyd. overload safety device automatic lubrication according to CE rules user manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 3-6 Wochen ab Auftrag : Türkei : 79900 € : 1510.11 € : 130 to : 1000 mm : 640 mm : 210 mm : 5 - 110 mm : 60 1/min : 630x400 mm : 90 mm : 330 mm : 11 kW : 2200 mm : 1372 mm : 3000 mm : 8200 kg 8-fold ram guide front protection by light guard manual ram adjustment mech. overload safety device automatic lubrication user manual in GERMAN and ENGLISH according to CE rules The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 3-6 Wochen ab Auftrag : Türkei : 130600 € : 2468.34 € : 200 to : 1200 mm : 740 mm : 220 mm : 24 - 140 mm : 50 1/min : 950x600 mm : 100 mm : 390 mm : 15 kW : 2350 mm : 1700 mm : 3435 mm : 14900 kg 8-fold ram guide light guard mot. ram adjustment hyd. overload safety device automatic lubrication according to CE rules user manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Pressure:250 t throat:450 mm stroke:8 - 135 mm no. of strokes:50 /min distance table/ram, max. stroke up, adjustment up:635 mm table surface area:1250 x 850 mm hole in the table:355 mm table height over floor:950 mm passage to the back:660 mm ram surface:790 x 610 mm ram adjustment:120 mm power requirement:18,5 kW weight:14,0 t Dimensions (WxDxH):1,5 x 2,8 x 3,65 m German Safety: permitted for manual loading:CE-Norm - EN 692, BGR 500 clutch:pneumatisch overload protection in ram:mechanisch ram counterbalance:pneumatisch

: neu : ca. 12 Wochen ab Auftrags : Türkei : 160 to : 400 mm : 1000x680 mm : 1000x740 mm : 765 mm : 250 mm/s : 10-20 mm/s : 22 kW : 2400 mm : 1525 mm : 3900 mm : 10500 kg NC control with touchscreen 8-fold ram guide table and ram with T-slots 2 hand operation pressure adjustment stroke adjustment die cushion central lubrication system light guard user manual in German or English according to CE rules The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
