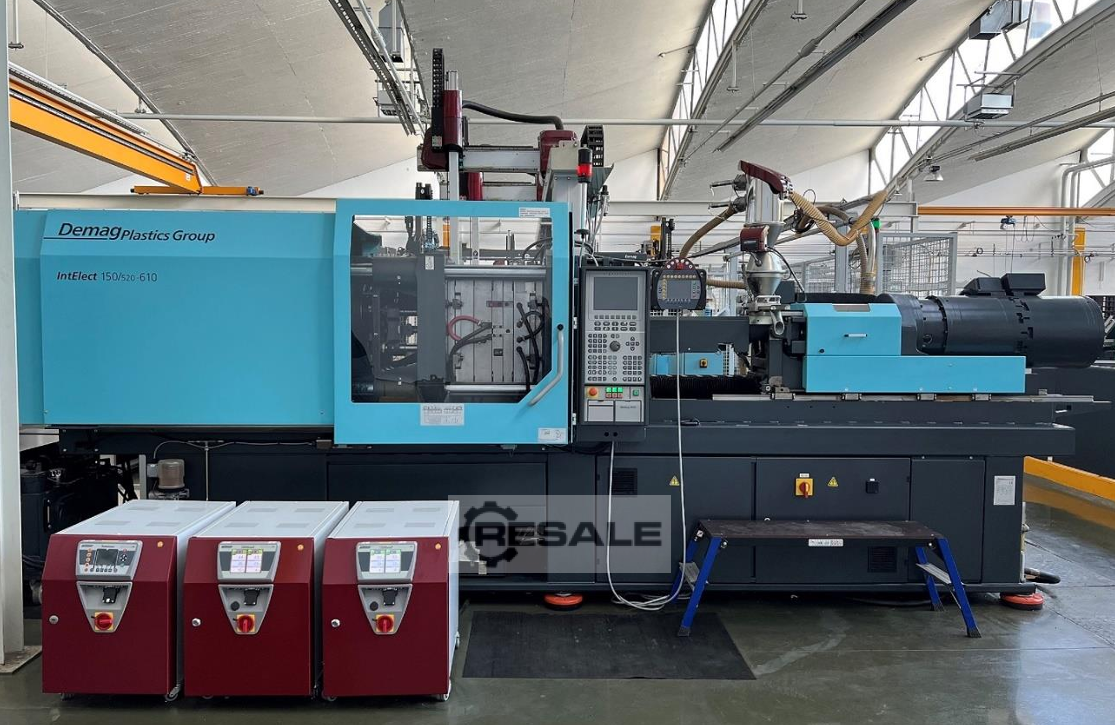

Injection molding machines DEMAG IntElect 150/520-61

Clamping force: 1500 kN Injection shot weight in Polysterol: 270 g/PS Screw diameter: 45 mm Clamping force: 150t
Year of Make: 2007
Injection weight in PS: 270g
Injection Unit .../610
Screw diameter: 45 mm
Spec. Spray pressure: 2050 bar
Spray volume: 305 cc
Injection weight in hp: 270 g
L/D Screw Ratio: 20
Clamping unit 150/...
Clamping force: 150 t
Size of the clamping plates: 770 x 770 mm
Lights spar spacing: 520 x 520 mm
Ejector force: 35 kN
Tool installation height: 275 mm
Opening travel: 905 mm
Max. plate spacing: 1180 mm
Weight: 6900 kg
Dimensions(m) LxWxH: 5.5 x 1.5 x 2.1 (2.3) m
Year of Make: 2007
Control Type: NC4
Equipment:

Operating hours: 26,500 hours

Increased tool installation height (min. unchanged, max. enlarged)

Wear-resistant screw; Bimetal cylinders; Standard L:D; E51257421 screw diameter 45 E51257421 mm

Return Circuit Breaker (RSP), 3-Piece, Ring Version

Electric-hydraulic interface for connecting 2 hydraulic core pulls on the movable clamping plate, via a separate hydraulic power unit

Increased injection speed (300 mm/s)

Increased tool installation height (min. unchanged, max. enlarged)
seller offer No. resale 168418535
