Numerically Controlled Machining Centres DECKEL MAHO DMU 50 eVo linear

Year of construction: 2010
CNC controller: Heidenhain iTNC 530
Axes
X-axis travel mm: 500
Y-axis travel mm: 450
Z-axis travel mm: 400
C-axis degrees: 360º (0,001)
B-axis degrees: 0º/108º (0,001)
Feed rates m/min: 80/50/50
Milling/turning table nc:
Number of pallets: 1
Table dimensions mm: Ø500x380
Maximum workpiece size (D x H) mm: Ø630x500
Max. workpiece weight kg: 200
Spindle
Spindle speed rpm: 18000
Spindle drive power kW: 35/25 (40%ED/cont)
Spindle torque Nm: 130/87
Cooling
Cooling through the Spindle Center bar: 40
Tool system
Tool holder: HSK-A63
Tool magazine slots: 30
With free neighboring places mm: 130
With occupied neighboring places mm: 80
Max. Tool Length mm: 300
Chip-to-chip time s: 5
Equipment
Chip conveyor
Infrared probe
blowing air through spindle center selectable via 36248314 M-function
Laser tool 36248314 measurement for measuring tool length and diameter
Programmable coolant nozzles
Oil skimmer
Ready for internal cooling (40/80 bar)

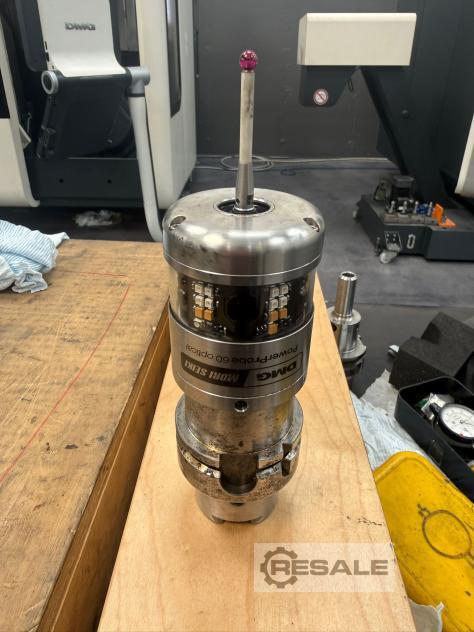

RENISHAW Measuring probe

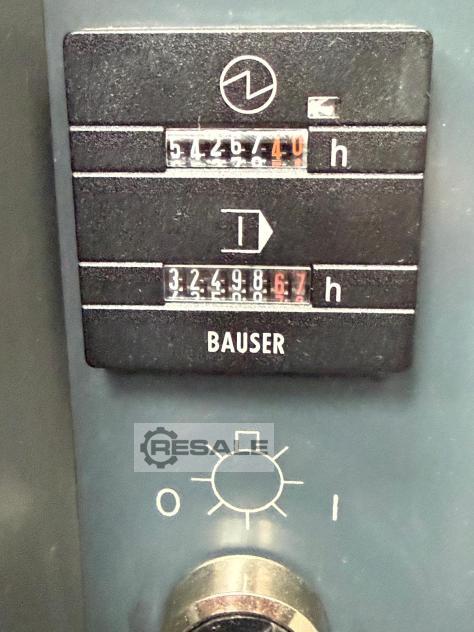

Machine running times
Under power: 54257
Spindle Working: 32498
Rated power kVA: 48
Basic machine dimensions / weight
Length mm: 4780
Width mm: 4410
Height mm: 2590
Weight kg: 5900

seller offer No. resale CNC0683
