3-Strand Billet Caster (160×160 mm)

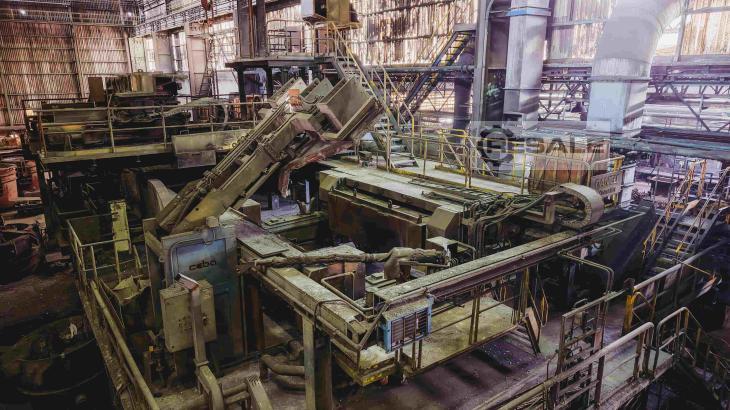

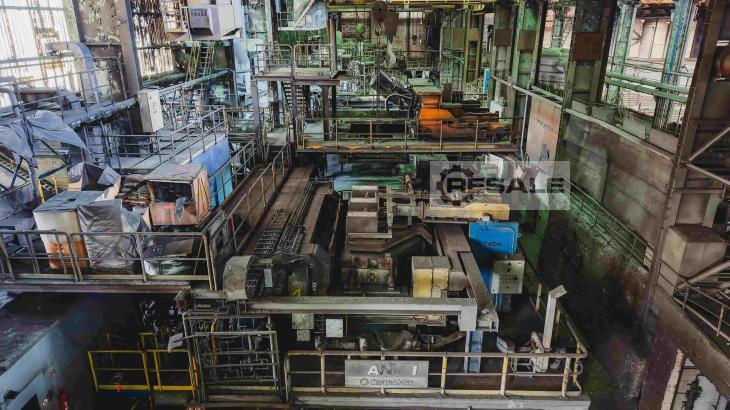

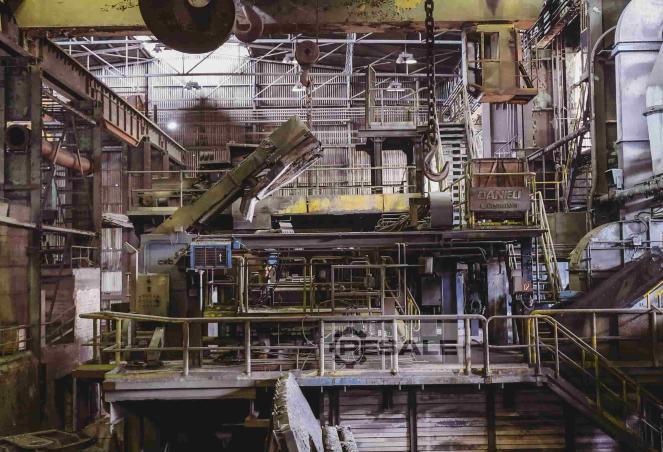

This 2008 Danieli Centro Met 3-strand curved continuous caster is a
high-yield production unit recently upgraded to cast 160×160 mm
billets at a capacity of 530,000 tons per year. Operating on a 7-meter
machine radius, it is equipped with extended 1,000mm moulds featuring
electromagnetic stirring (M-EMS), advanced secondary cooling zones,
and an integrated oxy-cutting system for precise billet sizing.
Technical Details
Manufacturer: Danieli Centro Met
Year of Manufacture: 2008
Type / Scope: 3-strand curved billet caster, upgraded from 130×130 mm
to a new 160×160 mm casting section, with new tundish, mould,
electromagnetic stirrer, secondary cooling and ladle
Key technical data:
Number of strands: 3
Max. castable section: 160×160mm
Capacity: 530,000 TPY
Billet cutting: Oxy-Cutting Torch
Cutting length: 3.4 - 8.5m
Tundish capacity: New 14t (800mm steel bath)
Machine radius: 7m
Bending-unbending radius: 13m
Strand distance: 1100mm
Discharge system: Discharge roller table w/ levers, lateral comb
transfer; walking-beam cooling bed; pusher collecting table
Mould Parameters - 160×160 mm Section:
Mould length: 1,000mm
Primary flow rate: 2,000 l/min
Water gap: 3.25 mm
Mould thickness: 16 mm
Corner radius: 6 mm
Mould inlet pressure: 7–8 bar
Max. inlet temperature: 35 °C
Germany
Trier
