cutting used for sale

Standard configuration Machine ⦁ Closed machine frame ⦁ Integrated cabinet ⦁ Motion unit for high precision processing ⦁ Torque drive in combination with direct linear drives ⦁ Chiller ⦁ Automatic pallet changer lengthwise installation ⦁ Enclosed beam delivery via laser light cable ⦁ Integrated electrical cabinets with inside light ⦁ Ergonomic control panel with Touchscreen ⦁ Work area lighting ⦁ Spray device ⦁ PierceLine ⦁ FocusLine ⦁ NitroLine ⦁ PlasmaLine ⦁ Automatic nozzle cleaning TRUMPF lasers ⦁ External solid state laser TruDisk 3001 with 1 fiber optic cable laser output ⦁ Stimulation via pump diodes ⦁ Laser power control Cutting head ⦁ Universal cutting unit ⦁ One cutting head strategy ⦁ Protection glass to avoid lens contamination ⦁ Online protection glass monitoring ⦁ ControlLine Control ⦁ Easy shop floor programming � ...

Standard configuration Machine ⦁ Working range: 4000 × 2000 mm ⦁ Box frame ⦁ Longitudinal conveyor belt ⦁ Motion unit for high-precision processing ⦁ Gantry drive in combination with linear direct drives ⦁ Process cooler for machine and laser (water/air) ⦁ Work area illumination ⦁ Pilot laser ⦁ Spraying equipment ⦁ Automatic nozzle cleaning ⦁ Integrated electrical cabinets ⦁ Integrated cabinet ⦁ Closed beam guidance via laser light cable (LLK) ⦁ Machine status light TRUMPF laser ⦁ Excitation using pump diodes ⦁ Laser power control Cutting unit ⦁ Single cutting head strategy ⦁ Universal cutting unit with adaptive lens system ⦁ Protective glass ⦁ Online condition checking of protective glass ⦁ Automatic nozzle centering Control ⦁ Quick post-production ⦁ SINUMERIK control ⦁ Ergonomic control panel with 21.5 wide-screen multi-touch color  ...

Standard configuration Machine ⦁ Closed machine frame ⦁ Integrated cabinet ⦁ Automatic pallet changer lengthwise installation ⦁ Torque drive in combination with direct linear drives ⦁ Enclosed beam delivery via fiber optic cable ⦁ Chiller for machine cooling (water-air) ⦁ Integrated eletrical cabinets with inside light ⦁ Power supply TruDisk via the machine ⦁ Longitudinal conveyor ⦁ Working area lighting ⦁ Positioning laser diode ⦁ Spray device ⦁ PierceLine ⦁ FocusLine ⦁ NitroLine ⦁ PlasmaLine ⦁ Automatic nozzle cleaning TRUMPF Laser ⦁ Solid state laser TruDisk 3001 with 1 LLK output ⦁ Fiber optic cable according standard layout (laser next to the machine) ⦁ Laser chiller unit (water-air) ⦁ Stimulation via pump diodes ⦁ Laser power control Cutting head ⦁ Universal cutting head with complete adaptive lense system ⦁ One cutting head stra ...

Standard configuration Machine ⦁ Closed machine frame ⦁ Integrated cabinet ⦁ Motion unit for high precision processing ⦁ Torque drive in combination with direct linear drives ⦁ Chiller ⦁ Automatic pallet changer lengthwise installation ⦁ Enclosed beam delivery via laser light cable ⦁ Integrated electrical cabinets with inside light ⦁ Ergonomic control panel with Touchscreen ⦁ Work area lighting ⦁ Spray device ⦁ PierceLine ⦁ FocusLine ⦁ NitroLine ⦁ Automatic nozzle cleaning TRUMPF lasers ⦁ External solid state laser TruDisk 3001 with 1 fiber optic cable laser output ⦁ Stimulation via pump diodes ⦁ Laser power control Cutting head ⦁ Universal cutting unit ⦁ One cutting head strategy ⦁ Protection glass to avoid lens contamination ⦁ Online protection glass monitoring ⦁ ControlLine Control ⦁ Easy shop floor programming ⦁ Fast post pro ...

Standard Configuration Machine ⦁ Working area: 3000 x 1500 mm ⦁ Box frame ⦁ Process cooler for machine and laser (water/air) ⦁ Longitudinal conveyor belt ⦁ Work area illumination ⦁ Pilot laser ⦁ Spraying equipment ⦁ Automatic nozzle cleaning ⦁ Gantry drive in combination with linear direct drives ⦁ Integrated electrical cabinets ⦁ Integrated cabinet ⦁ Closed beam guidance via laser light cable (LLK) ⦁ Machine status light ⦁ Machine environment temperature +5°C to 35°C TRUMPF laser ⦁ Excitation using pump diodes ⦁ Laser power control Cutting unit ⦁ Single cutting head strategy ⦁ Protective glass ⦁ Online condition checking of protective glass ⦁ Universal cutting unit with fully adaptive lens system Control ⦁ Quick post-production ⦁ SINUMERIK 840D SL control ⦁ Ergonomic control panel with 21.5 wide-screen multi-touch color display ⦁ In ...

KNUTH Basic Plus L&Z Lathe /Year 2011 -Tip height 150mm -Max turning diameter 300mm -Max turning diameter over support 178mm -Max. turning diameter without bridge 430mm -Tip width: 810 mm -Spindle bore: Ø 38 mm -Spindle speed: 60–1,550 rpm, 9 steps -Automatic longitudinal/plane feeds -Spindle mount: Camlock D1-4" -Tailstock cone: MK 3 -Quill stroke: 100 mm -Bed width: 180 mm -3-axis digital display -Multifix quick-change holder with insert -Electric lining protection -Work light -Rotating center punch tip -3-jaw chuck -2x bezels -Documentation Dimensions: LxWxH 1.6x0.7x1.2 meters / Weight 520Kg

Standard configuration Machine · Closed machine frame with integrated laser unit · Torque drive in combination with direct linear drives · Enclosed beam delivery via fiber optic cable · Chiller for machine cooling (water-air) · Integrated eletrical cabinets with inside light · Automatic pallet changer lengthwise installation · Wide longitudinal conveyor · Power supply TruDisk via the machine · Working area lighting · Positioning laser diode · Spray device · PierceLine · FocusLine · NitroLine · PlasmaLine · Automatic nozzle cleaning TRUMPF Laser · Solid state laser TruDisk 3001 with 1 fiber optic cable laser output · Fiber optic cable according standard layout · Laser chiller unit (water-air) · Stimulation via pump diodes · Laser power control · Logbook function Laser Cutting head · Universal Cutting head with complete adaptive lense system · Protection glass t ...

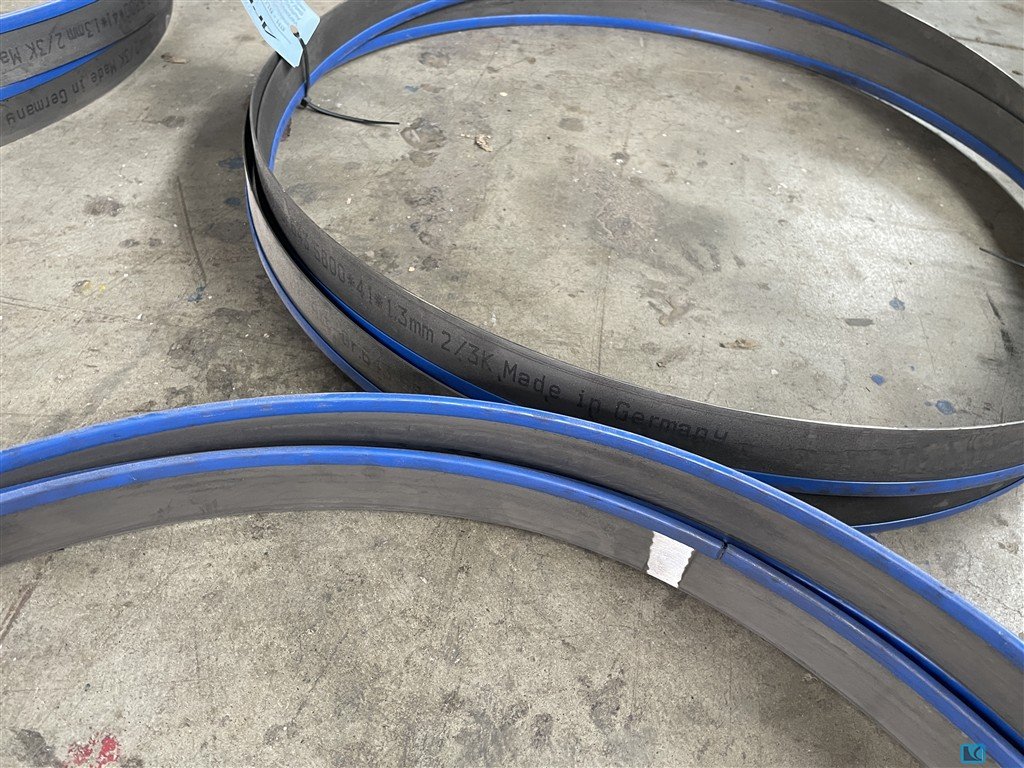

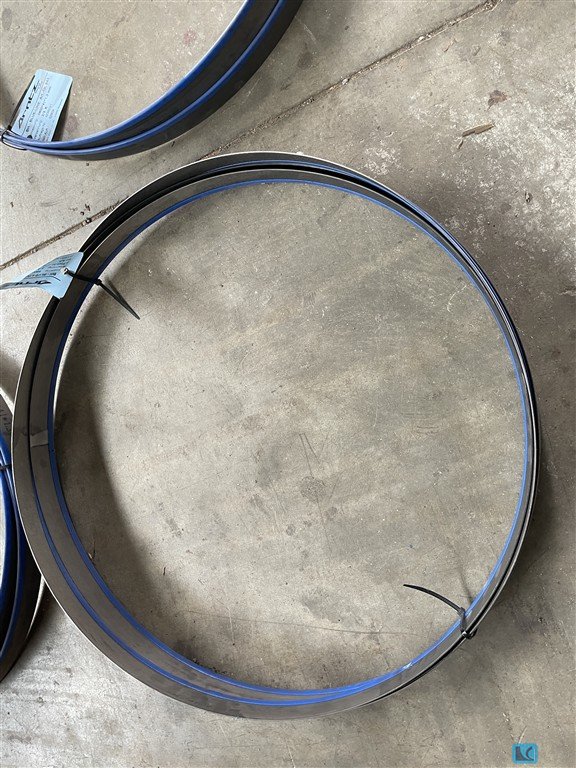

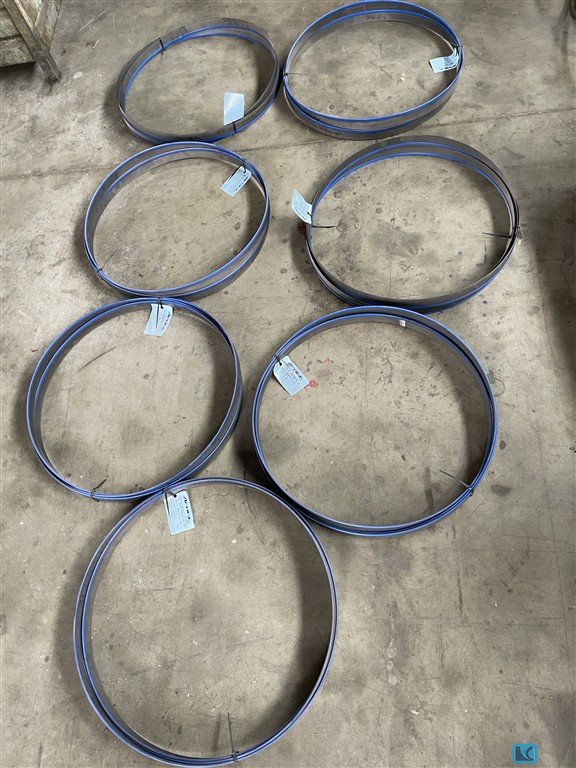

Arntz Blue Line saw blade Length: 5800 mm Specification: 41 x 1.3 mm 2/3 K Carbide band saw blades with pre-cutting and post-cutting geometry for machining non-ferrous metals and graphite. The specialist for: - Aluminium alloys - Aluminium bronzes - Copper alloys - Sand-cast aluminium and magnesium castings - Graphite

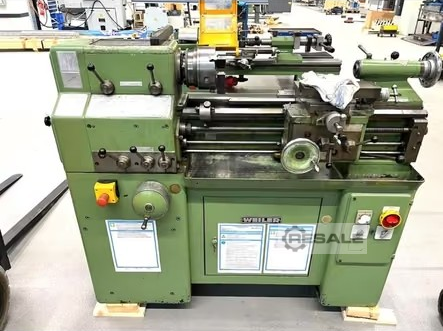

Lead and tension spindle lathe Weiler Matador -Center width: 500 mm -Tip height: 140 mm - Spindle head: size 5 -Drive: three-phase motor -Speed range: 15–3,550 rpm / Stepless speed adjustment -Coolant pump -Lining protection -Three-jaw chuck -Quick-change holder Multifix & insert -Documentation Dimensions: LxWxH 1.5x0.6x1.2 meters / Weight 600Kg

Hartner Multi-Step Drills Precision reimagined. Efficiency made tangible. Made in Germany. The multi-step drills are the intelligent further development of classic HSS and HSS-E twist drills. Thanks to their innovative step-drill geometry, the drills deliver significantly higher performance, greater precision, and noticeably improved drilling comfort in daily use. What makes the multi-step drill so special? Unlike conventional HSS drills that machine material in a single cutting action, the multi-step drill works in several defined cutting stages. The result is smooth, low-vibration operation with significantly lower force requirements. Additional advantages include optimal chip removal, perfectly round and precise holes, and almost burr-free hole exits. Even when used with hand drills and cordless drills, the special geometry enables controlled drilling without jamming or slipping in t ...
