Engine Lathes (Sliding, Surfacing And Screw Cutting Lathes) KNUTH Basic Plus

metal working machines / lathes / Engine Lathes (Sliding, Surfacing And Screw Cutting Lathes)

Manufacturer: KNUTH

Model:Basic Plus

Type of machine: Engine Lathes (Sliding, Surfacing And Screw Cutting Lathes)

item-No.: 170273826

Quantity: 1

Date: 03.10.2026

Year of manufacture:

Location: Land-de Germany 76646 Bruchsal

Price:


Machine in stock:Yes

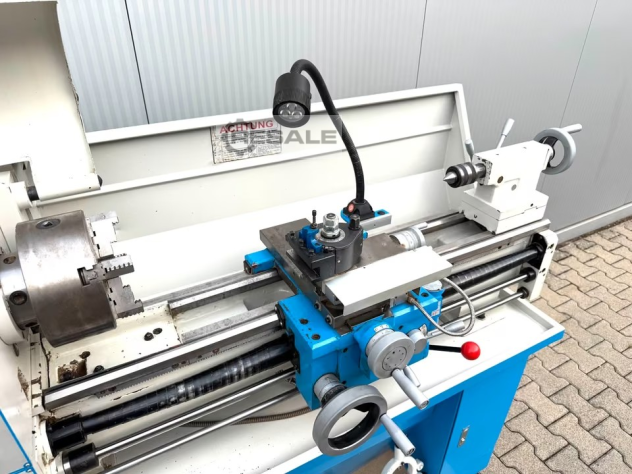

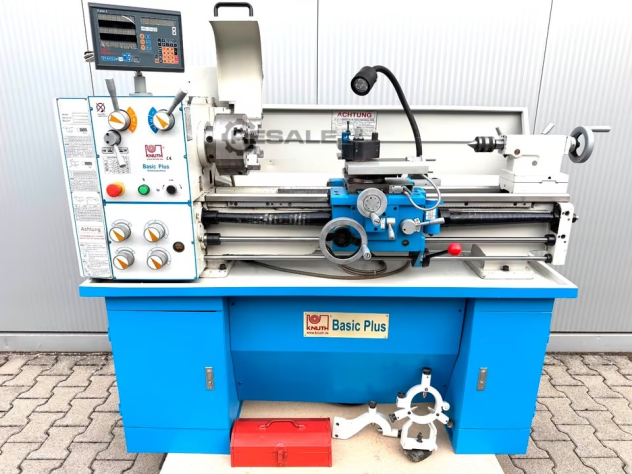

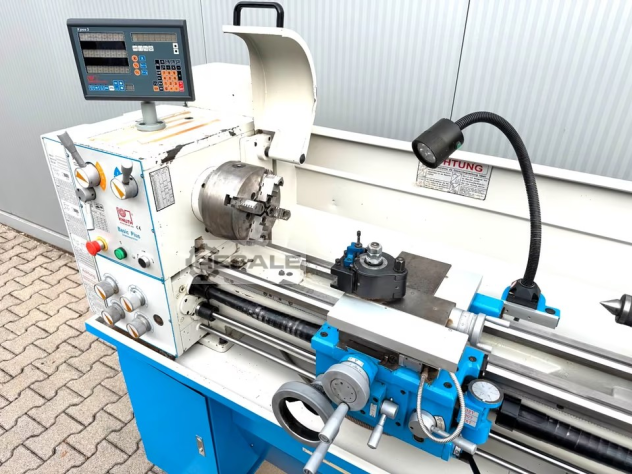

KNUTH Basic Plus L&Z Lathe /Year 2011

-Tip height 150mm
-Max turning diameter 300mm
-Max turning diameter over support 178mm
-Max. turning diameter without bridge 430mm
-Tip width: 810 mm
-Spindle bore: Ø 38 mm
-Spindle speed: 60–1,550 rpm, 9 steps
-Automatic longitudinal/plane feeds
-Spindle mount: Camlock D1-4"
-Tailstock cone: MK 3
-Quill stroke: 100 mm
-Bed width: 180 mm

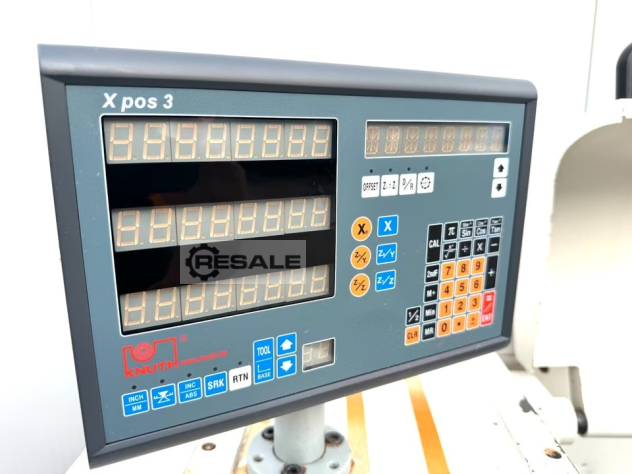

-3-axis digital display
-Multifix quick-change holder with insert
-Electric lining protection
-Work light
-Rotating center punch tip
-3-jaw chuck
-2x bezels
-Documentation

Dimensions:
LxWxH 1.6x0.7x1.2 meters / Weight 520Kg
