column used for sale

Performance data Nominal force: 500 kN Maximum. Hydraulic pressure (Pmax): 200 bar Minimal. Pneumatic pressure (Pmin): 5 bar Electrical data: Connected load: 11 kVA Mains voltage: 400 V~, 3/PE/N Frequency: 50 Hz Pre-fuse: 35 A Total height: approx. 5.1 m Auction-ID: A7-49604-18

Drilling machine with: Feed 2 gears Left/right rotation Footswitch Coolant Pump Machine Light Drilling capacity in steel 40 mm Projection 345 mm Drilling stroke 200 mm Table clamping area 720 x 560 mm Speed 60 - 765 rpm Feed rate 0.15 - 0.2 - 0.3 - mm/rev Tool holder MK 4 Total power requirement 3.0 kW Machine weight approx. 0.4 t Condition: unchecked (6) Auction-ID: A7-49782-507

Column drill with: ARBO/CE approved protective cover. Quick-release chuck with pin. Tilting work table. Deep stop. Ejection wedge. Drilling capacity in steel 32 mm Projection 200 mm Drilling stroke 120 mm Spindle mount MK 4 MK Table: 290 x 270 mm Column diameter 92 mm Speed 150 - 2450 rpm Total power requirement 1.1 kW Machine weight approx. 95 kg Dimensions L-W-H 0.66 x 0.8 x 1.7 m Condition: never used / new (5) Auction-ID: A7-49782-473

THE LIST OF LOTS IS NOT DEFINITIVE, IMPORTANT LOTS WILL BE ADDED LATER, PLEASE CHECK THE ADDED LOTS. The sale includes only what appears in the photos. The buyer, by purchasing the equipment, agrees that the device must be used according to the standards and legislation in force in his country. The seller will not be held responsible in any way for misuse that does not comply with the safety conditions and the standards and legislation in force Auction-ID: A1-49883-183

Drilling capacity 15mm Table 280 x 240mm Speeds: 450 - 4500rpm Projection 165mm Recordings MK2 Auction-ID: A7-49782-651

Column drill with: - Feed - Tapping device - Coolant pump - Machine light - Incl. vice - Emergency stop facility Drilling capacity in steel 32 mm Projection 280 mm Drilling stroke 145 mm Recording MK 3 MK Table size 540 x 480 mm Feeds 0.08 to 0.32 mm/rev Speed 180 - 2000 rpm Total power requirement 3.0 KW Machine weight approx. 0.9 t Dimensions L x W x H 1.2 x 0.8 x 2.4 m Auction-ID: A7-49782-632

Technical data Manufacturer: Knuth Werkzeugmaschinen Neumünster-Wasbek, Germany Type: KTB 32 Serial Number: 0002017 Year of Make: 2000 Power consumption: 1.5 kW Voltage: 400 V Frequency: 50 Hz, 3 phases Drilling capacity: 32 mm Table: 350 × 350 mm Quill stroke: 125 mm Projection: 230 mm Column diameter: 85 mm Spindle speeds: 190–1850 min⁻¹, 9 steps Spindle mount: MK 3 / MT 3 Height: 1780 mm Weight: 140 kg Configuration Version: Height-adjustable and swivelling work table, table adjustment via hand crank and rack, V-belt drive, adjustable quill retraction and lifting stop, machined machine foot with clamping options, machine vice. Auction-ID: A1-50026-26

Drilling capacity in steel 25 mm Projection 220 mm Drilling stroke 110 mm Recording MK 3 MK Table size 350 round mm Feeds mm/U Speed 100 - 2080 rpm Connection voltage 400 V Total power requirement 0.9 KW Machine weight approx. 0.2 t Dimensions L x W x H 0.8 x 0.6 x 1.9 m Auction-ID: A7-49782-437

Column drill with: - Feed - Variable spindle speed - Coolant pump - Machine light Drilling capacity in steel 32 mm Projection 325 mm Drilling stroke 170 mm Mounting MK 4 MK Table size 570 x 480 mm Feeds 0.1 - 0.16 - 0.25 mm/rev Speed 60 - 1600 rpm Total power requirement 2.9 KW Machine weight approx. 0.65 t Dimensions L x W x H 1.2 x 0.8 x 2.15 m Auction-ID: A7-49782-622

With lighting, drill chuck 16 mm 12 speeds by moving v-belts Base plate W= 270mm D= 450 mm, column 80 mm, drill plate D= 310 mm With machine clamp. Auction-ID: A1-48994-53

Column drill with: - Feed via handwheel - Spindle speeds via belt drive Drilling capacity in steel 32 mm Projection 300 mm Drilling stroke 140 mm Recording MK 3 Table size 380 x 360 mm Feeds via handwheel Speed 85 - 1100 rpm Total power requirement 1.3 KW Machine weight approx. 0.27 t Dimensions L x W x H 0.95 x 0.6 x 1.92 m Auction-ID: A7-49782-590

Column drill with - Right-left run - Threading - Coolant - Emergency stop Drilling capacity in steel 50 mm Projection 300 mm Drilling stroke 250 mm Spindle diameter 60 mm Spindle mount MK 5 Spindle speeds 18 - 1400 rpm Number of speeds: 12 levels Feeds 0.1 - 1.6 mm/rev Number of feeds 9 stages Table clamping area 500 x 500 mm Spindle motor 4 kW Total power requirement 4.2 kW Machine weight approx. 1.5 t Space requirement approx. 1.2 x 0.8 x 2.55 m Auction-ID: A7-49782-471

Drilling capacity in steel 40 mm Projection 230 mm Drilling stroke 130 mm Mounting MK 4 MK Table size 400 x 315 mm Speed 105 - 1257 rpm Total power requirement 2.55 KW Machine weight approx. 0.32 t Dimensions L x W x H 0.8 x 0.6 x 1.95 m Auction-ID: A7-49782-513

Waters columns for laboratory analysis. Auction-ID: A1-49883-27

Column drill with: automatic feed Tapping function. Digital depth display 2 Stage Motor Spindle protection Swivel table LED lighting Coolant system Drilling capacity in steel 40 mm Projection 350 mm Drilling stroke 180 mm Spindle mount MK 4 MK Table: 560 x 560 mm Column diameter 140 mm Speed 50 - 1450 rpm Feeds 0.1 - 0.2 mm/rev Total power requirement 1.5 kW Machine weight approx. 580 kg Condition: never used / new (5) Auction-ID: A7-49782-487

Unused exhibition machine with: - Tapping device - Variable spindle speed - Coolant system Drilling capacity in steel 32 mm Projection 265 mm Drilling stroke 150 mm Recording MK 3 MK Table size 390 x 390 mm Speed 100 - 3300 rpm Total power requirement 1.5 KW Machine weight approx. 0.35 t Dimensions L x W x H 0.8 x 0.6 x 1.95 m Auction-ID: A7-49782-436

Column thermostat for HPLC with a temperature range of 10 °C to 120 °C above room temperature. Auction-ID: A1-49883-287

column 90 mm, Height column drilling machine 1750 mm. Drill chuck 16 mm with key. 2 different speeds by rerouting the V-belts. With machine clamp Auction-ID: A1-48994-37

5 adjustable drilling speeds by rerouting the v-belt. Drill chuck 13 mm with key. Auction-ID: A1-48994-39

Auction-ID: A1-49559-37

5 adjustable drilling speeds by rerouting the v-belt. Drill chuck 13 mm with key. Auction-ID: A1-48994-38

Working parameters: Industrial column reel for sharpening, grinding and polishing operations. Auction-ID: A1-50001-10

Drilling capacity in St 60: 30 mm threading in St 60: M 16 threading in GG 20: M 20 Short spindle: MK 3 bore stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514x360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle - machine table min./max.: 132/724 mm feed: Hand spindle turning speed range: 225-4300 UpM height of the machine: 1790 mm total power requirement: 1,0/1,6 kW Standard equipment: - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for right-left rotation - Motor protection switch - Speed adjustment stepless - Speed display digital - Protection IP 54 - Connector (fully assembled, cable length 2 m) - Spindle protection with electrical protection The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The VIMS 2K Column is an advanced visualization system designed for laparoscopic procedures, providing ultra-high-definition image quality for optimal surgical accuracy. Without screen Condition: Used equipment, sold as is Auction-ID: A1-50069-93

The VIMS 2K Column is an advanced visualization system designed for laparoscopic procedures, providing ultra-high-definition image quality for optimal surgical accuracy. Without screen Condition: Used equipment, sold as is Auction-ID: A1-50069-92

The VIMS 2K Column is an advanced visualization system designed for laparoscopic procedures, providing ultra-high-definition image quality for optimal surgical accuracy. Without screen Condition: Used equipment, sold as is Auction-ID: A1-50069-94

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

faceplate diameter:4000 mm swing diameter:4300 mm turning height:2500 mm max. workpiece weight:63 t total power requirement:125 kW weight of the machine ca.:134 t dimensions:6100x10400x8400 mm Used Vertical Turret Lathe with 2 plungers and CNC Siemens 840 table is hydrostatically. Machine equipped with a grinding head. CNC was overhauled in 2000.

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELECTRICAL SPECIFICATIONS:. - total power consumption:79 kW - mains voltage:400 V - mains freque ...

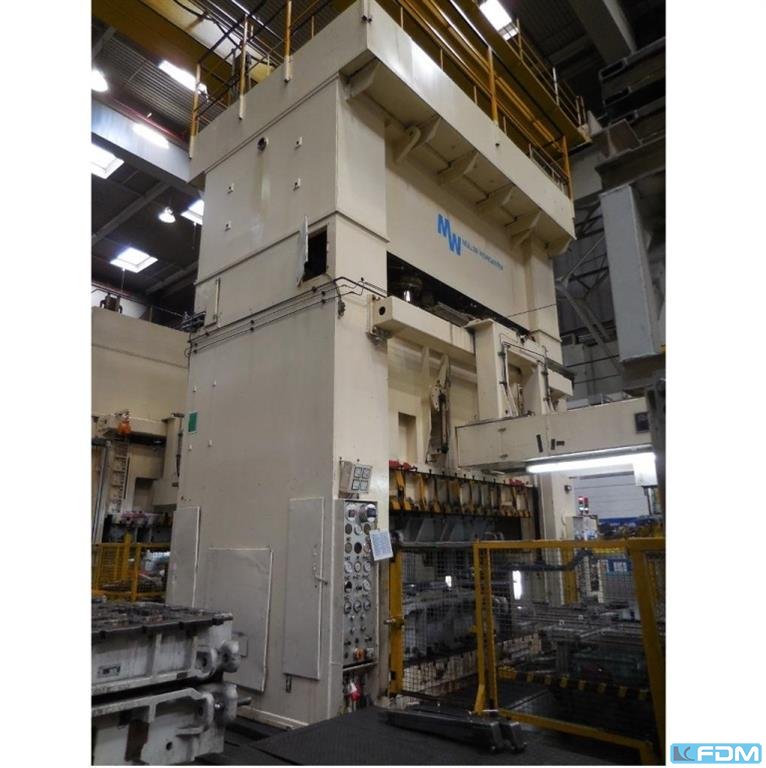

pressure:800 t distance between columns:2900 mm stroke:350 mm Controls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 to PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mm RAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):2560 mm ...

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m Machine is in nearly new condition and was completely modernized in 2020! With CNC SIEMENS 840 D Automatic tool magazine for 153 tool positions Automatic milling head magazine for 6 milling heads Machining module ? straight ? straight long ? Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50 Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800  ...

automatic:Werkzeugspannung Spannk.15000 N total power requirement:63 KVA weight of the machine ca.:56000 kg table-size:22000 x 800 mm Tool bore:ISO 50, DIN 69871 AD x-travel:20500 mm y-travel:1600 mm z-travel:1000 mm dimensions of the machine ca.:24 x 6 x 4 m tool piece magazine with:30 Plätze

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

pressure:40 t throat:220 mm stroke:8 / 88 mm table pass:ø- abgesetzt 225/200 mm ram head dimension:400 x 250 mm distance table/ram:228 mm stroke adjustable from - to:30 - 140 mm ram adjustment:63 mm thickness of bolster:80 mm no. of strokes:70 Hub/min total power requirement:5,5 kW weight of the machine ca.:2600 kg dimensions of the machine ca.:1100 x 1300 x 2300 mm Documents:vorhanden

pressure:250 t passage width:1280 mm stroke:bis 500 mm total power requirement:47 kW weight of the machine ca.:23 t dimensions of the machine ca.:2200 x 1850 x 4600 mm table surface area:1250 x 1000 mm dayligth:800 mm daylight between the side columns:520 x 750 mm table height above floor:1000 mm Documents: vorhanden

faceplate diameter:1800 mm swing diameter:2000 mm turning height:1170 mm z-axis:1000 mm cross rail adjustment - vertical:800 mm faceplate speeds::2,5 - 280 workpiece weight:12 t feeds:1 - 6000 mm/min max. torque on the faceplate:50000 Nm total power requirement:85 kW weight of the machine ca.:41 t dimensions of the machine ca.:5,6 x 4,8 x 4,6 m Machine retrofit and overhould in 2005 with SIEMENS 840 D powerline control - 6 jaw hydraulic power chuck - tool changer for 12 tools - chip conveyor, coolant attachment, splash housing - various tool holders

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories

faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor

faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment

x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 axes CNC SIEMENS 840 D

x-travel:16300 mm y-travel:2600 mm z-travel:1600 mm spindle taper ISO:50 spindle turning speed range:22 - 4000 U/min rapid traverse:24 / 36 m/min main drive:37 kW total power requirement:50 kW with CNC HEIDENHAIN TNC 430 automatic Universal Milling Head automatic toolchanger 90-pockets coolant attchament and chip conveyor

faceplate diameter:1400 mm swing diameter:1470 mm turning height:1325 mm ram stroke range:750 mm adjustment of cross-rail:850 mm max. workpiece weight:12000 kg faceplate turning speed range:4,5 - 224 U/min feed per revolution:0,06 - 8 mm rapid speed:1,8 m/min total power requirement:50 kW weight of the machine ca.:16 t Machine was modernized in 2008 with new electric 2-axes digital readout 5-station turret head autom. swivelling diverse toolholders

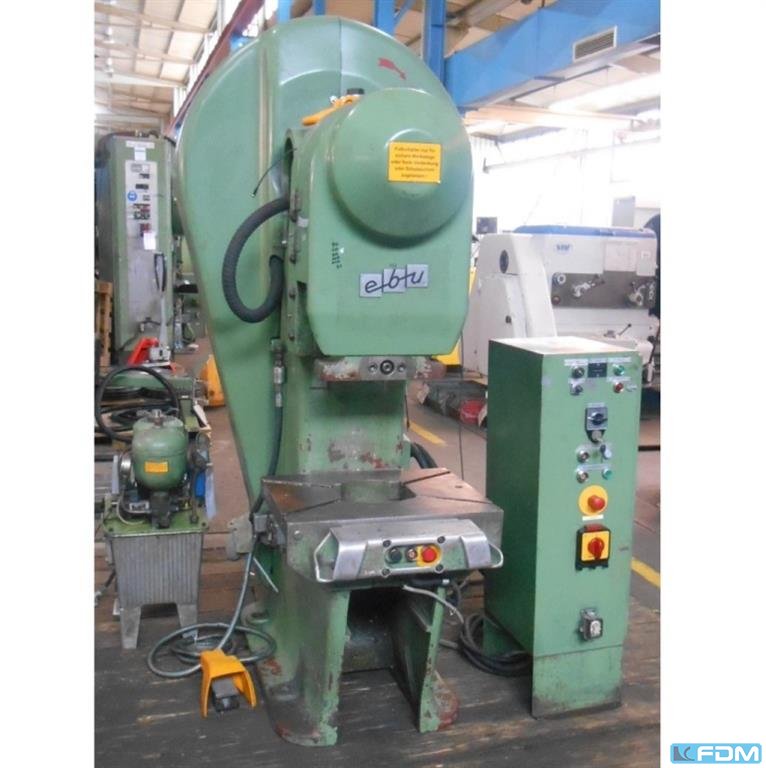

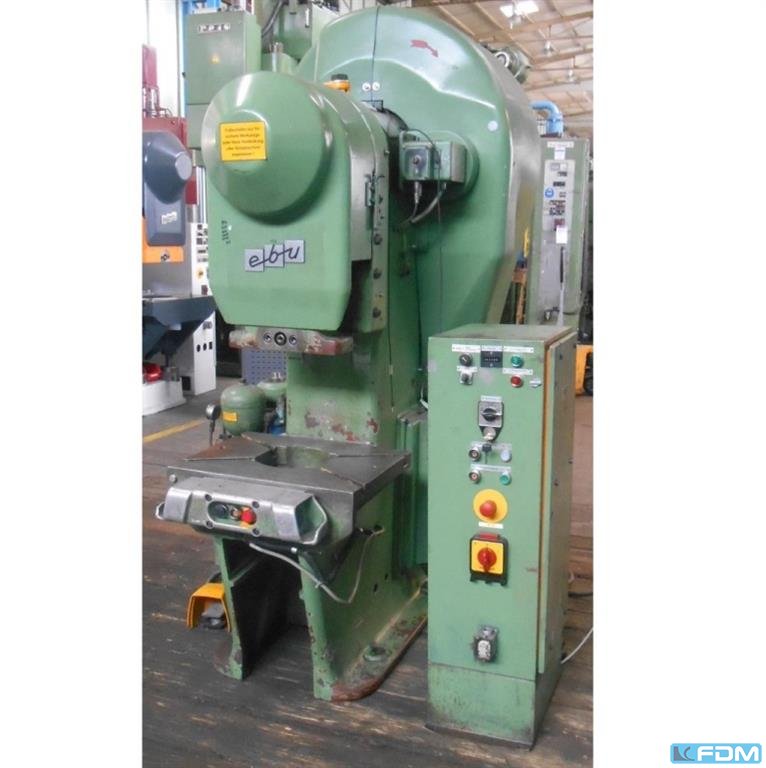

pressure:063 t throat:250 mm stroke:8 - 100 mm no. of strokes:56 / 84 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:710 x 500 mm hole in the table:320 mm table height over floor:800 mm passage to the back:320 mm ram surface:450 x 280 mm ram adjustment:63 mm weight:4,1 t dimensions (W x D x H):1,35 x 2,0 x 2,6 m overload protection in ram:mechanical

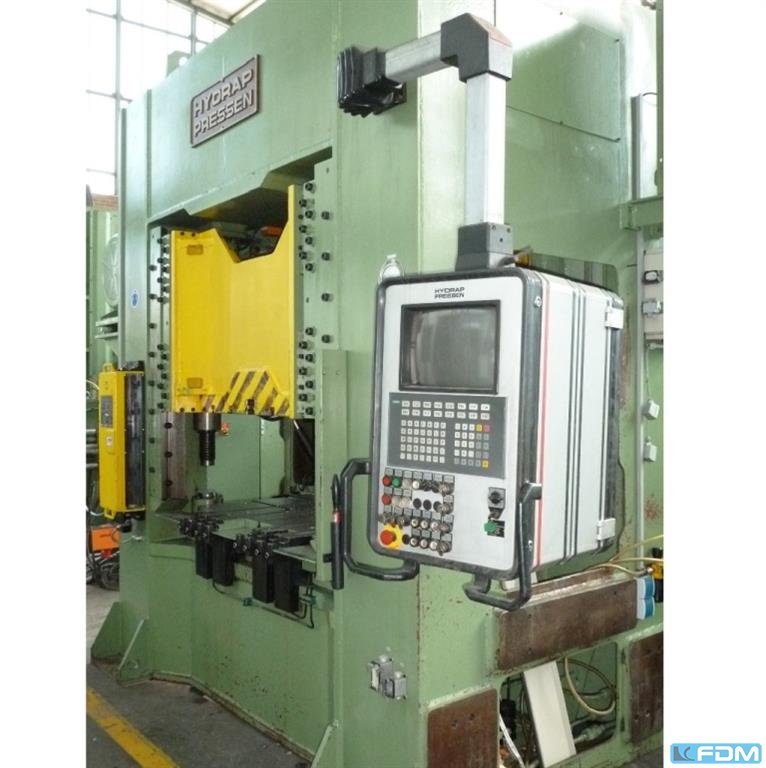

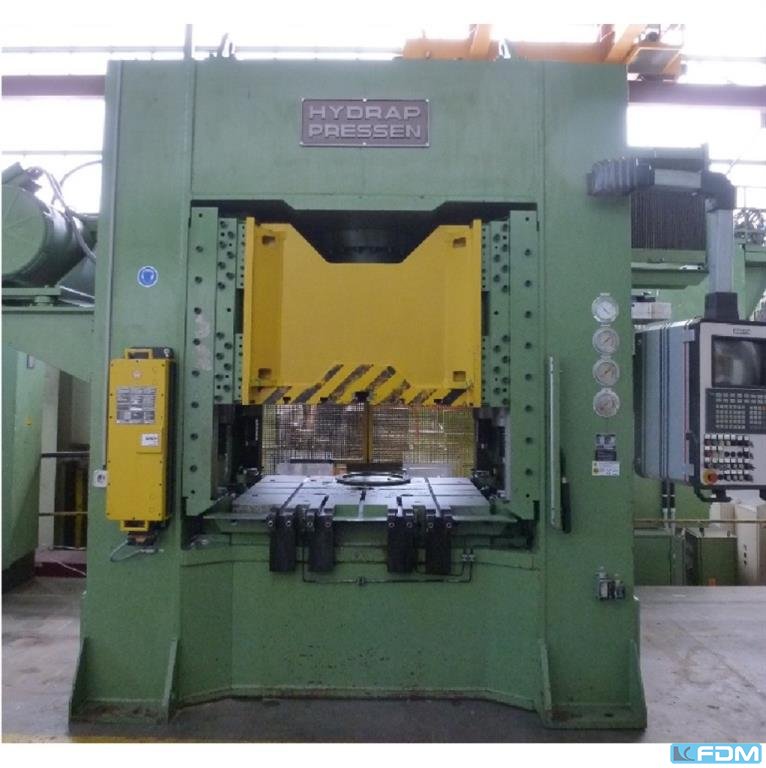

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:51,0 kW weight:33,0 t dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:52,0 kW weight:33,0 t Dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary
