coiler used for sale

Qty. 1 Second-hand recoiler Mfc.: United Type: Q610 mm Built: 1958 Model: Reversing Coiler right to left Capacity: Max. 45 ton

Description: Machine number: 0661202/0532203 Coil weight: max. 1000 kg Nominal belt width: 300 mm Outer coil diameter: max. 1200 mm Inner spreading range: 460 - 530 mm Coiler drive: 1.5 kW Belt thickness: min. 0.8 / max. 3.0 mm Draw roller diameter: 90 mm Straightening roller diameter: 60 mm Straightener drive: 3.0 kW With digital SIEMENS SIMATIC HMI control Approx. Onsite Dimension. (l x w x h): 3,250 x 1,300 x 2,700 mm, weight approx.: 1,500 kg

Fully automatic unwinding reel Remote control console Automatic and manual working mode Fine adjustment of speed Potentiometer Simply synchronized with punching machine Reel motorized, with Central Expansion Reel run both directions, prewaerts and rueckwaerts with loop sensors control Speed from 0.1 to 30 RPM rpm Engine with gearbox Reel max load 1 ton Winder strip width up to 300 mm Inner diameter 250 mm min max. 500 mm Outer diameter max. 1300 mm Power 0.37 KW Dimensions 1,200 mm x 1,200 mm height 1,600 mm with CE certificate in stock 2 essa, 2 shaal and 12 brother general overholt punching machines

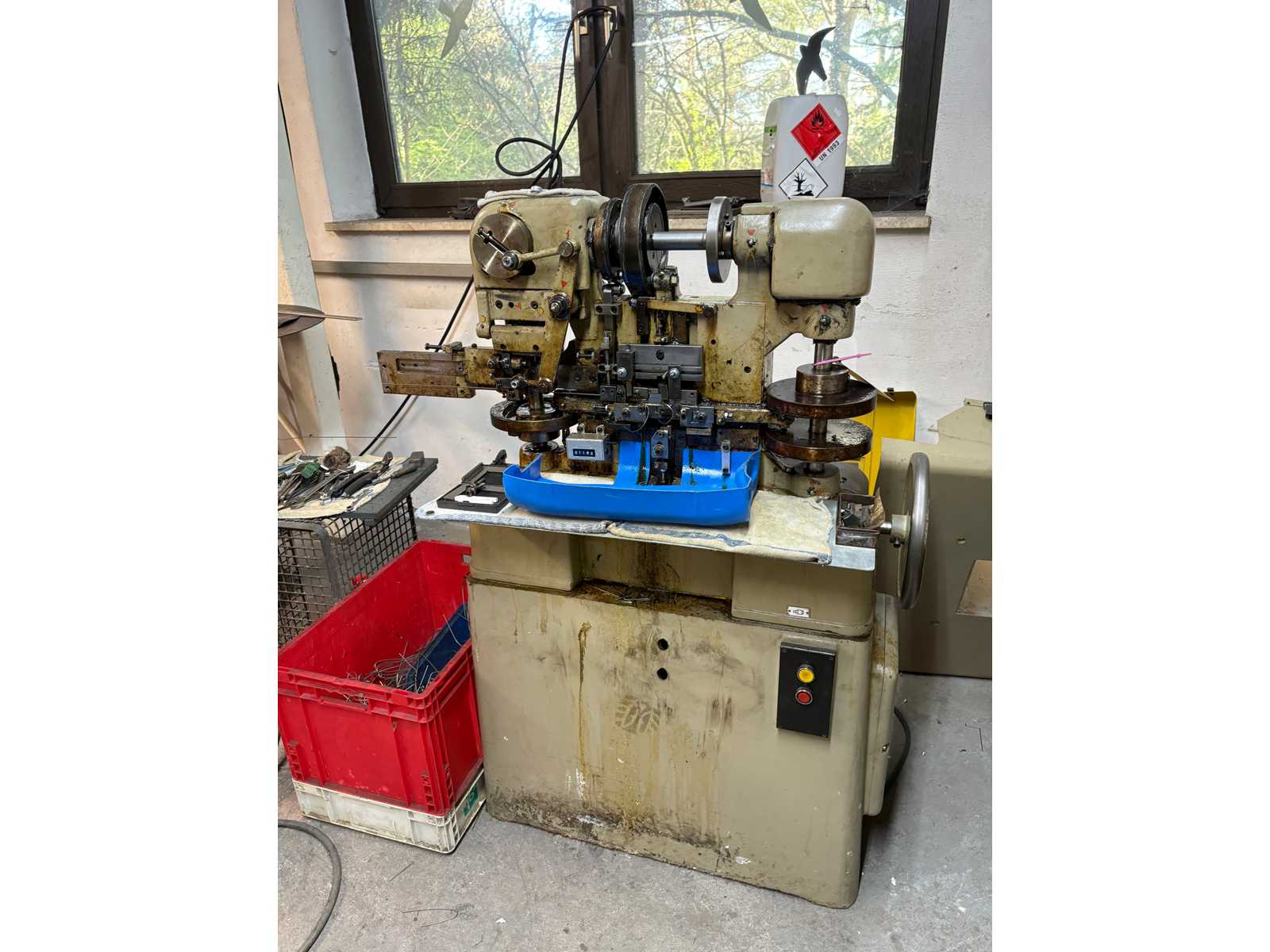

wire diameter 0,5-2 mm spring diameter 20 mm flange length 80x120 mm working width 90 mm output - pieces/min 70

material width:150 mm coil weight:1,5 t coil internal diameter:500 mm coil external diameter:940 mm strip material:20 x 1,0 - 50 x 4,0 / 200 x 2,0 mm wire diameter:1,0 - 5,0 mm power requirement:0,7 kW weight:0,7 t Dimensions (WxDxH):1,0 x 1,7 x 2,0 m palett decoiler:motoric driven

Coil weight: 0 kg Material width: 0 mm Coil diameter maximum: 0 mm Technical data Max. loading capacity: 2X200 kg Voltage 50 Hz 3x: 230 Volt Driving motor (motor power): 0.74 kW Overall dimensions machine: Length: 1800 mm Width: 1000 mm Height: 1700 mm

Reelinger machine Manufacturer: Julius Max. width: 1300 mm Max. diameter: 1200 mm

material width:350 mm coil weight:2,0 t coil internal diameter:470 - 530 mm coil external diameter:1500 mm power requirement:1,0 kW weight:1,5 t dimensions (WxDxH):1,3 x 1,6 x 1,9 m

material width:300 mm coil weight:0,5 t coil internal diameter:270 - 360 mm coil external diameter:1000 mm weight:0,3 t dimensions (WxDxH):1,5 x 1,2 x 1,4 m

material width:300 mm coil weight:0,5 t coil internal diameter:420 - 520 mm coil external diameter:1400 mm weight:0,6 t dimensions (WxDxH):0,8 x 1,2 x 1,7 m expansion:pneumatic

Used croisant wrapping machine for filled products FRITSCH, type: FRH 400-L -In bakery condition- Year of construction: 2010 - for wrapping filled pastries - very good, well-kept condition - all technical plans and documents available Further information on request. Inspection and test run are possible by arrangement.

Description: Power: 2.2 kW (straightener) Max. Load capacity of the reel: 2000 kg Max. Winding diameter: approx. 1500 mm Approx. Onsite Dimension. (l x w x h): 2,000 x 1,500 x 2,500 mm, weight approx.: 3,000 kg

Description: Belt width: up to 320 mm Belt speed: 0 - 30 m/min Sheet thickness: up to 2 mm Electric motor Power PS/N: 2/1500 Serial number: 66/32.0321/1 Approx. Onsite Dimension. (l x w x h): 2,000 x 1,200 x 1,900 mm, weight approx.: 990 kg

Qty. 1 Second-hand steel strip slitter Mfc.: Dai Hyun Built: 1994 Still in operation until end of July 2023 Material to Slit: Hot & cold rolled steel coil, Hot deep galvanized steel, Carbon steel Line Direction: Left to right Strip Width: 1400 mm Thickness: 0.8 - 6.0 mm Max. Coil weight: 24 MT Un-coiler ID with Liner: Ø 480 mm, Ø 600 mm Coil Dia.: Ø 1000 & Ø 2000 mm Re-coiler Inside Dia.: Ø 500 mm, Ø 760 mm Slitting Speed: 50-100 m/min Edging width: 3 mm to 10 mm Electric Power: Input voltage: 400 V, 50 Hz - 220 VAC, 50 Hz,3 Ph. ± l 0% for drive Control Voltage: 110 VAC, 50 Hz, 1 Ph. Slitting capacity Working speed and No. of cuts Min. slit width is 40 mm at thickness 1.0 – 2.5 mm. Strip thickness No. of cuts No. of strips Line speed mm m/min 1.0 - 1.9 16 15 70-90 2.0 - 2.9 14 13 70-80 3.0 – 4.0 12 11 60-70 4.1 – 5.0 7 6 60-70  ...

Qty. 1 Second-hand bifilar pipe winding line Mfc.: GRAEWE GmbH Type: AEW 1000 Built: 1998 Tube dia.: 10, 12, 14 & 16 mm Coil core ID: 940 mm OD: 1250 mm Bifilar coiler Type: EW 1000 PLC Simatic S5 Consist of: De-coiler Coiler Ring coiler Bending unit Support table Cutting shear Binding device Electrical Control

Qty. 1 Second-hand cut-to-length line Mfc.: Stratega Built: 2006 Direction right to left Strip width: 400 - 2020 mm Thickness: 0.4 – 2.5 mm De-coiler ID 508, 610 mm Weight: 25 Ton Length of sheets: 300 – 2000 mm Speed: 60 m/min. Leveller Tilting shear Magnetic belts stacker Consist of: Load cradle De-coiler Award spire Introduction table Leveller Feeder Towing pinch roll Tilting shear Evaquation shear wasting material Conveyor Magnetic stacker Eletrical panels & Control Hydraulic station Note: The lien has the guillotine that can cut metal sheet with trapez format cause the guillotine Can rotate or can be used as a normal cut-to-length line.

Qty. 1 Second-hand bonder line Bondern is a process for the surface treatment of metal surfaces and for producing a conversion layer by phosphating. It serves to protect against corrosion. In further processing steps such as deep drawing, the phosphating created serves as a sliding layer. Mfc.: TBA Built: TBA Strip width: 250 – 600 mm Thickness: 2.0 – 4.0 mm De-coiler ID 500 mm OD 600 – 1900 mm Coiler ID 500 mm OD 600 – 1580 mm Plating Double sided: 1.0 – 4.0 g/m² Single sided: 2.0 – 5 g/m² Note: 3 g/m² = approx. 2 µm layer thickness

Producer: Baust Werkzeugtechnik Complete production line for rotary punching of sheet metal or plastic. Rotary die cutting machine / Rotary punching machine Including de-coiler and un-coiler. Year of production: 1999. Coilers equiped with Lenze 5.5 [kW] motors. Sheet processor drive power 4.6 [kW]. Material thickness range: 0.4 - 1.5 [mm]. Material Yield strenght: 350 [N/pmm]. Equiped with Lenze motors and drives and Siemens SPS S7 control. Power: 3 x 400 [V] 5%. Frequency: 50 [Hz]. Control voltage: 24 [V]. max. Fuse: 63 [A]. Working modes manual or automatic. Including complete original operating instructions in German and schematics. On stock ready for delivery, including packing and loading. On stock more Bruderer, Schaal, and Mabu high speed presses. Also Ideal flash butt welding machines.

Qty.1 Second-hand Aluminium cold rolling mill Mfc.: SPIDEM Type: 4-Hi Non Reversing Built: 1964 Installed: 2017 (new mechanical & hydraulic, PLC – ABB, AGC) Stopped: 2020 Strip width: 1700 mm Thickness Entry: 11 mm Exit: 0.2 mm Rolling speed: 450 m/sec. with edge trimming: 300 m/sec. Mill force: 1500 T WR Length: 1830 mm Dia.: 465 / 500 mm Back-up rolls Length: 1830 mm Dia.: 1100/1200 mm De-coiler Max. counter traction force: 5500 kgP Reduction ratio: 1:5.53 Revolution: 72.3 – 199 RPM Speed: 136.5 – 375 m/min. Coiler (2 x 400-1100 RPM) Max. traction force: 15000 kgP Reduction ratio: 1:4.41 (470 m/min.) Speed: 9.9 – 200 m/min.

Double coiler, coiler, decoiler, for sheet metal processing, punch, eccentric press, hydraulic press, punching machine -Handover in the current condition as seen -Drive: without -Max. Recording: Ø 590 mm -min Recording: Ø 250 mm - Recording width: 300 mm -Dimensions: 1460/1000/H1400 mm -Weight: 332 kg

Producer: Fritsch Condition Made in Germany Description This Fritsch Line includes Fritsch calibrator type KK 88-700-L Fritsch infeed belt with flour duster Fritsch CTR cutting and turning unit type CTR-700-30-L Fritsch filled coiler type FRH-400-L Fritsch unfilled coiler type CRH-120-400-L Fritsch filler 2000 year

DECOIL DIA.: 1000 MM, COILER DIA.: 800 MM, WIDTH: 1000 MM, GRAMMAGE: 180 GSM, Still in operation: No Available: IMMEDIATELY

High speed press Original Manufacturer by: BRUDERER Type: BSTA 30 Technical data: Stroke power 300 KN (30 tons) Adjustable speed 100 - 600 strokes per minute up to 10 strokes in one second Equipped with synchronized BBV feeder Feed pitch up to max. 60 mm adjustable, highly accurate With PLC control Three working mode: single punch, complete stroke and full automatic Emergency stop Pneumatic clutch and brake Weight approx 2.5t Automatic in feed, fully synchronized with punching moment Tool and coiler not included (price on request) Technical Air 8 bar Operators instruction manual Machine with new CE certificate Overhauled - Rebuilt by Silicon plus

Qty. 2 Second-hand pickling lines Mfc.: Sundwig Built: 1968 Tank of clean HCl: 50 m³ Tank for dirty HCl: 50 m³ Strip width: 1525 mm Qty. 3 Tanks interconnected one for each bath 310 m³ Qty. 3 Baths HCl 152.5 m Double bath pre-washing water Bath for final water washing Heater Chimney for taking out the acid vapors Acid pumps Auxiliary pumps Leveling machine Mfc.: AEG-EMG Built: Oiling machine Mfc.: Sundwig Built: Coiler Mfc.: Sundwig Built:

Qty. 1 Second-hand continuous galvanising line Mfc.: POSCO Built: 1997 Capacity: approx. 100 000 per annum Strip width: 720 – 1250 mm Thickness: 0.2 – 1.6 mm De-Coiler ID 508 mm OD 2000 mm Weight: 20 Tons Finished product: Coil Strip width: 720-1250 mm Thickness: 0.2-1.6 mm ID 508 mm OD 1600 mm Weight: 10 Tons Sheet Strip width: 720-1250 mm Thickness: 0.2-1.6 mm Weight: 3 Tons Line speed Entry section: max. 150 m/min. Process section: max. 120 m/min. Exit section: Coiling max. 150 m/min. Shearing max. 100 m/min. Threading speed: 20 m/min. Coating method Both sides coating, Regular spangle Coating weight 120-500 g/m² based on both sides Post treatment Chromating Electricity High voltage 10 kV Low voltage 380 V AC, 3 ph., 50 Hz, 220 V AC, 1 ph. Water Pressure min. 3 kg/cm² Steam Pressure min. 5 kg/cm² Temperature min. 158 °C Production process Coil s ...

Qty. 1 Second-hand cold rolling mill Mfc.: MCC, ABB, IMS Type: 6-Hi Cold Rolling Mill Built: 2009 Stopped: 2017 Annual capacity: 220,000 Ton/Year Annual running time (Hour): 6480 Strip Width: 800~1250 mm Thickness Entry: 1.5~3.5 mm Exit: 0.2 – 1.2 mm De-Coiler OD: 1000~2000 mm De-Coil ID: 610 mm De-Coil Weight: Max. 25 T Coil OD: 1000~2000 mm Coil ID: 610 mm Coil Weight: Max. 25 T Mill Max Speed: 1300 m/min Threading Speed: 30 m/min Main Drive Controller (3300 VAC) Mfc.: ABB ACS6000 Variable Speed Variable Voltage Xray Gauge Mfc.: IMS Germany Automation Siemens PLC/Wincc

Qty. 1 Second-hand skin pass mill Mfc.: Mannesmann Demag Sack Built: 1980’s Modernised in 1986 & 1993 Type: Duo Cold Rolling Mill – Non-Rev. Dia. 330 x 500 mm Material: Carbon steel, cold rolled and annealed Strip width: 80 - 470 mm Thickness entry: 4.0 mm Exit: 0.2 mm Decoiler Modernised in 1986 ID: 400 with segments 500 & 600 mm Spreading range: 370 – 420 mm Strip tension: 1300 – 65 daN Braking system: Generator Braking torque: max. 1300 daNm De-coiling speed: 2.5 m/sec. Coil cross section: 20 – 1880 mm² Coil weight per mm strip width max.: 10 kg Coil weight: 5.0 T Coil ID: 400 & 500 mm Coil OD: 600 – 1400 mm Roll dia.: 300 – 330 mm Roll length: 500 mm Roll force: 1850 – 2400 kN Min. roll force: 150 kN Hydraulic roll adjustment Adjustment stroke: 80 mm Adjustment speed: 1 – 3 mm/sec. Rolling speed: 2.5 m/sec. (150 m/min.) PLC system: ...

Qty. 1 Second-hand strip casting production line Mfc.: EMA-Indutec, Marx, Air Blue, Güntner, Demag, G. Buchholz Built: 1992, 1995, 1997, 1999, 2000 Income material: Scrap Strip width: 300 mm Thickness: 10 – 20 mm – can be reduced! Plate length: 16 m can be extended! Coil weight: 1.5 T (steel) Scope of supply: Induction crucible furnace 20 kV Transfomer Cooling unit Casting machine Duo Mill Stand Coiler Run-out table Quenching Compressor

Qty. 1 Second-hand steel strip production plant Mfc.: NKK, SMS, Bricmont, Siemens, Woo Jin Inc., Kum Soo Ind., Yong Woon Heavy Ind., Affival, Chun Yang, Sumitomo Heavy Ind., Primetals, Toshiba, Sungmyung Eng., Kiheung, Hyundai Steel, Dosan, Kobe, Yaskaawa, IMS, ABB Built: 1995 – 2018 Production plant weight: approx. 50,000 T Slab dimensions: 55 mm x 900~1,560 mm x 20,000~43,000 mm - T x W x L Strip dimensions: 1.4~16 mm x 900~1,560 mm – Coil weight: 28 ton Scope of supply: EAF A EAF B Ladle Furnace Continuous Caster Soaking Pit Descaler Hot Rolling Mill Cooling Unit Coiler Skin Pass Mill Equalizer EAF A Built: 1995 – 2005 Stopped in 2011 EAF B Built: 1995 – 2005 Stopped in 2020 Caster & Rolling Mill Built: 1995 -2005 Stopped in 2020 Capacity (slab) 1.8 MT /annum (A & B combined) Slab dimensions: 55 x 900-1,560 x 20,000-43,000 mm T x W x L  ...

coil weight: 2 x 0,15 t clamping range: 265 - 485 mm band width: 200 mm Thickness of sanding paper: 0,1 - 4 mm total power requirement: 0,25 kW weight of the machine ca.: 180 kg dimensions of the machine ca.: 1,2 x 0,9 x 1,2 m - motorized double-turn coiler - newly painted The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 250 mm coil outside dia.: 1400 mm weight max. in kg: 2500 kg plate thickness: 2 ... 4 mm straightening feed: 2,5 ... 15 m/min coiler: expanding range: mm total power requirement: 1 + 4 kW weight of the machine ca.: 1,8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Used dough sheeter FRITSCH; Type: Rollfix 70/650 E NU -In bakery condition- - automatic flour spreader - automatic coiler on the left side - storable programs - multiple levels of reduction - freely programmable curve settings - LCD display - Condition: Good, in bakery condition -El. Connection: 3x 400 V, 50 Hz, 3 Ph, 11 A, 1.8 kW - Belt width: 650 mm The machine is in good condition and ready for immediate use. Visits and test runs are possible by arrangement.

Material width 250 – 1.510 mm Material thickness 0,6 - 3 mm Coil inner diameter 508 / 610 / 750 / 810 Coil max. Outer diameter 1.800 mm Coil max. weight 28 Tn Re 280 Mpa Rm 450 Mpa Length 280 – 6.000 mm Nr. of rolls 17 rolls Diameter of leveller rolls 69 mm Nr. of back up rolls 54 Diameter of back up rolls 130 mm Shear Flying shear Total installed power 150 Kw Line speed according to thickness Speed 40 m/min with thickness 0,6 mm Speed 40 m/min with thickness 3 mm includes: 1 Buffer coil car 2 Entry coil car 3 Double de-coiler with hold down arm and pneumatic brake 4 17 rolls leveller (diameter 69 mm) and backup rolls manually adjusted 5 Flying saw with scrap output car 6 Out conveyor 7 Stacker 8 Roller output tables 9 Electrical cabinets Revamping: Year 2008: Flying saw New stacker New electrics and automation New gearbox leveller Ye ...

sheet width: mm coil weight: 4 t coil internal dia.: mm material width: 300 mm material thickness: 0,4 - 2,0 mm total power requirement: 8,5 kW weight of the machine ca.: t dimensions of the machine ca.: m Conveyor system consisting of: ALBA decoiler EHA-4-300 and elec.-hydr. Leveler RMS EM 2/6-120/45-300 B, year of manufacture 99 coiler: bundle weight 4000 kg, coil inside diameter 460-620 mm, External coil diameter 1600, dimensions 1500x1140x2300 mm, weight approx. 2000kg Straightening machine: feed rollers number 2 - diameter 120 mm, straightening rollers number 6 - diameter 45 mm, center distance 80 mm, take-off speed 5-20 m/ min, Deduction height above floor 1500 mm, dimensions 1100x740x1800 mm, weightapprox. 600 kg ARKU roll feed, Servomaster 300, year 94 passage width 300 mm, roller diameter 100 mm, max. cross-section 1000 mm², Material thickness 0.1-5mm, feed accuracy better than ...

Slitting line Fimi 1500×2.5mm x15t (A3783) Manufacture FIMI ITALY Year 1990 Strip width Min. 200 mm Max. 1500 mm Strip thickness 0.3 – 2.5 mm Coil weight Max. 15 t Coil- Max. 1500 mm Speed Max. 80 m/min Working direction Right  Left The line consists of:  Decoiler Mandrel Cone-Ø 480 – 610 mm Drive / braking Hydraulic motor Lifting table Hydraulic  Coil opener / pinch roll unit Telescopic table Hydraulic No. of pinch rolls 2 Pinch roll-Ø 400 mm Driving motor 25 kw  Slitting head No. of heads 2 Shafts diameter 120 mm Main drive D.C. motor Driving power 92 kW  Scrap baller  Minimum scrap width 5 mm  Maximum number of slits 17 Slits up to 1.0 mm 5 Slits at 2.5 mm  Brakes Pneumatic Press up and dow  Re coiler Capacity 15 t Diameter 508 mm Driving power 120 kw  Term style 4 arms x 15 ton

3-shaft mechanically driven coiler for sheet metal. Roundo Sweden type PS 205. The machine rolls 5 mm black sheet, 8 mm aluminum, to a length of 2550 mm, the diameter of the rollers: upper and remaining 160 mm. A machine with the function of bending sheet metal with side rollers up to 4 mm, and with the function of rolling cones - side roller. Roller position readings. Beveling the side shaft on both sides, bending the lower and side shafts to create cones. Working speeds fast - slow up to 16 rpm. Weight 3580 kg. Power supply 5 kW.

DAVI Promau type MCA3020 4-shaft sheet metal rolling machine. The machine rolls black sheet metal 7 mm, aluminum 10 mm, on a length of 3100 mm, the diameter of the rollers: the upper one 200 mm, the others 180 mm. CNC controlled coiler. Machine with the function of bending sheet metal with side rollers up to 4 mm, and with the function of rolling cones. Beveling the side shaft on both sides, bending with the bottom and side shafts to make cones. Weight 4500 kg. Power supply 5.5 kW Full technical documentation.

Flow Pack format packaging machine, Auriga 500E brand. NEW, HAS NOT BEEN LAUNCHED DUE TO CESSATION OF BUSINESS. Machine structure in painted steel RAL 9006, machine protections and enclosures in AISI 304 STAINLESS steel. - All the mechanics of the machine are in the lower part, protected to avoid dirt. - Pallet entry belt, length 2,100 mm, payload area 1,400 mm, guided side on the loading belt. - Quick change input paddle, parts made of plastic material. - Manually height-adjustable longitudinal welding group, consisting of two sets of 120 mm diameter wheels, the first cold wheels, the second hot wheels, blown Air welding cooling and cold third wheels, wheel opening pneumatics. - Transverse welding group with rotary movement, width 240, open-close control pneumatic clamp, welding clamp 12.5 ms. - Product anti-entrapment system in jaws. - Machine with 3 independent motors,  ...

sheet width:2000 mm plate thickness:1.8 mm Controls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mm RAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mm DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diamet ...

Pivatic perforating and bendingline Line is manufactured 1999 and it has worked very well for us 20 years. Line is bending line with perforation unit and single press unit 35 tn. In line is separate punching unit so you can perforate material and cut it to separate ballet. Also you can use separate press toll in line. This press unit we have not used, because we other presses. FORSTNER coil cradle Weingarten Decoiler Dimeco Coil feeding line decoiler - straightener feeder Automatic Flexible punching and rollforming line for C and sigma profiles with centralized adjustment”, from Dimeco (Spain), installed/commissioned in 2019 Dimeco Coil feeding line PIVATIC coil punching line FIMI Slit Coil Decoiler and reel winder tunçman Extrusion - Single screw extruder LEMO INTERMAT Thermoforming - Automatic Roll-Fed Machine Uhlmann Blister machine Accela-Cota 170 l Tablet c ...

Pressing force: 300t, there are also straightening machines and coilers available, with documentation, worked until the end, an on-site inspection is possible.

Pivatic perforating and bendingline Line is manufactured 1999 and it has worked very well for us 20 years. Line is bending line with perforation unit and single press unit 35 tn. In line is separate punching unit so you can perforate material and cut it to separate ballet. Also you can use separate press toll in line. This press unit we have not used, because we other presses. FORSTNER coil cradle Weingarten Decoiler Dimeco Coil feeding line decoiler - straightener feeder Automatic Flexible punching and rollforming line for C and sigma profiles with centralized adjustment”, from Dimeco (Spain), installed/commissioned in 2019 Dimeco Coil feeding line PIVATIC coil punching line FIMI Slit Coil Decoiler and reel winder tunçman Extrusion - Single screw extruder LEMO INTERMAT Thermoforming - Automatic Roll-Fed Machine Uhlmann Blister machine Accela-Cota 170 l Tablet c ...
