T-shirt bag making machine, brand: Coemter, model: TER-851N, year: 1981, working width: 850 mm. For two tracks. Coil can be mounted up to 1.10 m.
Machine for making bag for bottom, make: Coemter, model: 869, maximum width: 800 mm, year: 1981. With longitudinal welding to be able to do two tracks and bottom welding.
Gear motor, electric motor -Speed: 107 rpm -Power: 0.75 kW -Construction: B5 angle -Diameter hollow shaft: Ø 24 mm -Protection class: IP 54 -Brake: 380 V -Number: 1x motors available -Price: per piece -Dimensions: 490/240/H220 mm -Weight: 24 kg

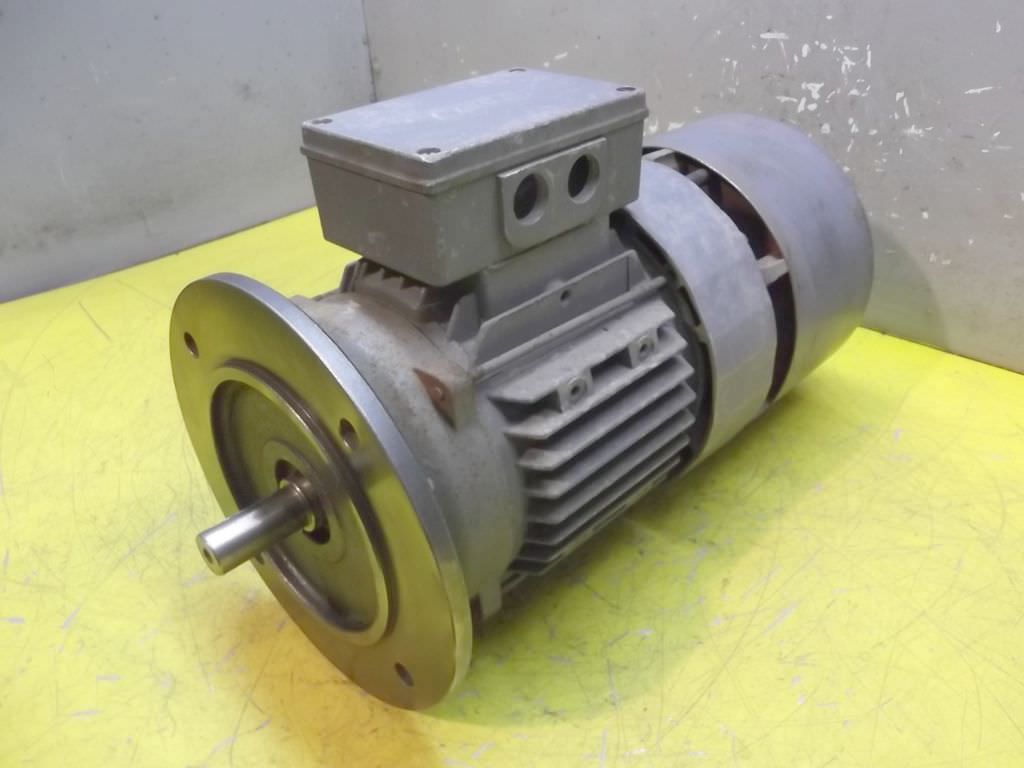

Electric motor, three-phase motor with 2 speeds -Power: 0.55/0.75 kW -Speed: 945/1410 rpm -Shaft: Ø 19 mm -Brake -Construction: B5 -Protection class: IP 54 -pole changing -Dimensions: 400/200/H230 mm -Weight: 25 kg
Gear motor, electric motor, electric gear motor -Speed: 60 rpm -Power: 0.45/0.55 kW -Construction: B3 angle -Diameter shaft: 24 mm hollow shaft -Protection class: IP 54 -Number: 1x motors available -Price: per piece -Dimensions: 530/200/H240 mm -Weight: 31 kg
PET Coextrusion + Inline ILLIG RDKP72g Thermoforming Line, Age 2010, this equipment is suitable for PET, PP & PS Trays, Fruit & Vegetable baskets etc. :-, Inline S Plastic SRL PET Coextrusion line to produce pet sheet in-line with ILLIG RDKP72g 4-Station Thermoformer (.samplastco. hole punch station) Age 2010 :, Maximum output 680 kg/ hr, Maximum sheet width 800 mm, The line includes:, Electrical Control Panel, MSM Plastic Engineering Gravimetric Feeder, fed directly from the PET Dryer + additional Component for masterbatch or additive, Main extruder Model ED 100-40 dia. Ø100 mm, L/D 40, BP Plast BDO X2 100 Double plate hydraulic screen changer, MAAG Gear pump, Co-extruder Model E60-40 dia. Ø60 mm, L/D 40 with Gravimetric feeder, BP Plast Single plate hydraulic screen changer, MAAG Gear pump, 3- Layer (ABA) Melt Feed Adapter, Special extrusion die for PET, width 900 mm, 3-Roll Polished ...
The extrusion line is a COEX cast film line. Processing of thermoplastics in a processing range of 150-300°C. Possible layer structures: - Monofilms - 3- layer (A-B+C-A) - 5- layer (A-B-C-B-A) Plant data: Total system output max. 2230 kg/h Extruder A: 90/33 L/D max. 330kg/h Extruder B.: 135/33 L/D max. 950kg/h Extruder C.: 135/33 L/D max. 950kg/h Film width NET: 1600 - 2110mm; Center cut for 2 bobsleighs possible (2x 800 – 2x 1055mm) Thickness: 25-580μm Production speed 10 - 150m/min Roll width 2500 mm roll weight 2000kg Additional components (quality): non-contact thickness gauge for automatic nozzle with automatic cross profile control on both sides Corona pretreatment (max. 12000W) Optical surface inspection system incl. defect marking in open and pass-through light Ancillary equipment: Dryer 1 – 4 with 4500 liters volume ; Heating capacity 48kw dryer 5 ...
Extruders 65-50-50 mm. diam.screws, K DESIGN thickness control, Double collection of 1.800 mm., Average throughput rate 200-240 kg/h, total installed power 350 kw, compressed air consumption 330 l/min, water consumption 10 l/min, air pressure 6-7 bar, min-max line speed 0-150 m/min, motor power 234 kw, resistive power 25 kw, reduction ratio 1/6, ac motor revolutions standard 2300 rpm, Cartridge filter changer, power 6.75 kw, Resistive power 32.6 kw, Die diameter 220 mm, Bubble cooling group, Electric fan power 22 kw, RV ironing motor 2.7 kw, Platform rotation 0.4 kw, Diagonal fans 0.75 kw, Speed 0-150 m/min, Double winder with calender, Total motor power 6kw, Min./Max. diameter of reels 150/900 mm, Max. reel weight 750 kg, installed power - used power in work: about 60-65% : 350, capacity: 200-240 kg/h, working width: 1.800 mm.
Materials: LDPE, LLDPE, HDPE, MDPE, mLLDPE // Film Width (Max): 1100 mm
Materials: LDPE, LLDPE, mLLDPE, Metallocene, EVA, EVOH, PA // Film Width (Max): 1800 mm
CoEx plate system net. 1350x1-10 mm Material: PE, PS, HIPS, ABS / Details: Main extruder RH EH2400-1-150-33V, co-extruder RH 121-1-50-30V, vacuum pump, CoEx-block, double hydr. Sieve changer with hydr. Station, wide-slit nozzle 1,450 mm, 3-roller smoothing unit RH GK-1600-60-G1 1,640 x 600 mm, Kelvi Plast temperature control unit, cooling section, side strip trim with knife beam, rubber roller extractor RH AT160-20, guillotine RAS 83.20, vacuum conveyor, CoEx dryer material, stacking device. (Ref-No. T27614)
Designed for COEX- castfoil production with additional coating unit. The extrusion part of the line has 2 extruders; the coating unit has 1 extruder. Processing of thermo plastics in a temperature range of 90-300°C. Different combinations of production are possible: - main unit (CoEx) with coating - main extruder (CoEx) without coating - coating processing over winding unit on an existing base film For production in the different described combinations you can lock the not necessary equipment parts. POSSIBLE LAYER STRUCTURES: Main extruder: - Mono film if necessary with tensilized film - 3- layer film (A-B-A) if necessary with tensilized film Coating unit: - mono film on excisting base film if necessary with second tensilized film Unwind diameter: max. 1.000 mm Allowed roll/bobbin weight: max1.500kg MAIN EXTRUSION UNIT To ...
The original part is a main and KO extruder from Kuhne built in 2006, the system was extended in 2010 by an additional extruder from the SML (coating unit). Plant description: COEX cast film line with additional coating unit. The main plant is equipped with a co- and a main extruder. The coating unit with a main extruder. Processing of thermoplastics in a processing range of 90-300°C. The system can be operated with the following combinations: • Main unit (CoEx system) with coating unit • Main unit (CoEx system) without coating unit • Only coating unit with unwinding unit for carrier film For operation in the various combinations, the corresponding additional units are switched on or off. Possible layer structures: Main plant: - Monofilm with release film if required - 3-layer film (A-B-A) with release film if required Coating: - Monofilm on carrier material if req ...
Ceramic and plastic grinding coerper, fine grinder, polishing coerper, polishing balls, tristar, triangle, cylinder, trident, elipse pyramid, cone... Further information in the pdf file price on request; New + unused

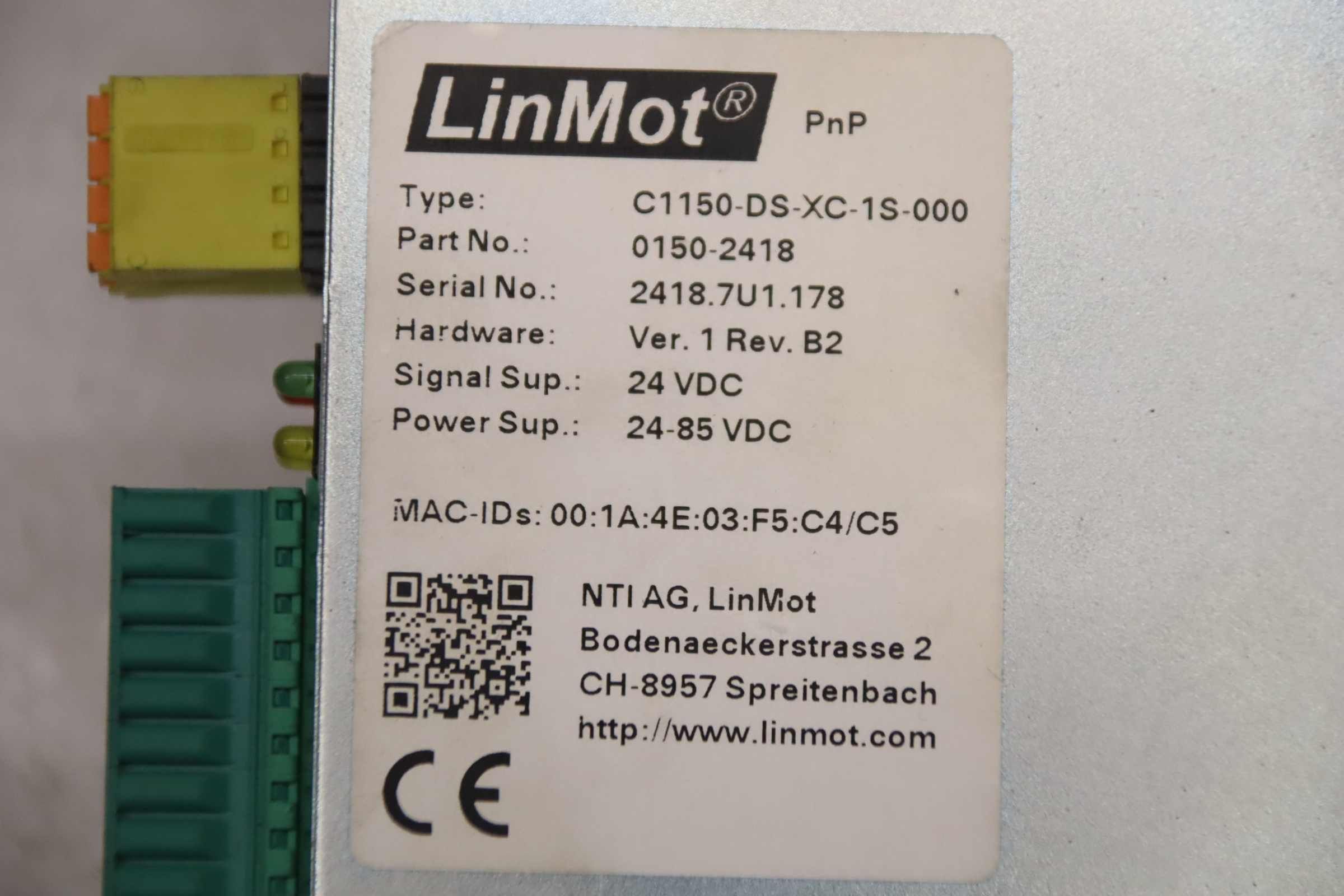

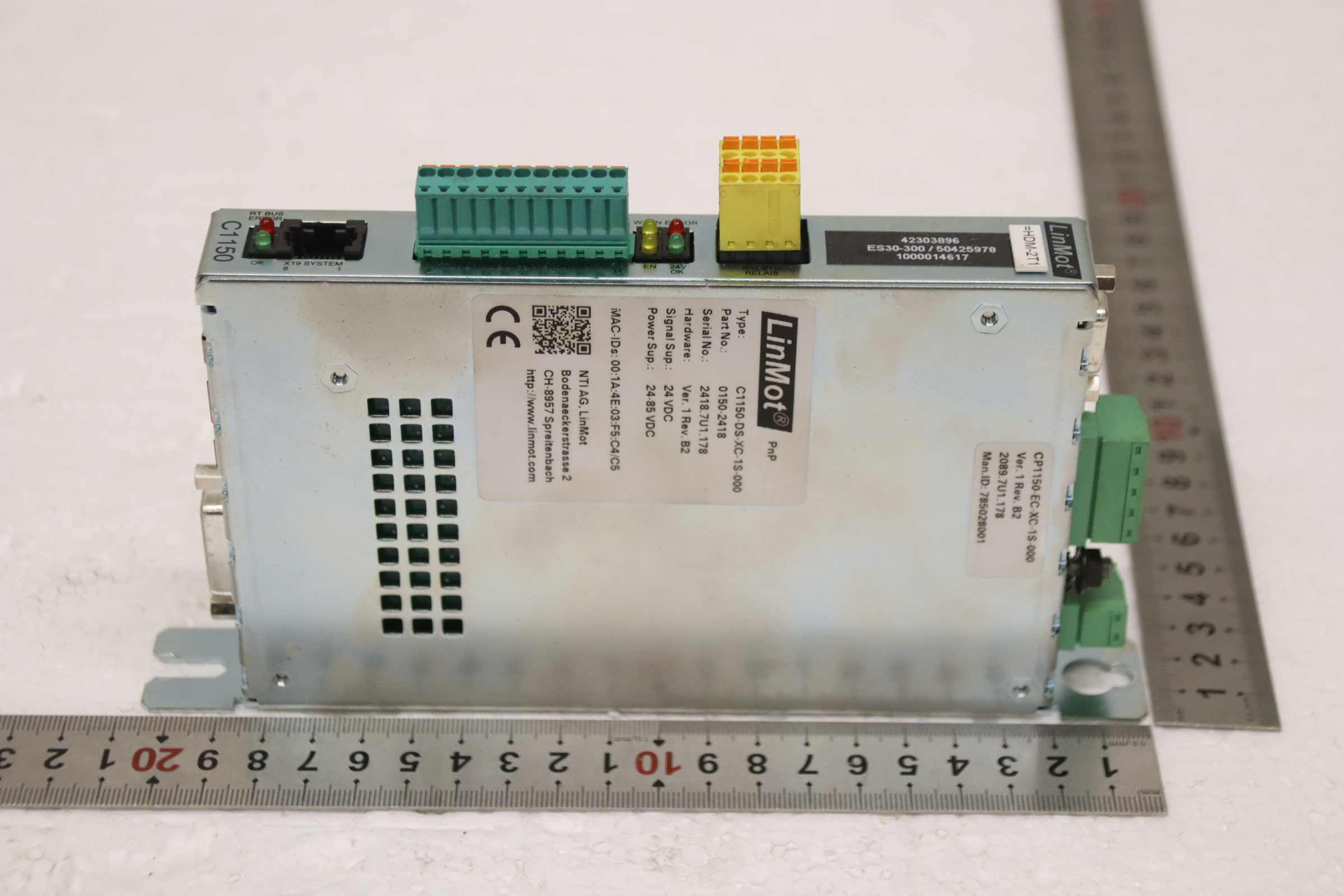

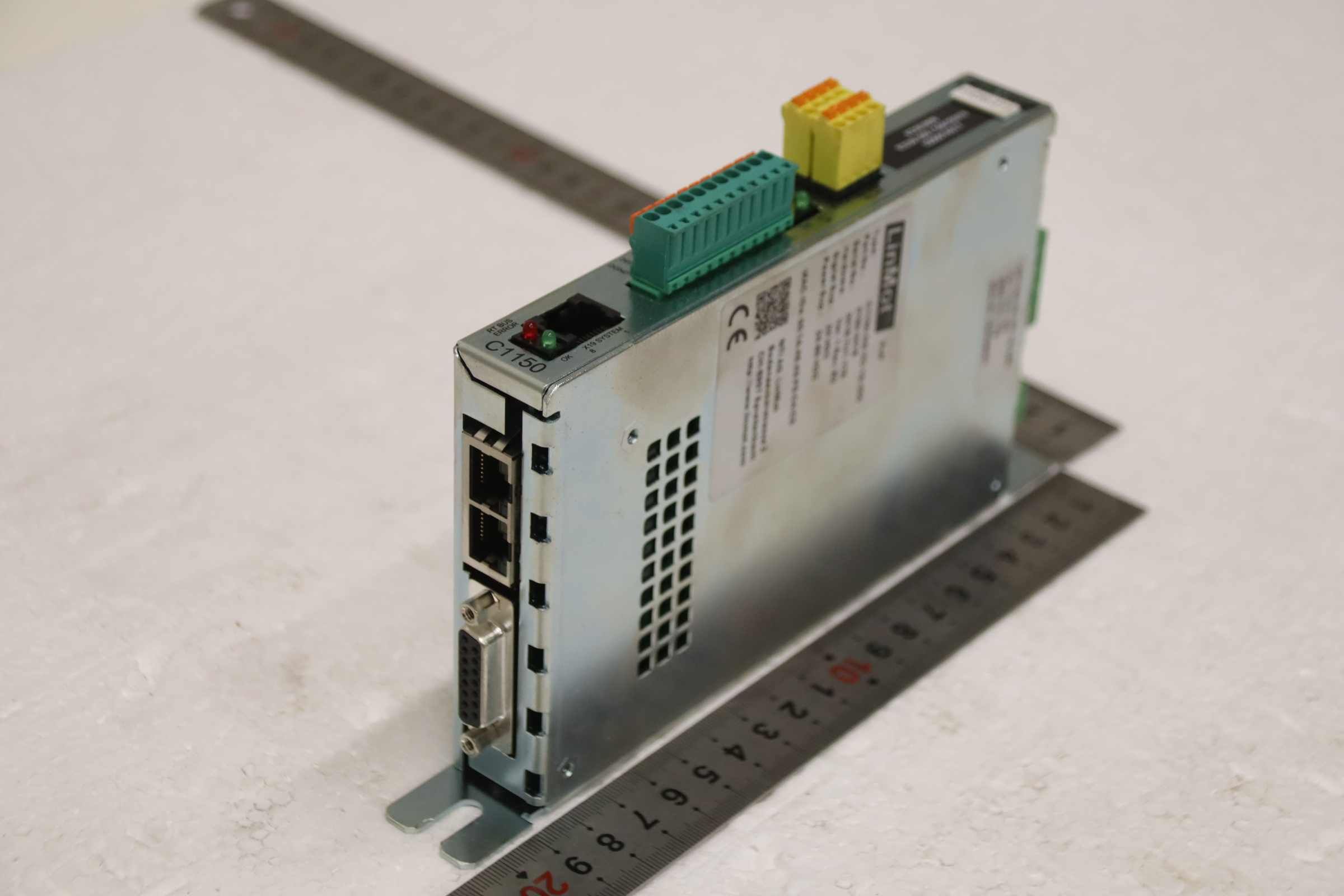

Industrial Ethernet Switch, Network Switch, Lan Switch, Rail Switch, FL Switch, 5-port Fast Ethernet Switch, Controller Ethernet, EtherCAT Box, EtherCAT CoE Drive - Manufacturer: LinMot, EtherCAT CoE Drive -Type: C1150-DS-XC-1S-000 -Voltage: 24 V -Number: 2 modules available -Price: per piece -Dimensions: 205/25/H125 mm -Weight: 0.7 kg/pc.
The extrusion line was designed for cast film production. Processing of thermo plastics in a temperature range of 150-300°C. POSSIBLE LAYER STRUCTURES: - mono film - 3- layer (A-B+C-A) - 5- layer (A-B-C-B-A) DATA OF FACILITY Total output of extruders max. 2230 kg/h Extruder A: 90/33 L/D max. 330 kg/h Extruder B.: 135/33 L/D max. 950 kg/h Extruder C.: 135/33 L/D max. 950 kg/h Film width range (net): 1600 - 2110 mm Two rolls cutting possible (2x 800 – 2x 1055mm) Thickness range: 25-580μm Production speed: 10 - 150m/min Roll width: 2500 mm Max. roll weight: 2000kg ADDITIONAL COMPONENTS (QUALITY): Non-contact thickness equipment for automatic TD profile measurement with double side corona treatment (max. 12000W) Optical inspection system, including marker system if failures are detected, incident and transmitted light system ...
The Macchi 3 layer Film Blowing Machine PLASTEX model is a compact line for a top quality film production with a range up to 350 kg/h and a film width of 1.650 mm. This production line of 3 layer co-extrusion blown film extruder produced by MACCHI can be used for the production of a wide range of general packaging films as it allows to achieve a high output and a significant level of productivity and flexibility.
5 layer die head, without extruder and cooling ring Manufacturer: Reifenhäuser Year of manufacture: 2018 Nozzles: 350mm diameter Capacity: 420 kg/h Product examples: Collation Shrink: 16%/14%/40%/14%/16% Standard packaging film 16%/16%/36%/16%/16% Laminating films : 14%/22%/28%/22%/14% The following extruders were mounted: 60/60/90/60/60
Materials: LDPE, LLDPE, HDPE // Film Width (Max): 2100 mm
Materials: PET, APET, RPET, GRG, GAG, G-PET, PS, PP // Film Width (Max): 700 mm
Materials: LDPE, LLDPE, m-LLDPE, MDPE, HDPE, EVA, EVOH, Nylon 6, Co-Nylon, PLA // Film Width (Max): 2800 mm
Verbufa Forming Machine with Integrated Flattening Belt (MBF COEX) The latest series of Verbufa COEX forming machines with wide conveyor belt and integrated flattening belt is the solution for a high production capacity of filled products. The MBF COEX machine has been specially developed for the intelligent and efficient shaping and portioning of stuffed products such as potatoes, cheese, meatballs and croquettes. With the integrated flattening belt, this forming machine is also ideal for the production of stuffed burgers. The MBF is available with 2 to 16 product streams and a conveyor belt of 400, 600, 800 or 1000 mm width. Demonstration/demonstration machine of a factory representative
Inv. Num. : 7890 Type: Coex 3-layers Producer: MAM Created: 2005 Parameters: Film width: 440-600 mm Circumference of the balloon: 1200 mm Maximum speed: 30 m/min Cutting thickness: 0.060-0.200 mm
Material type: LDPE, LLDPE, mLLDPE, HDPE, PP, regranulates Machine dimensions (LxWxH): 16 X 5 X 10.5 m Min/Max final Film width: 900 / 1700 mm Film thickness: 27–200 μm Capacity: Up to 240 kg/h Line speed: 0–150 m/min Screw diameter: 55/65/55 Layer ratio: Up to 25/50/25 % L/D ratio: 30/1 Number of heating zones: 3 for 55 mm and 4 for 65 mm (1 zone per screen) Dosing system: Doteco Grado; 3 units with 4 components each; centralized vacuum pump (added later); all scales fully serviced last year; new software and external touch screen; neck (before extruder) with additional magnets Electronics: Siemens, ABB Software: Macchi's; full control via touch screen (replaced 3–4 years ago) Die head with IBC: 280 mm; 2.4 mm gap (3 heating zones); TE502 model with air ring extension Internal cooling balloon diameter control (IBC) Ultrasonic sensor (1 unit); JET ...
Container Size With Actual Configuration: 2 l // Number Of Heads: 5
Fischer-W.Mueller wind machine type: FMB 4/12-100, 3 layer Coex Blow machine Complete Line control: Moog construction year TMC: In 1998 hose unity snail diameter mm: 50/90/50 mass and weights dimensions LxBxH m: 7.4 x 7.7 x 2.4 machine weights kg: 14,300/5.000/11.000 other Data Sheet: FISCHER FMB used 4/12/100 3 layer Coex Blow machine Complete Line Year: In 1998 Location: Mülheim / storage fire: Model FISHER W.Mueller: FMB 4/12/100 land: For Sale Availability: Immediate Technical details of container with the current configuration: 1 l Number of heads: 12 materials: PE Number of stations: 2 extrusions type: Continuous Number of extruders: 3 2 x 2.0-50mm Unex Unex 1x 6.0-90 mms Screw diameter: 120 mms of engine power: 22 kW 90 kW of L / D: 24 and 28 Technical details Cycle - 12.6 sec = output / day = 70,000 botles The head included. For more information Availability: I ...
Important and outstanding design features of the RaptorX-SL with steel substructure /RaptorX-SL3200/S15 The application variety of a RaptorX-SL CNC Fraes machine is variable due to the high-adjustable working area (read-through he under bridge variable : 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (without extra charge) extremely large. special coarseness up to 17,500 mm (on one scale) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-coerpers. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to about 400mm hei ...
Important and outstanding design features of the RaptorX-SL CNC Fraes machine / CNC-Fraese with steel substructure / RaptorX-SL2200/S15 The application variety of a RaptorX-SL CNC Fraes machine is variable due to the adjustable working area (through-shoehe under bridge : 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (without extra charge) extremely large. special larges up to 17 500 mm ( on one scale ) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-coerpers. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to ...
used
Two-station machine for articles up to 5 ltr. Extruder 90/22D. Single head CoEx (virgin - regrind - virgin). Good condition. Still in production, free approx. June 2020. With waste conveyor below the machine
3-channel foil nozzle EDS FSK-600 with flex lip (tire tubes) Output capacity: 40 -50 kg/h Lip adjustment with screws and storage beams in the main layer Film width: max. 600 mm Film thickness: 0.1 – 3.0 mm 3 computer-calculated hanger channels for optimal melt distribution Distribution: A 10-15%, B 70-80%, C 10-15% Drilled nozzle lip for liquid temperature control 9 heating zones with high-performance cartridge heaters Connected load for nozzle: 18 kW (0.5 kW x 36) Fully wired for 240 V / single-phase Nozzle dimensions (L x W x H): 450 x 650 x 400 mm, weight: 760 kg Coex adapter block for one middle and two outer layers Dimensions adapter (L x W x H): 320 x 210 x 400 mm Remark: Tool steel 1.2311 All flow surfaces are chrome-plated (25-30 μm)
The range of applications of a RaptorX-SL CNC Fraes machine is extremely large due to the maximum adjustable working area (read-through under bridge variable: 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (at no extra charge). special large foods up to 17,500 mm (on one scale) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-coerpers. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to about 400mm height (at 400mm long Fraeser ), which is usually applied layer construction for large volume components in 3D mold ma ...
Cast Film CoEx System (ABA), PE / PP, Capacity: approx. 400 - 700 kg/h, Main extruder, 120 mm, co-extruder of 60 mm, screen changer, melt pump, Co-Ex block, nozzle 1,650 mm, 2-roll chill-roll smoothing unit, cooling section, extractor, double winder with cutting device and edge control, edge trim, film measuring device thickness NDC (without measuring head), incl. operating instructions and e-plans.
PFM SWIFT packaging machine manufactured in 1995, performs the automatic process of packaging various types of products in foil packaging. The reliable and very easy-to-use machine takes the film from a reel above the working area, that is then accurately measured, appropriately cut and cold or hot sealed. At the very end of the process, a special device punches a EUROSLOT hole in the packaging. The packaging machine tooling does not need to be changed when changing the dimensions of the packs. The SWIFT packaging machine weighs 380 kg. Technical data of the PFM SWIFT packaging machine - packing material type: single or multilayer thermo-weldable materials (propylene cellulose film, coextruded film etc.) or PVC - sealing type: elongated profile, spacing 2x 90° - capacity: 60 packs/min - device for making EUROSLOT holes - unloading conveyor - power: 3.2 kW - power supply: 380 V ...
Used envelope film machine, cellophone machine by WEGA type Fk-6 . Technical parameters of the machine: - Overall dimensions (L x W x H): 1050 x 670 x 980 mm; - Weight: approx. 180 kg; - Power supply: 1220V, 50-60Hz, 10000W; - Pneumatic supply 0.4-0.6 MP, 20 l/min; - Operating temperature: 15÷40oC. The semi-automatic foiling machine type FK-6 is designed for foiling rectangular boxes with flat and rigid surfaces using the enveloping method. Maximum output: 400 - 600 boxes/hour Maximum box dimensions: 70 x 200 x 230 mm Minimum box sizes: 7 x 60 x 50 mm Film parameters: - polypropylene coextruded film, heat-sealable on both sides, bi-directionally oriented; - thickness: 20-35 µm; - maximum width: 300 mm - minimum width: 70 mm - maximum diameter of film roll: 300 mm; - inner diameter of thimble: 76 ± 5 mm; - recommended film type: 25MB 400 Mobil Pl ...
A complete 5-layer coextrusion blown film line with 5 extruders and all peripheral equipment is available. Total line dimensions X/Y/Z: 14m/22m/11m, blow head: Kiefel Worms FSBK 500 with IBC, die diameter: 500mm, film width range: 700mm-2000mm, haul-off width: 2000mm, winding width: 2000mm, line speed: 120m/min, melting capacity: 500kg/h, total power requirement: approx. 300kW. 1) Double winder Wintech, winding width: 2000mm, film thickness range: 35µm-150µm, max. roll diameter: 1000mm, max. roll weight: 1900kg, core inner diameter: 152mm/6inch. 2) Extruder Kiefel Worms 70.29D, power: 89kW, screw: 5-zone barrier screw, speed: 125rpm, renewed: 2010. 3) Adhesive extruder Kiefel Worms 50.25D, power: 34kW, screw: 3-zone barrier screw, speed: 200rpm. 4) Center extruder Kiefel Worms 50.25D, power: 34kW, screw: 3-zone core progressive screw, speed: 175rpm. 5) Adhesion promoting extruder Kiefe ...
Bag Feeding: Continuosly with a pre-choiceed feeding speed. Intermittently with a pre-choiceed number of bags per cycle. Automatically with a variable stopping time per cycle for manual or automatic filling. Item condition: fully functional/in operation Availability: as of now Viewing: by apointment Packaging Speed: Variable bag feeding between 3 and 30 m/min Packages/min.: 80 depending on product and bag size Bag size max.:: width 450 / length 500 mm Bag size min.: width 100 / length 100 mm Control: Siemens PLC S7-300 Weight: 650 kg Film: PE, CCP, coextruded films and laminates Film thickness: max.: 0.140 mm/ min: 0.040 mm
An overbelt metal separator is used to remove ferrous contamination from chopped scraps, on the extraction belt from a shredder. We offer different solutions in size and power even for stainless steel., Just send us your requirements and we will send you a most cost-effective, targeted offer., An overbelt metal separator is the easiest way to remove ferrous contamination from scraps., This machine is a available in different sizes, with different magnetic forces, Constructed according to the Italian Top Quality Standards, This is an example :, OVERBELT MAGNETIC TAPE SEPARATOR TYPE R60-80E, - 800 mm wide at a distance of 200 mm from the belt, - Construction characteristics :, - permanent magnet in bipolar conformation with low-carbon iron structure made with Sr Ferrite permanent magnets with high magnetic induction and great coercive force (guaranteed magnetic field strength 20 years), - ...
Coated web width 1315 mm Max. web width 1330 mm primary unwinder: 1000 mm secondary unwinder: 1200 mm rewinder: 1200 mm Speed: 400 m/min Accessories: - Solvent-less mixer Nordmeccanica - Continuous filling World Mixer (with 4 tanks of 200 kg) - 5 rolls Material: COATED WEB BOPP12-80μ,PETP10-30μ,LDPE,LLDPE30-200μ,OPA12-18μ,NYLONCAST30-80μ ALU(Foil)6,3-40μ,PPCAST60-150μ,PAPER40-150gr/m2 LAMINATED WEB BOPP12-80μ,PETP8-30μ,LDPE,LLDPE20-200μ,OPA12-18μ,NYLONCAST20-80μ ALU(Foil)6,3-40μ,PPCAST20-150μ,COEXFILM25-200μ PAPER 40 - 150 gr/ m2
A complete PS foam extrusion line (capacity: 350kg-400kg/h) is available. 1) 7x dosing units K-Tron Switzerland and Coperion, main components: 3, side components: 4, capacity: 350kg-400kg/h. 2) Primary extruder Battenfeld, year of manufacture: 1998, screw diameter: 120mm, screen changer: Gneuss, double piston pump: LEWA. Including gas injection. 3) Secondary extruder, screw diameter: 150mm/33D. Including unused old die and a coextruder Kühne with 50mm screw diameter. 4) Oil-heated Sunwell round die. 5) Calibration unit Dorn, knives: 2, films: 2, film width: 1080mm. 6) Take-off unit Gloenco Double S Haul-Off. 7) PS film winder, positions: 4, simultaneously operated positions: 2, winding speed range: 10m-30m/min, roll weight range: 150kg-300kg, roll length range: 500mm-800mm. Including discharge with ionization. Documentation available. An on-site inspection is possible. This line is sold ...
General SKU347W887 MakeZanchetta / Ima LocationBarneveld CEcheck TypeCyclops Mini Main Features MaterialStainless steel Volume300 Ltr. Motor2.2 KW Specified Features - Tumbler mixer Tumbler mixercheck Capacity30-300 ltr With motor2.2 kW (400 V, 1430 rpm (Ex)) MaterialStainless steel Information No.V2C001 Year of construction2008 With switchgearcheck (0.53x1 m) Floorspace1.90x 1.20m Total height2.24 m Weight1560 kg Extra SpecificationsCapacity of standard containers: 30-300 ltr (containers not included) Recommended filling coefficient: 30-75% Maximum working load (bin + product) 250 kg Rotation speed: 4-20 rpm Tumbler mixersIMA ItalyMixers > Tumbler mixersBrand > IMA Italy What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machin ...
A counter-rotating side-feed twin-screw extruder Krauss Maffei used in the coextrusion process is available. Screw diameter: 40mm, material: rigid PVC, screw speed: 50rpm, throughput capacity: approx. 50-80kg/h, operating hours: approx. 42100h. Including roller guide with subframe. Documentation available. An on-site inspection is possible.
General SKU214W142 LocationBarneveld MakeQVF Glasstechnik TypeROB 32/150/SH/3/SIC Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface3.2 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface3,2 m² Tube capacity10 Ltr. Number of tubes:37 Tube diameter14 mm Tube length1980 mm Max. temperature150 °C Shell capacity24 Ltr. Shell diameter124 mm Shell length2250 mm Max. temperature150 °C Shell connectionsDN100 (2x) Cover connectionsDN50, DN40 Information No.98081 A Year of construction1998 Floorspace0,3x2,25 m Total height0,3 m Technical specs Extra information- SIC better heat transfer coefficient than glas ...
General SKU214W146 LocationBarneveld MakeQVF GLASTECHNIK TypeROB DN 100, 0,5m² Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell2 Bar Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0,5 m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Max. temperature150 °C Shell capacity7 Ltr. Shell diameterDN100 Shell length1425 mm Max. temperature150 °C Shell with expansion jointcheck Shell connectionsDN80 (2x), DN50 Cover connectionsDN50 (2x) Information No.98066 A Year of construction1998 Floorspace0,2x1,4 m Total height0,2 m Extra Specifications- SIC better heat transfer coe ...
General SKU214W276 LocationBarneveld CEcheck MakeQVF Glasstechnik Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface3.2 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface3,2 m2 Tube capacity10 Ltr. Number of tubes:37 Tube diameter14 mm Tube length1980 mm Max. temperature+150°C Shell capacity24 Ltr. Shell diameter124 mm Shell length2250 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN100 (2x) Cover connectionsDN40: DN50 Information TypeROB32/150/SH/3/SIC Year of construction1998 Floorspace0,25 x 2,30m Total height0,25 m Weight100 kg ATEX compatiblecheck Technical specs ...
General SKU214W277 LocationBarneveld CEcheck MakeQVF Glasstechnik TypeROB DN100,0,5M Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0.5m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Max. temperature+150°C Shell capacity7 Ltr. Shell diameterDN100 Shell length1425 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN100 Cover connectionsDN50 Information No.98069A Year of construction1998 Floorspace0,22 x 1,57 m Total height0,22 m Weight70 kg ATEX com ...
General SKU214W270 LocationBarneveld MakeQVF Glasstechnik TypeS-ROB71/300/SH/3/SIC Pressure Vacuum possiblecheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface7.1 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface7,1m² ( in use 4,2m²) Tube capacity40 Ltr. Number of tubes:97 Tube diameter14 mm Tube length1980 mm Wall thickness tubes1,5 mm Max. temperature+150°C Shell capacity113 Ltr. Shell diameter300mm Shell length1800mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN150, DN200 Cover connectionsDN50, DN80 Information No.98072a Year of construction1998 Floorspace0,42x2,50 m Total height0,42 m We ...
General SKU214W271 LocationBarneveld MakeQVF Glasstechnik TypeS-ROB64/300/SH/2/SIC Pressure Vacuum possiblecheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface6.4 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface6,4m² Tube capacity33,7 Ltr. Number of tubes:164 Tube diameter14 Tube length±850 mm Wall thickness tubes1,5 Max. temperature+150°C Shell capacity46 Ltr. Shell diameter300mm Shell length850mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN150, DN50 Cover connectionsDN80 Information No.98075 Year of construction1998 Floorspace0,42x1,40 m Total height0,42 m Weight190 kg Technical specs ...
General SKU214W275 LocationBarneveld CEcheck MakeQVF Glasstechnik TypeROB DN100,05M Pressure Working pressure shell2 Bar Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0,5m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Wall thickness tubes1,5 mm Max. temperature+150°C Shell capacity7 Ltr Shell diameterDN100 Shell length1100 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN80 Cover connectionsDN50 2x Information No.98067a Year of construction1998 Floorspace0,22 x 1,50m Total height0,22 m Weight50 kg ATEX compatiblecheck Technical specs Extra information- SIC ...
General SKU214W274 LocationBarneveld MakeQVF Glasstechnik TypeROB DN100. 0.5m³ Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0,5m³ Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200mm Max. temperature+150°C Shell capacity7 Ltr. Shell diameter100mm Shell length1100mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN80 Cover connectionsDN50 Information No.98071 Year of construction1998 Floorspace0,22x1,50m Total height0,22m Weight50kg Technical specs Extra information- SIC better heat t ...
