cnc portal milling used for sale

X-axis: 500mm, Y-axis: 230mm, Z-axis: 90mm. No defects known, regularly maintained, without accessories or spare parts. The machine has already been dismantled. An on-site inspection is possible, not under power.

X-axis: 320mm, Y-axis: 400mm, Z-axis: 40mm. No defects known, regularly maintained, without accessories or spare parts. The machine has already been dismantled. An on-site inspection is possible, not under power.

CNC MACHINING CENTER ALZMETALL BAZ 15, Year of manufacture : 1998 Specifications: X : 600mm Y : 400mm Z : 600mm Table : 750 x 450mm Main spindle : 10,000RPM Control : Siemens Sinumerik

Macmon M400 CNC with Heidenhain TNC 355 control Manufacturer: Macmon Type: M400 CNC Control: Heidenhain TNC 355 Year of Make: 1994 Weight: 2700 kg Connected load: 12 kW Travel X: 630 mm Travel Y: 450 mm Travel Z: 380 mm Clamping surface table: 800x500 mm Spindle revolutions: 20-2780 rpm Levels: 2x continuous Spindle power: 5.5 kW Tool holder: SK40/ISO40 Final drive: 0-2000 mm/min Final drive rapid traverse: 5000 mm/min Quill stroke W: 100 mm Head Swivel: 2x90° Resolution measuring system: 0.001 mm Positioning: +/- 0.02 mm Special features: Protective housing that can be opened, chip tray, quill stroke

x-travel: 400 mm y-travel: 320 mm z-travel: 450 mm Control: Haidenhain TNC 124 drive of main spindle: 3 kW number of spindle speeds: 63-3150 u/min tool taper: SK 40 stroke of quill vertical: 60 mm feed speeds: 5-2000 mm/min rapid traverse: 2 m/min work table:: 800x320 mm coolant: 20 l/min total power requirement: 5 kW weight of the machine ca.: 1,7 t dimensions of the machine ca.: 2,2x2,4x1,6 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

TBI MVC 1890 CNC vertical machining center was built in 2023 in Poland by TBI Technology Sp. z o.o. The machine has worked very little over its service life. During the last maintenance, the spindle was replaced with a new one worth €10 000. The MVC 1890 CNC machining center on offer is an excellent choice for machining heavy workpieces with a maximum weight of 2500 kg. The state-of-the-art technical solutions used in it guarantee the best precision and efficiency. These include, among others, a reliable, high-speed main spindle. Thanks to its temperature stabilisation (oil cooling), the spindle does not deform thermally and maintains a constant temperature during heavy-duty, high-speed operation. The cutting tools, on the other hand, are continuously cooled during the machining operation, which increases their overall durability. All axes are driven by efficient digital drives w ...

MAHO MH 1000 C CNC Vertical Milling machine Serial No. 11536 Control CNC Philips 432 Table dimensions 800 x 1.000 mm Cross travel (Y) 600 mm Longitudinal travel (X) 1.000 mm Vertical travel (Z) 800 mm Spindle taper ISO 50 P.D.B. Speed 20-4000 rpm Auto feed 1-4000 Rapid (mm) 10000 Power kW 22 Weight 7.200 kg With assembled copy device. Many Accessories and tools

Used machine Universal Machining Center Machine type: DMG MORI CMX70U 3+2 Control: Heidenhain TNC 620 Year of Make: 2021 #001350 Optimal area of application. Bearing seats on long shafts, crankshaft bearing seats, balancer shafts, etc. TECHNICAL DATA: Max. turning length: [mm] 1,055 Turning diameter: [mm] 120 Max. Rotary Ø over bed: [mm] 285 Rapid traverse: (X/Z) [m/min] 20 Main spindle Max. speed: [1/min.] 3,500 Drive power: [kW] 7.5 / 5.5 Bar Passage: [mm] 43 Spindle Nose: A2-6 Number of turrets: 2 Tool positions: 6 + 6 Tool holder: Capto Tailstock This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

A Knuth CNC vertical milling machine is available. Travel X/Y/Z: 385mm/230mm/385mm, table dimensions X/Y: 800mm/240mm, max. table load: 100kg, reach: 300mm, speed: 3000rpm, rapid traverse: 6m/min, feed rate: 2m/min. Machine dimensions X/Y/Z: approx. 1850mm/1650mm/2000mm, weight: approx. 1500kg, control: Knuth GPlus 450. Documentation available. An on-site inspection is possible.

A CNC double-station milling machine Schwäbische Werkzeugmaschinen with 3 axes is available. Stations: 2, travel X/Y/Z: 700mm/500mm/500mm, positioning accuracy: +/-0.02mm, position scatter: +/-0.01mm, rapid traverse: 25m/min, feed force: 8500N. Machine dimensions X/Y/Z: approx. 6700mm/3200mm/3200mm, weight: approx. 11500kg, control: Siemens Sinumerik 840. The left sliding cover is defective, however another one from stock can be adapted for it. Documentation available. An on-site inspection is possible.

2019 Hurco VMX 42i Vertical Milling Machine. Less than 100 hours on machine. Machine has been stored in heated building. Boasting a 24-inch Z-axis travel bed and a 42-inch X-axis travel bed, 24-inc Z verticle travel. Equipped with 12,000 RPM, CAT 40 spindle taper and a powerful 24 hp spindle horsepower. 30 station automatic tool changer. Wired for 220 V power source. Magnet shown in video not included in sale of machine. Renishaw tool and part probe.

Includes selection of BT30 holders and Digital tool Setter and 3d Haimler. Great machine, little use and always on aluminium. Can be seen running. 16 Position Arm type ATC and LNC Control (I have fusion 360 post as well.) Great machine for small workshop or as we had for home use.Table Size: 700x300 mmT-Slots (Number x Size x Distance): 3x14x100 mmMax. Table Load: 150 kgX Travel: 400 mmY Travel: 300 mmZ Travel: 380 mmDistance between spindle end and tabletop: 150-530 mmDistance between spindle and column surface: 358 mmBT30 10,000 RPM spindle.

Has a 14" wide by 7.5" depth working limits. Works great with no issues! Features listed below. -10 tool ATC Automatic Tool Changer -Power Draw Bar -Flood coolant -Fog Buster Coolant -All Tool holders and Tooling shown in pictures. -4th Axis w/ 4 jaw chuck -Vise -One way needle bearing tool holder for tightening and loosening tools (fabricated on this machine in picture) -Tool chest with everything in it. (endmills, tool holders, fixturing, tool setting, lubricants)

Weight: 1.5t, operating hours unknown, with documentation, machine vices and fixtures are available as accessories, the machine ran in one shift operation and was serviced regularly. An inspection on site is possible.

Incl. chip conveyor Dimensions: 3700x2270x2820mm Chip conveyor dimensions: 800x4000x1500mm Condition and details see pictures Year of manufacture 1996

Technical data: Manufacturer: Kunzmann Type: WF4 CNC Year of Make: 1999 Control: Heidenhain TNL 410 Travel: X 400 mm Y 320 mm Z 400 mm Working spindle Speed: 0 – 4,000 rpm Work table Dimensions L/W: 650 x 350 mm Tool/movement Tool holder: SK40 Quill stroke: 60 mm Dimensions and weight Dimensions: approx. 2,500 x 1,800 x 2,000 mm Weight: 1,800 kg Condition Condition: Used Functional: Tested and fully functional

x-travel: 400 mm y-travel: 250 mm z-travel: 400 mm tool taper: ISO 40 spindle turning speed range: 30-6300 / 20-4200 U/min feeds: 0 - 10.000 mm/min quill stroke: 90.0 mm table-size: 600 x 320 mm T-slots: 5 x 14 x 63 mm Control: TNC 410 CA spindle: ein ~ 126 Std. engine output: 11.0 kW weight: 1300 kg dimensions of the machine ca.: 1600 x 1500 x 1900 mm Original price incl. special accessories ~ 72.000 euros Machine was very rarely used () with only approx. 126 spindle hours (spindle on) Furnishing : - MACMOM / INAS CNC universal milling and drilling machine - HEIDENHAIN CNC path control TNC 410 CA workshop-oriented path controls, with Programming in easy-to-understand plain text dialog HEIDENHAIN electr. Remote control with handwheel - Pivoting control panel, to the right of the machine - hydraulic tool clamping (tie bolt DIN69872-A) - Vertical milling head rotating on both sides - ...

Lagun X: 3000 - Y: 1000 - Z: 1200 mm CNC Longitudinal travel X-axe: 3000 mm Cross travel Y-axe: 1000 mm Travel Z-axe: 1200 mm Dimensions clamping space- table: 3100 x 800 mm Power on spindle: 22 kW Type of millinghead: BT-50 Max speedrange: 50 > 3000 rpm (840 Nm) Control: Heidenhain iTNC 530 Power needed (KVA): 35 kW Length : 8744 mm Depth: 3765 mm Height: 3352 mm Weight: 14 ton

Kunzmann WF 7 CNC Fräsmaschine TNC 410 Steuerung Hersteller: Kunzmann Typ: WF 7 Baujahr: 2001 Zustand: gebraucht, unter Strom Steuerung: Heidenhain TNC 410 X-Weg 610 Y-Weg 400 Z-Weg 400 Aufnhame SK 40 Drehzahl 1-5000U/min Kipp/-Schwenktisch Lieferumfang: ? Unterlagen ? Diverse Werkzeugaufnahmen

met spanentransportband Longitudinal travel X-axe: 1050 mm Crosstravel Y -axe: 560 mm Travel Z-axe (Height): 560 mm Dimensions clamping space - table: 1400 x 550 mm Power on spindle: 9 kW Max speedrange: 10 > 6000 rpm Control: Fanuc O-M ACCESSORIES & TOOLING: toolchanger, 32 positions

Mikrosa SASL 5 CNC (Kronos L size), complete overhaul and retrofit Grinding wheel 500 x 610 mm Regulating wheel wheel 400 x 650mm Fixed center Complete mechanical overhaul Complete electrical overhaul No hydraulic movements Application 5-axis CNC controlled in position with digital brushless motors: - working wheel axis motor with Heidenhain linear encoders - Grinding wheel and regulating wheel both with electrical axis movements - rotating axis with digital brushless motor on regulanting wheel - rotating axis with 55kW AC motor with inverter on grinding wheel to regulate number of RPM Protection and fume extraction hood For through-feed grinding and customization possible according to customer needs. Machine refurbished, therefore possibility of testing in our warehouse, CE certification, manuals, 12 months warranty. The machine is visible working in our warehouse in Gussago BS. Mimu Ma ...

REALMECA MINI C3X-CNC VERTICAL 1 phase machining milling machine Used for teaching begginers. Perfect condition

Manufacturer: Sägeaggregat, Type: für CNC, Werkzeugdurchmesser mm: 180, Bohrung mm: 30, Zustand: gut, HSK 63: yes, pm: 6000,

x-travel: 600 mm y-travel: 350 mm z-travel: 140 mm table surface area: 700 x 300 mm spindle taper ISO: 40 spindle turning speed range: 100 - 4000 U/min distance spindle center to column: 395 mm distance spindle nose and table: min. 170 -max. 550 mm control: TNC 407 milling feeds: 3 + 2000 mm/min rapid traverse: 5000 mm/min spindle drive: 5,5 kW total power requirement: 9 kW weight of the machine ca.: 1,9 t dimensions of the machine ca.: 2,5 x 1,8 x 2,2 m • control HEIDENHAIN TNC 407, The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Basic features: X axis travel: 6.000 mm Y axis travel: 900 mm Z axis travel (vertical travel): 2000 mm automatic head index 2,5° spindle speed 3.300 rpm spindle taper ISO 50 stolle floor: 7000x1500 mm - nr. 6 T-slots rotary table B axis 360 positions - 5 ton load capacity CNC Heidenhain TNC 426 chip conveyor ATC 60 Total power: 60 kW - 380 V machine in excellent conditions, ready to work. NB: The aforementioned technical data, taken from the manufacturer's technical data sheet, are to be considered non-binding and subject to change without notice.

X-axis: 500 mm Y-axis: 400 mm Z-axis: 400 mm Table dimensions: 700 x 425 mm Spindle Exception: SK 40 Spindle speeds: 1 - 4000 rpm. Spindle stroke: 60 mm Equipped with: - ISO tool holders - Coolant system -Operating instructions Country of origin: Germany Motor power: 5 kW Machine LxWxH: 200 x 200 x 200 cm Machine weight: 2000 kg

CNC Vertical Slot Milling Machine Year of Make: 1989 Workspace: x-axis 1300mm y-axis 150mm z-axis 200mm Tool holder: SK40 Spindle speed: 350 rpm – 4000 rpm Max. groove length: 1200 mm Max. groove width: 40 mm Clamping area: 1300 mm x 300 mm Weight: approx. 3500 kg Coolant Setup Dimensions: 1600 mm x 1500 mm x 1800mm (LxWxH) Hydraulic system Partially overhauled, milling spindle new. Commissioning within a radius of 200 km included in the price.

x-travel: 600 mm y-travel: 400 mm z-travel: 400 mm table surface area: 800 x 400 mm spindle taper: SK 40 control: HEIDENHAIN TNC 310 spindle turning speed range: 10 - 3150 U/min spindle drive: 5,5 kW feed - longitudinal/cross: 1 - 5000 mm/min feeds vertical: 0,5 - 2500 mm/min rapid traverse: 6 / 6 / 3 m/min total power requirement: 10 kVA weight of the machine ca.: 2,5 t dimensions of machine L x W x H: 2,16 x 1,70 x 2,0 m Accessories: solid table, vertical head with hydr. tool clamping and quill retraction, electron. handwheel, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tool diameter: mm sanding disc diameter: mm Motor output: 5 kW total power requirement: kw Weight: 1.500 kg Overall size: mm Control: cnc The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 30 mm x-travel: 850 mm y-travel: 435 mm Control: HEIDENHAIN TNC 150 total power requirement: 16 kW weight of the machine ca.: 3500 kg dimensions of the machine ca.: m F E H L M A N N (Switzerland) CNC-Controlled High Precision Drilling and Milling Machine with HEIDENHAIN CNC-Control Model TNC 150 Model PICOMAX 100 CNC – 2 + A Year 1985 Serial No. 16 085 109 _______________________________________________________________ Table travel: Longitudinal ( X-Axis) 850 mm Cross (Y-Axis) 435 mm Milling/Boring head travel vertical ( Z-Axis) 210 mm Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm Mounting height below spindle, approx. 140 / 690 mm Height adjustment of Milling head max. 540 mm Distance between spindle and column 450 mm Spindle tape ...

hobbing length: 2100 mm milling width: 300 mm max. module: 16/18 min. module: total power requirement: 10 kW weight of the machine ca.: 5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle taper: 2 x SK 40 forward bearing diameter: 110 mm milling head speed: 100 - 4500 U/min milling drive: 5,1 kW workpiece length - max.: 830 mm workpiece dia. with double equipment: max. 135 mm taper diameter: 78 g6 mm centre height: 260 mm turning speed range - stepless: max. 15 U/min distance of spindles: 135 mm spindle nose: DIN 55026 Gr. 5 : : stroke of workpiece slide: 810 mm Feed speed: max. 6 m/min. surface area: 200 x 1750 mm : tool post (Z-axis): stroke of tool slide: 120 mm Feed speed: max. 2 m/min. column movement: 200 mm : tail stock: tailstock quill stroke: 100 mm morse taper: 3 MK centre height: 260 mm axial distance of the quills: 135 mm passage of steadyrest: 40 - 80 mm control: SIEMENS SINUMERIK 810 weight of the machine ca.: 6,5 t with SIEMENS-control SINUMERIK 810/820 acc.: NC-dividing unit with back stop, various toolholders, steadies, running centres, coo ...

Manufacturer: Optimum Model: OPTImill F 105 CNC Sinumerik 808D ADVANCE Type of Machine : Milling Machine Condition : New Included Accessories: - CNC Tool Starter Set BT 40 - SPW 12 Clamping Tool Assortment, 58-piece - Hydraulic Milling Vise HCV 105 - 20 Liters Cutting and Drilling Emulsion AQUACUT C1 - 4th Axis Preparation Find more here - .ucymachines/ Contact us at - sales@ucymachines

Control Heidenhain ... TNC 430 Clamping table surface... 800 x 400mm Axis X ... 500mm Axis Y ... 400mm Axis Z ... 400mm ISO 40 Spindle speed ... 0-4000 rpm. Max. workpiece weight ... 300kg L x W x H ... 2800x2700x1980mm Machine weight ... 2600kg Main engine power ... 5.5kW The machine is in good condition.

x-travel: 850 mm y-travel: 500 mm z-travel: 450 mm table-size: 1250x500 mm spindle taper ISO: 50 spindle turning speed range: 35,5-1800 U/min weight of the machine ca.: 5.2 t HEIDENHAIN TNC-355 Misc accessories www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1250 mm y-travel: 600 mm z-travel: 600 mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

FEHLMANN PICOMAX 80 CNC 2/3 is a CNC Bohr- Fräsmaschine für Präzision, hohe Genauigkeit und Zuverlässigkeit. 5 Achsen; SF32; Bohren 30 mm; Gewinde M24; Fräsen 100 cm3/min. Tisch 1230×410 mm, 7 T-Nuten 12H8, Nutzlast 250 kg. Verfahrwege X700 Y315 Z170/180 W495 mm; Spindel 50–9200 t/min; Vorschub X/Y 1–9000 Z1–4000 W1–4500 mm/min; Eilgang X/Y 9 m/min Z4 m/min. Anschluss 3×380V 50Hz, 16 kW; Gewicht ~3200 kg; Maße 2500×2500×2450 mm. Zubehör: Teilapparat 4. Achse, Reitstock, 3-Backenfutter Ø160, Spannzangenaufnahme, Satz Werkzeughalter, elektronisches Handrad. Eignet sich für enge Toleranzen in Uhren, Medizin, Luftfahrt, Automotive, Werkzeugbau. Technische Daten ohne Gewähr

FEHLMANN Picomax 55 CNC ist eine CNC Bohr-Fräsmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Leistungsdaten: Bohrleistung Stahl 25 mm, Gewindeschneiden M16, Fräsleistung 100 cm3/min; Spindelaufnahme SF32; Verfahrwege L500×Q250×V145 mm; Tisch 885×320 mm, 5 T-Nuten 12 mm Abstand 50 mm, max. Tischbelastung 250 kg, Tischhöhe 1040 mm, Abstand Tisch/Spindel 0–620 mm. Technische Daten: Spindeldrehzahl 50–10000 t/min; Vorschübe X/Y 1–11000 mm/min, Z 1–6000 mm/min, W 1–3600 mm/min; Eilgang X/Y 11 m/min Z 6 m/min; Netz 3×400 V 50 Hz; Leistung 7 kW, Gesamtbedarf 16 kW; Maschinengewicht ~2400 kg; Abmessungen 1920×1850×2400 mm. Zubehör: Kühlmitteleinrichtung 100 l, Spritzschutzkabine, elektronisches Handrad. Erreicht enge Toleranzen; Einsatz in Uhrmacherei, Automotive, Luftfahrt, Medizintechnik und Maschinenbau. Technische Daten ohne Gewähr

Technical details & equipment: Speed range: 20 – 5,000 rpm Table dimensions: 800 x 400 mm X-axis travel range: 600 mm Y-axis travel range: 350 mm Z-axis travel range: 600 mm Table load: 300 kg ​ Tool Changer: Equipped with two tool turrets, each with 12 places. Accessories: Chip conveyor included. Company history: The machine ran in gentle single-shift operation. Condition: The machine has been dry and protected in a closed room for 15 years. Due to the long service life, damage to the stand cannot be ruled out. Known defect: The position detection of the tool turrets is currently without function and needs to be repaired (presumably repair of the corresponding card required). With manageable effort, the machine can be restored to a very good operating condition. Important notes: The sale is made as a used machine to self-collectors. All information has been ...

Pehu CNC-besturing 5500 mm invoerrolband met CNC-positionering Admission in spindle (cone x): Mk4 Max drillingdepth: 180 mm Max drillingcapacity: dia 32 mm THROAT DEPTH DRILLING-SPINDLE: 550 mm Speeds: 55 > 5000 rpm Digital read-out: Pehu CNC positioning Motor power: 3 kW

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

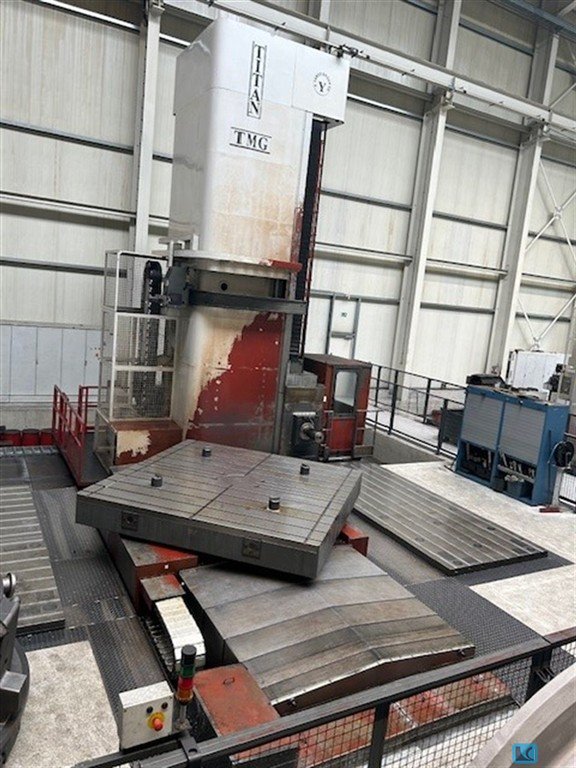

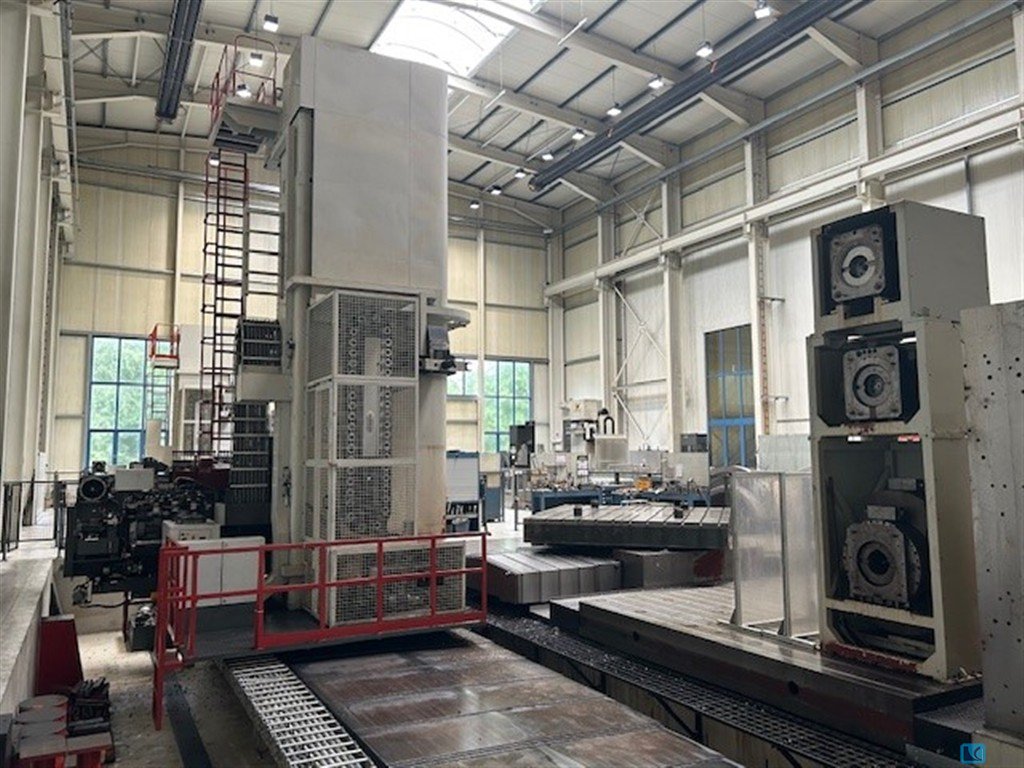

spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment

Vertical CNC centre lathe, uses / outdated machine type: Emag VSC 200 control: Siemens 840 C construction year: From the in 1995 to the in 2007 overtakes TECHNICAL DATA: speed area / speeds: [1 / min].: 6,000 Drehmoment:/torque [Nm]: 480 Max dreh-? over bed swing diam .: 290 mms impulse achievement / power: [kW] 34 feed ? / chuck diam. 200 mms revolver / turret: 12-fold, VDI 40, shoemaker powered work witness / driven tools 7.8 kW Verfahrwege: X axis / x-travel: 550 mms Z-Achse/z-travel: 200 mms express way / rapidly travel: (X/Z) [m / min] 30 / 20 prepush / feeds: (X/Z) [m / min]. 11 KN connected load: [KW] 36 kW machine weight: [kg] 6,500 equipment signs: filings sponsor / chip conveyor, crowd

more tech. Details on request

Tischaufspannflaeche Max Tischbelastung 25 to . groove distance 180 mms table movement 1,000 mms table rotation B axis 360? Aufspannflaeche 1600 x 2,500 mms number of the grooves 9 table overtakes completely in 2012 anew SIEMENS impulses, new MOOR GROVE graduations

Specifications / Technical Data S-720/T CNC-Engraving-Machine / Milling machine / CNC-Router With the purchase of the T-variation of High-Z CNC-router you get a proven technology with a certain icing of the cake in TÜV-certified quality. High-Z/T 3D-cnc-engraver was conceived for once more precision (repetition precision approx. 0,02mm) and especially for higher traverse speed. Because of the used ball screws the High-Z/T cnc milling machines achieves a fantastic precision and an almost unmeasurable back lash of approx. 0,01mm. At the same time there are high traverse speeds up to approx. 108mm / sec. ( 6.500 mm/min ) possible. With this cnc-machines you're able to carry out an engrave and mill speeds of approx. 4500 mm/min. and express travels up to 6500mm/min. Here's a video on a unloaded drive with the new High-Z / T. This cnc-machine series is usable in the industrial ...

Important and outstanding design features of the RaptorX-SL with steel substructure / The range of applications of a RaptorX-SL CNC fraes machine is variable due to the adjustable working area (through lasshoehe under bruecke: 150mm, 300mm or 400mm ) and the traversing height of 300mm in the Z-axis (at no extra charge) extremely large. special size up to 17,500 mm (on one piece) x 3000 mm x 600 mm are feasible ! If you are interested please ask ! This way you are able to process plate materials with the greatest stability of the Z-axis just as accurately as 200mm high 3D-Koerper. Use the system as a plasma cutting system or waterjet cutting system, appropriate extensions are available. In the middle range of the machine (between the foot tubes) you can even process parts up to a height of 850mm (beam rail etc. ) or 3D body up to about 400mm height ( at 400mm long freser ), whe ...

Item condition: New. Machine is delivered pre-assembled and tested. Specifications / Technical Data S-720 CNC-Fraesmaschine Engravings of all kinds, even on glass, VHM, carbide and up to 62 RC hard steel ! With the High-Z CNC-Fraes.- and Engraving Machine they acquire an all-round talent. Whether you want to clamp complex parts on a groove table or, or to clamp factory tins into a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are pr ...

Why produce the smallest parts on large, expensive CNC machining centers when it handles a small CNC machine for a fraction of the price just as quickly and massively ? On this machine, an unskilled worker can insert and unmount the factory quilts ! You can reduce your own costs from 250 Euros to 40 Euro Hourly Rate for Small Parts production and thus be much more competitive ! DIN ISO G-Code Programming or data output of the Fraesbahnen 2D or 3D directly from the software. You reduce your operating costs extremely. Also available with rotary axis ! Several companies produce extruder screws, 3D molded parts made of aluminium, small parts made of brass or stainless steel for injection moulding plants, etc. for your production. We would be happy to advise you on brass, copper, steel, stainless steel and many other materials can be processed. view informations and obtain non-bind ...
