120,644 used machines on RESALE, but how to find them? Machine Search
maximum number of results exceeded > 1000
please refine your search
used
Unit for precision cutting Make: IMA
used
Centre height 135 mm Top width 630 mm The bed diameter 315 mm Permissible diameter into the spindle bore 40 mm 45 Speed 3000 rpm Feed 0.015 0.35 m / h Inner taper spindle / tailstock MK 5 / MK 3 Weight 1150 kg
used
Tip height 150 mm top width 630 mm spindle bore 40 mm speed (infinitely) 55 3000 Rev/min feed 0.05 0.35 mm / U inside cone spindle / tailstock MK 5 / MK 3 swing over cross slide 177 mm turning diameter over bed 340 mm 4.45 kW dimension 1730 x 970 x 1300 mm weight 1250 kg
used
Longitudinal stroke max. approx. 680 mm Transverse stroke Max 250 mm greatest distance spindle Center to table top approximately 525 mm Magnet size approx. 600 x 200 x 90 mm Disk size 300 x 50 x 76.2 mm Speed infinitely variable 1000--3000 U/min Dimensions, B x T x H approx. 3.2 x 1.8 x 2.5 m Spindle motor approx. 2.8 8.4 kW Weight of the machine CA. 3,3 tons Facilities: -with automatic vertical delivery -Roughing, Wiles, from fires and lifting by the adjustable potentiometers -Loading position is approached after slipping automatic -Rapid traverse across approx. 1.2 m/min via electric motor -Labour / rapid traverse along approx. 5 mm / min 40 m/min with servo motor and toothed belt drive -Rapid traverse vertical approx. 0.2 m / min -Digital display for lateral and vertical axis -Quick lifting system approximately 180 strokes / min -Straight electric, dresser with size and speed comp ...
used
Dosing scale with precision spiral screw feeder in stainless steel version, with pre-container and weighing frame in frame, trough dimensions: 540 mm long x 370 mm wide x 320 mm high, with large loosening spiral in the trough, drive 0.47 kW via timing belt and Reduction gearbox, discharge pipe diameter: 50 mm.
used
Dosing scale with precision spiral screw dosing device in stainless steel design, incl. base frame, trough dimensions: 540 mm long x 370 mm wide x 320 mm high, with big aeration screw inside the trough, 0,47 kW drive via belt and gearbox, outlet tube diameter: 50 mm.
used
Tip height: 102 mm Top width: 450 mm Spindle bore: 32 mm Reduction gear Links.-right rotation 2-stage drive Vario speed: 270-3000 rpm Knee circuit Turning diameter over bed: 200 mm Spindle nose: W 20 Tailstock Quill: MK 2 Dimension (Lxwxh): approx. 140 x 56 x 123 cm Weight: approx. 550 kg Accessories available Manual available The machine is located in a clean good condition!
used
Tip height: 130 mm Top width: 450 mm Rotational speed: approx. 55-3000 rpm Pneumatic clamping system Spindle nose: W 25 Div. W25 collets available Div. holder available BERGER LAHR axis motors Combitec EIP E-500 control Manual control available Coolant system available Machine lamp available Machine feet available Dimension (Lxwxh): approx. 1400 x 560 x 1230 mm Weight: approx. 550 kg The machine is located in a clean good condition!
used
Tip height 102 mm Top width 450 mm Leit.-/ spindle Collets W20 available Rotational speed: approx. 210 3000 rpm Reduction gear Links.-right rotation 2-stage drive L x W x H: CA. 1760 x 595 x 1230 mm Weight: approx. 650 kg
used
used

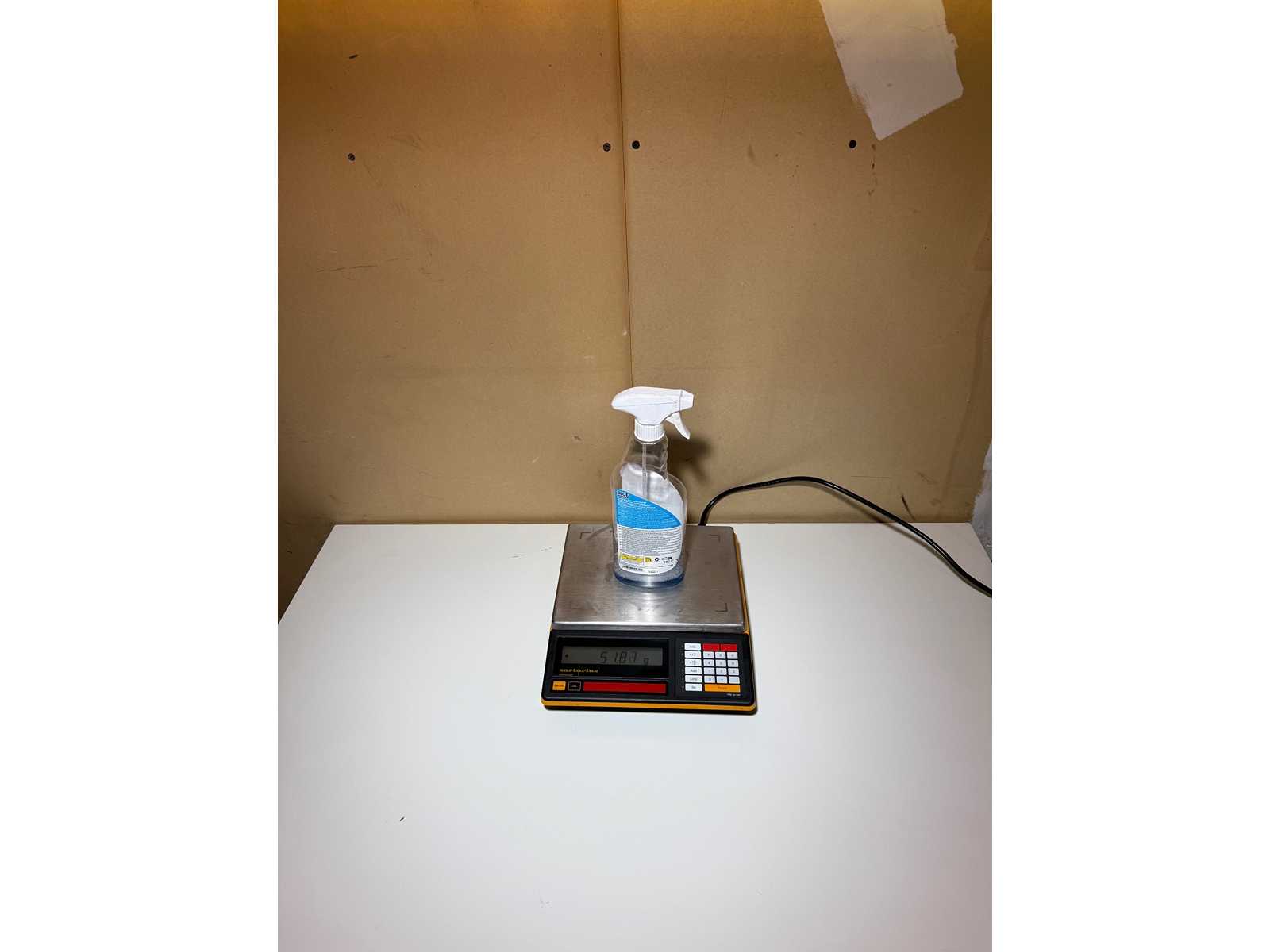

PRECISION SCALE Ser. No.: WF131434 Readability (d) : 0,01 g Weighing range (max) : 3000 g Reproducibility : 0.01 g Linearity : ±0,03 g Smallest part wight for piece counting : 20 mg Reference quantities at piece counting: 10, 20, 50, 100, 200 Weighing Units: g, ct, Ib, oz, d, ozt, dwt, mo, tl h, tl c, tl t, t, bt, n Recommended adjustment weight, not added (class): 3000 g (F1) Warm-up time: 2 hours Stabilization time (typical): 3 sec Operating temperature : + 5° C + 35° C Humidity of air: max. 80 % (not condensing)
used
CNC carousel lathe FKD 30 CNC control: Siemens 840D sl Machining-range: diameter 3500mm Working height: 3000mm Workpiece weight: max. 25 tons Driven tools: speed 0-3000 rpm Tool holder: ISO 50 for milling and drilling, Capto C8 for turning Faceplatespeed: 0 - 150 rpm Pickup station: 5 places. Filter system: 3000 liters incl. high-pressure pump 25 bar Chip conveyors: 3 items Remark: 2column carousel vertical lathe with traversing cross beam (W-axis adjustable) Support (X-axis) with one ram (Z-axis, ram 300mm x 300mm) for turning and milling with driven tools C-axis (faceplate) with master-slave bracing – zero backlash Manufactured in the EU
used
CNC carousel lathe FKD 30 CNC control: Siemens 840D sl Machining-range: diameter 3500mm Working height: 3000mm Workpiece weight: max. 25 tons Driven tools: speed 0-3000 rpm Tool holder: ISO 50 for milling and drilling, Capto C8 for turning Faceplatespeed: 0 - 150 rpm Pickup station: 5 places. Filter system: 3000 liters incl. high-pressure pump 25 bar Chip conveyors: 3 items Remark: 2column carousel vertical lathe with traversing cross beam (W-axis adjustable) Support (X-axis) with one ram (Z-axis, ram 300mm x 300mm) for turning and milling with driven tools C-axis (faceplate) with master-slave bracing – zero backlash Manufactured in the EU
new
Carrousel lathes FKD 40 CNC with Y axis and CNC swivel head (A axis) Faceplate diameter 4000mm Rotating diameter: 8000mm Rotating height: 3000mm Ram: 300mm x 300mm Stroke: 3000mm X axis: travel distance 5000mm Z axis: travel distance 2000mm Y axis: travel distance 6000mm W-axis: travel distance 1500mm C-axis in faceplate-table A axis in milling head Control unit: Siemens 840 Dsl Tool changer: 60 pockets PickUp Station: 5 pockets
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 20 W Spindle speeds: number (steps): 12 from: 45 rpm up to: 2800 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 0.5 HP Machine´s weight about: 250 kg Overall dimensions machine: Length: 1200 mm Width: 700 mm Height: 500 mm Various accessories: On work bench: Working bench: Length: 1600 mm Width: 700 mm Height: 850 mm Rear drive: SIMONET Headstock with reduction gear Driving plate Set of collets: W20
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 190 mm Distance between centres: 750 mm Swing over cross-slide: 240 mm Swing over bed: 390 mm Swing in gap: 580 mm Spindle hole: 54 mm Taper in spindelstock MK: 4 Taper in spindle: Camlock: 6" D1 Spindle speeds: number (steps): 16 from: 25 rpm up to: 2000 rpm Taper in tailstock:: 4 MT Spindle stroke: 155 mm Feeds: length: from: 0.04 mm/r up to: 1 mm/r Frontal: from: 0.02 mm/r up to: 0.5 mm/r Voltage 50 Hz 3x: 380 Volt Spindle motor: 7.5 HP Machine´s weight about: 1170 kg Overall dimensions machine: Length: 2000 mm Width: 1000 mm Height: 1500 mm Various accessories: Digital readout number of axis: Manufacturer: HEIDENHAIN Face plate diameter: 380 mm 3-jaw chuck diameter: 200 mm Set of jaws hard Set of jaws Coolant system Quick closing attachment Chuck adaptor Fixed s ...
new
Figure shows precision flat grinding machine: FSM 2550 AH Table size: 300 x 600 mm Installation height: 500 mm Max table load: 300 kg Engine power: 4.6 kW Connection: 400 V Dimensions: 2300 x 1790 x 2200 mm Weight, approx.: 2000 kg Equipment and scope of delivery: - All castings, such as machine stand, table, etc. made of MEEHANITE® quality casting - Automatic cross and longitudinal feed - Permanent lubrication - Automatic cross-stroke device - Rear splash protection - Grinding wheel - Grinding wheel flange - Pulling device - Balancing mandrel - Balancing scales - Dressing diamond - Machine light - Nivilier elements - Operating tool - Operating instructions - CE Special equipment of our storage machine: - Electric magnetic clamping plate 300 x 600 mm (fine pole) - 2-axis digital display, accuracy 0.001 mm, X 450 / Y 500 mm - Automatic verti ...
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 260 mm Distance between centres: 2000 mm Swing over cross-slide: 340 mm Swing over bed: 520 mm Swing in gap: 620 mm Length of the gap: 145 mm Workpiece weight on centres max.: 760 kg Spindle hole: 42 mm Taper in spindelstock metric: 50 Taper in spindle: Camlock: D6" Spindle speeds: number (steps): 13 from: 20 rpm up to: 1800 rpm Pitch of leadscrew: 6 mm Steep thread transmission: 6:1 Taper in tailstock:: 5 MT Spindle diameter: 80 mm Spindle stroke: 200 mm Feeds: length: from: 0.045 mm/r up to: 2.52 mm/r Frontal: from: 0.003 mm/r up to: 1.75 mm/r Voltage 50 Hz 3x: 380 Volt Spindle motor: 15 HP Machine´s weight about: 2500 kg Overall dimensions machine: Length: 3740 mm Width: 1300 mm Height: 1600 mm Various accessories: Face plate diameter: 550 mm 3-jaw chuck diameter ...
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle speeds: stepless from: 45 rpm up to: 3100 rpm Step-down gear: 1:5 Voltage 50 Hz 3x: 380 Volt Spindle motor: 0.5 / 0.9 kW Machine´s weight about: 300 kg Overall dimensions machine: Length: 2000 mm Width: 800 mm Height: 1400 mm Various accessories: Working bench: Length: 2000 mm Width: 800 mm Height: 900 mm Rear drive Drawer(s) Headstock with reduction gear 3-jaw chuck diameter: 110 mm 3-jaw chuck diameter: 110 mm 4-jaw chuck diameter: 110 mm Driving plate Macnetic chuck diameter: 100 mm Set of collets Drilling tailstock Hand rest Cross slide CNC
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 25 W Taper spindle threaded Spindle speeds: number (steps): 12 from: 40 rpm Taper in tailstock:: 2 MT longitudinal: Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Total power required: 2.0 HP Machine´s weight about: 500 kg Overall dimensions machine: Length: 1200 mm Width: 600 mm Height: 1300 mm Various accessories: Knee-operated reversing switch Clutch and brake Lamp Quick closing attachment Chip protector Toolholders
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: W25 number (steps): 12 from: 45 rpm up to: 2800 rpm Taper in tailstock:: 2 MT Feeds: Voltage 50 Hz 3x: 380 Volt Overall dimensions machine: Length: 2200 mm Width: 800 mm Height: 1650 mm Various accessories: On work bench: Working bench: Length: 2150 mm Width: 770 mm Height: 900 mm Driving system for milling and grinding attachment 3-jaw chuck diameter: 100 mm Set of jaws hard Drilling tailstock Chip protector
used
1 x lathe Feinbau PM 1 FZ Facilities: - Hand lever cross support with Tripan quick-change system - additional steel holder single steel holder on support rear - Electric drill rig for thread cutting - collet tension with tension ingenuity Technical data: - Spindle passage: 23 mm - Spindle speeds: 700/1400/2800 rpm (left/right) - Peak height: 110 mm - Tip width: 160 mm - Groesster circulation over bed:220 mm Accessories: 20 x drawer tension erases partly new (1 - 20 mm round) 1 x Interchangeable Holder Tripan with 2 different casts 1 x collet + suit rod in tailstock Operating instructions (Copy) Machine can be inspected under electricity.
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 675 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: number (steps): 6 from: 270 rpm up to: 2800 rpm Voltage 50 Hz 3x: 380 Volt Spindle motor: 0.5 HP Machine´s weight about: 150 kg Overall dimensions machine: Length: 2000 mm Width: 700 mm Height: 1500 mm Various accessories: Working bench: Length: 2660 mm Width: 770 mm Height: 900 mm Rear drive Foot switch Drawer(s) Belt-tensioning device for milling/grinding att. Drilling tailstock Drill chuck
used
Machine
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: number (steps): 12 from: 40 rpm up to: 3000 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Total power required: 2.0 HP Machine´s weight about: 500 kg Overall dimensions machine: Length: 1200 mm Width: 600 mm Height: 1300 mm Various accessories: Base-mounted type: Driving system for milling and grinding attachment Belt-tensioning device for milling/grinding att. Quick closing attachment Drill chuck Turret carriage
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 70 mm Distance between centres: 315 mm Swing over cross-slide: 85 mm Swing over bed: 155 mm Spindle hole: 12 mm Spindle speeds: number (steps): 12 from: 135 rpm up to: 2500 rpm Machine´s weight about: 150 kg Overall dimensions machine: Length: 1200 mm Width: 800 mm Height: 1500 mm Various accessories: Sheet metal base Rear drive Lamp Belt-tensioning device for milling/grinding att. 3-jaw chuck diameter Set of jaws hard Set of collets Drilling tailstock Rotary centre Set of centres Drill chuck Hand rest
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 450 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 20 mm Spindel nose for collets: W 20 Taper in spindle: Threaded Spindle speeds: number (steps): 24 from: 45 rpm up to: 3100 rpm Pitch of leadscrew: 4 mm Diameter of leadscrew: 40 mm Taper in tailstock:: 2 MT Feeds: number (steps): 8 length: from: 0.020 mm/r up to: 0.30 mm/r Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.50 HP Machine´s weight about: 550 kg Overall dimensions machine: Length: 1375 mm Width: 670 mm Height: 1210 mm Various accessories: 3-jaw chuck Quick closing attachment Quick change tool: MULTIFIX Set of collets: W 20 Tool holder with elements Lamp Drilling tailstock Clutch and brake 2 drawers
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: number (steps): 12 from: 40 rpm up to: 3000 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Total power required: 2.0 HP Machine´s weight about: 500 kg Overall dimensions machine: Length: 1200 mm Width: 600 mm Height: 1300 mm Various accessories: Base-mounted type: Knee-operated reversing switch Driving system for milling and grinding attachment Belt-tensioning device for milling/grinding att. Drilling tailstock
new
Precision ball screw drive, KGT 40mm, Gewindelg 1735mm, Steinmeyer, new Special price If you have a VAT number, we will gladly issue you an invoice without VAT. Mint condition in original packaging! The part was purchased from a spare parts warehouse of a company and has never been in operation, is in a completely mint condition and in its original packaging. - Precision ball screw / ball roller spindle with nut - Nominal thread diameter 40mm, pitch 10mm, - total length: 1920mm, 17kg, - ball screw length: 1735mm shaft end 1: 115mm lg - D22 x 40mm lg, thread M30 x 1,5 x 21mm lg, D30 x 54mm lg shaft end 2: 70mm lg - thread M25 x 1,5 x 20mm lg - D25 x 50mm lg Function guarantee! For second hand parts, we can not accept any conventional guarantee and warranty. Since we know that the device works, we give you a functional guarantee when you buy it. If the device ...
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: number (steps): 12 from: 40 rpm up to: 3000 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Total power required: 2.0 HP Machine´s weight about: 500 kg Overall dimensions machine: Length: 1200 mm Width: 600 mm Height: 1300 mm Various accessories: Base-mounted type: Knee-operated reversing switch Driving system for milling and grinding attachment Belt-tensioning device for milling/grinding att. Drilling tailstock
new
Complete precision ball screw drive with bearings, stroke 308mm, 25x5/25, Rexroth, new Special price If you have a VAT number, we will gladly issue you an invoice without VAT. Mint condition in original packaging! The part was purchased from a spare parts warehouse of a company and has never been in operation, is in a completely mint condition and in its original packaging. Complete precision ball screw with pillow block and floating bearing, thread diameter 25mm x 5mm ball screw Plummer block Rexroth: R159161720 Plummer block Rexroth: R159111720 Ball screw nut with part holder: R150321085 Total 496 x 110 x 72mm Maximum stroke: 308mm Function guarantee! For second hand parts, we can not accept any conventional guarantee and warranty. But we give you a functional guarantee. If the device does not work within 3 months after purchase you can return the goods and we wi ...
used
Feinbau Scherer PM 1 F-2 - 3 speed levels on the right - 3 speed levels on the left - Weight: 180kg - Height: 120cm - Depth: 50cm - Width: 100cm Good condition fully functional can be visited and tried out on site. Shipping abroad. Visit: Basically, I would like to point out to you that in order to avoid misunderstandings, the article can be viewed before purchase and tested under electricity. Please ask questions before purchasing to avoid any ambiguity. If you have any general questions or make an appointment for a visit, I can be reached at any time, using the telephone number below or above. Errors in the description and intermediate sale reserved. The VAT is shown separately on my invoices. Shipping with forwarding.
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 25 mm Inner taper type: 25 W Taper spindle threaded Spindle speeds: stepless from: 55 rpm up to: 3000 rpm Taper in tailstock:: W20 Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Machine´s weight about: 550 kg Overall dimensions machine: Length: 1200 mm Width: 600 mm Height: 1400 mm Various accessories: Base-mounted type: Knee-operated reversing switch Driving system for milling and grinding attachment Belt-tensioning device for milling/grinding att. Grinding attachment for collets B8 Wheel arbors 3-jaw chuck diameter: 100 mm 3-jaw chuck diameter: 100 mm Set of jaws hard Face plate diameter: 200 mm Driving plate Set of collets Set bell collets Tailstock ...
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 20 W Spindle speeds: number (steps): 12 from: 45 rpm up to: 2800 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 0.5 HP Machine´s weight about: 300 kg Overall dimensions machine: Length: 1200 mm Width: 700 mm Height: 1500 mm Various accessories: Base-mounted type: Belt-tensioning device for milling/grinding att. 4-jaw chuck diameter Quick closing attachment Drill chuck Hand rest Fixed steady
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 150 mm Distance between centres: 600 mm Swing over cross-slide: 177 mm Swing over bed: 340 mm Swing in gap Spindle hole: 40 mm Taper in spindelstock MK: 5 Taper in spindle: Camlock: D 1-4" Spindle speeds: stepless from: 55 rpm up to: 3000 rpm Taper in tailstock:: 5 MT Spindle diameter: 60 mm Feeds: number (steps): 48 length: from: 0.015 mm/r up to: 0.35 mm/r Frontal: from: 0.015 mm/r up to: 0.35 mm/r Rapid motion: 4 m/min Voltage 50 Hz 3x: 380 Volt Spindle motor: 2.70 HP Total power required: 6.30 HP Machine´s weight about: 1250 kg Overall dimensions machine: Length: 1730 mm Width: 970 mm Height: 1300 mm Various accessories: 3-jaw chuck diameter Coolant system Quick closing attachment Set of steel holders Lamp Drilling tailstock
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 20 W Spindle speeds: number (steps): 12 from: 45 rpm up to: 2800 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 0.5 HP Machine´s weight about: 300 kg Overall dimensions machine: Length: 2000 mm Width: 900 mm Height: 1500 mm Various accessories: Working bench: Length: 2000 mm Width: 1000 mm Height: 900 mm Rear drive Pneum. quick closing attach. Milling attachment Cross slide CNC: COMBITEC E-600
used
Inner grinding slide to Schaublin 102 lathe
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 20 W Spindle speeds: number (steps): 12 from: 45 rpm up to: 2800 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 0.5 HP Machine´s weight about: 300 kg Overall dimensions machine: Length: 2000 mm Width: 900 mm Height: 1500 mm Various accessories: Working bench: Length: 2000 mm Width: 1000 mm Height: 900 mm Rear drive Pneum. quick closing attach. Cross slide CNC: COMBITEC E-600
used
Gantry type grinding machine Make: Hiatachi Seiki Modell: 9GA-NRAA Table: 2500 x 1200 mm Max. Table travel: 2000 mm Capacity: 1500 x 900 x 500 mm Control: Fanuc 15 MA Year: 1995
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 450 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 20 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: stepless from: 210 rpm up to: 3000 rpm Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Total power required: 2.0 HP Machine´s weight about: 200 kg Overall dimensions machine: Length: 2500 mm Width: 800 mm Height: 1300 mm Various accessories: Working bench: Length: 2000 mm Width: 700 mm Height: 900 mm Driving plate Drilling tailstock Drill chuck Fixed steady
used
Wheel diameter: 680 mm sawblade length: 8550 mm Sawblade width max.: 1,3 mm Cutting height: mm Motor output: 20 kW Table dimensions: 600 x 620 mm Feed speed: m/min. Machine height: mm Weight: 10.000 kg Bandsaw horizontal, Precision-Saw for Silicon (Solar industry) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: number (steps): 12 from: 40 rpm up to: 3000 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Total power required: 2.0 HP Machine´s weight about: 500 kg Overall dimensions machine: Length: 1200 mm Width: 600 mm Height: 1300 mm Various accessories: Speed potentiometer 2 drawers
used
Technical data Centre height: 102 mm Distance between centres: 350 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 20.0 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: stepless from: 55 rpm up to: 3000 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Total power required: 2.0 HP Machine´s weight about: 500 kg Overall dimensions machine: Length: 1300 mm Width: 600 mm Height: 1300 mm Various accessories: pedal-operadet reversing switch 2 drawers Stepless speed variator Coolant system Lamp Headstock with reduction gear Quick closing attachment Cross slide with 90 mm stroke
used
Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 20.0 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: stepless from: 45 rpm up to: 3000 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Machine´s weight about: 550 kg Overall dimensions machine: Length: 1200 mm Width: 700 mm Height: 1400 mm Various accessories: Base-mounted type:: 102-82.000 2 drawers Stepless speed variator Headstock with reduction gear Driving plate Adjustable tailstock Drill chuck Cross slide with 90 mm stroke Fixed steady
used
Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 20 mm Inner taper type: 20 W Spindle speeds: number (steps): 24 from: 58 rpm up to: 2900 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 0.7 HP Machine´s weight about: 400 kg Overall dimensions machine: Length: 2000 mm Width: 800 mm Height: 1500 mm Various accessories: On work bench: Working bench: Length: 2000 mm Width: 800 mm Height: 900 mm Rear drive 3-jaw chuck diameter: 120 mm Set of collets: W 20 Set of centres Drill chuck Grinding attachment Fixed steady
used
Technical data Centre height: 102 mm Distance between centres: 375 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 45 mm Inner taper type: 38 F Taper spindle threaded Spindle speeds: stepless from: 90 rpm up to: 2600 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Machine´s weight about: 550 kg Overall dimensions machine: Length: 1200 mm Width: 600 mm Height: 1400 mm Various accessories: Base-mounted type: pedal-operadet reversing switch Coolant system 3-jaw chuck diameter: 100 mm Quick closing attachment Drilling tailstock Lever operated cross slide
used
Technical data Centre height: 102 mm Distance between centres: 300 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 20 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: stepless from: 55 rpm up to: 3000 rpm Taper in tailstock:: 2 MT Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 HP Machine´s weight about: 450 kg Overall dimensions machine: Length: 1200 mm Width: 600 mm Height: 1400 mm Various accessories: Base-mounted type: Knee-operated reversing switch 2 drawers Stepless speed variator Driving system for milling and grinding attachment Belt-tensioning device for milling/grinding att. Headstock with reduction gear Set of collets: W 20 Drilling tailstock Cross slide with 90 mm stroke
used
Key data: 102 , 450 , 22
Center height: 102 mm Center distance: 450 mm Spindle bore: 22 mm Technical data Centre height: 102 mm Distance between centres: 450 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 22.0 mm Inner taper type: 27 F Taper spindle threaded Spindle speeds: from: 90 rpm up to: 2600 rpm Voltage 50 Hz 3x: 380 Volt Overall dimensions machine: Length: 1400 mm Width: 60 mm Height: 1250 mm Various accessories: Base-mounted type: Clutch and brake
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 470 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Bar passage: 14.5 mm Inner taper type: 20 W Taper spindle threaded Spindle speeds: stepless from: 100 rpm up to: 6000 rpm Cross slide: cross travel (x axis): 100 mm Longitudinal travel (X-axis): 90 mm Taper in tailstock:: 2 MT Spindle diameter: 30 mm Spindle stroke: 80 mm Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 kW Machine´s weight about: 360 kg Overall dimensions machine: Length: 2000 mm Width: 800 mm Height: 1370 mm
used
Center height: 0 mm Center distance: 0 mm Spindle bore: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Centre height: 102 mm Distance between centres: 470 mm Swing over cross-slide: 120 mm Swing over bed: 200 mm Spindle hole: 25 mm Bar passage: 19 mm Inner taper type: 25 W Taper spindle threaded Spindle speeds: stepless from: 100 rpm up to: 6000 rpm Cross slide: cross travel (x axis): 100 mm Longitudinal travel (X-axis): 90 mm Taper in tailstock:: 2 MT Spindle diameter: 30 mm Spindle stroke: 80 mm Voltage 50 Hz 3x: 380 Volt Spindle motor: 1.5 kW Machine´s weight about: 360 kg Overall dimensions machine: Length: 2000 mm Width: 800 mm Height: 1370 mm
