122,025 used machines on RESALE, but how to find them? Machine Search
new
Working range: tube Ø 21,3 – 114,3 mm Wall thickness 2,3 - 11 mm Length: 6-12m Composed of two RFA14 chamfering machines with transport devices between the machines. The task of machines is to chamfer inside and outside both ends of the tubes. The range of diameters of chamfered tubes 21.3-114,3mm and wall thickness of 2.3-11mm in the length range of 6-12m. The task of transport in the area of the chamfering machines is to collect the tubes from the roller table and move them between the chamfering machines. Machine is new, never used.
new
automatic chamfering and beveling machine Development and production in England - CNC Mitsubishi control M70 - automatic start of the cycle - automatic switch-off in case of repeatable chamfer lengths - Colour touchscreen control panel - max. spindle speed 3,000 rpm - Rod diameter 8-80 mm - hydraulic 3-jaw chuck - Cutting head suitable for all material sizes - quickly replaceable ISO inserts - max. chamfering/turning length 37 mm - Incl. turning and chamfering tool - 4 kW motor - High-precision Mitsubishi servo drive - Ball screw with high thrust capacity - Large machine door - Internal, powerful LED work light - Shavings collection container with external shavings basket - Lifting points for pallet trucks - Weight 500 kg - Dimensions L/W/H 1000x600x1200 mm CE - certified
new
- Motor grinding roller 5.5 kW motor feed 2 x 0.37 kW voltage 400 V / 50 Hz feed speed 0 - 10000 mm/min- max. Workpiece diameter 100 mm- max. curves Radius 200 mm- min. workpiece length 400 mm- grinding belt dimension 1450 x 100 mm- Dimensions L=1000, W=900, H=1400 mm - weight 680 kg
new
NEW ex works semi-automatic chamfering machine Development and production in England - automatic chuck with material sensor - Automatic spindle start when the cutting head is moved - Max. speed 1,500 rpm - max. rod diameter 80 mm - Adjustable bar flag - max. chamfering/turning length 37 mm - Incl. turning and chamfering tool - Precision three-jaw chuck - large chip collection container for easy cleaning - easy to move with pallet trucks - Weight 500 kg Dimensions L/W/H 800x500x1250 mm 1 year warranty CE - certified OPTION: - Oil cooling (fog) € 1.850,- - adjustable stop + universal chamfering tool € 1.650,-
used

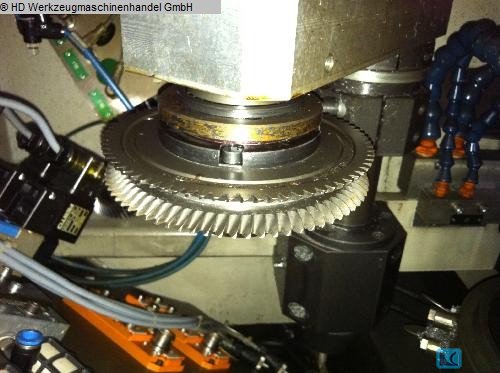

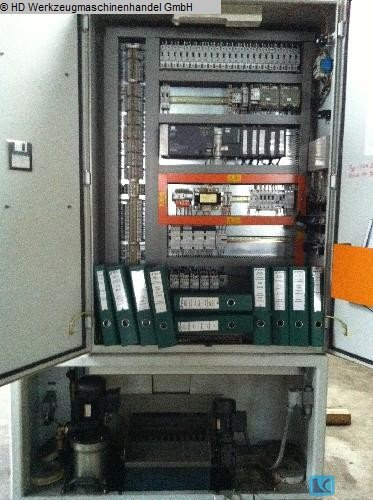

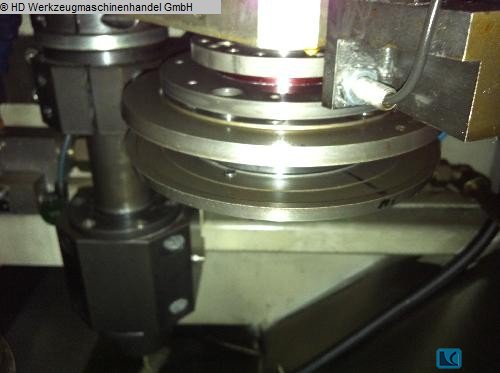

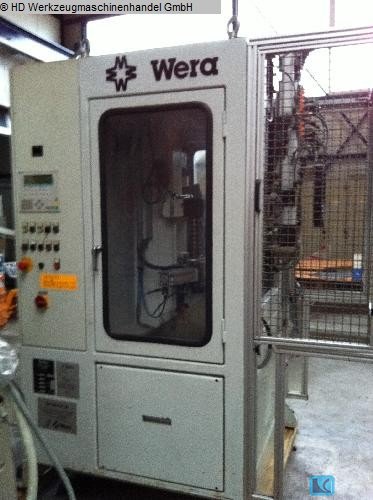

max. wheel diameter:600 mm max. module:10 min. module:2 total power requirement:1,4 kW weight of the machine ca.:0,68 t dimensions of the machine ca.:1,6x0,75 m diameter of hob:15 mm gear width:140 mm
used
Chamfering unit IMA Type: 08.055 - different motor powers available Price on request (depending on version)
used
Saw blade chamfering machine Manufacturer: Loroch Type: AK Year of construction: 1991 For chamfering HSS and segment circular saws
used

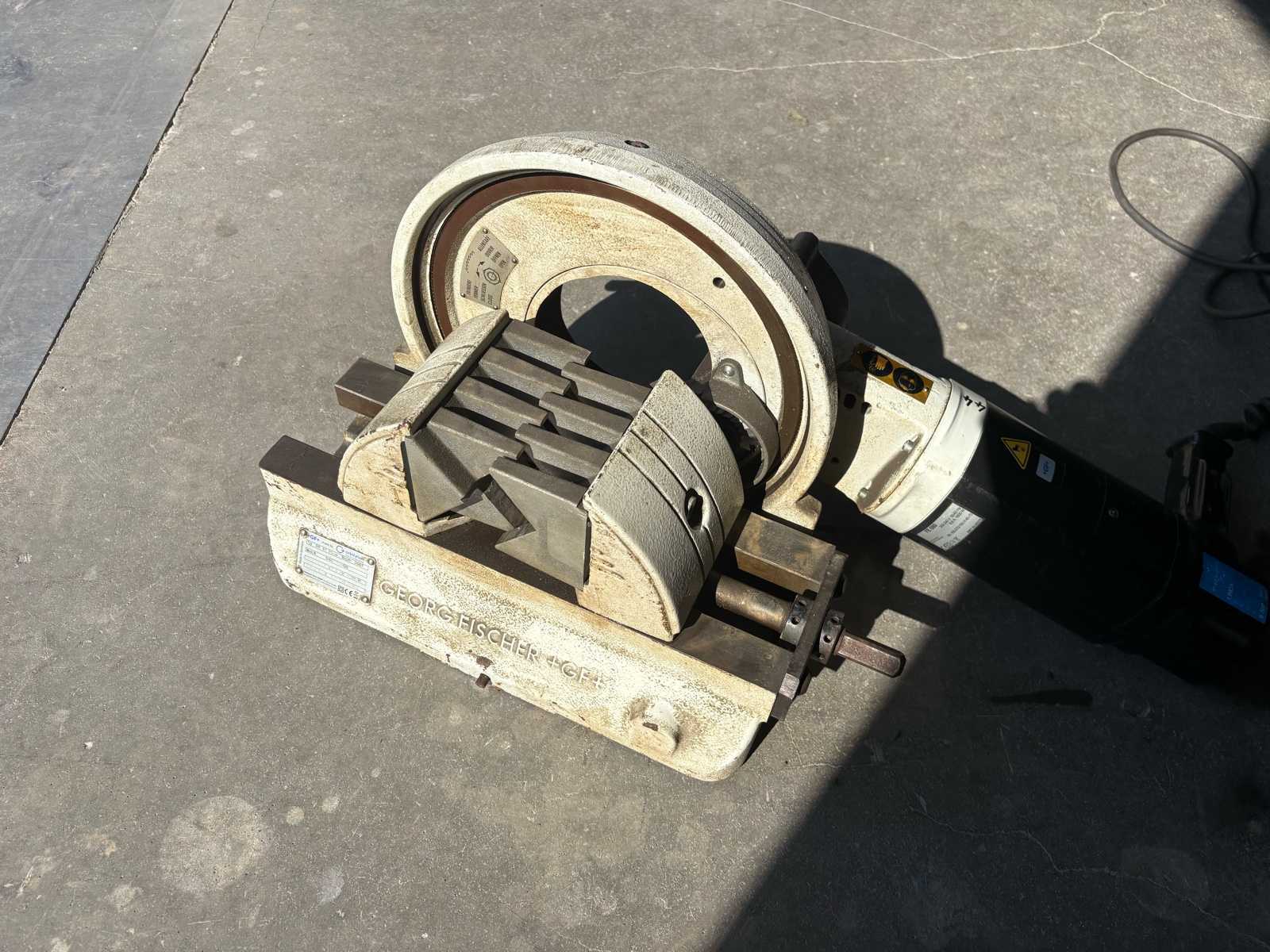

Offer via Gebr. overhauled pipe cutting chamfering machine Fabr. GF GEORG FISCHER Type RA12 Saw was completely overhauled and tested. - completely new drive motor. - Gearbox re-bearings and new seals Specifications: Pipe outer diameter 215-325mm Wall thickness 1 - 10 mm Power supply 200 - 240 V / 50 Hz infinitely variable speed 40 - 215 rpm. Speed stages electronic 1 - 6 Power 1800 W incl. feeding unit and auxiliary unit used, in good condition.
Offer via Gebr. overhauled pipe cutting chamfering machine Fabr. GF GEORG FISCHER Type RA12 Saw was completely overhauled and tested. - completely new drive motor. - Gearbox re-bearings and new seals Specifications: Pipe outer diameter 215-325mm Wall thickness 1 - 10 mm Power supply 200 - 240 V / 50 Hz infinitely variable speed 40 - 215 rpm. Speed stages electronic 1 - 6 Power 1800 W incl. feeding unit and auxiliary unit used, in good condition.
used
Pipe cutter, pipe cutting and chamfering machine for plastic pipe Rotary pipe cutter Manufacturer: ETERNIT Fabr. No. 5/9905 II Year of construction approx. 1980 Pipe diameter approx. 60 to 150 mm Wall thickness 4 to 20 mm Rotation speed approx. 80 rpm. Motor power 180 Watt Mains connection 400 Volt, 50 Hz - Centrally clamping material clamping stick for workbench assembly - For rectangular cutting and touching of pipes made of PE, PVC or other plastics- Cutting process according to the grooving turning process- Automatic feed movement of the parting carriage via cams - chamfering of the workpiece via part-cutting mould steel possible Space requirement L x W x H 530 x 350 x 600 mm Machine weight 34 kg good condition; used
used
max. pole diameter 80 mm Weight approx. 520 kg Dimensions LxWxH: 1520 x 610 x 1350 mm
new
semi-automatic chamfering machine Development and production in England - automatic chuck with material sensor - Automatic spindle start when the cutting head is moved - max. rod diameter 105 mm - Adjustable bar flag - max. chamfering/turning length 45 mm - Over-tightening and chamfering tool - Precision three-jaw chuck - large chip collection container for easy cleaning - easy to move with pallet trucks - Weight approx. 500 kg Dimensions L/W/H 800x500x1250 mm 1 year warranty CE - certified OPTION: - adjustable stop + universal chamfering tool € 1.650,-
new
Manual chamfering machine Development and production in England - Variable adjustment of the spindle speed - max. rod diameter 8-105 mm - Adjustable bar flag - max. chamfering/turning length 45 mm - Over-tightening and chamfering tool - Precision three-jaw chuck - large chip collection container for easy cleaning - easy to move with pallet trucks - Weight approx. 500 kg Dimensions L/W/H 800x500x1250 mm 1 year warranty CE - certified OPTION: - adjustable stop + universal chamfering tool € 1.650,-
new
Manual chamfering machine Development and production in England - Variable adjustment of the spindle speed - max. rod diameter 80 mm - Adjustable bar flag - max. chamfering/turning length 37 mm - Incl. turning and chamfering tool - Precision three-jaw chuck - large chip collection container for easy cleaning - easy to move with pallet trucks - Weight 500 kg Dimensions L/W/H 800x500x1250 mm 1 year warranty CE - certified OPTION: - adjustable stop + universal chamfering tool € 1.650,-
used
A full-fledged automatic chamfering machine, it is used to perform chamfers on nuts. The machine is in very good condition, technically sound, no backlash, quiet operation. After pressing start, the spindle is started and the element is pressed. Once the chamfering is complete, the rotary table performs a single step and the chamfering cycle is repeated until the machine stops.
used
Wheel diameter - max. 300 mm Spindle speeds 250 - 2800 rpm Feed min/max 45/125 mm Module 8 Taper spindle ISO 40 Partial head angle 110º Total power requirement 3 kW Machine weight approx. 1.5 t Space requirement approx. 1.5 x 1.4 x 1.9 m
used
HIGH SPEED DOWEL CROSS-CUT AND CHAMFERING MACHINE LOSER MOD. AA220 - Range of working diameter: 6 - 18 mm - Capacity: about 7,500 - 15,000 dowels/hour
used
Inquiry number 390223 Machine Type Kieserling Four Hammers Sharpening Machine Working range round fishing: from Ø 15 mm to Ø 115 mm / folding fishing: from Ø 20 mm to Ø 120 mm Flow direction: Automatic loading at the front Speed up to 100 mm/sec Make Kieserling / Type AVS 63 Year of construction 1981 Overhaul in 2024 Location NRW Length approx. 2,500 mm Width approx. 930 mm Height approx. 1980 mm Weight approx. 5,280 KG Country of origin: Germany Delivery time by arrangement Delivery terms ex works
used
Enquiry number 390298 Machine type: Müller sharpening machine UR4-4 Working range wires and rods: from Ø 4 to Ø 22 mm / tubes: Ø 4 to Ø 44 mm Make Heinrich Müller, type: Rotary kneading machine UR4-4 Year of construction 2004 Location: Solingen Country of origin: Germany Delivery time Immediately possible
used
Description: Machine number: 01206M42 Operating voltage: 400 V Frequency: 50 Hz Connection: 1.5 kW Table dimensions: 550 x 100 mm Approx. Onsite Dimension. (l x w x h): 530 x 530 x 1,200 mm, weight approx.: 100 kg
used
Description: General characteristics Powerful gear unit Ø max. 150 mm Max. gear Ø 250 mm Min. gear Ø 30 mm Control SIEMENS SIMATIC OP17 Electrical characteristics Total power 2,2Kw Approx. Onsite Dimension. (l x w x h): 1,800 x 1,500 x 1,800 mm, weight approx.: 1,800 kg
used
Description: General characteristics Serial number 34 Powerful gear unit Ø max. 150 mm Max. gear Ø 250 mm Min. gear Ø 30 mm Control SIEMENS SIMATIC OP17 Electrical characteristics Total power 2,2Kw Approx. Onsite Dimension. (l x w x h): 1,800 x 1,500 x 1,800 mm, weight approx.: 1,800 kg
used
220 V, 9.6 A, 2000 W MAXIMUM CHAMFER LENGTHS MAXIMUM CHAMFER LENGTH STEEL 400 N/MM² 15 mm MAXIMUM CHAMFER LENGTH STEEL 600 N/MM² 9 mm MAXIMUM CHAMFER LENGTH STEEL 800 N/MM² 6 mm RADII SMALLEST RADIUS 55 mm GENERAL WORKING SPEED 2 m/min STROKE RATE AT NOMINAL LOAD 370 1/min RATED POWER 2600 W SHEET THICKNESS 4 mm - 160 mm WEIGHT WEIGHT WITH HANDLE, WITHOUT CABLE 16.5 kg As good as new. Condition
used
pressure: 140 t chamfer lenght: 3000 mm distance between columns: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 2010012 Type of machine Pressbrake Make COLLY Type 3000/140 Build in nb Chamfer lenght 3000 mm Pressure 140 ton Stroke 250 mm Throat 310 mm Daylight 520 mm Additional information incl. 1 set of tooling The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Overview of the assembly: - Release agent spray unit top & bottom - Joining milling unit 2 x 4 kW - Glued part with workpiece preheating, 2 rolls, pressure zone C and QA34 application unit for PU with quick clamping system - autom. Adjustment pressure zone - Preparation for Lasertec activation unit - Hl84 cross-cut unit 0.8 KW - pneum. Adjustment pre-milling unit - Pre-milling unit Bf10 1.5 kW - Mould milling unit Fk11 Manual - Autom. Adjustment of chamfer to radius milling machines - Rolling side probe FK - Pneumatic adjustment FA11 for lateral displacement from the working area - Multi-drawing blade MN 21 autom. for a maximum of 5 different profiles. - Finishing unit (glue joint drawing blade and swabbing ridge) - Detergent spray unit top & bottom - powerControl PC22 Workpiece and edge parameters: - Workpiece width without edge min: - For workpiece thickness ...
used
Weld beveller make CEVISA type CHP 7Technical specifications:Sheet thickness plates and pipes: 4.0 - 8.0 mmMaximum bevel in one run: 6.0 mmMaximum bevel in multiple runs: 10 mmPlate bevel width min.: 55 mmTube chamfer diameter min. : 100 mmDisc chamfer diameter min. : 350 mmChamfer Speed: 1.6m/min.Weight approx.: 45 kgused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Equipment: - Machine stand throughout - Fixed stop side right - Paint finish Grey RDS 240 80 05 - Inlet ruler motorically adjustable, extended by 300 mm - Inlet lock pneumatically controlled - automatic edge feeder - Upper pressure: belt upper pressure - Height adjustment motorized - Position display and input centrally via the controller - Transport chain with rubber support, 80 mm wide - automatic central lubrication for the transport chain - Workpiece support in scissor design, approx. 1000 mm extendable - Noise protection equipment - Hood interior lighting 3 lamps - Control Power Control PC20+ Aggregate technology: - Joining milling unit 2 x 2.2 kW 200 Hz (60 mm joining milling cutter set) - Gluing unit A15 (workpiece preheating, QA34 application unit, infrared adhesive activation, magazine for rolls and fixed lengths, pressure zone with motorized adjustment, driv ...
used
Fixed side at the left Feedspeed 18 - 25 m/min Working width min 60mm for panel thickness 22mm, 105mm for panel thickness 40mm Panel overhang 30mm Panel thickness 8 - 60 mm in stead of 12 - 40 mm (with limitations) Coil edge thickness: 0,3 - 3 mm, strips 0,4 - 20 mm Coil diameter 830 mm Equipment: Sprayers release agent Squaring device with 2 motors each 3 kW Edge heating Edge magazine for 2 coils, guillotine for edges up to 3 mm Glueing part A20 with quickmelt application Lateral pressure zone K, 1 driven and 6 after pressing rollers End trims HL84, 2 motors each 0,8kW Rough trimming, 2 motors 1,5kW Contour trimming, 2 exchange units Profile scraping PN10 Flat scrapers FA11 Sprayers cleaning agent Buffing Automation package straight/chamfer: -Automatic adjustment infeed fence -Automatic setting of pressure rollers -Pneumatic setting of end trims -Pneumatic setting of rough trims -Automa ...
used
Overview of equipment: - Workpiece support scissor design with roller support, 1000 mm extendable - Infeed ruler automatically adjustable - Fixed stop side left - Inlet interlock pneumatically controlled - Upper pressure via driven composite V-belt - Height adjustment electric - Workpiece transport device via transport chain with rubber support - Release agent spray unit top/bottom - Joint milling unit 2 x 3 kW - Gluing part A20 with 2 rollers, consisting of workpiece preheating, Quickmelt application unit with quick clamping system, 2-roll magazine, pressure zone C (auto-adjustable, with 1 pre-press roll and 6 repress rollers) - Cross-cut unit HL84 0.8 kW, with autom. Adjustment chamfer/straight as well as pneum. Adjustment flush/protrusion caps - Pre-milling unit 1.5 kW, pneum. Adjustment of bündi/protrusion milling machines - Mould milling unit FK11 with autom. Adjustme ...
used
thread dia.: Bolzengewinde 6 - 72 mm thread dia.: Rohrgewinde 16 - 63 mm threading length: kleiner Ø 30 unbegrenzt turning speeds: 70 / 35 U/min motor: 400 Volt New price ~ 24.000 euros Furnishing: - high-performance semi-automatic machine - for efficient cutting of bolt and pipe threads. for industry, metalwork, installation - Large cutting area, fast work and short changeover time - stationary material - rotating tool - Torsion-free, self-centering universal vise - with automatic lubrication cooling - Material vise (self-made) - many replacement cutting jaws () Technical specifications - for bolt threads - 6 to 72 mm, 1/4 to 2 3/4 - for pipe threads - 1/16 to 2 1/2, 16 to 63 mm - Tolerance class according to DIN 13 - medium (6 g) - Chamfers - range 7-78mm, chamfered diam. > 7 mm, largest chamfer 7 mm Chamfer angle 45° - Shelling - range 7-78mm, shelled diameter 7mm to 63mm - Motor ...
used
BRANDT KDF 660 Profiline single-sided edge banding with joint milling, pre-milling, fine milling, 2-fold corner copying, radius drawing blade, flat-drawing blade and babble units Type: KDF 660 Profiline Specifications: BRANDT KDF 660 Profiline with joints and corner rounds Preheating of the tool stucco IR preheating Edge thickness 0,4 - 15mm Banding height max. 66 mm, with program high adjustment Caps from the roll at 3mm thickness max 45mm height or 0.8 65mm Plate thickness max. 8-60 mm for corner copying max 40mm Control PC20+ link control (loss of contact), with modem for remote service/maintenance 1. Joint unit program Adjustment of the infeed line 2. Bandkapmesser 3a. Radiant heater High-strength bonding by workpiece preheating 3b. Spray anti-adhesive 3c. Quickmelt Glue Mel Mel Application Unit with Quick Change 3d. Leimangabe by means of glue rol ...
new
diameter: -- mm workpiece length: -- mm work piece width: 0 - 20 mm speeds: 2850 U/min range of angles: 0 - 60 (stufenlos) ° weight of the machine ca.: 19,5 kg Maximum chamfer width 20 mm + face machining Designed for chamfering and deburring straight edges, for the so-called FACING - removing an unwanted layer of material on the Front side of the workpiece, which is created, for example, by flame cutting a sheet metal. Specially developed for the production of visible chamfers and weld preparations. Powerful electric drive for extreme Charges. High performance motor stepless adjustment of the working angle in the range of 0° - 60° FACING - Edge processing at an angle of 0° to remove unwanted ones Layers of material after flame cutting The unique mechanical scale to adjust the bevel width for higher precision A very compact and ergonomic design for high work productivity Circum ...
used
Overview of the aggregate assembly: Joining milling unit 2 x 2.2 KW 200 Hz Gluing unit A12 with glue application unit QA34 Cross-cut unit chamfer/straight line 2 x 0.35 Kw Pneumatic adjustment caps chamfer/straight Pneumatic 2-point adjustment caps Multi-stage milling unit Ms 40 counter rotation Pneumatic 2-point adjustment Additional price Multifunction form milling burr 4809, 2 x 0.4 KW Multi-stage pulling blade unit MZ 40 Glue joint drawing blade Buffing unit Powertouch control system Software preparation for spraying units For later assembly for: 2215 Release agent spraying unit workpiece 2217 Lubricant Spraying unit Edge material 2218 Sprayer antistatic solution 2220 Detergent Spraying Unit Workpiece SPECIFICATIONS: - Feed ¦ 8 - 18 m/min - Feed rate max. with forming milling machine ¦ 11 m/min - Feed rate max. with forming milling machine in conjunction ...
used
Fixed side at the left Feedspeed 18 - 25 m/min Working width min 60mm for panel thickness 22mm, 105mm for panel thickness 40mm Panel overhang 30mm Panel thickness 8 - 60 mm in stead of 12 - 40 mm (with limitations) Coil edge thickness: 0,3 - 3 mm, strips 0,4 - 20 mm Coil diameter 830 mm Equipment: Sprayers release agent Squaring device with 2 motors each 3 kW Edge heating Edge magazine for 2 coils, guillotine for edges up to 3 mm Glueing part A20 with quickmelt application Lateral pressure zone K, 1 driven and 6 after pressing rollers End trims HL84, 2 motors each 0,8kW Rough trimming, 2 motors 1,5kW Contour trimming, 2 exchange units Profile scraping PN10 Flat scrapers FA11 Sprayers cleaning agent Buffing Automation package straight/chamfer: -Automatic adjustment infeed fence -Automatic setting of pressure rollers -Pneumatic setting of end trims -Pneumatic setting of rough trims -Automa ...
used
CNC-controlled erosion machine for the processing (erosion, grinding, polishing) of PCD tipped tools up to 400 mm diameter and 400 mm length, according to disc-electrical-erosion processes for use in service and in production., Accessories:, Total enclosure,, Software path management,, Software end mill (207/208),, Software disc-shaped workpieces on the front side (221/222/223/224),, Software profiled workpieces (233/234/239/240),, Software hogger, hogger profiled (255/256/257/258/260/261/262/263), Software for disc-shaped workpieces (264/265),, Software for end and joint milling cutters (267/268/277/278),, Software step tools (271),, Software scoring saws (299),, Software saws flat tooth (301), Software saws one sided with bevel (302/303),, Software saws alternating teeth (304),, Software saws trapezoid trapezoid tooth (309),, Software saws flat roof tooth (310),, Software saws flat-tra ...
used
Description: Lot (38x) HSS and HM groove cutters, slot cutters, chamfer cutters, etc. Manufacturer: BOSCH, Lot (38x) HSS and HM groove cutters, slot cutters, chamfer cutters, etc. unused stock items Approx. Onsite Dimension. (l x w x h): 600 x 400 x 200 mm, weight approx.: 3 kg
used
Description: SPECIFICATIONS Welding edge milling machine Brand: SMT Pullmax Type: X10 Max. sheet thickness: 50 mm Depth of chamfer for stainless steel: 10 mm Depth of cut-off steel: 13 mm Chamfer angle: 35 ° Approx. Onsite Dimension. (l x w x h): 600 x 500 x 1,100 mm, weight approx.: 1,000 kg
used
Single-sided edge banding machine Make: HOMAG Type: KAL 210 AMBITION 2264 Year of construction: 2014 One-sided edge banding machine for editing of straight workpiece edges and for gluing and post-processing in the longitudinal and transverse pass. Overview of aggregate equipment: - Separating agent spray unit - Joining milling unit - Gluing unit A20 with 2 rolls - end trimming unit HL84 - Pre-milling unit BF10 - Form milling unit FK11 manual - Profile scraper PN10 - Finishing unit Feed 18 - 25 m/min. Feed max. with FK11 20 m/min. Working height 950 mm Pneumatic connection 6 bar Total length 7845mm Workpiece thickness 8 - 60 mm Edge height max. = workpiece thickness + 4 mm Edge material roll 0.3 - 3 mm Edge material strips 0.4 - 20 mm Aggregate equipment: - Separating agent spray unit top/bottom - Joining milling unit 2 motors each 3 kW, 150 Hz ...
used
Single sided edge banding machine Brand: IMA Type: COMPACT PC-6220 F Year: 2000 Left hand machine Workpiece transport via a driven transport chain and adjustable top pressure Beckhoff control Need of space LxWxH mm: 7400x1500x2000mm Weight: approx. 3600kg Technical data: Edge material: a) Veneer/coil and strip ware, b) PVC/coil and strip ware c) Solid wood strips min. edge height = approx. 14 mm max. edge height = approx. 55 mm min. edge tickness = approx. 0,4 mm max. edge thickness = approx. 20 mm min. panel thickness = approx. 10 mm min. panel thickness = approx. 16 mm at use of the multi function unit max. panel thickness = approx. 50 mm min. panel width = appprox . 60 mm min. panel length = approx. 150 mm max. strips = approx. 20x50 mm Panel supernatant from the chain conveyor = approx. 35 mm Pneumatic connection: approx. 7 - 8 bar The basic ...
Machine with full equipment: Add Glue up to 15 mm Flat saws Preliminary vessels Chamfer milling Rounding threads and corner copying Grinding unit Flat and rounding drawing blade Smooth with return belt
used
TOP STATE - OVERHAUL IN 2016! Year of construction: 2001 2D table format: 2500 x 1250 3D Max processing size: 900 mm x 2150 mm x 300 mm Power: 2000W Control: FANUC incl. cooler incl. 2D programming software + chamfer module + tube/profile module incl. training incl. commissioning incl. quick penetration incl. ball roller table with 3D cutting head incl. CNC tube axle tube and profile up to 160 mm diameter plates, chamfering 3D molded parts, tubes and profiles FE: up to 15mm Oxide-free VA: up to 8mm designed for high pressure cutting up to 20 bar no foundation required! Optional automatic loading and unloading by Mazak FMS48 is available always regularly serviced with warranty / commissioning / training
used
Edge glue machine HolzHer express 1437 Edge gluing, flush milling, caps flush milling with chamfer milling or RADIUS milling with sep. Aggregate Schwabelscheiben 2 mm and two units for chamfering or just milling milling ABS edge 2 additional units for RADIUS Hours of operation 1072.5 hours Masch. No. 721/9-203 L x W x H: 400 x 120 x 170 cm Weight approx. 900 kg Built in 1992 The machine is in good condition, ready to use. Subject to changes, errors, prior sale! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12
used
Hard PVC pipe extrusion plant for tubes D28/D30/D33, consisting of: Battenfeldextruder B45-24 d, ESDE tube crosshead K 010, vacuum calibration with water bath, Graewe-band trigger BA63, Graewe Abstech-and at chamfer machine STS50, various sleeves, cores, calibrations and jaws, as well as additional tube crosshead Battenfeld RS 8-40
new
chamfer lenght: 1540 mm plate thickness: mm distance between columns: 1540 mm pressure: 40 t stroke length max.: 300 mm travel -x axis: 500 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
- Control Mitsubishi Meldas 635 LCC - max machining diameter 42 mm - max machining length 120mm - max speed main spindle 8000rpm - max speed counter spindle 6000rpm - 2x 12-fold tool turret with intermediate indexing and driven tools - Recording VDI 20 - full-fledged counter spindle with X and Z axis - C-axis spindle 1 - C-axis spindle 2 - Mechanical spindle indexing 15° spindle 2 - Collet holders spindle 1 and 2 - Workpiece removal device -Milling interpolation -Constant cutting speed spindle 1 and 2 -Cutting edge radius compensation - insert chamfer radii -Threaded spindle 1 and 2 -Synchronous tapping without pull-out holder -Conveyor - High-pressure cooling - Fire extinguishing system - Bar feeder Iemca Boss 545 - Weight 3300Kg - Weight bar feeder 850Kg
used
- Control Mitsubishi Meldas 635 LCC - max machining diameter 42 mm - max machining length 120mm - max speed main spindle 8000rpm - max speed counter spindle 6000rpm - 2x 12-fold tool turret with intermediate indexing and driven tools - Recording VDI 20 - full-fledged counter spindle with X and Z axis - C-axis spindle 1 - C-axis spindle 2 - Mechanical spindle indexing 15° spindle 2 - Collet holders spindle 1 and 2 - Workpiece removal device -Milling interpolation -Constant cutting speed spindle 1 and 2 -Cutting edge radius compensation - insert chamfer radii -Threaded spindle 1 and 2 -Synchronous tapping without pull-out holder -Conveyor - High-pressure cooling - Fire extinguishing system - Bar feeder Iemca Boss 545 - Weight 3300Kg - Weight bar feeder 850Kg
used
Edge gluing machine Manufacturer: IMA Model: Compact 508 Built: 1988 Facilities - Caps - Flush milling - Forming milling units - Radius/Chamfer milling - Corner machining - Pulling blade - Schwabbelaggregate
used
Edge glue Brandt Type: KD 86 Built: 1993 Edge thickness up to 12 mm Glueing of roll up to 3 mm with pneumatic cross-cut station Glued part with Quickmelt pre-melting tank Heavy pressure zone with one driven and three reprint rollers Saw cutting station for the front and rear overstanding Milling station flush / chamfer Second milling station radius milling R 3 mm Corner copying with pass Radius drawing blade R 3 mm Chip catching box Schwabbelstation Pneumatic package for post-processing agregates Extendable support for large parts Control panel at eye level Space requirement approx. 6100 mm
used
Hypertherm HPR260 plasma cutting machine Description Plasma cutting table 6000x2500 Source Hypertherm HPR260 Digital control: Hypertherm Hypertherm z-axis control head with chamfer capability. Possibility of drilling a beam next to the table
new
chamfer lenght: 0900 mm plate thickness: mm distance between columns: 900 mm pressure: 20 t column arm: 230 mm stroke length max.: 150 mm travel -x axis: 350 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
