used Chain mortising machines for sale

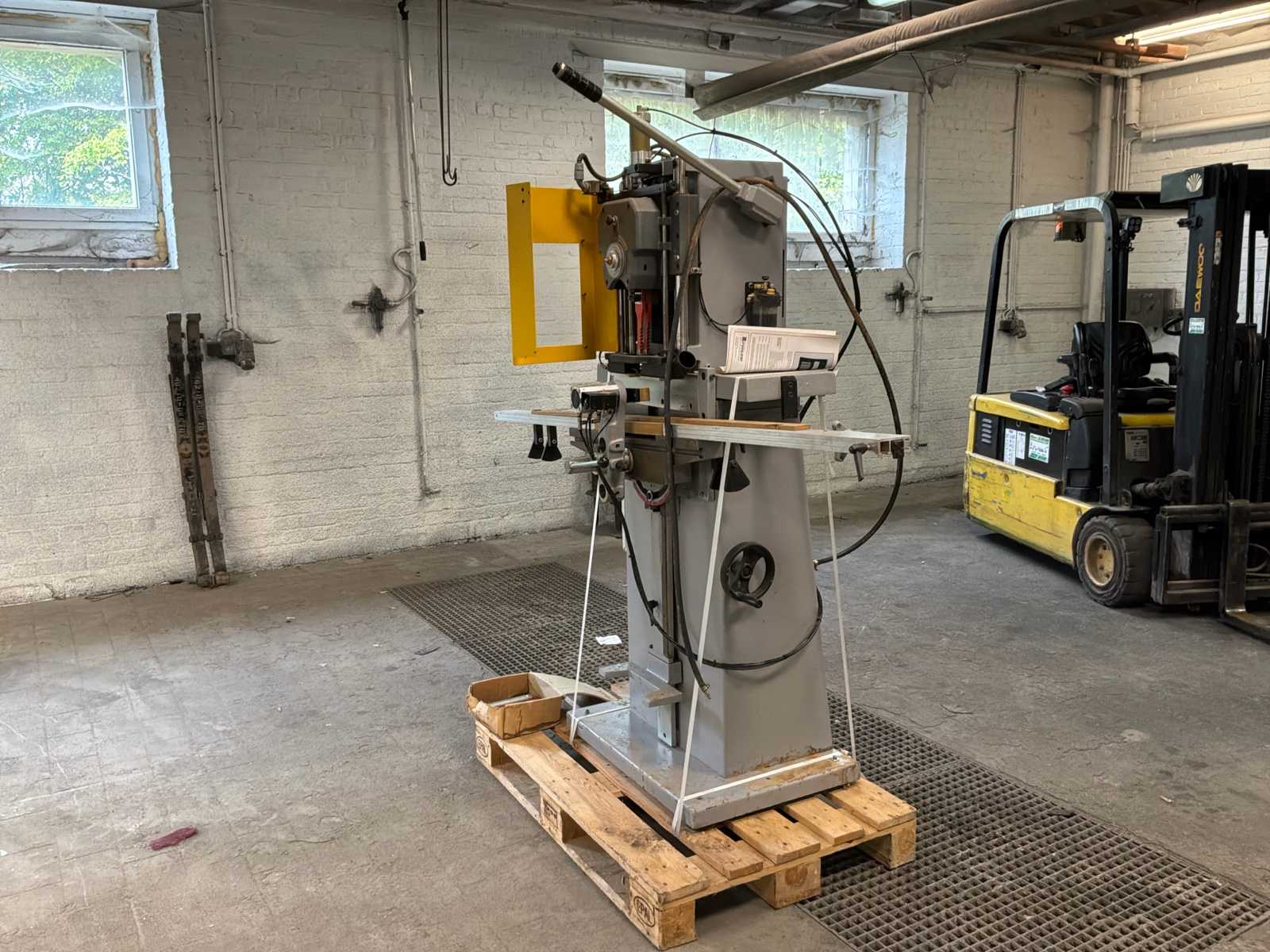

Chain stemmer GF with drilling unit for wall mounting L x W x H: 1200 x 800 x 2300 mm Built in 1972 The machine is in good condition, ready for operation. Changes, mistakes, intermediate sale reserved ! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12

Technical details: - Mortise depth: 150 mm - Max. slit length: 220 mm - Max. chain width: 40 mm - Longitudinal table movement: 160 mm - Table transverse movement: 90 mm - Inclination: 5° - with 1 x chain (mounted) - with sheet steel stand - with oil lubrication device - with quick adjustment - with instruction manual Engine data: - Three-phase motor, consumption: 2.2 kW - Power, output: 1.5 kW - Voltage: 220/380 V - Current: 6/3.5 A - Frequency: 50 Hz - Speed: 2,800 rpm Dimensions (LxWxH): Transport dimensions: Machine weight: 72 kg Weight of sheet steel stand: 35 kg The machine has been completely cleaned, overhauled and checked for correct functioning. It is supplied with a mounted connection cable with a 16A three-phase plug. (Subject to changes and errors regarding technical data and prices!) In accordance with our terms and conditions, we wo ...

Gebr. Chain Clamp HARBS UKS YOC 1962 on base frame Transport height: 172 cm incl. various chains Sold in ACTUAL condition and unrefurbished from carpentry dissolution. Fixed price.

- Table size (W x D): 500 x 120 mm - with clamping jaw - Size stop plate (W x H): 520 x 265 mm - Stop plate can be moved left and right - Tilt of table and stop: 45° to the left or right - Depth of the sawing unit: 175 mm - automatic lubrication of the saw chain - Diameter suction connection: 600 mm - incl. chains: 2 x 6mm; 1 x 8 mm; 2 x 10 mm; 1 x 11 mm; 2 x 12 mm; 2 x 14 mm; 2 x 16 mm - incl. swords: 1 x 6|40x150; 2 x 12-14|40x150; 2 x 16|40x150 - Weight: approx. 350 kg Engine data: - Connection voltage: 380 V - Frequency: 50 Hz - Current: 3.5 A - Power: 1.5 KW - Speed: 2,880 rpm - Control voltage: 220 V Dimensions (H x W x D): 1,800 x 600 x 900 mm Transport dimensions (H x W x D): 1,900 x 800 x 1,200 mm (without stop plate) on EURO pallet Transport dimensions fully assembled (H x W x D): 1,900 x 1,400 x 1,200 mm on EURO pallet Weight: approx. 400 kg (i ...

Kettenstemmer (chain Mortiser) carpentry: â?¢ handy Kettenstemmer with strong pulling engine â?¢ Adjustable depth stop to 125 mm â?¢ Adjustable RIP fence 25-180 mm â?¢ Chain guide with integrated lubrication â?¢ Housing, handles and base plate made of sturdy die-cast aluminium â?¢ Security Beidhandschalter for the protection of the user â?¢ Including high-quality chain set Technical specifications: â?¢ wattage 1350 Watts â?¢ Idling speed min-1 3,400 â?¢ Maximum mortising depth 100 mm â?¢ Press width 40 mm â?¢ Dimensions 261 x 320 x 382 mm â?¢ Weight 10 kg Scope of delivery: â?¢ power cord 5 m â?¢ RIP fence â?¢ Open end wrench â?¢ Allen key â?¢ Chain set (sword, chain, grea ...

Used OMP chain quarrying machine
