cam automatic used for sale

bar material dia.:13 mm turning length:205 mm turning speeds:12.000 / 12.000 U/min number of tools:29 driven tools:ja / yes 19 control:FANUC 16 iT total power requirement:9 kVA weight of the machine ca.:1,7 t dimensions of the machine ca.:2,7 x 1,4 x 1,7 m CNC sliding headstock machine, subspindle,Year 2003 (0450) FANUC 16i-T control with 9 axes, 9 axes (X / C1 / Y / E / B / A / X / c2), Main spindle, speed max. 12,000 rpm, C-axis, Counter spindle with collet, speed max. 12,000 rpm, C-axis, 4-fold tool holder 3 transverse drilling apparatuses Revolver with 8 stations various additional tool holders, quills, Extinguishing system Kraft and Bauer High pressure system SF-Systeme Büchele /SHD 150/ 150bar / 2 x 40 um /3 valves, Parts conveyor belt Manuals Operation/Programming/Electrical/Spare Parts Operating tool machine Up to 29 turning tools and up to 19 attachments possible 9.0KVA Tank ca ...

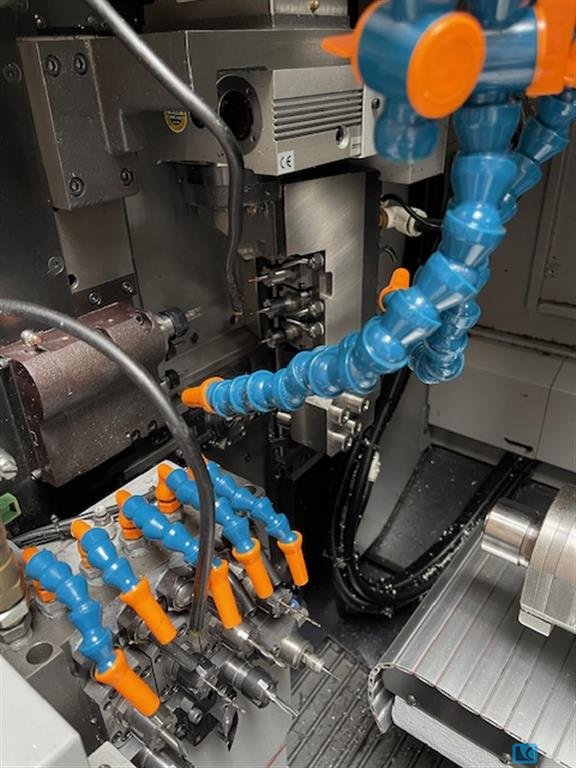

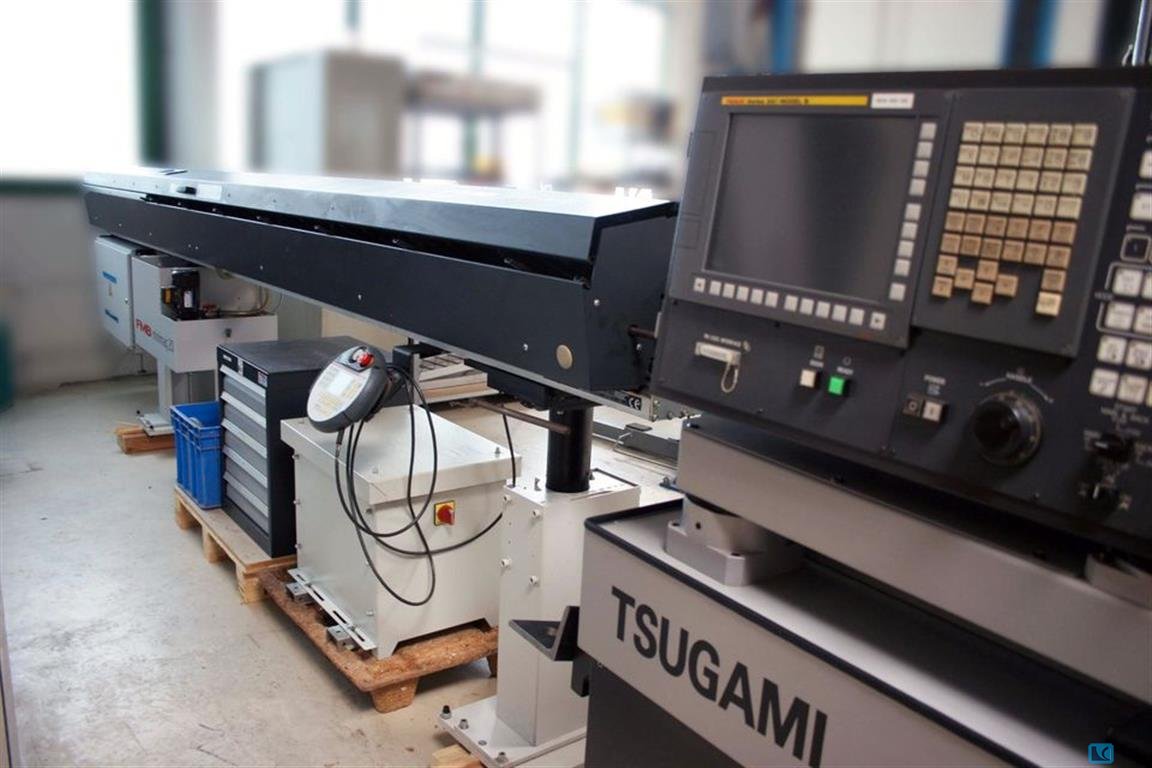

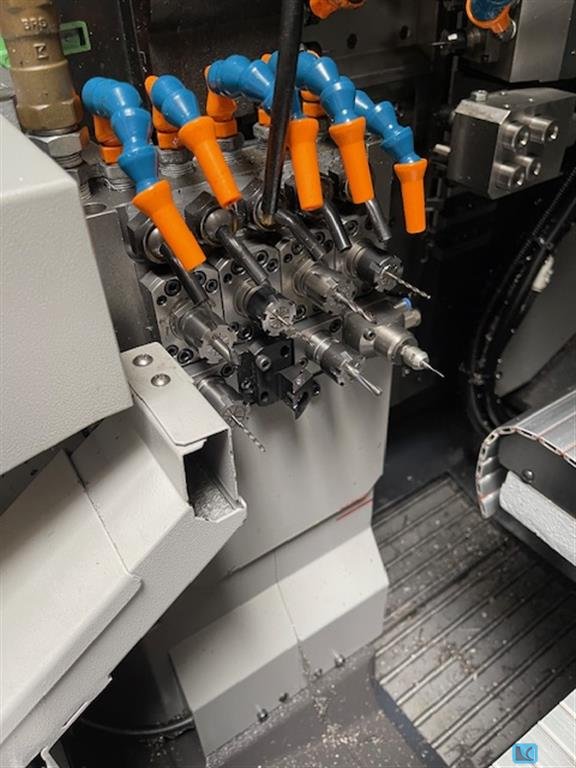

turning diameter over bed:20 mm spindle passage:3-20 mm turning length:250 mm control:FANUC 31 i-A main-spindle speed:10.000 1/min subspindle speed:10.000 1/min Main spindle capacity:3,7 kW subspindle power:2,2 kW number of tools:35 weight of the machine ca.:3,3 t dimensions of the machine ca.:2,11 x 1,2 x 1,89 m CNC sliding headstock turning/milling centre with B-axis Control system: Fanuc 31i-A Machining length: max. 250 mm Number of controlled axes: 7 axes and max. 5 axes simultaneously B-axis: 0°-130° freely programmable Rod passage: Ø 3 mm to max. Ø 20 mm Drive power main spindle: 3.7 kW Drive power counter spindle: 2.2 kW Main spindle speed: 10,000 rpm Counter spindle speed: 10,000 rpm C-axis: Main and counter spindle Number of linear supports: 2 pieces Total number of tools: 35 pieces Dimensions (LxWxH) in mm: 2,110×1,200×1,885 Weight: 3,300 kg Conversion from long to short  ...

weight of the machine ca.:1750 kg sawing motor:2,2 kW total power requirement:5 kW cutting speed:17 - 90 m/min cutting diameter:320 mm cutting range max.:320 x 320 mm saw band length:4.930 x 34 x 1,1 mm feed length:max 9x 600 mm dimensions of the machine ca.:2,6 x 2,4 x 1,40 m Bandsaw automatic, straight cut, min. cutting diameter 10mm, min. cutting length 6mm, min. offcut 15mm (automatic 80mm), max. weight of material 400kg/m, coolant box 60l, pump 16l/min, clamping pressure 20-60bar, dimensions: chipconveyor 2.400x 950mm roller track 2.200 x 950mm, 5pcs. saws (new) 4.930 x 34 x 1,1mm operating manual,

cutting diameter:320 mm saw band length:3280 mm cutting width:320 320 mm total power requirement:3,8 kW weight of the machine ca.:1150 t - columm guidance - roll-conveyer 4000mm / 1000 mm lenght - cutting speed 15 - 105 m / min - mitre cutting up to 60°

number of spindles:8 spindle passage:67 mm Cam controlled multi spindle automatic lathe, used 8 main spindles pick up in pos. 8 threading attachment CNC compound slide in pos. 5, also 2. speed in pos. 2 Hydraulic spindle brake in pos. 4 Incl. length measurement, incl. Brankamp cutting force monitoring tooling: could be different like pictures Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:51 mm Article: multi spindle automatic lathe Manufacturer: Schütte Type: AF51 Yob: 1987 eight main spindles max. bar diameter D=51mm control SIEMENS SIMATIC S5 pick up in pos. 7, for rear machining thread cutting drive independent feed in positions 2/3 electronical trip dog control ?Balluff? clear text display Wöhrle coolant pump magnetic cartridge filter oil running incl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type) Painting in light blue and light grey The configuration of tooling will be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2016 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 3 x Y-axis, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot, manufacturer HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2019 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot make HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:51 mm Schutte SF51 DNT, yob. 1987, our ID #61868 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF51 DNT Yob: 1987 Six-spindle automatic lathe with 6 main spindles max. nominal diameter D=51mm electronic cam control Balluff gripper in position 6 for backworking, sorting chute independent longitudinal feed layer 5 screw chip conveyor Tapping couplings Interface for: Bar feeder IEMCA PRA Bar feeder IEMCA PRA40/33/F Scope of delivery without the blue chip conveyor The tooling will differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S DNT Yob: 1994 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter D=32mm control: Siemens SIMATIC S7 electronic cam control Balluff gripper in position 8 for backworking CNC cross slide position 6 CNC cross slide position 7 Workpiece belt Coolant cooling Schimpke Chip conveyor with magnetic separator Tapping couplings The tooling shown may differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 Dnt Yob: 1993 eight-spindle automatic lathe eight main spindles for bars up to D=32mm Modernized control: Siemens Sinumerik Motors: renewed modern motors suitable for modernized control system Electronic trip dog control: Balluff CNC cross slide position 5 cross CNC cross slide position 6 cross Preparation for gripper in position 8 (gripper optional) Independent feeds Thread cutting couplings integrated bar loader: Pietro CUCCHI; type: rack type magazine The scope of delivery regarding the tooling equipment could be different like pictures.

spindle passage:25 mm Article: CNC sliding headstock automatic lathe Manufacturer: Tornos Type: Deco 2000/20 Year of construction: 2001 Control: Fanuc spindle diameter: D25 mm max. speed: 7000 rpm comb: 2 (X,Z,Y-axis) Front attachment: 1 (X,Z,S-axis) Loading magazine: Tornos Robobar SSF Chip conveyor: Hinged belt conveyor other: various accessories such as polygonal impact device, HF spindle Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:9 spindle passage:46 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SC9-46 Yob: 2016 Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindles Main spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 Nm Cross slide units, transverse: 6 units, in positions I to VI, Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V, Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpm Cross slide units, transverse: 2 units, in positions VIII and IX, Control: Siemens SINUMERIK 840SL with double NCU Software: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted, Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion) Synchronous action package ?Level? 2, incl. cross-mode actio ...

number of spindles:8 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AG20 Yob: 2002 eight-spindle automatic lathe 8 main spindles for bars up to D=20mm control: Siemens 840D 1x polygonal turning/thread milling device (new 2011) 1x polygonal turning/thread milling device for long turning (new 2011) 1x thread cutting/quick drilling spindle (new 2011) 1x pick-up device incl. various pick-up collets 4 cnc-cross slides Double cross slide in position 7 Loading magazine PRA 52/P type 33 (bar length 3m), year 2004 High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004 Tool monitoring Brankamp Air conditioning unit Rittal in the front switch cabinet incl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slides The machine has been run with oil and has processed brass Please, con ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SFH130 Yob: 1995 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC Dnt drive loading and disloading in position 6 additional cooling pump with magnetic spark plug filter Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SG18 Yob: 1999 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC loading and disloading in position 6 spindle brake Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) An independent feed is installed at position 1 A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF20 S Dnt Yob: 1999 Six-spindle automatic lathe with 6 main spindles max. nominal diameter: D=20mm Spindle drum hirth coupled, CNC cross slide in positions 4, CNC cross slide in positions 5, pick up in position 6, sorting chute, 1x independent feed, thread cutting couplings, workpiece belt, Coolant tank with hinged belt chip conveyor Ruez, Oil/steel operation, PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611, The scope of delivery regarding the tooling equipment could be different like pictures. Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)

number of spindles:6 spindle passage:36 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=36mm! Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images; various collets are included in delivery up to D36mm Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2000 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm pick-up unit, Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

-Storage racks with 6 different diameters. -Automatically driven roller conveyors, fully automatic length stop, automatic ejection in pre-sorting compartments. -PLC control for convenient machine control. -Blade width of hydraulic machine : 150mm. -Capacity: 5 to 15Ton per day/shift. -Low maintenance & wear parts, still in perfect working condition with no known problems. Sale due to cessation of internal production. DBS3 automatic double bender. -Linked with cutting line. Equipped with hydraulically controlled roller conveyor, automatic transfer system, automatic double bender and ejection system in automatic pre-sorting compartments. -Simple PLC control, equipped with automatic clamping system. -Low maintenance & wear parts, still in perfect working condition with no known problems. Sale due to cessation of internal production.

Strokes: X = 635 mm, Y = 510 mm, Z = 460 mm Spindle speed: 20 – 12,000 rpm Spindle power: AC 13/9 kW Fast feeds: 30 m/min Taper: SK40 DIN69871 Tool changer: 20 positions (disc magazine) + 30 position option Table dimensions: 560 x 790 mm RENISHAW probe: OMP40-2, OTS, OMI-2T module Machine hours: 21,788 h Spindle hours: 8,654 h Lots sold as is, unchecked, without tools or tool holders.

CNC control: Heidenhain TNC 530 Machine 5 simultaneous axes Strokes: X = 730 mm, Y = 560 mm, Z = 560 mm Spindle speed: up to 12,000 rpm Cone: SK40 Feeds: 20 – 20,000 mm/min Fast feeds: 30 m/min Table: 1000 x 600 mm Max load table: 800 kg Tool changer: 24 / 30 positions Machine hours≈ 31,481 h Spindle hours≈ 25,087 h Lots sold as is, unchecked, without tools or tool holders.

Used Automatic Rotary Labeling Machine BRB GLOBUS 4200 bph The Used Automatic Rotary Labeling Machine BRB GLOBUS 4200 bph, model MEGA ADE 633 – CCW, applies self-adhesive labels to glass bottles with precision. Moreover, BRB GLOBUS manufactured this machine in 2009, ensuring it operates at 4200 bottles per hour (bph). It remains fully functional and ready for installation in a production line. Structural and Dimensional Features The Used Automatic Rotary Labeling Machine BRB GLOBUS 4200 bph measures 2550 mm in length, 1800 mm in width, and 2050 mm in height, with a net weight of 1800 kg. Additionally, its mechanical structure provides stability and precision during the labeling process. The machine rotates clockwise, which optimizes workflow in industrial production lines. Furthermore, the movement system operates using mechanical cams, allowing precise control over bottle movement  ...

Technical Specifications & Performance Data This automatic shrink wrapper with welding bar is engineered for reliable multi-row collation and high-quality bundling in beverage production and broader industrial packaging environments. Designed for in-line or 90° infeeds, it handles film-only multipacks as well as packs on a flat pad or tray when configured accordingly, making it ideal downstream of filling, capping, labeling, and rinsing stations. Type: Automatic shrink wrapper with welding bar Condition: NEW Output: Up to 25 bundles/minute (format-dependent) Infeed: In-line or 90° multi-row collation conveyor Film: PE shrink film, plain or printed with register mark alignment Packaging styles: Film-only bundles; optional flat pad or tray capability (configuration dependent) Welding bar: Available with multiple bar widths to match bundle size range Electrical: 50 Hz Dimensions (W x  ...

Used automatic Tecmi shrink wrapper - 2013Technical Specifications & Performance DataThis automatic shrink wrapper is engineered for high-efficiency industrial packaging of PET bottles on a used bottling line. Manufactured by TECMI, the machine combines reliable mechanics with Siemens automation to deliver consistent bundle quality for beverage production and other industrial packaging applications. With a compact footprint and robust construction, it is well suited for second hand integration into existing packaging machinery layouts.Manufacturer: TECMIModel: EV 750 – 50 – TT 70-45 x3Year: 2013Production speed: 50–100 bundles/minuteConfigured format: PET 380 ml x 6-packContainer types: PETElectrical data: 440 V, 60 HzWeight: 1300 kgOperating mode: AutomaticControl platform: Siemens PLC/HMIAdvanced Automation & Control SystemsThe shrink wrapper is managed by a Siemens PLC  ...

Technical Summary and Application Scope – ATES Giorgia 8000 bph The ATES Giorgia 8000 bph is a continuous-motion washing and rinsing system for glass bottles, suitable for both returnable and new bottles. It is designed for stand-alone use or seamless integration into existing or new bottling lines. Built primarily from AISI 304 stainless steel with plastic baskets and continuous-motion conveying, the machine ensures robust performance with industrial-grade safety protections. Main Technical Data Type: Industrial glass bottle washer and rinser, suitable for recycled and new bottles. Nominal output capacity: up to 8,000 bottles/hour depending on bottle format, contamination level, and line configuration. Materials: AISI 304 stainless steel structure; plastic baskets; stainless-steel doors and inspection windows. Mechanical composition: Shelves, baskets for bottle housing, and automat ...
