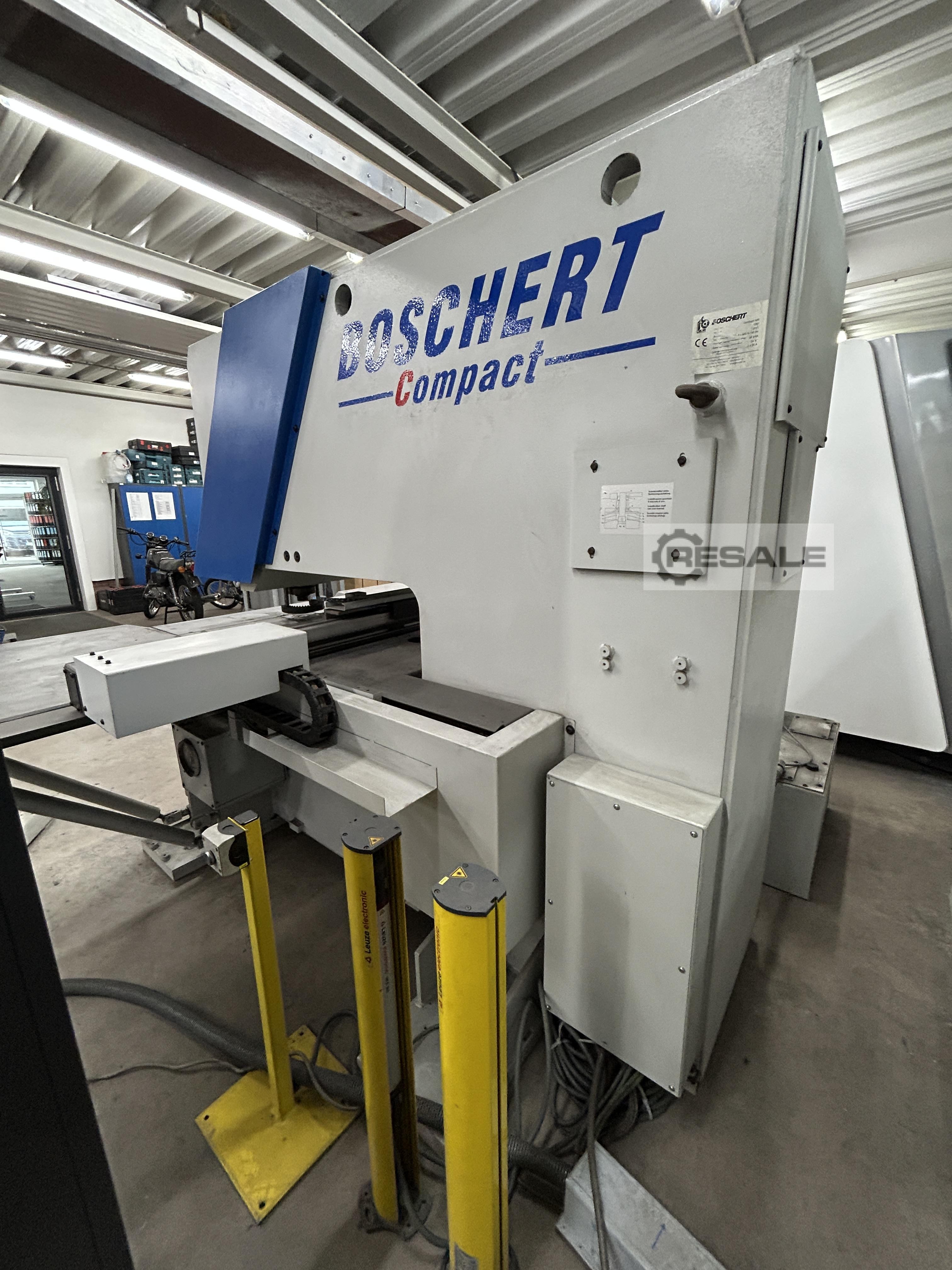

Punching Machines BOSCHERT Compact 500 CNC Z

High-precision and versatile punching/nippling machine Boschert
Compact 500 CNC Z (built in 2011) – Ideal for flexible sheet metal processing!

We sell a powerful and reliable punching/nippling machine from the quality manufacturer Boschert,
which convinces with its extended equipment and precision. This machine is the ideal solution for a wide range of
Spectrum of punching and nipple tasks, from individual parts to large series.
Features that convince:
• Manufacturer: Boschert
• Type: Compact 500 500 x 1000 CNC Z
• Year of manufacture: 2011
• Intuitive CNC control: Multi-axis Ladob control with graphical user interface for easy
Programming and visualization of the machining processes.
• Extended working range for greater flexibility:
o X-axis: 0 - 2000 mm (allows the machining of long workpieces)
o Y-axis: 0 - 750 mm (offers generous space for wide sheets)
• Lightning-fast tool change: Trumpf quick-change tool system for minimal downtime
and maximum productivity.
• Universal tool use: Compatible with the complete Trumpf tool range – reduce
Your tooling costs and expand your options.
• Safe and precise material guidance:
o Collet clamping: Ensures a firm hold of the workpiece during machining.
o Contactless resetting up to 9999 mm: High-precision repositioning device with 2 sheet metal hold-downs
for the efficient processing of even very long sheets without loss of position.
• Dynamics and precision in perfection:
o Maximum position speed: 60 m/min for fast machining cycles.
o Infinitely variable feeds: Optimal adaptation of the processing speed to the
material and the machining task.
o Highest positioning accuracy: ± 0.05 mm I6163999 for exact results on I6163999 every workpiece.
• Robust and durable construction:
o Y-axis drive: Two ball screw driven guide slides to the left and right of the
machine table ensure maximum stability and torsional rigidity.
o X-axis drive: ball screw and four recirculating ball carriages ensure precise and
low-friction movement.
• Special equipment for small parts: stop plate (L-plate) for safe processing of small parts,
that can no longer be held securely by the collets – for maximum flexibility and minimum
Committee.

Condition:
The machine is in very good, well-maintained condition and has been regularly serviced. It is immediately ready for use
and offers excellent performance for your sheet metal processing.
