bodmer used for sale

Ernest Bodmer type: MINIV - 350 (tool measurement) Serial number: 3152 ISO/50 Y2d0vum9 The HSK recording is not included. Measurements L x B x H 1250 x 900 x 1900 Tool measuring machine is fully functional. Tool measuring machine is in perfect condition. We love to hear from you.

CNC-controlled wobble riveting machine make BODMER KÜSNACHT type BK 160Masch. -No: FM 1603 built in 1997 with only 1069 operating hours Technical specifications:Rivet diameter max. 16 mmProjection 180 mmStroke 130 mmTable size 1000 x 600 mmCompressed air requirement 6.2 barDrive power 1.1 kWDimensions approx 815 x 700 x 1940 mm:Weight approy 404 kgWith- adjustable table- 2-hand release- protective coversecond hand - not ready for use (control)! selling as spare parts dispenser expressly ! EUR 3.900,--Price on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Tumbler rivet head BODMER KÜSNACHT Type FMK 3 Year of construction approx. 1980 Rivet shank diameter: max. 10 mm Tool diameter: 12 mm Riveting head stroke: 40 mm Riveting spindle speed: approx. 1400 rpm. Motor power: 0.37 kW Mains connection: 380 volts, 50 Hz - Rivet pressure adjustment via hydraulic pressure infinitely variable - Micrometer stop for stroke limitation - Stroke movement via oil hydraulics (max. 45 bar) - Machined flange surface 115 mm with mounting nut on housing Total length: approx. 800 mm Weight: approx. 40 kg good condition The rivet head has a multi-spindle head to set 2 or 3 rivets at the same time. However, this can be dismantled and used normally again. For normal use, however, the normal tumbling head which holds the tool is missing.; used

Tool setting device, tool presetting device, milling cutter setting device -Presetting device for: milling tools -maximum hob diameter: 500 mm -maximum height of the milling cutter: 500 mm -Dimensions: 800/400/H1600 mm -Weight: 242 kg

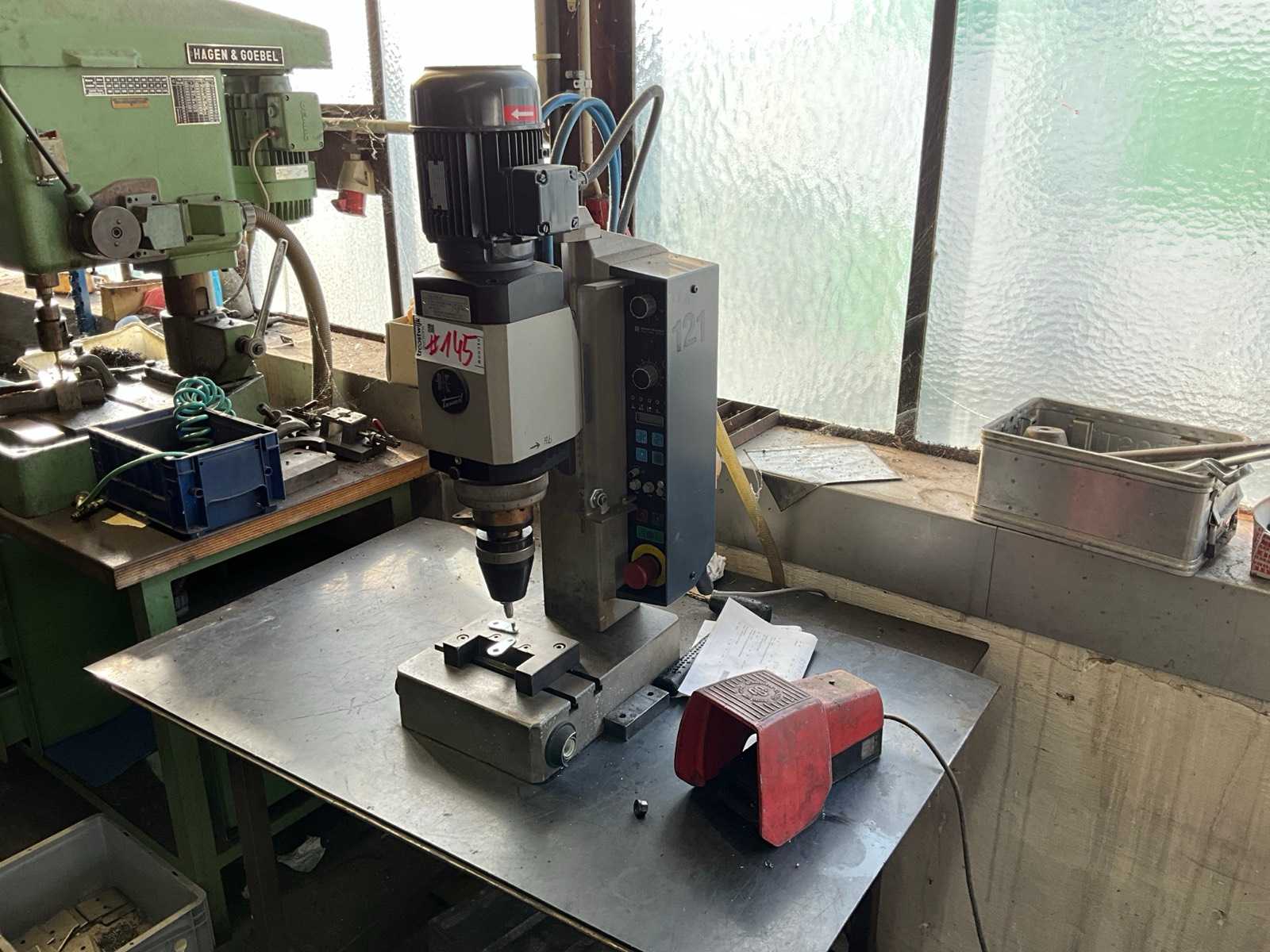

Tumbler riveting machine in very good condition max. rivet shank diameter 8 mm for solid material St 400 N/mm² The machine is equipped with a pneumatic sliding table. The machine also includes an original multi-spindle rivet head, with which several rivets can be made at the same time. Manuals, programming instructions and other documents are available. The single rivet head also includes various original riveting tools.
