Rubber processing machines BIPEL 300 ton

machines for plastic / rubber machines / Rubber processing machines

Manufacturer: BIPEL

Model:300 ton

Type of machine: Rubber processing machines

item-No.: 169625158

Quantity: 1

Date: 03.06.2026

Year of manufacture: 2026

Location: Land-uk United Kingdom 0 Aldridge

Price:


Machine in stock:Yes

Seller-item-No.:A30318

Press force max.:: 3000 kN Heating plates:: 762 mm Electrically heated:: 200 °C
Condition: Factory Rebuilt
Model: 3000kN BIPEL Press
Application: Compression Moulding
Mode of Operation: Manual and Semi-Auto
Frame structure: Steel plate frame
Cylinder type : Double acting
Push back cylinder(s) :
Pressing force kN: 3000
Pull back force at circuit pressure kN: 300
Operating height mm : 820
Stroke mm : 610
Daylight between
Tables mm : 1205
Table size
L -R mm : 785
F-B mm : 890
Opening speed mm/sec: 200
Pressing speed mm/sec: 0-2
Guards (front): Pneumatic raising guard
Guards (rear) : fixed guard with safety Interlocked access door.

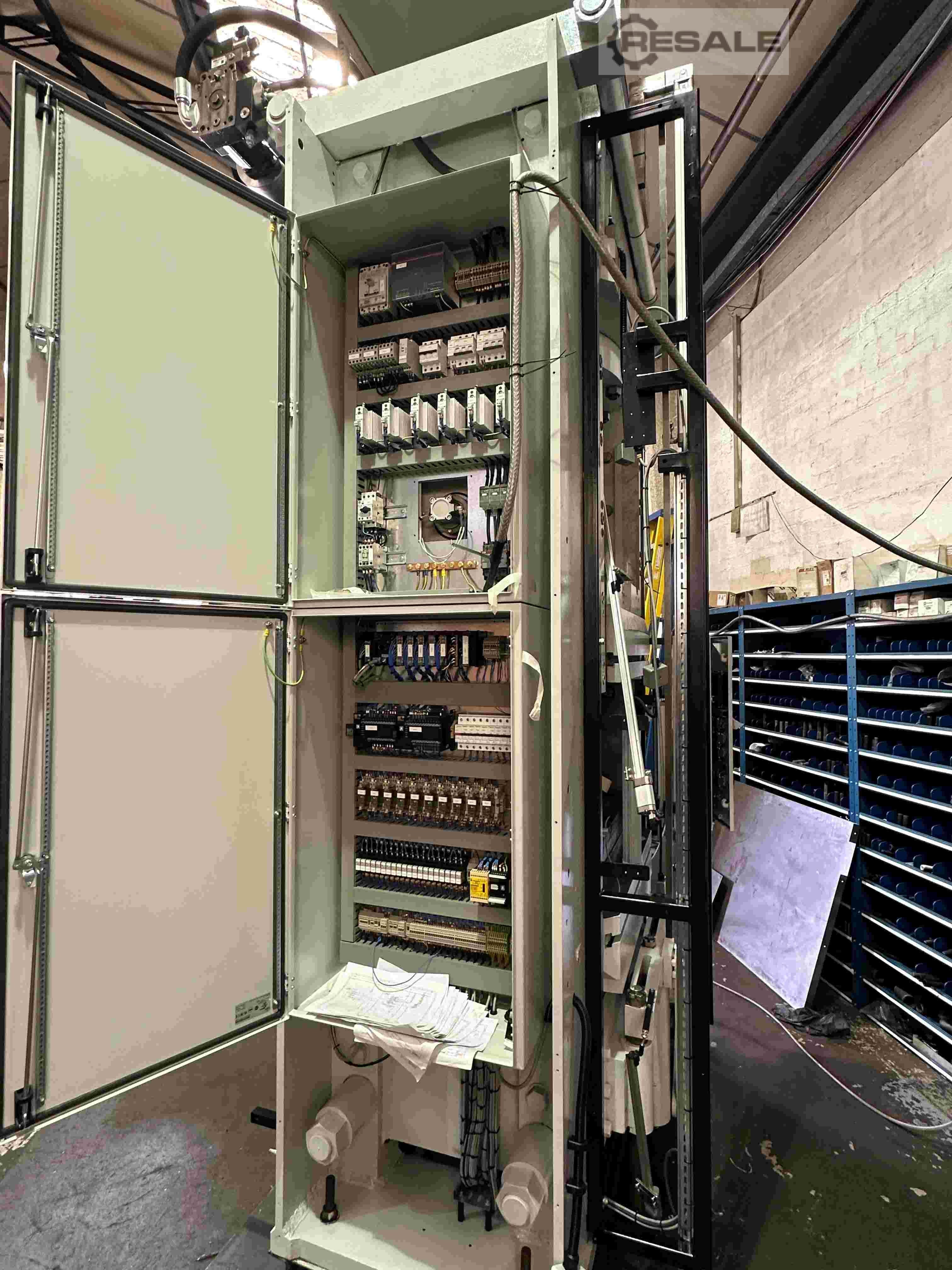

PLC control system: Omron
Hydraulic Oil : ISO – 32
Motor kW: 15
Voltage: 440V 3Phase N + E
Weight approx. kg: 16000
Dimensions
L-R Approx. mm : 1750
F-B Approx. mm : 1400
T-B Approx. mm : 4295
