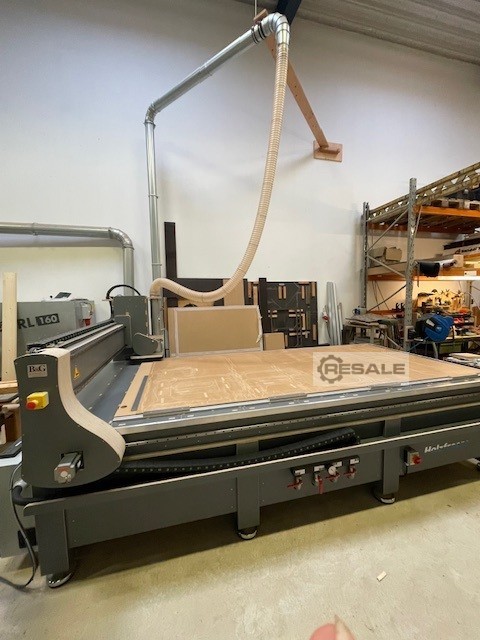

Bessler - Wood Milling Machine Speed
in 18mm Koskisen Grey consisting of a router table (X-axis), a portal
(Y-axis), a Z-axis and a base frame filled with polymer concrete.
Mechanics set:
consisting of profile guides KPF-S 20 incl. carriage.
Ball screw, for the Z-axis. Precision racks, with a gearing quality
8.
Profile rails for the installation of limit switches. All sub-elements
assembled.
Machine feet adjustable.
Control set:
consisting of planetary gears, with a reduction ratio of 1:5
Stepper motors with 9.2NM, 4A. High-performance power amplifiers with
80V each, a 70V power supply and core transformer, completely
pre-assembled in the control cabinet.
Sensors for each axis.
Protective device CE-compliant due to moving suction device.
High-frequency spindle with 2.2KW incl. union nut, frequency
converter, mains filter, brake resistor, as well as collet set.

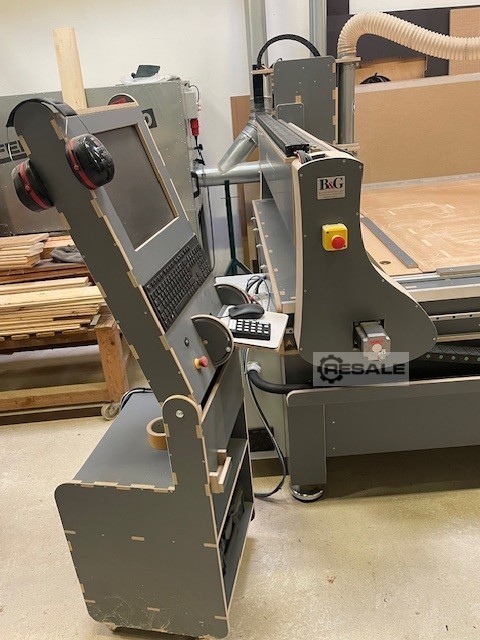

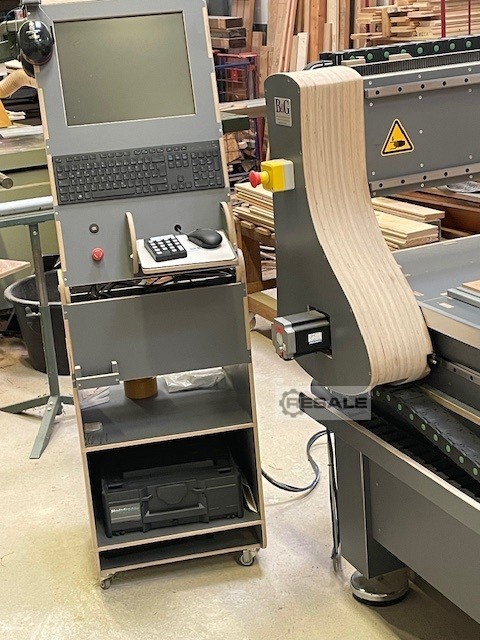

21.5 inch monitor as built-in monitor, B51263623 incl. mini PC with
Windows, CAD software Rhino 5.0, G-code generator Estlcam, control
software Beamicon2, as well as mouse and keyboard, pre-installed in an
ergonomic console.
Tool length sensor to determine the tool length and change the active
zero point shift.
M.Nr. 2019231
Year of Make: 2019
Motor data: 380 V - 50 Hz

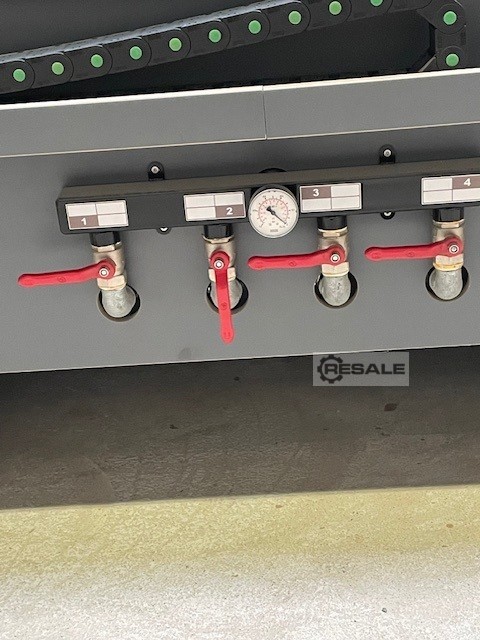

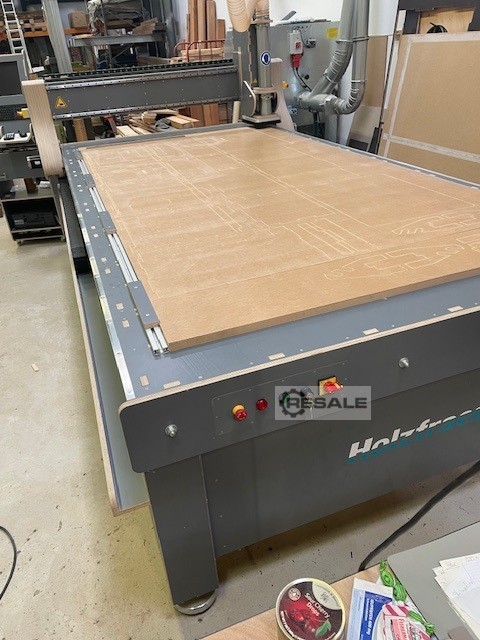

incl. vacuum table with vacuum pump 100 m3/h
Weight approx.: 1800 Kg
Germany
