bending used for sale

BEMA bending machine - diameter range fi 50 mm to fi 152.4 mm Find more here - / Contact us at -

Electric roll Bending Machine 3 rolls Capacity: 800 mm x 3 mm Rolls diameter: Ø 105 mm Motor: 4 CV New electrical panel Front/back rotation Voltage: 220 V Tri (possibility of reversing the motor in 380 V) Equipped with: Emergency stop Equipped with: Protective cover Dimensions (L x W x H): 2000 x 1300 x 1300 mm Weight: approx 1,5 T

- drie aangedreven rollen - de twee onderste rollen zijn verstelbaar Dia rolls: 117/227 mm Dia of die mandrel: 30 mm Rotationspeed: 20 rpm Motorpower: 2 HP Length : 900 mm Depth: 680 mm Height: 1360 mm Weight: 200 kg

Manufacturer: Trumpf Type of Machine: Trubend Bending Cell Condition: used A rough list of the components. 1303 - 3 columns/ tool holder 1304 - Rail system with robot arm 1305 - Conveyor belt 1306 - Two operator terminals L1030823 - Enclosure Find more here - / Contact us at -

Verstelbare buigmatrijs voor hoogwaardig staal Beschikbare maten: - V65 gt; V185 mm - V40 gt; V280 mm - V120 gt; V300 mm - V150 gt; V400 mm Aanpassing om de 10 mm De afstelling kan handmatig of halfautomatisch gebeuren. Neem contact met ons op voor meer informatie.

Semi-automatic bending, pipe bending machine, mandrel bending machine MOBITEC type BAH 1-2KOTTMANN and BERGER GmbHFabr. No. 056 Year of construction 09/2004- for simultaneous bending of two pipe sections made of steel up to 12 mmBending angle max. 90Pipe diameter max. 12mmMandrel length approx. 65 mmNominal power 3.5 kWDreturn air max. 6 bar / approx. 1 litre per bending cycleMains connection 400 volts, 50 Hz- Pneumatic clamping- Pneumatic mandrel retraction- Control for angle input via STOBER Controlbox Series 4000/5000- Control SIEMENS

Folding machine KRAMER type A-toll. II 1000Fabr. No. 48 287 Year of construction 1990Useful length 1060 mmmax. Sheet thickness 3.75 mmStroke of the upper beam 180 mmAdjustability of the bending beam 60 mmBack gauge 480 mmDrive power of bending beam drive 4 kWAdrive power of upper beam drive 1.5 kWNet connection 400 volts, 50 Hz- manual and semi-automatic control- angle adjustment via angle selector- one-piece pointed rail 135- back gauge with hand crank adjustment and simple measurement scale-

Bending tool, die, upper knife, upper tool, straight tool, die tool, seam closing tool -Tool: for folding machine RAS Typ 74.30 -Dimensions: see the drawing in the photos -Distance recess rail: center center 650 mm -Dimension: 3060/28/H121 mm -Weight: 65kg

Bending tool, die, lower knife, lower tool, lower jaw -Tool: for swivel bending machine -Widthen: for lower cheek -Dimensions: 59 x 19 mm -Length: 1452 mm -Weight: 10 kg

Bending tool, die, upper blade, upper tool, upper jaw, claw bar -Tool for swivel bending machine -Pointed tool -Dimensions: 45 x 120 mm -Length: 800 mm -Weight: 19 kg

Bending tool, die, lower knife, lower tool, lower jaw -Bending tool: from Lotze HDZK swivel bending machine -Widthen: for lower cheek -Dimensions: 2487 x 100 x 15 mm / 190 x 100 x 15 mm -Hole spacing: 100 x 18 mm -Transport dimensions: 2487/100/H30 mm -Total weight: 29.4 kg

Bending tool, die, upper blade, upper tool, upper jaw -Bending tool: from Lotze HDZ swivel bending machine -Length 2678 mm -Hole spacing: 100 mm / M10 -Dimensions: see drawing in the photos -Dimensions: 2678/15/H57 mm -Total weight: 15.7 kg

Bending tool, matrix, upper knife, upper tool, upper beam -Bending tool: from Lotze HDZ swivel bending machine -Length 2678 mm -Hole spacing: 100mm M10 -Dimensions: see the drawing in the photos -Dimension: 2678/6/H45 mm -Total weight: 5,6 kg

Bending tool, die, upper knife, upper tool, straight tool, upper beam -Bending tool: for folding machine -Tool angle: 45° -Dimensions: see the drawing in the photos -Dimension: 47 x 11mm -Length: 945mm -Weight: 3.5 kg

With approx. 10 pieces of bending shapes; in wooden transport box

Finger bending machine - bending machine 80cm with extra finger brake 300mm for in vice with extra shore bench 300mm Everything new

Tube bending machine - mandrel bending machine TRACTO-TECHNIK Type Transfluid DB 2060 KSerien. No. 70173 Year of construction 2004Bending capacity (steel) max. 76.1 x 3.0 mmBending capacity (stainless steel) max. 76.1 x 1.65 mmBending tool max. 70 x 2 mm (for stainless steel)Pipe slide length 4572 mm (4300mm)Bending radius max. 150 mmBending direction clockwise (right)Bending angle max. 190Bending head speed at 90 8 sec. Hydraulic operating pressure 200 barEngine power 3 KWnet connection 400 Volt, 50 Hz, 15

Hand - Swivel bending machine KRAMER type AMS 650 x 1.5Hand swivel bending machine, bending benchYear of construction approx. 1985Working length 650 mmSheet thickness at 40 kg/mm2 1.5 mmUpper beam opening approx. 60 mmBending beam adjustment approx. 0-25 mmBending angle 0-180- Upper beam adjustment via hand crank- Pilot rail for the bending brace- One-piece sharp rail 135Space requirement L x W x H 1200 x 600 x 1100 mmWeight 160 kggood condition; used

Hydr. Press brake, die bending machine HAMBURGER JONESCHEIT type HYPM 70-2600Fabr. No. 4004 Year of construction 1987Printing capacity 70 ton. Working length 2600 mmStand width 2770 mmPlunger stroke 60 mmDistance table - ram max. 390 mmTable size 2750 x 200 mmMotor power 7.5 kWWet connection 380 volts, 50 Hz.- Crimping depth via mechanical fixed stop with electric adjustment and mechanical depth indicator- Lower tool consisting of 2 segments, each 835 mm, with 2 different prisms (15 and 24 mm)- Upper tool,

Manual Pipe Bending Machine, Pipe Bending Machine, Mandrel Bending MachineHand Pipe Bending Machine, Hand Wire Bending Machine, Bending MachineManufacturer: MEWAGing Power: max. 16 mm1 piece bending tool 15 mm with 25 mm bending radius1 piece bending tool 10 mm with 16 mm bending radius1 piece bending tool 8 mm with 9 mm bending radius1 piece bending tool 6 mm with 8 mm bending radius1 piece bending tool 5 mm with 8 mm bending radius- Turning plate with degree marking- Scope of delivery as shown- Wooden box for storageDimensions L x W x H: 570 x 480 x 145

Auction-ID: A1-41275-234

Technical data: maximum sheet width: 3000 mm maximum plate thickness at maximum yield of 240 N / mm² on bending: 35 mm On bending length: 2,2 x S Diameter of roller upper roller: 552 mm Bottom roll: 532,4 mm Side rolls: 400 mm

Working width: 1050 mm sheet thickness: 1.5 mm top rollers Ø: 70 mm bottom rollers Ø: 70 mm weight: 320 kg space requirement: 700 x 1300 x 1100 mm

3-roll hydraulic with dual pre-pinch planetary configuration. new to complete, 45 days from order. -Plate width 3000 mm -Capacity rolling plate thickness 50 mm -Pre-pinch plate thickness 40 mm Machine configuration and accessories installed: -useful surface length on the rolls 3100 mm -upper roll size 480 mm -lower rolls size 440 mm -Digital position readouts. -Hardening treatment of the 3 rolls. -3 rolls driven hydraulic motorized with independent axial gear box on each roll. -Conical plate bending attachment with tiltable lower rolls hydraulic. -CE quality certification, Made in Italy manufacturing. -Service manuals and operation instruction manuals. -Hydraulic diagrams -Electric & electronic schematics with parts list. -Set of service tools for maintenance. -Electric power installed 50Hp. -3 phase voltage to be specified Warranty 12 months.  ...

Max pipe Ø: 60,3 x 3.2 mm maximum bending angle: 180 ° PIN length: 3000 mm Electr. Supply: 380 V, 8.6 kW space: 2400 x 5700 x 1500 mm weight: approx. 2500 kg

Roll length: 1250 mm max sheet thickness: 1.25 mm Roll diameter: 60 mm Length: 1780 mm Depth: 550 mm Height: 1030 mm Weight: approx. 230 kg

Tool cabinet for press brake Good for AMADA / PROMECAM or Type A L / W / H: 1050 mm x W 850 mm / H 1240mm, 310kg -extendable drawers, allowing access from both sides of the tools -any height adjustment of shelves -sturdy steel construction Fork-lateral guide rails for transporting by forklift (cavity under the cabinet) -The drawers run on Rollengleitschienen (serve as additional stabilization) , the cabinet can be broken - Number of drawers: 4 pieces - Dimensions of a drawer: - 1200mm Overall height / Overall width 850mm / 1050mm Overall depth - Dimensions of the compartments in a drawer: - Fachhhoehe set to 210mm (is varriabel) - Total compartment height 990mm shelves available ohnen - Usable shelf width 130mm - Usable shelf depth 980mm - Number of shelves: 3 piece

Bending capacity: Copper or brass tube: 54 x 4 mm Steel tube: 54 x 2 mm Stainless steel pipe AISI 304/316: 42 x 3 mm Hydraulic tube ST35: 54 x 4 mm Furniture construction tube: 54 x 3 mm Aluminium tube: 54 x 5 mm Gas pipe for piping: 1 1/2 " Maximum bending angle: 210° Engine power: 1,1 kW Voltage: 400 V Machine dimensions (W x D x H) without stand: 800 x 300 x 680 mm Approximate weight: 107 kg Scope of delivery: Bending segment 1/4 "G (Ø 13.72 mm) incl. counter rollers and race Bending segment 1/2 "G (Ø 21.3 mm) incl. counter rollers and race Bending segment 1 "G (Ø 33,7 mm) incl. counter rollers and race Bending segment 1 1/4 "G (Ø 42.25 mm) incl. counter rollers and race

Tool cabinet for press brake Good for AMADA / PROMECAM or Type A L / W / H: 1050 mm x W 850 mm / H 1240mm, 310kg -extendable drawers, allowing access from both sides of the tools -any height adjustment of shelves -sturdy steel construction Fork-lateral guide rails for transporting by forklift (cavity under the cabinet) -The drawers run on Rollengleitschienen (serve as additional stabilization) , the cabinet can be broken - Number of drawers: 4 pieces - Dimensions of a drawer: - 1200mm Overall height / Overall width 850mm / 1050mm Overall depth - Dimensions of the compartments in a drawer: - Fachhhoehe set to 210mm (is varriabel) - Total compartment height 990mm shelves available ohnen - Usable shelf width 130mm - Usable shelf depth 980mm - Number of shelves: 3 piece

Technical data: 4 bending rolls Max bending range: 3,000 mm external switching and Control Panel, as well as counter holder

Working width: 1020 mm, sheet thickness: 1 mm top rollers diameter: 55 mm bottom rollers diameter: 55 mm space requirement: 1370 x 570 x 1100 mm

Bending length: 1070 mm Bending capacity: 3.0 mm Reel diameter: 95 mm Roller speed: 9 RPM Engine power: 1,1 kW Weight: 370 kg Dimensions: 1350 x 760 x 1250 mm

Tool cabinet for press brake Good for WILA / TRUMPF tools or Type B L / W / H: 1180 mm x W 850 mm / H 1200mm, 350kg -ausziehbare drawers, allows the double-sided access to the tools -beliebige height adjustment of shelves -robust steel construction, powder coated -Lateral fork guide rails for transporting by forklift (cavity under the cabinet) -The drawers run on Rollengleitschienen (serve as additional stabilization) -The cabinet can be dismantled - Number of drawers: 4 pieces - Dimensions of drawer: - Total height 1200mm / 850mm total width / total depth 1180mm - Dimensions of the compartments in a drawer: - Fachhhoehe adjusted to 210mm (is varriabel) - Trade Height total usable ohnen shelves 990mm - Trade width 130mm available - Trade depth usable 1100mm - Number of shelves: 4 pieces / completely continuous; "ready for operation"

hydraulic concrete steel Benders Krupp Futura B 703 steel bending machine with accessories and complete instructions Tech. Data performance table - steel 50-55 kp/mm2 Diameter 22 mm - 6 bars per bending, 28 mm-4, 32 mm 3,. Mtfgtw 50 mm 2 speed 4-12 / min Operation - with control or manual, operating dial - HAND - machine with possibility of 3 bending angle set - every page - 3 links + 3 right complete documentation, operating instructions much accessories more info upon request You can edit, flat, round steel accessories - various bending rollers, bolts, reducing roll, Overarm and the machine has device for Pipes. Bulk 2.3 x 1 x 1 m, Btto 1500 kg

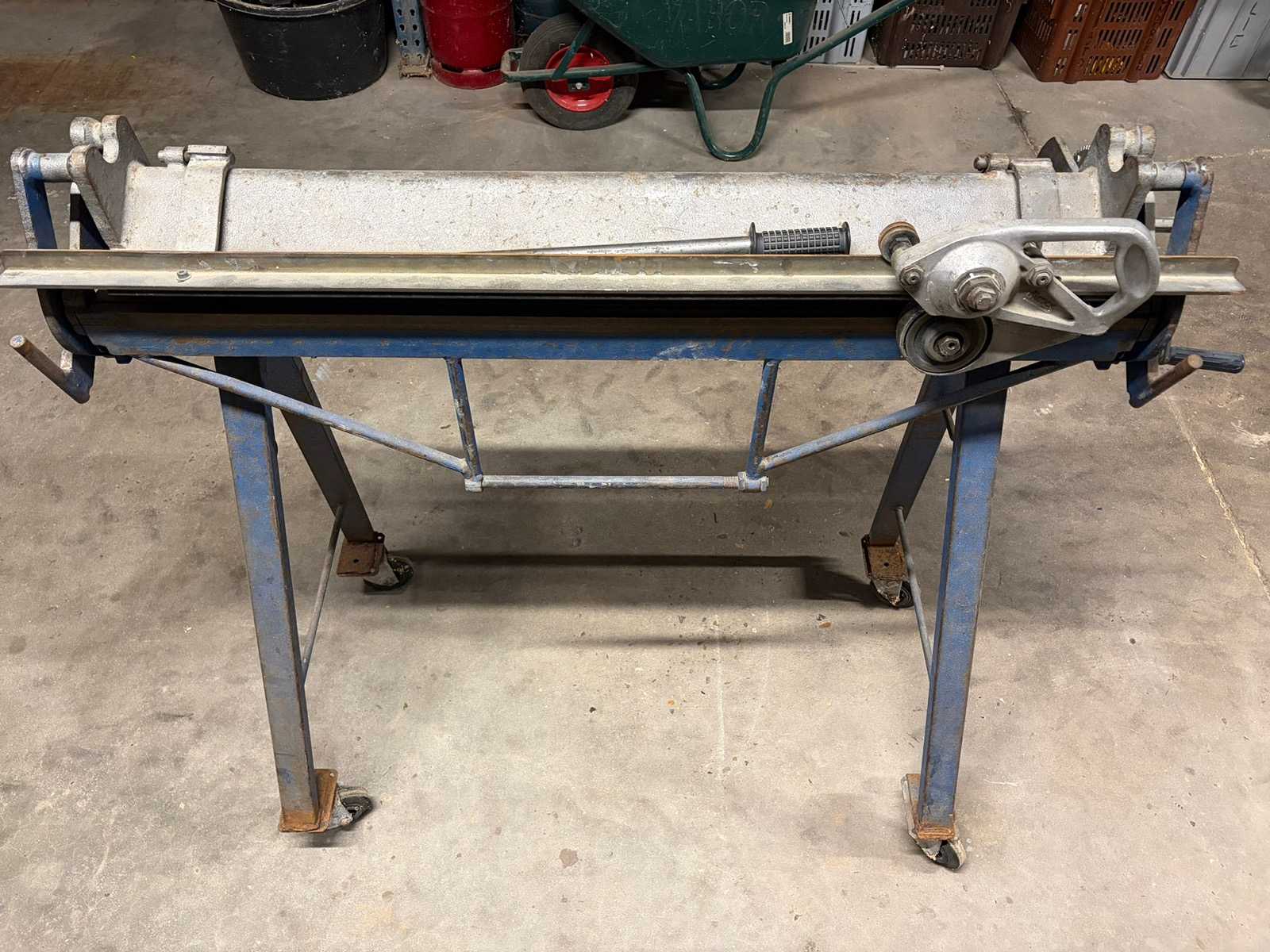

Max bending length: 1020 mm Max. sheet metal rod: 2 mm steel motor upper cheek adjustment via foot switch manual rear stop diverse bending rails

Punching and forming center in chain with an assembly line for the production of relays, see pictures

Machine number: ST-R-1660 Buerstentgratmaschine for the deburring of metal sheets or plates Power supply: 380 V 50 Hz 1.0/1.4 kW 2 speeds: 1500-3000 rpm. Brush diameter: 250 mm

Working width: 1040 mm sheet thickness: 1.25 mm sheet thickness in bending: top rollers diameter: 56 mm bottom rollers diameter: 56 mm weight: 190 kg space requirement: 1450 x 460 x 1030 mm

Technical data: -maximum working length 1250 mm -Stand round 1050 mm -Max pressing force 80 t -Stroke 250 mm -Stand RADIUS 300 mm -Max height betw. Table - press bar 560 mm -Lifting speeds -Backward speed idle max 100 mm / sec. -Forward speed 100 mm / sec. -Backward press speed max. 12 mm / sec. -Total power 15 kW -Space requirement approx. B 1750 x H 3400 X 2000 mm -Weight approx. 8500 kg -with: - CNC - control CYBELEC DNC 7400 PSGY -controlled X - axis back gauge 5-1000 mm -Pneum. Z - axis in three stages. height-adjustable -manually movable and foldable stop fingers -controlled pneumatic die shift - hydr. Tool clamping -Manual crowning - 2 piece support arms -Pointed tool shared H 320 x L 1000 mm -Foot tool H 320 mm x L 1000 mm - universal matrix L 1000 mm

Technical data: -Pressure capacity 2000 kN -Max working width 3100 mm -Stand round 3200 mm -Stand RADIUS 300 mm -Max mounted height 965 mm -Hub, or insertion depth Steplessly adjustable 0-400 mm -Plunger speed forward + reverse per 100 mm / sec -Operating speed in 9 steps selectable 1-10 mm / sec -Drive 400 V / 26.5 kW - space requirement approx. B H 4400 x 3500 X 2200 mm -Weight approx. 18500 kg -with: - CNC - control CYBELEC ModEva 15s BJ. 2007 -Back gauge with 4 controlled pneum. on the side and height-adjustable stop fingers -controlled bending AIDS in the velocity range -Hydr. -Pneum.. Clamp of the upper tool + substation witness -mot. Crowning / hydro cushion in the table -laterally movable support arms -E - foot switch -split pointed tool R 1-100 t / m, split die

Technical data: -Length approx. 2500 mm -Width approx. 1000 mm -Height approx. 800 mm -Top plate thickness approx. 90 mm - 4 pieces t grooves in the table surface length 2500 mm -Centre distance of the T-slot table surface each 215 mm -T - slot width approx. 40 / 70 mm -T - groove depth approx. 60 mm -Space requirement L 2700 x T 1200 x H 800 mm - weight approx. 3700 kg

Hydraulic press brake, used Hydraulical press brake, used type / model: D 160-25 Make / make: GWF Year / year of make: 1993 Pressure / force: 160 t Bending length / working length: 3,050 mm Stand width approx. / distance b/n standards: 2.550 mm Table width: 220 mm Stand RADIUS / depth of Cap: 280 mm height / shut height: 440 mm working stroke ca / stroke. Max 250 mm Hubgeschw. / speed of stroke: down: down; 90 mm / s Press down 11 mm / s Expensed. / upward: 90 mm / s Machine weight / weight: approx. 13 t Power consumption / connected load: 22 kW Spec/specif.: 2-hand/foot control / 2 foot switch - manual

Technical data: -Get well plate surface -Length approx. 2000 mm -Width approx. 1000 mm -Height approx. 1600 mm -Top plate thickness approx. 95 mm -Top plate with internal ribbing - 4 piece t grooves on the surface of the table length 2000 mm -Centre distance of the T-slot table top 230 mm each -Table side L 2000 mm with 12 holes M27 -T - slot width approx. 40 / 67 mm -T - groove depth approx. 35 / 60 mm -Space requirement L 2200 x T 1200 x H 1600 mm - weight approx. 4980 kg

Technical data: -Working width 1030 mm -Material thickness 1.25 mm -Roll diameter 55 mm -Upper roller swing -Rear and front wave about eccentric adjustable -Rear and front wave each with a Groove to round -for sheet metal with wire inlay -Space requirement approx. B H 1350 x 1050 x D 750 mm -Weight approx. 150 kg

The CNC press brake SMD PBH 110-3100-4C produced in 2006 is offered in a set with the ANTIL TWISTER F5 robot. Technical parameters : - manufacturer: SMD - type: PBH 110-3100-4C - year of production: 2006 - control: CNC CYBELEC ModEva 10 - overworked time: about 20,000 man-hours - pressure force: 110 tons - bending width: 3100 mm - maximum working speed: 10 mm / s - table width: 60 mm - table height: 960 mm - stroke: 465 mm - frame spacing: 2600 mm - throat: 410 mm - power supply: electric - 11.5 KW, 400 V three phases - oil tank capacity: 250 l - dimensions of the press: 3960 × 2045 × 3650 mm - total weight: 9500 kg Processing on a 3 m table and palletizing of finished details on 3 europallets.

Technical data: -maximum working width 750 mm -maximum material thickness approx. 1.0 mm -Beam + upper cheek fold away -Bending rail with cut-outs - space requirement approx. B 1000 x H 1100 x D 750 mm -Weight approx. 70 kg

Plate bend Ingkant SM 52; cleaned and tested; Table equipment; suitable for Heidelberg SM 52 plates. Plate bender SM 52; good condition; cleaned and checked; table top model; used for Heidelberg SM 52 plates.
