bend used for sale

Electro-hydraulic mandrel tube bending machine with - Four-fold bending angle preselection - Bending tools 48.3; 42,4; 33,7; 1/2\" - Mandrel length 4500mm Tube diameter 48 mm Bending radius max. 90° Total power requirement 1.5 kW Machine weight approx. 0.5 t Dimensions approx. 1.8 x 0.8 x 4.8 m Auction-ID: A7-50084-60

Folding machine - Manual back gauge max. 830mm - Bending angle preselection via limit switch Sheet width 2000 mm Sheet thickness 3.5 mm Stand width 2050 mm Opening width 355 mm Total power requirement kW Machine weight approx. 2.8 t Space requirement approx. 3.5 x 1.5 x 1.5 m Auction-ID: A7-50084-90

Height adjustable with adjustable feet; Motorised Auction-ID: A1-48986-27

Pressure approx. 10 t Stroke 380 mm Table size 800 x 700 mm Total power requirement 4.0 kW Cylinder diameter 90 mm Weight 2.5 t Dimensions 2.2 x 1.4 x 1.6 mm Auction-ID: A7-50084-222

pressure: 135 t chamfer lenght: 3600 mm distance between columns: 3150 mm stroke of upper beam: 200 mm ajustment speed: 70.0 mm/sec working feed: 10.0 mm/sec return speed: 80.0 mm/sec : 315 bar dayligth: 400 mm table height: 915 mm column arm: 250 mm engine output: 15.0 kW weight: 8800 kg range L-W-H: 4200 x 1700 x 2600 mm Equipment: - Electro-hydraulic press brake with torsion bar - HACO NC control (Model ATL 550) for X and Y axes Computer-controlled multi-axis NC press Backgauge position pre-selection (electric backgauge) Backgauge retraction for Z-bends Bending depth pre-selection Electric depth adjustment Memory for 200 programs - Swiveling control panel (front left) - NC motorized backgauge (X-axis) with 2 manually adjustable stop fingers - NC motorized depth adjustment (Y-axis) - 1x set of sectionalized gooseneck (swan-neck) upper tools - 1x rotatable MULTI-V die block - Re ...

sheet width: 2050 mm plate thickness: 8.0 mm pre-bending capacity: 6.0 mm upper roll diameter: 190 mm lower roll diameter: 180 mm bending speed: 5.2 m/min work height max.: ca. 980 mm total power requirement: 5.5 kW weight of the machine ca.: 3500 kg. range L-W-H: 2900 x 1200 x 1280 mm Furnishing: - Robust electro-hydraulic 3-roller bending machine - planetary movement of the bending rollers with reduced center distance - Hydraulic motors combined with planetary gears for driving the 3 rollers - mobile operating unit, with connection cable + plug - extended roll ends for profile bending rolls - with conical bending device Inclination of the side rollers by handwheels Workpiece limitation for a cone with a 45° pitch: Working length max: 60% Bending capacity max: 50% - free-moving operation electric delivery rollers electric turning/rolling movement digital position display of the ...

pressure: 10 t stroke: 380 mm table-size: 800 x 700 mm working speed:: mm/ sec. return speed: mm/sec work height max.: mm total power requirement: 4,0 kW : 90 mm weight: 2,5 t dimensions: 2,2 x 1,4 x 1,6 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2040 mm plate thickness: 6,0 mm distance between columns: 2100 mm roll diam. toproll: 180 mm roll diam. bottom roll: 160 mm total power requirement: KW weight of the machine ca.: 2,4 t dimensions of the machine ca.: 3,5 x 0,85 x 1,75 mm Sheet metal bending machine with 3 rollers - 2 driven rollers - Emergency stop device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

tube diameter: 48 mm bending radius max.: 90 ° total power requirement: 1,5 kW weight of the machine ca.: 0,5 t dimensions of the machine ca.: 1,8 x 0,8 x 1,2 m Electro-hydraulic mandrel tube bending machine with - four-position bending angle pre-selection - bending tools: 48.3, 42.4, 33.7, 1/2 - mandrel length: 4500 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: gebraucht : 2015 : 080242 : prompt, Zwischenverkauf v : Türkei : 38900 € : 175 to : 3050 mm : 4 : 265 mm : 2600 mm : 410 mm : hydraulisch : 120 mm/s : 10 mm/s : 100 mm/s : 18.5 kW : 4250 mm : 1850 mm : 2770 mm : 10520 kg 4 axes (Y1, Y2, X, and R-axis) Cybelec DNC 880 S CNC control - 2D graphic display - User-friendly conversational programming - Automatic bending sequence calculation - Automatic calculation of developed length for blank cutting - Product and tool memory - Correction capability - USB ports for backup and program storage CNC-controlled backgauge on linear guide and ball screws Backgauge finger blocks on linear guide CNC-controlled crowning New upper tool 1010/A/75°/0.8/105, sectional and gooseneck New lower tool 2009/85° (V = 16, 22, 35, and 50 mm), sectional Fiessler AKAS laser safety device mounted on the upper beam 2 sheet support arms on linear guides Foot pedal ...

tube diameter:40-90 mm wall strength:20 mm weight of the machine ca.:11 t dimensions of the machine ca.:4 x 1,6 x 1,35 m bending radius max.:270 mm This machine is a mandrel bending machine that was designed exclusively for the production of pipe bends with pipes of 40 mm ? 90 mm outer diameter with a maximum wall thickness of 20 mm or for processing solid materials up to 70 mm outer diameter (max. section modulus 64.7 cm³) and is therefore intended only for this purpose. Scope of delivery, machine equipment, basic equipment ? Pipe length/usable length for mandrel bending: 3000 mm ? Radius range max. 270 mm ? Bending height 1050 mm ? Electro-hydraulic drive ? Clockwise bending direction ? With hollow shaft to achieve small radii ? Counter bearing rotates ? Rotates up to 180 degrees with a maximum tool radius of 270 mm ? Forward movement controlled via hydraulic cylinder with pressure va ...

GASPARINI electronic folding machine mod. PSG-250/5000 FP FEATURES Axes: R – X – Y1 – Y2 , Z1 , Z2 Folding length: 5,100 mm Pitch between uprights: 4,555 mm Strength: 250 tons. Gooseneck: 465 mm Slide travel: 250 mm Distance between table-slide: 450 mm Control unit: delem Weight: 25,500 kg. Overall dimensions: 6500 x 2300 x 3200 mm Year of manufacture: 2004 Year rebuilt: 2021 CE compliant. PROMECAN pneumatic tie-down. Self-centered lower table with pneumatic tie-down. 1,000 mm motorized backgauge ("X" axle) Height adjustment "R" axis 250 mm. CNC DELEM DA 66W. 4 adjustable motorized turrets Z1, Z2. Folded penetration (axis "Y1, Y2") Low voltage electric pedal operation. Emergency stoppages. Hydrodynamic anti-bending table by hydraulic pumping. Side protections. Level IV safety laser.

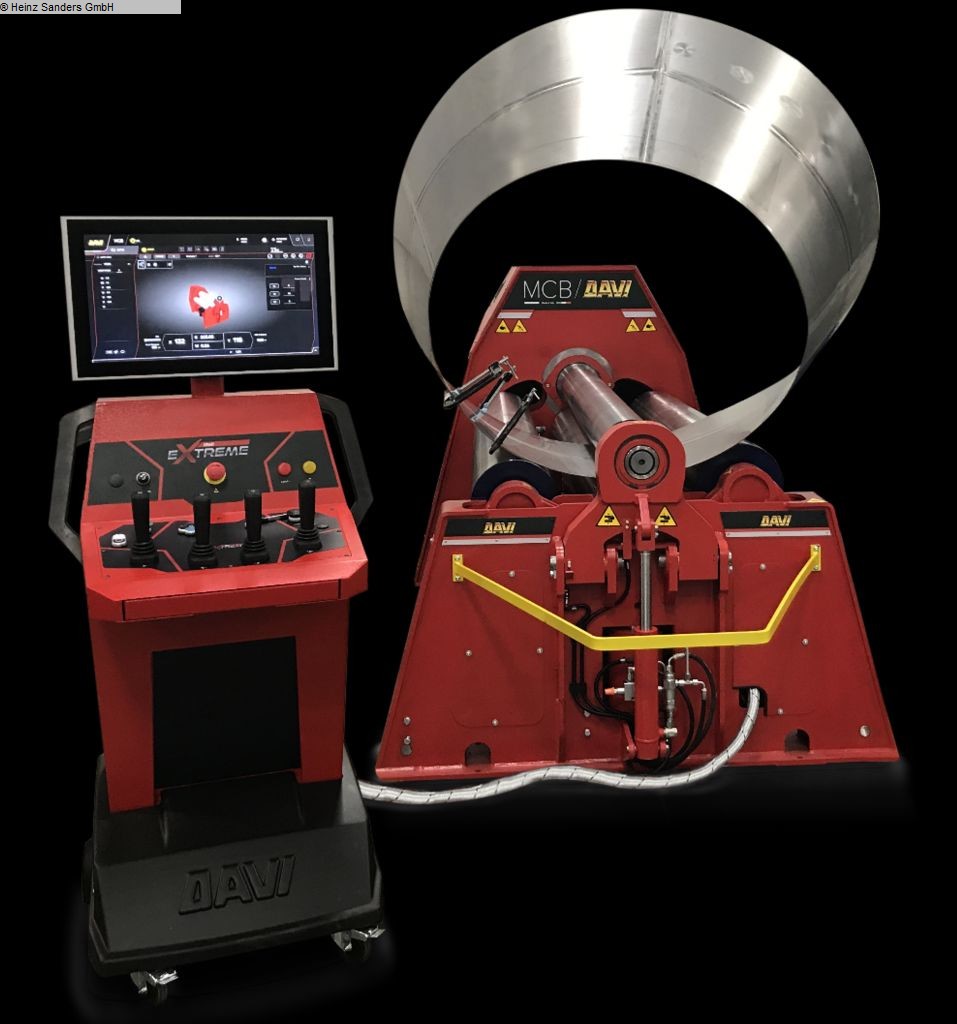

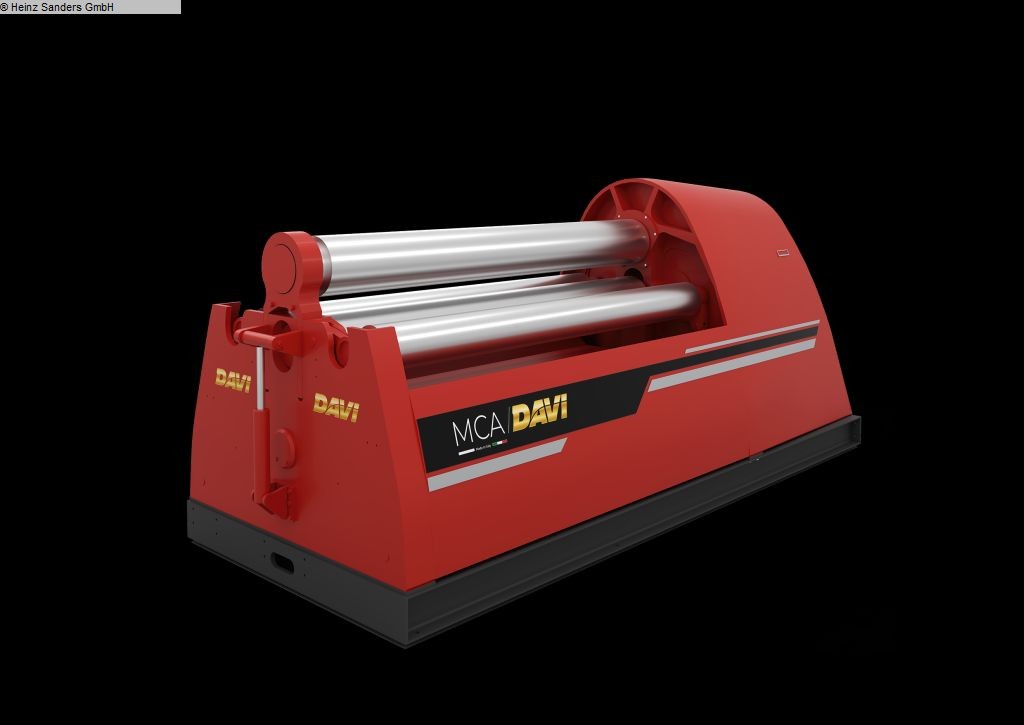

sheet width: 3100 mm plate thickness: 9 mm pre-bending: 6 mm diameter of upper rolls: 220 mm diameter of lower rolls: 200 mm side roll diameter: 170 mm min. dia.: 250 mm roll speed: 6 m/min total power requirement: 10,3 kW weight of the machine ca.: 4651 kg dimensions of the machine ca.: 4915 x 1120 x 1235 mm Features - Machines include the following DAVI standard specification: The components of the machine structure (machine stand, frame and swivel bearings, etc.) have been calculated and designed to withstand the loads required for the applications and performance levels. The robust and heavy-duty machine construction absorbs the loads generated during the bending process without transferring them to the foundation. - High-quality surface finish: For forming delicate surfaces and/or soft materials without leaving marks Hydraulic-mechanical parallelism system, supported by electronics  ...
