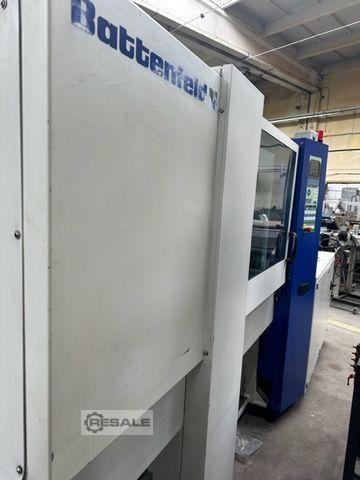

Injection molding machines BATTENFELD TM 100/525

Clamping force: 1000 kN Battenfeld TM 100/525
Year of Make: 2007

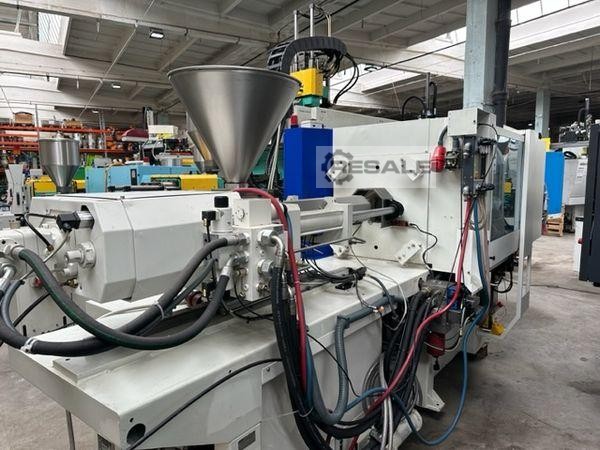

Injection unit:
Screw diameter: 40 mm
Injection weight: 228.4 g
Spray pressure: 2100 bar
Dosing volume: 251 ccm

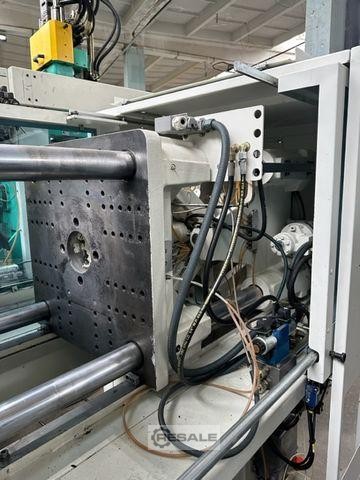

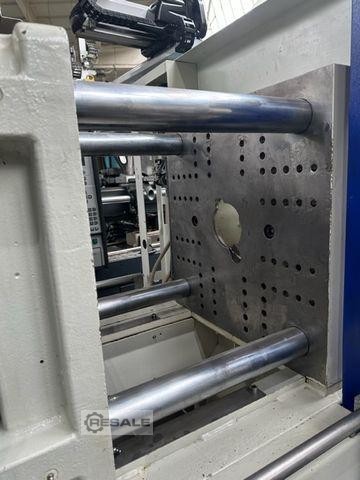

Clamping unit:
Clamping force: 100 t
Spar spacing: 420x420 mm
Size of the clamping plates: 640x640 mm
Ejector: hydraulic
Clamping unit: toggle lever

Control: UNILOG B2

Additional equipment:
Euromap 67
Robot interface
Hydraulic core pull x 1
Control with hot runners x 12
Injection unit is wear-resistant and resistant to corrosion
Central lubrication
Automatic tool height adjustment

Dimensions:
Weight: 3900 kg
Length/Width/Height: 4.46x1.33x1.78 m

Drive:
Pumps/motor: 18.5 kW
Heating capacity: 12.1 kW
Total power: 30.6 kW

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 170235657
