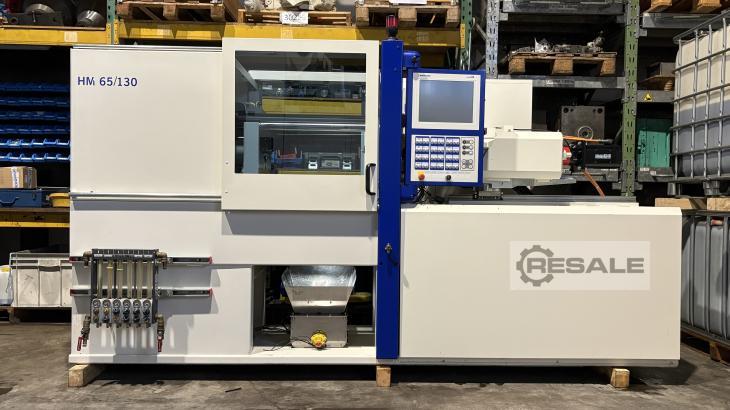

Plastic injection machines BATTENFELD HM 65-130

Clamping force: 650 kN Screw diameter: 22 mm Injection moulding machines BATTENFELD HM 65-130
Stock No.: 503671
Manufacturer: BATTENFELD
Type: HM 65-130

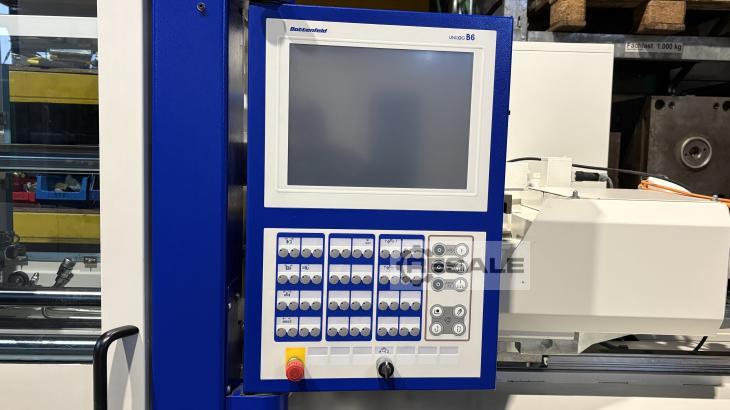

Control: UNILOG B6
Year of Make: 2011

We offer for sale a used injection moulding machine BATTENFELD HM 65-130 from 2010. Ideal for a wide range of plastic processing applications, this compact and powerful injection molding machine gives you precision, reliability, and energy efficiency in a rugged design.

The BATTENFELD HM 65-130 is perfect for producing high-quality plastic parts with high repeatability and is particularly energy efficient, making it a cost-effective solution for your production needs.

Why should you choose this injection molding machine?
Compact design: Ideal for smaller production spaces without compromising on performance.
Energy efficiency: Low energy consumption for sustainable and cost-effective production.
Reliability: Excellent machine quality for continuous production.
Versatility: Suitable for a wide range of injection molding applications.

Thanks to its high reliability and precise control, this BATTENFELD HM 65-130 is perfectly suited for companies that need efficient and high-quality plastic parts in their production.

Technical data closing page
Clamping force: 650 kN
Tie-bar dimension h x v: 370 x 320 mm
Panel size h x v: 550 x 500 mm
Min. installation height: 225 mm
Max. installation height: 675 mm
Plate spacing max.: 675 mm
Opening travel: 450 mm
Ejector stroke: 150 mm
Ejector force: 26 M6212944 kN
Centering of movable M6212944 plate D: 125 mm
Centering of fixed plate D: 125 mm
Tool weight: 600 kg

Technical Data Spray Side
Screw diameter: 22 mm
Capacity: 41.8 cc
Spray pressure: 2864 bar
Screw length: 20 l/d
Screw stroke: 110 mm
Screw speed: 398 min
Worm torque: 238 N
Outdoor injection flow: 61 g/s hp
Number of heating zones: 4
Nozzle travel: 47 mm

Dimensions & Weight
Machine dimensions LxWxH: 3.5m x 1.4m x 2m
Total Weight: 3000KG

Equipment
Screen text German
Core pull hydraulic 2x
Air valve 1x
Levelling elements
Ethernet interface
Interface EUROMAP 13
Interface for temperature control unit
Tool heater 6x
