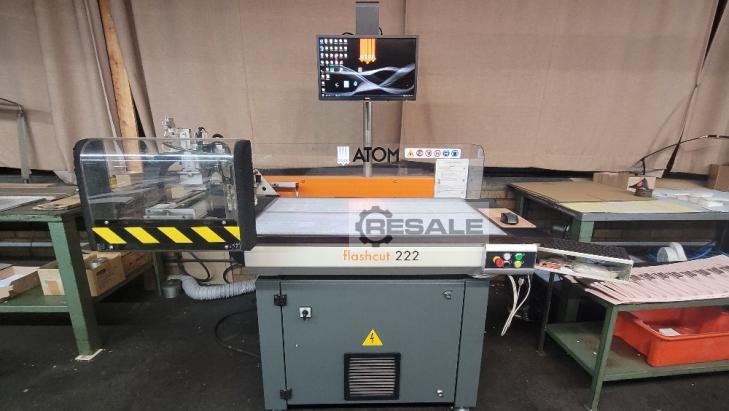

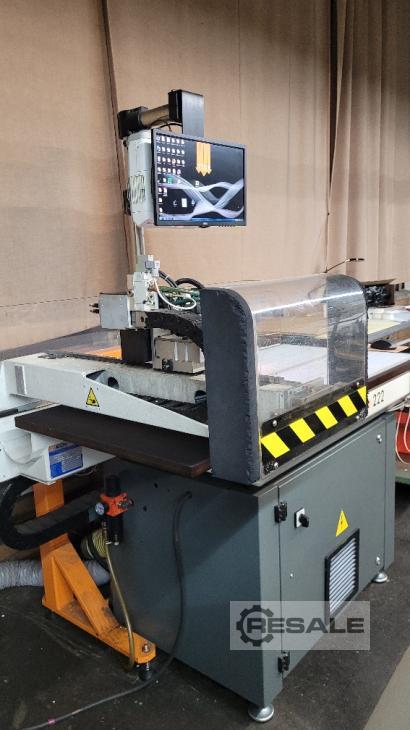

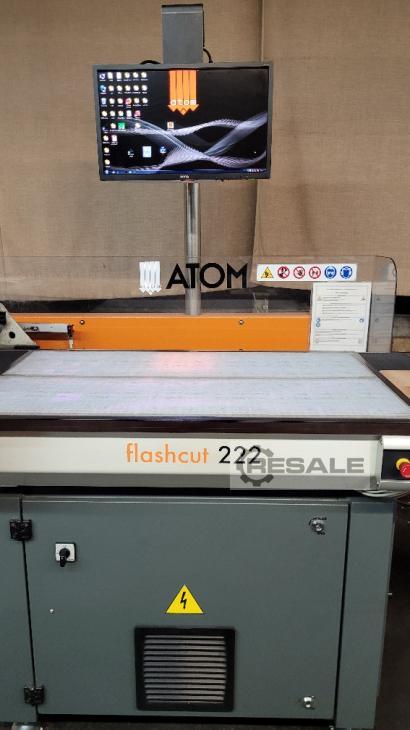

Automatic cutting table system for textile and leather
Manufacturer: Atom
Type: FlashCut Easy 222
Year of Make: 2016
CNC Control
Usable cut/table area: 1,000 x 600 mm
Max. cutting height: 20 mm
Static vacuum table with 1-zone fixation
High-performance vacuum turbine with 4 kW power
Servo drive of the X, Y and Z axes
Safety device with light barrier monitoring and emergency stop
switch
1 high-luminosity projector
Vacuum power: 4 kW
Connected load: 6.5 kW
380 volts, 3 phases, 50 Hz
Compressed air: 6 bar, 200 l/min.
when using pneun. Tool use
9 bar, 400 l/min.
Software
DXF Converter to Read and Convert CAD Fiiles
Interactive Layout Software License
Automatic Nesting Software License
CAD software module to easily create geometries
Multi-tool head 20 mm cutting height
consisting of 5 tools:
1x tool module for all cutting tools
2x perforated pipe modules with integrated
Suction. Hole pipe size 1 - 8 mm
Writing lead for applying markings
1x Badge Pin
1x Laser Pointer
Machine dimensions: 1,600 x 1,235 x 2,190 mm
Weight: 440 kg
