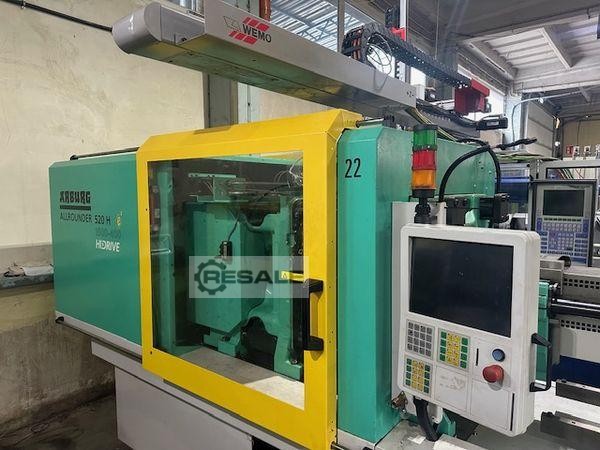

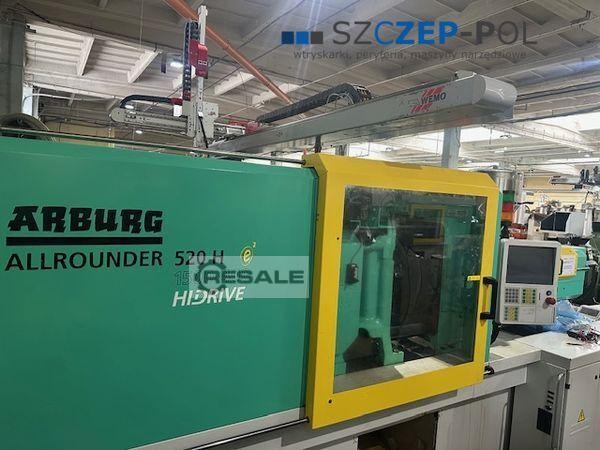

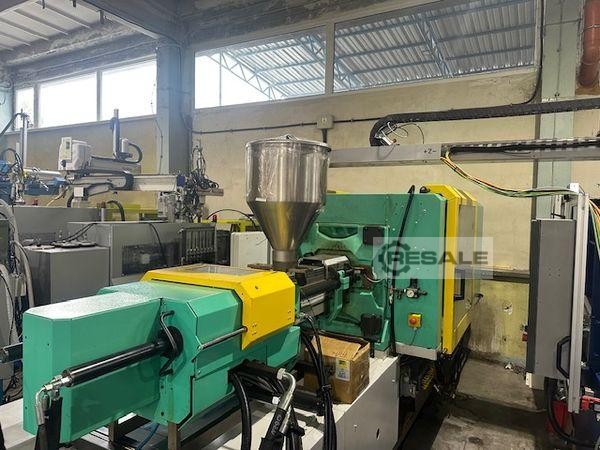

Injection molding machines ARBURG 520H 1500-400 e²

Clamping force: 1500 kN Arburg 520H 1500-400 e² / Hybrid machine
Year of Make: 2011

Injection unit:
Screw diameter: 40 mm
Injection weight: 184 g
Spray pressure: 2000 bar
Dosing volume: 201 cc

Clamping unit:
Clamping force: 150 t
Tiebar spacing: 520x520 mm
Size of the clamping plates: 695x695 mm
Ejector: electric
Clamping unit: toggle lever

Control: SELOGICA - Touchscreen

Additional equipment:
Hybrid machine: energy-saving and very quiet
Euromap 67
Robot interface
Core train control
Control with hot runners x 8
Hardened injection unit - Bimetal
Main motor of the machine - Servo motor driven by inverter - Energy saving
The injection unit is driven by the servo motor, which is controlled by an inverter
Machine with cylinder / battery with compressed nitrogen (extra charge for fast working)
Central lubrication
Parallel S6331703 movements
Priamus Sensor - Tool S6331703 Pressure Control

Dimensions:
Weight: 6010 kg
Length/Width/Height: 4.67x1.56x2.21 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 168814485
