Plate Processing Machine Manufacturer: Hundegger Type: SPM-2 Speed Panel Year of Make: 2011 CNC control SPM-2 for panel format 3,200 x 2,600 mm Milling unit 6 kW Max. speed: 23,500 rpm Milling tools Outer diameter max.: 100 mm Cutting length of milling tools max.: 60 mm Z-axis: positioned + moved by spindle units 5-axis milling unit 6 kW Milling spindle motor: 6 kW frequency-controlled Max. speed: 23,500 rpm Milling unit can be rotated 360° in the Z-axis Inclination up to 46° to the Z-axis Milling tools outer diameter max.: 20 mm Cutting length of milling tools max.: 60 mm Z-axis: moved + positioned by spindle units Ink-jet labeling head Max. font height: 50.8 mm Colour prints possible Z-axis pneumatically operated, Head can be automatically swivelled by 180° Automatic stacking system Electronically controlled lift table Stroke max.: 1,000 mm Max. ...
10.500 € add to watchlist

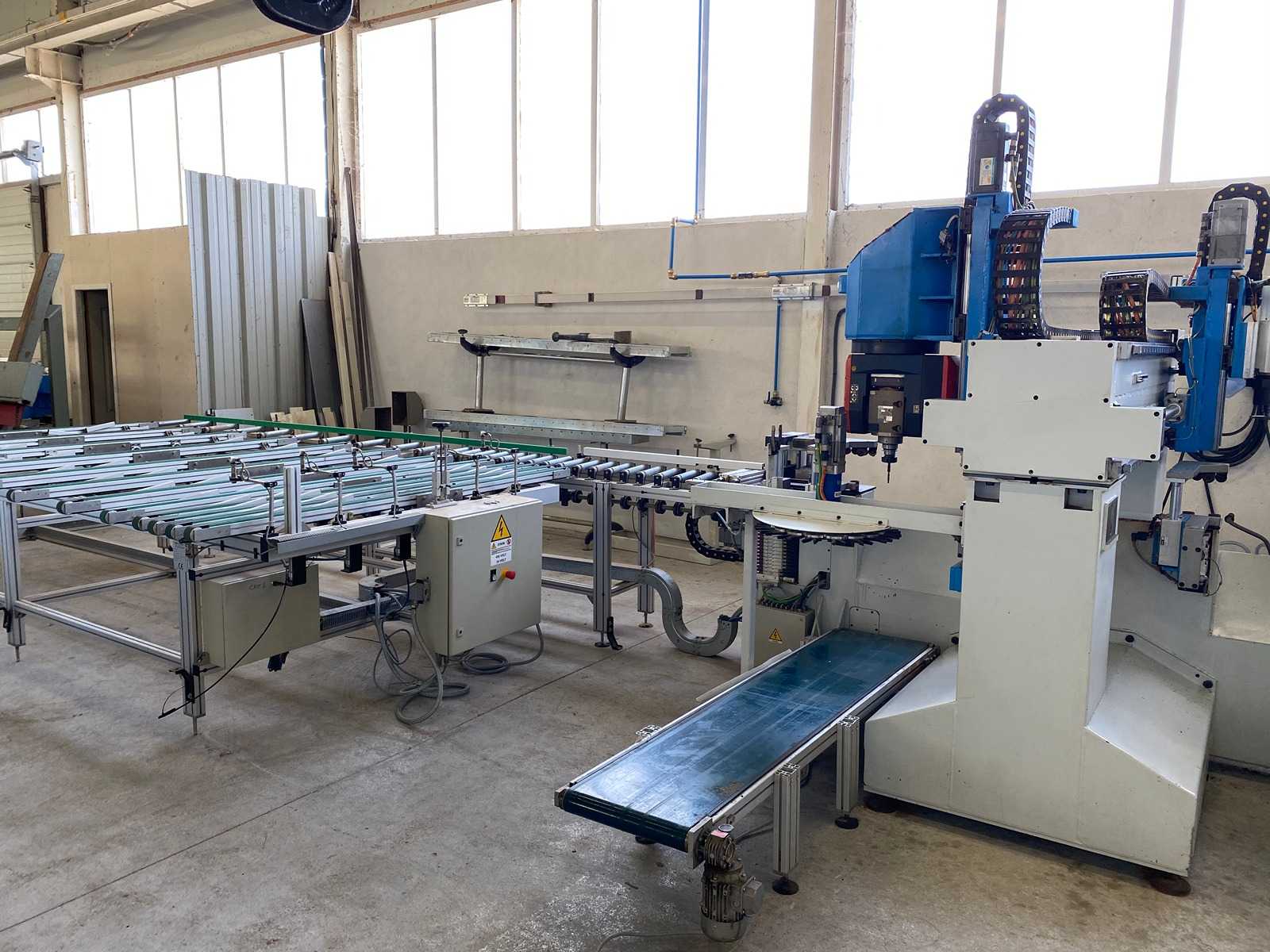

General description Sapiens 1001 TFF machining center dedicated to sawing, drilling and machining components for windows/doors. Fixed gantry structure with crossbar on rigid columns. Pneumatic devices for automatic positioning of parts. Double work area with electronically controlled clamps (X1/X2). Two spindles with Y/Z axes, slewing heads and tool magazine (16+16+1). Soundproof enclosure. User-friendly interface and optimized security. Technical details Workpiece section: min 30x18 mm / max 230x140 mm Length: 300 to 2800 mm Strokes: X 4735 mm / Y 1235 mm / Z1,300 mm / Z2,405 mm Axis speed: X 120 m/min / Y 60 m/min / Z 45 m/min Pins: 10 kW + 12 kW, HSK F63, 12,000-18,000 rpm Saw blade: Ø max 450 mm, flange 140 mm Working height: 960 mm Pressure: 5 bar / Thrust: 720 N Weight: approx. 3600 kg Colours: RAL 7035 / RAL 5015 Dimensions: 5710 x 2600 x 2075 mm Included accessories Central lu ...
Key data: 2500 mm, 1240 mm, 200 mm

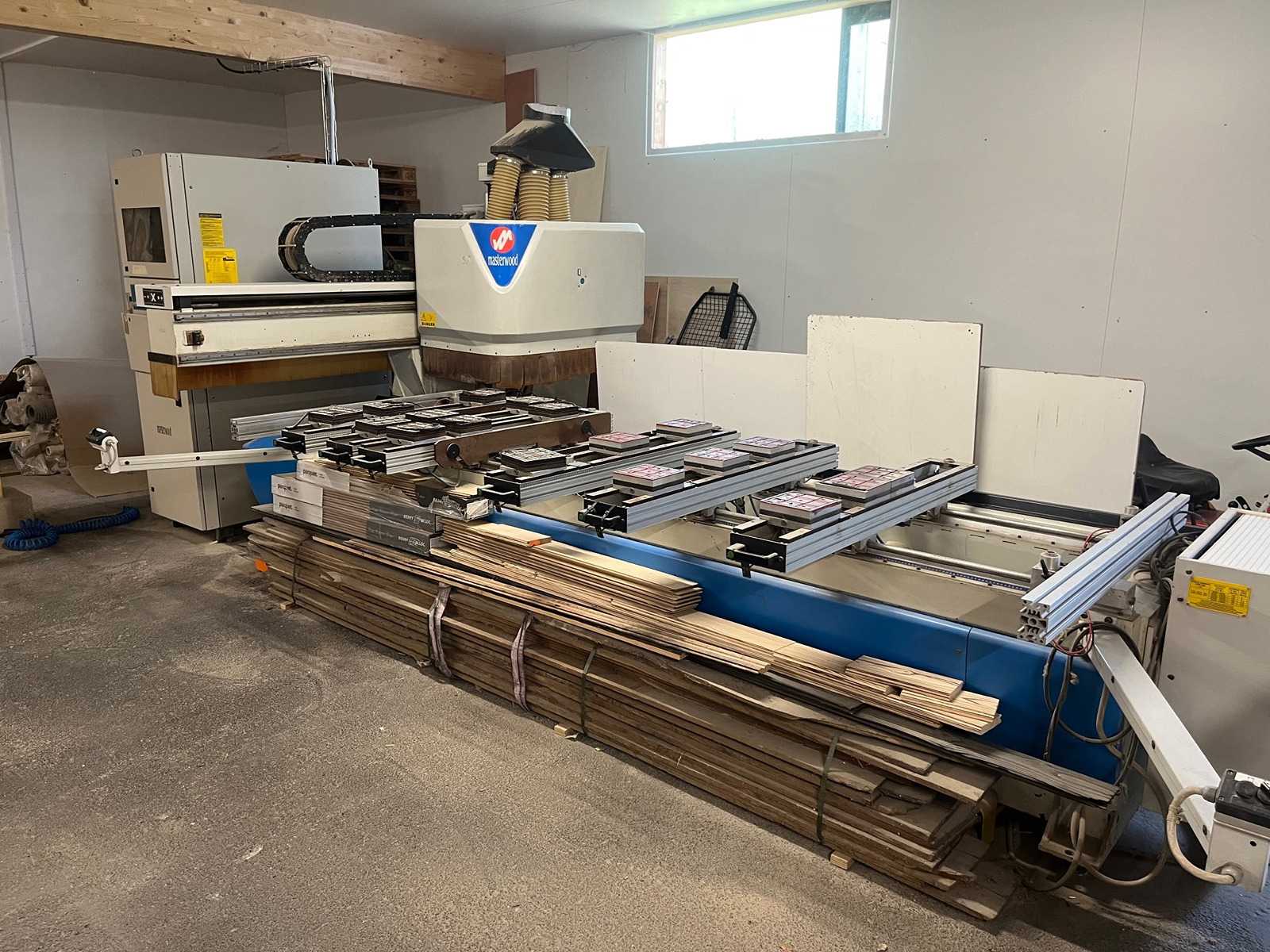

CNC Machining Center SCM Type Z 25 PLUS R4R4 Year of manufacture 2005 Working range X between stops 2500 mm Vertical bores Y 1018 mm Milling Y 1240 mm Plate throughput maximum 180 mm Maximum panel thickness Z = 100 mm Stroke Z axis 200 mm Central lubrication at the top and bottom Drilling unit with 15 vertical spindles 6 horizontal spindles, 4 in the X direction and 2 in the Y direction Spindle speed 4000 rpm. Motor power spindle rotation 2.2 kW Travel speed of the X-Y axes 42.4 m/min. Travel speed Z axis 11.5 m/min. Main spindle approx. 6.6 kW Maximum speed of the main spindle 24000 rpm. Front tool changer with 4 tool holders Rear tool changer with 4 tool holders Rectangular Vacuum Cups 16 Pieces Tool holder HSK 63 Compressed air 6/7 bar, compressed air consumption 150 l Vacuum pump 40 m³/h 3/3.6 kW Air intake speed 30 m/h Suction nozzle diameter 160 + ...
525 € add to watchlist

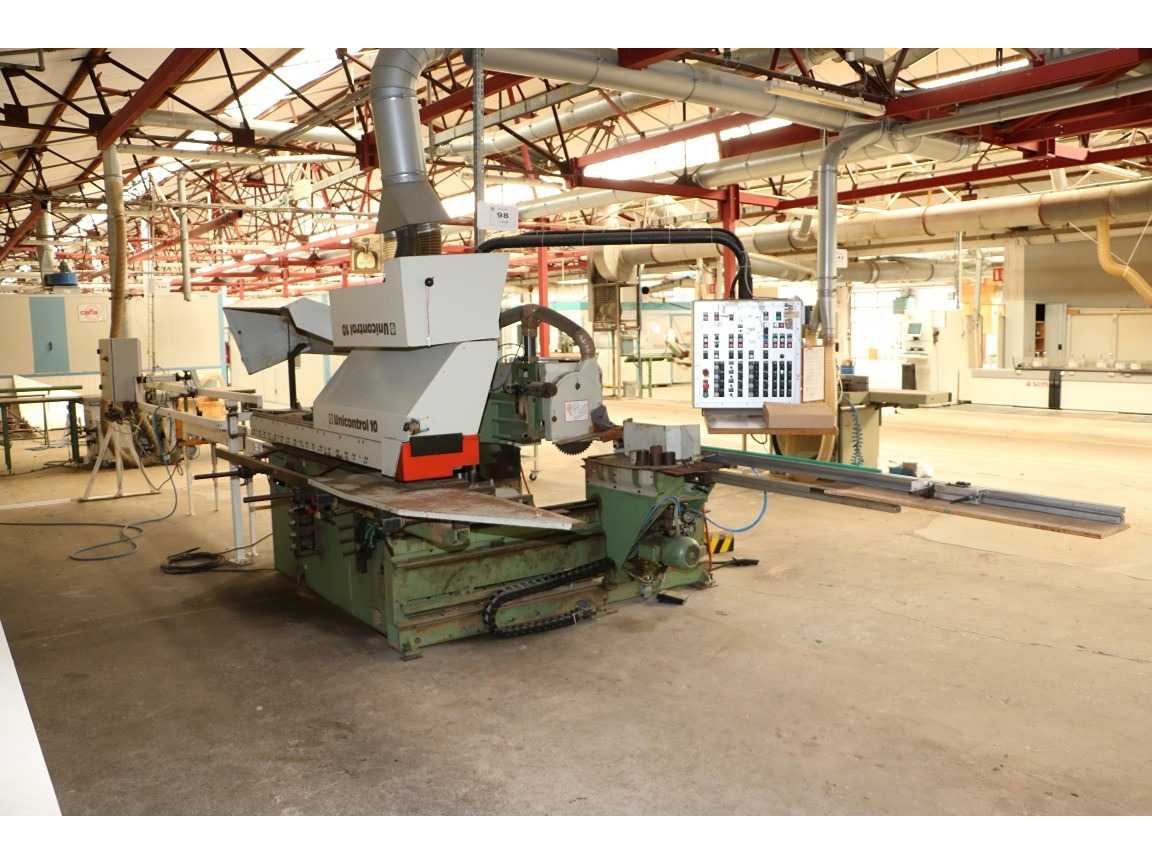

WEINIG UNICONTROL 10 3-spindle machining centre, cut-off saw and glazing saw. Width 30–220 mm, height 30–100 mm, length 330–2600 mm. Outputs 7.5–12 kW, speeds 2800–7000 rpm. Spindles Ø40 mm, transverse clamping 240 mm, longitudinal 160–240 mm. Estimated weight 2500 kg. Auction-ID: A1-46801-63
Key data: 3200 mm, 2100 mm, 200 mm
cnc machining center for nesting applications Measuring machine
TOP SELLER
15.000 € add to watchlist
Maximum workpiece width: 450 mm Maximum workpiece thickness (height): 300 mm Maximum workpiece length: 13,500 mm (13.5 m) Equipment: Cylindrical cutter 350 mm x 120 mm End mill 160 mm x 40 mm - 2 pieces Circular saw blade diameter 700 mm 2 pieces Dovetail cutter mounted on the cylindrical cutter Dovetail cutter for end mill 100 mm x 30 mm end mill mounted on horizontal unit Loctc U E Heymz Uhezoaa Chain Grooving Unit Drilling units: 1 vertical, 1 horizontal Vertical ink marker at the machine outlet Auction-ID: A7-47020-1
Key data: 5000 mm, 2100 mm, 500 mm
Machining centre with loading and unloading for sheet goods up to 5000 x 2100 mm
x-travel: 735 mmy-travel: 650 mmz-travel: 560 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Sinumerik 840DNC swivel-rotary table (A-axis and C-axis)automatic tool changer for 60 toolselectronical handwheelcoolant through spindle devicechip conveyormeasuring feelerTechnische Daten / technical details:X-Weg / X-travel 735 mmY-Weg / Y-travel 650 mmZ-Weg / Z-travel 560 mmA-Achse / A-axis +-120 °C-Achse / C-axis 360 °Spindelaufnahme / spindle taper SK40 Drehzahlbereich Spindel / spindle speed 18000 Upm /rpmVorschub / infeed 40 m/minNC-Rundtischdurchmesser / NC-rotary table diameter 650 mmGewicht der Maschine ca. / weight 9900 KgTechnische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -Technical data, accessories and description of the machine are not bindi ...
Key data: 3000 mm, 1300 mm
Flatbed panel and panel machining center equipped with three, four or five CNC axes. These CNC machines are suitable for the processing of solid wood panels – HPL – laminate boards such as FUNDERMAX® – chipboard – MDF boards – plastic boards (e.g. – PVC / PE) – synthetic resin boards and other boards and panels that can be tensioned by vacuum. The machines of the PLANUS series are offered with two different clamping options. - In version 1 - the material tension is done by vacuum on a synthetic resin plate - in version 2 - the material tension is also carried out by vacuum, but the suction blocks are located on tensioner bridges that can be moved lengthwise. Drilling – milling – sawing, all with one machine. The machines can be configured according to the customer's requirements. - Milling spindle drive power 11 kW to 18 kW - Tool holder in the SK30/SK40 ...
x-travel: 1300 mmy-travel: 720 mmz-travel: 630 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Heidenhain iTNC530NC-rotary tableNC-swivel head28-fold automatic tool changerelectronical hand wheelchip conveyorcoolant through spindle Technische Daten / technical details:Verfahrweg X / X-Travel 1300 mmVerfahrweg Y / Y-Travel 720 mmVerfahrweg Z / Z-Travel 630 mmTischgröße / table size 1000x800 mmWerkzeugschaft / spindle taper HSK63 Drehzahl / spindle speed 12000 UpM /rpmAnzahl der Werkzeugplätze / tool places in ATC 28 Gewicht der Maschine ca. / weight ca. 8500 KgTechnische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -Technical data, accessories and description of the machine are not binding.The data for this ad was created with ModulMWS - the software solution of ...
Key data: 2500 mm, 1000 mm, 80 mm
Weeke BHX 500 with hedgehog buffer in the inlet Hedgehog buffer with 30 buffer places, length overall: 5700 mm Effective width: 2000 mm Manually movable Weeke machining center with one machining support at the top and one at the bottom Insertion table with automatic workpiece feeding and positioning WORKPIECE DIMENSIONS min. workpiece length: 200 mm max. workpiece length: 2500 mm min. workpiece width: 70 mm max. workpiece width: 1000 mm min. workpiece thickness: 4 mm max. workpiece thickness: 80 mm max. workpiece stacking: 2 pcs. Machine Configuration: 2V32 HIGH SPEED 7500 Vertical drilling unit arranged in the upper and lower machining support, each with 32 drilling spindles (individually controllable with variable speed range). 2H8X/2Y Horizontal drilling unit arranged in the upper and lower processing support with 10 over Drill spindles can be called up individu ...
x-travel: 1100 mmy-travel: 650 mmz-travel: 600 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Sinumerik 828D2-axes dividing head (4th and 5th axis)electronical hand wheel24-fold automatic tool changercoolant through spindle devicechip screwmeasuring feelerTechnische Daten / technical details:Verfahrweg X / X-Travel 1100 mmVerfahrweg Y / Y-Travel 650 mmVerfahrweg Z / Z-Travel 600 mmTischgröße / table size 1300x600 mmWerkzeugschaft / spindle taper SK40 Drehzahlbereich / spindle speed 8000 UpM /rpmAnzahl der Werkzeugplätze / tool places in ATC 24 Eilgang X,Y,Z / rapid feed X,Y,Z 15,15,15 m/minGewicht der Maschine ca. / weight ca. 7400 kgTechnische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -Technical data, accessories and description of the machine are not ...
Key data: 3050 mm, 1200 mm, 120 mm
Technical version: Console table 3050 x 1200 mm with manually movable 6 brackets, 2 vacuum cups per console and a pneumatic excavation rail Spot laser set-up aid, vacuum pump CNC control XILOG Plus Main spindle 7.5 kW HSK 63F with C-axis, 1500 – 24,000 rpm Tool changer plate 10-fold 1 adapter unit swivel saw Drill head with: 12 vertical spindles, 4+2 horizontal spindles, groove saw Installation dimensions: 6800 x 3040 mm Weight: 2850 kg
x-travel: 1520 mmy-travel: 520 mmz-travel: 420 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Sinumerik 840DNC-swivel-rotary table (B-axis and C-axis)automatic tool changer for 30 toolscoolant devicechip conveyorTechnische Daten / technical details:X-Weg / X-travel 1520 mmY-Weg / Y-travel 520 mmZ-Weg / Z-travel 420 mmB-Achse Schwenktisch / B-axis swivel table -90 - +110 °C-Achse Rundtisch / C-axis rotary table 360 °NC-Schwenk-Rundtischdurchmesser / NC swivel-rotary table diameter 500 mmStarrtischaufspannfläche / fixed table clamping area 920 x 540 mmSpindelaufnahme / spindle taper SK40 Drehzahl Spindel / spindle speed 12000 Upm /rpmEilgang / rapid feed 32 m/minAntriebsleistung Spindel / drive capacity spindle 25 kWGewicht der Maschine ca. / weight 10500 kg ...
