4 side used for sale

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

x-travel:800 mm y-travel:410 mm z-travel:510 mm control:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/min table surface area:1100 x 450 mm tool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mm max. tool weight:8 kg power requirement:7,5/5,5 kW turning speed range:6000 1/min weight of the machine ca.:6,3 t Under offer is a complete CNC tool shop, which will be given up due to old age of owner. The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine. All measuring devices also come with the machine. Upon request orders for parts to be made can be passed on to new owner. This is a low cost all inclusive opportunity for a "Startup"

x-travel:560 mm y-travel:560 mm z-travel:660 mm control:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/min spindle drive:25/ 35 kW max. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mm Tool diameter with no neighbouring tools:170 mm tool length - max.:450 mm weight of tools max.:12 kg numbers of pallets:2 Pallet dimension:400 x 400 mm max. workpiece diameter:630 mm workpiece height max.:900 mm table load:400 kg rapid travel x/y/z:60 m/min Feed x/y/z:60 m/min internal coolant system feed:70 bar weight of the machine ca.:8,5 t dimensions:3200 x 4800 x 2900 mm Renishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spind ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

:KVL-450 | KVL-600 | KVL-800| KVL-1100 turning diameter:450|600|800|1100 mm swing diameter:550|650|1000|1250 mm turning height:450|500|750/950|1000 mm spindle nose:A2-8|A2-8|A2-11|A2-15 table rotation speed:50-2500|50-2250|20-1500|20-600 U/min Travel of Ram (vertical):450|500|800 / 1000 (Opt.)|1000 mm Travel of ram (horiz.):300|340|500|700 mm rapid power traverse in X-and Z direction:20/24|20/24|20/20|10/10 m/min Tool changer:8/10/12 mit vertikaler oder horizontaler Scheibe tool taper:VDI40/VDI50 oder Schaftaufnahme drive capacity - spindle motor:11/15|15/18.5|18.5/22|37/45 kW Machine height:2600|2910|4020|4605 mm weight of the machine ca.:4500|6000|13000|18000 kg hydraulic motor:2,2 kW servo motor X-axis:1,6|1,6|4|7 kw servo motor Z-axis:3|3|7|7 kw coolant pump drive:0,75+1,1|0,75+1,1|0,75+0,75+1,1|0,75+0,75+1,1 kW :35|40|50|70 kva CNC controller:Siemens/Fanuc/Fagor CNC controls from:Si ...

pressure:250 t table length:4000 mm table width:3000 mm Controls:SIEMENS SIMATIC C7 PRESS DESIGN:. - frame design : 4 column :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):250 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - tool weight max.:100000 kg - number of T-slots:12 - distance between T-slots:375 mm - height above floor level:390 mm RAM:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - number of T-slots:12 - distance between T-slots:375 mm - stroke:2900 mm - tool weight max.:50000 kg RAM (HYDR. PRESS):. - number of main-cylinders:1 - approximation velocity max.:180 mm/s - working velocity max.:50 mm/s - restoring force of ram:95 to TOOL ASSEMBLY DIMENSIONS:. - distance table - ram max.:2750 mm - distance between columns (H-frame):4100 mm - Free passage be ...

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

degree:900 working heigth:100 mm width:4 x 330 mm dimensions of the machine ca.:20,4 x 3,5 x 2,5 m GENERAL INFORMATION ?Electrically heated roller kiln Mod. TR 18/4x33/10-E 90 ?Condition: as new. Price as new 1,2 Mio. ?. ?Offer for immediate sale There are many different areas of application (e.g. burning in metal, roof tiles, etc.). SPECIFICATIONS The kiln is an electrically heated roller kiln. The product is mechanically transported through the kiln on a roller conveyor. The kiln is designed in such a way that no special foundation is required. The usual concreted, screededflat hall floor is sufficient. The dimensions of the sections of the plant, which consists of heating, sintering and cooling zones, are adapted to the requirements of the temperature curve. Temperatures and pressures in the kiln are controlled automatically. The kiln casings are modular. Each housing is lined with di ...

pressure:1000 t table length:4000 mm table width:1600 mm Controls:SIEMENS S7-1500F PRESS DESIGN:. - frame design : Transfer press :. - Drive type : mechnical :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. - number of tables:2 PRESS FORCES:. - total force (nominal):1000 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):1600 mm - height above floor level:600 mm - autom. tool clamping device : yes :. RAM:. - stroke:400 mm RAM (MECHAN. PRESS):. - ram adjustment:300 mm - ram adjustment:100 mm - number of strokes min:8 /min - number of strokes max:50 /min - hydraulic overload protection : yes :. TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):900 mm - shut height (stroke down, adjustment up):766 mm - distance between columns (H-frame):4250 mm - Free passage between side c ...

turning diameter:760 mm turning length:1.524 mm spindle speeds::3.300/12.000 MILL/3.300 spindle diameter:78/78 mm no. of tools in magazin:80 tool taper:Capto max. tool length:400 mm max. tool diameter:125/90 mm weight of the machine ca.:13,4 t Machine with Mazak Matrix CNC control Main and counter spindles Milling unit (milling spindle) Kitagawa QJ-312 dual-action chuck Pallet pool with robot IKZ Exhaust system not included

turning diameter:830 mm turning length:4.000 mm turning diameter over bed slide:540 spindle bore:130 mm turning speed range:2 - 1.600 U/min rapid speed:4/5 m/min feed speeds:1 - 2.000 mm/min total power requirement:55 kW dimensions of the machine ca.:7 x 2,2 x 2 m weight of the machine ca.:7,5 t

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:710 x 410 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 B table load:180 kg no. of flutes:8 groove width:14/25 mm tool taper:SK 40 speeds::20 - 3000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Year:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:400 x 710 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 table load:180 kg no. of flutes:8 groove width:14/45 mm tool taper:ISA 40 speeds::20 - 3000 /28- 4000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Documents:inkl. Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

x-travel:500 mm y-travel:250 mm z-travel:325 mm table-size:400 x 200 mm T-slots:10/ 20 mm T-slots:4 St workpiece height max.:300 mm template table:380 x 380 mm speeds::2500 - 20000 U/min no. of turning speeds:3 total power requirement:0,25 kW weight of the machine ca.:430 kg dimensions of the machine ca.:1000 x 1200 x 1500 mm

saw blade diameter:400 mm cutting diameter:400 mm material:Vollmaterial 20 - 130 mm material:Walzprofile 40 - 120 mm material diameter from - to::Rohr u. Profilfrohr bis 100 x 14 mm sawblade width:4 mm total power requirement:5,1 kW weight of the machine ca.:1850 kg dimensions of the machine ca.:3300 x 1630 x 1960 mm Documents:vorhanden

x-travel:850 mm y-travel:500 mm z-travel:610 mm rotary table::400 mm spindle turning speed range:12.000 1/min drive capacity - spindle motor:17/10 kW control:HEIDENHAIN iTNC 530 Tool changer:40- fach spindle taper ISO:SK 40 weight of the machine ca.:7,7 t total power requirement:28,5 kW dimensions of the machine ca.:3 x 2.70 x 3,2 m 5-axis simultaneously universal-machining center, NC-rotary-swivelling table dia. 400mm, 3D infrared touchprobe, el. handwheel, chipconveyor, airblast through spindle, internal coolant supply 40bar, flushgun, direct measuring system, approx. 38.000h "machine on", approx. 14.500h "spindle on"

x-travel:1270 mm y-travel:660 mm z-travel:610 mm table surface area:1500 x 660 mm table load:1,3 t control:ULTIMAX 4 turning speeds:10000 1/min spindle:15 kW Tool bore:SK 40 rapid traverse:X/Y/Z 30/30/20 m/min tool change unit:24 Pos. total power requirement:30 kVA weight of the machine ca.:9,5 t dimensions of the machine ca.:4,8 x 4,56 x 2,95 m vertical machining center, el. handwheel, chipconveyor,

turning diameter:420 turning length:1230 mm swing over bed:700 mm swing diameter over slide rest:550 mm centre distance:1390 mm y-axis:+/- 60 mm turning speeds:3500 1/min turret (x-stations):12 power capacity:22 / 18,5 kW :1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min :76 mm total power requirement:50 kVA weight:7,8 t dimensions of the machine ca.:4,10 x 2,05 x 2,21 m CNC lathe with Y-Axis and driven tools, C-axis, tool eye, hydraulic 3-chaw-juck D= 250 mm, reinforced pump 15 bar, pressure-compensated clamping cylinder , 2 step clamping pressure, prepared for steady (without steady), progr. tailstock (dragging device), live tool device (3,7 kW, 3.000 rpm), chipconveyor, 1 pcs. live tool included approx. 15.500 working hours

x-travel:600 mm y-travel:580 mm z-travel:580 mm numbers of pallets:2 pallet size::400 x 400 mm max. workpiece weight:400 kg spindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/min rapid speed:50 m/min total power requirement:25 kW weight of the machine ca.:12 t dimensions of the machine ca.:3,6 x 3,6 x 2,9 m with CNC SEICOS 16 M ( FANUC base ) autom. toolchanger 61-pockets pallet indexing 1° chip conveyor and coolant attachment exhauster clamping cube and diverse toolholders

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

pressure:400 t distance between columns:3250 mm distance table/ram, max. stroke up, adjustment up:1000 mm stroke:800 mm table surface area:3250 x 1400 mm table height over floor:1250 mm die cushion capacity:170 t die cushion stroke:200 mm die cushion area:1800 x 1000 mm distance between cutting impact cushioning:2610 mm side window:800 mm ram surface:3250 x 1400 mm return capacity:51 t speed down:300 mm/s speed up:300 mm/s working speed:16 - 33 mm/s quantity of oil:2900 l power requirement:100,0 kW weight:70,0 t Dimensions (WxDxH):4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic

pressure:400 t distance between columns:1250 mm stroke:250 fix mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:825 mm table surface area:1000 x 900 mm column travel -side:400 x 700 mm ram surface:1000 x 900 mm ram adjustment:100 mm capacity of ejector in table:40 t ejector stroke:160 mm power capacity:270,0 kW weight:44,0 t Dimensions (WxDxH):2,4 x 3,6 x 7,2 m height over floor:6,4 m

material width:400 mm coil weight:3,0 t material thickness:0,5 - 4,0 mm coil internal diameter:460 - 530 mm coil external diameter:1500 mm no. of straightening rolls:9 straightening roll diameter:50 mm no. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mm material cross-cut:1600 mm² speed of coil line:0 - 20 m/min power requirement:35,0 kW weight:10,5 t dimensions (WxDxH):10,0 x 2,5 x 2,9 m straightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic

pressure:063 t throat:450 mm stroke:8 - 100 mm no. of strokes:65 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:720 x 800 mm hole in the table:280/250 mm table height over floor:800 mm passage to the back:290 mm ram surface:450 x 280 mm ram adjustment:63 mm power requirement:7,5 kW weight:4,7 t dimensions (WxDxH):1,3 x 2,0 x 2,65 m clutch:pneumatisch overload protection in ram:mechanisch

Pressure:063 t throat:400 mm stroke:16 - 90 mm no. of strokes:60 /min distance table/ram, max. stroke up, adjustment up:350 mm table surface area:1000 x 750 mm hole in the table:260 x 140 mm table height over floor:710 mm ram surface:600 x 220 mm ram adjustment:50 mm weight:4,3 t dimensions (WxDxH):1,1 x 2,6 x 2,4 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatisch overload protection in ram:mechanisch ram counterbalance:pneumatisch

pressure:40 t throat:360 mm stroke:400 mm distance table/ram, max. stroke up, adjustment up:600 mm table surface area:620 x 500 mm pressure of drawing cushion in table:16 t stroke of drawing cushion in table:150 mm table height over floor:850 mm ram surface:300 x 250 mm speed down:200 mm/s speed up:200 mm/s working speed:40 mm/s power requirement:11,0 kW weight:2,8 t dimensions (WxDxH):1,1 x 1,7 x 3,0 m drawing cushion in table:hydraulisch

pressure:400 t throat:520 mm stroke:20 - 200 mm no. of strokes:30 /min distance table/ram, max. stroke up, adjustment up:680 mm table surface area:1600 x 1000 mm table height over floor:715 mm passage to the back:1000 mm ram surface:1300 x 800 mm ram adjustment:130 mm power requirement:38,0 kW weight:41,0 t dimensions (WxDxH):2,1 x 2,6 x 4,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:pneumatic, Ortlinghaus overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic

pressure:400 t stroke:280 mm no. of strokes:56 Hub/min distance table/ram, max. stroke up, adjustment up:680 mm table surface area:560 x 750 mm allowed max. force:600 t blow die to die:800 t spindle diameter:200 mm ram surface:560 x 560 mm height over floor:4,1 m power requirement:37,0 kW weight:12,0 t dimensions (WxDxH):2,2 x 2,0 x 4,25 m

pressure:40 t throat:350 mm material thickness: - 12 mm stamping power-diameter at 12 mm material thickness:24 mm stamping power-diameter at 6 mm material thickness:50 mm power requirement:2,2 kW weight:1,5 t dimensions (WxDxH):0,8 x 1,5 x 1,9 m

pressure:400 t distance between columns:1100 mm stroke:250 mm no. of strokes:25 - 75 /min distance table/ram, max. stroke up, adjustment up:900 mm table surface area:1100 x 965 mm capacity of ejector in table:30 t ejector stroke of ejector in table:80 mm capacity of ejector in ram:3 t stroke of ejector in ram:60 / 70 mm ram surface:980 x 800 mm column travel -side:800 mm ram adjustment:20 mm power capacity:80,0 + 5,5 kW weight:47,0 t Dimensions (WxDxH):3,5 x 3,3 x 6,0 m weight of switch cabinet:1,4 t dimensions of electrical cabinet (WxDxH):4,9 x 0,5 x 2,6 m ejector in ram:hydraulic

pressure:120 t distance between columns:430 mm stroke:125 mm distance table/ram, stroke up:400 mm table surface area:430 x 450 mm table height over floor:860 mm side window:230 mm ram surface:250 mm working speed:10 mm/s power requirement:11,0 kW weight:2,5 t dimensions (WxDxH):1,6 x 1,3 x 2,4 m German Safety: permitted for manual loading:CE-sign

pressure:160 t throat:400 mm stroke:30 - 200 mm no. of strokes:50 /min distance table/ram, max. stroke up, adjustment up:600 mm table surface area:1000 x 770 mm table height over floor:810 mm hole in the table:360 mm Passage to the back:450 mm ram surface:710 x 450 mm ram adjustment:110 mm power requirement:15,0 kW weight:10,5 t Dimensions (WxDxH):1,7 x 2,0 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:hydraulic overload protection in ram:mechanical ram counterbalance:pneumatic

pressure:400 t distance between columns:1060 mm stroke:450 mm no. of strokes:15 - 30 /min distance table/ram, max. stroke up, adjustment up:1160 mm table surface area:1000 x 700 mm capacity of ejector in table:2 x 16 t ejector stroke of ejector in table:125 mm Die cushion pressure in table:120 t Die cushion stroke in table:2 mm capacity of ejector in ram:2 x 4 t stroke of ejector in ram:100 mm ram surface:1000 x 700 mm column travel -side:630 mm power capacity:55,0 kW weight:50,0 t die cushion in table:2. station

General SKU244Y171 MakeRiera Nadeu Serial10590/P19/00726 Type200D 800 x 400 PI Main Features MaterialStainless steel Motor11 KW Inlet diameter22 mm Specified Features - Basket centrifuge Basket centrifugecheck Closed basketDuplex 2205 Capacity100 dm³ Basket sizesø 800 x 400 mm Max. loading weight125 kg Hydraulic operatedcheck Liquid outletDN100 With hydraulic unitHydra power Motor1,50 kW, 400 V, 1445 rpm With variable speed drivecheck Max. basket speed2600 rpm Max. temperature0° / 80 °C MaterialStainless steel 1.4404 (316L) Information Year of construction2020 LocationBarneveld Mounted on foundation platecheck With switchgearcheck Floorspace2,60x1,30 m Total height2,00 m Weight3400 kg CEcheck Extra Specifications Maximum centrifuge factor: 3,000 g : Pressure casing: 0 / 40 mbar : Maximum allowable specific weight: 1,250 kg/m³ : Control system: ...

General SKU327X691 MakeDe Dietrich TypeAE 400 No.69199 Year of construction2008 Mounted on legscheck Pressure Working pressure6 Bar Vacuum possiblecheck Working pressure jacket6 Bar Vacuum possible jacketcheck Main Features MaterialGlass Volume533 Ltr. Motor1.5 KW Specified Features - Glass-lined Reactor Reactorcheck Capacity400 l (533 l.) Vessel sizesø 1000 x 1000 mm Dished bottomcheck Top connectionscheck OutletDN100 with pneumatic valve With jacketcheck 120 l. Max. temperature—5 / 90 °C, jacket temp: —25 / 90 °C With propellor stirrercheck Motor1,5 kW (400 V, 1390 rpm, (Ex)) Speed mixing shaft168 rpm Glass Reactors MaterialGlass - Enamel (3009U) Information LocationBarneveld Floorspace1,20 x 1,20 m Total height3,30 m Weight1300 kg CEcheck Extra SpecificationsThe vessel is designed per Directive 94/9/EC (ATEX), Category II 2 G, Zone 1, Gas Gr ...

General SKU020Y107 MakeDrais Mannheim TypeTurbuMix TM-400E FM1 No.56009 Year of construction1999 LocationBarneveld Main Features MaterialStainless steel Volume400 Ltr. Motor18.5 KW Specified Features - Powder turbo mixer Powder turbo mixercheck T-armscheck Capacity400 l. Useful capacity120—300 l. Trough sizesø 700 x 1050 mm Top connectionsø 300 mm, ø 80 mm, ø 65 mm Inspection hatchø 700 mm Outletø 125 mm Motor8,2/11,0 kW 400 V With lump breakercheck Motor7,5 kW 400/690 V Speed lumpbreaker1450 rpm MaterialStainless steel 1.4541 (321), Stainless steel 1.4571 (316Ti) Information With switchgearcheck Floorspace3,0 x 2,1 m Total height1,9 mTea, herbs & coffeeStarchOther chemicalSpicesCatalysts & fillersFeed additivesDiscountOther pharmaceuticsCosmeticsFood additivesSugarAnimal feedOther feedConfectionerySolid pharmaceuticsDyes & pigmentsPowder turbo mixers ...

General SKU292T670 MakeVan Tongeren kennemer BV TypeZ43430 Mach.No.T4404 Year of construction2015 Main Features Motor3 KW Length7000 mm Inlet diameter430 mm Specified Features - Horizontal screw conveyor MaterialStainless steel 1.4301 (304), Stainless steel 1.4401 (316) Horizontal conveyor screwcheck Tube-typecheck Diameter420 mm Length7000 mm Shaft diameter260 mm Pitch200 mm Inletdia. 430 mm Outletdia. 221 mm Max. temperature100 °C Motor3 kW 219-241/380-420 Volt (Ex) Height between in- and outlet5890 mm Information LocationBarneveld Floorspace0,7x8,9 m Total height0,9 m CEcheck ATEX compatiblecheckTea, herbs & coffeeFine chemicalsStarchOther chemicalRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubricants & o ...

General SKU116S444 MakeHaagen & Rinau TypeHRT-4000 No.8894086, Vessel 44852/1 Year of construction1990 Mounted on framecheck Pressure Working pressure6 Bar Vacuum possiblecheck Working pressure jacket6 Bar Main Features MaterialStainless steel Volume4660 Ltr. Motor55 KW Specified Features - Paddle dryer Paddle dryer(1x) Capacity4660 Ltr. Trough sizesdia. 1450x3350 mm Manholedia. 500 mm With jacket(300 Ltr.) Shaft can be heated(420 Ltr.) Max. temperature250 °C With mechanical sealcheck Motor55 kW, 167-500 Volt Speed mixing shaft1,89-5,68 rpm MaterialStainless steel 1.4571 (316Ti) Information LocationBarneveld Floorspace6,5x1,8 m Total height2,7 m Weight± 16.500 kg (incl. drive unit)Fine chemicalsStarchOther chemicalBiotechnologyAgrochemicalsCatalysts & fillersFeed additivesDiscountPaddle dryersOther pharmaceuticsCosmeticsSugarAnimal feedOther feedConfecti ...

General SKU013X058 MakeKühni AG Allschwil No.220850 Year of construction1983 Mounted on legscheck Specified Features - Stainless Steel Reactor Material finishMirror polished Pressure Working pressure2 Bar Vacuum possiblecheck Working pressure jacket6 Bar Vacuum possible jacketcheck Main Features MaterialStainless steel Volume480 Ltr. Motor1 KW Stainless Steel Reactors Reactor(1x) Capacity480 Ltr Vessel sizesdia. 800x900mm, Vessel insulated Dished bottomcheck Dished top sidecheck Manholedia. 260mm Top connectionsdia. 250mm + dia. 40mm + dia. 25mm With jacket(50 Ltr) Max. temperature200 Degr. C. With propellor stirrerViscojet stirrer Motor1,0 KW, 220/380 Volt, With variable sp. drive Speed mixing shaft± 113-1130 rpm MaterialStainless steel 1.4435 (316L) Information LocationBarneveld With switchcheck Floorspace1,1x1,0 M Total height2,3 M Weight800 KG  ...

General SKU323S578 MakeConstructiebedrijf verkouille LocationBarneveld TypeASME VIII DIV1 Pressure Working pressure4 Bar Vacuum possiblecheck Working pressure jacket6 Bar Main Features MaterialStainless steel Volume4500 Ltr. Motor3 KW Specified Features - Stainless Steel Reactor MaterialStainless steel 1.4404 (316L) Stainless Steel Reactors Reactorcheck Capacity4500 Ltr. Vessel sizesdia. 1600x2665 mm Dished bottomcheck Dished top sidecheck Manhole600 mm Top connections3100, 500, 500, 500, 100, OutletDN 100 Half coil jacketedcheck Max. temperature-20 °C/ 160 °C With paddle stirrercheck Motor3 kW 220/300 Volt Information No.A0202 Year of construction2002 Floorspace2x2 m Total height5 m Weight3000 kgFine chemicalsOther chemicalRubberAgrochemicalsPlastic & polymersStainless Steel ReactorsCatalysts & fillersSolventsDetergent & surf.Other pharmaceuticsCosmet ...

General SKU355W955 MakeWilhelm Niemann LocationBarneveld TypeKDV 491 V Main Features MaterialStainless steel Volume1000 Ltr. Motor36 KW Specified Features - Dissolver Dissolvercheck Shaft length600 mm Disc diameter500 mm Between shaft and frame700 mm With covercheck Motor36 kW, (380 volt, 1450 rpm, (Ex)) With pans2 Capacity1000 l Pan sizesdia. 1220x980 mm and 1100x950 mm OutletDia. 60 mm With hydraulic liftingcheck Motor1,1kW, 380V, 2840rpm(EX) MaterialHard chrome, Mild steel, Stainless steel Information No.78779 Year of constructionunknown With switchcheck Floorspace3,0x1,8 m Total height2,2 m Weight2800kg ATEX compatiblecheckFine chemicalsOther chemicalDissolversCatalysts & fillersSolventsDetergent & surf.Lubricants & oleoDyes & pigmentsMinerals & inorganicPaints & coatingsWilhelm NiemannIndustries > Chemical > Fine chemicalsIndustries > Chemical > Other  ...

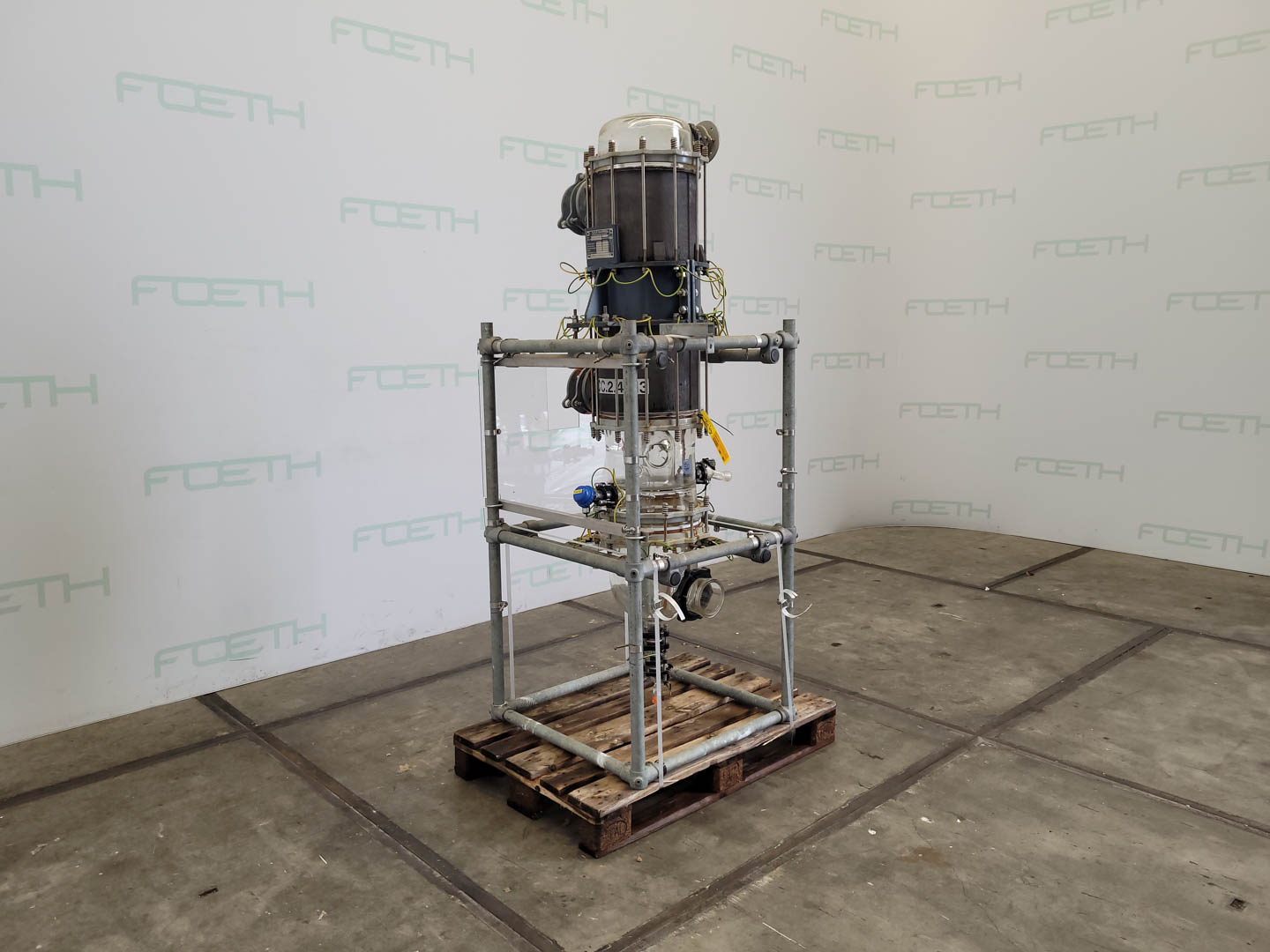

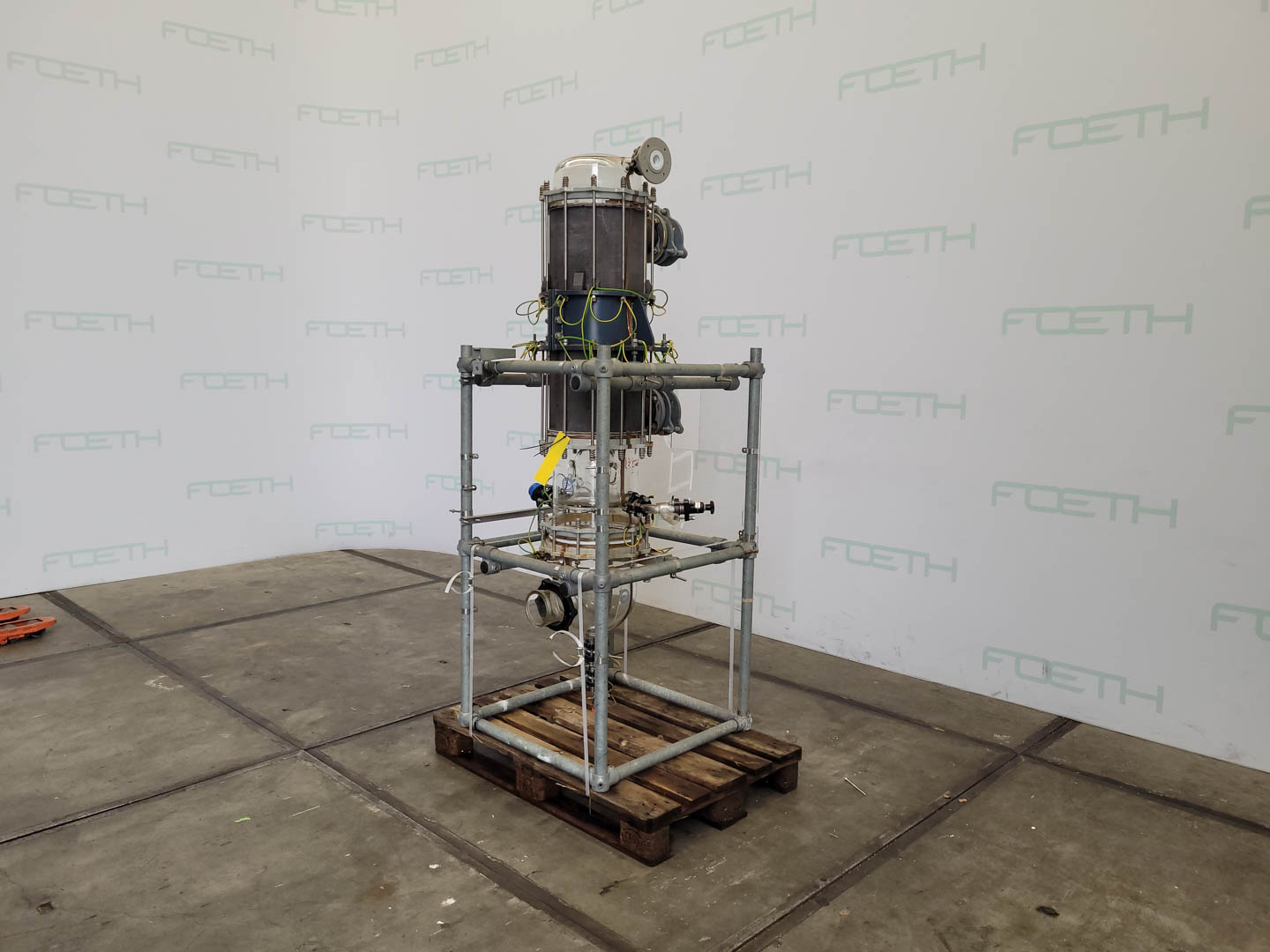

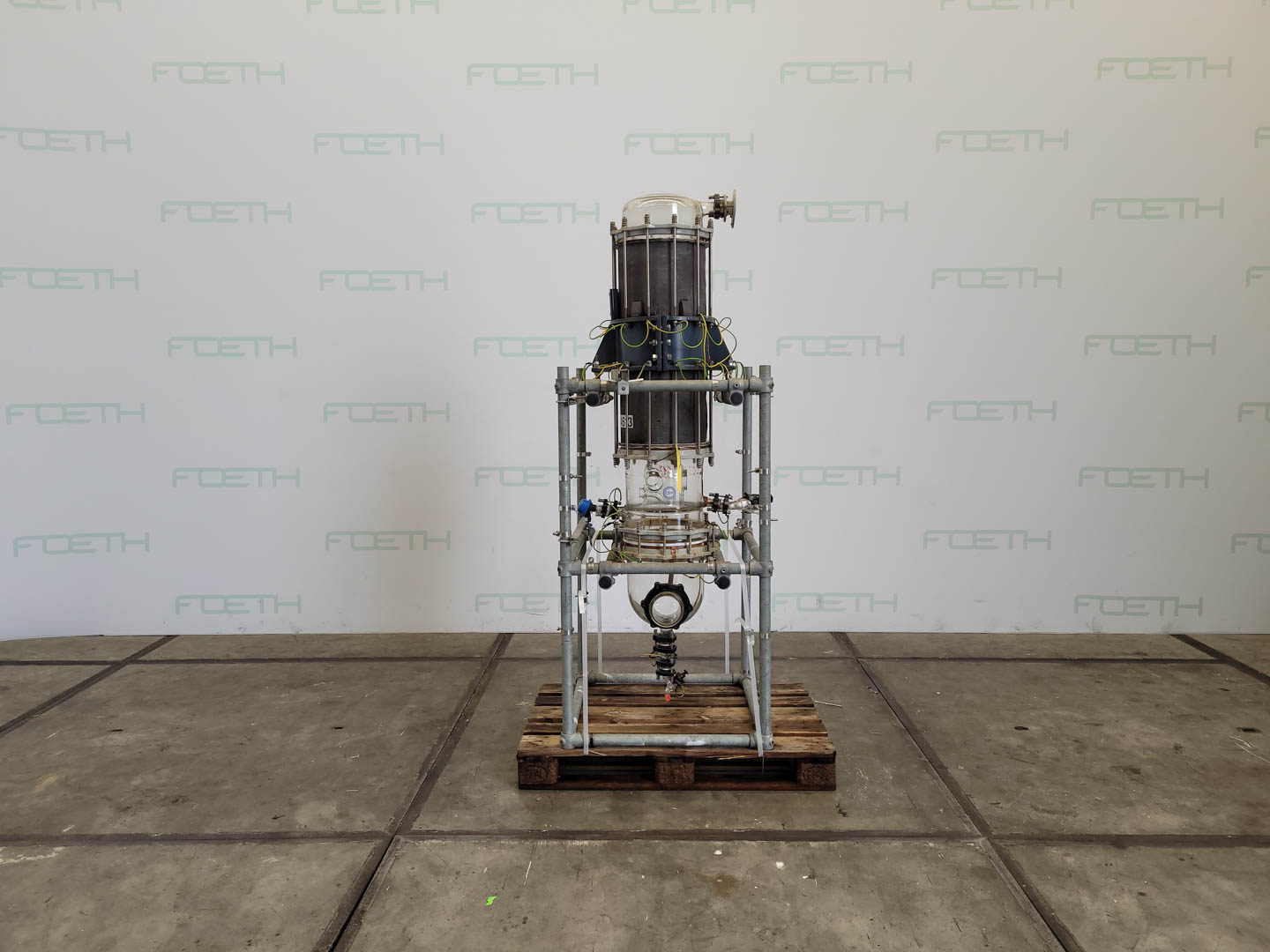

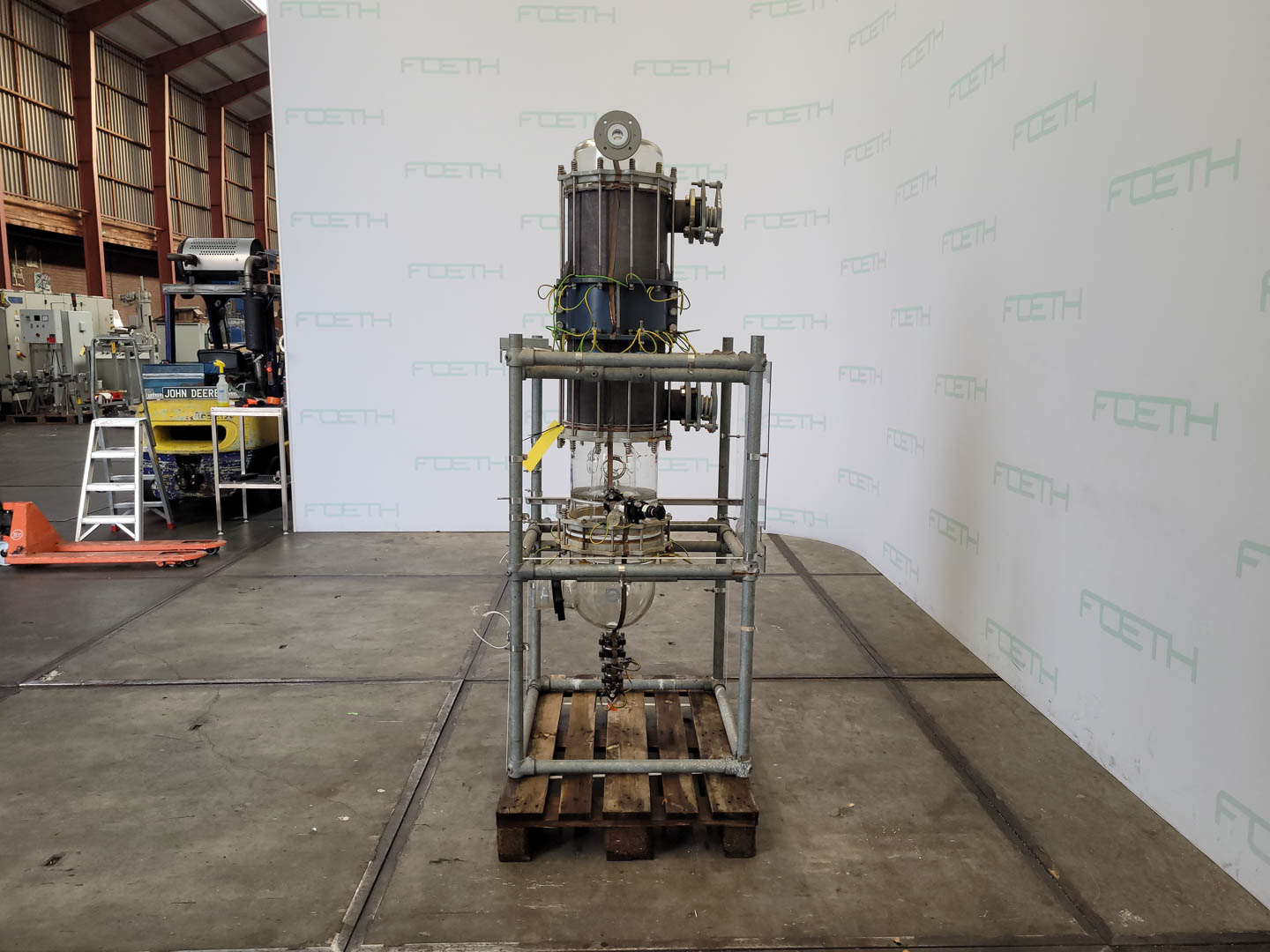

General SKU204W033 MakeGab Neumann LocationBarneveld TypeG1-300-7/10-Q Pressure Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Diabon Tube (Material)Diabon Surface2.45 m2 Specified Features - Shell and tube heat exchanger MaterialGlass, Graphite Diabon Heat exchangercheck Verticalcheck Heating surface2,45 m² Tube capacity10,5 l. Max. temperature-30°C/+180°C Shell capacity10,5 l. Shell diameter345 mm Shell length770 mm Max. temperature-30°C/+80°C Shell connectionscheck Information No.19914-16517 Year of construction2001 Floorspace0,85x0,80 m Total height2,15 m Weight135 kgFine chemicalsStarchOther chemicalRubberBiotechnologyShell and tube heat exchangersAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesPaper & otherSolventsDetergent & surf ...

General SKU327W690 LocationBarneveld MakeDrais Mannheim TypeTR400 E PS EMS 180 Pressure Working pressure40 Bar Vacuum possiblecheck Working pressure jacket6 Bar Vacuum possible jacketcheck Technical specs Max. temperature165 °C Main Features MaterialStainless steel Volume540 Ltr. Specified Features - Paddle dryer Paddle dryercheck Capacity550 l (netto 400 l ) Trough sizes± 700x800 mm Manholecheck dia. 700 mm OutletDN125 With jacketcheck 29 l Max. temperature165°C With mechanical sealcheck Motorcheck Speed mixing shaft45-135 rpm With lump breakercheck 1500 rpm Motorcheck MaterialStainless steel Information No.5700 Year of construction1998 Floorspace3,1 x1,9 m Total height3,2 m Weight5800 kg Extra SpecificationsShaft seal: double-acting mechanical seals Heating/cooling double jacket (max. 6 bar) and head condenser (vapor dome) Paddle dryersFood additi ...

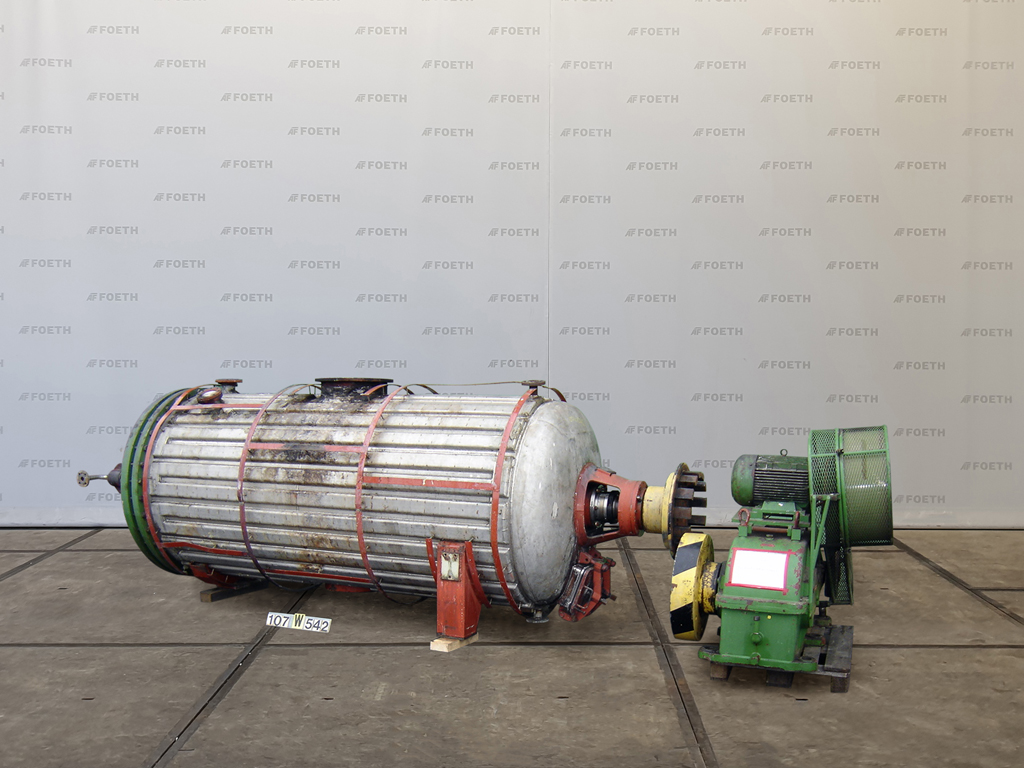

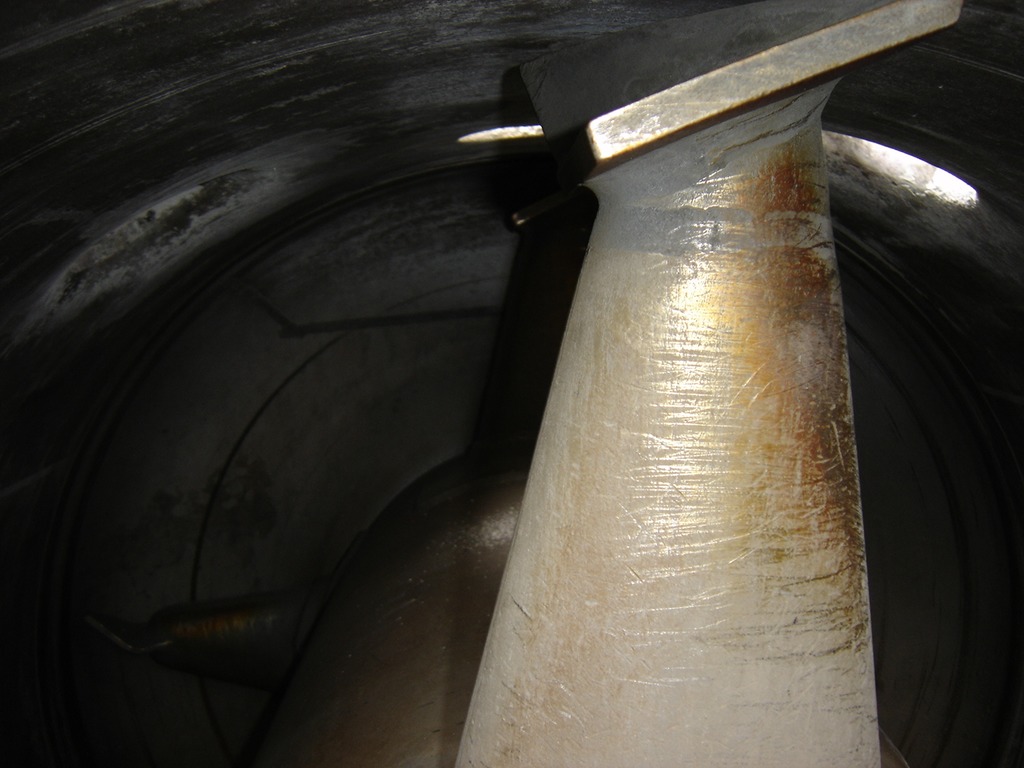

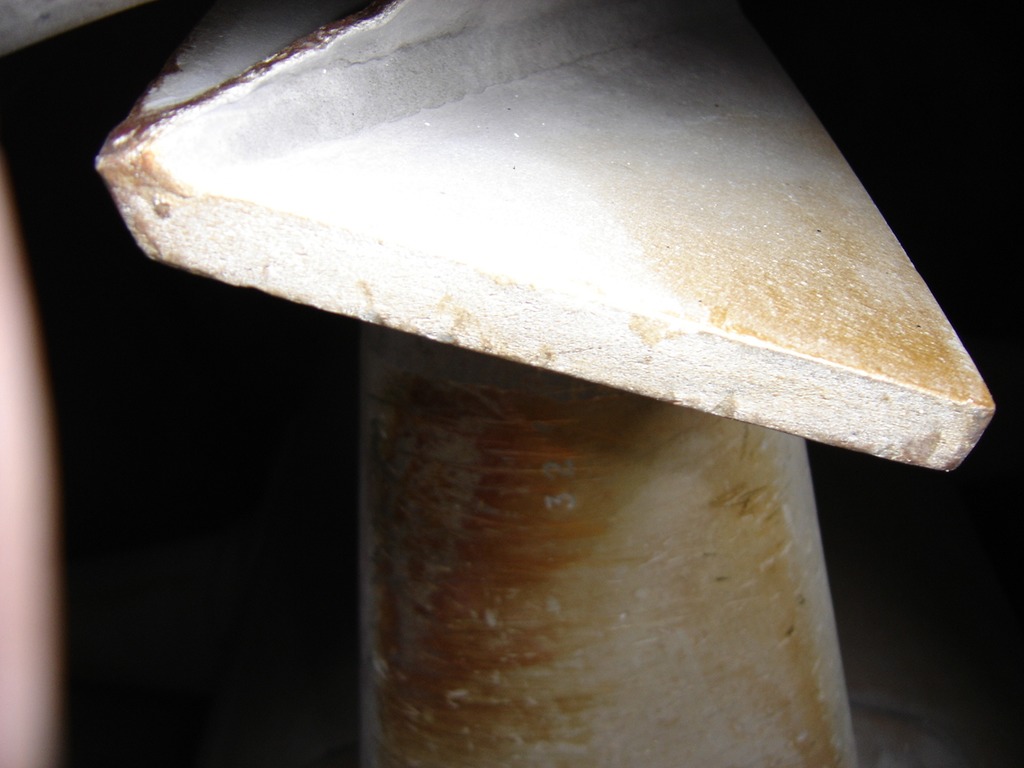

General SKU107W542 MakeVevey S.A. No.256 Year of construction1963 LocationBarneveld Pressure Working pressure jacket6 Bar Main Features MaterialStainless steel Volume4000 Ltr. Motor15 KW Specified Features - Paddle dryer Paddle dryer(1x) Capacity4000 Ltr Trough sizesdia. 1400x3000mm Manhole± 400x250mm (2x) With jacketcheck Shaft can be heatedcheck With adjustable packing glandscheck Motor± 15,0 KW MaterialStainless steelFine chemicalsStarchOther chemicalBiotechnologyAgrochemicalsCatalysts & fillersFeed additivesDiscountPaddle dryersOther pharmaceuticsCosmeticsSugarAnimal feedOther feedConfectionerySolid pharmaceuticsDyes & pigmentsBiopharmaceuticalAPIMinerals & inorganicOintmentsGeneric medicinesPowdered foodsVeveyIndustries > Chemical > Fine chemicalsIndustries > Food & Feed > StarchIndustries > Chemical > Other chemicalIndustries > Chemical > BiotechnologyIndust ...

General SKU107W545 MakeVevey S.A. No.467 Year of construction1970 LocationBarneveld Pressure Working pressure2 Bar Vacuum possiblecheck Working pressure jacket5 Bar Main Features MaterialStainless steel Volume4000 Ltr. Motor6.6 KW Specified Features - Paddle dryer Paddle dryer(1x) Capacity4000 Ltr Trough sizesdia. 1400x3000mm Outletdia. 350mm With jacketcheck External heating spiral(180 Ltr) Shaft can be heated(1020 Ltr) Max. temperature-10/+200 Degr. C. With adjustable packing glandscheck Motor6,6 KW, 500 Volt (Ex) MaterialStainless steel Information ATEX compatiblecheckFine chemicalsStarchOther chemicalBiotechnologyAgrochemicalsCatalysts & fillersFeed additivesDiscountPaddle dryersOther pharmaceuticsCosmeticsSugarAnimal feedOther feedConfectionerySolid pharmaceuticsDyes & pigmentsBiopharmaceuticalAPIMinerals & inorganicOintmentsGeneric medicinesPowdered food ...

General SKU214W271 MakeQVF Glasstechnik TypeS-ROB64/300/SH/2/SIC No.98075 Year of construction1998 LocationBarneveld Pressure Vacuum possiblecheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface6.4 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface6,4m² Tube capacity33,7 Ltr. Number of tubes:164 Tube diameter14 Tube length±850 mm Wall thickness tubes1,5 Max. temperature+150°C Shell capacity46 Ltr. Shell diameter300mm Shell length850mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN150, DN50 Cover connectionsDN80 Information Floorspace0,42x1,40 m Total height0,42 m Weight190 kg Technical specs  ...
