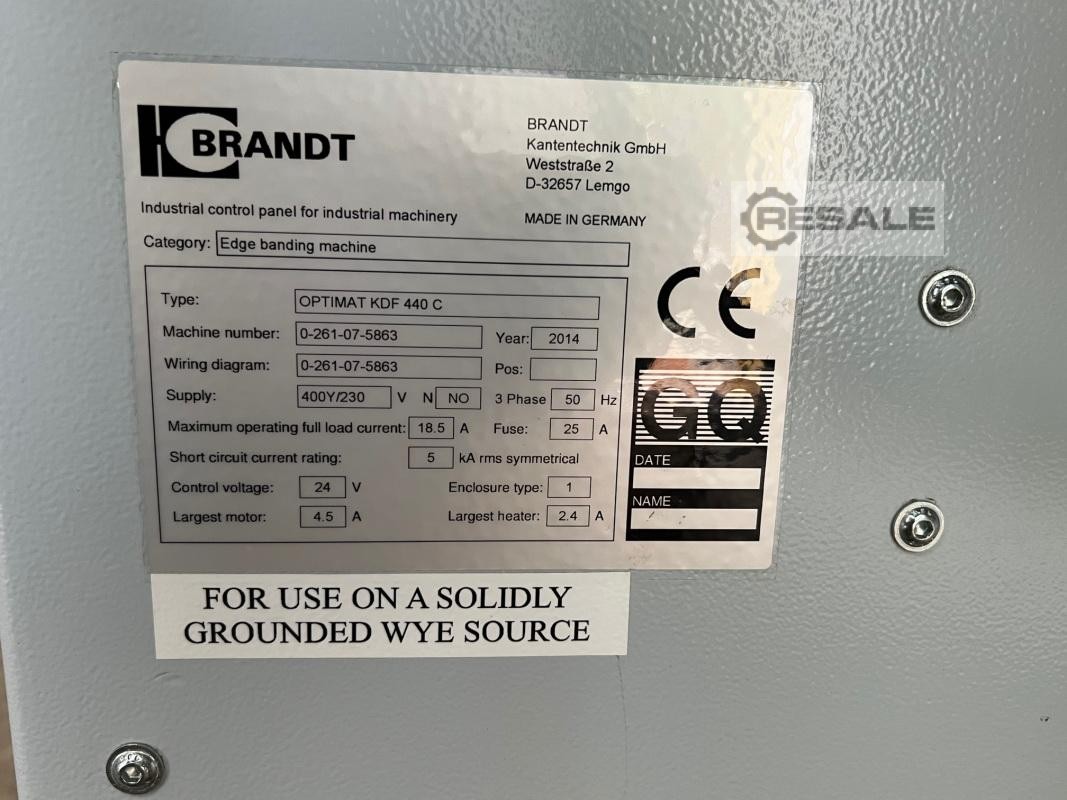

Single-sided edge banding machine for machining
of straight workpiece edges and for banding
and post-processing of various edge materials
in longitudinal and transverse passage.
OVERVIEW OF THE UNIT CONFIGURATION:
JOINING MILLING UNIT 2 X 2.2 KW 200 HZ
GLUING UNIT A8 with workpiece preheating, fill level control,
Quickmelt application unit, magazine and motorized pressure zone

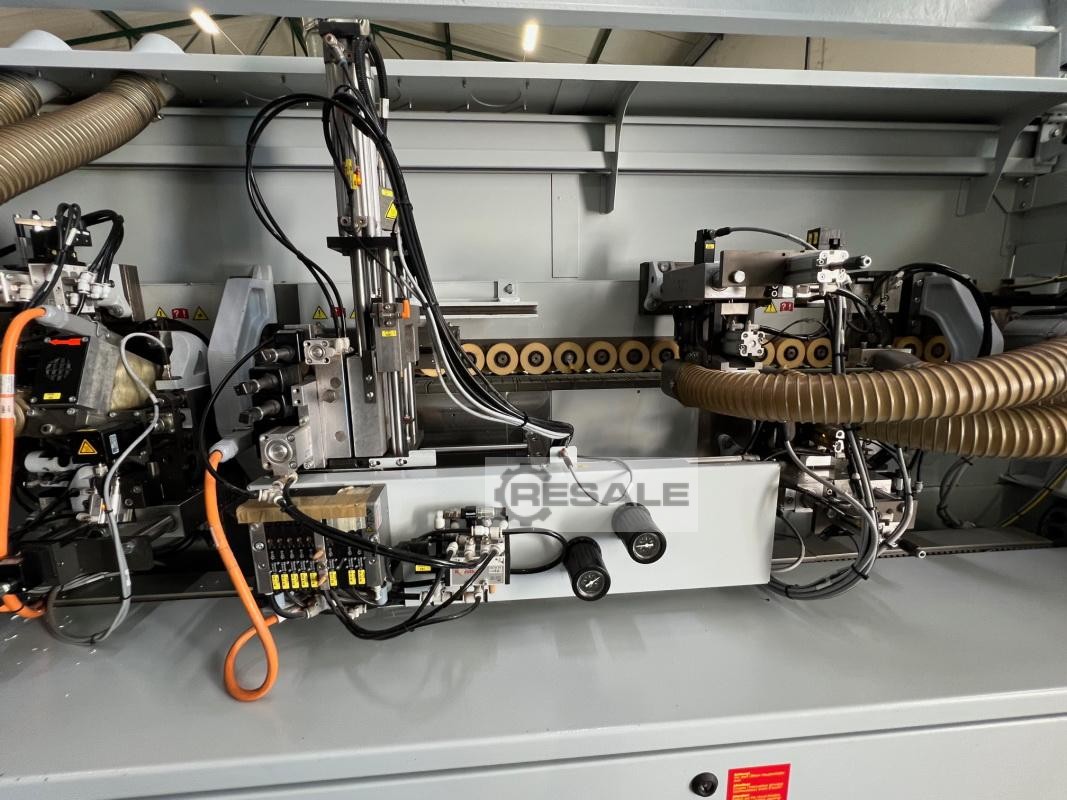

CROSS-CUT UNIT CHAMFER/STRAIGHT 2 X 0.18 KW
PNEUMATIC ADJUSTMENT CAPS CHAMFER/STRAIGHT

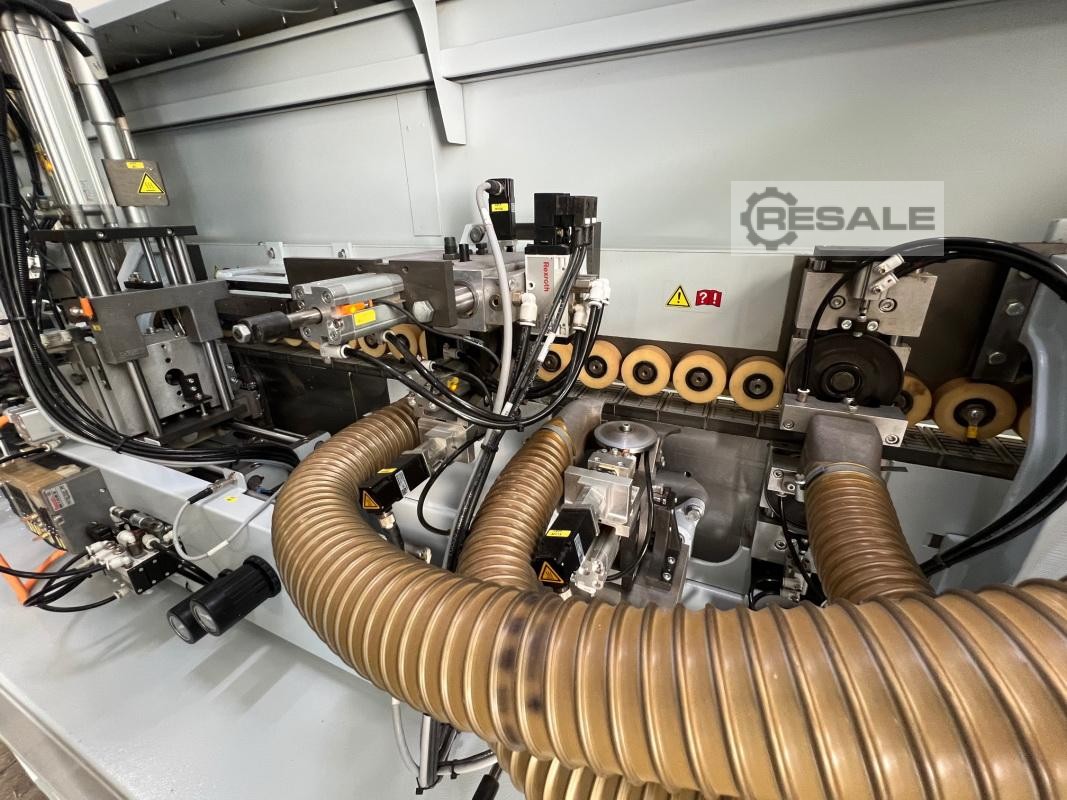

MULTI-STAGE MILLING UNIT MS 40 COUNTER ROTATION
PNEUMATIC 2-POINT ADJUSTMENT

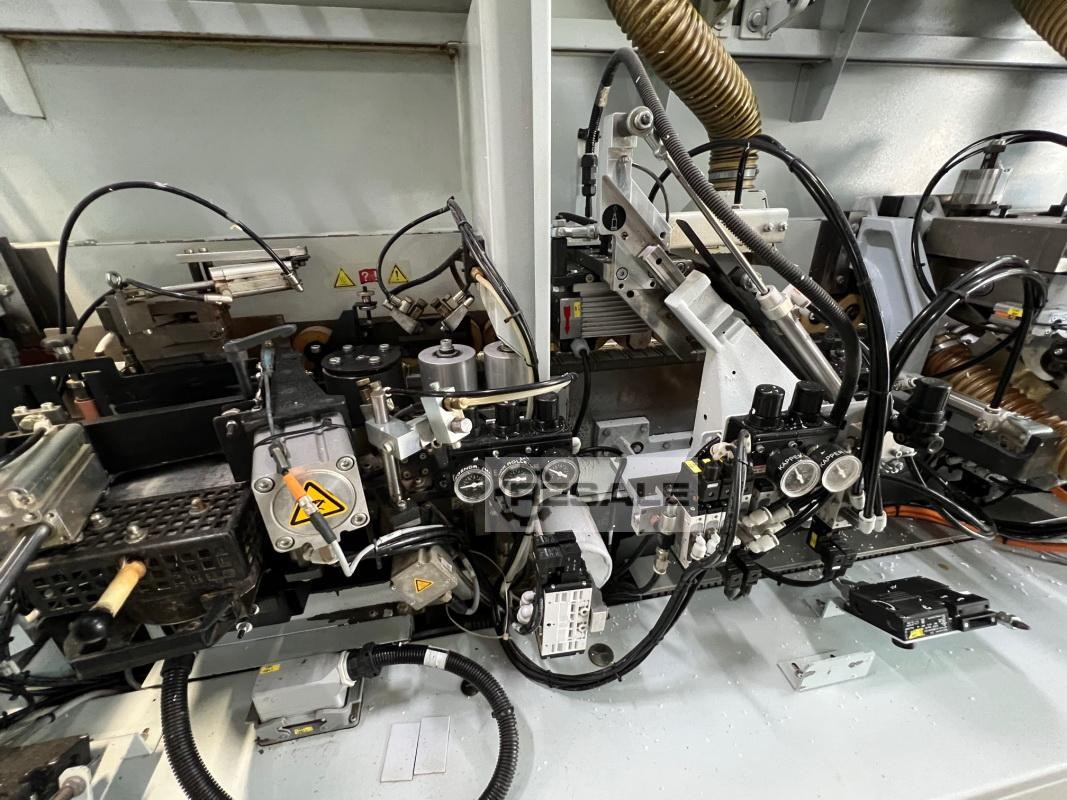

SHAPE MILLING UNIT 1 X 0.35 KW WD 60; also for construction floors
PNEUM. 2-POINT ADJUSTMENT RADIUS/CHAMFER
MZ 40 MULTI-STAGE SCRAPER UNIT
GLUE JOINT SCRAPER BLADE
BUFFING UNIT
Top pressure: PU rollers instead of standard rollers
Release agent spray unit workpiece, leading and trailing edges; edge
material
Power Control PC 20+ Electronics Controller
WORKPIECE AND EDGE PARAMETERS:
– Workpiece width min:
– For workpiece thickness 8-22mm : 70 mm
– For workpiece thickness 23-40mm : 120 mm
– For workpiece thickness 41-60mm : 150 mm
Depending on the workpiece length
– Workpiece protrusion 38 mm
– Workpiece thickness 8 – 60 mm
– Edge height max. = workpiece height + 6 mm
– Roll edge material 0.4 – 3 mm
– Edge cross-section max.
– For PVC 135 mm²
– For veneer 100 mm²
– Roll diameter max. 830 mm
– Edge material strips 0.4 – 8 mm
– Edge cross-section max.
– For strips 360 mm²
– Feed rate 8 – 14 m/min
– Feed max. with shape milling machine 11 m/min
– Working height 950 mm
– Pneumatic connection min. 6 bar
– Overall length 5,273 mm
