used DMG MORI nhx

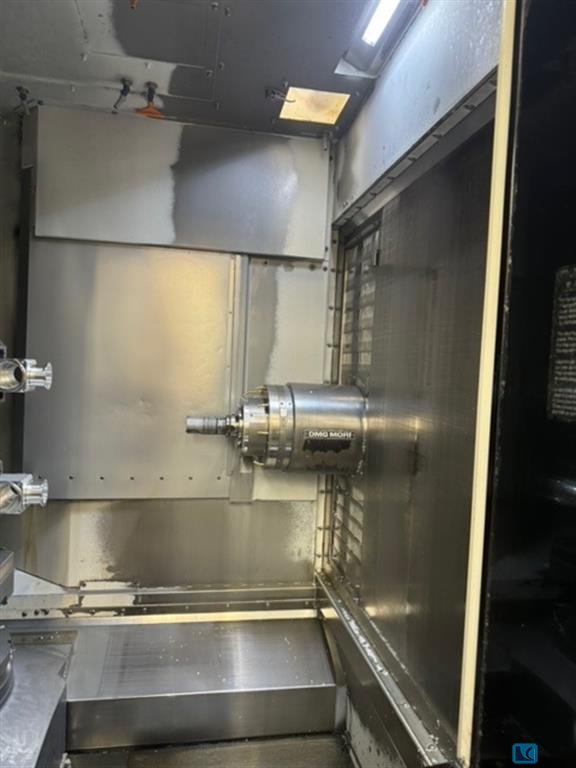

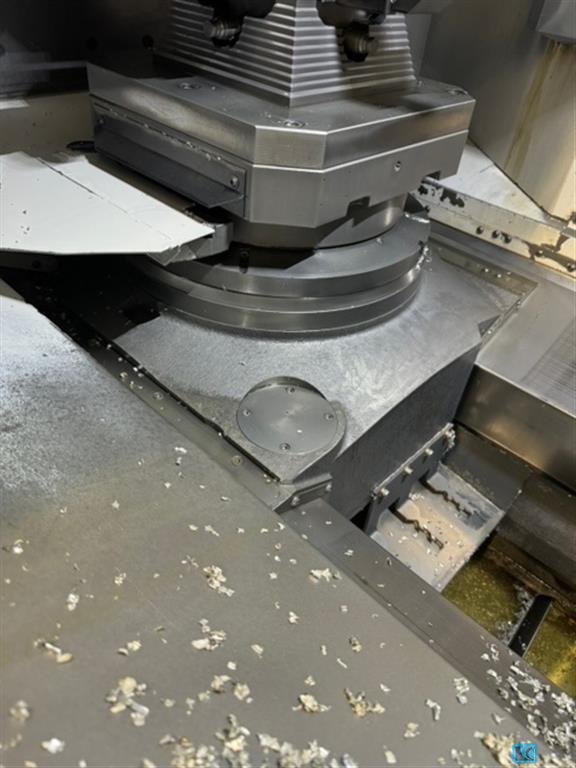

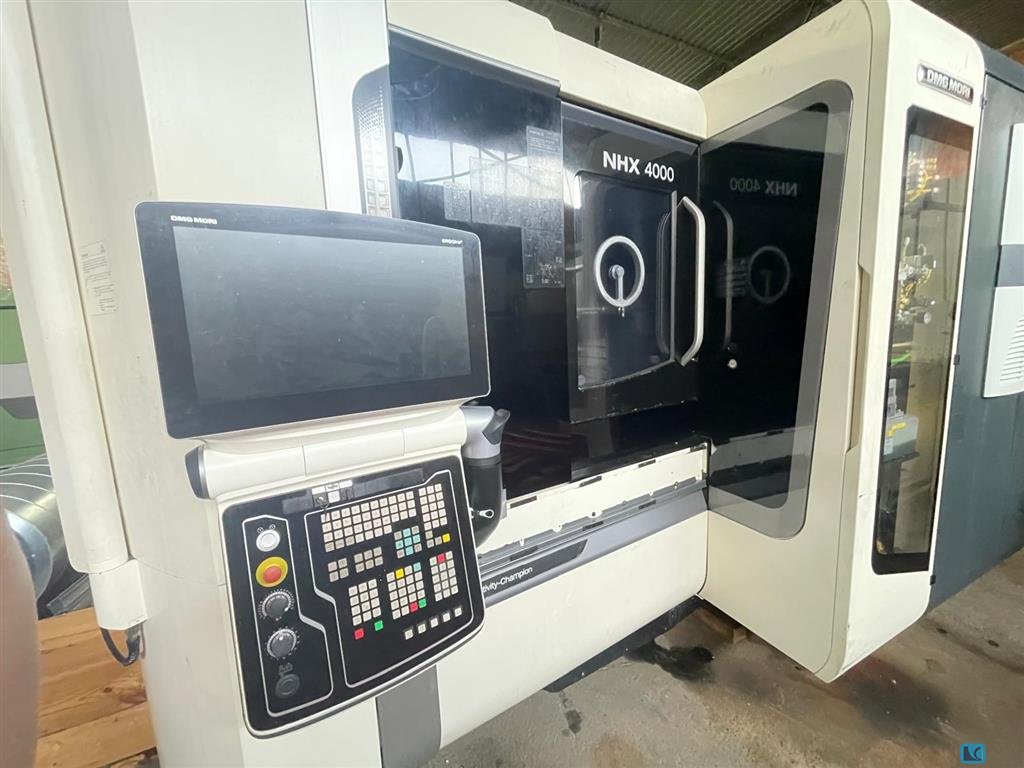

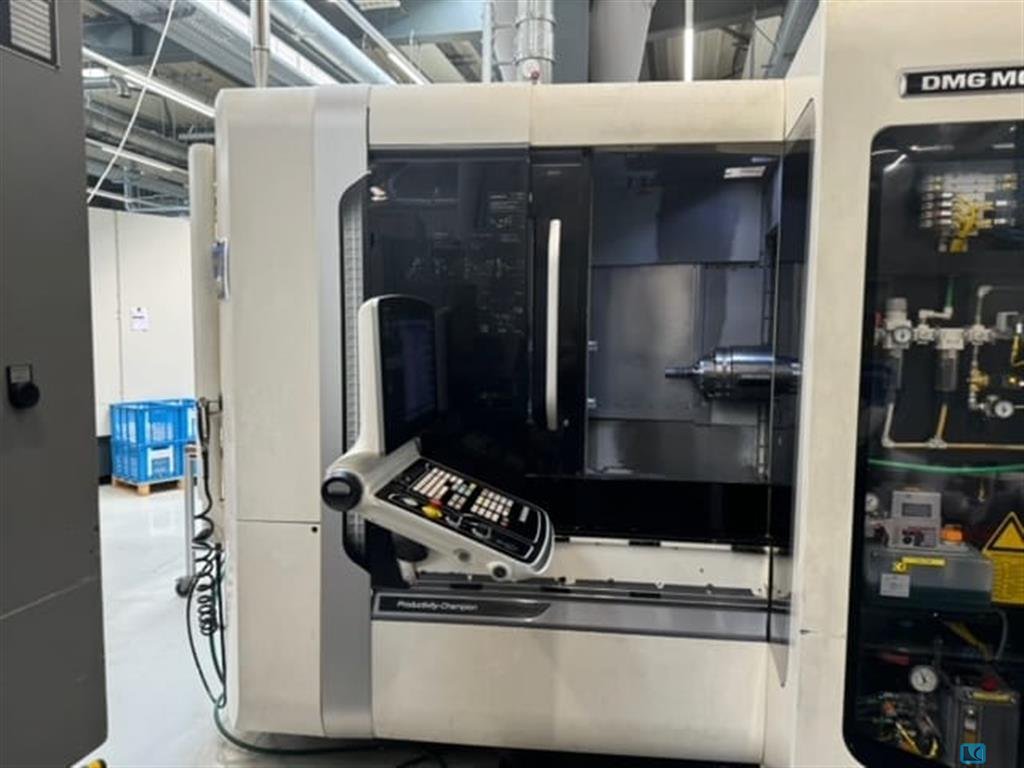

DMG MORI SEIKI NHX4000 CNC machining center made in 2014 in Germany is an ideal combination of functionality, productivity and precision that can handle even the most complex challenges in a wide range of industries. This technologically advanced machine consists of a single-piece bed with sliding column, reliable components and extensive optional equipment. The machining process takes place inside a large work area, which includes an extremely powerful high-speed spindle, a 4-axis rotary table and a two-pallet system. This system allows uninterrupted machining of multiple workpieces, thus significantly increasing production efficiency and reducing machine downtime to a minimum. In addition, all basic machine components are cooled to increase their service life. The DMG MORI SEIKI horizontal machining center is equipped with optional equipment, including measuring probes, tooling and  ...

x-travel: 730 mm y-travel: 730 mm z-travel: 880 mm control: 840 D sl Siemens size of pallet: 500 X 500 mm total power requirement: 46,2 kW weight of the machine ca.: 15 t dimensions of the machine ca.: 5,5 X 3,0 X 2,8 m CNC machining center horizontal DMG MORI-NHX 5000 - 2-fold pallet changer - 15.094h spindle hours Technical details / accessories / supplement: x-travel 730 mm y-travel 730 mm z-travel 880 mm Control 840 D sl Siemens main spindle: max. spindle speed 12,000 rpm Drive power - milling spindle 30 kW Max torque 102Nm Tool holder SK 40 Distance spindle center to table 80 - 810 mm Distance spindle nose and table center 70 - 950 mm Pallet changer: Number of pallets 2 Pallet size 500 x 500 mm max. workpiece weight 500 kg max. workpiece diameter 800 mm max. workpiece height 1,100 mm Pallet change time 9.5 seconds Indexing time 1.3 sec B axis (table) 360 x 1° tool changer: Number o ...

This DMG MORI NHX 5000 Horizontal Machining center was made in 2018. It is equipped with a CELOS M730UM control unit and has 4 axis. The machine has a spindle speed of 15000 rpm.

BRAND: DMG MORI YEAR: 2018 MODEL: NHX6300 PRODUCTION HOURS: 429 APPLICATION TYPE: MILLING LOCATION: POLAND MACHINE TYPE: MACHINING CENTERS (HORIZONTAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: DMG MORI GINDUMAC ID: PL-MIL-DMG-2018-00002 Technical Information GENERAL DATA MEASUREMENT WIDTH: 3930 MM MEASUREMENT DEPTH: 5823 MM MEASUREMENTS HEIGHT: 3228 MM MACHINE WEIGHT: 18750 KG CONTROL UNIT BRAND: DMG MORI MODEL: ERGOLINE MAIN DRIVE SPINDLE SPEED RANGE: 8000 1/MIN NUMBER OF AXIS: 4 MOVEMENT X-AXIS MOVEMENT: 1050 MM Y-AXIS MOVEMENT: 900 MM Z-AXIS MOVEMENT: 1030 MM TABLE OUTER LENGTH: 630 MM OUTER WIDTH: 630 MM TABLE LOAD: 1500 KG TOOLS MAX WEIGHT: 30 KG MAX TOOL LENGTH: 630 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - 4 CNC AXES (X,Y,Z AND B FOR ROTATION OF THE TABLE) - MAX WORKPIECE DIMENSIONS: - DIM ...

Key data: 560 , 560 , 660

CNC controller: M730BM (MAPPS 4) Axes X-axis travel mm: 560 Y-axis travel mm: 560 Z-axis travel mm: 660 B-axis degrees: 360º (0,001º) Rapid traverse m/min: 60 Worktable Number of pallets: 2 Table dimensions mm: 400x400 Maximum workpiece size (D x H) mm: ø630x900 Max. workpiece weight kg: 400 APC time s: 8 Spindle Spindle speed rpm: 12.000 Spindle drive power kW: 15/11 (10%ED/cont) Tool system Tool holder: BT-40 Tool magazine slots: 60 Max. Tool Diameter With free neighboring places mm: ø170 With occupied neighboring places mm: ø70 Max. Tool Length mm: 450 Max tool weight kg: 8 Equipment Electronic Handwheel Chip conveyor Signal lamp Tool breakage probe Workarea light Working coordinate systems (6) Tools offset pairs (200) Ready for internal cooling Machine running times Under power: 39.978 Spindle Working: 15.624 Height mm: 2.750 Weight kg: 6.7 ...

Key data: 730 , 730 , 880

CNC controller: M730UM (CELOS) Axes X-axis travel mm: 730 Y-axis travel mm: 730 Z-axis travel mm: 880 B-axis degrees: 360º (1º index) Distance spindle nose - table surface mm: 70 - 950 Feed rates m/min: 60 Rapid traverse m/min: 60 Worktable Number of pallets: 2 Table dimensions mm: 500x500 Maximum workpiece size (D x H) mm: ø800x1.000 Max. workpiece weight kg: 500 Spindle Spindle speed rpm: 15.000 Spindle drive power kW: 37/22 (10/100 %ED) Spindle torque Nm: 250/104 (10/100 %ED) Cooling Cooling through the Spindle Center bar: 15 Tool system Tool holder: SK-40 Tool magazine slots: 40 Max. Tool Diameter With free neighboring places mm: ø170 With occupied neighboring places mm: ø70 Max. Tool Length mm: 550 Max tool weight kg: 12 Chip-to-chip time s: 2,5 Equipment Chip conveyor Infrared probe Signal lamp High pressure pump Tool breakage probe Working ...

CNC controller: Fanuc F31iB Axes X-axis travel mm: 1400 Y-axis travel mm: 1200 Z-axis travel mm: 1350 B-axis degrees: 360º (0,001) Distance spindle nose - table surface mm: 100-1450 Feed rates m/min: 50 Rapid traverse m/min: 50 Worktable Number of pallets: 7 Table dimensions mm: 800x800 Maximum workpiece size (D x H) mm: 1450x1450 Max. workpiece weight kg: 3000 Spindle Spindle speed rpm: 15000 Spindle drive power kW: 30/25 Tool system Tool holder: BT50 Tool magazine slots: 180 Tool changer: Pinza doble With free neighboring places mm: 110 With occupied neighboring places mm: 320 Max. Tool Length mm: 800 Max tool weight kg: 30 Tool-to-tool time s: 1.9 Equipment Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Signal lamp Tool breakage probe Mist collector Direct meas ...

This DMG MORI NHX6300 horizontal machining center was made in the year 2018 in Japan and has 429 hours. It is equipped with a DMG MORI ERGOline, CELOS with FANUC control unit, and has 4 axis. The machine has a spindle speed of 8000 rpm.

GeneralVertical Machining Centres; Control: Control F0iMF CharacteristicsTable surface1400 x 560 mmMovement X / Y / Z1100/560/510 mmSpindle taperBT 40 Tool Magazine with60 PositionsDrive power (25% DC)15 kWDrive power (100% DC)11 kWSpeed max.12000 rpmMaximum load (table centre)1000 KgRapid feed X / Y / Z36/36/30 m/minDimensions (L x W x H)3,19 x 2,76 x 2,94 (3,82 x 3,58 x 3,01) mWeight approx.5500 KgStandard spindle 12,000 min-1, 15/ 11 kWStandard Spindle 12,000 min-1, 15/ 11 kW Spindle speed: 12,000 min-1 Output: 15/13/11 kW (20/17.33/15 HP) (25%ED/30min/cont) Torque: 119/70/57 Nm (87.76/51.62/42.04 ft·lbf) (25%ED/30min/cont)Spindle Taper 7/24 Taper #40/ Grip MAS Spindle Taper 7/24 Taper #40/ Grip MAS This specification uses the spindle No. 40 7/24 taper / Grip MAS tool holder. The grip type and retention knob type of ATC are specified separately.Retention Knob: Special (Center-Throug ...

Key data: 850 Heidenhain, 600 iTNC 530, 640

Table length: 850 mm Table width: 600 mm Longitudinal X: 640 mm Cross Y: 600 mm Vertical Z: 500 mm Positions ATC: 30   Positions APC: 0   CNC Brand: Heidenhain CNC Model: iTNC 530 X – Travel:              640mm Y – Travel:              600mm Z – Travel:              500mm Table Length:            850mm Table Width:             600mm Table load:              600Kg Feed rate X-Axis:        40.000mm/min. Feed rate Y-Axis:        40.000mm/min. Feed rate Z-Axis:        40.000mm/min. Spindle Taper:           Sk40 ISO/Bt/Mk Power on spindle:        19kW Speeds / ra ...

Table length: 790 mm Table width: 560 mm Longitudinal X: 635 mm Cross Y: 510 mm Vertical Z: 460 mm Positions ATC: 30   Positions APC: 0   CNC Brand: Siemens CNC Model: 840 D X – Travel:              635mm Y – Travel:              510mm Z – Travel:              460mm Table Length:            790mm Table Width:             560mm Table load:              600Kg Feed rate X-Axis:        30.000mm/min. Feed rate Y-Axis:        30.000mm/min. Feed rate Z-Axis:        30.000mm/min. Spindle Taper:           SK40 ISO/Bt/Mk Speeds / ranges:         8000Rpm ATC / revo ...

Table length: 630 mm Table width: 500 mm Longitudinal X: 500 mm Cross Y: 450 mm Vertical Z: 400 mm Positions ATC: 30   Positions APC: 0   CNC Brand: Heidenhain CNC Model: iTNC 530 X – Travel:              500mm Y – Travel:              450mm Z – Travel:              400mm A – Axis:                - 5 to + 115 ° Table Length:            630mm Table Width:             500mm Table load:              400Kg Feed rate X-Axis:        30.000mm/min. Feed rate Y-Axis:        30.000mm/min. Feed rate Z-Axis:        30.000mm/min. Spindle Taper:          & ...

Turning diameter: 680 mm Turning length: 635 mm Turret positions: 12 CNC Brand: Siemens CNC Model: 840 D Max. turning Ø:  680mm X-Axis:          260mm Y-Axis:          40mm Z-Axis:          635mm Spindle bore:    68mm Speedrange:      5000Rpm Spindle power:   35kW Subspindle speeds:7000Rpm ATC / revolver:  12 Chip conveyor:   Yes  Length:          4.900 mm  Width:           2.500 mm  Height:          2.100 mm  Weight:          6.500 kg

2-axis universal turning machine with SUPFINA superfinishing attachement Working area swing diameter over guide way protection: 500 mm -- 19,68 in clamping chuck diameter: 170 (210) mm -- 6,69 (8,26) in transverse stroke (X axis): 190 mm -- 7,48 in longitudinal stroke (Z axis): 525 mm -- 20,66 in Feed drive rapid feed, X/Z axes: 30/30 m/min -- 1181,1/1181,1 in/min Y axis* 22.5 m/min -- 885.8 in/min Main stock spindle nose size: 140 h5 mm spindle diameter in front bearing: 100 mm 3,93 in spindle bore diameter: 73 mm 2,87 in Main drive AC main drive power (100%-40% ED) 13 - 14 kW 17,42 ? 18,76 HP Torque (100%-40% ED) 171,5 - 192 Nm 126,49 - 141,61 ft.Lb Speed range 20 ? 6000 rpm Electrical connection (5 conductor system, L1, L2, L3, N, PE) connected load, total approx. 30 kVA voltage: 400 V frequency: 50 Hz protection (slow-blow) acc. to VDE 0100: 63 A per ...

2-axis universal turning machine with SUPFINA superfinishing attachement Working area swing diameter over guide way protection: 500 mm -- 19,68 in clamping chuck diameter: 170 (210) mm -- 6,69 (8,26) in transverse stroke (X axis): 190 mm -- 7,48 in longitudinal stroke (Z axis): 525 mm -- 20,66 in Feed drive rapid feed, X/Z axes: 30/30 m/min -- 1181,1/1181,1 in/min Y axis* 22.5 m/min -- 885.8 in/min Main stock spindle nose size: 140 h5 mm spindle diameter in front bearing: 100 mm 3,93 in spindle bore diameter: 73 mm 2,87 in Main drive AC main drive power (100%-40% ED) 13 - 14 kW 17,42 ? 18,76 HP Torque (100%-40% ED) 171,5 - 192 Nm 126,49 - 141,61 ft.Lb Speed range 20 ? 6000 rpm Electrical connection (5 conductor system, L1, L2, L3, N, PE) connected load, total approx. 30 kVA voltage: 400 V frequency: 50 Hz protection (slow-blow) acc. to VDE 0100: 63 A per ...

Working area Circulation diameter over bed web cover: 700 mm Max turning diameter: 410 mm Max turning length: 800 mm Rod passage: 65 (76) mm Chuck diameter: 250 (315) mm Flat stroke: 300 mm Longitudinal stroke: 850 mm Feeds Rapid response X/Z axles: 60/30 m/min Y axis* ** 22.5 m/min Max. spindle motor speed: 6,000 rpm Main Spindle Spindle head (flat flange): 170 h5 mm Spindle diameter in the front bearing: 130 mm Spindle bore: 87 mm Main drive Power of the three-phase main drive 25 kW Torque (100% ED) 280 Nm Speed range 25 - 5000 1/min Drive power rating (100% DC): 35 kW(AC) Counter spindle: ISM 52 ISM 76 synchronous Spindle head (flat flange) : 140 h5 mm 170 h5 mm Spindle diameter in the front bearing: 100 mm 130 mm Spindle bore: 73 mm 87 mm Counter sp ...

GeneralHorizontal universal machining center; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal650 mmCross700 mmVertical950 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDriveNC swivel rotary table direct drive Table plate: d 650 mm / 25.6 in 1 x T-slot 14 H7 / 0.55 H7 (alignment groove, table centre) 8 x T-slot 14 H12 / 0.55 H7 (clamping grooves) Permissible load: 600 kg / 1,323 lbs Rotary-axis: 80 min-1 direct drive Swivel-aKinematics a ...

GeneralUniversal machining centre; Control: 3D Control Siemens 840D powerline Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal1250 mmCross1000 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 100 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machiningProd. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pumpNC rotary table with pallet changerType of Measuring system Direct measuring system ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 100 mm - B-axis ±110° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 5 bar; 20l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor - USB interface, Ethernet interface; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmTurning diameter500 mmMax. Turning Length750 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmC-Axis Speed-5000 rp ...

BRAND: DMG MORI YEAR: 2008 MODEL: CTX510 ECO V3 PRODUCTION HOURS: 28127 APPLICATION TYPE: TURNING LOCATION: POLAND MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information CONTROL UNIT BRAND: SIEMENS MODEL: 810D SHOPTURN MAIN DRIVE SPINDLE SPEED RANGE: 3250 1/MIN MOVEMENT X-AXIS MOVEMENT: 300 MM Z-AXIS MOVEMENT: 1050 MM MEDIA MAIN ELECTRONIC CONNECTION: 400V / 50 HZ POWER CONSUMPTION: 40 KVA Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TIP DISTANCE -ROTARY TIP: 1150 MM - MAX TURNING LENGTH: 1000 MM - MAX WEIGHT BETWEEN TIPS: 350 KG - SWING OVER THE BED: 465 MM - SPINDLE BORE: 102. 5 MM - HYDRAULIC CHUCK DIM. 250MM - TURRET HEAD 12 TOOL SLOTS VDI40, 6 DRIVEN SLOTS - RPM-DRIVEN TOOLS: 4000 RPM QUALITATIVE MACHINE BENEFITS: - MACHINE CONNECTED, VERY GOOD CONDITION, READY FOR TESTS. - PART CATCHER - TOOL LE ...

BRAND: DMG MORI YEAR: 2008 MODEL: CTX510 ECO V3 PRODUCTION HOURS: 28127 APPLICATION TYPE: TURNING LOCATION: POLAND MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information CONTROL UNIT BRAND: SIEMENS MODEL: 810D SHOPTURN MAIN DRIVE SPINDLE SPEED RANGE: 3250 1/MIN MOVEMENT X-AXIS MOVEMENT: 300 MM Z-AXIS MOVEMENT: 1050 MM MEDIA MAIN ELECTRONIC CONNECTION: 400V / 50 HZ POWER CONSUMPTION: 40 KVA Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TIP DISTANCE -ROTARY TIP: 1150 MM - MAX TURNING LENGTH: 1000 MM - MAX WEIGHT BETWEEN TIPS: 350 KG - SWING OVER THE BED: 465 MM - SPINDLE BORE: 102. 5 MM - HYDRAULIC CHUCK DIM. 250MM - TURRET HEAD 12 TOOL SLOTS VDI40, 6 DRIVEN SLOTS - RPM-DRIVEN TOOLS: 4000 RPM QUALITATIVE MACHINE BENEFITS: - MACHINE CONNECTED, VERY GOOD CONDITION, READY FOR TESTS. - PART CATCHER - TOOL LE ...

BRAND: DMG MORI SEIKI YEAR: 2010 MODEL: DURATURN 310 ECO PRODUCTION HOURS: 20694 APPLICATION TYPE: TURNING LOCATION: POLAND MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MACHINE WEIGHT: 3500 KG CONTROL UNIT BRAND: MORI SEIKI MODEL: MSX 853 MAPPS IV MAIN DRIVE NUMBER OF AXIS: 3 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - C AXIS LIVE TOOLS - TURNING DIAMETER 228 MM - TURNING LENGHT 393 MM - TURRET SAUTER VDI30 - TAILSTOCK - TOOL PROBE - CHUCK KITAGAWA 210MM - SPINDLE BAR CAPACITY 51MM - EQUIPMENT; CHIP CONVEYOR WITH COOLANT TANK AND POMP - 3 LIVE TOOL HOLDER WTO, 4 NORMAL HOLDER VDI30 QUALITATIVE MACHINE BENEFITS: - BOOKS MACHINE

X : 1035 mm Y : 560 mm Z : 510 mm Control : Siemens 840 d Number of working hours : 4000 Chip conveyor

X : 1050 mm Y : 530 mm Z : 510 mm Machine is in excellent condition

DMG Mori CMX 70 U 5 axis Machining Center Machine has been installed December 2019! Multimaster spindle
