used

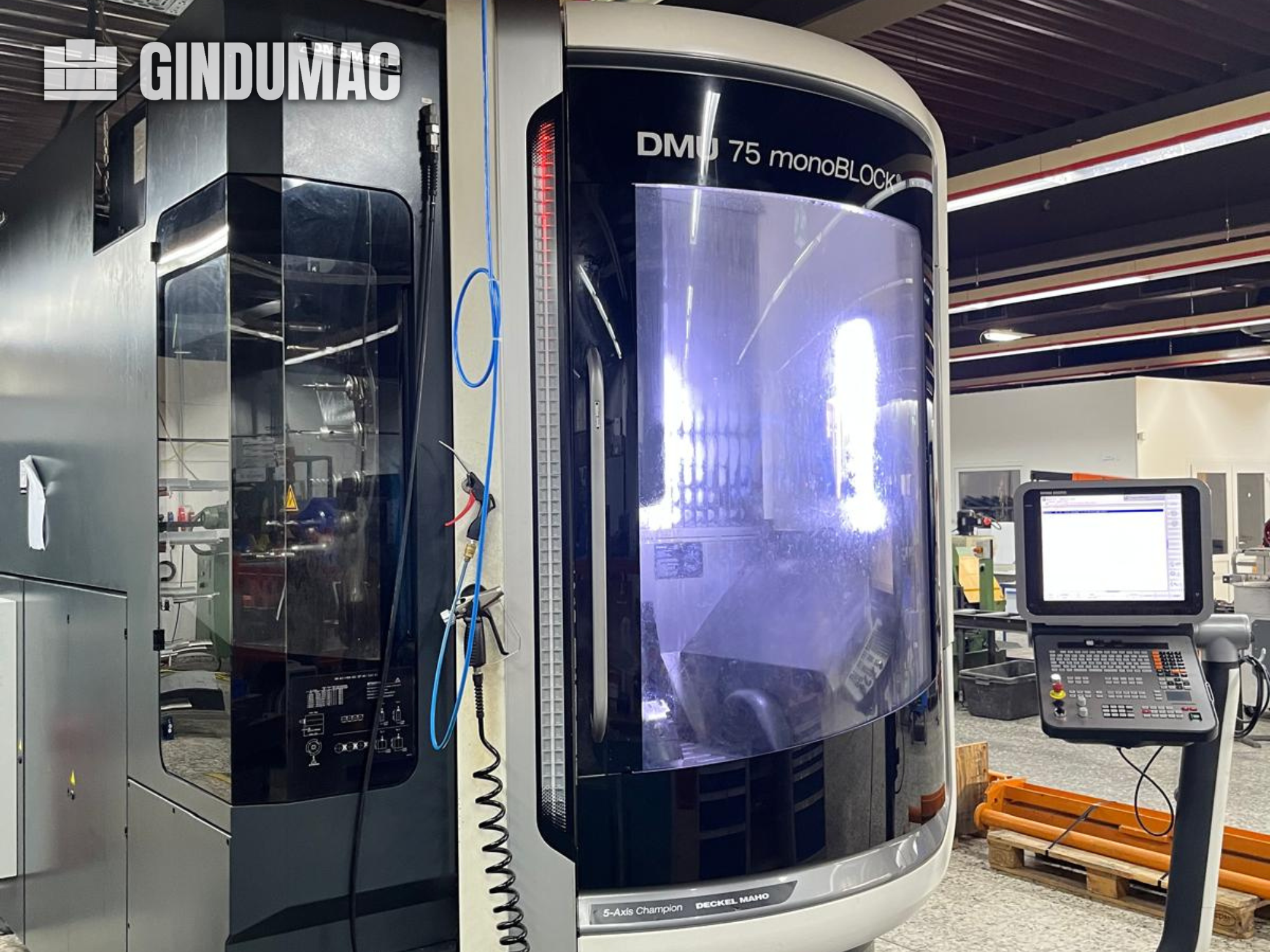

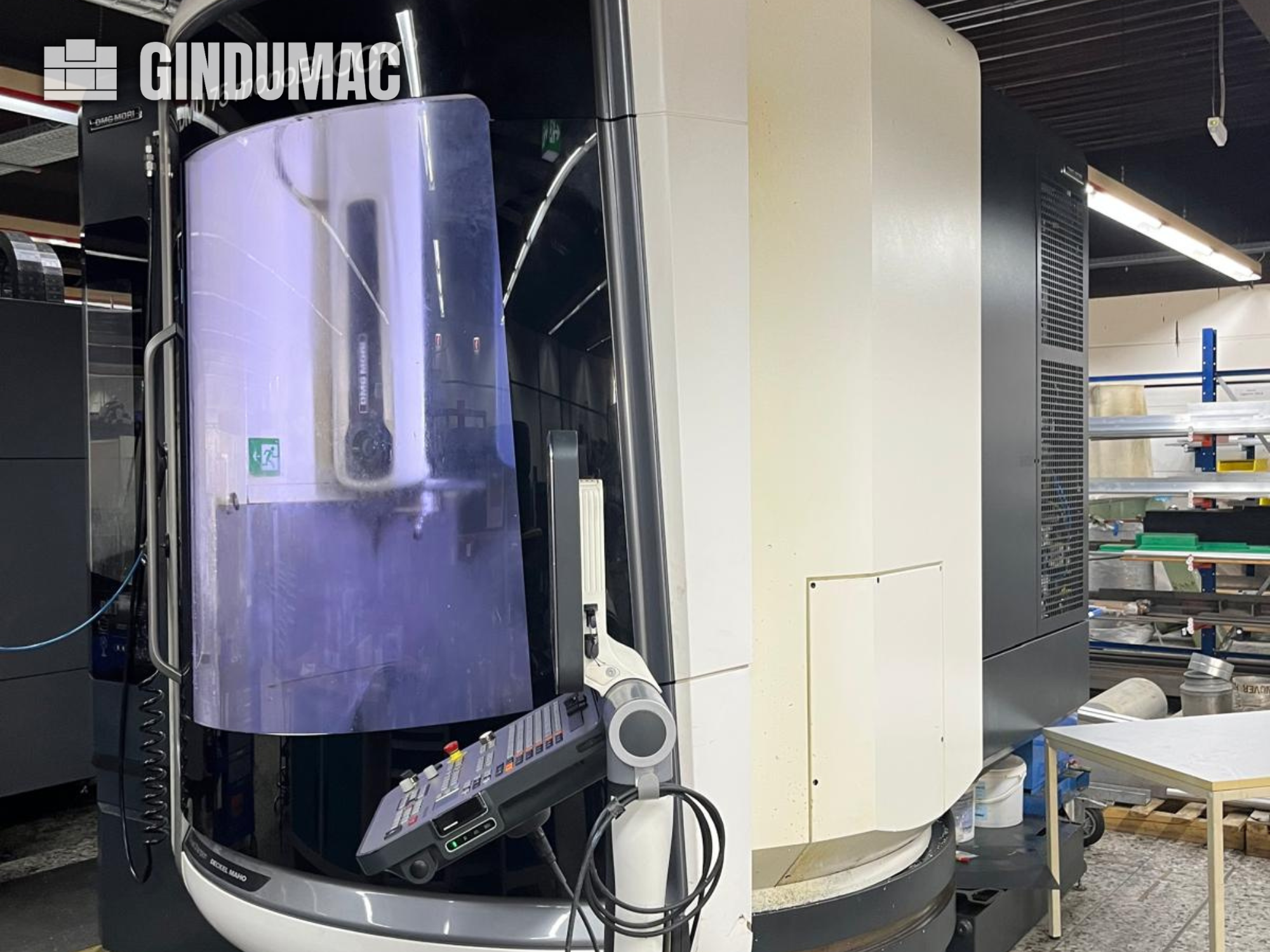

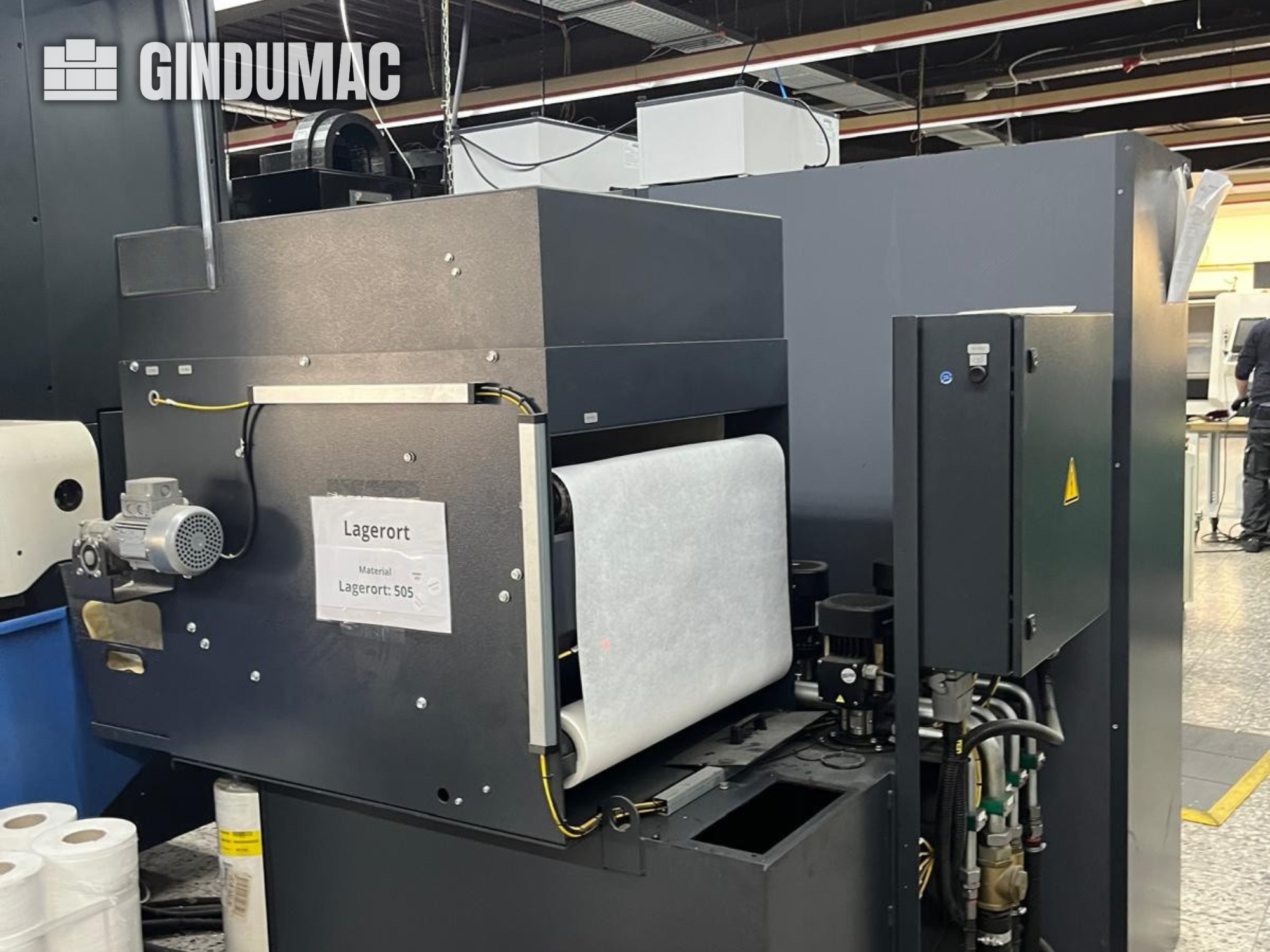

DMG MORI DMU 75 monoBLOCK Year: 2014 CNC control: HEIDENHAIN iTNC 530 5-axis machining center X/Y/Z travel: 750 / 650 / 560 mm B-axis: ±120° C-axis: 360° Table dimensions: 800 × 650 mm Integrated rotary table: Ø600 mm Maximum table load: 600 kg Spindle speed: 2–18,000 rpm Spindle power: 35 kW Spindle taper: SK 40 Tool magazine: 60 positions Rapid traverse: 40 m/min HEIDENHAIN TS 649 workpiece probe 3D quick setup Through-spindle coolant: 40 bar Coolant tank: 600 litres with paper filter Tool probe Coolant gun Chip conveyor Machine dimensions: approx. 3200 × 2600 × 2900 mm Machine weight: approx. 11,600 kg
used
GeneralUniversal Machining Centre in monoBLOCK construction - MPC Machine Protection Control; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal750 mmCross650 mmVertical560 mmTechnical DataDrive power (100% DC)25 kWDrive power (40% DC)35 kWTorque (100% DC)86 NmTorque (40% DC)130 NmSpeed range- 20000 rpmSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmMiscellaneousClamping SystemHSK-A 63 Floor space/WeightWeight approx.12300 KgNC swivel rotary tableTable surface 800 x 650 (Ø 650) mmCentre bore 50h6 mmMaximum load (table centre) 600 KgSlot width 14 mm4. Axes (s ...
used
CATEGORY - 5-Axis BRAND - DMG MORI MODEL - DMU 75 MONOBLOCK WAREHOUSE NO - ONY100000591 YEAR OF MANUFACTURE - 2014 CONTROL UNIT - HEIDENHAIN iTNC 530 HSCI AXIS TRAVELS - X 750 mm / H 650 mm / Z 560 MM ROTARY AXIS MOVEMENTS - A +120° / -120° / C 360° SPINDEL CYCLE 18.000 RPM HOLDER TYPE - SK 40 NUMBER OF TEAMS - 60 TABLE SIZE - 800 × 650 mm (d 650 MM ) WORKPIECE WEIGHT (MAX) - 600 kg MACHINE WEIGHT - 11.600 kg MACHINE EXTERIOR DIMENSIONS - 310 × 245 × 285 cm
used
This 5-axis DMG MORI DMU 75 monoBLOCK was manufactured in 2017. It features a Siemens SINUMERIK 840 D control system and a high-pressure pump for internal coolant supply at 20 bar. The machine includes a 3D measuring probe from Heidenhain and has 60 magazine positions. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 75 monoBLOCK universal machining centre we have for sale. Contact us for further details.
