DECKEL fp used machines

BRAND: DECKEL YEAR: 1989 MODEL: FP4AT APPLICATION TYPE: MILLING LOCATION: AUSTRIA MACHINE TYPE: MILLING MACHINE AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MACHINE WEIGHT: 2895 KG CONTROL UNIT BRAND: DECKEL MODEL: CONTOUR 3 MAIN DRIVE SPINDLE SPEED RANGE: 4000 1/MIN MOVEMENT X-AXIS MOVEMENT: 560 MM Y-AXIS MOVEMENT: 500 MM Z-AXIS MOVEMENT: 450 MM TABLE OUTER LENGTH: 900 MM OUTER WIDTH: 530 MM TOOLS SLOTS IN STORAGE: 20 TYPE OF TOOL HOLDER: SK 40

Deckel FP3A 2820 - CNC Milling Machine - Deckel Contour 3 CNC control - Movable vertical milling head with extendable spindle - Counter bearings for long milling mandrels - Hydraulic tool clamp - Automatic speed manual transmission - Automatic clamping in X/Y/Z axes - Automatic central lubrication - Coolant device - Direct displacement measurement - Collision protection clutch in Z/Y axes - Built in 1987 Specifications Workspace: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Quill stroke vertical: 80 mm Cpovd9Rv - Vertical milling head can be moved to the headrest: 150 mm Main Drive: - Motor: pole-switchable three-phase brake motor and manual transmission with clockwise/counterclockwise rotation - Power: 3.7 / 4.4 kW - 18 working spindle speeds: 50 - 2500 rpm - Level Jump: 1.25 - Tool holder: SK40 (M16) - Tool  ...

DECKEL FP 2 Tool Milling Machine Machine Details: Manufacturer: Lid Type: FP 2 Year of construction: approx. 1978 Condition: very good, technically tested and partially overhauled Availability: available on order The Deckel FP 2 is considered the reference among universal milling machines – robust, precise and reliable. Specifications: Travel: X-axis: approx. 400 mm Y-axis: approx. 200 mm Z-axis: approx. 400 mm Spindle: Speed range: approx. 40–2000 rpm Tool holder: ISO 40 Drive power: approx. 2.2 kW Tool clamping: manual Feeds: 8–400 mm/min Rapid traverses: approx. 1.5 m/min Digital display: 3-axis SINO Dimensions (LxWxH): approx. 2000 x 1500 x 1800 mm Weight: approx. 800 kg Equipment & Accessories: Vertical & horizontal milling equipment Drill quill 3-axis digital display SINO Coolant Setup Work light C ...

Key data: 990 mm, 390 mm, 590 mm

For sale is a robust and powerful universal milling machine of the brand DECKEL, type FP33. The machine impresses with its high stability, generous travel distances and SK50 tool holder – ideal for workshops, maintenance or manufacturing companies with high requirements. Technical data: Manufacturer: DECKEL Type: FP33 Tool holder: SK 50 Travels:  • X = 990 mm  • Y = 390 mm  • Z = 590 mm Table size (L x W): 1200 mm x 1000 mm Spindle speed: 31.5 – 1600 rpm Motor power: 5.5 kW Machine weight: approx. 4,500 kg Dimensions (L x W x H): 3300 x 2500 x 2000 mm ⚙️ Condition & Notes: Good general condition (more details on request) Delivery: Loading on truck possible Viewing possible by appointment

This DECKEL FP4A was manufactured in 1994. A vertical machining centre featuring a travel range of X=565mm, Y=505mm, Z=400mm, SK40 tool holder, and a spindle speed of up to 4000 rpm. Consider the opportunity to buy this DECKEL FP4A vertical machining centre. Contact us for more information.

Control panel, operating unit, control board, operating panel, operating unit, keyboard, CNC control -Manufacturer: Deckel, control unit from milling machine Deckel FP4L -Transport dimensions: 1200/800/H220 mm -Weight: 33 kg

DECKEL FP4 NC Fraesmaschine Dialog 4 Dialog 4 control, working range 560 x 500 x 450 mm, pinole stroke 80 mm, 18 spindle speeds 31.5 -6300 min, folding head, tool holder SK 40, feed speed 1-4000 mm/min, rapid traw 6000 mm/min, table load 800 kg, weight 2070 kg, total connection value 16 kVA.

DECKEL FP2 NC Dialog 11 Universal Milling Machine Milling Machine Travel X/300 Y/300 Z400 mm (340 mm for universal table in Z-axis) Speed infinitely variable 31.5 ... 5000 rpm Feeds 2-4000 rpm Rapid traverse 4000m/min Tool holder SK 40 Pinole stroke 80 mm Machine weight 1345 kg Main drive 5.5 kW Power consumption 11 kW The machine is currently being revised.

Deckel FP2 Milling Machine Power: 2.2 kW RPM: 40-2000 Inner taper: ISA 40 Clamping surface: 830x240 Heidenhain Digital Display Machine is in a very neat condition and can be viewed under power.

For sale good working CNC milling machine Deckel FP4 AT with two vices and several tools.

Milling machine DECKEL FP5NC -axis: X-710 Y-600 Z-500

Dear Ladies and Gentlemen, we sell our machine Deckel FP4 NC and associated div. milling cutter chucks. Please see the photos for details. The machine is energized and can be viewed at any time.

Deckel FP4MA 2204 - CNC Tool Milling Machine - 2022 refurbished - Heidenhain TNC320 CNC control - CNC or manual control possible - Movable vertical milling head with extendable spindle - Counter bearings for long milling mandrels - Power-operated tool clamps horizontally and vertically - Automatic speed manual transmission - Automatic clamping in the X, Y and Z axis - Automatic central lubrication - Coolant device - Direct displacement measurement - Anti-collision clutch in the Y and Z axes - Year of construction 1988 - Incl. tool holders, drilling/milling tools & tool trolleys Specifications Workspace: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Quill stroke (vertical): 80 mm - Vertical milling head can be moved manually on the headdle block: 150 mm Main Drive: - Pole-switchable three-phase brake motor: manual  ...

Milling machine DECKEL FP3 - 500x300x400 mm, DRO, Information about technical data are not binding., Machine available subject to prior sale, Working table size: 800x420 mm, Longitudinal travel x axis: 500 mm, Cross travel y axis: 300 mm, Vertical travel z axis: 400 mm, Spindle taper: 40 SK, Spindle speed: 40 - 2000 rpm, Number of spindle speeds: 18, Spindle motor power: 3 Kw, Quill spindle travel: 100 mm, Working feed x-z axes: 5 - 500 mm/1, Rapid feed x-z axes: 1.500 mm/1, Number of working feeds: 18, Weight: 1.200 Kg

Key data: 500 mm, 400 mm, 400 mm

Deckel FP 4M Active with 3-axis active digital display, Year of manufacture 1996 Table clamping area 800 x 460 mm Travel X / Y / Z 500 / 400 / 400mm Spindle speed 50 - 2500 rpm Feed rate 8 - 630 mm/min Rapid traverse 1500 mm/min Quill stroke 90 mm Tool holder SK 40 Hydraulic Tool Clamp Very good condition!

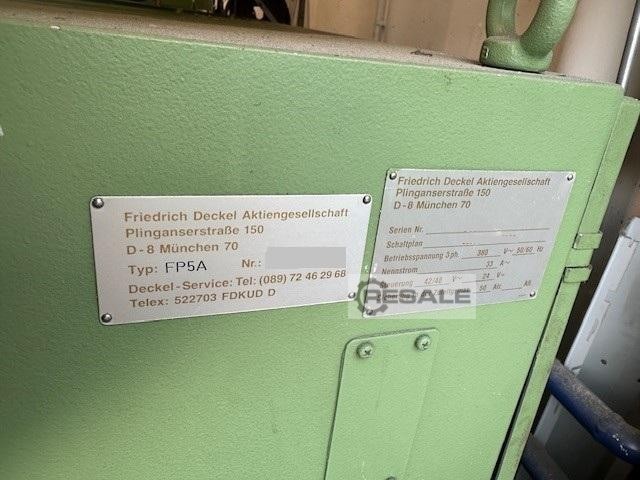

Deckel FP5A CNC milling machine with Dialog 11 control. The machine is mechanically in good condition Stands in a hall almost rust-free. Accessories: Angle table

Travel X/Y/Z: 560mm/500mm/450mm, tool holder: SK40, speed: 4000rpm, feed rate: 3.6m/min, rapid traverse: 4m/min, table dimensions X/Y: 530mm/900mm, max. table load: 450kg. Machine dimensions X/Y/Z: 2350mm/2200mm/2000mm, weight: approx. 2200kg, control: Deckel Contour 2. An on-site inspection is possible.

Milling machine Deckel FP4 NC BJ 1987 Specifications •Travel: o X-axis: 560 mm o Y-axis: 500 mm o Z-axis: 410 mm • Includes tool cabinet and various tools (see photo)

Key data: 300 mm, 150 mm, 300 mm

Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Spindle speed: from 40 to 2000 RPM Horizontally tiltable head Spindle motor: 2 speeds Motor: 1,5 kW Feeds: X - Z auto / Y manual Supplied without table only with one 4 concentric jaws Ø 140 mm Voltage: 380 V Width: 1200 mm Depth: 1200 mm Total height: 1600 mm Weight: approx 900 KG

Offered is a Deckel FP4NC vertical milling machine with Heidenhain TNC 355 control. Year 1987, including tool cabinet as well as various tools. Travel distances: X/Y/Z: 560mm/500mm/410mm, dimensions X/Y/Z: approx. 1800mm/1600mm/2000mm, weight: approx. 2400kg. Viewing is possible by appointment.

Key data: 500 mm, 400 , 400

Deckel FP 4M Active with 3-axis active digital display, Year of manufacture 1996 Table clamping area 800 x 460 mm Travel X / Y / Z 500 / 400 / 400mm Spindle speed 50 - 2500 rpm Feed rate 8 - 630 mm/min Rapid traverse 1500 mm/min Quill stroke 90 mm Tool holder SK 40 Hydraulic Tool Clamp Very good condition!

A CNC universal milling machine Deckel is available. Travel X/Y/Z: 400mm/400mm/400mm, table dimensions X/Y: 700mm/460mm, max. table load: 350kg, tool holder: SK40, quill stroke: 80mm, speed: 4000rpm, feed rate: 3600mm/min, rapid traverse: 4m/min. Machine dimensions X/Y/Z: approx. 1800mm/1800mm/2200mm, weight: approx. 2500kg, control: Contour 3. The tool change magazine is no longer in operation. Documentation available. An on-site inspection is possible.

DECKEL FP 2 tool milling machine with new 3-axis digital display -Well-maintained original condition -Travel X/Y/Z 400x200x400mm -Digital display 3-axis "NEW" -Angle table - table clamping surface 700x350mm -Speed range 40 - 2000 rpm -Automatic feeds / rapid traverses in all three axes -Tool holder ISO 40 -Vertical - Horizontal milling device -Vertical head swivel with drilling quill -Coolant device -Documentation Dimensions: LxWxH 1.5x1.7x1.8 meters / Weight 1500Kg

Milling machine Deckel FP 4 BJ 1985

Tool Milling Machine Deckel FP2E -Extremely smooth running + fully functional -Automatic feeds + rapid traverse in X + Z axis -Machine with sliding head means larger Y-travel -Travel X/Y/Z 400x200x400mm -Speed range 40-2000 rpm -Tool holder ISO 40 -Vertical horizontal milling device -Vertical head swivel with drilling quill -Angle table -Various tool holders -Documentation Dimensions: LxWxH 1.5x1.7x1.8 meters / Weight 1500Kg
