DANOBAT na used machines

This 4-axis DANOBAT HG 91-3000-B8 was manufactured in 2007. It features a CNC control system by SIEMENS 840 D, a maximum grinding length of 3,000 mm, and can handle workpieces up to 5,000 kg. The machine offers a swivel angle from -30º to +180º and a cutting speed of 45 m/s. Consider the opportunity to buy this DANOBAT HG 91-3000-B8 cylindrical grinding machine. Contact us for more information about this machine.

Code 5976 Description Hydr. Surface grinding machine Make DANOBAT Type RT – 1200 Machine No. 565 Manufacturing date 1989 ( 1990 in use ) Table size 1400 x 700 mm Grinding dimensions L x W x H 1200 x 750 ( 800 ) x 800 mm Magnetic plate size L x W 1000 x 600 mm Table speed movement 1 - 25 m/min. Max. distance table surface – centre grinding wheel 1000 mm Speeds cross 0,1 - 5 m/min. Vertical movement 0,005 – 0,05 mm Spindle rotation 1500 rpm Spindle power 7,5 kW Grinding wheel size Ø 400 x 50 ( 100 ) x Ø 127 mm Weight 8.500 kgs Total power 12 kW – 380 Volt Accessoiries Electro magnetic plate 1000 x 600 mm from Tecnomagnete Coolant Pendel control Condition Machine is in good condition

Code 61062 Description Hydr. Surface grinding machine Make DANOBAT Type RTS - 1600 Machine No. 16 220 Manufacturing date 1975 Table size 1800 x 550 mm Grinding dimensions L x W x H 1600 x 600 x 650 mm Magnetic plate size L x W 1600 x 550 mm Table speed movement 1 - 25 m/min. Max. distance table surface – centre grinding wheel 750 mm Speeds cross 0,1 - 5 m/min. Vertical movement 0,005 – 0,05 mm Spindle rotation 1500 rpm Spindle power 15 kW Grinding wheel size Ø 400 x 50 ( 100 ) x Ø 127 mm Weight 10.000 kgs Total power 20 kW – 380 Volt Accessoiries Electro magnetic plate 1600 x 550 mm from Tecnomagnete Coolant Vertical grinding spindel Condition Machine is in good condition

Code 81199 Description Hydr. Surface grinding machine Make DANOBAT Type RT – 1200 Machine No. 504 Manufacturing date 1987 Table size 1400 x 450 mm Grinding dimensions L x W x H 1200 x 600 x 450 mm Magnetic plate size L x W 1200 x 450 mm Table speed movement 1 - 30 m/min. Max. distance table surface – centre grinding wheel 675 mm Speeds cross 0,1 - 5 m/min. Vertical movement 0,005 – 0,05 mm Spindle rotation 1200 rpm Spindle power 7,5 kW Grinding wheel size Ø 450 x 50 ( 100 ) x Ø 127 mm Weight 6000 kgs Size of machine 3250 x 1850 x 2600 mm Total power 19 kW – 380 Volt Accessoiries Electro magnetic plate 1200 x 450 mm from Tecnomagnete Coolant Pendel control Condition Machine is in normal condition

Code 171305 Description CNC surface grinding machine Make DANOBAT Model PSG - 1000 Serial No. 30102 A Control Fanuc 210i - M Year 2001 Tablesize 1000 x 500 mm Grinding surface L x W x H 1000 x 600 x 450 mm Long ( X axes ) 1150 mm Cross ( Z axes ) 500 mm Speed table movement 1 – 30 m/min. Max. distance table – centre grinding wheel 650 mm Max. workpiece weigth 1500 kg Max. table load 1500 kg Magnetical plate size L x W 1000 x 500 mm Grinding stone dim. Stone x Wide x Taper Ø 400 x 100 x Ø 127 mm Spindel power 7,5 kW Spindel speed 1500 rpm Motor power 7,5 kW – 380 Volt Total electr.com. 20 kW Total space L x W x H 3950 x 3150 x 2550 mm Weight 5500 kgs Accessoiries Elec. Magneticplate 1000 x 500 mm Coolant with paperfilter Digital readout Grinding stones, etc. Condition Machine is in g ...

Code 5976 Description Hydr. Surface grinding machine Make DANOBAT Type RT – 1200 Machine No. 565 Manufacturing date 1989 ( 1990 in use ) Table size 1400 x 700 mm Grinding dimensions L x W x H 1200 x 750 ( 800 ) x 800 mm Magnetic plate size L x W 1000 x 600 mm Table speed movement 1 - 25 m/min. Max. distance table surface – centre grinding wheel 1000 mm Speeds cross 0,1 - 5 m/min. Vertical movement 0,005 – 0,05 mm Spindle rotation 1500 rpm Spindle power 7,5 kW Grinding wheel size Ø 400 x 50 ( 100 ) x Ø 127 mm Weight 8.500 kgs Total power 12 kW – 380 Volt Accessoiries Electro magnetic plate 1000 x 600 mm from Tecnomagnete Coolant Pendel control Condition Machine is in good condition

Magazzino DANOBAT 3 mt. 15 postazioni Circa 15 aanni

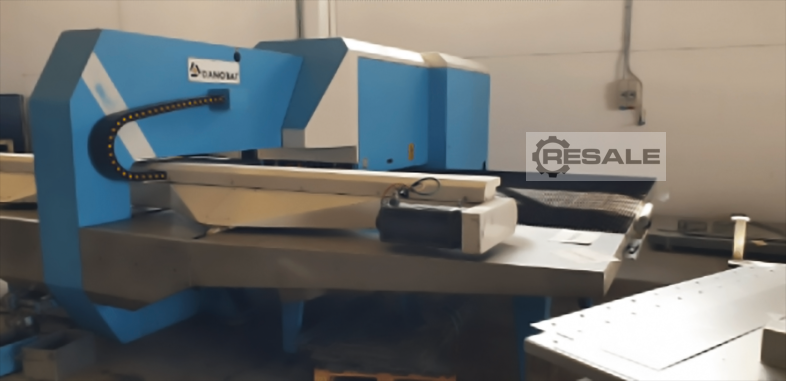

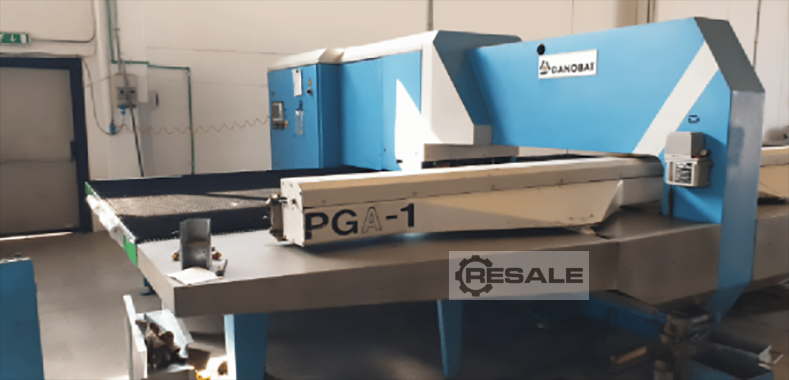

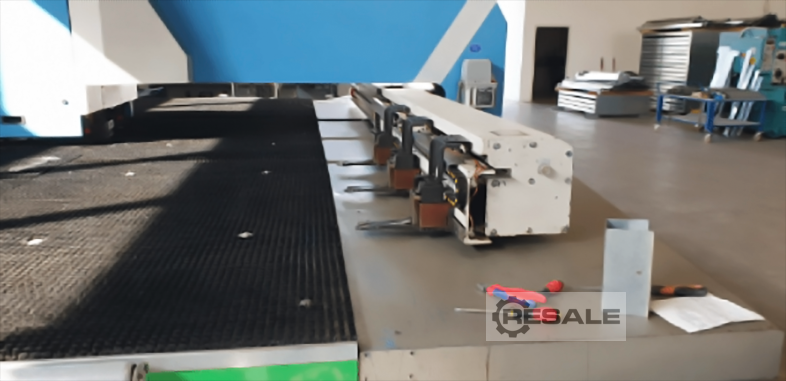

BRAND: DANOBAT YEAR: 2000 MODEL: PGA-1 APPLICATION TYPE: PUNCHING LOCATION: ITALY MACHINE TYPE: PUNCHING MACHINE AVAILABILITY: IMMEDIATELY GINDUMAC ID: IT-PUN-DAN-2000-00001 Technical Information MAIN DRIVE PUNCHING FORCE: 300 KN Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TURRET CONFIGURATION: 4 INDEX (2B + 2D) - 47 PUNCHES - SHEET METAL DIMENSIONS: 1500 X 3000 MM

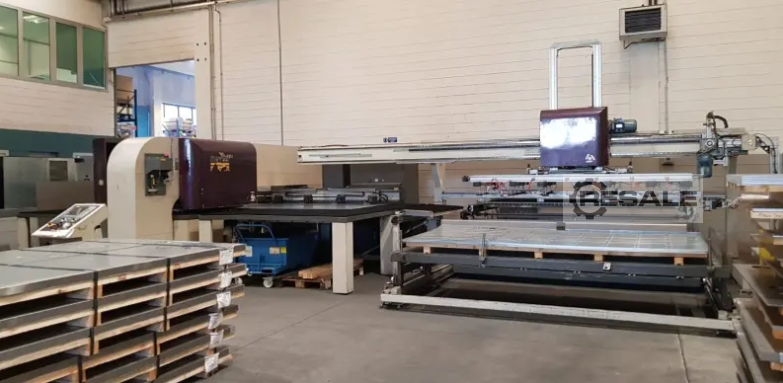

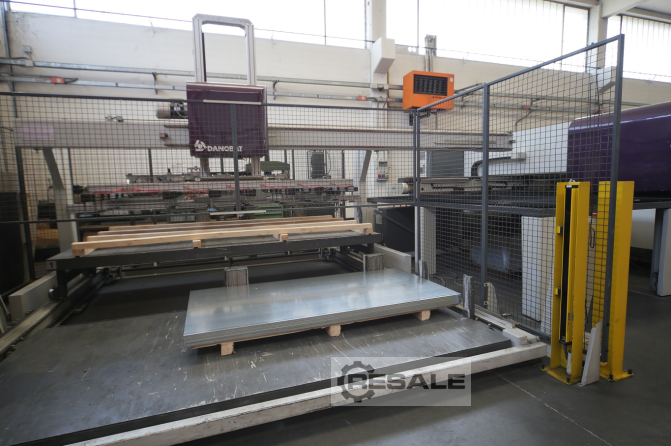

BRAND: DANOBAT YEAR: 2005 MODEL: P1631 APPLICATION TYPE: PUNCHING LOCATION: ITALY MACHINE TYPE: PUNCHING MACHINE AVAILABILITY: IMMEDIATELY Technical Information MAIN DRIVE PUNCHING FORCE: 300 KN Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TURRET CONFIGURATION: 4 INDEX (2B + 2D) - 43 PUNCHES - SHEET METAL DIMENSIONS: 1500 X 3000 MM - LOADING AND UNLOADING SYSTEM INCLUDED - SOFTWARE INCLUDED

Danobat RTM-2500 CNC X600 CNC Surface Grinder Grinding Length: 100" Grinding Width: 28" Table Length Dimension: 98.43" Table Width Dimension: 19.690" -Grinding Wheel- Grinding Wheel Diameter: 20" Grinding Wheel Width: 4" Grinding Wheel Bore: 8" -Wheel Head- Angle Adjustment: 0 DEG Wheel Head Motor: 20 HP Wheel Head Speed: 1,200 RPM -EQUIPPED WITH- Fagor 8055 CNC Control Magnetic Swarf Conveyor

Danobat RTM-2500 CNC X600 CNC Surface Grinder Grinding Length: 100" Grinding Width: 28" Table Length Dimension: 98.43" Table Width Dimension: 19.690" -Grinding Wheel- Grinding Wheel Diameter: 20" Grinding Wheel Width: 4" Grinding Wheel Bore: 8" -Wheel Head- Angle Adjustment: 0 DEG Wheel Head Motor: 20 HP Wheel Head Speed: 1,200 RPM -EQUIPPED WITH- Fagor 8055 CNC Control Magnetic Swarf Conveyor

Weight: 6300 Kg, cnc brand: FANUC, Accessories: Refrigeration equipment with paper filter

Distance between points: 1100 mm, Center height: 175 mm, Maximum diameter to be rectified: 270 mm, Maximum piece weight: 135 Kg, Working wheel dimensions (od x id x width): Ø508xØ304.8x80 mm, Main engine power: 7.5 Kw, numerical control: Fanuc 21 Oi-T

Distance between points: 500 mm, Height of points: 100 mm, Ø of the grinding wheel: 300 mm, Normal grinding wheel width: 25 mm, Maximum usable width of the grinding wheel: 50 mm, Grinding wheel hole: 127 mm, Workpiece holder head: 75-110-150-220-275-375-550-750 rpm, Tilt table in degrees: 8º, Hydraulic table speed: 0.10/6 m/min, Automatic fast forward: 20 mm, Advance in depth: 0.10 to 1 mm, Plongee feed rate: 0.10-5 mm/min, Fine-tuning time regulation in seconds: 60s, Workpiece holder head motor: 2 speeds: 0.38/0.55 HP, Motor head for grinding wheels: 3 CV, Hydraulic pump motor: 0.5 HP, Cooling pump motor: 0.10 HP, Internal grinding apparatus: 0.75 HP, Points: Morse 4 and 3, Weight approx.: 1600 Kg

* CNC, automatic balancer of wheels Balance Systems, speed variator in the grinding wheel, speed variator in the grinding wheel / CNC, automatic balancer of wheel Balance Systems, Speed ​​variator of Grinding Wheel, Speed ​​variator of Regulating Wheel,, Ø grinding wheel dimensions (od x id x width): 610 mm, Ø min / max to grinding: 1.5 - 120 mm, Peripheral grinding wheel speed (m / s): 35 m / sec, Regulating wheel width: 254 mm, Min / max regulating wheel speed (r.p.m.): 10-300 RPM, Cnc brand: FANUC, Cnc model: Power Mate - iH, Cnc axes nº: 3 + spindle, Regulating wheel dimensions (od x id x width): 305 x 127 mm x 254 mm, Grinding wheel width: 254 mm, Maximum infeed grinding length: 254 mm, Motor power grinding wheelhead: 22 kW, Total power: 35 kW, Voltage: 220/380 V, Long: 4,795.5 mm, Width: 3.806 mm, High: 2.355 mm, Weight: 6.450 kg, Accessories included: * CNC, automatic b ...

CONTROLS   CNC controls SIEMENS 840 D WORKING RANGE SURFACE GRINDING   grinding length: 1600 mm   grinding width: 900 mm   workpiece height (max) with largest wheel: 600 mm   number of processing axes (excl parallel axes): 3 TABLE (SURFACE GRINDING)   table surface (left-right): 1600 mm   table surface (front-back): 800 mm SPINDLESTOCK GRINDING SPINDLE   X-axis travel: 1700 mm   spindle revolutions (max): 1000 /min GRINDING TOOL   type of grinding tool: wheel   diameter (max): 500 mm   borehole: diameter: 203.2 mm   width: 100 mm ELECTRICAL SPECIFICATIONS   total power consumption: 30 kW   mains voltage: 400 V   mains frequency: 50 Hz

grinding diameter: 850 mm grinding length: 4.000 mm centre height: 525 mm workpiece weight max. betw. centres with steady: 5.000 kg control: SINUMERIK 840 D Feeds & travels: - feed Z-axis: 0,01 – 6.000 mm/min feed X-axis: 0,01 – 6.000 mm/min Travel Z-axis (table): 4.500 mm Travel X-axis (grinding spindle): 650 mm Grinding wheel: - Max. Dimension: Ø1.060x60x304,8 mm grinding wheel speeds: 1.100 min-1 peripheral speed: 45 m/sec power: 22 kW tail stock: - Taper: MK 6 quill travel: 100 mm diameter of quill: 115 mm Workpiece spindle: - Taper: MK 6 Speed range workpiece: 10 - 120 min-1 torque of the drives: 41,5 NM control: total power requirement: 52 kW weight of the machine ca.: 25,5 t Equipment & Accessories CNC cylindrical grinding machine in most robust design for heavy workpieces • Scope of geometric retrofit: • Slideways of X- and Z-axis regrinded, intermediate table and top ...

Magnetic plate surface: 1600 mm x 800 mm, Max. width to rectify: 900 mm, Maximum height to be corrected: 800 mm, Weight: 12.500 Kg, Working wheel dimensions (od x id x width): Ø504 x Ø203,2 x 100 mm

diameter range 1,8-2,5 mm nail length 32-57 mm output - pieces/min 2000

Injector penkomat with 16 needles The machine is complete Nirosta

Trailing shelving system with roller conveyors: good condition We will be happy to send you further information, pictures and similar products. All prices are from Station Europa and the dismantling and all follow-up costs are to be made by the buyer. VAT is not included in the prices. The contractual agreements for the individual offers must be agreed separately and only apply after the contract has been signed. Mistake reserved. All technical details, dimensions, etc. are approximate and are non-binding for the supplier. The technical data are manufacturer or operator information and therefore non-binding for us. Used material is sold to the exclusion of any warranty. We do not accept any liability for used material. Warranty exchange and return are excluded. The material remains the property of the seller until full payment. intermediate sale, other use, Ex ...

Trailing shelving system with roller conveyors: good condition We will be happy to send you further information, pictures and similar products. All prices are from Station Europa and the dismantling and all follow-up costs are to be made by the buyer. VAT is not included in the prices. The contractual agreements for the individual offers must be agreed separately and only apply after the contract has been signed. Mistake reserved. All technical details, dimensions, etc. are approximate and are non-binding for the supplier. The technical data are manufacturer or operator information and therefore non-binding for us. Used material is sold to the exclusion of any warranty. We do not accept any liability for used material. Warranty exchange and return are excluded. The material remains the property of the seller until full payment. intermediate sale, other use, Ex ...

NANO FILTRATION PLANTS CAPACITY: FROM 5.000 LITER TO 50.000 LITER PER HOUR USED FOR WHEY DEMNINERALIZATION AND PRE CONCENTRATION TO 20 % SOLID RATIO FULLY AUTOMATION CONTROLLED WITH PLC CONTROL PANEL AND TOUCHSCREEN

NANO FILTRATION PLANTS CAPACITY: FROM 5.000 LITER TO 50.000 LITER PER HOUR USED FOR WHEY DEMNINERALIZATION AND PRE CONCENTRATION TO 20 % SOLID RATIO FULLY AUTOMATION CONTROLLED WITH PLC CONTROL PANEL AND TOUCHSCREEN

Indramat network module NAM 1.2-08 Bosch Rexroth
