Beck Wand 1000/2000 Extraction Wall Extraction wall Type: Beck Wand 1000/2000 Extraction wall made of sheet steel, with 5 suction slots made of perforated sheet metal evenly distributed. For connection to a central extraction system via a suction nozzle at the top center of the extraction wall. Cleaning opening can be unscrewed at the bottom of the front of the wall. Uses: Extraction of process air during grinding and milling Extraction of gases and light dust Extraction of powder mix or other stationary dust-forming processes Width: 1000 mm Height: 2000 mm + 100 mm nozzle Depth: 300 mm Suction nozzle: NW 250 top center Recommended extraction capacity: 3000 m3/h Paintwork: RAL 5018, RAL 7032 Weight: approx. 75 kg Manufacturer's price: 2970,-€ More items - new and used - can be found in our shop! International shipping costs on request!
DESCRIPTION Beck Packers Series Packer S1750 X Fully automatic film packaging machine for four-sided product shrink-wrapping Fully automatic, belt feeding with light barrier control Functioning: The beck series packer works fully automatically with photoelectric product scanning. The goods to be packed are introduced by means of a conveyor belt into the cross weld seam and Shrink-wrapped there in cycles on 4 sides. The film rolls are mounted above and below the conveyor belt. For the production of skin-tight shrink packs, the packaging machine can be equipped with the proven energy saving beck thermal shrink can be extended to a complete film packaging line. Specifications: Standard operating page: right Welding punch width: 550 mm Punch closure: servo-motor Welding system: permanently heated Passage height: 100 mm Belt width inlet: 140mm Belt width spout: 1 ...
Thermo shrink tunnel BECK type HV 601HPLS - Used equipment built in 2008 The high-performance shrink tunnel is built in an energy-saving design. He is from the The heating system and the adjustment options are designed so variably that they can be covered with foil. coated products of various contours can be shrunk cleanly. Functioning: The thermal shrink tunnel works with separate blowers to create a separately adjustable top and bottom heat. The special insulation technology reduces heat loss by radiating heat, reduces the power consumption by up to 20% and thus increases the Efficiency of the machine considerably. The shrink temperature is controlled by a digital control and precisely maintained even at high throughputs. The heating units at the top and bottom are removable; the thermal shrink tunnel is in case of maintenance available again after a few minutes. The ...
Specifications: Passage width: 400 mm Passage height: 150 mm standard, the passage height can be changed by using additional strips Hood length: 1,700 mm Transport length: 2100 mm Transport rod spacing: every 4th rivet occupied Teflon net coating for products with a small footprint Current type: 230/400 Volt three-phase current N-PE Heating power: controlled by solid stat. relay Power: 19 kW Throughput speed: infinitely variable Color: Hammer blow aluminum No guarantee is assumed for the technical data given in the description.
Packaging machine Beck Fitpacker Junior FJ 1040 U - Used equipment built in 1995 - small repairs necessary The Fitpacker Junior has a high packing performance and can process products of different lengths in disorder. A programmable logic controller is located at the top of the control cabinet and is easy to handle via a logical user interface. The packer also has a feeding system, which is especially suitable for line operation. Machine changeover times are kept short by a digital operating concept and an adjustable shape shoulder. The control cabinet can be opened and swivelled so that optimal access is guaranteed in the event of maintenance and downtimes are reduced. The film roll holder is mounted at an ergonomically reasonable working height. Working speed: Actual production speed and effective net output depend on format, Type and composition of products and can ...
Packaging machine Beck Series Packer S 1732 - Used equipment built in 1986 -Operational The machine is equipped with a photo-electric control and regulates the work rhythm depending on the length of the packaged goods. This allows unequal parts to be packed in any order. The height and side adjustment of the machine takes place in seconds by means of a hand wheel. Functioning The machine works cycle by cycle, fully automatically with photo-electric control. The goods to be packed are introduced into the machine by means of a special infeed belt and shrink-wrapped on four sides. Oil hydraulics ensure exact operation of the welding system. The welding is carried out according to the impulse separation welding process and can be equipped with additional special welding elements. Odour nuisances are avoided by means of an exact, infinitely variable temperature adjustment of the w ...
1 BECK shrink tunnel type HV601, working width 60 cm, year 1999
1 BECK shrink tunnel type HV1000, working width 100 cm, year 1995
with B200/25 and Number: 6852884, Shrink Wrap / Foil Sealing
BECK HMS ist eine Vertikal-Honmaschine mit hoher Präzision, ausgelegt für große Genauigkeit und Zuverlässigkeit. Bearbeitungskapazitäten: Angaben zu Durchmessern, Hüben und Vorschub nicht vorhanden. Technische Hauptdaten: Anschluss 50 Hz 3x: 380 Volt; Luftanschluss 6 - 7 bar; Maschinengewicht ca. 200 kg; Abmessungen L 850 mm × B 800 mm × H 1900 mm. Ermöglicht enge Toleranzen; typische Einsatzgebiete: Automotive, Luft- und Raumfahrt, Medizintechnik, Uhrenindustrie und Werkzeugmaschinenbau. Technische Daten ohne Gewähr
Description Item # 9221 - SHRINK WRAPPER & TUNNEL Manufactured by BECK PACKAUTOMATEN Model B250/50 230/400Volts, 3Phase, 50Hz
: 4000 + 5000 mm Working width: 250 mm Wheel width: 250 mm roll diameter: 60 mm work height max.: 880 ± 60 mm Feed and Discharge Roller Conveyor Feed Roller Conveyor, Length 4000 mm: Roller conveyor without scale or stop, with side guides Conveyor width 300 mm, usable roller width 250 mm Outfeed roller conveyor, length 5000 mm: Length measuring device with mm scale and reading magnifier on the stop carriage Measuring track with manual measuring system and a sturdy precision flat steel guide Conveyor width 300 mm, usable roller width 250 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Machine reamers, reamer, reaming tool, locating knife cutting set -Quantity: 10x reamers -Diameter: 5x Ø 35.5 mm H7 -Diameter: 5x Ø 45 mm H7 -Recording: MK -Price/Sale: only complete set -Weight: 24 kg
A used BECK flow wrapping machine Serienpacker is offered. Fully automatic film packaging machine with 4-side sealing principle, operates with two flat film rolls upper and lower film, processing films PE, PP, polyolefin. Inspection by appointment possible.
A 3-side sealing packaging machine Beck is available. Processing materials: recyclable mono films/recycled material/bio film, product width range: 20mm-400mm, max. product height: 200mm, max. packaging capacity: 60cycles/min. Including beck heat shrink tunnel. Documentation available. An on-site inspection is possible by appointment.
Product length: 100-600mm, product width: 100-400mm, max. product height: 220mm, max. output: 30 cycles/min. With documentation, 22m long conveyor belt, e-commerce applications and many spare parts. Several pallets with roll film are available. On-site inspection is possible.
Two Beck MPX 240T are available, control panel: Siemens SIMATIC OP7, with documentation, on machine 1 the Teflon coating of the welding knife is partially damaged and must be replaced, on machine 2 the welding knife may have to be replaced, as well as the cover of the fan of the control cabinet. An on-site inspection is possible.

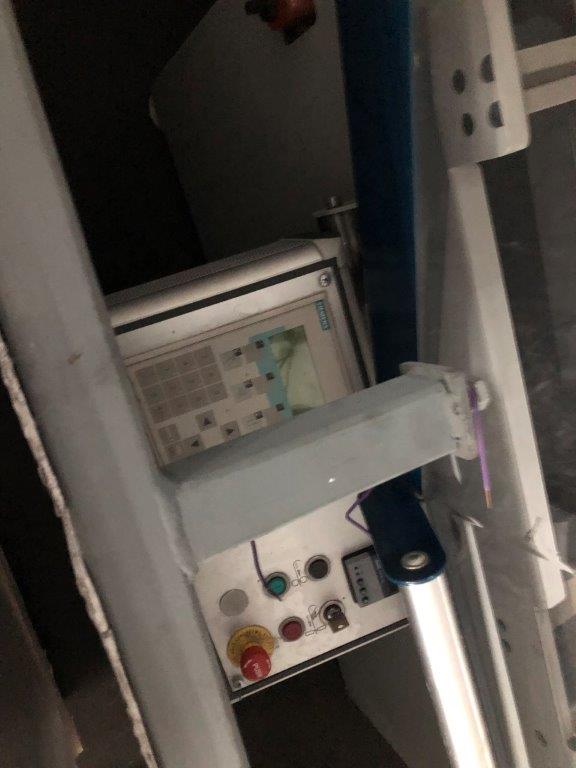

Control system: Siemens SIMATIC OP7. The machine needs to be cleaned and serviced, is otherwise in working order and was in operation until the shutdown. An on-site inspection is possible.
