BASYSPRINT uv used machines

Checked and ready for use. At this point we allow ourselves to note that all offered machines are in our unrestricted possession or access and are present in our warehouse. Visits and demonstrations are possible on request in our premises. We would also be pleased to inform you about our complete stock, as only part of our portfolio is presented here.

BasysPrint 867 1500DPI Fully Automatic with 4 Cassettes and Bacher Punch One laser module with 2560 hours, optionally a second module can be offered. Operating counter plates: 404960 pieces Machine was discontinued due to plate conversion to thermal Dismantled by BasysPrint technicians and secured for transport. If you are interested, videos of the functionality can be sent via WhatsApp BasysPrint 867 1500DPI fully automatic printer with 4 cassettes and Bacher die-cutting unit One laser module with 2560 hours of operation; a second module is available as an option. Plate counter: 404,960 The machine was sold due to a plate conversion to thermal printing. Dismantled and secured for transport by BasysPrint technicians. If interested, videos of the functionality can be sent via WhatsApp.

BasysPrint UV setter 745 (online system) Built 10 / 2008 1 Head UV laser head 8 (new DMD 2013) : MaxSize plate 920 x 1.080 mm Min: Plate size 323 x 450 mm Tape Manager 3 cassettes With HAASE 85 PlateProcessor HQ level 3 RIP software installed on server PC, 20 TFT monitor.

BasysPrint UV Setter 850 2013 Manufactoring 3-Head UV laser diode 24 Plates/Houer SCL with 2 Carriges Max: Plate format 940 x 1150 mm Min: Plate Size 200 x 200 mm With Interplater 85 PlateProcessor Server PC, 20 TFT Monitor. Laser diodes in best condition.

BasysPrint 855 (Online System) Built 01/ 2010 2-Laser Head UV,405nm Exposed Plates 85600 Max:Plate Size 920 mm x 1,080 mm Min: Plate Size 323 mm x 450 mm Cassettes Manager 1 Cassettes With Kodak Merxury 85 PlateProcessor Server PC, 20 TFT Monitor.

The basic unit includes following modules (standard equipment): -Compact, pharmazie - and food-friendly balcony construction (GMP) - fixing the carton blanks and control of vacuum switch digital Magazine, filling station and lock station -Maintenance - free and oil-free operation -Voltage: 3 x 400V + N + PE / 50-60 Hz -Year of construction: 2000 -Clear product throughput, since all operations on a level -Large safety covers incl. single door display at the HMI -All contact with the carton parts are from VA or aluminium anodised -Ergonomic magazine layout for easy loading -Easy format changeovers and excellent accessibility of all setting points -Flap closer to American cases (RSC) process. Size range UVP2 Carton size: carton length 200-450 mm Carton width 160-320 mm Carton height 160-320 mm Technical data: ï?? Operating side right ï?? - Operator / HMI Lauer with 4-zeiliger p ...

- Compact, pharmaceutical and food-friendly balcony construction (GMP) - Control cabinet and cladding plates in V2A version - controlled suction arms for removal, fixation of the cardboard blanks and control via vacuum switches -digital- from magazine, filling station and closure station - Cylinder monitoring with fault indicator in the control console as well as single door display - Control console - touchscreen 10" (piece counter, speed display, general interference indicator) - Operating hour counter - Clear product pass, since all operations on one level - Maintenance and oil-free operation - All carton-contacting parts made of VA or aluminum anodized - The system complies with the latest safety regulations (VDE/IEC standard) Conversion and user-friendliness through: - Large-area safety covers - Clear, easy-to-handle change list (all conversion points are ...

Automatic case packaging machine (rebuilt in 2012) for american cases. Machine including feeding system, 2 formats (incl. Seidenader camera vision system), and other accessories. Furthermore including exit belt with PAGO labeling system.

Part No.: 42.35.53 // S. No: 3.278-870805-1 Equipment / Additional information Technical data and description: see pictures

Part No.: 42.35.53 // S. No: 3.278-870805-1 Equipment / Additional information Technical data and description: see pictures

Part No.: 42.35.53 // S. No: 3.278-870805-1 Equipment / Additional information Technical data and description: see pictures

JenActUV UV Torpedo conveyor Model: UVTCONV500 Serial: 26557-PO1 Stainless, variable speed conveyor with UV disinfection zone, the UV disinfection zone consists of two arrays of UV lamps, the top array is mounted above the wire belt and bottom array of lamps is mounted below the wire facing upwards. This is set up to achieve disinfection on all sides of a product placed on the conveyor, HMI touch screen controls, belt dimensions 3500mm x 500mm, stainless wire mesh belt, with manual, 1Ph

Feed length - 0.1 - 6500 mm Width 20 - 300 mm Belt thickness 1.0 - 3.0 mm Material Quärschnitt 500 mm2 motor - 2,2 kW Complete documents more info on request

Alfa Laval UVPX 307 AGT 14 Separator Centrifuge Oil Fish, Olives 5750l/h Motor 5.5 kW

Used freezer cell KOMA, type: - Large freezer cell for 55 to 60 rack trolleys - down to -25°C - Cooling capacity: 25.1 kW - Condition: very good - Location: Germany Viewing possible on request.

Used decanter made by Alfa Laval, model: UVNX 314. Two motors: 7,5 kW and 3 kW. Parts in contact with the product in stainless steel. Max drum speed 3250 rpm. Documentation available. The machine was used for edible oil.

From an operational resolution: Zagro UVB Z 500 S YEAR OF MANUFACTURE unknown 380 VOlt Emergency stop Saw rollers Ø 500 mm Cutting length 700 mm Cutting width 450 mm Cutting heights 530 / 650 mm Saw blade lengths 3720 / 3920 / 4120 mm Table size 1000 x 800 mm AC 230 V / 16 A Width 1000 mm Total height 1800 mm Total weight 180 kg ----Engine cover is missing--see photo---

Timber saw SAB UVK41 complete line

Manufacturer: Hymmen UV Trockner, Type: UVK, Year: 2004, Work piece width min-max mm: 1300, Number of lamps: 3, kW power 1 lamp: ca.10, Lampen gerade eingebaut: yes, Adjustable: yes, Power per lamp watt UV: 80, Conveyor lenght mm: 3450, Outer belt width mm: 1800, Working hight approx mm: 60, Feeding speed m/min: 5-25, Conveyor: Band, Drive power kW: 1,5, Year :2004

Pest Pewo-form RRP 2 completely overhauled

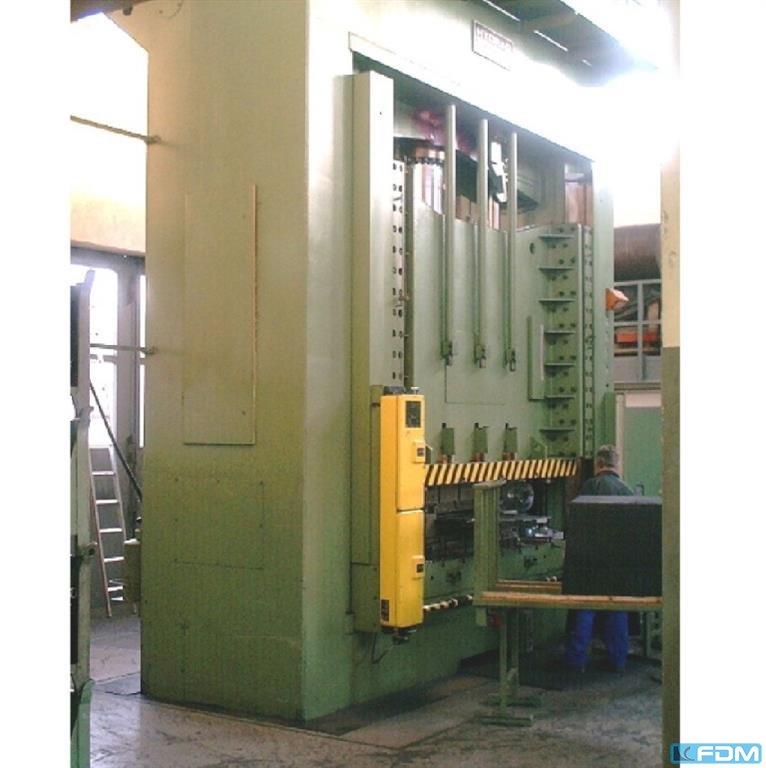

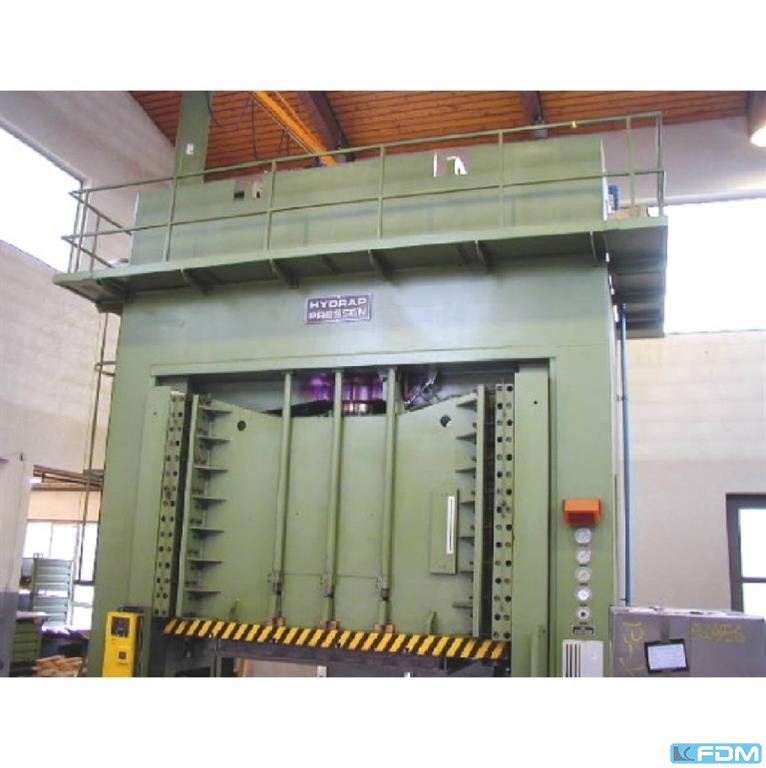

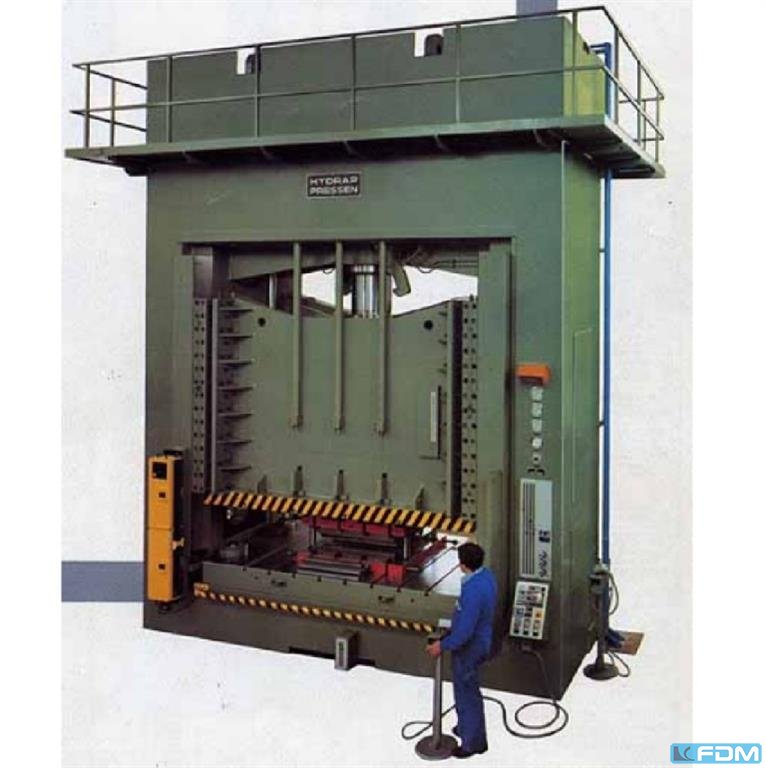

pressure: 500 t distance between columns: 1220 mm max. ram stroke: 600 mm distance table/ram, max. stroke up, adjustment up: 1000 mm table surface area: 1600 x 1200 mm die-cushion pressure inside the table: 320 t stroke of drawing cushion in table: 150 mm drawing cushion surface in table: 750 x 812 mm die-cushion pressure in pusher: 180 t stroke of drawing cushion in pusher: 100 mm drawing cushion surface in pusher: 750 x 625 mm ram surface: 1600 x 1200 mm table height over floor: 800 mm feed down: 665 mm/sec feed up: 530 mm/sec working feed: 34 - 100 mm/sec quantity of oil: 2000 l power capacity: 180 kW weight: 40 t dimensions of the machine ca.: 3,2 x 2,4 x 7,5 m by using oil-hydraulic drive, hydraulic and electric control UVV, die cushion in bed and slide, adjustable drawing speed, punching limit with damping plunger lock, electric cabinet Our list price is WITHOUT starting the machin ...

pressure: 40 t distance between columns: 495 mm stroke: 150 mm distance table/ram, max. stroke up, adjustment up: 300 mm table surface area: 490 x 400 mm hole in the table: 50 mm table height over floor: 950 mm column travel -side: 155 mm ram surface: 150 mm feed down: 480 mm/sec feed up: 480 mm/sec working feed: 20 mm/sec oil volume: 115 l power capacity: 7,5 kW weight: 2,2 t dimensions of the machine ca.: 1,35 x 1,00 x 2,21 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC Machining Center Manufacturer: Unverzagt Type: UVA 550 Plus Year of Make: 2012 Control: Siemens 828D Operating hours: approx. 3,000 Travels: X/Y/Z: 600 x 400 x 500 mm Tool locations: 20 Tool holder: SK40 Spindle speed range: 10,000 rpm Wireless Push Button Hexagon Conveyor Spindle coolers IKZ (internal cooling system)

CNC Machining Center Manufacturer: Unverzagt Type: UVA 550 Plus Year of Make: 2012 Control: Siemens 828D Operating hours: approx. 3,000 Travels: X/Y/Z: 600 x 400 x 500 mm Tool locations: 20 Tool holder: SK40 Spindle speed range: 10,000 rpm Wireless Push Button Hexagon Conveyor Spindle coolers IKZ (internal cooling system)

CNC Machining Center Manufacturer: Unverzagt Type: UVA 550 Plus Year of Make: 2012 Control: Siemens 828D Operating hours: approx. 3,000 Travels: X/Y/Z: 600 x 400 x 500 mm Tool locations: 20 Tool holder: SK40 Spindle speed range: 10,000 rpm Wireless Push Button Hexagon Conveyor Spindle coolers IKZ (internal cooling system)
