ARBURG allrounder used machines

ARBURG ALLROUNDER 720S 3200-2100 injection moulding machine was built in 2008 in Germany by ARBURG GmbH + Co KG. The machine is designed for the efficient mass production of plastic components used across a wide range of industries. The production process utilises the injection moulding method, which involves injecting plasticised plastic under high pressure into a closed mould, where the material cools and takes on the mould’s shape. A 60 mm diameter screw and a precision mould clamping system with a clamping force of 320 tonnes ensure the process runs smoothly, guaranteeing high repeatability and quality of the parts produced. The ARBURG ALLROUNDER 720S 3200-2100 is offered with a comprehensive range of equipment that increases the level of automation of the production process. All process parameters are programmed in the intuitive SELOGICA control system, which ensures convenient ...

Three similar Arburg injection molding machines are available. 1) Arburg ALLROUNDER 570 A 2000-800, year of manufacture: 2010, clamping force: 2000kN, distance between tie bars: 570mm/570mm, pressure: 575bar, control system: Selogica direct 4.090, operating hours: 91917h, weight: approx. 9800kg. 2) Arburg ALLROUNDER 570 A 2000-800, year of manufacture: 2011, clamping force: 2000kN, distance between tie bars: 570mm/570mm, pressure: 575bar, control system: Selogica direct 4.090, operating hours: 82736h, weight: approx. 9800kg. 3) Arburg ALLROUNDER 570 A 2000-800, year of manufacture: 2011, clamping force: 2000kN, distance between tie bars: 570mm/570mm, pressure: 575bar, control system: Selogica direct 4.090, operating hours: 90722h, weight: approx. 9800kg. Documentation available. An on-site inspection is possible.

This 3-axis Arburg Allrounder 920S 5000-3200 hydraulic injection moulding machine was manufactured in 2007. It features a maximum clamping force of 5,000 kN, a screw diameter range of 70 to 90 mm, and a maximum shot weight up to 1,860 g. Consider the opportunity to buy this Arburg Allrounder 920S hydraulic injection moulding machine. Contact us for more information about this machine.

This 6-axis Arburg Allrounder 520 S 1600-290 / 290 was manufactured in 2015. It features a highly wear-resistant thermoplastic cylinder with a 30 mm diameter and a drive unit powered by a 30 kW motor. The machine is equipped with advanced control systems for both injection units and supports multi-component processing. If you are looking to get high-quality injection moulding capabilities, consider the Arburg Allrounder 520 S 1600-290 / 290 hydraulic injection moulding machine we have for sale. Contact us for further details.

Hydraulic injection moulding machine manufactured in 2018. This Arburg ALLROUNDER 270 S 400-100 features a maximum clamping force of 400 kN and offers screw diameter options of 15 mm, 20 mm, or 30 mm. It has a maximum injection pressure of 2,500 bar for the smaller screws and a maximum shot weight of 79 g for the largest. If you are looking to get high-quality injection moulding capabilities, consider the Arburg ALLROUNDER 270 S 400-100 machine we have for sale. Contact us for further details.

Hydraulic injection moulding machine manufactured in 2019. This Arburg ALLROUNDER 270 C 400-100 features a clamping force of 400 kN and an opening stroke of 350 mm. It has a maximum injection pressure of 2500 bar and a shot weight of up to 29 g. If you are looking to get high-quality injection moulding capabilities, consider the Arburg ALLROUNDER 270 C 400-100 machine we have for sale. Contact us for further details.

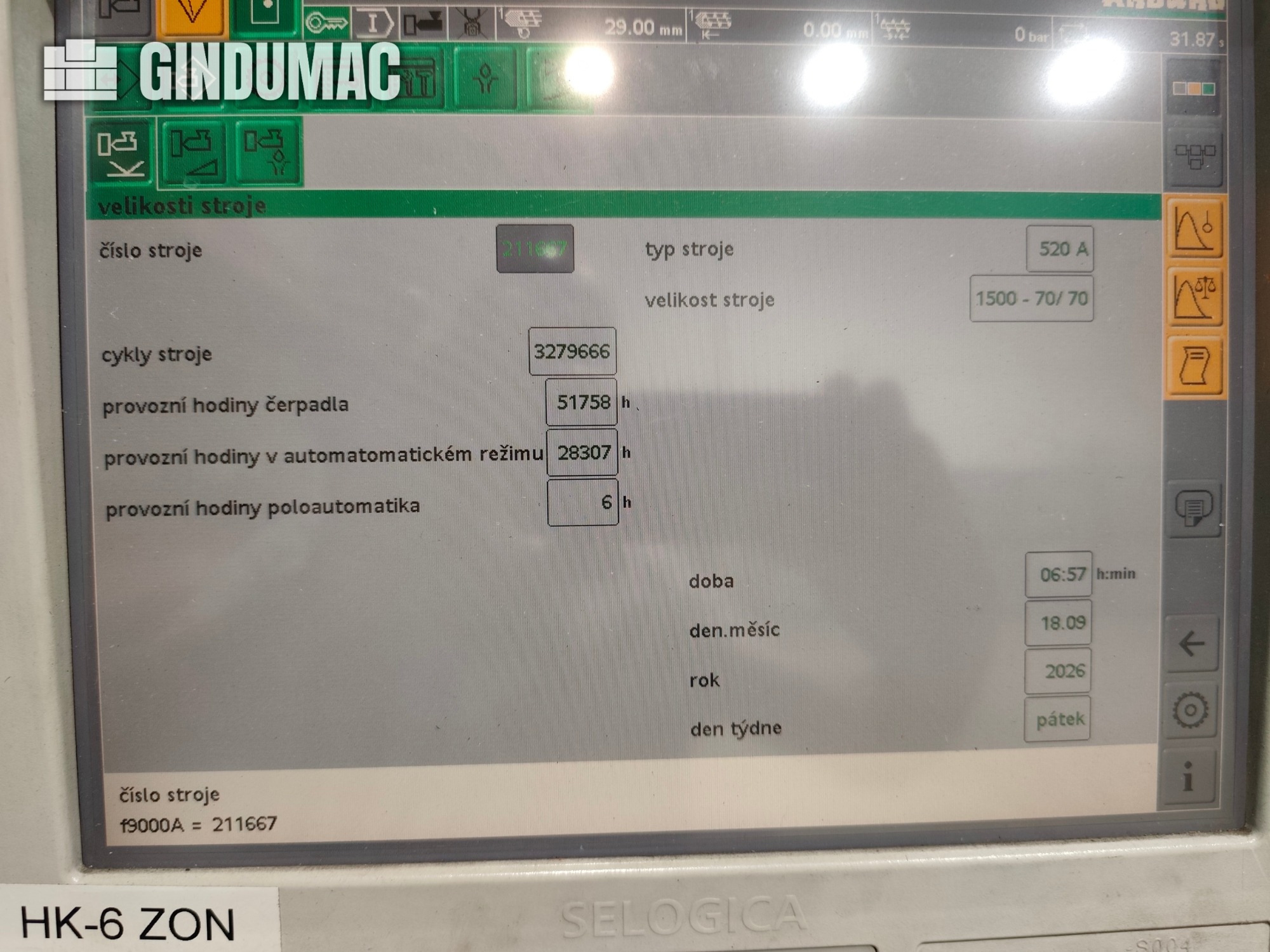

Hydraulic injection moulding machine manufactured in 2009. This Arburg Allrounder 520 A 1500-70 Alldrive features a clamping force of 1,500 kN and a maximum injection pressure of 2,500 Bar. It has a screw diameter of 15/18 mm and accommodates molds with a maximum height of 550 mm. If you are looking to get high-quality injection moulding capabilities, consider the Arburg Allrounder 520 A 1500-70 Alldrive machine we have for sale. Contact us for further details.

Hydraulic injection moulding machine manufactured in 2006. This Arburg Allrounder 630S-2500-800/350 features a clamping force of 2,500 kN and a maximum mold height of 900 mm. It includes a screw diameter of 45/35 mm and a maximum injection volume of 195/140 cm³. If you are looking to get high-quality injection moulding capabilities, consider the Arburg Allrounder 630S-2500-800/350 machine we have for sale. Contact us for further details.

Key data: 3200 kN, 45 mm

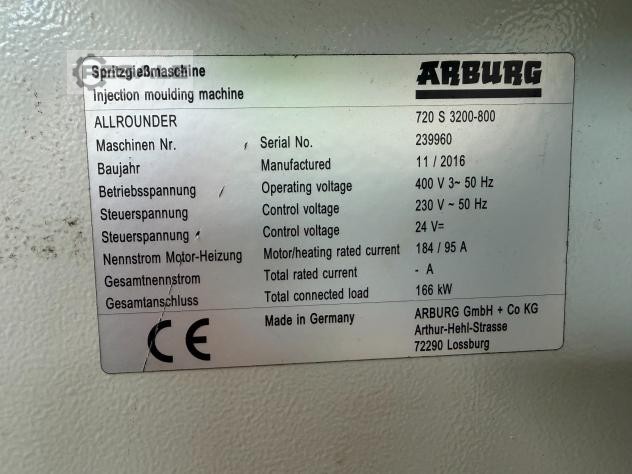

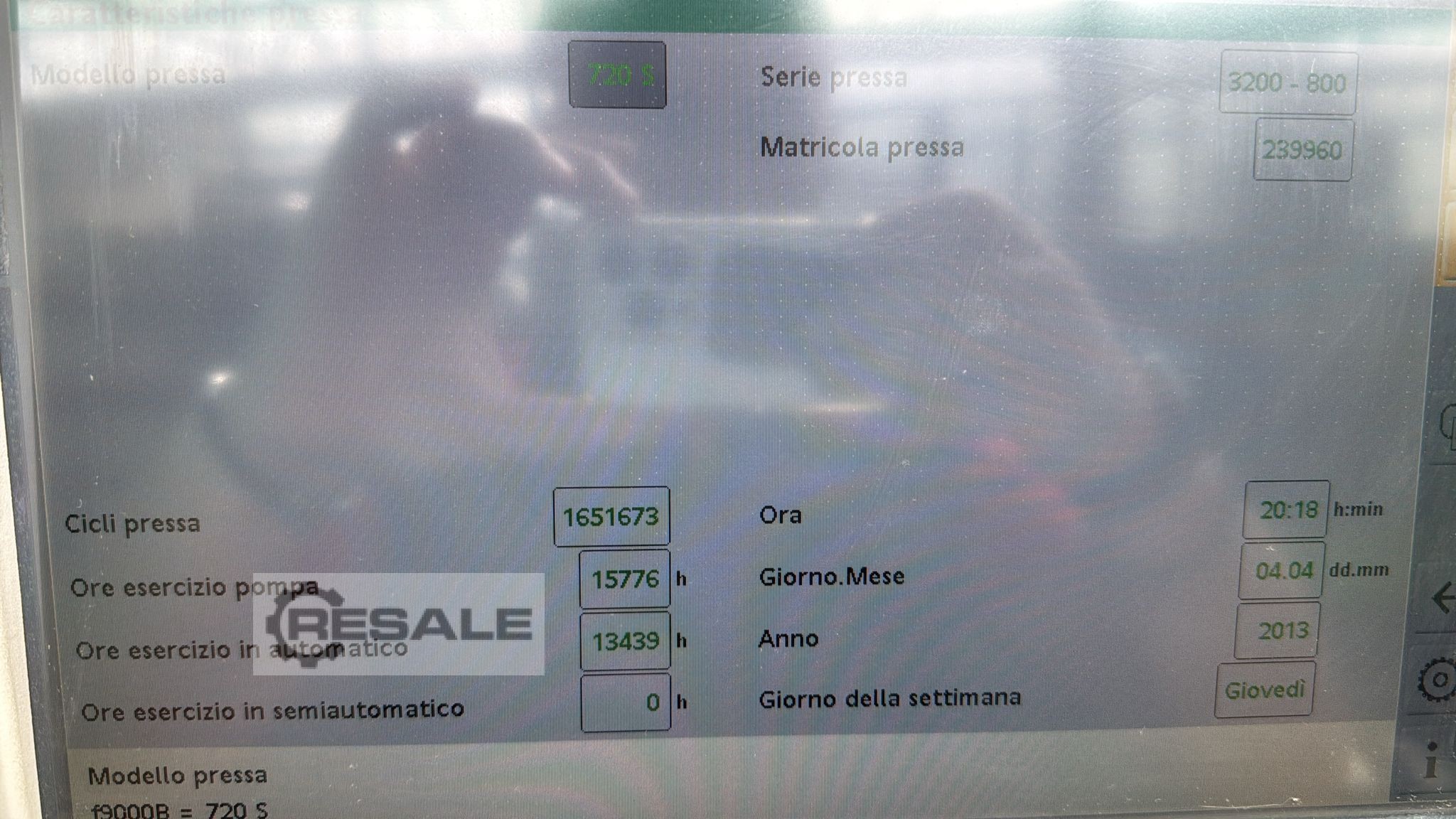

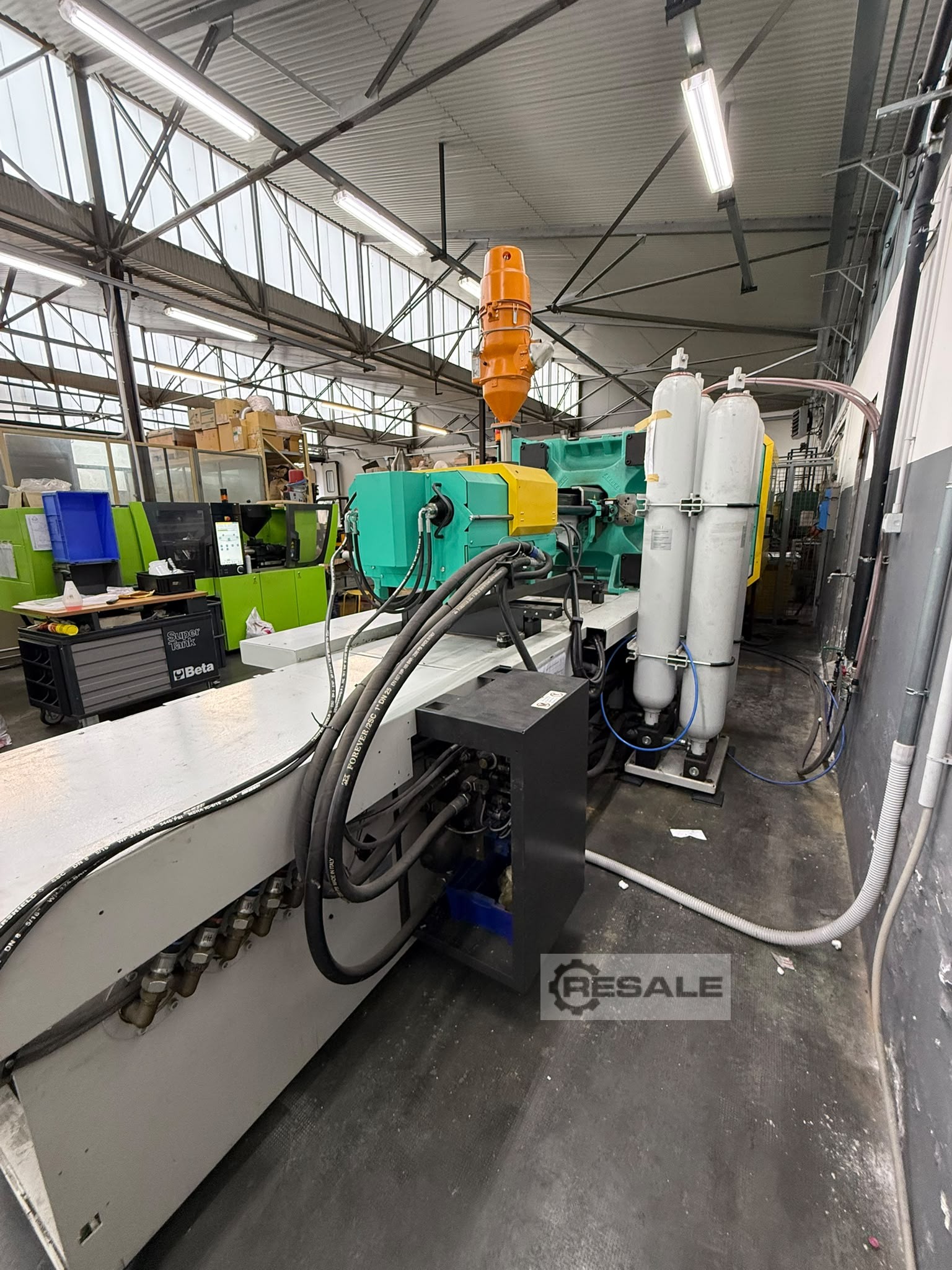

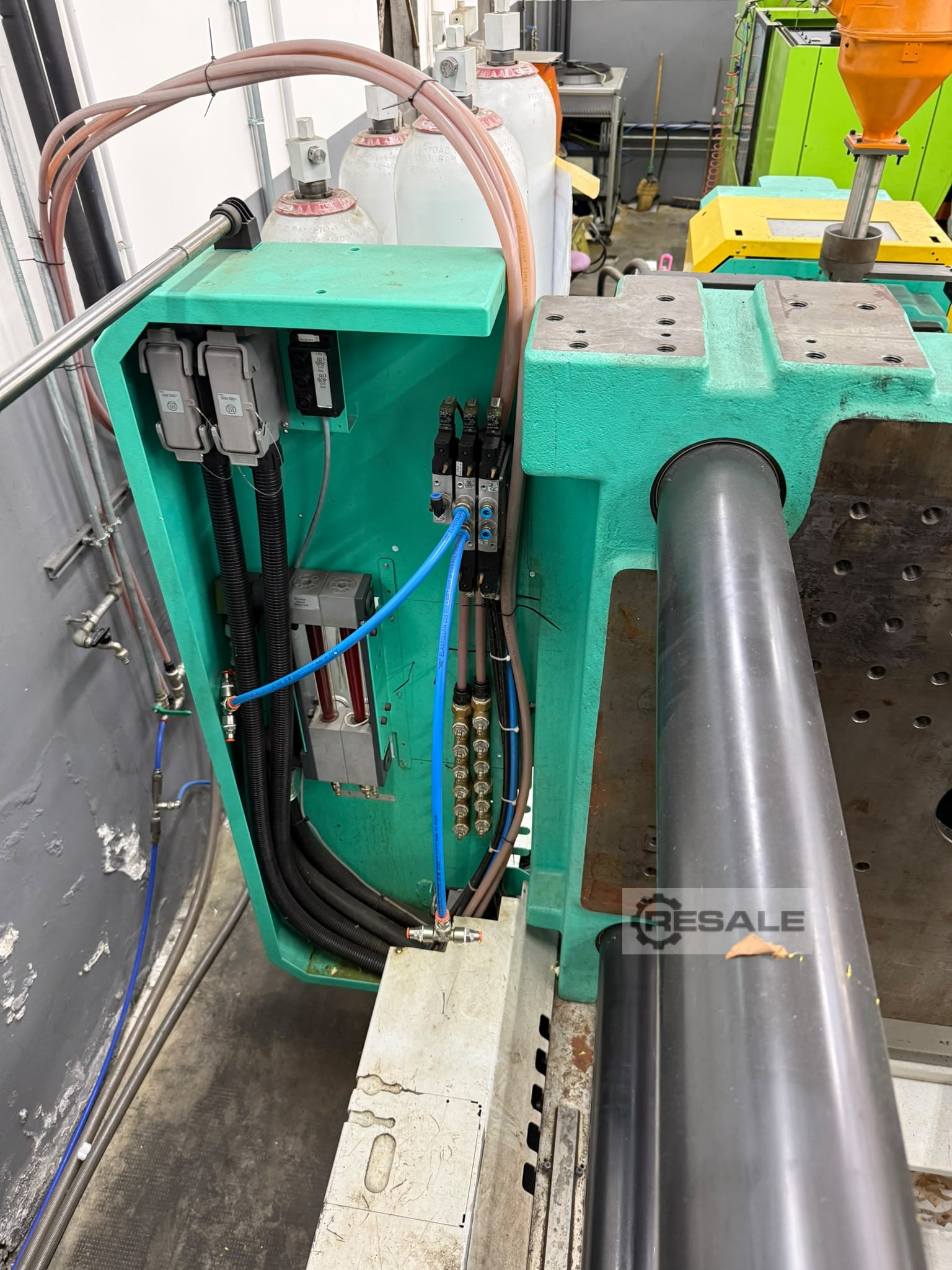

ARBURG ALLROUNDER 720 S 3200-800 hydraulic injection moulding machine, manufactured in November 2016. Serial number 239960. Installed, connected to power and operational in Piasco (Cuneo), Italy. Currently not in production. Available for inspection and testing by appointment. Sale following the completion of a production programme and reorganisation of factory space. TECHNICAL DATA - Clamping force: 3,200 kN (commercial class 320 t). - Injection unit: 800. - Thermoplastic screw diameter: 45 mm. - Maximum theoretical dosing volume: 318 cm3. - Maximum screw stroke: 200 mm. - SELOGICA control. - Power supply: 400 V, three-phase, 50 Hz. - Total connected load: 166 kW according to the nameplate; this is not average power consumption. DISPLAYED COUNTER READINGS - Pump operating hours: 15,776 h (the value entered in the operating-hours field). - Automatic operation: 13,439 h ...

Key data: 1000 kN, 35 mm

Stock No.: 503729 Manufacturer: ARBURG Type: Allrounder 470 E 1000-290 Control: Selogica Year of Make: 2012 Clamping force: 1000 kN Tie bar measurement h x v: 470 x 470 mm Plate size h x v: 637 x 637 mm Min. installation height: 250 mm Max. installation height: 500 mm Plate spacing max.: 850 mm Opening travel: 350 mm Screw diameter: 35 mm Displacement: 144 cc Spray pressure: 2000 bar Equipment Sprue removal device included Screen text German CEE socket 16A Core pull hydraulic 1x Levelling elements Tool heater 6x Machine Type : Linear Make: ARBURG Control: INTEGRAL PICKER Year of Make: 2012 Machine dimensions LxWxH: 4.4m x 1.9m x 2m Total Weight: 5280KG

Key data: 1000 kN, 35 mm

warehouse no.: 503728 manufacturer: ARBURG type: Allrounder 470 E 1000-290 controller: Selogica year of construction: 2013 operation hours: 71000 h technical data clamping unit clamping force: 1000 kN distance between tie-bars h x v: 470 x 470 mm size of mould plates h x v: 637 x 637 mm min. mould height: 250 mm max. mould height: 500 mm max. open daylight: 850 mm opening stroke: 350 mm ejector stroke: 175 mm ejector force: 40 kN centering diameter of moving platen: 125 mm centering diameter of fixed platen: 125 mm weight of mould: 760 kg technical data injection unit screw diameter: 35 mm swept volume: 144 ccm injection pressure: 2000 bar screw length: 20 l/d screw stroke: 150 mm screw torque: 380 N plasticising rate: 20 g/s PS injection rate into the open: 113 g/s PS number of heating zones: 4 nozzle stroke: 300 mm measures & weight measures of mac ...

Manufacturer: ARBURG Model: ALLROUNDER 680 Year of Manufacture: 2016 Type of Machine: Injection Moulding Machine Electrical Specifications: - Operating Voltage: 400 V, 3-phase, 50 Hz - Control Voltage: 230 V ~ / 24 V = - Motor/Heating Rated Current: 76 A / 18 A - Total Rated Current: 94 A - Total Connected Load: 56 kW Machine has already been dismantled Operating hours: à approx. 29,000 hours Find more here - .ucymachines/ Contact us at - sales@ucymachines

Manufacturer: Arburg Model: ALLROUNDER 630 S 2500 – 675 Year of Manufacture: 2003 Technical Specifications: - Operating Voltage: 400 V, 3-phase, 50 Hz - Control Voltage: - 230 V AC, 50 Hz - 24 V DC - Motor Heating Rated Current: 113.0 / 33.0 A - Total Rated Current: 146.0 A - Total Connected Load: 83.0 kW - Tie Bar Distance: 630 mm - Clamping Force: 2500 kN - Screw Diameter: 45 mm - Max. Part Weight (PS): 252 g - Core Pull: Yes (1 unit) - Orientation: Horizontal - Number of Components: 1 - Drive Type: Hydraulic - Robot Operating Hours: 110315 (automatic operation) Find more here - .ucymachines/ Contact us at - sales@ucymachines

Manufacturer: Arburg Model: ALLROUNDER 1200T 800 – 150 (Vertical) Year of Manufacture: 2006 Technical Specifications: - Weight: 7400 kg - Clamping Force: 800 kN - Operating Voltage: 400 V / 3 Phase / 50 Hz - Heating Capacity: 9.4 kW - Pump Motor: 1 × 18.5 kW - Total Connected Load: 27.9 kW - Operating Hours: 86249 (automatic operation) - Tie Bar Distance: 1200 mm - Clamping Force: 800 kN - Screw Diameter: 25 mm - Max. Part Weight (PS): 45 g - Core Pull: Yes (1 unit) - Orientation: Vertical - Number of Components: 1 - Drive Type: Hydraulic - Robot There is an issue with the monitor. Monitor board needs replacement. Find more here - .ucymachines/ Contact us at - sales@ucymachines

Manufacturer: ARBURG Model: ALLROUNDER 720 S 3200 - 290 / 290 Year of Manufacture: 2023 Condition : New Specifications: - Distance Between Tie Bars: 720 mm - Clamping Force: 3200 kN (max.) - Injection Unit 1 (by EUROMAP): 290 - Injection Unit 2 (by EUROMAP): 290 Does not include the robots mounted on the machine Find more here - .ucymachines/ Contact us at - sales@ucymachines

A comprehensive spare parts package for the Arburg Allrounder 221 series is available. 1) Mechanics/Hydraulics/Plasticizing: 6x ejector piston rod, 3x pressure relief valves, clamping cylinder seal kit, 5x ejector seal kit, injection unit seal kit, cylinder D30, screw D30, 20x disc spring D31,5/16,3. 2) Heating/Temperature: 6x barrel heaters 1750W, 5x nozzle heater band 600W, Thermomat, 40x thermocouples. 3) Electrical/Sensors/Switches: 2x coding switch blocks, 6x contact sensors, 5x rocker switches, 2x snap-action switches, 9x switches, 8x microswitches, 2x limit switches, 10x ejector safety switches, 4x initiators, oil level switch, 6x contact pins with contact, 2x pulse counters. 4) Electronics/Control: printed circuit board ARB 279, 2x each membrane keypad ARB 179 and 180, printed circuit board shutdown automation 141, 2x printed circuit board ARB 550, printed circuit board ARB 554.  ...

This Arburg ALLROUNDER 1200 t 1000 - 400 Injection moulding machine was manufactured in the year 2018 in Germany. It has 58 production hours. The machine has a clamping force of 1000 kN, machine like new, used only for testing. Machine needs to be CE certified by the customer, we have a quote from a third party starting at 2.000€.

This 3-axis Arburg Allrounder 520S 1600-400 was manufactured in 2021. It features a screw diameter range of 35-45 mm and a clamping force up to 1600 kN. The machine includes a removal robot and an enclosure with a FilterFanUnit, ensuring clean operations. Ideal for precision plastic processing, it offers a mold clamping height of 250 mm and platen spacing of 825 mm. Contact us for more information about this machine.

Key data: 500 kN

ARBURG ALLROUNDER CENTEX 320 C 500 – 250 (Year 2002) Serial number: 188161 – Machine no. 30 Clamping force: 500 kN EUROMAP: 500-250. Operating hours in automatic mode: 38,560 h. Hydraulic pump operating hours: 48,759 h. Cycles: 6,502,482. Spindle diameter: 40 mm. Distance between columns: 320 x 320 mm. Platen dimensions: 446 x 446 mm. Injection unit (EUROMAP): 250. Approximate injection volume: 106 m³. Injection weight (PS): 97 g. Operating voltage: 400 V – 3 – 50 Hz. Heating: 6.5 kW. Pump motor: 1 x 15.00 kW. Total power: 21.5 kW. Weight: 2,330 kg.

Key data: 1000 kN

ARBURG ALLROUNDER SELECTA 470 S 1000 – 675 (Year 2001) Serial number: 187132 – Machine no. 8 Clamping force: 1000 kN EUROMAP: 1000-675. Operating hours in automatic mode: 32,312 h. Machine cycles: 3,192,800. Hydraulic pump operating hours: 42,753 h. Screw diameter: 55 mm. Distance between columns: 470 x 470 mm. Platens: 637 x 637 mm. Maximum mold height: 750 mm. Ejector force: 40 kN. Ejector stroke: 175 mm. Injection volume: 675 cm³. Operating voltage: 400 V – 3 – 50 Hz. Heating: 14.9 kW. P ump motor: 1 x 22.00 kW. Total installed power: 50 kW. Dimensions: 4180 x 1645 x 2140 mm (height). Weight: 5400 kg.

Manufacturer: ARBURG Model: ALLROUNDER 370 C 800-250 Type of machine: Injection molding machine Year of manufacture: January 2005 Weight: 3180 kg Clamping force: 800 kN Operating voltage: 400V, 3-phase, 50Hz Heating: 6.5 kW Pump motor: 1 x 15.00 kW Total connected load: 21.5 kW with Multilift handling for inserts Find more here - .ucymachines/ Contact us at - sales@ucymachines

Manufacturer: ARBURG Model: ALLROUNDER Centex 470 C 1500 - 400 Year: 2006 Condition: Used Stock number: 9406 Clamping force: 150 t Screw diameter: 40 mm Injection capacity: 201 cc Maximum distance between mounting plates: 750 mm Injection Molding Stroke: 500 mm Distance between uprights (horizontal): 470 mm Distance between uprights (vertical): 470 mm

Key data: 500 kN, 25 mm

Stock No.: 503615 Manufacturer: ARBURG Type: Allrounder 375 V 500-170 Control: Selogica-direct Year of Make: 2013 Hours: 36163 h Clamping force: 500 kN Min. installation height: 200 mm Max. installation height: 550 mm Plate spacing max.: 302 mm Opening travel: 225 mm Size rotary table D: 900 mm Screw diameter: 25 mm Displacement: 59 cc Spray pressure: 2500 bar Equipment Screen text German Turntable Core pull hydraulic 1x Machine with water battery Machine without material hopper Levelling elements EUROMAP 67 Handling Interface Interface EUROMAP 73 Ejector plate fuse interface Machine dimensions LxWxH: 3m x 1.6m x 3.48m Total weight: 3540 KG

Key data: 800 kN, 25 mm

Stock No.: 503576 Manufacturer: ARBURG Type: Allrounder 900 T 800-150 Control: Year of Make: 2010 Hours: 72154 h Clamping force: 800 kN Tie-bar dimension h x v: 900 x 900 mm Min. installation height: 250 mm Plate spacing max.: 550 mm Opening travel: 300 mm Screw diameter: 25 mm Displacement: 54 cc Spray pressure: 2500 bar Equipment Screen text German Air valve 1x Machine with rotary table Machine with water battery Levelling elements Interface BDE Machine dimensions LxWxH: 3.8m x 1.85m x 2.15m Total Weight: 5000KG

ARBURG Allrounder 220 S 150-30, built in 2001 Equipment / Condition: - Selogica control system with CF card reader - Clamping force 150 kN, injection unit 30, screw 18 mm (screw/barrel tested) - Operating hours according to control: approx. 48,000 h (pump) / approx. 43,000 h (automatic) - Very compact machine, footprint approx. 2.1 x 0.8 m - ideal for small parts - From a mold making pilot plant (sampling and 0 series), little used in recent years - Without peripherals (dryer and hopper available on request) - Inspection in operation possible - Location Southern Germany, price on request
