used
Manufacturer: Arburg Type: 570 C 2200 - 1300 Year of production: 2002 Control: Selogica Closing type: Hydraulic Closing force: 2200 kN Tie bar spacing: 570 mm x 570 mm Plate size: 795 mm x 795 mm Tool height: min. 300 mm Opening distance: 650 mm Max distance between plates: 950 mm Screw: 60 mm Stroke volume: 664 ccm / 607 gram PS Injection pressure: 1450 bar General Motor: 55 kW Heating: 23 kW Dimensions: 6 m x 1,7 m x 2,1 m Weight: 8000 kg Screen text: German Additional equipment: Robotinterface Core pull hydraulic: x1 Air valve: Yes Tool heater x 6 Conveyor
used
This ARBURG Allrounder 570 H 2000-1300 HIDRIVE Injection Moulding Machine was manufactured in 2014 in Germany. It has a clamping force of 2000 kN and is equipped with thermoplastic cylinder of 60mm with long barrier screw (open nozzle 60 mm, nozzle tip radius 15, heating tape for open nozzle). In addition it features a servoelectric mold height adjustment with automatic clamping force control, a central clamping platen set à 125 mm, a maximum installation dimension increased to 650 mm and injection pressure increased by 10% (max. 2500 bar depending on screw). See overview of full configuration attached as PDF (DE) below. Important remark: The injection unit is leaking, there is a cost estimate from Arburg for approx. 15,000 euros net including assembly. This defect has not yet been rectified as the machine is not currently being used. The sale does not include the housing, any hoppers ...
used
Arburg Allrounder 570 C 2000-675 Injection Moulding Machine 200 Ton Machine is in good condition
used
thermoset BMC, included in the sale 2 pcs Tool-Temp tempering device - water, 1 pc Wittmann W711-0507 robot, Duroplat D45 unit (dry sets), 2 pcs Regloplas tempering device,
used
Arburg Allrounder 570H 2000-1300 Plastic injection moulding machine No electronic and mechanical issue All maintenance has been done by Arburg service
used
Arburg Allrounder 570H 2000-1300 Plastic injection moulding machine No electronic and mechanical issue All maintenance has been done by Arburg service
used
Arburg Allrounder 570C 2200-1300 Injection Moulding Machine 220 Ton Distance between column : 580 mm x 580 mm Machine is in good condition
Description SILICONE PRESS 12 zone mold heating water channels 2 zones 6-zone thermoregulator control WAGNER Reinhardt-Technik pumping unit mod. LSR 200l and Twin year 2017
used
used
CLAMPING FORCE: 200TON PLATEN SIZES: 795 X 795MM D.B.T.B: 570 X 570MM MIN MOULD HEIGHT: 300MM MOULD OPENING STROKE: 650MM MAX DAYLIGHT: 950MM EJECTOR STROKE: 225MM SCREW DIAMETER: 45MM INJECTION PRESSURE: 2470BAR STROKE VOLUME: 286CM3 SHOT WEIGHT (P/S): 240GR CONTROLS: SELOGICA MOTOR: 30KW HEATING CAPACITY: 12KW SCREW DRIVE: ELECTRIC CORE PULLING: 1 AIR VALVES: 1
used

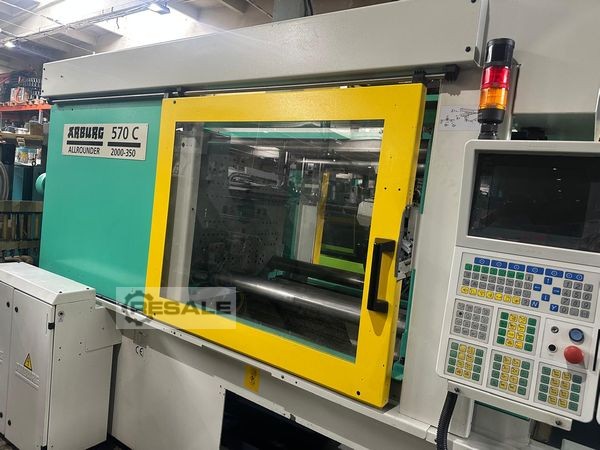

used injection moulding machine 2-colours 2-K (45° arrangement of the 2nd unit) from clean room production Manufacturer: Arburg Type: 570C 2000-350/150 Control Selogica year of construction: 2007 Extras / Special features - Robot interface - 4x core pull - Technology level 2 and 3 (3 control pumps) - screw and barrel highly wear resistant - open nozzle - position controlled screw - Accumulator system f. fast injection - hydraulic accumulator - injection pressure increased for 2nd unit - Extension of tie bars of min. mold installation height to 500 mm Opening stroke unchanged - cores freely programmable - blow-out device - Interface for temperature control units - Control extension f. special signals - Interface coloring ( unit 1 u. 2 ) - interface vacuum valve B797ctcwes - additional heating control circuits for nozzle and nozzle tip - 12 electrical he ...
used
ARBURG 200 TON WITH ROBOT WORKING HOURS ARE PRESENT ON THE PHOTOS YEAR : 1999 TECHNICAL DATA: EUROMAP SIZE: 2000-675 CLAMPING FORCE: 2000KN SCREW 50mm closing force: 90 kn OPENING STROKE MAX 650mm I EXCELENT WORKING CONDITION, MACHINE IS WORKING DAILY PRODUCTION MACHINE IS AWAILIBLE IMEDIATELY WE ORGANIZE DISMANTLING LOADING AND TRANSPORT TO THE CUSTOMER
used
Production year: 2006 Injection unit: .../150-150 Screw diameter: 30 / 30 mm Injection volume: 77 / 77 cc Injection weight: 72 / 72 g Tool closure system: 200/... Clamping force: 200 t Distance between tie rods: 570 x 570 mm Tool height: 400...1050 mm Ejector stroke: 225mm On the photos shown, the peripherals are not always included.
used
Clamping force: 200 t Year of construction: 2002 Injection weight in PS: 72 / 45 g Control type: Selogica Injection unit: .../150 / 150 Screw diameter: 30 / 25 mm Injection volume: 77 / 54 ccm Injection weight in PS: 72 / 45 g Clamping unit: 200/... Clamping force:: 200 t Light tie bar distance: 570 x 570 mm Ejector travel: 225 mm General information: Weight: 8000 kg Dimensions (m) LxWxH: 5.1 x 1.8 x 2.2 m • 2 x hydraulic core pull • 1 x Air Valve Snail: Top/Vertical: 30mm Bottom/Horizontal: 25mm
used

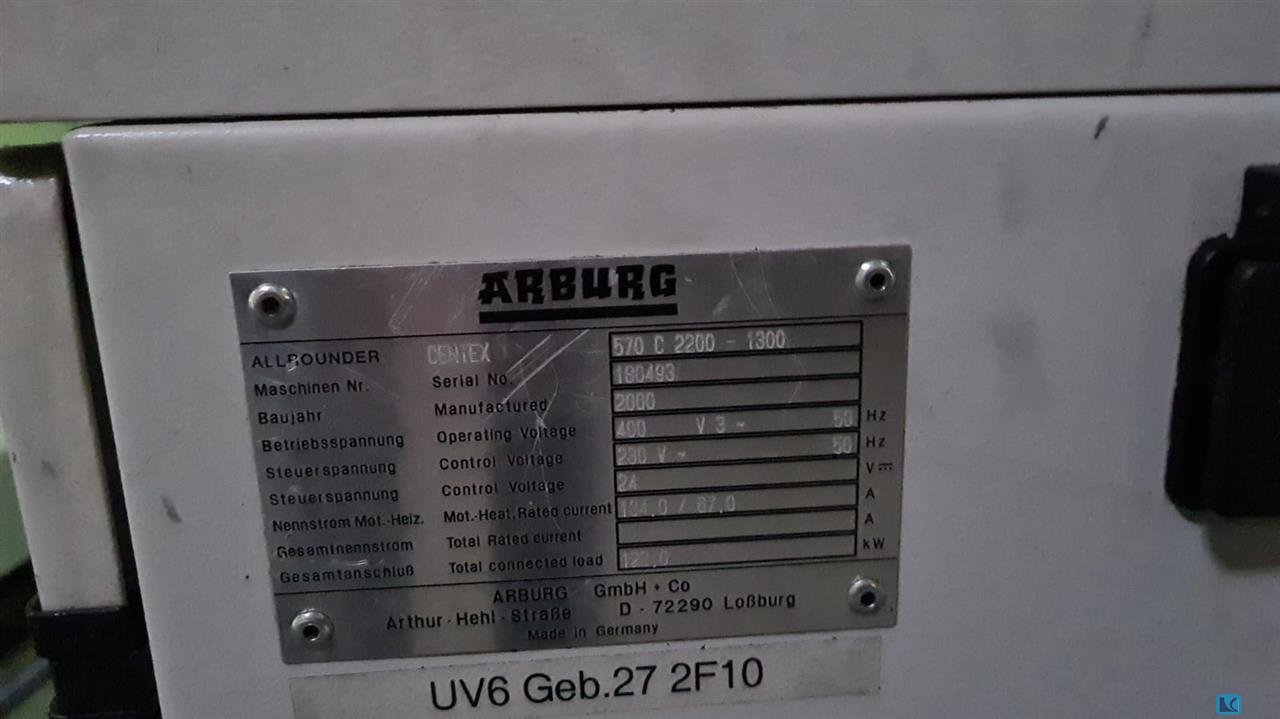

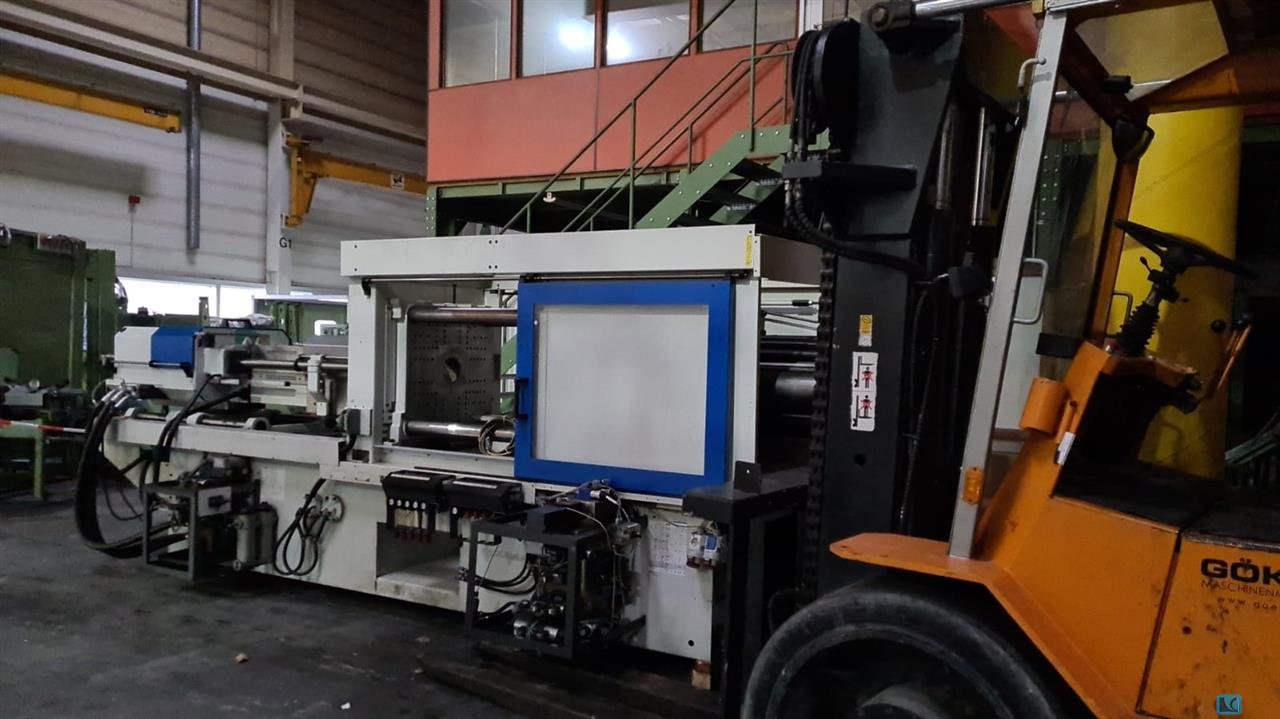

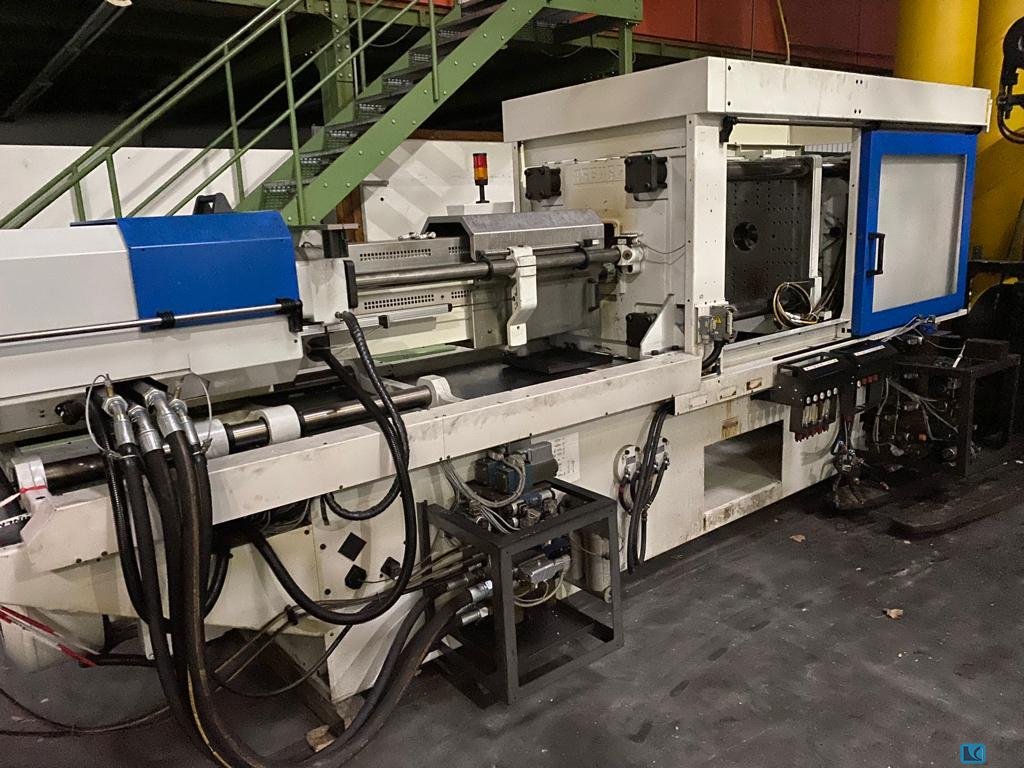

Arburg 570C 2200-1300 Injection Molding Machine / Hybrid Machine Production year : 2005 Injection system : Screw diameter: 60 mm Injection weight: 558 g Injection pressure: 2000 bar Dosing volume: 664 ccm Locking system : Clamping force: 220 tons Distance between columns: 570x570 mm Size of mounting plates: 795x795 mm Ejector: Hydraulic Clamping Unit: Hydraulic Control system: SELOGICA Additional equipment: Hybrid machine: fast, energy-efficient Euromap 67 Hydraulic core extraction x 2 Injection system - bimetal Machine Main Motor--Inverter Driven Servo Motor--Energy Saving Dimensions: Weight: 9300 kg Length/Width/Height: 6.16x1.91x2.39 m
used
Key data: 2200 kN, 60 mm
warehouse no.: 503302 manufacturer: ARBURG type: Allrounder 570 S 2200-1300 controller: Selogica year of construction: 2009 operation hours: 25044 h clamping force: 2200 kN distance between tie bars h:: 570 mm distance between tie bars v:: 570 mm size of mould plates h: 795 mm size of mould plates v: 795 mm min. mould height: 250 mm max. open daylight: 900 mm opening stroke: 650 mm screw diameter: 60 mm swept volume: 664 ccm injection pressure: 2000 bar equipment included: screen text german core pulling hydraulically 3x machine incl. hopper loader machine incl. Handling machine incl. safety fencing machine without material hopper Anti vibration mounts technical data robot-system handling type: Linearhandling manufacture: Arburg controller: Multilift year of construction: 2009 handling weight: 15 kg X axis: 700 mm Y axis: 1000 mm Z ...
used
Type of control: SELOGICA Number of hours: 38,000 hours Closing force: 200T Opening stroke: 650mm Between columns: 570 x 570 mm Tray dimensions: 795 x 795mm Mini/maxi mold: 250 mm Max distance between trays: 1400 mm Injection: Screw diameter: 50 mm Screw length: 20D cm3: 392 Bars: 2000 General: Motor power: 19.9 kW Heating power: 8kw Closing weight: 9T Injection weight: Length dimensions: 5.50 m Width dimensions: 2 m Dimensions height: 2.40 m Options: Cores: 1 Robot interface: yes Bi metal: yes
used
ARBURG 200T 570H-800 I ELECTRIC DRIVE Type of control: SELOGICA Number of hours: 63,160 H Closing force: 200 T Max gap between trays: 1550 mm Injection: Screw diameter: 45 mm Screw length: 20/D Motor power: 77kw Closing weight: 12.8 Tons Options: Cores: 2 Robot interface: NO Bi-metal: Others: 1 air valve, 1 control socket, 1 Euromap 67 robot socket
used
Closing unit Clamping force [kN] 2000 Dimensions of mounting plates (hxv) [mm] 795 x 795 Clearance between columns (hxv) [mm] 570 x 570 Min./max. mold height [mm] min. 300 Maximum opening width [mm] 950 Injection unit Screw diameter [mm] 50 Injection volume [cm3] 392 Injection weight [g] 356 Injection pressure [bar] 2000 Electrical and hydraulic equipment Rated power of the pump motor [kW] 30 Heater power [kW] 14.9 Dimensions and weight Net weight with control cabinet [t] 7.9 Dimensions (length x width x height) [m] 5.53x1.79x2.20
used

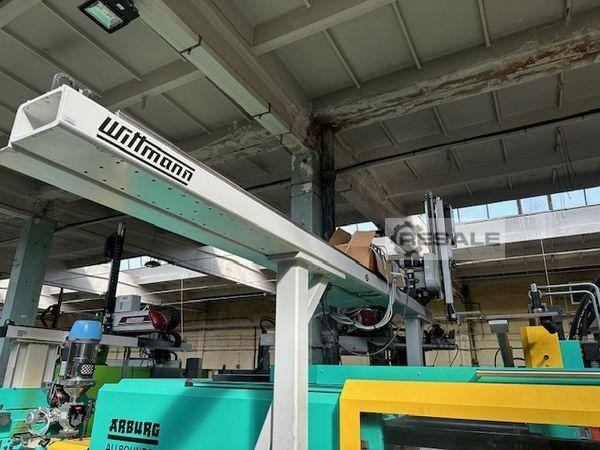

Closing unit Clamping force [kN] 2200 Dimensions of mounting plates (hxv) [mm] 795 x 795 Clearance between columns (hxv) [mm] 570 x 570 Min./max. mold height [mm] 300/650 Maximum opening width [mm] 1050 Injection unit Screw diameter [mm] 50 Injection volume [cm3] 353 Injection weight [g] 322 Injection pressure [bar] 2080 Electrical and hydraulic equipment Rated power of the pump motor [kW] 37 Heater power [kW] 16.8 Dimensions and weight Net weight with control cabinet [t] 8.5 Dimensions (length x width x height) [m] 5.43m x 1.88m x 2.2m Additional equipment: 2 x Conveyor belt Safety cage Wittmann W621-1449 robot (X=590mm, Y=1200mm, Z=2500mm)
used
Closing unit Clamping force [kN] 2000 Dimensions of mounting plates (hxv) [mm] 795 x 795 Clearance between columns (hxv) [mm] 570 x 570 Min./max. mold height [mm] min300 Maximum opening width [mm] 950 Injection unit Screw diameter [mm] 50 Injection volume [cm3] 392 Injection weight [g] 359 Injection pressure [bar] 2000 Electrical and hydraulic equipment Rated power of the pump motor [kW] 30 Heater power [kW] 14.9 Dimensions and weight Net weight with control cabinet [t] 7.9 Dimensions (length x width x height) [m] 5.53m x 1.79m x 2.2m Additional equipment: Conveyor belt Single-phase plastic feeder Picker
used
Closing unit Clamping force [kN] 2000 Dimensions of mounting plates (hxv) [mm] 795 x 795 Clearance between columns (hxv) [mm] 570 x 570 Min./max. mold height [mm] min 300 Maximum opening width [mm] 950 Injection unit Screw diameter [mm] 50 Injection volume [cm3] 392 Injection weight [g] 359 Injection pressure [bar] 2000 Electrical and hydraulic equipment Rated power of the pump motor [kW] 30 Heater power [kW] 14.9 Dimensions and weight Net weight with control cabinet [t] 7.9 Dimensions (length x width x height) [m] 5.53m x 1.79m x 2.2m Additional equipment: Conveyor belt Single-phase plastic feeder Dryer Picker
used
Arburg 570C 2200-1300 Closing unit Clamping force [kN] 2200 Dimensions of mounting plates (hxv) [mm] 795x795 Clearance between columns (hxv) [mm] 570x570 Injection unit Screw diameter [mm] 60 Injection volume [cm3] 664 Injection weight [g] 558 Injection pressure [bar] 2000 Dimensions and weight Net weight with control cabinet [t] 9.3 Dimensions (length x width x height) [m] 6.16x1.91x2.39 m Additional equipment: Hybrid machine: fast, energy-saving Euromap 67 Hydraulic core extraction x 2 Injection system - bimetal Main motor of the machine - servo motor driven by inverter - energy saving
used
Closing unit Clamping force [kN] 2000 Dimensions of mounting plates (hxv) [mm] 795 x 795 Clearance between columns (hxv) [mm] 570 x 570 Min./max. mold height [mm] min 300 Maximum opening width [mm] 950 Injection unit Screw diameter [mm] 50 Injection volume [cm3] 392 Injection weight [g] 359 Injection pressure [bar] 2000 Electrical and hydraulic equipment Rated power of the pump motor [kW] 30 Heater power [kW] 14.9 Dimensions and weight Net weight with control cabinet [t] 7.9 Dimensions (length x width x height) [m] 5.53m x 1.79m x 2.2m Additional equipment: Conveyor belt Single-phase plastic feeder Picker
used
Closing unit Clamping force [kN] 2200 Dimensions of mounting plates (hxv) [mm] 795 x 795 Clearance between columns (hxv) [mm] 570 x 570 Injection unit Screw diameter [mm] 60 Injection volume [cm3] 664 Injection weight [g] 558 Injection pressure [bar] 2000 Dimensions and weight Net weight with control cabinet [t] 9.3 Dimensions (length x width x height) [m] 6.16x1.91x2.39 m
