0 ALZMETALL pillar type drilling machines used machines

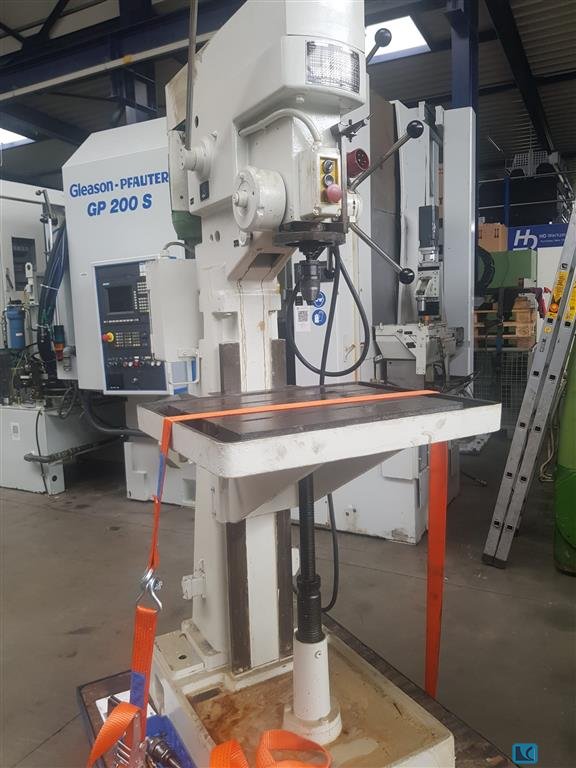

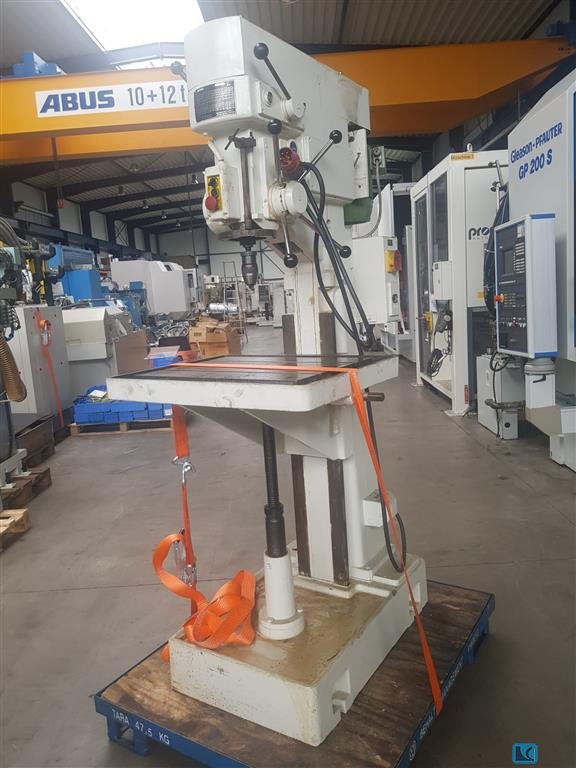

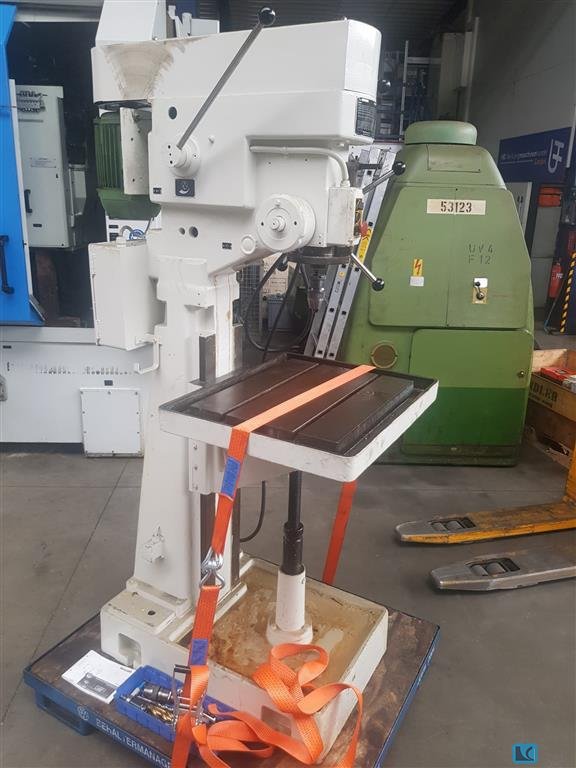

Box column drill Alzstar 40S 16 A 380 V Speed 160 - 2250 rpm Length 1 m Width 0.80 m Height 1.80 m Weight 270 kg Work lamp Color: White

Key data: 50 mm, 800 1/min

Speeds infinitely variable from 40 - 800 rpm 4 drill feeds . Clearly good original condition

Key data: 40 mm, 80 1/min

Column Drill Alzmetall AB 3 / ESV Drive type: AZ continuously variable transmission with two-stage manual transmission Speed range (Gear Stage I): 80-240 rpm or 160-480 rpm Speed range (Gear Stage II): 240–700 rpm or 480–1,400 rpm Automatic feed: 3 stages (0.1 – 0.2 – 0.3 mm/rev) Motor power 1.5 KW - 380 Volt Tool holder: Short spindle MK 3 Spindle stroke (drilling stroke): 160 mm Projection: 285 mm Table clamping surface: 500 x 370 mm Column diameter: 130 mm Machine weight approx. 400 kg Drilling capacity in steel (St 60): 28 mm Drilling capacity in cast iron (GG 20): 35 mm Drilling capacity in steel (St 60): 40 mm Tapping in steel (St 60): Up to max. M 22 Threading in cast iron (GG 20): Up to max. M 33 Retrofitted foot switch and control cabinet Mechanical-hydraulic machine vice Röhm RB 4 (Jaw width 160 mm - clamping range up to 310 mm) Retrofitted f ...

: ja feed: 80 - 800 m/min : 1848 weight of the machine ca.: 2,2 t ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ ++++++++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ ++++++++++ The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore stroke:170 mm total power requirement:3,5 kW dimensions of the machine ca.:0,75 x 1,10 m bore spindle turning speed range:30-3000 U/min bore range:diameter:4-60 mm

Drill, pillar drill, column drill, column drill -Manufacturer: Alzmetall, pillar drilling machine type AB5/S -Engine: VKS 3 kW -Speed: 40 - 800 rpm, continuously variable right-left rotation -Feed: 0.1 - 0.14 - 0.2 - 0.28 - 0.4 mm/rev. -Table size: Ø 500 mm, travel 470 mm -Spindle holder: MK5 -Spindle stroke: 240 mm -Projection: 380 mm -Column Ø: 220 mm -Dimensions: 1450/680/H2160 mm -Weight: 1262 kg

Drilling capacity in St 60: 40 mm threading in St 60: M 24 mm threading in GG 20: M 30 bore stroke: 120 mm Short spindle: MK 3 throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle - machine table min./max.: 117 / 701 mm feed: 0,10 + 0,20 mm/U spindle turning speed range: 160 - 2250 UpM total power requirement: 1,45 / 1,9 kW height of the machine: 1840 mm weight of the machine ca.: 285 kg Standard equipment: - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for right-left rotation - Motor protection switch - Speed adjustment stepless - Speed display digital - Feed overload protection - Protection IP 54 - Connector (fully assembled, cable length 2 m) - Spindle protection with electrical protection Pos. 25 Coolant device B, consisting of: separate container (33l), Pu ...

offer 22326 Specifications: - Drilling capacity in steel ST 60 35 mm - Drilling capacity in steel ST 60 40 mm - Drilling spindle holder MK 4 - Drilling spindle stroke 170 mm - Projection 345 mm - Rotary table with 2 T-slots 550 mm - distance table – drilling spindle 650 mm - distance base plate – drilling spindle 1000 mm - Feed rates 0.09 - 0.16 - 0.28 mm/rev - AZ transmission continuously variable with manual transmission - Drilling spindle speeds infinitely adjustable 40 - 720 rpm -Right. - Left-hand rotation - Drive 400 V / 2.5 kW -Lighting - Coolant device - Space requirement approx. W 750 x H 1950 x D 1000 mm - Weight approx. 700 kg

Drilling capacity steel/GG: 18/23 mm Spindle mount: 2 MK Projection: 250 mm Table size: 250 x 370 mm Spindle speeds: 400 - 5000 rpm Drive motor: 0.48/0.6 kW Space requirements: 750 x 500 x 1670 mm Weight: 130 kg

- Drilling capacity in St 60, 30 mm - Short spindle MK 3 - Spindle stroke 120 mm - Projection 293 mm - Table support 420 x 300 mm, 2 T-slots - Machined base plate 320 x 329 mm, 2 T-slots - Distance base plate - drill chuck 1000 mm - Feed via turnstile - Weight 220 kg - Spindle speed 160 - 2250 rpm. - Operating voltage 380V-50Hz - Infinitely variable speed adjustment, by means of an adjustment lever - Engine speed in 2 stages, 700/1435 rpm - Tapping device with rotation direction change after reaching the end stops - Coolant device fully installed. - Coolant tank in machine base - Work light with LED - RÖHM drill chuck 1 - 16 mm - Precision machine vice new (test winner)

Specifications: - Drilling capacity in steel ST 60 40 mm - Drilling capacity in steel ST 60 50 mm - Drilling spindle holder MK 4 - Drilling spindle stroke 180 mm - Drilling spindle speeds infinitely adjustable with countershaft - Level 1: 60 - 210 rpm - Level 2 210 - 765 rpm - Projection 330 mm - 3 feeds 0.1 - 0.2 - 0.3 rpm - Table with 2 T-slots 720 x 360 mm - Table height-adjustable via rack with hand crank - Max. distance table – drilling spindle approx. 780 mm - Max. distance between machined base plate and drilling spindle approx. 1250 mm - Coolant device -Lighting - Drive 400 V / 4 kW - Space requirement approx. W 720 x H 2050 x D 1150 mm - Weight approx. 500 kg

bore capacity in steel (diameter): 50 mm throat: 385 mm bore stroke: 240 mm table surface area: ø 500 mm spindle taper MT: 5 spindle turning speed range: 40 - 800 U/min feeds: 0,1/0,14/0,2/0,28/0,4 mm/U column diameter: 220 mm distance between table/spindle: max. 670 mm distance spindle/base plate: 1180 mm total power requirement: 4 kW weight of the machine ca.: 1,4 t dimensions of machine L x W x H: 1,5 x 0,75 x 2,4 m Accessories: drill chuck, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: mm bore stroke: mm total power requirement: 4 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 60 mm throat: 400 mm bore stroke: mm total power requirement: 4,4 kW weight of the machine ca.: 1,7 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): mm throat: 290 mm bore stroke: 180 mm total power requirement: 1,9 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 32 mm throat: 290 mm bore stroke: 180 mm total power requirement: 1,9 kW weight of the machine ca.: t dimensions of the machine ca.: m Description to follow! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): mm throat: 290 mm bore stroke: 180 mm total power requirement: 1,9 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: 345 mm bore stroke: 180 mm spindle turning speed range: 25-640 U/min column diameter: 180 mm table-size: Ø ca. 560 mm surface area: Ø 445 mm feeds: 0,1, 0,2, 0,3 mm/U spindle taper MT: 4 weight of the machine ca.: 1 t dimensions: ca. 650 x 1000 x 2100 mm with thread cutting device foot switch With coolant device in the base steplessly variable speeds, 2 gear stages, and 2 motor speeds The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 35 mm, 280 mm, 180 mm

Column drilling machine ALZMETALL AB 3 ES – Powerful & immediately ready for use For sale is a high-quality column drill from the renowned manufacturer Alzmetall, model AB 3 ES. The machine impresses with its robust design, precise operation and reliable performance. Ideally suited for workshop, metalworking and industrial applications. General information: Machine Type: Column Drilling Machine Manufacturer: Alzmetall Model: AB 3 ES Condition: Used, good general condition, fully functional Shipping time: Immediately available Technical data: Drilling capacity in steel: approx. 35 mm Projection: approx. 280 mm Drilling stroke: approx. 180 mm Recording: MK 3 Speed: Infinitely variable Table size: approx. 600 × 470 mm Equipment: • Drilling depth stop • Drill chuck Machine data: Dimensions (L × W × H): approx. 1200 × 800 × 2100 mm Weight:  ...

Heavy Duty Column Drill Technical data: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Drilling spindle holder MK 3 - Drilling spindle stroke 180 mm - Drilling spindle speeds infinitely adjustable - Stage 1. 130 - 480 rpm - Stage 2. 480 - 1750 rpm - 3 feeds 0.1; 0,2; 0.3 mm/rev - Projection 290 mm - Max. distance table - drilling spindle 620 mm - Table with 2 T-slots 450 x 450 mm - Height adjustable via rack with hand crank - Separate coolant device - Drive 400 V / 0.9 / 1.3 kW - Space requirement approx. W 660 x H 1900 x D 700 mm - Weight approx. 280 kg

bore capacity in steel St 60: 30 mm bore capacity in cast iron GG 20: 30 mm Drilling capacity in St 60: 30 mm threading in St 60: M 16 threading in GG 20: M 20 Short spindle: MK 3 spindle stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 132 / 724 mm feed: von Hand spindle turning speed - stepless: 225 - 4300 U/min total power requirement: 1,0/1,6 kW weight of the machine ca.: 260 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25511 Technical data: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Tapping device - Drilling spindle holder MK 3 long spindle - Drilling spindle stroke 180 mm - 10 drilling spindle speeds 250 - 2100 rpm - Projection approx. 290 mm - Max. distance table – drilling spindle approx. 620 mm - Table with 2 T-slots height-adjustable 520 x 450 mm - Drive 400 V / 1.0 / 1.3 kW - Space requirement approx. W 600 x H 1850 x D 700 mm - Weight approx. 280 kg

Key data: 28 mm, 285 mm

Drilling capacity in steel: approx. 28mm Projection approx. 285mm Drilling depth approx. 125mm Spindle mount MK3 Infinitely variable speeds from 130-1150 rpm 3 automatic feeds 0.1 - 0.2 - 0.3mm/rev Table clamping area approx. 500 x 370mm Table adjustable in height via rack Machining base plate approx. 350 x 320mm With motor 1.5kW, 1415 rpm, 380/220V Weight: approx. 380kg Condition and details see pictures

General Manufacturer: Alzmetall Type: AC 32/AS Year of Make: 1991 Performance Drilling capacity St 60: D32 mm, v=20 m/min, s=0.27 mm/rev Drilling capacity GG 20: D40 mm, v=20 m/min, s=0.27 mm/rev Drilling capacity St 60: D45 mm, v=20 m/min, s=0.15 mm/rev Tapping capacity St 60: M 24 Threading capacity GG 20: M 30 Drive Main drive: 3 kW – 1,500 rpm Main spindle speed range: 55 – 5,000 rpm Feed Feed drive: automatic, infinitely variable Feed speed: 1 – 3,000 mm/min Rapid traverse: 3 m/min Spindle Tool holder: MK4 Spindle head diameter: 46 mm Quill stroke: 180 mm Projection: 322 mm Column diameter: 145 mm Table Table clamping area: 415 mm x 508 mm Number of T-slots x width x spacing: 5 x 14 x 100 Table stroke: 663 mm Distance from spindle table max: 663 mm Spindle-machined base plate distance: 1,083 mm Dimensions and weight Dimensions: 720 mm  ...

Drilling Ø: 28/35 mm Spindle holder: MK 3 Projection: 293 mm Table size: 300 x 440 x 500 mm Table swivel on round column and height-adjustable via hand crank and rack Large distance between table and drill quill: 630 mm Quill stroke: 180 mm Spindle speeds adjustable in 4 groups: 65 - 1750 rpm Drive motor: 380 V, 0.9/1.3 kW Weight: 340 kg Space requirement: 1100 x 900 x 1880 mm
