AGIE agietron used machines

This 3-axis AGIE AGIETRON Innovation 2 die-sinking EDM machine was manufactured in 2002. It features a robust AGIEVISION control system, a 28-position electrode changer, and a C-axis for rotation, indexing, and erosion. The machine can handle workpieces up to 650 x 580 x 250 mm and 400 kg. It boasts a high-performance AGIE IPG generator with a removal rate of 450 mm³/min for copper/steel. Consider the opportunity to buy this AGIE AGIETRON Innovation 2. Contact us for more information.

This 3-axis AGIE AGIETRON INTEGRAL 2 was manufactured in 2006. It features a travel of 350 mm in the X-axis, 250 mm in the Y-axis, and 350 mm in the Z-axis. The machine can accommodate workpieces up to 840 x 670 x 250 mm and has a maximum electrode weight of 100 kg. If you are looking to get high-quality die-sinking capabilities, consider the AGIE AGIETRON INTEGRAL 2 machine we have for sale. Contact us for further details.

CONTROLS   CNC controls WORKING RANGE -CUBIC-   X-axis travel: 250 mm   Y-axis travel: 160 mm   Z-axis travel: 250 mm TECHNICAL SPECIFICATION   Table-size         : 480 mm   Table-size         : 330 mm   Adjustment of  x-axis: 250 mm   Adjustment of  y-axis: 160 mm ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 1200 mm   space requirements -front/back-: 1200 mm   total height: 2500 mm   total weight approx.: 1000 kg Equipment: -Agietron Compact 1 30A/C-axis / DAI 1-P -AGIE Fuzzytron -14 color screen -Fire extinguishing system -3-compartment electrode magazine -Micro-machining variant -lots of accessories

EDM machine Type: Agietron Impact 3 Manufacturer: AGIE Year: 2002 X: 500 mm Y: 350 mm Z: 500 mm Worktable: 800 × 600 mm Max load capacity: 800 kg Electrode weight: max 50 kg Machine weight: 3800 kg Dimensions: 2850 × 2150 × 2850 mm Machine in good condition, fully functional, under power Find more here - / Contact us at -

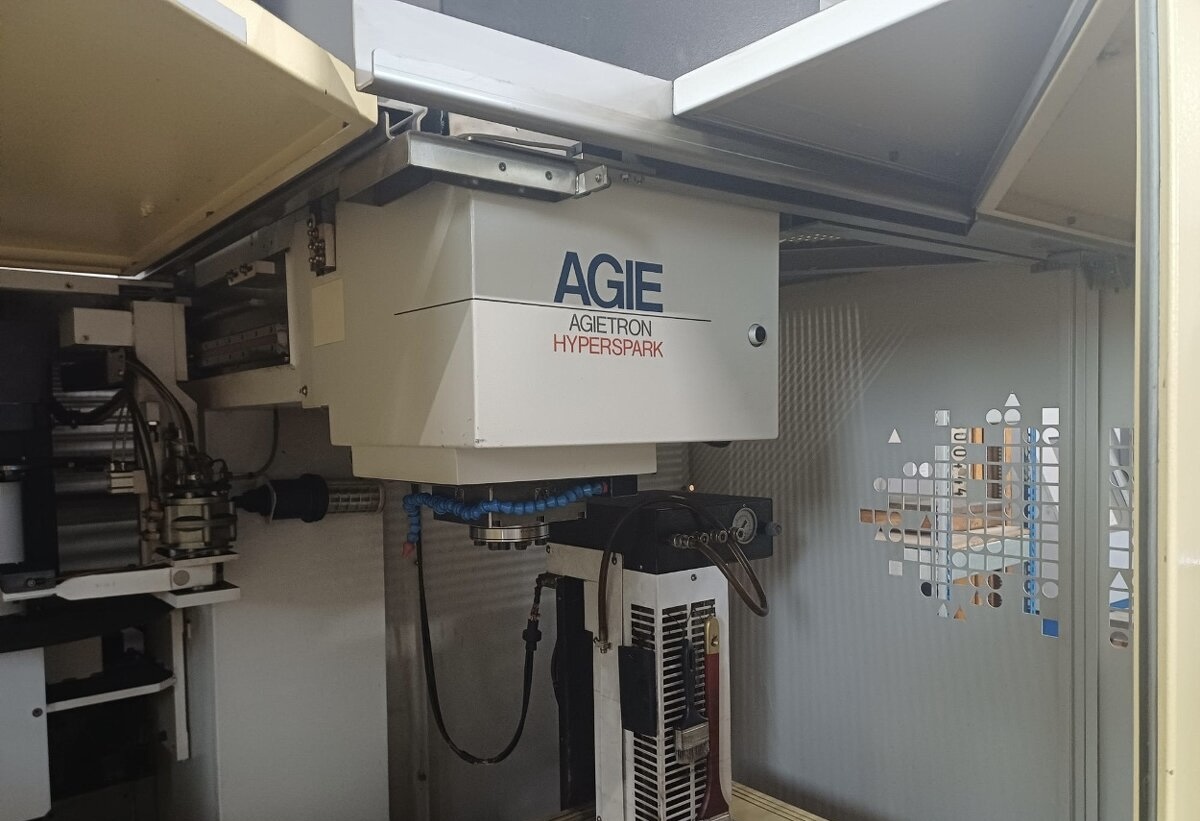

EDM machine Type: Agietron Hyperspark 3 Manufacturer: AGIE Year: 2005 X: 500 mm Y: 350 mm Z: 500 mm Max workpiece weight: 800 kg Max workpiece dimensions: 880 x 680 x 350 mm C-axis: Integrated as standard for complex machining operations Machine in good condition, fully functional, under power Find more here - / Contact us at -

Number of axes: 4, x-axis: 400mm, y-axis: 300mm, z-axis: 350mm, connected load: 8.3kVA, rated current: 12A, weight: 3t, equipment: rotary quill, controlled C-axis, CNC conversational control system with 4 axes, hand-held control unit, tool holder: Erowa ITS quick-clamping chuck, 20-position electrode changer, paper cartridge filter. An on-site inspection is possible.

CONTROLS   CNC controls TECHNICAL SPECIFICATION   Case size: 860 mm   .. x: 620 mm   Adjustment of  x-axis: 350 mm   Adjustment of  y-axis: 250 mm   Erosion stroke: 350 mm   Max. dist. table-electr.clamp.surf.: 520 mm ELECTRICAL SPECIFICATIONS   mains power supply: 8.3 kVA   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 2700 mm   space requirements -front/back-: 1900 mm   total height: 2600 mm   total weight approx.: 3000 kg Description - Work container can be lowered - C axis for rotation, indexing and erosion - AGIEVISION control incl. TECTRON, AGIESETUP 2D - USER SEQUENCE, SPACETRACK, AGIEPATH with GEOEDITOR - Electrode changer 28 times - Incl. EROWA pneumatic chuck

table length: 600 mm table width: 580 mm 0: 650 x 580 x 250 mm weight: 400 kg c-axis: 0 Number of revolutions: 60 rpm type of pallet-changer: WEC tool changer made by:: WEC accessories:: Diverses weight of the machine ca.: 4 t dimensions of the machine ca.: 350 x 285 x 280 cm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 450 mm z-travel: 35 mm Control: Heidenhein TNC 530 table weight: 200 Kg : Random 36 fach tool adaptor: HSK E40 turning speeds: 30.000 U/min total power requirement: kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 600 mm table width: 400 mm x-axis: 400 mm y-axis: 300 mm z-axis: 350 mm workpiece sizes: 900 x 630 x 350 mm volume: 490 L total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Ref. -No.: 10356 Manufacturer: AGIE CHARMILLES Year of construction: 2007 Type of control: CNC Control: iTNC530 Country of origin: Schweiz X-Travel: 800 mm Y-Travel: 500 mm Z-Travel: 540 mm Main spindle speed range: 16000 RPM Table Dimensions (Lengthxwidth): 910x500 mm Table Load: Vmax = 500kg, 5m/min = 1100kg kg Number of T-slots: 5 Tool change time (chip-to-chip): 8 s Max. Tool Weight: 6 kg Max. Tool Length: 305 mm Max. Tool Diameter: 77 mm Tool change time: 6 s T - slot spacing: 100 mm Numbers Of Tools In Magazin: 24 Tool changer: Doppelarm, seitlich montiert Rapid Traverse X-Axis: 24 m / min Rapid Travel Y-Axis: 24 m / min Rapid Traverse Z-Axis: 20 m / min Further information: Addition: probe

Ref. -No.: 10339 Manufacturer: AGIE CHARMILLES Year of construction: 2008 Type of control: CNC Control: Heidenhain iTNC 530 (2P) Storage location: Halberstadt Country of origin: Schweiz serial number: 107.20.00.040 X-Travel: 650 mm Y-Travel: 600 mm Z-Travel: 500 mm Main spindle drive power: 30/39 kW Main spindle speed range: 20.000 RPM Table Dimensions (Lengthxwidth): 800 x 600 mm Table Load: 500 kg Max. Workpiece Weight: 6,5 kg Tool change time (chip-to-chip): 7 s Max. Tool Length: 300 mm Max. Tool Diameter: 130 mm Tool change time: 1,5 s Workpiece Diameter At Full Load: 80 mm Workpiece Diameter With 2 Vacant Positions: 130 mm T - groove width: 14 mm T - slot spacing: 63 mm Tool Taper: HSK-A63 Numbers Of Tools In Magazin: 60 Tool changer: CT-60 Feed Speeds X/Y/Z Axis: 40/40/30 mm / min Feed Capacities X/Y/Z: 4/4/6 N Further information: Laser tool measuring system Type = BLUM laser syst ...

X, Y, Z Travel :600x400x400 mm Machine dimentions WxDxH : 1600x2700x2858 mm Machine weight :440 kg Workpiece dimentions WxDxH :1000x700x400 mm Max. electrode weight :100kg Max. Workpiece weight 1000 kg

AGIE AGIECUT CLASSIC 2S wire EDM machine built in 2004 in Switzerland is used for the production of, among others, precision dies, tools and punches. Workpieces with a maximum weight of 450 kg are machined using electrical erosion, which can achieve complex shapes in even the hardest materials. This process is performed in a dielectric-filled work tank using a wire with a maximum diameter of 0.33 mm, which is threaded through a special AGIEJET system. The workpieces machined in this way do not require any other secondary processes such as polishing to be undertaken. The AGIECUT CLASSIC V2 wire EDM machine also features an intuitive CNC control with many useful functions. It is possible to purchase the dedicated cooler shown in the photos at an additional cost – price negotiable. The AGIE EDM machine weighs 2580 kg. Technical specifications of the AGIE AGIECUT CLASSIC 2S EDM machi ...

Used machine in good condition. Available for immediate delivery. - Travel (X x Y x Z): 350 x 250 x 256 mm - Control: AGIEVISION - Dimensions (long x wide x high): 2.215 x 2.215 x 2.220 mm - Weight: 3.600 kg - Maximum power consumption: 9 kVa - Display: 15 LCD - Type of EDM : WIRE - Max. workpiece weight: 200 kg

Inv. Num. : 8066 Type: AGIECUT CLASSIC 2S Producer: AGIE Created: 2003 Parameters: Max. travel length of the X-axis: 350 mm Max. travel length of the Y-axis: 250 mm Max. travel length of the Z-axis: 256 mm Maximum workpiece length: 750 mm Maximum workpiece height: 250 mm Maximum workpiece height: 550 mm Maximum table load: 450 kg Machine height: 2305 mm Machine length: 1670 mm Machine width: 2040 mm Machine weight: 2580 kg

movement of X-axis: 500 mm movement of Y-axis: 350 mm vert. movement Z-axis: 256 mm workpiece weight max.: 800 kg weight of the machine ca.: 4.5 t : +/- 70 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

frequency: 50 Hz weight: 3000 kg voltage: 3 x 400 V output: 8,3 kw ampere: 12 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 500 mm table width: 350 mm ampere: 65 A Control: AGIEVISION 5 CNC total power requirement: 20 kW weight of the machine ca.: 4000 kg dimensions of the machine ca.: m A G I E (Switzerland) CNC - Controlled Wire Cutting EDM Machine Model AGIECUT PROGRESS V 3, Year 2007 Working range, X Y Z (=height) 500 x 350 x 426 mm Wire head, U-V axis (helical/taper cuts) + / - 30 °/ +/- 70 mm Resolution of axes 0.0001 mm Speed for positioning the axes up to 3 m/Min. Tolerances (If machine is new) 4 µ Workpiece dimensions, L x W x H max. 1.050 x 650 x 420 mm Max.weight of workpiece with/w.o. Dieelektricum 400/800 kg Clamping System Universal Beams with fixing holes Cutting wire Ø 0.2 – 0.33 mm Size of wire roll up to 25 kg Cutting speed of wire  ...

x-axis: 550 mm y-axis: 350 mm z-axis: 400 mm U-axis: 550 mm V-axis: 350 mm volume: 1200 L inclination: +/-30°/400 mm dimensions: 1200x700x400 mm weight: 1500 kg wire dia.: 0,10-0,33 mm Bobbin Weight max.: 25 kg total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine is in good technical condition, a visit and a test run are possible by prior arrangement.

Working range: 1.050 x 650 x 250 mm max. workpiece weight: 400 (800) kg control: Agievision AGIE max. conicity: 30° / 100mm travel -x axis: 500 mm travel -y axis: 350 mm travel -z axis: 426 mm travel U x V-axis: +/-70 / +/-70 mm rapid traverse X-axis: 3 m/min rapid traverse Y-axis: 3 m/min rapid traverse U-axis: 0,6 m/min rapid traverse V-axis: 0,6 m/min rapid traverse Z-axis: 0,6 m/min wire dia.: 0,2...0,33 mm total power requirement: 12,1 kVA weight of the machine ca.: 3,9 t dimensions of the machine ca.: 2,8 x 2,4 x 2,3 m Documents: Wire Eroding Machine AGIE - Agiecut Progress 3 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

X-axis: 400mm, Y-axis: 250mm, Z-axis: 256mm, max. workpiece weight: 400kg, max. workpiece dimensions: 580/860/250mm, support surface: 680/500mm, min. start hole diameter: 2mm, cutting rate: 185mm²/min, generator: Agiplus-MMD, control: Agimatic CF20. With dielectric processing unit DA-15/C. The display power supply is defective. The machine has already been dismantled, an on-site inspection is possible.

The machine is in good technical condition, testing possible after prior agreement. Table dimensions: 700 x 450 mm Z-axis travel: 255 mm Y-axis travel: 250 mm X-axis travel: 350 mm MACHINE DIMENSIONS: L: 2100 mm x W: 2000 mm x H: 2200 mm

CNC vertical machining center Type: Mikron VCE 800 Pro Manufacturer: GF AgieCharmilles Year: 2011 Control: Heidenhain iTNC 530 X: 800 mm Y: 500 mm Z: 540 mm Table: 910 x 500 mm Max table load: 1100 kg Max spindle speed: 14000 rpm Tool magazine: 24 positions Machine weight: 5000 kg Cooling and rinsing through the center of the spindle. Work and tool probe included New spindle in 2018 Machine in good condition, under power Find more here - / Contact us at -
