6 ZOLLER Tool Presetting Devices used machines

Tool adjuster, adjustment and measuring instrument used Manufacturer E. Zoller Type: V420D2-00172 EC Type: V420D2-00294 VENTURION 500 Built: 2003 Dimensions: approx. 1600 x 1000 x 2000 mm

Adapter for tool presetters The adapter is plugged into the SK50 basic holder of the tool presetter and thus serves as an intermediate module for Tool holders with size SK30 or BBT30. The adapter is calibrated and equipped with calibration balls.

Image Processing Software '''Pilot 3.0'' Set tools of all kinds with high precision and measure them automatically. Measuring range Z Measuring range X 450 / 620 / 820 mm 210 / 310 mm Max. tool Ø pharyngeal gauge Ø 420 / 620 mm 100mm Adapter for SK 40 / VDI 40 / VDI 50 incl. computer and printer Graphical, self-explanatory user interface, Quickly accessible features, Large click and touch areas, Photoreal input dialog, Dynamic crosshairs, Self-explanatory function keys, Automatic cutting shape recognition, Automatic zero point monitoring, Brilliant precise cutting display and inspection, Tool and adapter management, Tool identification, Test report output, Data transmission to machines and interfaces to third-party systems and many more Functions.

Tool presettler Zoller smile 400 pilot 2 BJ 2008

Adapters for tool presetters The adapter is inserted into the SK50 base holder of the tool presetter and thus serves as an intermediate module for Tool holders with size SK30 or BBT30. The adapter is calibrated and equipped with calibration balls.

measuring range X-axis: 300 mm measuring range Y-axis: 300 mm Table dimensions: 800 x 800 mm taper ISO: 30 voltage: 220 V / 50 Hz total connected load: 0,3 kW weight: 0,5 t dimensions of the machine ca.: 1,5 x 1 x 1,6 m Use: no definition: : • Tool presetter with taper SK 30, SK 40 is also optionally possible, • Display of measured value ZOLLER DA 6050 / 0266, serial no: H320/066 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

measuring range X-axis: 540 mm measuring range Z-axis: 400 mm table diameter: 740 mm enlargement: 20fach range L-W-H: ca. 1,70 x 1,00 x 1,70 mm weight: ca. 600 kg acc.: DRO on 2 axis The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A high-precision, modular Zoller V420DZ presetting and measuring machine for rotating tools is available. Measuring range X/Z: 220mm/500mm, max. tool diameter: 420mm, max. tool weight: 45kg, machine dimensions X/Y/Z: approx. 1600mm/1000mm/2000mm, weight: approx. 1150kg. Including base frame, PC, monitor, printer and measuring software. Documentation available. On-site inspection is possible.

tool setting device, tool presetting device, milling cutter setting device -Measuring range X-axis radius: mm -Z-axis: 630 mm -Display accuracy: mm observation unit -Projector: mm -Enlargement: crosshairs -360 degree protractor -Dimensions: 570/1720/H1875 mm -Weight: 387 kg

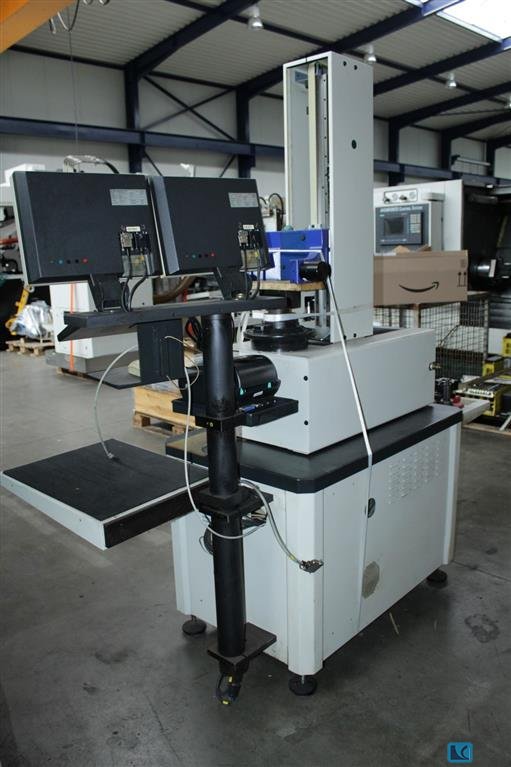

measuring range X-axis:150-300 mm measuring range Y-axis:* mm Table dimensions:* mm measurement range Z =:450 mm tool diameter:* mm tool taper:* SK compressed air:* bar dimensions:* m machine weight ab.:* kg clamping surface upper angle:* Mounted on 1 cabinet, equipped with 2 monitors, with keyboard, 1 control computer, 1 operating data printer

measuring range X-axis:500 mm measuring range Y-axis:* mm Table dimensions:* mm measurement range Z =:1000 mm tool diameter:* mm tool taper:* SK compressed air:4-6 bar dimensions:* m machine weight ab.:* kg

measuring range X-axis:150- 300 mm measuring range Y-axis:* mm Table dimensions:* mm measurement range Z =:450 mm enlargement:20 X fine adjustment:+/- 5 mm compressed air:6 bar dimensions:2 x 1,5 x2 m machine weight ab.:150 kg

Tool presetting device Brand: Zoller Type: Venturion 400 Without computer,software. Mechanics only This item is only sold to traders.

Tool adjuster, adjustment and measuring instrument used Manufacturer E. Zoller V420magnum Type: V425D Built: 1997 Dimensions: approx. 1600 x 1000 x 2000 mm

ZOLLER SMILE / PILOT 3.0 presetting and measuring machine was manufactured in 2019 in Germany. The machine is a professional tool measuring and presetting device, whose easy operation and precision guarantee flawless results. A telecentric lens and a CCD camera with integrated LED ring for measurements in reflected light (blade inspection) are used to perform the measurements. ZOLLER SMILE 420 is equipped with the CNC controller ZOLLER »pilot 3.0« and functions such as automatic blade recognition, measurement of radial run-out and axial run-out, maximum contour function and cutting edge control. The tool to be measured can have a maximum length of 420 mm and a maximum diameter of 420 mm. Specifications of the ZOLLER SMILE / PILOT 3.0 presetting and measuring machine - maximum tool length Z: 420 mm - maximum tool diameter D: 420 mm - diameter measurement according to Abbe’s p ...

Zoller V520B Magnum Setting and Gauge Manufacturer: Zoller Type: V 520 Magnum Year of construction 1998 Specifications: Voltage 230 V Compressed air 4-6 bar Weight 180kg Under table 140kg Maximum tool weights Manual focusing max. 1000 N Automatic focusing max. 200 N More items - new and used - can be found in our shop! International shipping costs on request!

longitudinal travel: 1 mm cross travel: 1 mm table length: 1 mm weight of the machine ca.: 0,5 t dimensions of the machine ca.: 1,5x0,8x1,9 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

measuring range X-axis: . mm measuring range Y-axis: . mm Table dimensions: . mm tool diameter: . mm digital readout: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

longitudinal travel: 400 mm cross travel: 160 mm table length: - mm table width: - mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

longitudinal travel: 400 mm cross travel: 160 mm table length: - mm table width: - mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

measuring range X-axis: 300 mm measuring range Y-axis: 250 mm measuring range Z-axis: 600 mm tool diameter: mm Table dimensions: mm Control: weight: 700 kg dimensions of machine: 2600 x 1400 x 1900 mm coolant tank: 800 x 600 x 920 mm Presetting, shrinking and measuring machine Software saturn 1 Zoller Multivision II Without toolholders. On 30. May 2022 the machine was checked by a technician from ZOLLER. Shrinking is currently not possible. The induction spool and the control unit for it must be renewed. The purchase price of a comparable new machine (incl. software) from ZOLLER is approx. 100.000 EUR, with a current delivery time of approx. 52 weeks ! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This Zoller smile 400 optical measurement machine was manufactured in 2015. It features a 24V power distribution system, a lighting module Z100-L, and a high-precision spindle SK 50 with a runout accuracy of 0.002 mm. It also includes a 17 panel PC, USB camera with integrated LED lighting, and a servo motor with encoder. Consider the opportunity to buy this Zoller smile 400 optical measurement machine. Contact us for more information.

This 3s Zoller SMC 4/4-00060 was manufactured in 2010. It features a measuring range of 215 mm on the X-axis and 415 mm on the Z-axis, making it suitable for high-precision applications. With a high-precision spindle SK-50 and additional features like a spindle brake and 4 x 90° spindle locks, consider the opportunity to buy this Zoller SMC 4/4-00060 optical measurement machine. Contact us for further details.

- DOCUMENTS AND MANUALS INCLUDED WE ORGANIZE SHIPPING AS WELL Max. concentricity errors at 300 mm: 0.008 mm RS232 / USB : interface Measuring range diameter (x) 310 mm Application range height (z) 320 mm Weight 90 Kg Max. tolerated errors (mechanical) 0.003 mm Max. tolerated errors (vision system) 0.005 mm Max. radius measurements < 5% - Max. angle measurements errors < 0.2° Max. concentricity errors adapter 0.002 mm Max. resolution 0.001 mm Max. manual moving speed 1 m/s INSERT CONUS MK5 IT WAS USED BY LATHE CNC DOOSAN PUMA

Dimensions (LxWxH) approx. 2,600 x 1,000 x 1,600 mm Weight approx. 1,300 kg machine number 833, Digital display chalice PICO Version A 23, Clamping length approx. 2000 mm, clear width in the passage (portal) 740 x 320 mm
