used
Gear hobbing machine PFAUTER 1200mm, modul 12, with change gears
used
Gear hobbing machine vertical Pfauter P251 With accessories
used
used
A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.
used
max. wheel diameter: 3000 mm gear width: 1200 mm max. module: 30/40 min. module: 2 table diameter: 2500 mm table load capacity: 400 kN hob dia. - max.: 450 x 500 mm milling spindle speeds: 10 - 165 U/min hob length max.: 500 mm tip circle diameter: 2050 mm tooth helical angle min/max: 0 - 45 ° center distance betw. workpiece-tool min/max.: 150 - 1750 mm milling slide swivelling: 50 Grad distance table / counter stay: 1050 - 2050 mm shifting: 300 mm workpiece weight: 40 t table bore diameter: 800 mm depth of hole: 1100 mm main drive motor: 37 kW min. workpiece diameter: 290 mm min. number of teeth: Wälzfräsen 20 min. number of teeth: Formfräsen 2 taper: MK 100 feeds axial: 1 - 1800 mm/min radial feed: 1 - 500 mm/min feed: Tangential 1 - 450 mm/min rapid traverse: 1875 / 530 / 470 mm/min electrics - voltage/frequency: 380 / 50 V/Hz control: Siemens Sinumerik 3M total power requirement: ...
used
max. wheel diameter: 4400 mm gear width: 645 mm max. module: 35 Control: Siemens main drive motor: 37 kW table diameter: 2500 mm max.helical angle: +/- 30 ° workpiece weight: 40000 kg total power requirement: 142 kVA weight of the machine ca.: 75 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: 900 mm gear width: 500 mm max. module: 1 min. module: 10 total power requirement: 16 kW weight of the machine ca.: 8.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Wheel diameter: 160mm, max. wheel width: 355mm, module range: 0.5-4.5, max. cutter diameter: 115mm, max. cutter length: 105mm, cutter head swivel range: 120°, speed: 400rpm, distance between centers: 410mm. Machine dimensions X/Y/Z: approx. 2000mm/1500mm/2000mm, weight: approx. 3500kg. An on-site inspection is possible.
used
PFAUTER RS 00 - Gear hobbing machine -Max. wheel diameter 250mm -Max. tooth width 160mm -Max. module 2.5 - 3mm -Approx. 65 change wheels + built-in change wheels in the machine - Table diameter approx. 200mm -Milling cutter speeds 200 - 1200 rpm -Digital display -Tangential milling device -Interchangeable wheels -Documentation -Machine enclosure Dimensions: LxWxH 1.6x1x1.7 meters / Weight 1800 kg
used
max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation
used
max. wheel diameter:130 mm gear width:170 mm max. module:3 min. module:0,5 total power requirement:48 kVA weight of the machine ca.:9 t dimensions of the machine ca.:7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed
used
max. wheel diameter:** mm gear width:** mm weight of the machine ca.:7000 kg dimensions of the machine ca.:9130 x 3895 x 3450 mm max. top circle diameter:80 mm max. length of teeth cutting:170 mm Total length:240 mm taper diameter:32 mm slide travel radial ( X-axis ):100 mm slide travel tangential ( Y-axis ):160 mm axial movement Z-axis:300 mm/min workpiece spindle - bore:45 mm electr. connected load:44 kVA
used

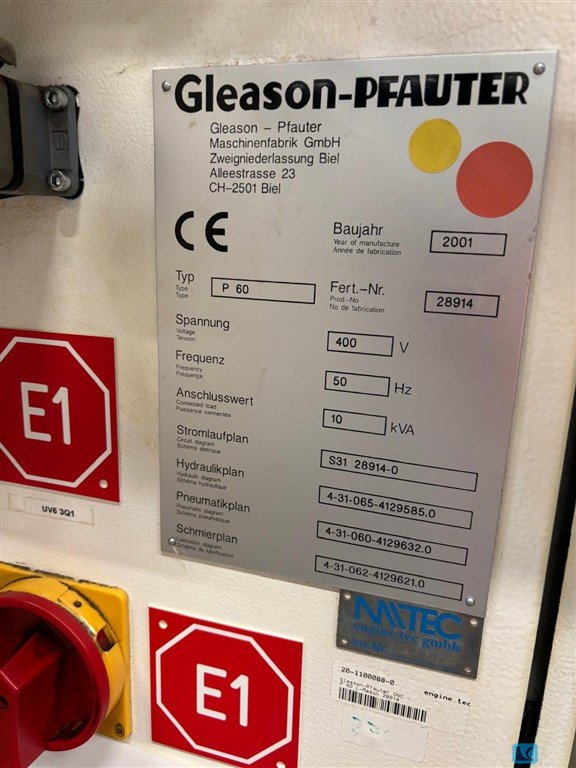

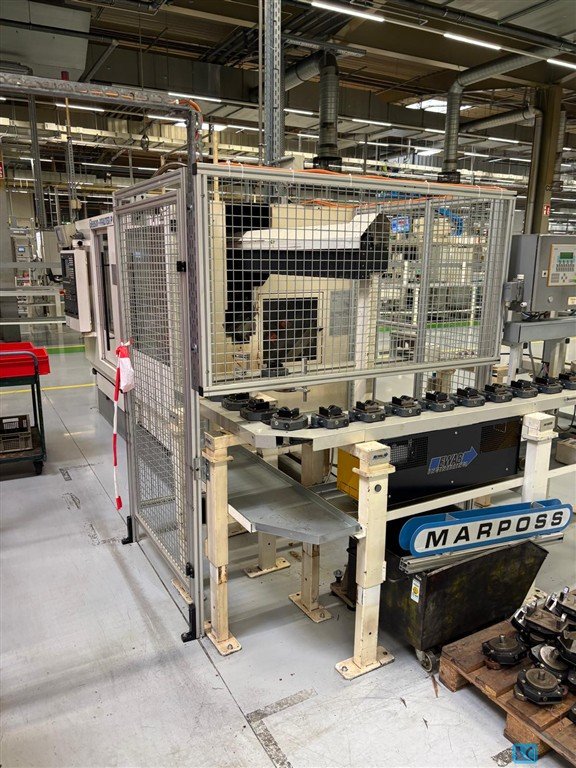

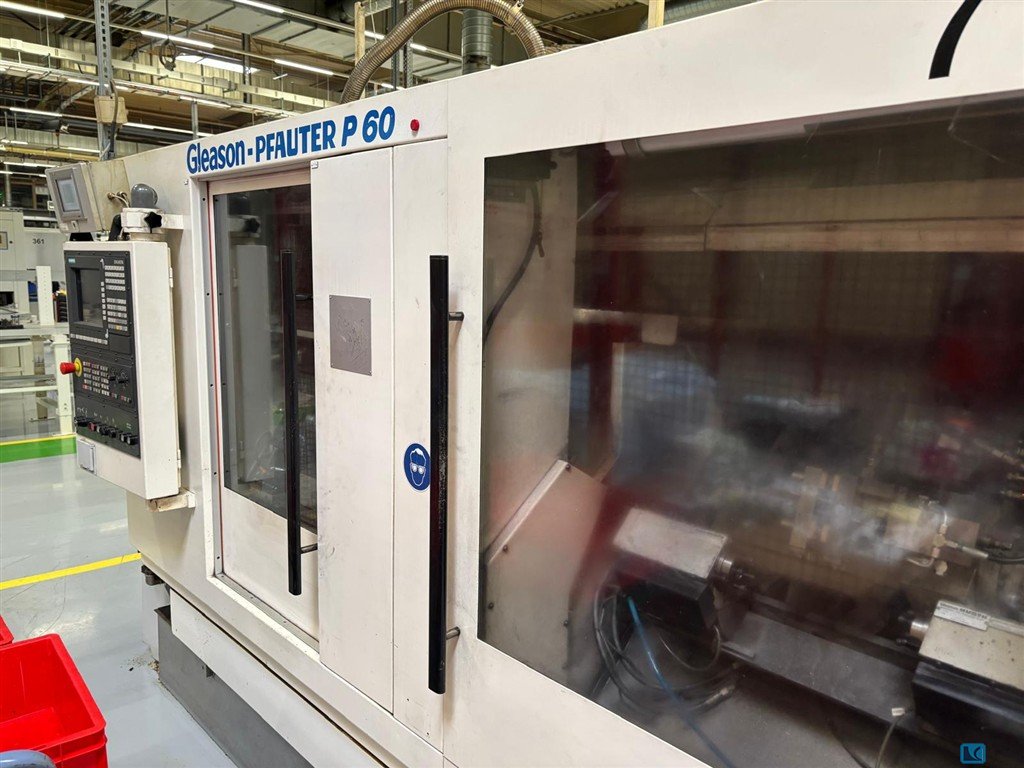

max. wheel diameter:80/120 mm max. module:2,5 max. top circle diameter:65 mm :22 mm :140 mm :120 mm slide travel axial ( Z-axis ):320/400 mm Dimensions (L/W/H):3270 x 3240 x 2020 mm weight of the machine ca.:6 t P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1
used
max. wheel diameter:180 mm gear width:* mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm
used
used
used
max. wheel diameter: 350 mm gear width: 350 mm max. module: 8 min. module: total power requirement: 7,5 - 22 kW weight of the machine ca.: t dimensions of the machine ca.: m Gear hobber with gear shaping device, 2-cut cycle The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Generating Grinding Machine Grinding Machine Gleason Pfauter G320 CNC + Promot Automation Hersteller [manufacturer]: Gleason Pfauter G320 + with Promot Automation handling unit Type [ type]: G 320 Control unit: Siemens 840 Incl. control panel Baujahr[construction year]: 10/2001 Module [ ]: 0.5-7.0 Min. workpiece diameter [ ]: 10 mm Max. workpiece diameter [ ]: 380 mm Number of teeth [ ]: 10-600 Vertical carriage stroke "Z" [ ]: 200mm Horizontal carriage stroke "X" [ ]: 230mm Tangential carriage stroke (SHIFTING) "Y" [ ]: 135mm Swivel angle clamping head "A" [ ]: +-45° Tailstock tip stroke [ ]: 125mm tangential slide stroke – dressing [ ]: "V" 180mm radial carriage stroke – dressing [ ]: "U" 110mm Rotation speed – grinding wheel in progress [ ]: 3000rpm max - infinitely variable Egg speed - linear axes [ ]: 10000 mm/min Max. table rotation speed [ ]: 240 RP ...
used
Gear Hobbing Machine Pfauter P 400 With interchangeable wheels
used
Gear hobbing machine horizontal Pfauter P160 With accessories
used
The machine is in good technical condition, testing is possible by prior arrangement.
used
Infeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning.
used
amount: 36 STK. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Control: SIEMENS table surface area: 160 mm weight of the machine ca.: 10 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
