wmw accessories for machine tools used for sale

various wedge shoes, set-up elements, machine feets

3-spindle line boring machine

lechrichter, used,       sheet leveller, used,   Type: UBR 10 x 2000 /1-16 Manufacturer / make: WMW Gotha max. sheet width: 2000 mm max. sheet thickness ( St 50): 10 mm    min. sheet thickness / min. sheethickness: 3 mm   Number of straightening rollers: 13 rollers / rollers Directionroller Diameter/diameter of     straihgtening rollers: 145 mm Directional speed / speed of straightening: 16 m / min Bale length / convexity length of rollers: 2330 mm Center distance of directional rollers/ distance b/n rollers centers: 150 mm Support roller diameter / diameter of bottom rollers: 290 mm Number of bottom rollers 21/24 Number of supports (top/bottom): 3 /3 Lifting speed of the traverse / speed   ...

Quill for jig boring mill, fine boring mill, plate boring mill, table boring mill, boring mill, milling machine, -Stroke: 60 mm -in: a wooden box -Dimensions: 390/340/H170 mm -Weight: 15.8 kg

Machine vice, vice, drill press vice -Jaw width: 155 mm -Back height: 80 mm Clamping depth: max. 200 mm -Dimensions: mm -Weight: 35 kg

Machine vice, vise, drill press vise -Jaw width: 160 mm -Jaw height: 50 mm -Clamping depth: max. 105 mm -Dimensions: 460/163/H123 mm -Weight: 38.3 kg

various machine tables, angle tables, universal tables, clamping cubes, cube tables

Machine vise WMW SX200 200 mm jaw width: 200 mm jaw height: 63 mm span: 0 - 300 mm used, tested ! Dimensions: 705 x 200 x 150 mm

Machine vice, sturdy vice, drill press vice -Machine vice: Clamping jaws 200 x 55 mm -Clamping depth: 285 mm -Dimensions: 650/200/H145 mm -Weight: 65.8 kg

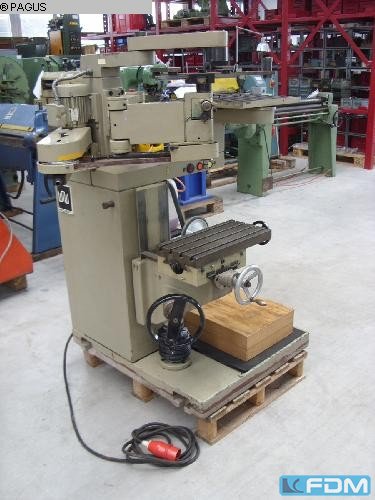

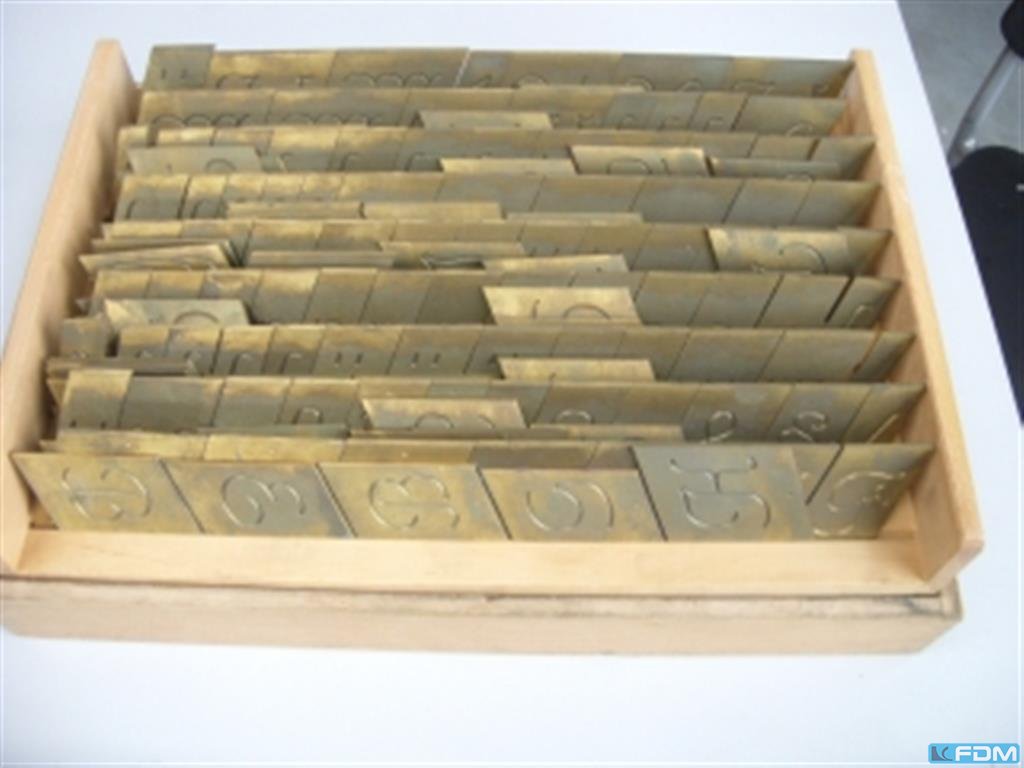

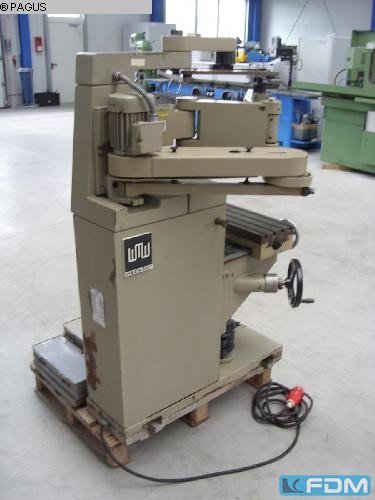

Engraving machine WMW FG 200 x 400 table size: 400 x 200 mm workpiece height max.: 300 mm stencil table: 380 x 380 mm x travel: 500 mm y travel: 250 mm z travel: 325 mm Speed range: 2500 to 20000 rpm 0.25 kW 380 V with various stencils ! Dimensions: 1000 x 1200 x 1500 mm

Machine vise WMW jaw width: 160 mm span: 130 mm Dimensions: 460 x 160 x 120 mm

Machine vice, sturdy vice, drill press vice -Jaw width: 170 mm -Clamping depth: max. 120 mm -Dimensions: 480/170/H130 mm -Weight: 30 kg

Tool grinding machine WMW SWA 200 grinding diameter max Ø 600 mm grinding length max 470 mm table movement longitudinally 470 mm Tool holder MK2 swivel 0-6 °, 90° Speed range: 1260 - 3100 rpm 0,0.0 4 kW 220 / 380 V used, tested ! Dimensions: 1100 x 1100 x 1500 mm

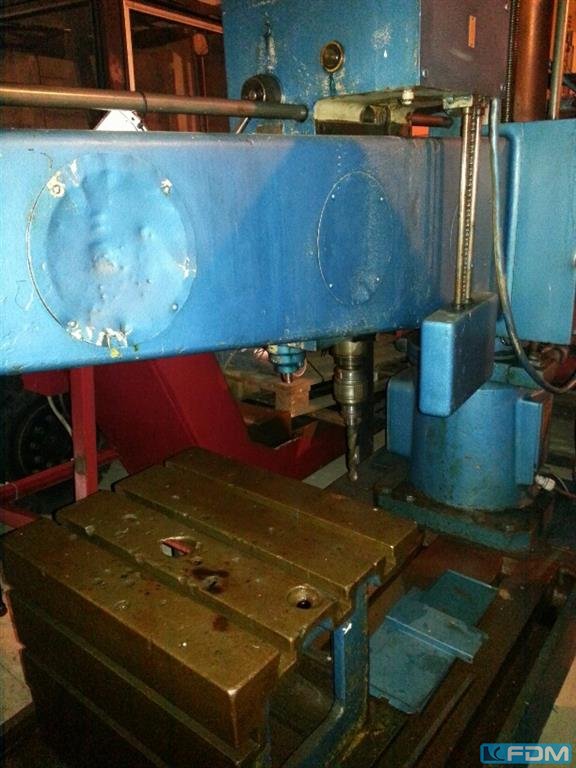

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

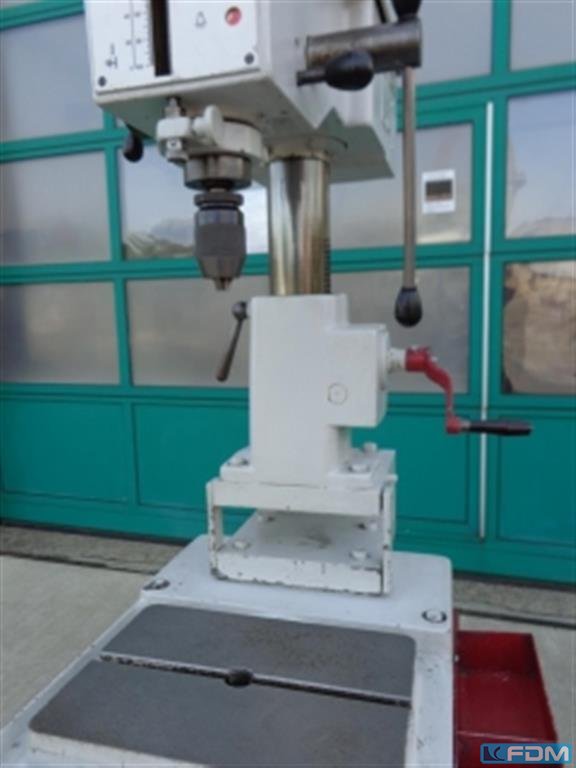

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:100 mm total power requirement:0,7 kW weight of the machine ca.:302 kg dimensions of the machine ca.: 620 x 800 x 1950 mm Table dimensions:350 x 250 mm spindle speeds::250, 355, 710, 1000, 1400, 2000, 2500 U/min

bore capacity in steel (diameter):50 mm total power requirement:7,8 kW weight of the machine ca.:1720 kg dimensions of the machine ca.:1200 x 770 x 2700 mm number of spindle speeds:45 - 1000 mm surface area:630 x 500 mm

bore capacity in steel (diameter):50 mm total power requirement:7,8 kW weight of the machine ca.:1720 kg dimensions of the machine ca.:1200 x 770 x 2700 mm number of spindle speeds:45 - 1000 mm surface area:630 x 500 mm

FZWD 160x1600/1 Sabo Basis 160 Facing & Centering Machine WMW HECKERT Workpiece dia 20-160 mm Length 130-1600 mm Max. Diameter of Milling Cutter 200 mm Facing Spindle's Speeds 112-280 rpm Spindle's Speeds 560-1400 rpm Adjustable feed rate range 15 – 800 mm / min. Spindle ISO 50 Rapid traverse 6000 mm Max. stroke 230 mm Max. Depth of 6 mm Tool holder 4 - 20 mm Max. Feed path 60 mm Total connected load 20 kW Weight 4.5 t

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

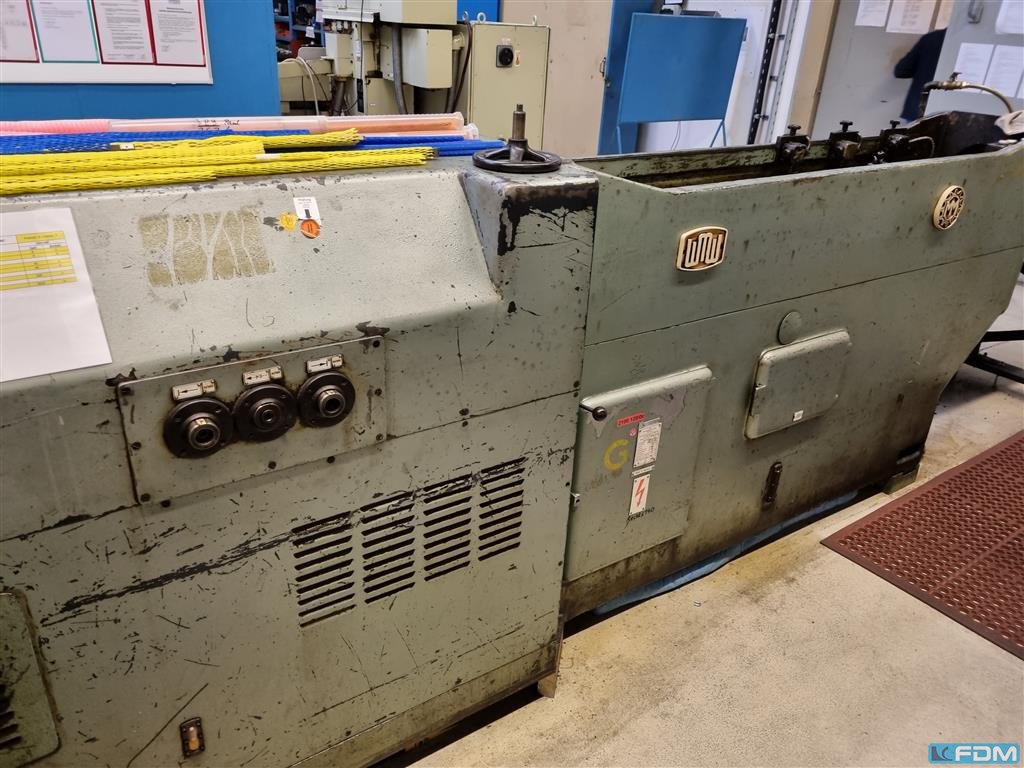

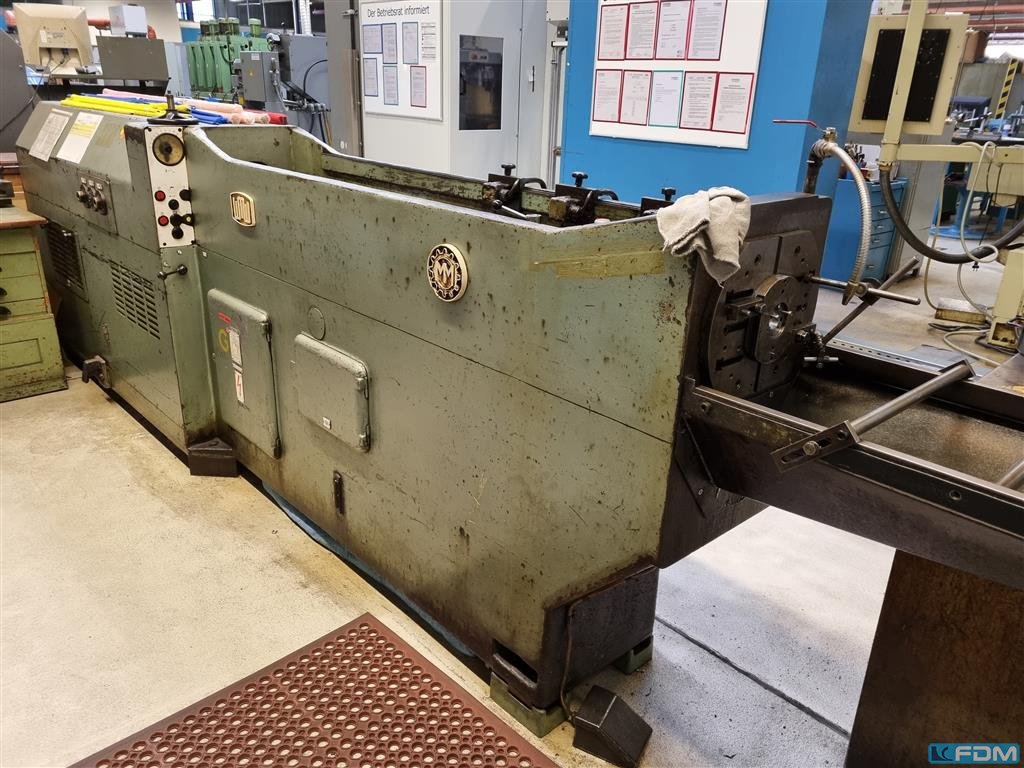

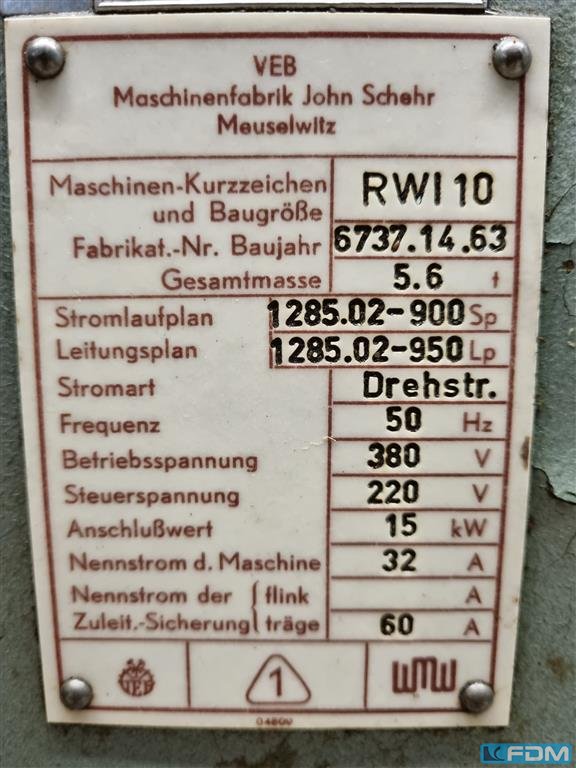

groove width:1,5 , 12, 14 mm total power requirement:380V, 50Hz, 32A, 15 kW weight of the machine ca.:5,6 t dimensions of the machine ca.:4000 x 750 x 1300 mm

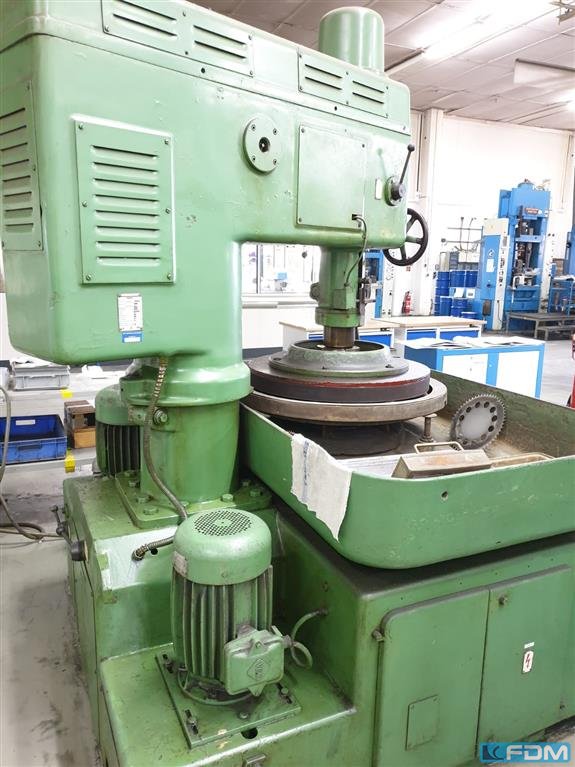

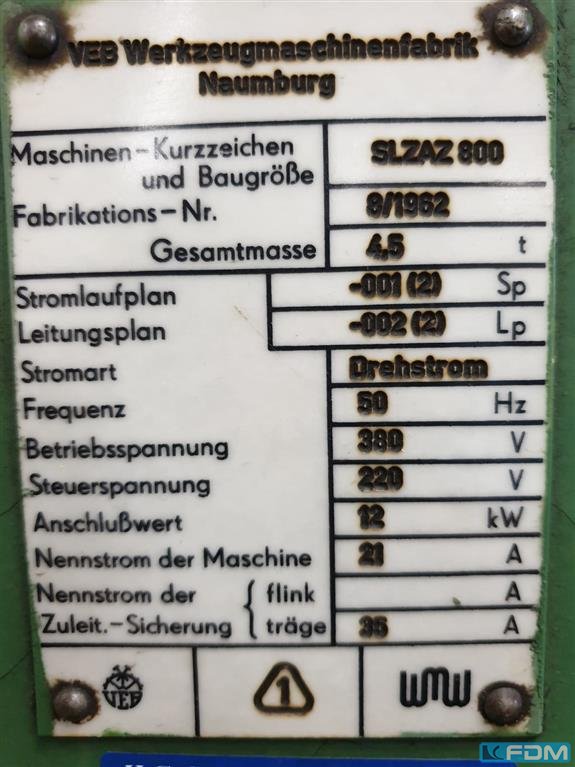

total power requirement:12 kW weight of the machine ca.:4,6 t

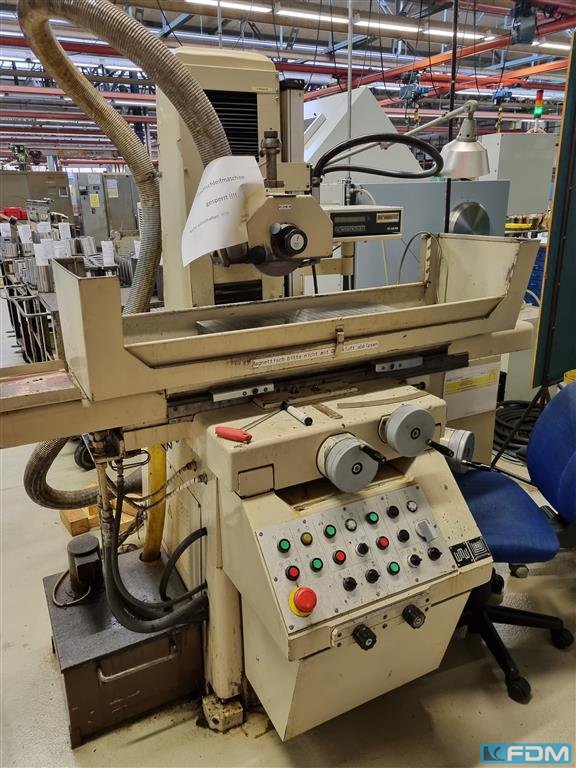

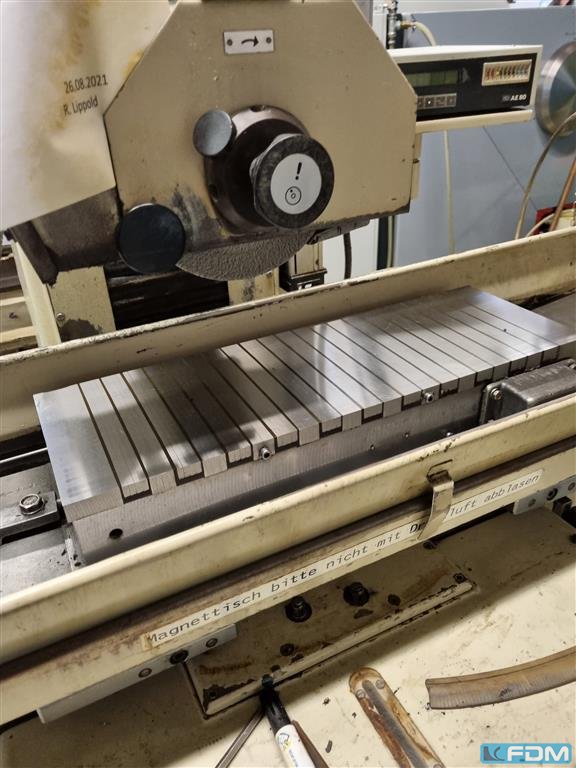

grinding length:600 mm grinding width:200 mm total power requirement:5 kW weight of the machine ca.:1,4 t dimensions of the machine ca.:3 x 3 m

Drilling capacity in steel/cast iron: 40mm/60mm, throat depth range: 300mm-1250mm, max. workpiece height: 745mm, spindle mount: MK5, spindle stroke: 355mm, speed: 1200rpm, feed: 756mm/min, column diameter: 300mm, spindle-plate distance: 280mm-1380mm, table dimensions X/Y: 1400mm/750mm. Machine dimensions X/Y/Z: approx. 2200mm/1000mm/2800mm, weight: approx. 3000kg. On-site inspection is possible.

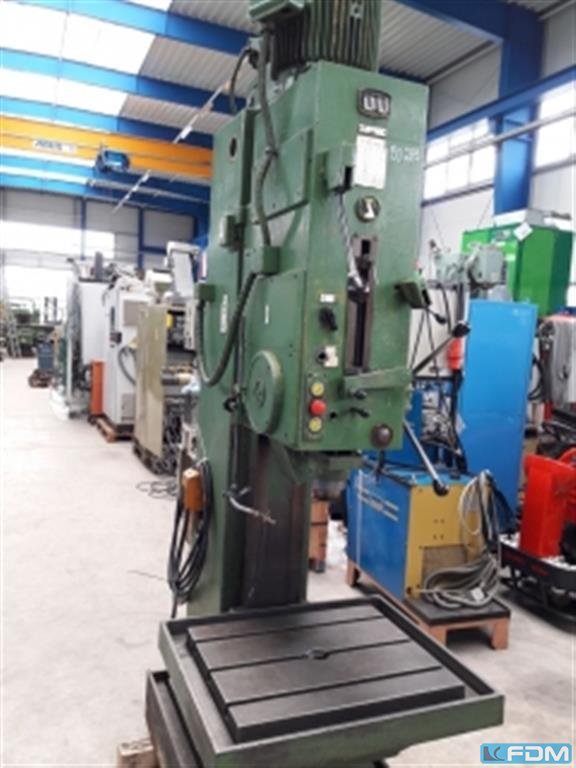

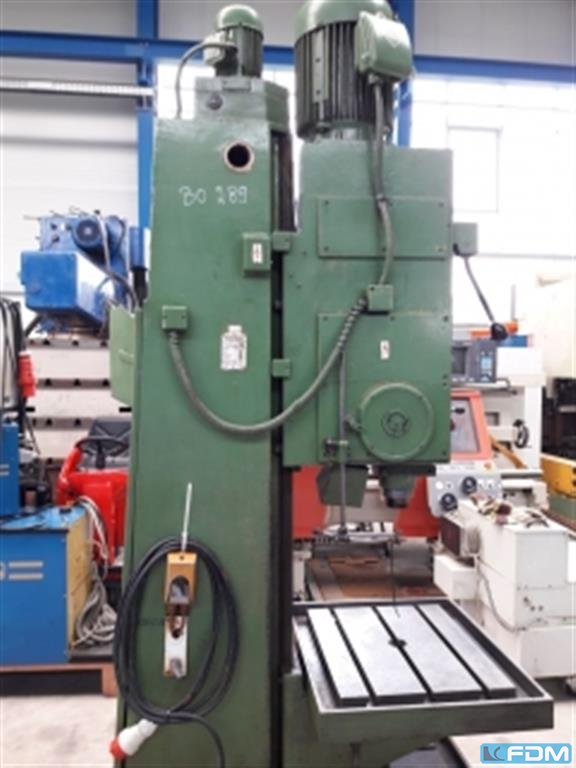

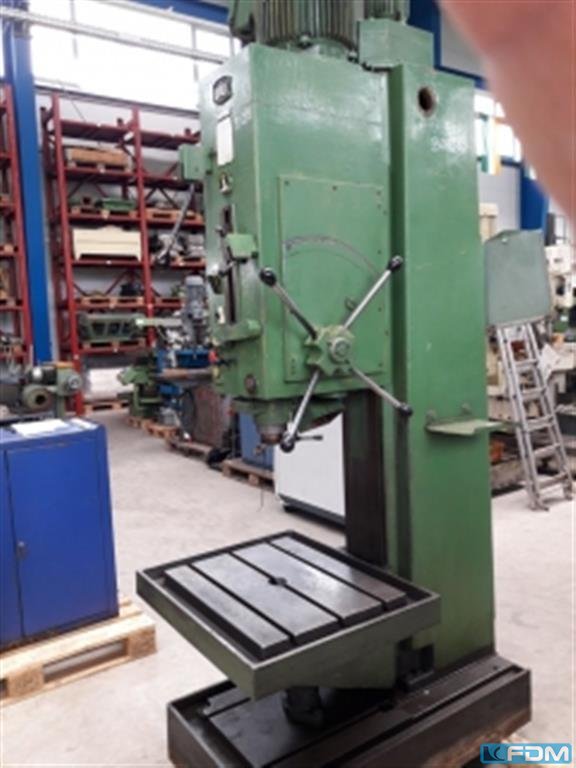

Drilling capacity in steel: 50mm, spindle mount: MK5, speed: 1000rpm, throat depth: 355mm, drilling stroke: 280mm, spindle-table distance: 710mm, spindle-column distance: 355mm, table dimensions X/Y: 630mm/500mm, column diameter: 160mm. Machine dimensions X/Y/Z: 1200mm/800mm/2700mm, weight: approx. 1650kg. On-site inspection is possible.

Travel X/Y/Z: 850mm/280mm/355mm, table dimensions X/Y: 1250mm/315mm, feed X/Y: 800mm/min, feed Z: 250mm/min, spindle mount: ISO 50, spindle speed: 1400rpm. Machine dimensions X/Y/Z: approx. 2000mm/2000mm/2400mm, weight: approx. 3300kg. On-site inspection is possible.

Travel X/Y/Z: 820mm/300mm/485mm, table dimensions X/Y: 250mm/1000mm, spindle mount: SK40, speed: 2800rpm, spindle head swivel: +/-45°, quill stroke: 100mm, feed: 630mm/min, connected load: 9.5kW, machine weight: approx. 1600kg. Documentation available. On-site inspection is possible.

A total of four WMW/Werkö saw grinding machines are available. Saw blade diameter min./max.: 250mm/1450mm, grinding wheel diameter: 250mm, speed: 2500rpm, tooth pitch: 42mm, grinding spindle swivel range: +/-45°, machine dimensions X/Y/Z: approx. 850mm/1000mm/1800mm, weight: approx. 1100kg. Documentation available. On-site inspection is possible.

Sanding width: 200mm, sanding length: 600mm, adjustment path X/Y: 690mm/230mm, clamping table spindle center distance: 500mm, sanding wheel diameter: 200mm, sanding wheel width: 20mm, bore: 51mm, table dimensions X/Y: 200mm/600mm, max. table load: 110kp, machine dimensions X/Y/Z: approx. 3000mm/1600mm/2100mm, weight: approx. 1300kg. Documentation available. On-site inspection is possible.

max. width of grinding wheel: 50 mm ratio: 0 max. dia. of grinding wheel: 400 mm total power requirement: 3 kW weight of the machine ca.: 1000 kg dimensions of the machine ca.: m Pre-Dressing Device for Gear Grinding Wheels The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Feed rate: 250mm/min, speed: 2800rpm, tool diameter: 200mm, weight: approx. 850kg. An on-site inspection is possible.

diameter range 3-10 mm cutting length 2000 mm speed - meters/min 22-71

Brush cylindrical grinder, external cylindrical grinder, internal cylindrical grinder, centering grinder, center grinding machine, hydraulic universal cylindrical grinder, polishing machine -Manufacturer: WMW Heckert, Hydraulic universal cylindrical grinding machine -Spindem lotor: VEB 0.8/1 kW / 1410/2840 rpm -Hydraulic drive: ADDA 0.75 kW -Centre height: 270 mm -Max. material diameter: Ø 320 mm when converted -Brush: max. Ø 250 mm -Center distance: 420 mm -Dimensions: see photos -Base cabinet: with extensive accessories incl. -Dimensions: 1720/920/H1230 mm -Weight: 790 kg

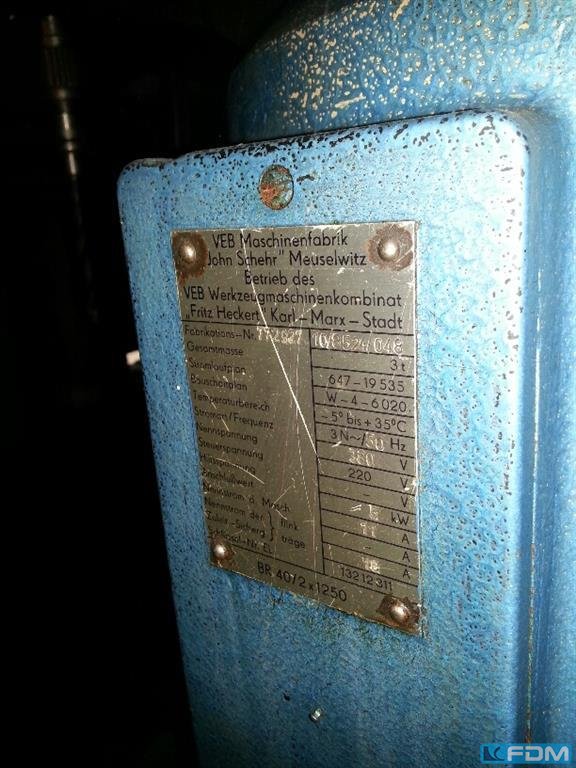

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm Dist. spindle nose & working surface base:350 - 1260 Spindle travel:315 max. boring diameter:40 mm Distance between spindle axis and column:350 - 1260 spindle taper:4 MK Range of spindle speeds:22,4 - 2800 Number of spindle speeds:16 Number of spindle feeds:16 Table:500 x 630 Travel of spindle head:900 mm total power requirement:3,5 kW dimensions of the machine ca.:2150x1070x2840 m feed:0,09 - 1,5 m/min weight of the machine ca.:3 t

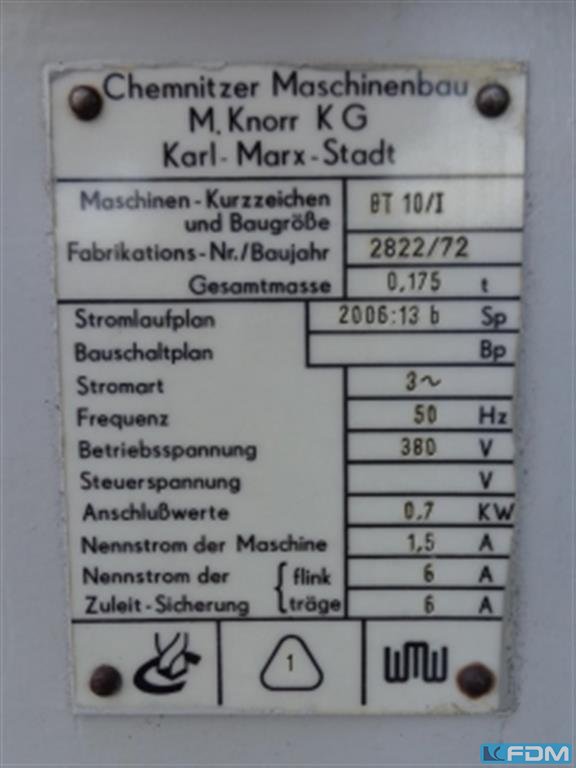

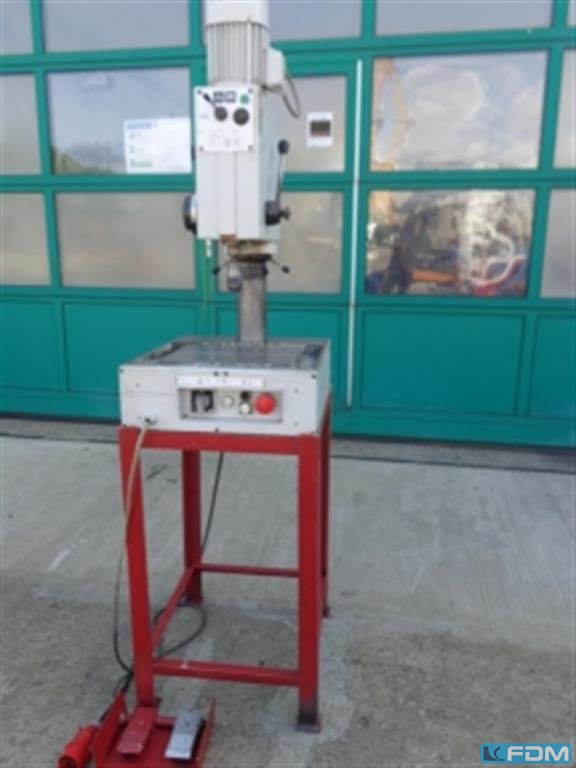

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:80 mm total power requirement:1,1 kW weight of the machine ca.:195 kg dimensions of the machine ca.:530 x 650 x 1850 mm spindle speeds::355, 710, 1400, 2800 U/min Table dimensions:340 x 280 mm

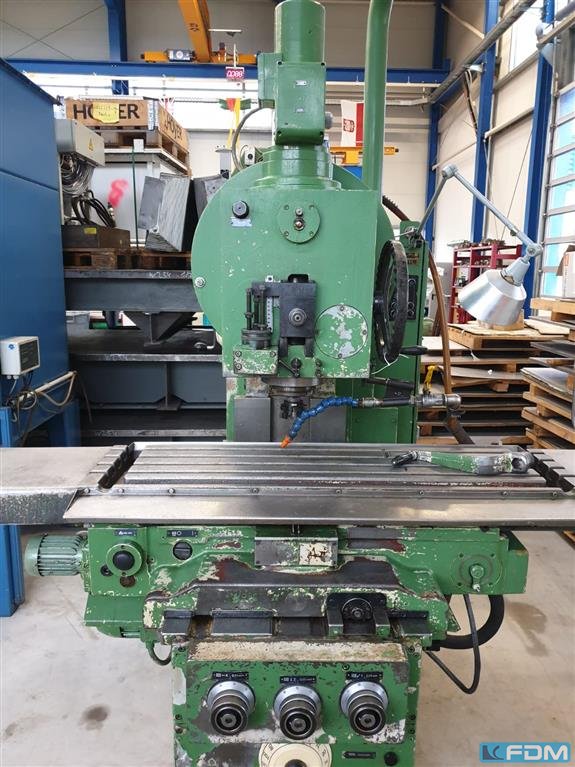

x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

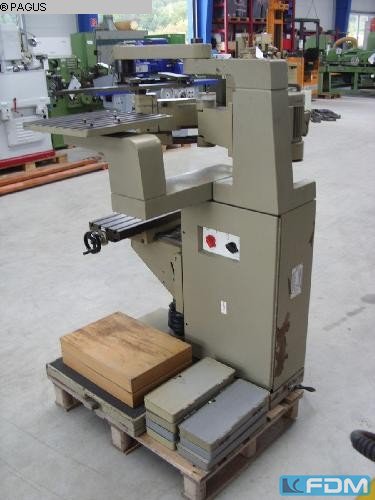

x-travel:500 mm y-travel:250 mm z-travel:325 mm table-size:400 x 200 mm T-slots:10/ 20 mm T-slots:4 St workpiece height max.:300 mm template table:380 x 380 mm speeds::2500 - 20000 U/min no. of turning speeds:3 total power requirement:0,25 kW weight of the machine ca.:430 kg dimensions of the machine ca.:1000 x 1200 x 1500 mm

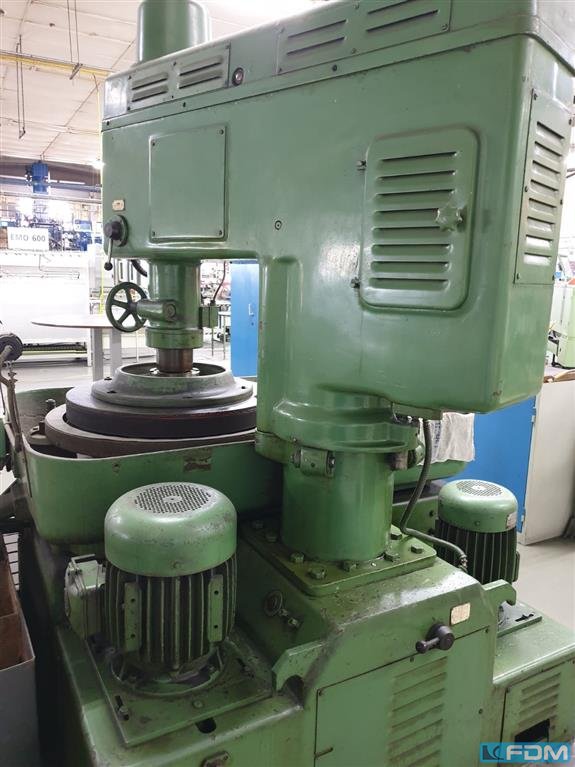

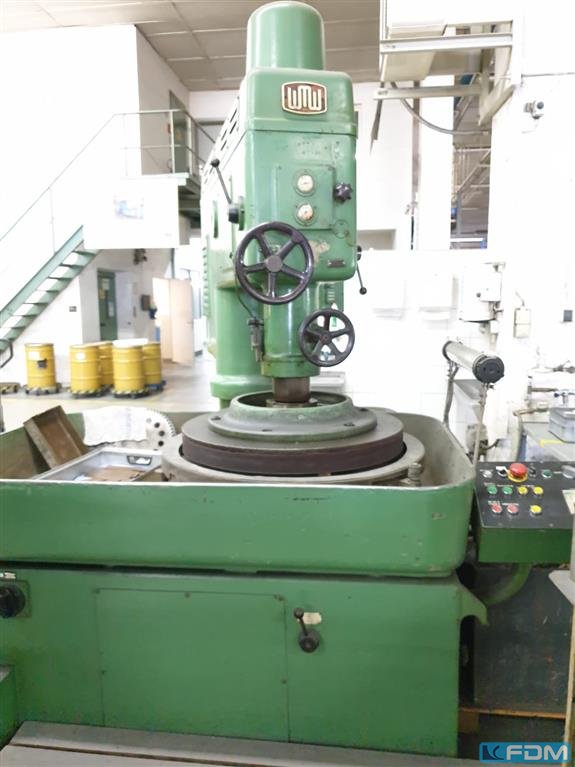

internal diameter:315 mm grinding depth:315 mm swing diameter:420 mm number of spindle speeds:32 - 360 U-min wheel box:-drehzahl 100 - 8000 U/min face diameter:500 mm total power requirement:12 kW weight of the machine ca.:5900 kg dimensions of the machine ca.:3400 x 1750 x 2000 mm

grinding length:1000 mm grinding width:250 mm workpiece height:400 mm total power requirement:12 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3.300 x 1.800 x 2.300 mm hydraulic power unit:400 x1000 x 1500 mm control cabinet:2 Stück, 1000 x 1400 x 1500 mm

Various sub-equipment from a training workshop, to hand over individually, e.g. lid sub-device with upper beam and counter holder, Universal part apparatus with initial division Walter UTA150E with counter holder and rotary chuck 3 partial discs with parts see above, Part apparatus Walter can be swivelled without initial division. Furthermore Luenetten standing and running, on request please Specify the tip height and distance mid prism to mid plan area. Rest according to photo. Other sub-equipment susengar, Direct division Indirect division, various large sum. Please ask Sub-discs for UTA 150 E 22 24 29 36 37 49 57 63 16 30 33 36 39 51 57 63 16 27 30 33 41 47 53 61 Special price

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

see picture for data. Table hoehen-adjustable. mass approx.: 1.55 x 0.8 x 2.1 m high

CNC vertical jig boring machine WMW MIKROMAT Type BKoZ 900x1400/5NC Travel X 1120 mm Travel Y 710 mm Spindle travel Z 315 mm Travel W 630 mm Numerical Command CNC NUM 1060 Spindle Ø 125 mm Cone SA40 Rotation from 36 to 2240 RPM Table size 1400 x 900 mm Distance between colums 1080 mm Maxi distance spindle nose/table from 0 to 900 mm max Maxi eligible load on table 1000 kg max Separate electrical panel Machine renewed in 2000 with CN NUM1060 Voltage 380 V Dimensions (L x W x H) 4000 x 2460 x 3030 mm Weight approx. 9 T MACHINE IN OUR STOCK IN FRANCE.

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

[ 5000 characters max., no information about the advertiser ] Brand:MODUL Model:ZFWZ 2000/3 Type:Gear Hobbers Year:1981 Location:Czech Republic Specification: Max diameter of gear without tailstock 2100 mm Max diameter of gear with tailstock 1450 mm Max face of gear 1060mm Max module with hobbing head 22 Max/ Min center distance 1240/150 mm Min number of teeth 10 Max pressure angel 45 deg Table dia / number of slots 1800 mm/12 Bore in table / length 600/800 mm Max dia of hob / length 300/330 mm Max weight of workpiece 15000 kg Accessories: Standard milling head Tailstock (no clamping) Set of gear supports (shoes) Set of arbors Set of change gears

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Extension 1600 mm

Clamping angle with T-slots Size 1600x1250x1000 mm and 1250x1000x750 mm
