vdf boring mills and machining centers used for sale

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

centre height: ca. 150 mm centre distance: 1300 mm : vorhanden diameter: ca 250 mm digital readout: 1x make: Heidenhain u. Werkzeug-Sc serial number: 63-06 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 400 mm

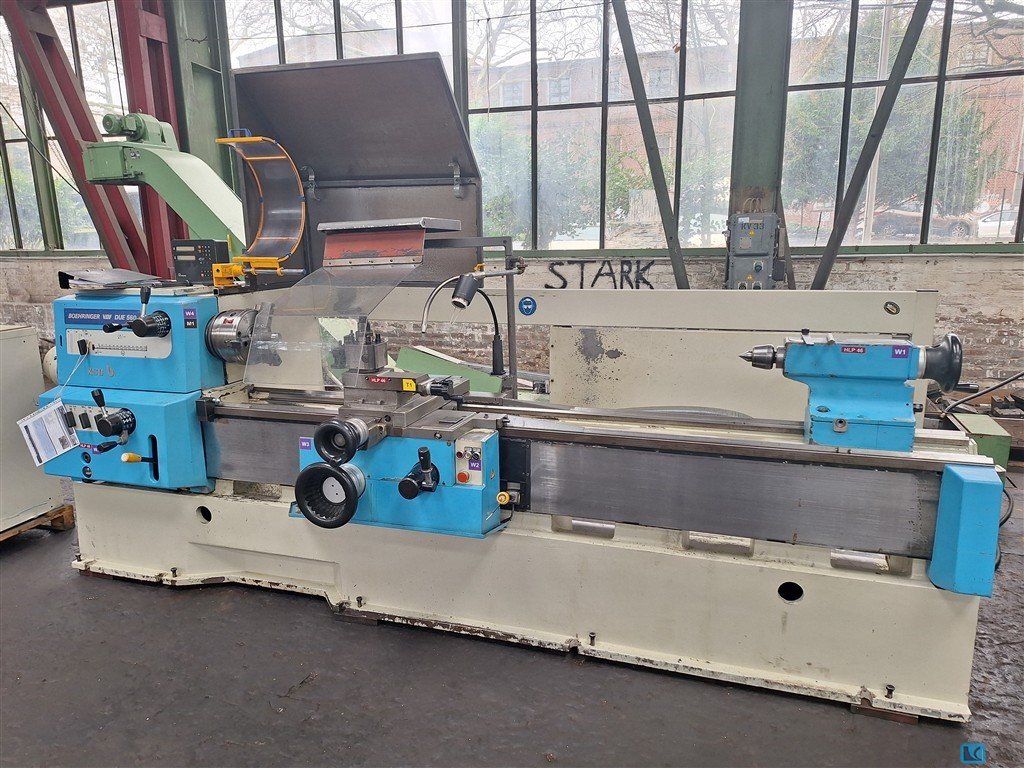

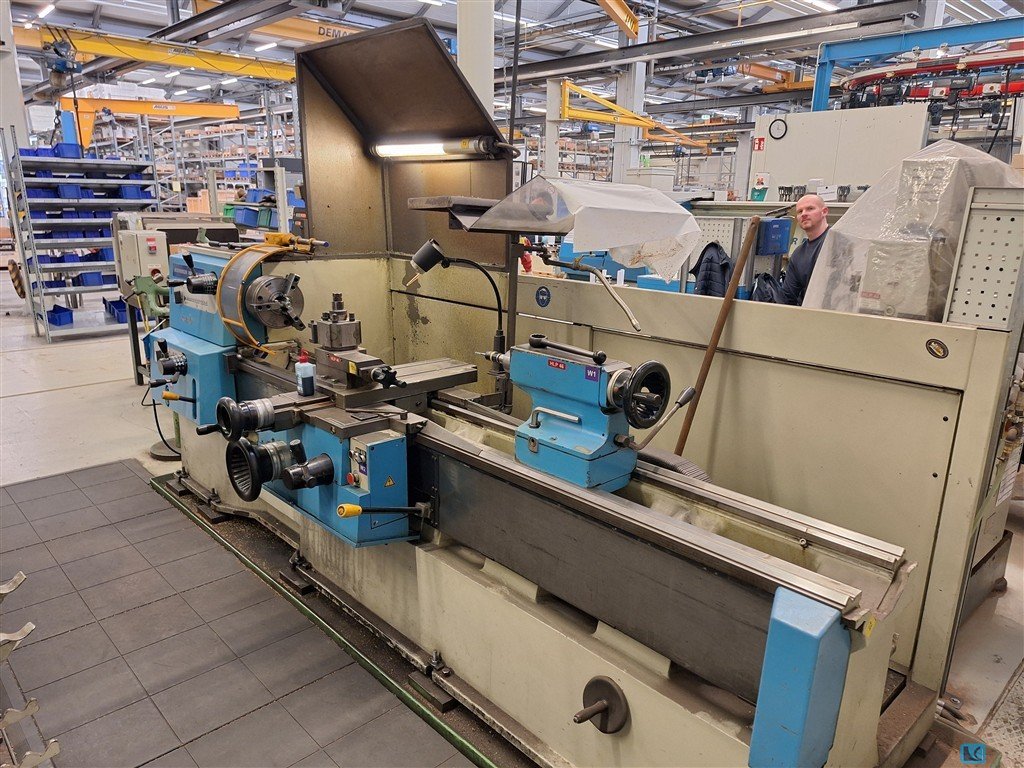

Description Lead and pull spindle lathe VDF Boehringer Göppingen Details Height 1,500 mm Width 1,700 mm Length 4,000 mm without tailstock Bed width 550 mm Bed height 800 mm Bed length 2,000 mm Face Plate Ø 900 mm Forkardt Chuck Ø 500 mm without tailstock, but can be placed Max. workpiece lengths without tailstock 1,500 mm Turning diameter over bed 800 mm Turning diameter over support 640 mm Center height 400 mm 6 pieces of baking 4-fold turning steel holder

Key data: 340 mm

Description Lead and pull spindle lathe VDF Boehringer Göppingen Details Height 1,400 mm Width 1,300 mm Length 4,150 mm Bed width 480 mm Bed height 850 mm Bed length 3,000 mm Face plate Ø 600 mm Forkardt Wedge Bar Chuck Ø 315 mm max. workpiece lengths 2,000 mm Turning diameter over bed 680 mm Turning diameter over support 480 mm Center height 340 mm Drive power 6.5 / 10 kW Lynette Ø 320 mm Multifix holder size C with 5 cassettes

Tip height: 265 mm Center width: 1500 mm Circumferential Ø: over bed 540 mm Spindle bore: 65 mm Spindle mount: size 8 Pick-up cone tailstock: 5 MK Spindle speeds: 9 - 1800 rpm Feeds: longitudinal/flat 0.063-2.24/0.032-1.12 mm/rev Thread pitches: 0.35 - 560 mm Electrical connection: 380 V, 11 kW Space requirement: 4580 x 1250 x 1330 mm Weight: 3200 kg

Center height: 400 mm Center width: 1250/1300 mm Circumferential Ø: over bed 440 mm Spindle bore: Spindle holder: Pick-up cone tailstock: 5 MK Spindle speeds: 11.2 - 2240 rpm Feeds: longitudinal/flat 0.1-2.8/0.05-1.4 mm/rev Thread pitches: Electrical connection: 380 V, 11 kW Space requirement: 3400 x 1400 x 1300/1700 mm Weight: approx. 2700 kg

workpiece weight: 279 KG length: ca. von Bett bis Lynette mm : 189 € . max: durchlass 369 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter over bed: 630-640 mm turning diameter over slide rest: ca 380 mm turning length: ca 2000-4000 mm total power requirement: 15 kW weight of the machine ca.: 7-8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control Siemens

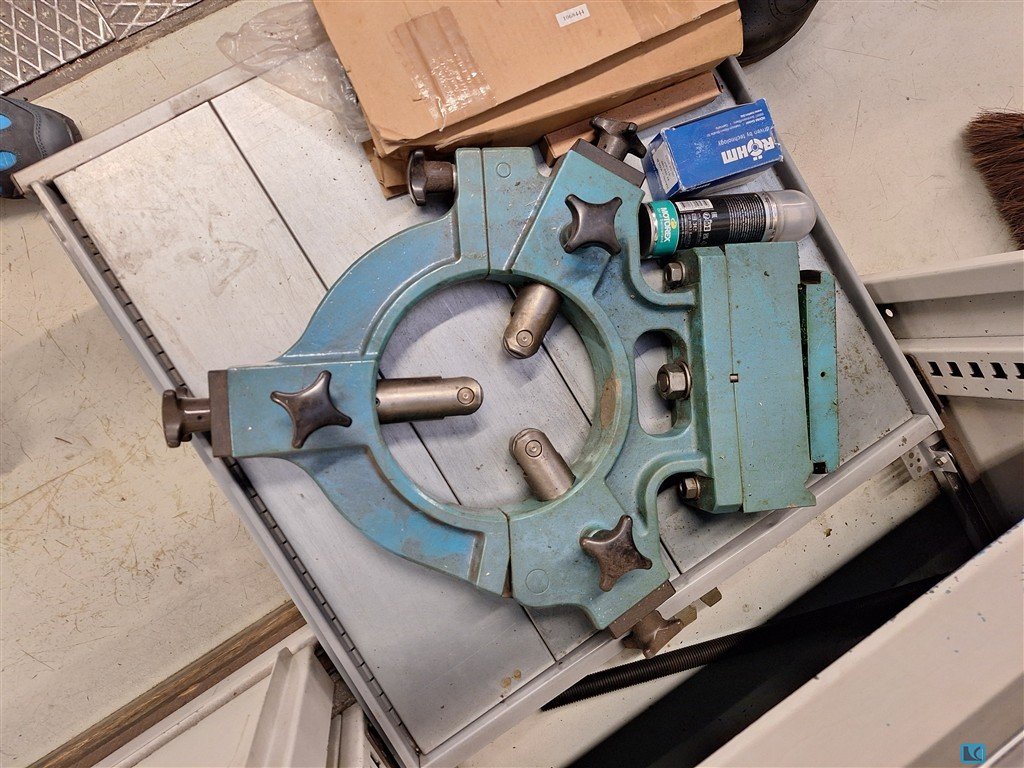

Bezel moving, moving bezel, steady rest, Lynette -max. passage: Ø 170 mm -Support: ball bearing -Tip height: 345 mm -Hole spacing: 550 mm -Hole diameter: Ø 21 mm -Drawings: in the photos -Quantity: 1 piece available -Dimensions: 605/80/H670 mm -Weight: 59 kg

Bezel, steady rest, lynette -Bezel: max. opening Ø 170 mm -Centre height: 325 mm -Support: ball bearing -technical drawing: in the photos -Dimensions: 520/260/H590 mm -Weight: 77 kg

turning diameter: 800 mm turning length: 3000 mm swing diameter over bed slide: xx mm total power requirement: xx kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 300 mm turning length: 2000 mm swing diameter over bed slide: 520 mm total power requirement: 7,5 kW weight of the machine ca.: 2,8 t dimensions of the machine ca.: 4745 mm x 1340 mm m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

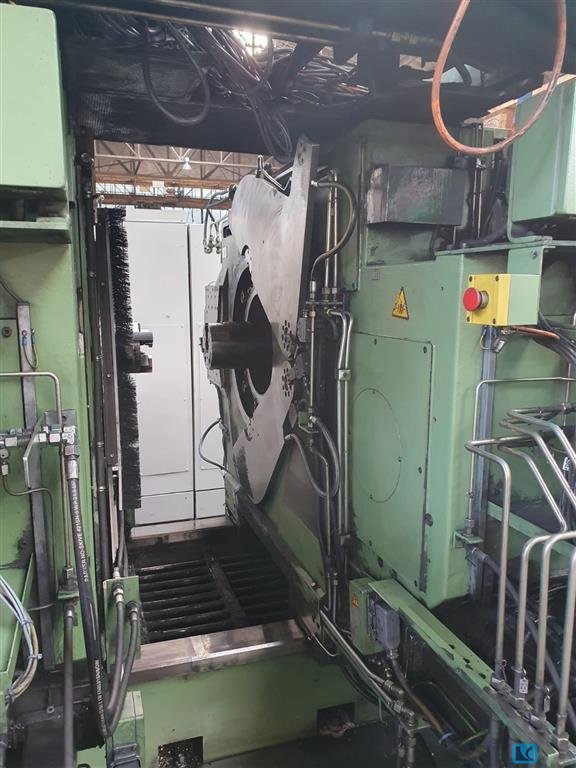

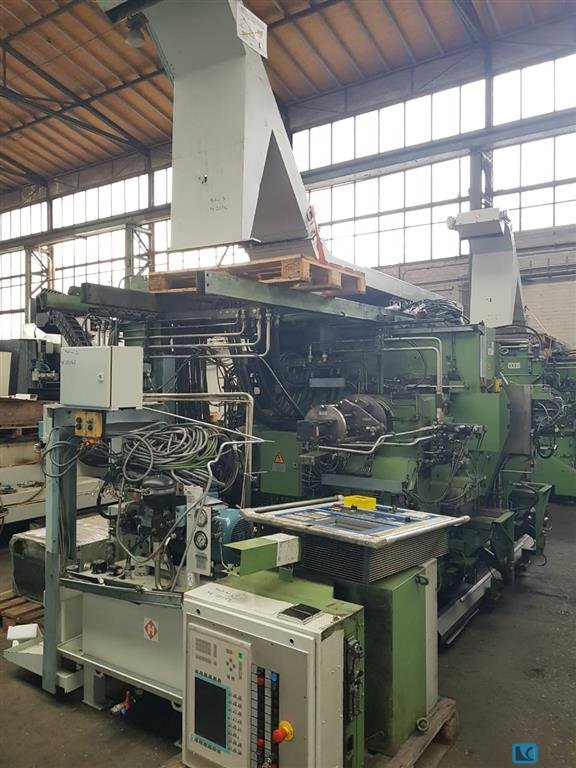

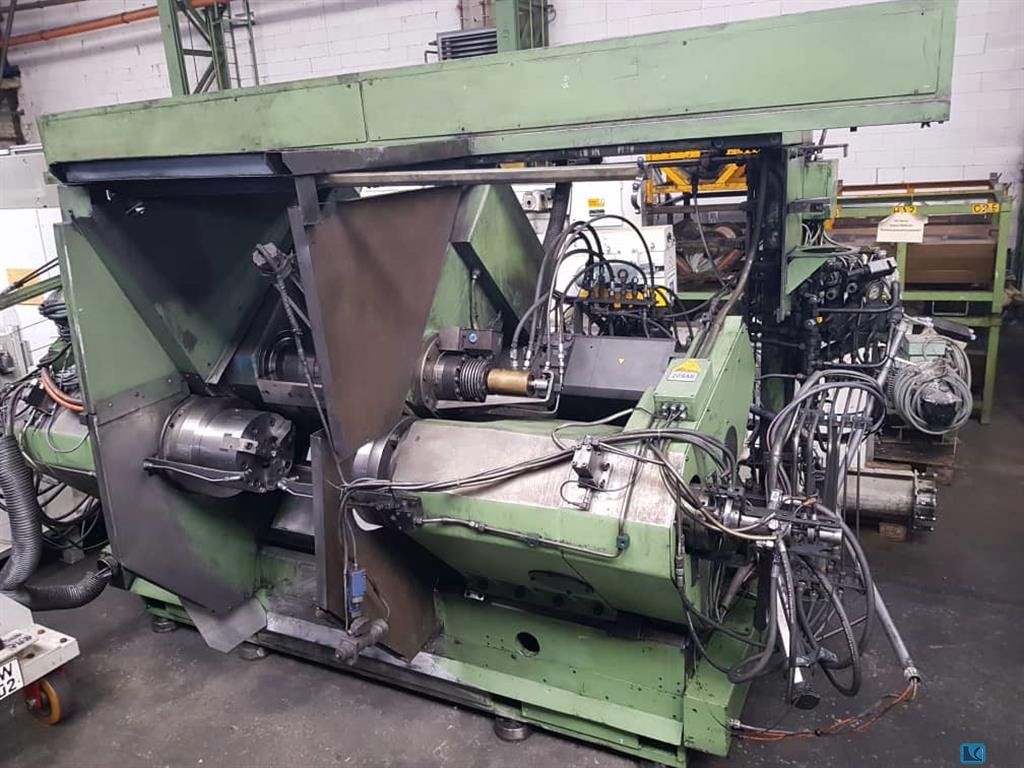

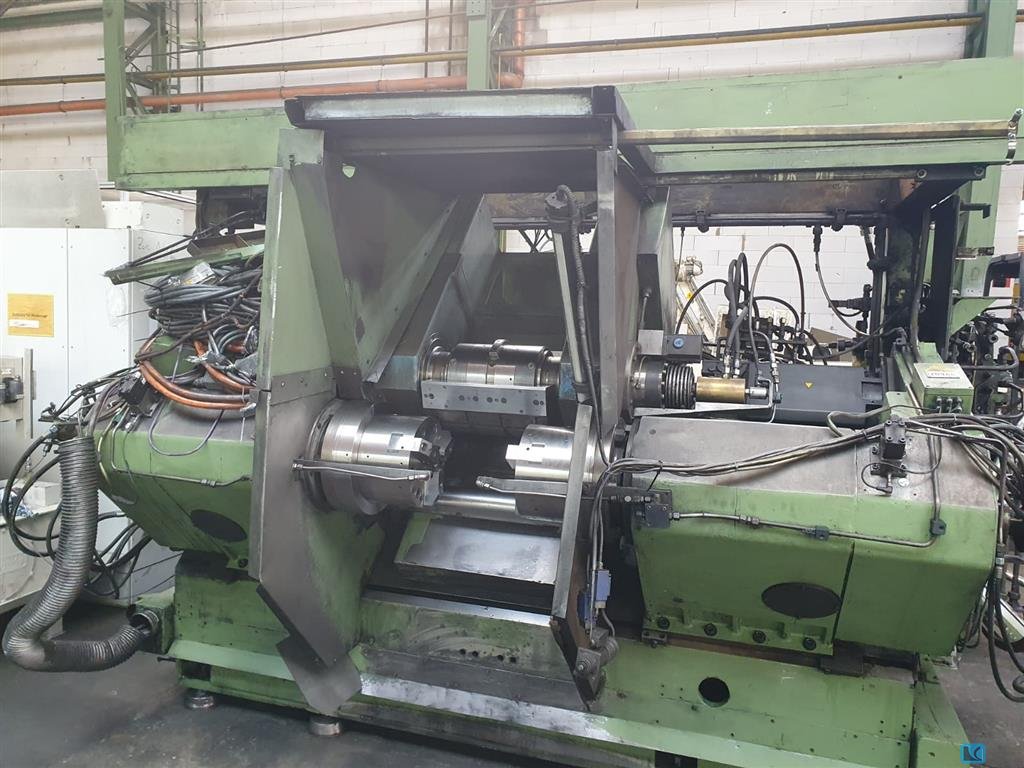

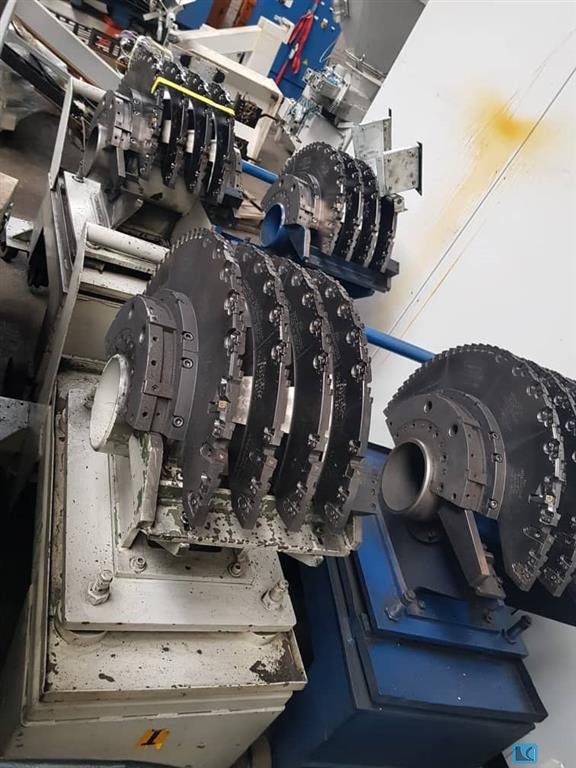

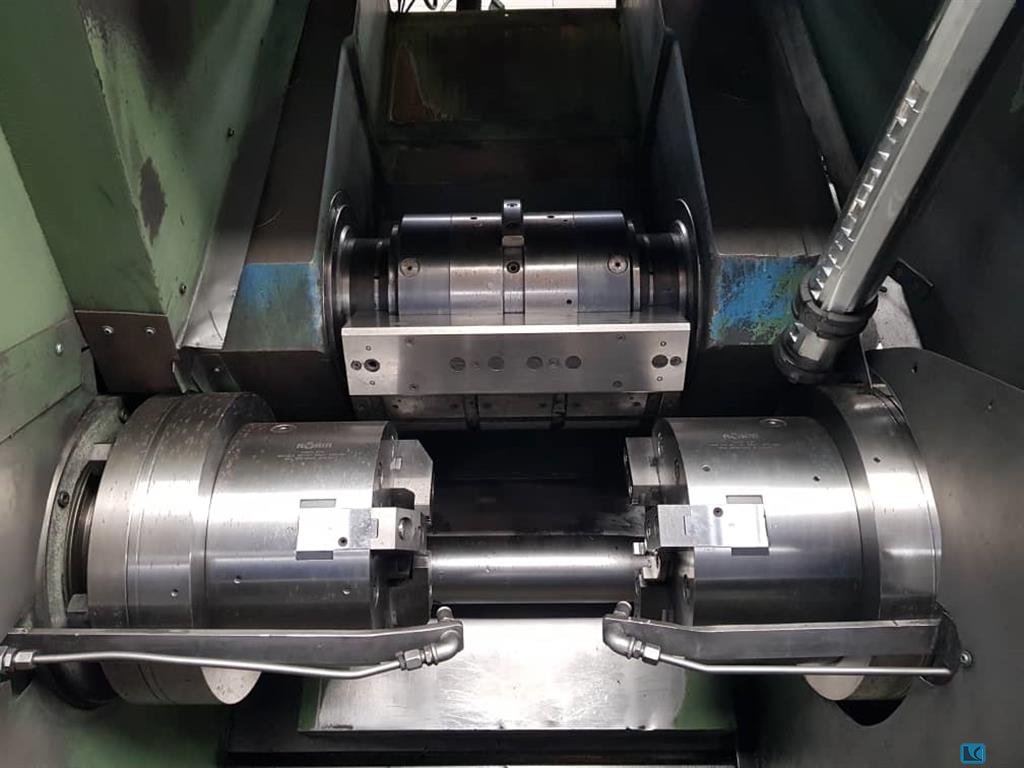

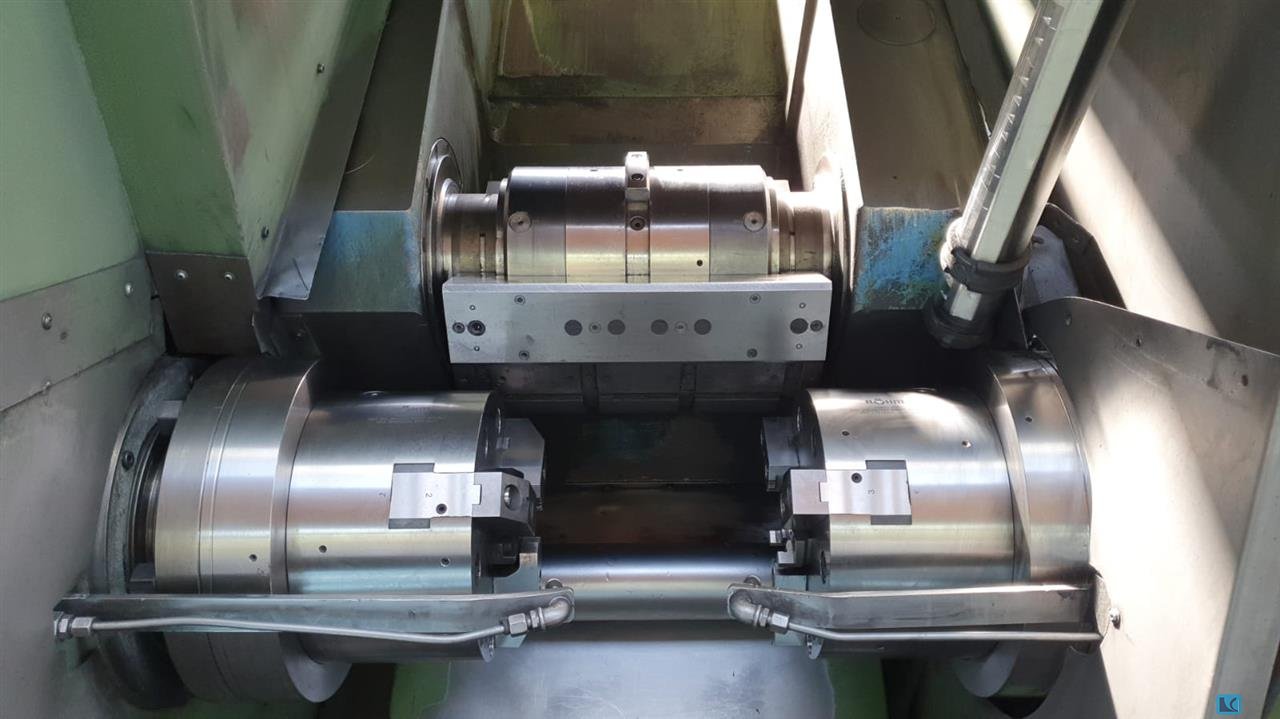

Lathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 t centre distance:700 mm max. swing diameter:200 mm Lathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 t centre distance:700 mm max. swing diameter:200 mm Lathe with 4 tools only for 3-cylinder crank shaft

Details Machine no. 2042.6616-05 Year of manufacture 2004 Circumferential diameter over bed 1,000 mm Circumferential diameter over bed 1,000 mm Center height over flat web 500 mm Bed width 560 mm Bed slide guide length 800 mm Spindle diameter front bearing 170 mm Spindle bore 128 mm Three-phase motor infinitely variable (AC motor) Drive power 37 kW Torque max. 4,069 Nm Total speed range 6.4 - 1,600 Gear stages 2 Heidenhain control system Manualplus 4110, completely renewed about 1 to 2 years ago 2 Lynettes Equipped with rotary power chuck, diameter approx. 500 mm. Including a lot of accessories of clamping jaws, estimated 15 sets, as well as approx. 15 sets of Multifix base holders, size D. Machine was equipped with a separate milling device, with its own control system, value approx. € 20,000.00. Only served by the owner, ver ...

Key data: 800 mm, 2000 mm, 800 mm

Model V 800 Machine no. 1049.2955-07 Year of manufacture 1980 Circumferential diameter over bed 800 mm Turning length 2,000 mm Center width 2,000 mm Spindle bore diameter 128 mm Number of bed sleds 1 Quill Cone Morse 6 Voltage 380 V Three-phase current 50 Hz incl. documentation

turning diameter: max. 480 mm turning length: max. 2.000 mm control: Sinumerik 840 D Siemens swing diameter max. over bed cover: 520 mm Main spindle:: turning speed range - main spindle: 7 - 2.800 min/-1 transmission ratio: 2 power capacity - main spindel: 53 kW max. Torque: 3.456 Nm spindle nose: 11 DIN 55026 chuck diameter: 315 mm spindle bore: 103 mm usable bar diameter: 82 mm axis stroke:: x-travel: 405 mm z-travel: 2.049 mm Tailstock:: diameter of quill: 100 mm quill stroke: 100 mm tension force: 14 kN capture: 30 DIN 2079 feeds:: rapid traverse: 10 m/min Working speed: 0,1 - 10.000 mm/min feed power: 15 kN Tool Mount:: number of toolpositions: 12 pos. driven statition: 6 pos. Shank diameter: 50 mm power capacity: 5,4 kW Max. Speed: 2.500 / 625 min/-1 max. Torque: 25 / 100 Nm total power requirement: ca. 50 kW weight of the machine ca.: 14 t dimensions of the machine ca.: 6,4 x ...

Key data: 430 mm, 1000 mm, 430 mm

Turning length: 1,000 mm Turning diameter over bed: 430 mm Turning diameter over slide: 255 mm Spindle speeds: 19 - 2,000 rpm Spindle bore: 56 mm Equipped with: - Various Multifix tool containers - Coolant device Country of origin: Germany Motor power: 7.5 kW Machine LxWxH: 360 x 103 x 130 cm Machine weight: 1800 kg

turning diameter over bed: 820 mm turning diameter over slide rest: 600 mm turning length: 5000 mm faceplate: 750 mm spindle passage: 125 mm turning speeds: 9-450 U/min Rapid travel: steady for max. workpiece diameter from: 520 mm steady for max. workpiece diameter from: 330 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m No. 59 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look f ...

control: SIEMENS 810D turning diameter over bed: 1000 mm centre height: 500 mm centre distance: 2000 mm turning dia. over face-slide: 700 mm spindle bore: 128 mm spindle taper ISO: DIN55027/11 spindle turning speed - stepless: 6.4-1600 U/min tailstock quill taper MT: 6 diameter of quill: 125 mm quill stroke: 280 mm feed - longitudinal/cross: 5000/4000 mm/min rapid traverse longitudinal and cross: 10/5 m/min dimensions of machine: 5600 x 2600 x 2800 mm weight: 9.1 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter over bed: 570 mm turning diameter over slide rest: 365 mm turning length: 1500 mm centre distance: 1800 mm spindle turning speed range: 11-2240 U/min spindle bore: 62 mm weight of the machine ca.: 4 t Misc accessories More details on www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m (60) The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m (47) The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m (61) The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m (52) The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 570 : 365 turning length: 1000 mm control: Sinumerik 850 turning speeds: 2500 U/min spindle bore: 62 mm weight of the machine ca.: 5,6 t dimensions of the machine ca.: 6x2,5x2 m The technical data is provided by the manufacturer or operator and is therefore not binding for us. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, crane capacity 70 t More than 10,000 items of accessories for your workshop If you want to sell machines, production lines, or your business, then talk to us. You can find further offers on our website. Viewings are possible by arrangement. We look forward to your visit. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- Maximum swing 500 mm - 3 x adjustable bronze rollers - 2 Matching steady rest

- HAASE Tool holder with inserts - 4 Chuck 400 mm - Chip conveyor - Documentation

turning diameter over bed: 840 mm turning diameter over slide rest: 640 mm turning length: 3300 mm spindle bore: 74 mm turning speeds: 7,1-1400 U/min 3-jaw chuck: 315 mm steady: rapid traverse: turning dia. in gap: 920 mm length of gap: 370 mm total power requirement: 22 kW weight of the machine ca.: 10 t dimensions of the machine ca.: 8x2x1,8 m Multifix steel holder with inserts The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. W ...

turning diameter over bed: 820 mm turning diameter over slide rest: 575 mm turning length: 3300 mm centre height: 410 mm : mm spindle bore: 125 mm spindle turning speed range: 7,1 - 1400 U/min total power requirement: 22,0 kW weight of the machine ca.: 6,0 t dimensions of the machine ca.: 6,3 x 1,6 x 2,0 mm Lathes with: - Digital readout - Rapid traverse - Röhm 3-jaw chuck 315mm - 4-position tool post - 2 steady rests - Coolant system - Emergency stop device - Machine light - Chuck guard - 2 chip trays - Spare jaws (internal and external) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 3 multifix: ja weight: 2 t : 500 centre distance: 1300 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: mm turning length: mm control: 0 total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Turning length: 4000mm, turning diameter over bed: 680mm, turning diameter over short cross slide: 480mm, turning diameter over long cross slide: 420mm, turning diameter in the gap: 880mm, swing diameter in the gap: 960mm, travel cross slide: 480mm, top slide: 230mm, tailstock quill: 280mm, center height over flat bed: 335mm, center height over prism top edge: 313mm, bed width: 560mm, diameter of tailstock quill: 125mm, Morse taper of center: no. 6. With upper support, steady rests, operating manual, digital readout and measuring system, Multifix tool holder. Machine is currently partially overhauled. An on-site inspection is possible.

greates pass round over bed: 520 mm swing diameter over bed slide: 480 mm turning length: 3000 mm control: 840 D SIEMENS number of tools: 12 Driven tools - quantity: 6 spindle bore: 103 mm c-axis: ja 0 weight of the machine ca.: t dimensions of the machine ca.: m Scope of delivery of the basic machine: SINUMERIK 840 D 3 controlled axes Rotation Ø over bed 520 mm Turning Ø over bed slide 480 mm Tool carrier with 12 cylindrical shank holders Ø 50 mm 1-stage AC main drive, 53 kW, 50 % ED Speed range 30 - 3000 min-¹ Main spindle head size 8 Clamping door for clamping devices chip conveyor THREE-DIMENSION 3000 mm 12 cylindrical shank holders DIN 69880-50x78 of which 6 positions can be equipped with driven tools, Power 6 kW at 60 % ED, speed range 20-2500 min-¹ 2 gear stages C-AXLE Speed range 0-20 min-¹ Max. Angle specification 9999.999° Working range according to work area diagram POW ...

turning diameter: 570 mm turning length: 2000 mm control: num + CNC Keller centre height: 280 mm turning dia. over face-slide: 365 mm spindle bore: 62 mm spindle turning speed range: 3 - 2500 U/min spindle head: DIN 55 027 Gr. 8 cutting speed: Konstant 1 - 9999 m/min feed in x - axis: 0,01 - 50 mm/U feed range Z-direction: 0,01 - 50 mm/U rapid travel - longitudinal/face: 10 / 5 m/min feed power: x-Achse 7100 N feed power: z-Achse 12.500 N travel of cross-slide: 345 mm upper slide travel: 125 mm bed width: 360 mm tailstock quill diameter: 80 mm tailstock quill stroke: 190 mm tailstock taper MT: 5 max. workpiece weight -without tailstock: 400 kg max. workpiece weight between centres: 1000 kg max.workpiece weight:each extra steadyrest: 300 kg threading metric: 0,1 - 400 mm/Stg. dimensions of machine L x W x H: 3,98 x 1,87 x 1,81 m total power requirement: kW weight of the machine ca.: t A ...

Precision lathe, lathe, lead screw lathe, lead screw lathe -Manufacturer: VDF Heidenreich Harbeck, lead screw and feed screw lathe type 24R0 -Machine bed: hardened -Turning length: 1230 mm -Rotation diameter over bed: 500 -Turning diameter over support: 290 mm -Spindle bore: Ø 56 mm -Spindle speeds: 19 - 2000 rpm -Wedge bar chuck: Forkardt Ø 250 mm -Tailstock mount: MK4 -Drive: 5.5 kW -Accessories: 1x bezel, 7x Multifix tool holders, see photos -Dimensions: 1180/3050/H1345 mm -Weight: 1907 kg

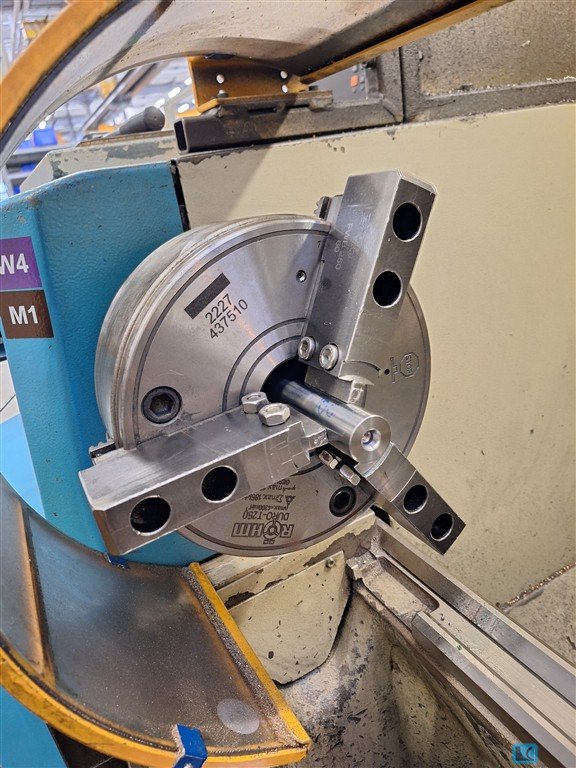

- Steady rest fixed - Steady rest open - ROHM 3 chuck  Ø 315 - ROHM 4 chuck Ø 500 - Multi Fix tool holder system with inserts

turning diameter over bed: 520 mm turning diameter over slide rest: 260 mm turning length: 1600 mm turning diameter in the gap: - mm turning speeds: 14 - 710 U/min centre height: 260 mm spindle bore: mm total power requirement: 11,0 KW weight of the machine ca.: 2,9 t dimensions of the machine ca.: 4,0 x 1,4 x 1,6 m Lead screw lathe - 4-jaw chuck 315mm - Multifix tool post size B - Feed in top slide - Steady rest - Machine feet - Chip tray The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter over bed: 570 mm turning diameter over slide rest: 365 mm turning length: 3000 mm total power requirement: kW weight of the machine ca.: 5 t dimensions of the machine ca.: 5,5 x 1,44 x 1,38 m Well-maintained lathe from the maintenance department. Working range: Swing diameter over bed 570 mm Swing diameter over cross slide 365 mm Swing diameter in bed recess 600 mm Length of bed recess in front of main spindle 160 mm Turning length 3000 mm Center height over flat surface 280 mm Bed width 360 mm Maximum workpiece weight without steady rest 500 kg Maximum workpiece weight with steady rest 630 kg Main spindle speeds 11.2 - 2240 rpm Drive power 15 kW Feeds 60 longitudinal feeds/revolution 0.063 - 56 mm 60 cross feeds/revolution 0.0315 - 28 mm Tapping 60 thread pitches 0.25 - 224 mm 60 thread counts 112 - 0.125 TPI Travels Cross slide 345 mm Top slide 125 mm Tailstock quill 1 ...

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2.000 mm feed per revolution:0,06 - 58/ 0,03 -28 mm spindle turning speed range:11,2 - 2.240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW dimensions of the machine ca.:4,5 x 1,5 x 1,4 m weight of the machine ca.:4,8 t

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2000 mm feed per revolution:0,06 - 58 / 0,03 - 28 mm spindle turning speed range:11,2 - 2240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW weight of the machine ca.:4,8 t dimensions of the machine ca.:4,5 x 1,5 x 1,4 m with digital readout HEIDENHAIN rapid feed, MULTIFIX toolholder system fixed steady dia. 160 mm 3 jaw chuck RÖHM TR 250 coolant attachment diverse toolholders, diverse jaws

Boring power:10 mm weight:590 kg connected load:2 kW dimensions::1500 x 1300 x 2300 mm

Shell end mills, shell mill cutters, milling cutters, disc milling cutters, slot milling cutters -Disc milling cutter: 105 x 19 mm, cross-cut -Socket: Ø 27 mm -Weight: 0.8 kg

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

Code 71145 Description Horizontal table borer Make UNION Model BFT 80 / 3-1 Serial number 18301 / 34 Year 1986 Spindle 80 mm Spindle taper ISO 40 Spindle out (W) 710 mm Table 1120 x 1000 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 2500 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Size L x W x H 5500 x 3200 x 2800 mm Weigth 9 ton Accessoiries Facing head Ø 460 mm with 180 mm stroke 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead Condition Machine is in good condition

Code 61080 Description Horizontal table borer Make UNION Model BFT 90/3 at Serial number 25 742 Year 1979 ( 1980 in use ) Control Heidenhain TNC 121 Spindle 102 mm Spindle taper ISO 50 Spindle out (W) 710 mm Table 1400 x 1250 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm Weight on table 3000 kg 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 3000 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Accessoiries 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead with 600 mm gap

SCHARMANN HEAVYCUT 2 WFT 150 CNC Floor type Boring Mill Year 1978 Spindle Diameter: 5.9" (150mm) Milling Spindle Diameter: 11.02 (280mm) Spindle Taper: CAT 50 Ram Cross Section: 11.81" x 11.81" (300x300mm) Vertical Head Travel, Y-Axis: 137.79" (3500mm) Column Travel, X-Axis: 712.59" (18000mm) Quill Travel, Z-Axis: 23.43 (595mm) Ram Travel, W-Axis: 27.6" (700mm) Z & W Axis, Combined: 51.03" (1296mm) Spindle Speeds: 5.5-1000 RPM Spindle Feed Range: 0.003-240 IPM Rapid Traverse: 396 IPM Spindle Motor: 70 HP/ 105 HP EQUIPPED WITH: Heidenhain TNC 407 CNC Controls Ram and Spindle Travel Sliding Way Covers On X-Axis Bed Right Angle Head With 1 Degree Manual Indexing Hardened Ways Re-pained recently

Key data: 100 mm, 1600 mm, 1250 mm

DRO , TABLE 1250 X 1250

Control system Heidenhain TNC 415 Spindle diameter 130 mm Tapered hollow spindle ISO 50 Spindle speed range 10 to 1500 rpm Table transverse (X): 3500 mm Rolling headstock stand for (Y): 2000 mm Longitudinal displacement rack (W): 1250 mm Eject working spindle (Z): 800 mm Table load 12 000 kg Machine weight: 36 000 kg

TOS WHN 130 MC used machine Specifications System Heidenhain TNC 426 Working range Spindle diameter 140 [mm] Taper in the spindle ISO 50 Table transverse adjustment (X) 3000 [mm] Vertical headstock adjustment (Y) 2000 [mm] Vertical travel (Z) 1250 [mm] Spindle stroke (W) 560 [mm] 2X Clamping surface 1800 x 1600 [mm] Speed range 10 - 2500 [rpm] Main motor output 37,0 [kW] Max. workpiece weightƒ 8000 [kg] Accessories Tool changer for 60pcs Tool cooling Chip conveyor

Technical data Spindle dia 125mm ISA 50 taper stroke of the spindle 800 mm cross travel of table X 1200 mm vert. travel of headstock Y 1400 mm longit. ztravel of the table Z 1620 mm spindle speed infinitely variable 3,5-700 rpm table size 1200 x 1400 mm table load 6000 kg main motor DC 19 kw total input 22,79 kW spindle feed inf. variable 0 - 1,25 mm/rot working feeds inf. variable 0,3 - 1700 mm/min rapid traverse 2250 mm/min fine feed 3mm/min dimension LxWxH 7,4 x 4,8 x 3,6 m weight of the machine 21000 kg DRO Heidenhain

Skoda W 160 H/NR CNC Travel x= 14.500mm (bed is for the travel 18,500mm) Travel Y= 3.150mm Travel Z= 1.600mm Travel W= 1.250mm Spindle diameter 160mm Machine with ball screw Many accessories available: CNC control Siemens SINUMERIC 850 Rotary table ISO 16 2.200 x 2.200mm, capacity 16 ton included Chip conweyor : 19.000 mm + 12.000 mm Floor plates

W 200G with Siemens AC main motor. modernized the main drive by instalation of Siemens AC motor with SIMODRIVE 611. Original built ISO 60 taper and 630 rpm Main data: X=8000 mm Y=4150 mm Z =1600 mm W=2000 mm Spindle dia 200mm ISO 60 spindle speed max 800 rpm Accessories: DRO Philips available as original rotary table E 20 extra cost milling head IFH 1 and IV25, IFW 1, IFW2 IFW 3 NO floor plates

W100A Parameters 100mm, 1600mm Diameter of working spindle 100 mm Taper in spindle morse 6. Longitudinal adjustment of table (z) 1450 mm Cross adjustment of table (x) 1600 mm Motion of work head on frame (y) 1120 mm Slip out of working spindle (w) 900 mm Clamping area of table 1250 x 1250 mm Dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14 000 kg Accessories: face plate, tail stock

Machine Type: CNC Plate Boring Machine Make WOTAN Type Rapid 5C Year of manufacture 2004 Control type HEIDENHAIN iTNC 530 Spindle diameter 160 mm X-off (mm) 10,000 Y-off (mm) 3,800 Z-off (mm) 700 W-way 700 mm Tool holder Iso 50 Speeds from (rpm) 1.25 - 1250 Feed rate (mm/rev) 1 - 5000 mm/min Rapid traverse 5 mtr/min. Total power(KW) 120 /spindle 83 Length (mm) 14.500 Width (mm) 3,850 Height (mm) 7,360 Weight 62,300 kg Information - 2004 completely overhauled and converted to CNC by Dorries Scharmann Control HEIDENHAIN iTNC 530 - 5 different angle milling heads - Hydrostatic spindle bearing - Aerostatic guideways - Coolant device -Conveyor -Oil cooler

HBM STANKO 2A622 CNC

Horizontal borer Wotan B105Y Spindle: 120 mm Travels: -X: 3000 mm -Y: 1450 mm -Z: 1280 mm Table: -1400 x 3000 mm -Rotating part: 1130 x 1500 mm (manually rotated to any degrees) -Max load: 7 tn Machine weight: about 25 ton

Skoda W200H - CNC Plate Boring Machine – Bearing Sleeve (RAM) Year of construction : 1992 Electrical & Electronics Overhaul : 2021 Spindle : 200 mm ( Ø ) ISO 60 X : 7,800 mm Y : 5,400 mm W : 900 mm ( spindle ) Z : 900 mm ( Carrying sleeve / RAM 520 x 520 mm ) Z1 : 2,000 mm (table) CNC rotary table : 2500 x 2000 mm – 40 T Spindle speed : 0.8 - 800 rpm Rapid traverse speed : 6000mm/min Spindle motor : 75 kw Total power : 140 kW Machine weight : 84 T (approx.) Control : FAGOR 8055 Processing heads 3 pieces 1.Angular translation head 2. Vertical milling head 3.Horizontal milling head Base plate : 4,480 mm x 1,145mm Conveyor

oven 550 industrial 2x2x6m temperature range 100 - 550C Wärmebehandlungsöfen Wärmeofen Wärmeprozessöfen Warmhalteofen Warmluftofen Herdwagenofen Rollenherdofen Kammerofen Drehtellerofen Wagenherdofen & Tunnelofen Poreba Gurutzpe Tacchi Geminis Tos Amutio cazeneuve Skoda Morando Niles Colchester Heyligenstaedt Kramatorsk Mondiale Safop Cazeneuve Alzmetall mas stankoimport csepel carlton kolb soraluce bergonzi flott Erfurt Weingarten smeral schuler ebu mueller zts kosice wlochy minster Stanko stankoimport glaser huta zygmunt aft donaldson eumuko Elblag Engel Demag Arburg Krauss Maffei Battenfeld Manesty Mazak Voronezh Trumpf Amada Cincinnati Netstal Rose Forgrove Illig Foremost Nissei Sandretto Fette Mazak Mori seiki Haas Okuma Gildemeister Doosan Daewoo traub hwacheon index Wema zeulenroda mueller Erfurt tox presso technik dunkes galdabini hare ponar zeulenrdoda eitel  ...

Union boring mill CBFK 150/2 from 1990 for sale. Is currently still in use,. Technical details / accessories / addition: x-travel 3000 mm y-travel 2000 mm z-travel 1600 mm Spindle diameter 150 mm Spindle holder ISO 50 Spindle stroke 700 mm Spindle speeds - infinitely variable 5 - 2500 rpm Rapid traverses 10000 mm/min Table clamping area 1600 x 2000 mm Workpiece weight approx. 20 t Spindle drive motor 50 kW Feeds x/y/z - infinitely variable 1 - 9999 mm/min Table positioning 360,000 ° Total power requirement approx. 70 kW Machine weight approx. 40 t Dimensions approx. 6.0 x 8.0 x 4.5 m In 2005: new 5-axis CNC control Dr. Heidenhain TNC 430 - electron. Handwheel HR 410 for all axles with V24 interface, punched tape reader, new electrics, new hydraulics, new servo motors, 60-speed chain tool change magazine model WM III k02 B-axis (round table adjustment) 360,000  ...

DEFUM WFM-100 boring machine was built in 1984 in Poland by the Dąbrowska Fabryka Obrabiarek DEFUM. The machine is designed for precision machining of workpieces with complex geometry and high weight. All machining processes, i.e. drilling, milling, boring and thread cutting, are performed on a stable work table by means of a powerful spindle with a diameter of 100 mm. The WFM 100 horizontal boring machine weighs 11000 kg. Technical specifications of the DEFUM WFM-100 drilling and milling machine - feed in the X/Y/Z axis: 1200/1000/600 mm - work table dimensions (L x W): 1100 x 1100 mm - maximum workpiece weight: 3000 kg - maximum spindle rotational speed: 1600 rpm - spindle diameter: 100 mm - spindle drive power: 18.5 kW - dimensions (L x W x H): 4610 x 3620 x 3110 mm - weight of the DEFUM machine: 11000 kg

UNUSED: Facinghead of a Wotan BF 160 Horizontal borer.

Code 71144 Description Horizontal table borer Make PFEIFER Model F 80 / 100 Serial number 2342 Year 1982 Spindle 100 mm Spindle taper 50 ISO Spindle out (W) 500 mm Table 1000 x 850 mm Cross (X) 1200 mm Longitudinal (Z) 800 mm Vertical (Y) 800 mm Distance table-spindle 0 x 800 mm Speeds 18 steps Spindle speeds 14 – 1500 rpm 16 Feeds 0,03 – 6,0 mm/rev Rapids 2500 mm/rev Rapids all directions ( X-Y-Z-W-B) Motor 7,5 kW 380 Volts Accessoiries X-Y-Z axis are BALLSCREWS Tool clamping Pendant control Condition Machine is in very good condition

Machine : Tools for boring mill / radial drilling machine Type: MK5 5 drill rods φ 40 , 30, .. L- 280 – 400mm 3 extensions MK5 – MK4 , L-400-520mm 1 boring tool Oerlikon MK5, φ 70, 6-260 5 top-mounted milling mandrels MK5 - φ 16, 22, 27,32,40mm 2 Clarkson clamp chucks 1 MK5 boring tool, adjustable, φ 60mm 2 Shots 2 milling cutters: End mill roughing/plain φ 56x100mm, / groove milling cutter 4 milling cutters: 2 roughing/plain φ 40x12o, 2 roughing cutters 1 Reduction from MK5 to SK40 Weight: approx. 70kg kg PRICE : € 600,- ex works ! A - T-slot size: approx. 21.5mm, B-35, thread M20 16 T-slot nuts 20 pcs threaded rods M20, L-120 – 400mm 3 x 2 pcs clamping claws 4 nuts long, 6 nuts, washers 2 blocks for adjustment with adjustment screw 4 blocks 80 x 60 x40mm ( underlay )

Specifications: X-axis 2,750 mm Y-axis 2,500 mm Z-axis 2,320 mm W-axis 700 mm Spindle power 50 kW Spindle diameter 130 mm Spindle speed 1.6 – 1,600 rpm. Tool holder SK 50 Control: CNC HEIDENHAIN TNC426 Table dimensions 2,000 x 1,800 mm max. table load 8 tons B-axis 360 A° Weight approx. 37,000 kg

Technical data of used Schiess Froriep Boring Machine: CNC: Siemens 840 D Maximum transversal travel X axis: 13.770 mm Maximum vertical travel Y axis: 5.000 mm Z axis: 1.780 mm W axis: 950 mm V axis rotating support plane: 2.000 mm Rotating table dimensions: 5.000 x 3.500 mm Fixed table dimensions: 7.500 x 4.300 mm Maximum permissible load on the table: 120 ton Spindle power: 100 kW Spindle revolutions per minute: 710 rpm

Key data: 130 mm, 4000 mm, 2500 mm

TOSHIBA BP-130R22 Year 2007 SPINDLE DIAMETER 5.12" (130mm) TAPER IN SPINDLE #50 VERTICAL TRAVEL, Y-AXIS 100" (2500mm) CROSS TRAVEL, X-AXIS 160" (4000mm) SPINDLE TRAVEL, Z-AXIS 28" COLUMN TRAVEL, W-AXIS 60" TABLE SIZE (BUILT IN B-AXIS) 86.6" X 70.8" TABLE LOAD CAPACITY 44,000 LBS TABLE INDEXING B-AXIS 0.001 DEGREE SPINDLE SPEEDS (3-RANGES) 5-2500 RPM EQUIPPED WITH: TOSNUC 888 CNC CONTROL 60-STATION AUTOMATIC TOOL CHANGER THROUGH SPINDLE COOLANT CHIP & SPLASH ENCLOSURE CHIP CONVEYOR 40/30 HP SPINDLE MOTOR NOTES: INSPECT IN PLANT UNDER POWER

Key data: 130 , 3500 , 2000

CNC SIEMENS 840D X-axis (longitudinal) 3500 mm Y-axis (transverse) 2000 mm Z-axis (vertical) 1250 mm Table length 1800 mm Table width 1800 mm Maximum workpiece weight 12000 kg Spindle diameter 130 mm Maximum spindle speed 800 rpm Magazzino utensili 52 posti Spindle motor 37 kW Year of revision 2005 ------------------- Length x width x height 7200 × 7800 × 4900mm Weight 32000 kg

SKODA W200GNR 1978 /CNC MEFI 836 y.m. 2005 ball screws y 4150mm x 8000mm millng heads floor plates 5600x1885x400 rotary table E20 load 20tons

W160HC with ISO 50 y.m. 1987 xtravel 4000mm y travel 3150mm rotary table S35C load 35tons, 3150 x 2800mm milling heads, tools

Table capacity 80 TONS Clamping plate width mm 3550 length mm 4000 Carriage travel V mm 2000 Heidenhain scale Rotary axe B ROD 700 Table height mm 1460 Table weight kg 52000

Key data: 80 mm, 1700 mm, 1800 mm

Spindle Diameter: 80 mm Spindle Adapter: SK50 Spindle speeds: 11 - 1000 rpm. X-axis: 1700 mm Y-axis: 1800 mm Z-axis: 1800 mm Spindle off (W-axis): 710 mm Table dimensions: 1100 x 900 mm Elbo Digital Readout: On Y-axis and Z-axis Equipped with: -Turntable - Some tool containers Spindle motor: 7.5 KW Machine LxWxH: 5100 x 2650 x 3300 mm Machine Weight: 10 Ton

Horizontal Boring Machine CORNAC C100 Travel X: 1000 mm Travel Y: 1000 mm Travel Z: 1260 mm ixed table Cone SA 50 Spindle: Ø 100 mm Spindle exit: 550 mm Rotation: from 10 to 1250 RPM Table size: 1550 x 980 mm Surfacing plate: Ø 520 mm Spindle motor: 9,5 kW Scale 3 axes HEIDENHAIN Automatic Feeds: X - Y - Z Supplied with a set of cones Voltage: 380 V Dimensions (L x W x H): 4500 x 2100 x 2450 mm Weight: approx 8 T

Inv. Num. : 7631 Type: F80 Produzent: Pfeifer Erzeugt: 1976 Parametern: Maximale Drehzahl der Spindel: 1000 1/min Verfahrwege X-Achse: 1700 mm Verfahrwege Y-Achse: 1800 mm Verfahrwege Z-Achse: 1800 mm Verfahrwege W-Achse: 710 mm Spindeldurchmesser: 80 mm

spindle diameter 130 mm - ISO 50 tool - rated power of the spindle rotation motor 18.5 kW - installed power 4 0kW - spindle drive motor speed range 722-1455 rpm - spindle rotation range 2.25-900 rpm, 27 degrees - disc rotation range 2.25-180 rpm, 18 degrees - X axis feed speed range 0-5000 mm/min, stepless - Y axis feed speed range 0-5000 mm/min, stepless - Z axis feed speed range 0-3150 mm/min, stepless - B axis feed speed range 0-4000 mm/min, for Ø1m, steplessly Bg2Ltmk8Gq - machine weight 30 t

Monti MCS 100 NEW boring machine :::TECHNICAL SPECIFICATIONS::: CNC Model: Siemens CNC Version: 840D Tool Mount: ISO 50 Spindle power: 24Kw Number of spindle speeds: 4000 Number of tools: 60 X-axis travel: 2500mm Y-axis travel: 1500mm Z Axis Travel: 1700mm Fast feeds linear axes X Y Z: 20m/min Spindle spindle stroke : 600mm Rotary table: yes Table size: 1300 x 1500mm Allowable load on the table: 4000Kg Other technical data: The machine is being built this year Machine equipment: Anthropomorphic robot for tool change management Heidenhain Optical Scales :::D DIMENSIONS AND WEIGHT::: Weight: 23000Kg

STANKO 2N636GF1 Horizontal boring mill MITSUBISHI controler, new 2013 Spindle 125 mm Table 1600 x 1800 mm Max. horizontal (axial) movement of the spindle (Z') - 1000 mm Max. vertical movement of the headstock (Y)- 1400 mm Max. longitudinal movement of table (Z, W) - 1600 mm Max. lateral movement of table (X) - 1400 mm The largest mass of the processed product - 8 tons Spindle speed - 8 ... 1250 rpm Spindle Drive Electric Motor - 20 kW The weight of the machine is full - 34.6 tons

Key data: 102 mm, 1530 mm, 900 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,530 mm Vertical Travel headstock (Y) 900 mm Longitudinal travel (Z) 1,500 mm Table 1,250 x 1,400 mm R.P.M. 8 – 1,600 (18x) kW 11 Volts 380 Cycles 50 Including: Digital readout
