union boring mills and machining centers used for sale

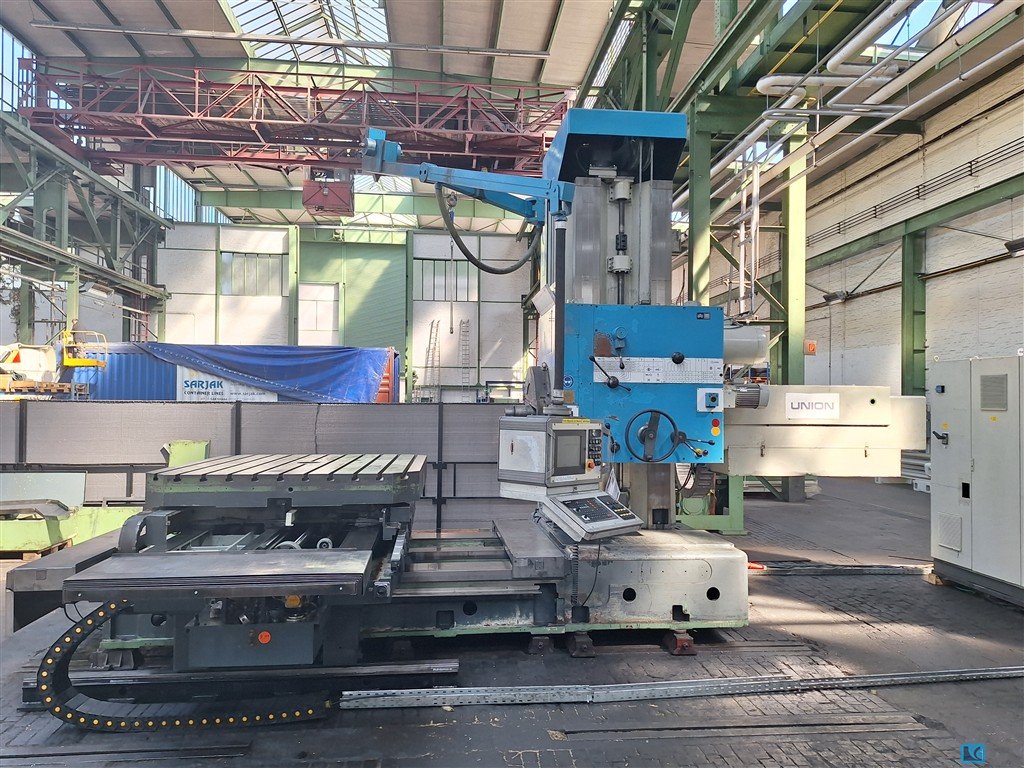

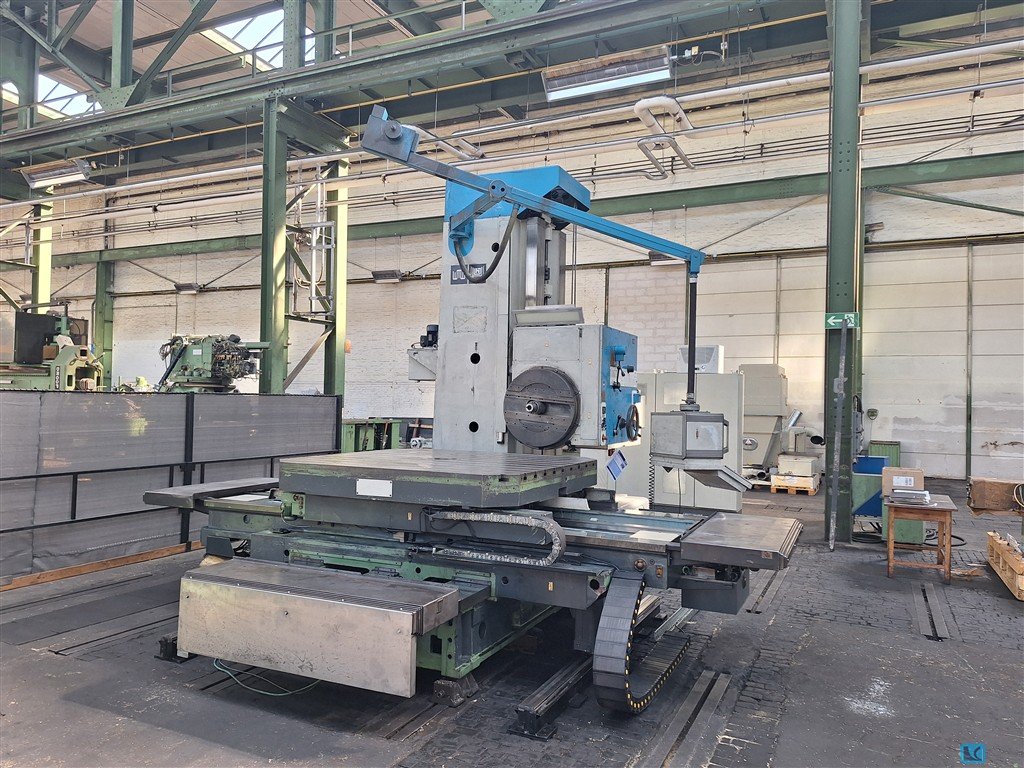

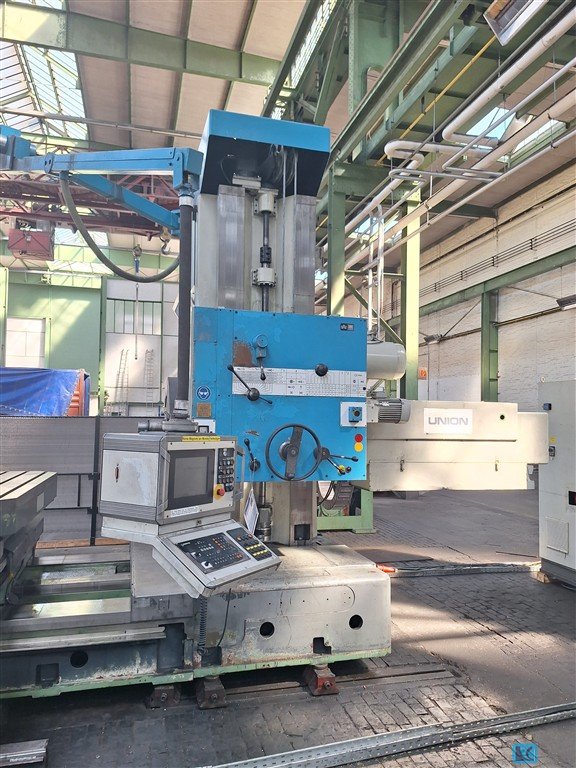

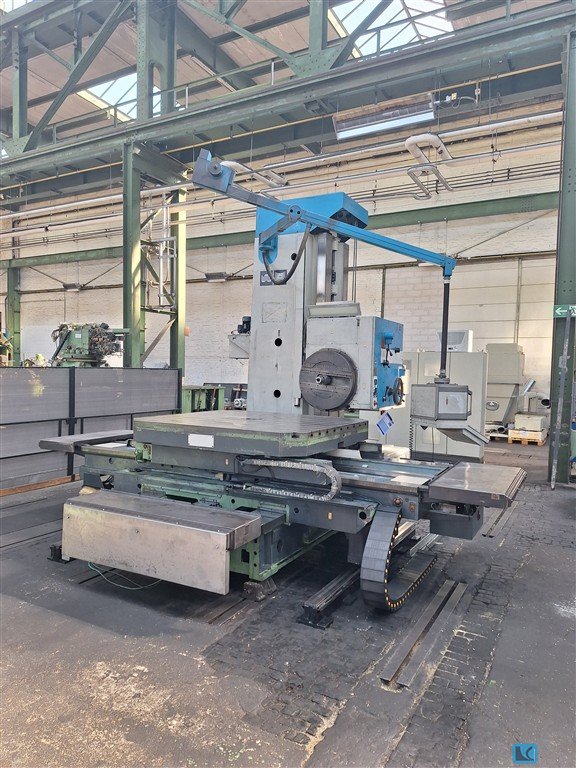

Code 71145 Description Horizontal table borer Make UNION Model BFT 80 / 3-1 Serial number 18301 / 34 Year 1986 Spindle 80 mm Spindle taper ISO 40 Spindle out (W) 710 mm Table 1120 x 1000 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 2500 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Size L x W x H 5500 x 3200 x 2800 mm Weigth 9 ton Accessoiries Facing head Ø 460 mm with 180 mm stroke 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead Condition Machine is in good condition

Code 61080 Description Horizontal table borer Make UNION Model BFT 90/3 at Serial number 25 742 Year 1979 ( 1980 in use ) Control Heidenhain TNC 121 Spindle 102 mm Spindle taper ISO 50 Spindle out (W) 710 mm Table 1400 x 1250 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm Weight on table 3000 kg 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 3000 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Accessoiries 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead with 600 mm gap

Union boring mill CBFK 150/2 from 1990 for sale. Is currently still in use,. Technical details / accessories / addition: x-travel 3000 mm y-travel 2000 mm z-travel 1600 mm Spindle diameter 150 mm Spindle holder ISO 50 Spindle stroke 700 mm Spindle speeds - infinitely variable 5 - 2500 rpm Rapid traverses 10000 mm/min Table clamping area 1600 x 2000 mm Workpiece weight approx. 20 t Spindle drive motor 50 kW Feeds x/y/z - infinitely variable 1 - 9999 mm/min Table positioning 360,000 ° Total power requirement approx. 70 kW Machine weight approx. 40 t Dimensions approx. 6.0 x 8.0 x 4.5 m In 2005: new 5-axis CNC control Dr. Heidenhain TNC 430 - electron. Handwheel HR 410 for all axles with V24 interface, punched tape reader, new electrics, new hydraulics, new servo motors, 60-speed chain tool change magazine model WM III k02 B-axis (round table adjustment) 360,000  ...

Specifications: X-axis 2,750 mm Y-axis 2,500 mm Z-axis 2,320 mm W-axis 700 mm Spindle power 50 kW Spindle diameter 130 mm Spindle speed 1.6 – 1,600 rpm. Tool holder SK 50 Control: CNC HEIDENHAIN TNC426 Table dimensions 2,000 x 1,800 mm max. table load 8 tons B-axis 360 A° Weight approx. 37,000 kg

Key data: 102 mm, 1530 mm, 900 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,530 mm Vertical Travel headstock (Y) 900 mm Longitudinal travel (Z) 1,500 mm Table 1,250 x 1,400 mm R.P.M. 8 – 1,600 (18x) kW 11 Volts 380 Cycles 50 Including: Digital readout

Key data: 102 mm, 1600 mm, 900 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,600 mm Vertical Travel headstock (Y) 900 mm Longitudinal travel (Z) 1,520 mm Table 1,250 x 1,400 mm R.P.M. 8 – 1,600 (18x) kW 11 Volts 380 Cycles 50 Including: 3-axis Digital readout with point to point control Heidenhain 310

Key data: 102 mm, 1600 mm, 1250 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,600 mm Vertical Travel headstock (Y) 1,250 mm Longitudinal travel (Z) 1,500 mm Table 1,250 x 1,400 mm Table load 5 ton R.P.M. 4 – 1,250 (18x) kW 23 Volts 380 Cycles 50

Heidenhain TNC 426 Table 1600 x 2000 mm Max. load 12.500 kg Spindle diameter 130 mm Taper ISO 50 Cross travel (X) 3,500 mm Vertical travel headstock (Y) 1,600 mm Longitudinal travel (Z) 1,250 mm Horizontal spindle travel (W) 850 mm RPM 4 – 1,120 kW 45 Volts 380 Cycles 50 Including: Facing head Ø 720 mm Facing head slide travel 240 mm Machine weight 31,1 ton

Control Heidenhain TNC 426 Mach.no. 11648 Table 1,600 x 1,250 mm Spindle diameter 130 mm Taper ISO 50 Cross travel (X) 2,000 mm Vertical travel headstock (Y) 1,600 mm Longitudinal travel (Z) 1,050 mm Horizontal spindle travel (W) 850 mm RPM 4 – 1,120 kW 45 Volts 380 Cycles 50 Including: Machine weight 26,3 ton

UNION BFK-2- CNC Bench Boring Machine Year of construction : 1994 Electrical and electronic overhaul : 2005 Spindle : 130 mm ( Ø ) ISO 50 X : 3,000 mm Y : 1,600 mm Z : 1,200 mm (tower) W : 800 mm ( spindle ) B : 360/1° (turntable) CNC rotary table : 2000 x 1600 mm – 12.5 T Spindle speed : 2,500 rpm Spindle motor : 30 kW Total power : 45 kW Machine weight : 36 T (approx.) Control system Heidenhain : Heidenhain TNC530

Boring mill Union BFP 130/6 BJ 1982

Key data: 90 mm, 1000 mm, 1000 mm

Retrofit built in 2009 Spindle running time - control: 3093 h Switch-on hours: 10585 h - Control HdT TNC 320 - Displacement measurement system in all axes - New drives in all axles - New table, new clamping - New media aggregates Equipment: - Manual control unit - Coolant device - Hydraulic power unit Accessories: - 3D touch probe - Security fence

BFT 90/3 SPINDEL 102 , ISO

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

table length: 2000 mm table width: 1800 mm table load: 12,5 t table adjustment - longitudinal: 1.250 mm table rotating: 360 Grad table positioning: 4 x 90 ° feeds - longitudinal: 0,63 - 2.000 mm/min total power requirement: 4 kW weight of the machine ca.: 7,6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 7000 mm y-travel: 2000 mm taper ISO: 50 w-axis: 1100 mm z-axis: 350 mm voltage: 400 V total power requirement: 30 kW weight of the machine ca.: . t dimensions of the machine ca.: . m Universal milling head Heidenhain D.R.O. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Boring mill turntable, used Boring table, used Typ/ type: TI 2 Manufacturer/ make : UNION Year of construction: 1984 Table size: 1800 x 2000 mm ; > 360° Fahrweg/ way : 1250 mm Feed speed: 0.5 to 1600 mm/min Tischbelastung/ table load: 15000 kp Gesamtlänge/ total length: 3500 mm Gesamtbreite/ total width: 2250 mm Weight/ weight: 7 t Feed motor: 6 kW

Ref. -No.: 10353 Manufacturer: UNION Year of construction: 1986 Type of control: Konventionell Storage location: Halberstadt Country of origin: Deutschland X-Travel: 1600 mm Y-Travel: 1000 mm Z-Travel: 1200 mm W-Axis: 710 mm Spindle Taper: SK 40 Table Load: 2500 kg Max. Size Of Workpiece Lxwxh: Höhe 1400 mm Spindle Speed: 1600 RPM Rapid Traverse: 3,15 m / min Total Power Requirement: 23 kW Weight Of The Machine Ca.: 10,3 t

Ref. -No.: 10354 Manufacturer: UNION Year of construction: 1998 Retrofit: 2000 Type of control: Digitale Steuerung 2D Control: HAIDENHAIN TNC 135 Storage location: Halberstadt Country of origin: Deutschland X-Travel: 1600 mm Y-Travel: 1250 mm Z-Travel: 1475 mm Spindle stroke: 710 mm Table Dimensions (Lengthxwidth): 1250x1400 mm Spindle Speed: 1600 RPM Drive Capacity - Spindle Motor: 30 kW Total Power Requirement: 35 kW

Ref. -No.: 10022 Manufacturer: UNION Year of construction: 2001 Type of control: CNC Control: Heidenhain-Steuerung TNC 310 Storage location: Halberstadt Country of origin: Deutschland X-Travel: 2000 mm Y-Travel: 1600 mm Z-Travel: 2000 mm Machine length: 6950 mm Machine width: 4685 mm Machine Height: 3885 mm Table Height: 1050 mm Spindle Diameter: 110 mm Spindle Taper: ISO 50 Table Dimensions (Lengthxwidth): 1400 x 1600 mm Faceplate speed: 5,6 - 224 RPM Spindle Speed: 5,6 - 1120 RPM Metric thread feeds: 1,25 - 56 mm Drive Capacity - Spindle Motor: 40 kW Weight Of The Machine Ca.: 25 t Bore Depth: W 800 mm Further information: with facing slide 13 inch thread feeds 1 1/8 - 28 Gg / 1 “ YOM: 1990/ Retrofit: 2001

spindle diameter: 102 mm x-travel: 1600 mm y-travel: 1000 mm z-travel: 1600 mm Control: Heidenhain type: TNC 410 table surface area: 1000x1120 mm Table load: 3000 kg spindle stroke: 710 mm spindle turning speed range: 4-1600 U/min main drive motor: 13 kW total power requirement: kW weight of the machine ca.: 12 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 102 mm x-travel: 1600 mm y-travel: 1210 mm z-axis: 1475 mm spindle travel: 710 mm B-axis (table): 360 ° Table dimensions: 1250x1400 mm Table load: 3500 kg T-slots: 22H7 T-slot - distance: 125 mm spindle turning speed range: 4-1600 U/min spindle drive: 16,5 kW Control: total power requirement: 47 kW weight of the machine ca.: 9,25 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 125 mm x-travel: 2500 mm y-travel: 1900 mm w-axis: 1100 mm radial face slide travel: mm table adjustable: 1000 mm digital readout: Pfillips workpiece: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 7000 mm y-travel: 2000 mm taper ISO: 50 w-axis: 1100 mm z-axis: 350 mm voltage: 400 V total power requirement: 30 kW weight of the machine ca.: . t dimensions of the machine ca.: . m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 110 mm x-travel: 1950 mm y-travel: 1600 mm w-axis: 1000 mm spindle turning speed range: 5,6 - 1120 (27x) U/min table load: max. 5-8 t voltage: 380 V total power requirement: 25 kW weight of the machine ca.: . t dimensions of the machine ca.: 1400 x 1600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 102 mm x-travel: 1600 mm y-travel: 1250 mm z-travel: 1600 mm spindle taper ISO: 50 bore spindle stroke: 710 mm main drive motor: 11 kW turning speeds: 1600 U/min Feed: 4000 mm/min Control: Heidenhain type: TNC 135 T-slot - width: 22 mm T-slot - distance: 140 mm table surface area: 1250x1400 mm Table load: 2500 kg total power requirement: 23 kW weight of the machine ca.: 9,3 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 2750 mm y-travel: 2000 mm z-travel: 2330 mm spindle taper ISO: 50 bore spindle stroke: 1000 mm turning speeds: 900 U/min Feed: 2500 mm/min Control: Heidenhain type: TNC 131 T-slot - width: 28 mm table surface area: mm Table load: 8000 kg total power requirement: kW weight of the machine ca.: 37,8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 3000 mm y-travel: 1600 mm z-travel: 1250 mm Control: Heidenhain type: TNC 426 table surface area: 2000x1600 mm Table load: 12500 kg Rotary table: 360 ° spindle turning speed range: 12-3000 U/min Feed: 1-9999 mm/min Rapid movement: 10000 mm/min total power requirement: 80 KVA weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2000 mm table width: 1800 mm table load: 12,5 t total power requirement: 10 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: m Table size approx. 2,000 x 1,800 mm Max. weight of workpiece, approx. 12,500 kg Table travel, longitudinal 1,250 mm Table height above floor 920 mm Longitudinal feed 0.63 - 2,000 mm/min Turning feed, with Ø 1,000 mm 1 - 3,150 mm/min Longitudinal quick feed 2,000 mm/min Turning quick feed, with Ø 1,000 mm 3,150 mm/min Weight of machine 7,500 kg External dimensions of machine 3,700 x 2,100 x 920 mm Total electrical load 10 KW - 180 V - 50 Hz Accessories / Special Features Telescopic covers for the guides. Infinitely variable table feed. Optical display for setting and reading the longitudinal adjustment. Optical display for setting and reading the angle. Condition : Satisfactory to good. Machine can be inspected under power ...

spindle diameter: 130 mm x-travel: 3500 mm y-travel: 2050 mm z-travel: 1050 mm spindle taper ISO: 50 turning speeds: 4-1120 U/min Feed: 5-2000 mm/min bore spindle stroke: 850 mm main drive motor: 45 kW table surface area: 1600x2000 mm Control: Heidenhain type: TNC 426 workpiece weight: 12500 kg : 720 mm radial face slide travel: 240 mm : total power requirement: 90 kW weight of the machine ca.: 31,1 t dimensions of the machine ca.: 6,5x5x5x4 m Turntable with digital display The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, pleas ...

spindle diameter: 125 mm x-travel: 2360 mm y-travel: 1570 mm z-travel: 780 mm w-axis: 410 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 2000 mm y-travel: 1600 mm z-travel: 1000 mm spindle taper ISO: 50 turning speeds: 4-1120 U/min Feed: 5-2000 mm/min bore spindle stroke: 850 mm main drive motor: 45 kW table surface area: 1250x1600 mm Control: Heidenhain type: TNC 426 workpiece weight: 12500 kg : 720 radial face slide travel: 240 mm total power requirement: 90 kW weight of the machine ca.: 26,3 t dimensions of the machine ca.: 6,5x5x5x4 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further of ...

spindle diameter: 125 mm spindle travel: 1130 mm column travel: 6000 mm headstock travel cross: 1700 mm column travel on cross-slide: 400 mm spindle speeds: 2,24 - 450 (27x) U/min volt: 380 V total power requirement: 14 kW weight of the machine ca.: t dimensions of the machine ca.: m Facing head D.R.O. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 125 mm spindle travel: 1000 mm column movement horizontal: 7000 mm headstock - vertical: 2500 mm/min cross travel column: 450 mm taper ISO: ISO 50 P.D.B. total power requirement: 25 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 5000 mm y-travel: 3000 mm control: Heidenhain TNC 426 taper ISO: 50 P.D.B. w-axis: 900 mm z-travel: 500 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 125 mm x-travel: 2800 mm y-travel: 2000 mm z-travel: 2500 mm number of spindle speeds: 3,55 - 710 (27x) taper ISO: 50 voltage: 400 V total power requirement: 18,5 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

UNION BIELEFELD WSF 41300 Find more here - / Contact us at -

Tip height: workpiece or grinding diameter 500 mm centre distance: approx. 2000 mm maximum workpiece weight: 1200 kg wheel dimensions: 600 Ø x 300 mm wheel speeds: 965 RPM elect. Supply: 380 V, approx. 15 kW space: 2300 x 9000 x 2000 mm weight: 13000 kg

x-280 ,y- 200 , Z 315 , Table dimensions 380x380/250x500 A lot of writings,much more than pictured

spindle diameter: 130 mm x-travel: 3500 mm y-travel: 2000 mm w-axis: 900 mm taper ISO: 50 total power requirement: 18,5 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Post welding wire and electrodes approx. 1,000kg New, unused, original packaged. Posten Welding accessories consisting of Welding dredging roller for inert gas welding machine MIG MAG Predominantly welding wire diameter 1.2mm, per roll 15kg z.B. Union A 600 IG Various electrodes e.B. Nickel A Originally packed in a cardboard box and sealed by welding in kunsstof film. Special price

Layer-reeled solid wire for welding under inert gas in all positions. Shielding gas types: Ar, CO2 / Ar, CO2, O2 / CO2. Welding wire roll MAG wire electrode, unused, original shrink-wrapped in foil, ovp in cardboard! 15kg 1.2mm Manufacturer Union Type A600IG Probably for deposition welding Multiple available. For complete acceptance special price! Special price!

spindle diameter: 90 mm x-travel: 1000 mm y-travel: 1200 mm z-travel: 1200 mm feed movement: 710 mm spindle taper ISO: 40 turning speed range: 8 - 1600 U/min table-size: 1120 x 1000 mm table rotating: 360 ° table load: 2,5 t total power requirement: 11 kW weight of the machine ca.: 10 t dimensions of the machine ca.: 4,5 x 3,3 x 3 m separate switchboard, rapid feed, some tool holders, without face plate The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

workpiece length: 3250 mm swing diameter: 630 mm grinding wheel diameter: 900 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Serveral Steadies Dresser Cooland System The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 90 mm x-travel: 2000 mm y-travel: 1250 mm z-travel: 1250 mm spindle turning speed range: 8-1600 U/min spindle stroke: 720 mm Feed: 1-2500 mm/U weight of the machine ca.: 9,1 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 150 mm x-travel: 2005 mm y-travel: 1860 mm z-axis: 1620 mm w-axis: 706 mm control: Siemens 840 C SW5.1 turning speeds: 2500 U/min surface area: 2500 x 2000 mm spindle taper ISO: 50 total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m SK50 tool holder The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 150 mm x-travel: 2500 mm y-travel: 1600 mm z-travel: 1000 mm spindle taper ISO: 50 turning speeds: 4-1120 U/min Feed: 5-2000 mm/min bore spindle stroke: 580 mm main drive motor: 45 kW table surface area: 1600x2000 mm table load: 12,5 t Control: Heidenhain type: TNC 410 Angle head: chip conveyor: workpiece weight: 15000 kg total power requirement: 80 kW weight of the machine ca.: t dimensions of the machine ca.: 6,5x5x5x4 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

TIG welding machine, welding machine, TIG welding machine -WIG welding machine direct current -Max. Welding power: 400 A. -Water-cooled -Incl. Ground cable -Gas valve -Dimensions: 610/1140/H930 mm -Weight: 310 kg

Wire electrode, SG2 welding wire, welding wire -Net weight: 15 kg -Number: 26x package available -Price: per package -Weight complete: 15.6 kg/package

Wire electrode, SG2 welding wire, welding wire -Net weight: 15 kg -Number: 1x package available -Price: per package -Weight complete: 15.6 kg/package

grinding diameter: 1400 mm grinding length: 3500 mm centre height: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 1310013 Type of machine Super finishing machine Make NAXOS UNION Type WT 140/3500 Build in 1975 Max. grinding diameter 1400 mm Max. grinding length 3500 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 1200 , 800

Clamping table in absoult as good as new condition! (Distort pictures, but table is straight!) The table comes from the area of a turbine assembly and is in top condition! Metrics: Width 1.200mm Depth 800mm Height 800mm Weight 700kg Number of T-slots 7 pieces T-slot table

The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2000 mm table width: 1800 mm table load: 12,5 t Travel: 1250 mm width of T-slots: 28 mm T - slots distance: 160 mm total power requirement: 6 kW weight of the machine ca.: 9,2 t dimensions of the machine ca.: 3,7x2,1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 2750 mm y-travel: 2500 mm z-travel: 1050 mm w-axis: 1000 mm Radial face slide diameter: 800 mm radial face slide travel: 240 mm table surface area: 1800x2000 mm turning speeds: 4,8-900 U/min workpiece weight: 8000 kg faceplate speeds from - to: 4,5-180 U/min Feed: 5-2000 mm/min threading: total power requirement: 40 kW weight of the machine ca.: 37 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

2007 Union Bielefeld BF 400 U2 Bed milling machine. Mechanically it is completely fine, but there is a defect in the control system. no Machine is no longer used at all. All motors are running and mechanically everything is fine. I can´t say what exactly is wrong with the control system. Find more here - / Contact us at -

spindle diameter: 125 mm x-travel: 1.500 mm y-travel: 1.250 mm z-travel: 1.000 mm w-travel: 550 mm table surface area: 1.000 x 1.250 mm workpiece weight: 6.000 kg quill stroke: 550 mm tool taper: ISO 50 number of spindle speeds: 5-3.700 U/min. max. torque: 2012 Nm feed speeds: 1-6000 (x-Achse) mm/min feed speeds: 1-6000 (y-Achse) mm/min feed speeds: 1-6000 (z-Achse) mm/min rapid traverse x/y/z: 15/ 15/ 15 m/min dimensions of the machine ca.: 7,51 x 5,07 x 3,33 m : 63 kVA Equipment/ Accessories: - CNC control Siemens 840 D - 60 ATC - Coolant system with high-pressure pump 30 l/min.- 20 bar - documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 110 mm weight: ca. 130 kg Used spindle support for a Table Type Borer, for example UNION BFK with 110 mm spindle dia. Good condition ! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): / mm x-travel: 1750 mm y-travel: 1250 mm z-axis: 1250 mm total power requirement: kW weight of the machine ca.: 13 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table-size: 1800 x 2000 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- Fixed steady rest 4 units - Fixed table dresser for stone dressing - Face plate head and rear support ca 800 mm - Stone grinding speed 27-24 M/Sec - Coolant and filtration system - In feed stone 0,0025 mm - Acurite Dro with Heidenhain scales - Maximum segment wheel 1600 mm

x-travel: 3000 mm y-travel: 2000 mm z-travel: 1600 mm spindle diameter: 150 mm spindle taper ISO: 50 spindle stroke: 700 mm spindle turning speed - stepless: 5 - 2500 U/min rapid traverse: 10000 mm/min table surface area: 1600 x 2000 mm workpiece weight: ca. 20 t spindle drive motor: 50 kW feeds x/y/z -stepless: 1 - 9999 mm/min table positioning: 360.000 ° total power requirement: ca. 70 kW weight of the machine ca.: 40 t dimensions of the machine ca.: 6,0 x 8,0 x 4,5 m Horizontal drilling and milling machine / machining centre in cross-table design with: 2005 new 5-axis CNC control Dr. Heidenhain TNC 430 - electronic handwheel HR 410 for all axes with V24 interface, punched tape reader, new electrics, new hydraulics, new servo motors, measuring probe for workpiece measurement - 60-position chain tool changer model WM III k02 - B-axis (table rotary adjustment) 360,000 ° - IKZ - interna ...

centre distance: 2.500 mm centre height: 250 mm grinding wheel diameter: 600 mm Total travel of the grinding support: 320 mm spindle speeds: 50 - 450 mm tool adaptor: MK5 tail stock: MK Cylindrical Grinding Machine | NAXOS-UNION - W-500 the cylindrical grinding machine was overhauled in 2017 by KPS-Schleiftechnik (RETROFIT – see order confirmation). The machine is in a well-maintained condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: W-500-2500 | W500 | W 500 | W 500 2500 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 6500 mm y-travel: 2000 mm z-travel: 900 mm W-axis (spindle longitudinal): 800 mm spindle motor: kW spindle turning speed range: 5 - 1000 U/min total power requirement: 30 kW weight of the machine ca.: 35,5 t dimensions of the machine ca.: - m - Spindle mount: SK 50 - Table size: 1800 x 2000 mm,10t - Angle head - Faceplate with faceplate slide U: 320 mm, - Heidenhain digital Readout, - Counterholder - 2 plate fields The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: - mm x-travel: 1600 mm y-travel: - mm total power requirement: - kW weight of the machine ca.: 13,7 t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 2800 mm y-travel: 1000 mm z-travel: 1200 mm table surface area: 2000 x 800 mm rotary table dia.: 800 mm spindle taper: SK 50 spindle turning speed - stepless: 50 - 2000 U/min max. torque on the spindle: 3000 Nm spindle drive: 30 kW feeds longditudinal/cross/vertical: 2 - 2000 mm/min rapid motion -longitudinal/cross/vertical: 7 m/min control: SIEMENS control: SINUMERIK 850 M no. of tools in magazin: 56 workpiece diameter at full load: 114 mm wotkpiece diameter with 2 vacant positions: 200 mm workpiece length: 400 mm weight of tools max.: 16 kg tool changing time: ca. 8 - 9 sec internal coolant system feed: ja / yes total power requirement: kW weight of the machine ca.: 25,4 t = 5-axis CNC-bed-type milling machine with integrated NC-rotary table and NC-swivelling milling head - Acc.: tool pre-setting device, various tool fixtures, chip conveyor, coolant with high pressure pump ...

workpiece length: 2700 mm swing dia.: 630 mm clamping length: 2700 mm stroke position adjustment: 40-130 mm grinding wheel diameter: 1000 mm total power requirement: kW weight of the machine ca.: 18,5 t dimensions of the machine ca.: 9x4 m cyclic control CNC / Simatic S7-300 steady rest hydraulic pre-positioning manual fine tuning (Vertical u. Horizontal) grinding wheel flanges rough turning fixture Radial- and side turning fixtures manual Radius turning fixture filtering system Polo inclined bed filter SB-A0.4 manufactured in 2012 grinding wheels storage system for 8 grinding wheels diverse machine tools steady rest jaws diverse irrigation nozzle (workpiece cooling) washer cover with edge lavage Indexierledges for quick workpiece slide position lifting device for grinding wheels manipulation diverse spare parts sliding cover left and right diving plate and clampinserts The tech. Data a ...

Boring power:10 mm weight:590 kg connected load:2 kW dimensions::1500 x 1300 x 2300 mm

Shell end mills, shell mill cutters, milling cutters, disc milling cutters, slot milling cutters -Disc milling cutter: 105 x 19 mm, cross-cut -Socket: Ø 27 mm -Weight: 0.8 kg

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

SCHARMANN HEAVYCUT 2 WFT 150 CNC Floor type Boring Mill Year 1978 Spindle Diameter: 5.9" (150mm) Milling Spindle Diameter: 11.02 (280mm) Spindle Taper: CAT 50 Ram Cross Section: 11.81" x 11.81" (300x300mm) Vertical Head Travel, Y-Axis: 137.79" (3500mm) Column Travel, X-Axis: 712.59" (18000mm) Quill Travel, Z-Axis: 23.43 (595mm) Ram Travel, W-Axis: 27.6" (700mm) Z & W Axis, Combined: 51.03" (1296mm) Spindle Speeds: 5.5-1000 RPM Spindle Feed Range: 0.003-240 IPM Rapid Traverse: 396 IPM Spindle Motor: 70 HP/ 105 HP EQUIPPED WITH: Heidenhain TNC 407 CNC Controls Ram and Spindle Travel Sliding Way Covers On X-Axis Bed Right Angle Head With 1 Degree Manual Indexing Hardened Ways Re-pained recently

Key data: 100 mm, 1600 mm, 1250 mm

DRO , TABLE 1250 X 1250

Control system Heidenhain TNC 415 Spindle diameter 130 mm Tapered hollow spindle ISO 50 Spindle speed range 10 to 1500 rpm Table transverse (X): 3500 mm Rolling headstock stand for (Y): 2000 mm Longitudinal displacement rack (W): 1250 mm Eject working spindle (Z): 800 mm Table load 12 000 kg Machine weight: 36 000 kg

TOS WHN 130 MC used machine Specifications System Heidenhain TNC 426 Working range Spindle diameter 140 [mm] Taper in the spindle ISO 50 Table transverse adjustment (X) 3000 [mm] Vertical headstock adjustment (Y) 2000 [mm] Vertical travel (Z) 1250 [mm] Spindle stroke (W) 560 [mm] 2X Clamping surface 1800 x 1600 [mm] Speed range 10 - 2500 [rpm] Main motor output 37,0 [kW] Max. workpiece weightƒ 8000 [kg] Accessories Tool changer for 60pcs Tool cooling Chip conveyor

Technical data Spindle dia 125mm ISA 50 taper stroke of the spindle 800 mm cross travel of table X 1200 mm vert. travel of headstock Y 1400 mm longit. ztravel of the table Z 1620 mm spindle speed infinitely variable 3,5-700 rpm table size 1200 x 1400 mm table load 6000 kg main motor DC 19 kw total input 22,79 kW spindle feed inf. variable 0 - 1,25 mm/rot working feeds inf. variable 0,3 - 1700 mm/min rapid traverse 2250 mm/min fine feed 3mm/min dimension LxWxH 7,4 x 4,8 x 3,6 m weight of the machine 21000 kg DRO Heidenhain

Skoda W 160 H/NR CNC Travel x= 14.500mm (bed is for the travel 18,500mm) Travel Y= 3.150mm Travel Z= 1.600mm Travel W= 1.250mm Spindle diameter 160mm Machine with ball screw Many accessories available: CNC control Siemens SINUMERIC 850 Rotary table ISO 16 2.200 x 2.200mm, capacity 16 ton included Chip conweyor : 19.000 mm + 12.000 mm Floor plates

W 200G with Siemens AC main motor. modernized the main drive by instalation of Siemens AC motor with SIMODRIVE 611. Original built ISO 60 taper and 630 rpm Main data: X=8000 mm Y=4150 mm Z =1600 mm W=2000 mm Spindle dia 200mm ISO 60 spindle speed max 800 rpm Accessories: DRO Philips available as original rotary table E 20 extra cost milling head IFH 1 and IV25, IFW 1, IFW2 IFW 3 NO floor plates

W100A Parameters 100mm, 1600mm Diameter of working spindle 100 mm Taper in spindle morse 6. Longitudinal adjustment of table (z) 1450 mm Cross adjustment of table (x) 1600 mm Motion of work head on frame (y) 1120 mm Slip out of working spindle (w) 900 mm Clamping area of table 1250 x 1250 mm Dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14 000 kg Accessories: face plate, tail stock
